Acura RL (2006) – wiring diagrams – air bags

8 October 2017 admin Acura, RL 0

Acura RL (2006) – wiring diagrams – air bags

Year of production:  2006

Air bags

Version 1

Acura RL - wiring diagram - air bags (part 1)
Acura RL – wiring diagram – air bags (part 1)
Acura RL - wiring diagram - air bags (part 2)
Acura RL – wiring diagram – air bags (part 2)
Acura RL - wiring diagram - air bags (part 3)
Acura RL – wiring diagram – air bags (part 3)
Acura RL - wiring diagram - air bags (part 4)
Acura RL – wiring diagram – air bags (part 4)
Acura RL - wiring diagram - air bags (part 5)
Acura RL – wiring diagram – air bags (part 5)
Acura RL - wiring diagram - air bags (part 6)
Acura RL – wiring diagram – air bags (part 6)

Version 2

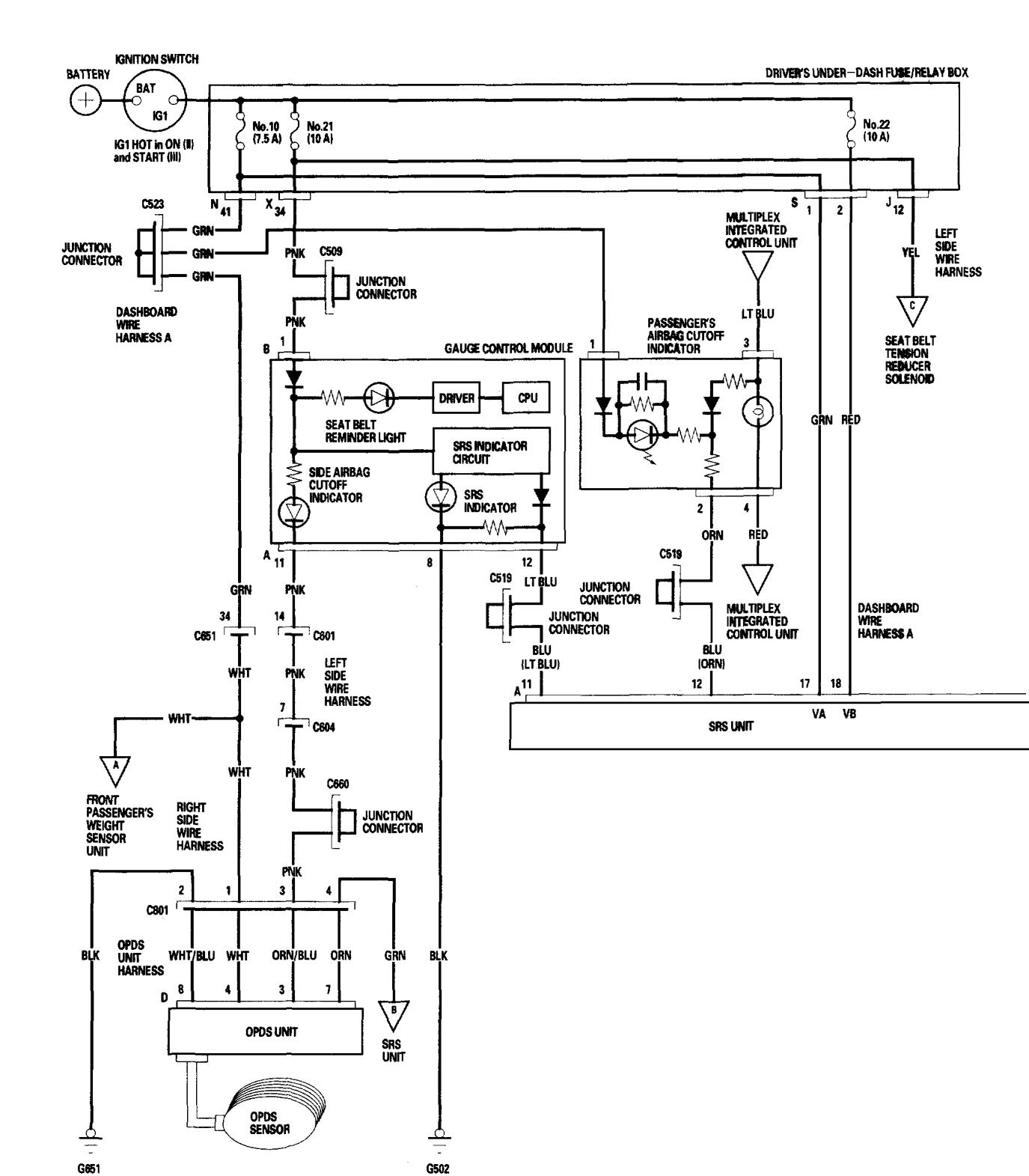

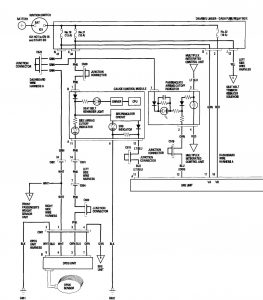

Acura RL - wiring diagram - air bags (part 1)
Acura RL – wiring diagram – air bags (part 1)

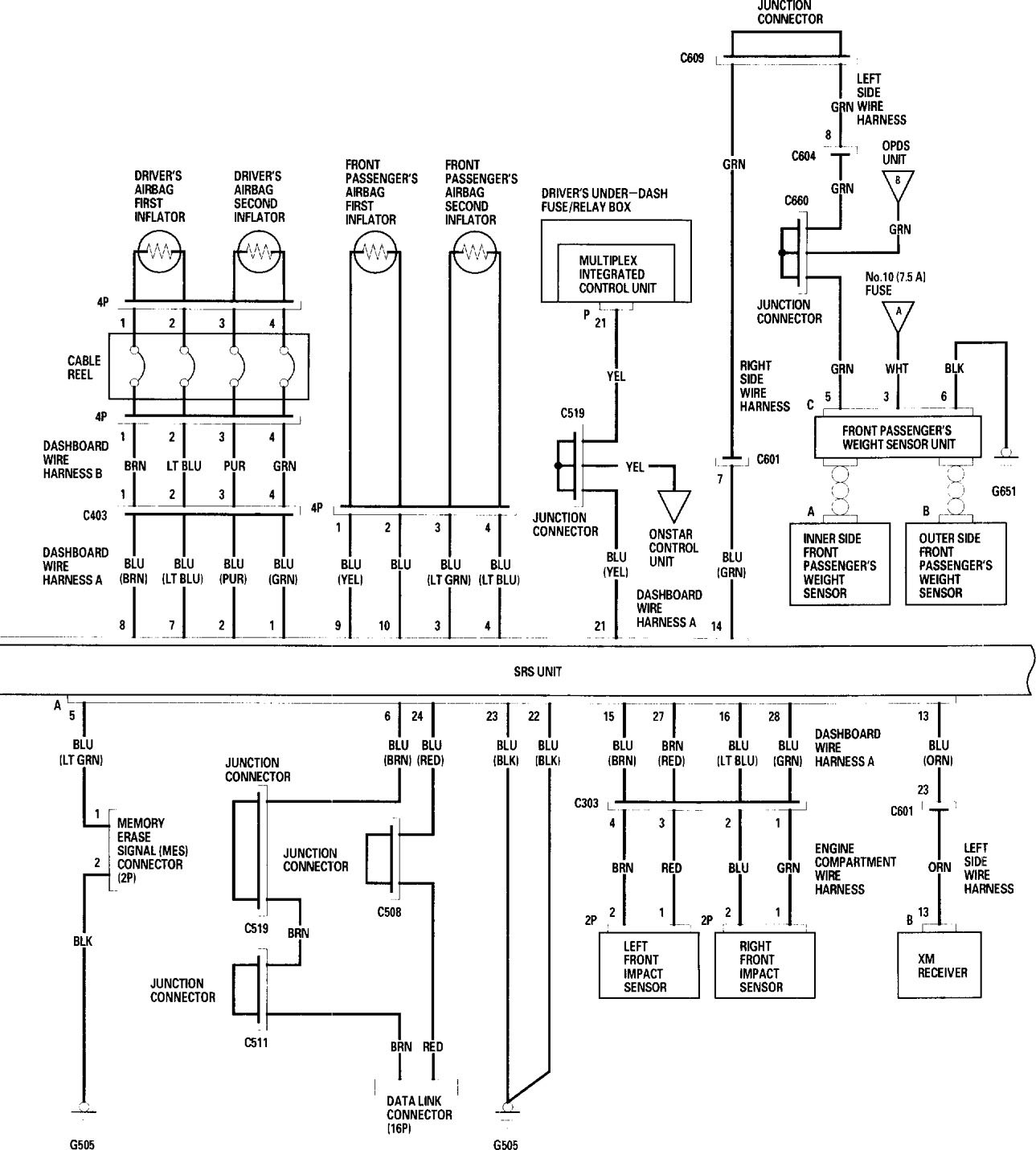

Acura RL - wiring diagram - air bags (part 2)
Acura RL – wiring diagram – air bags (part 2)

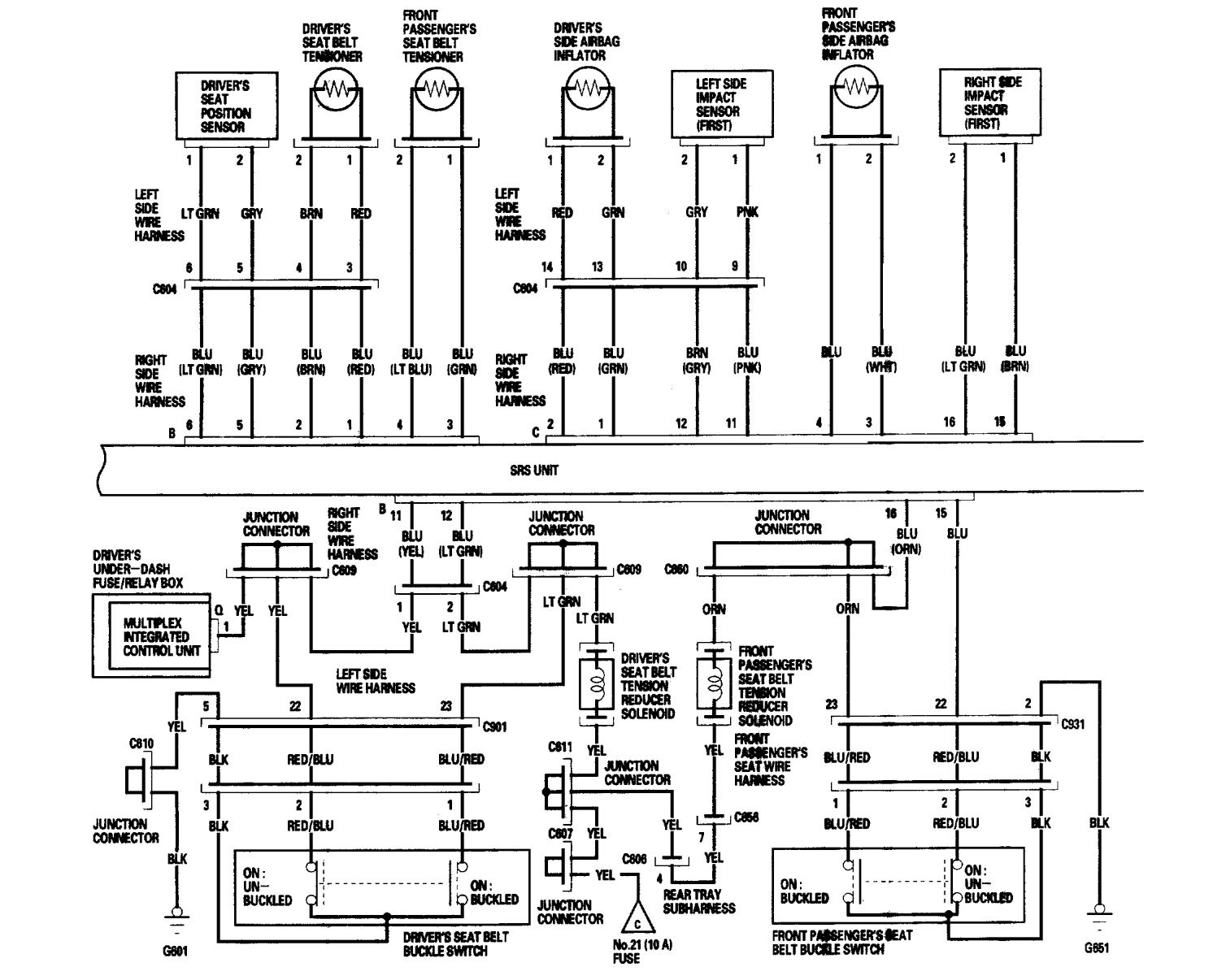

Acura RL - wiring diagram - air bags (part 3)
Acura RL – wiring diagram – air bags (part 3)

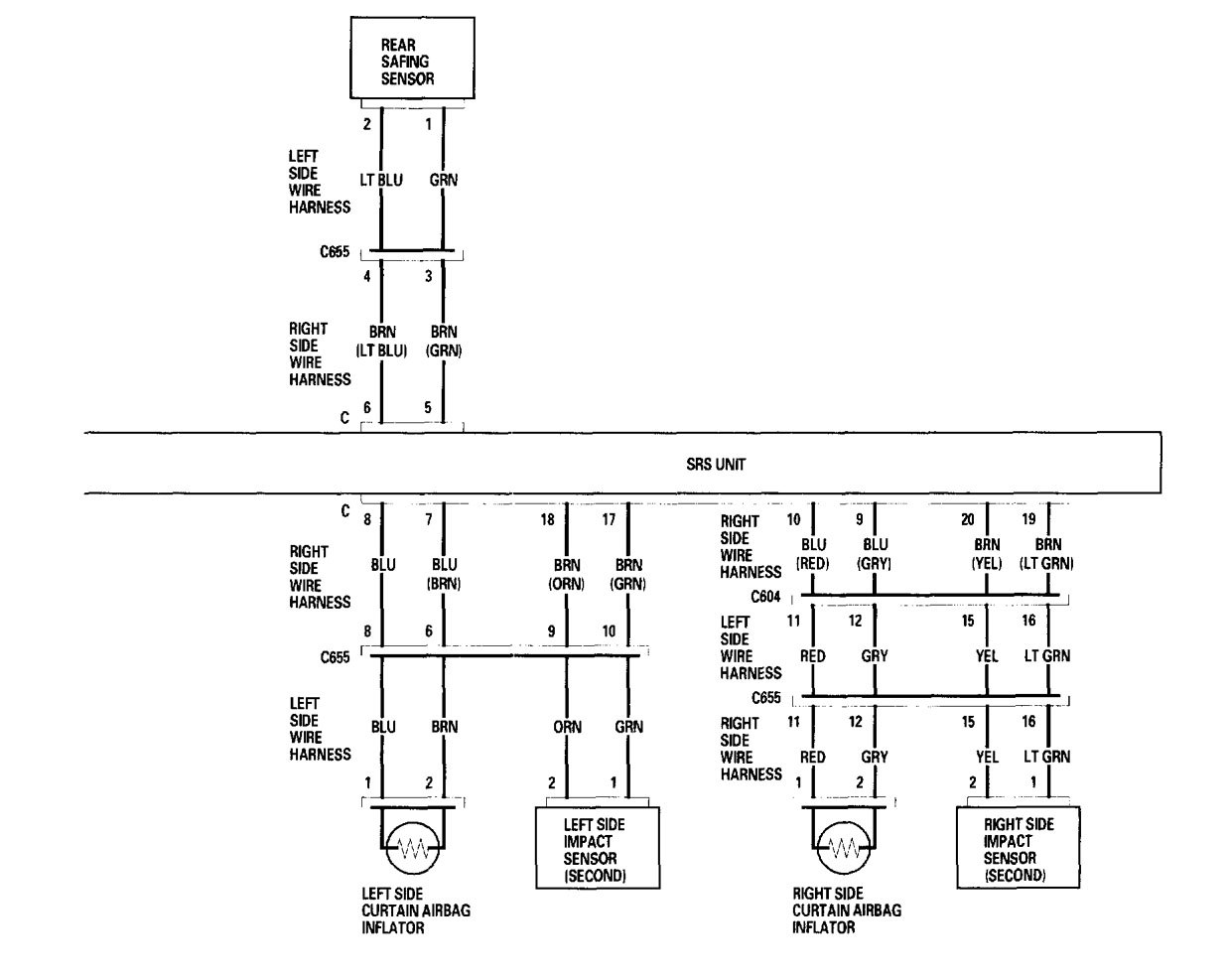

Acura RL - wiring diagram - air bags (part 4)
Acura RL – wiring diagram – air bags (part 4)

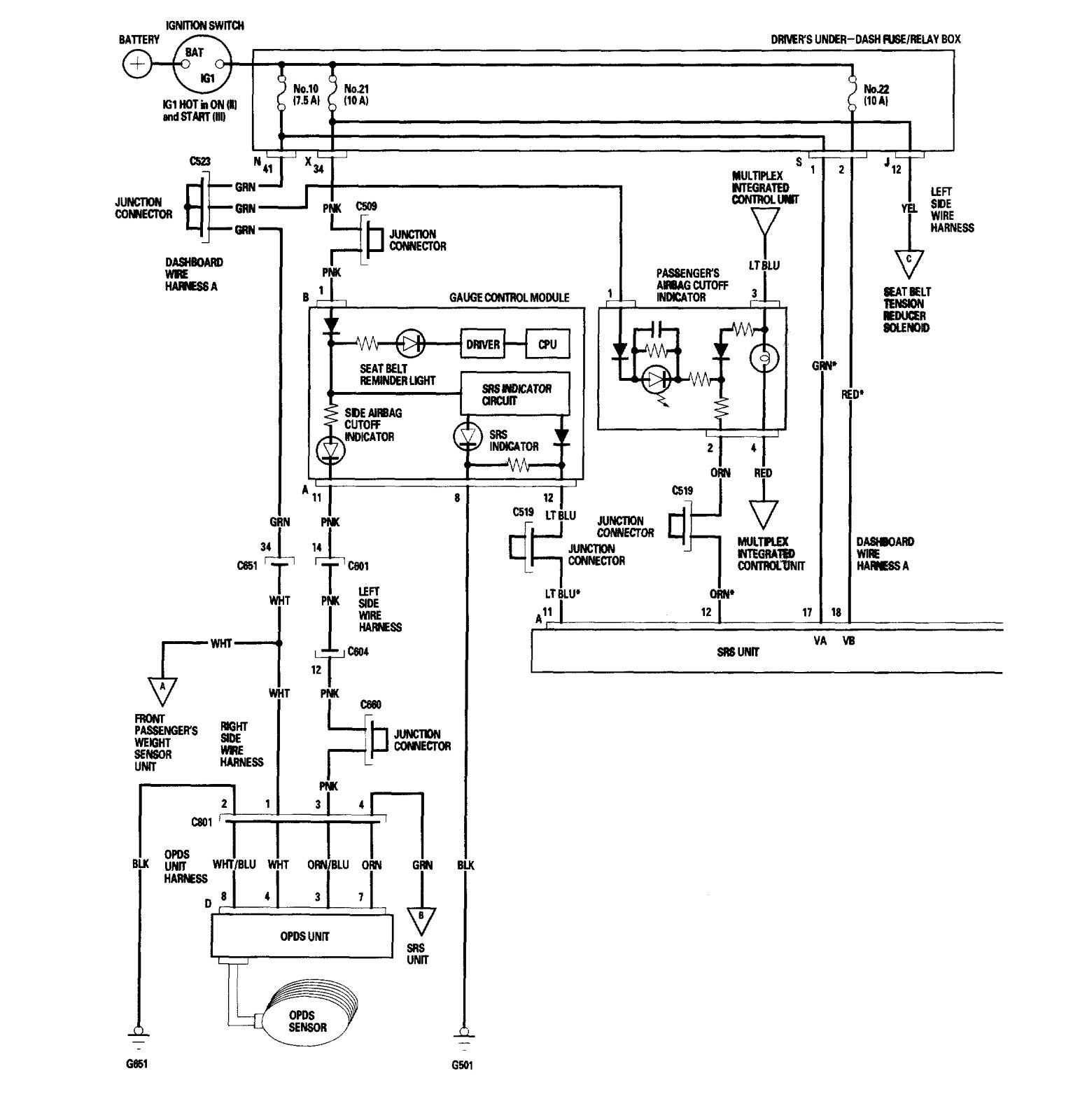

Acura RL - wiring diagram - air bags (part 5)
Acura RL – wiring diagram – air bags (part 5)

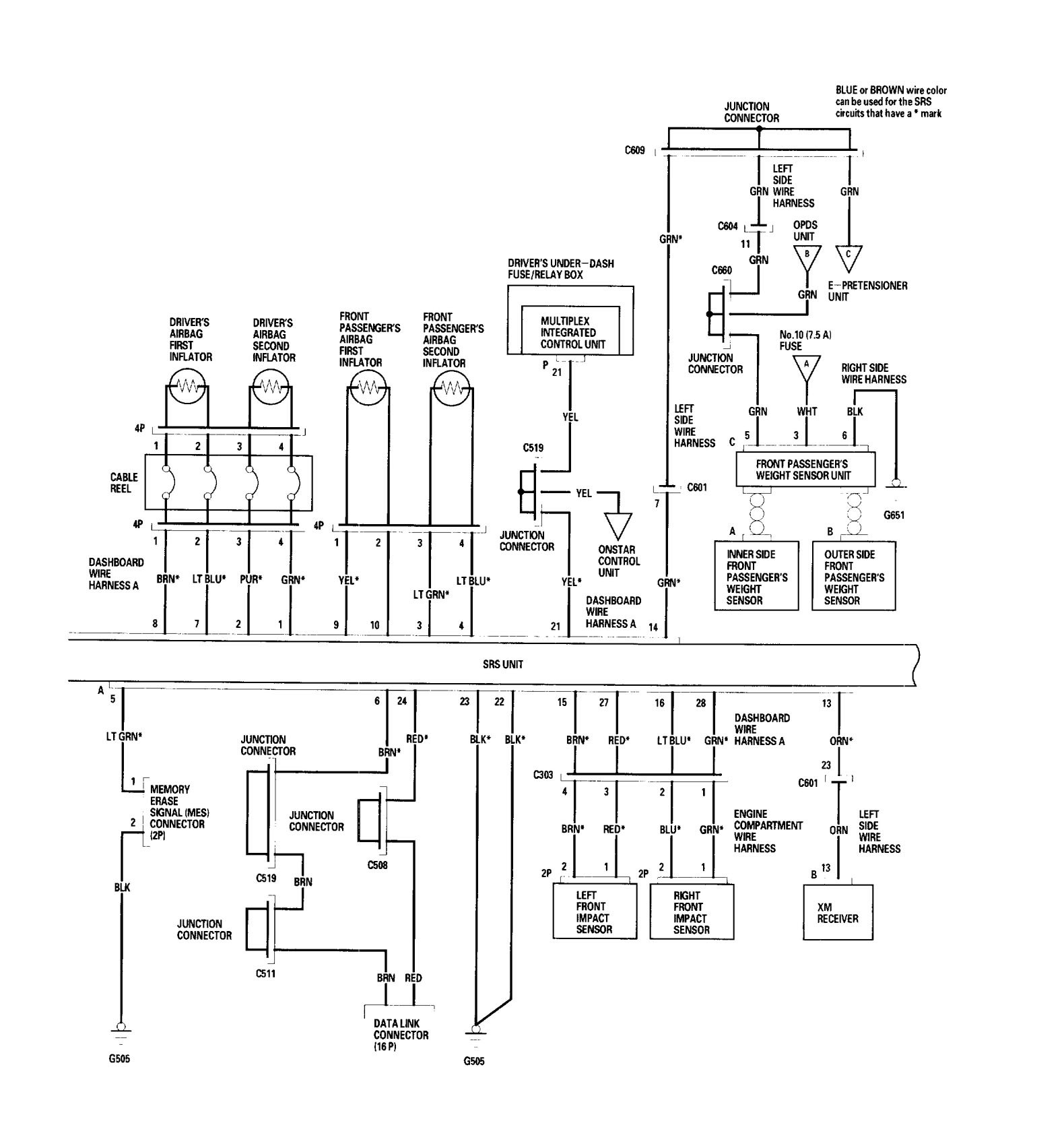

Acura RL - wiring diagram - air bags (part 6)
Acura RL – wiring diagram – air bags (part 6)

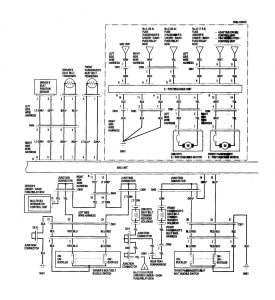

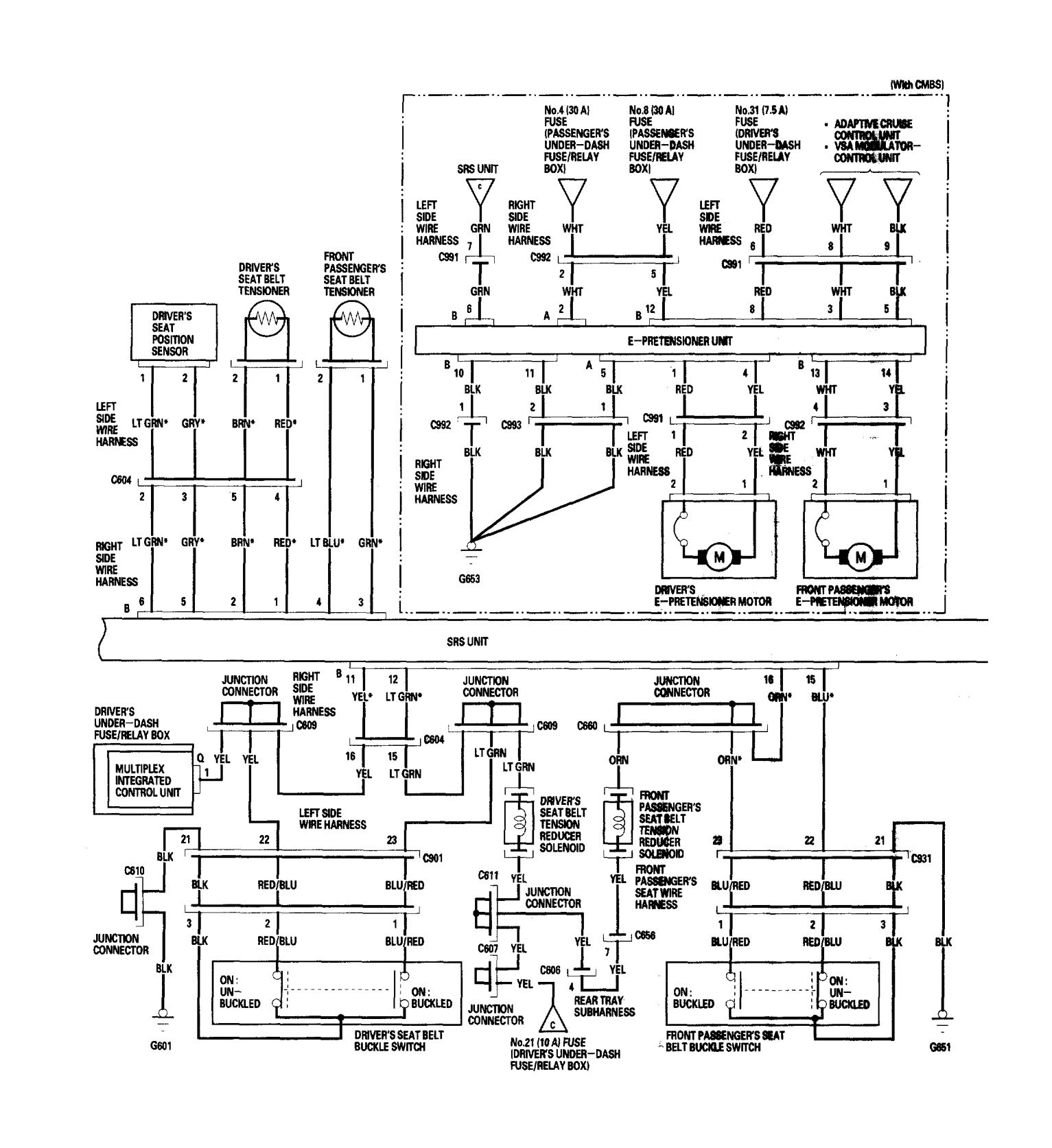

Acura RL - wiring diagram - air bags (part 7)
Acura RL – wiring diagram – air bags (part 7)

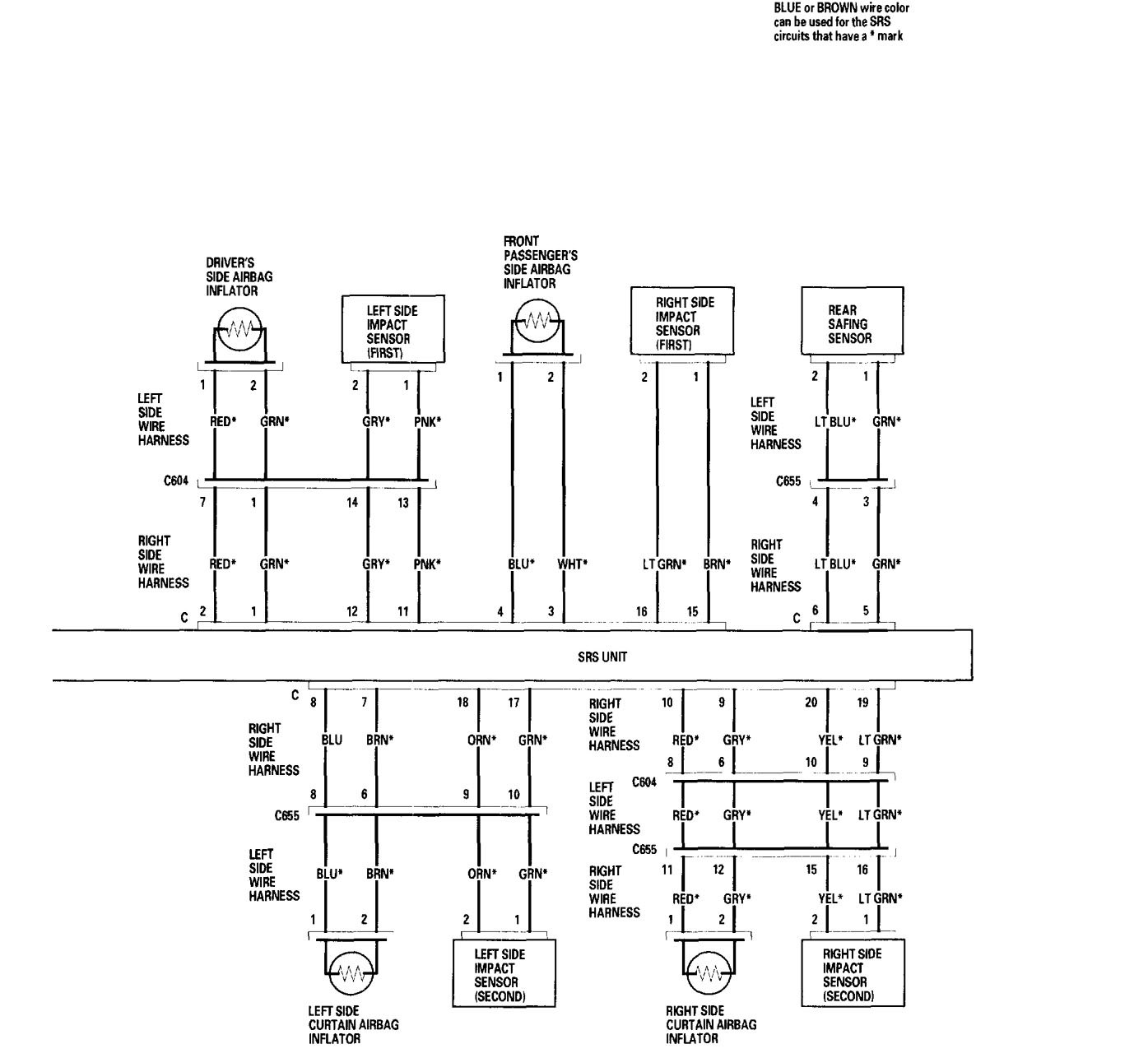

Acura RL - wiring diagram - air bags (part 8)
Acura RL – wiring diagram – air bags (part 8)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
