Year of productions:  2006

Automatic dimming mirror

Version 1

Acura RL - wiring diagram - automatic dimming mirror
Acura RL – wiring diagram – automatic dimming mirror

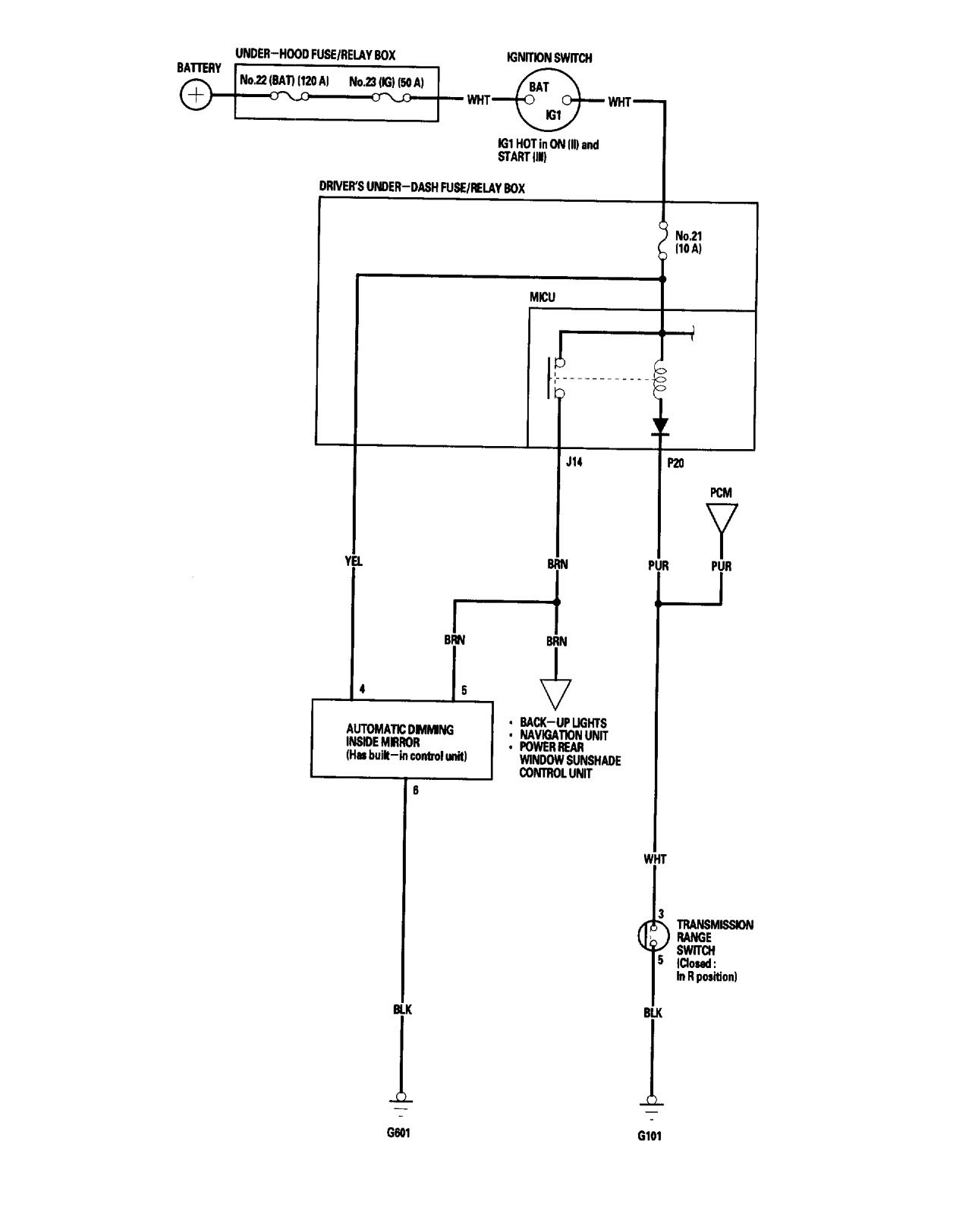

Version 2

Acura RL - wiring diagram - automatic dimming mirror
Acura RL – wiring diagram – automatic dimming mirror

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
