Acura RL (2006) – wiring diagrams – body control

30 September 2017 admin Acura, RL 0

Acura RL (2006) – wiring diagrams – body control

Year of productions:  2006

Body control

Version 1

acura-rl-wiring-diagram-body-control-1-2005

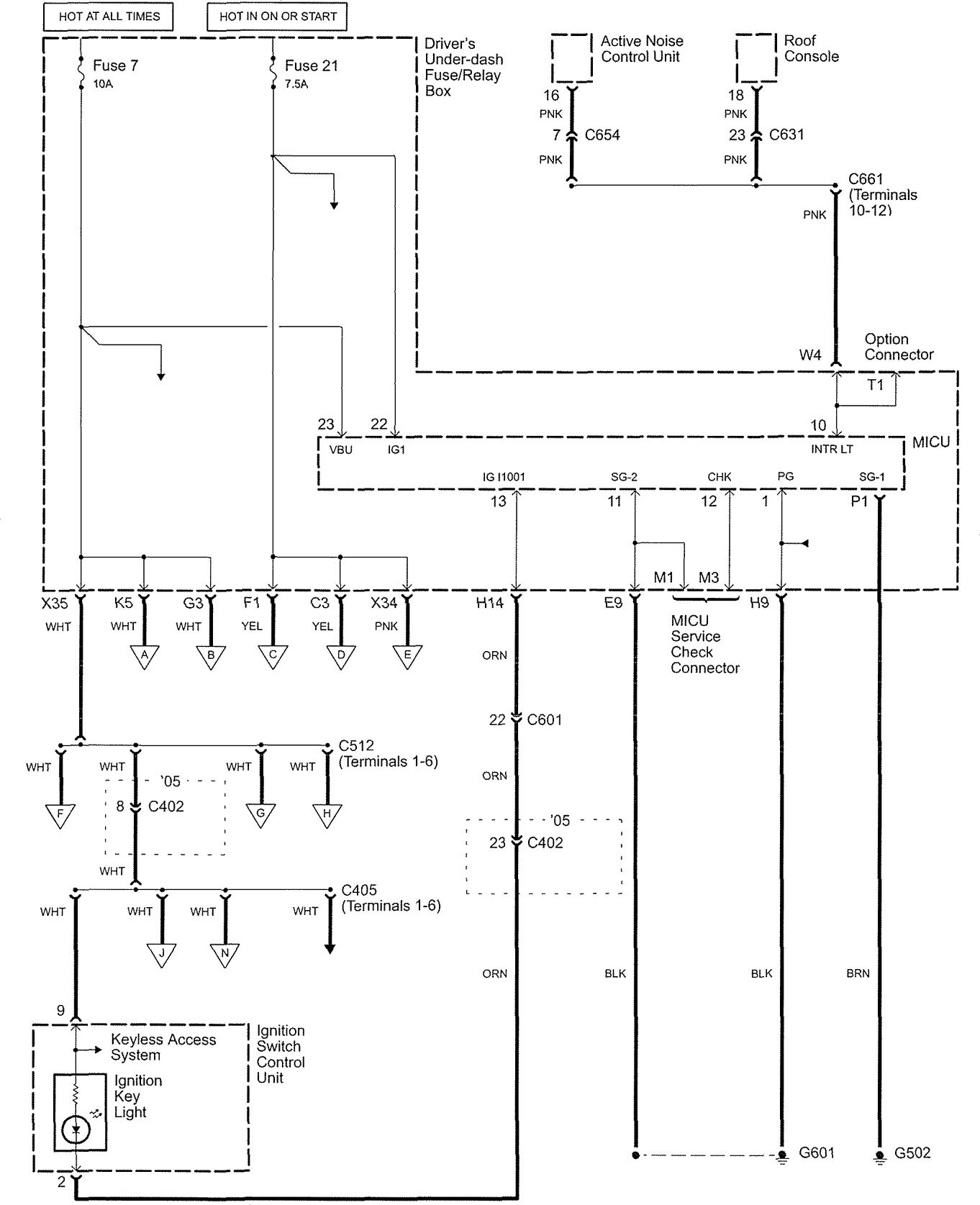

Acura RL – wiring diagram – body control (part 1)
Acura RL - wiring diagram - body control (part 2)

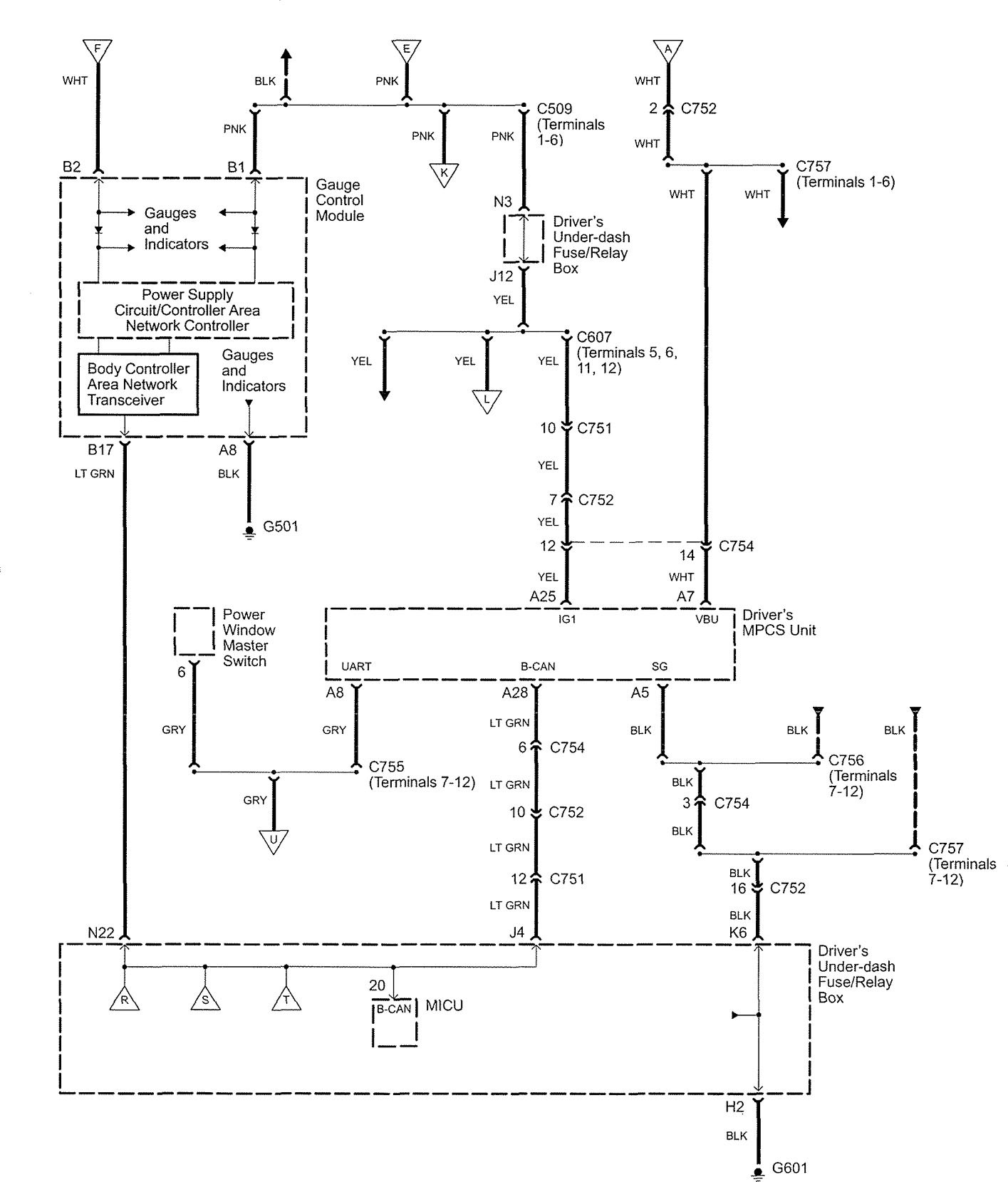

Acura RL – wiring diagram – body control (part 2)
Acura RL - wiring diagram - body control (part 3)

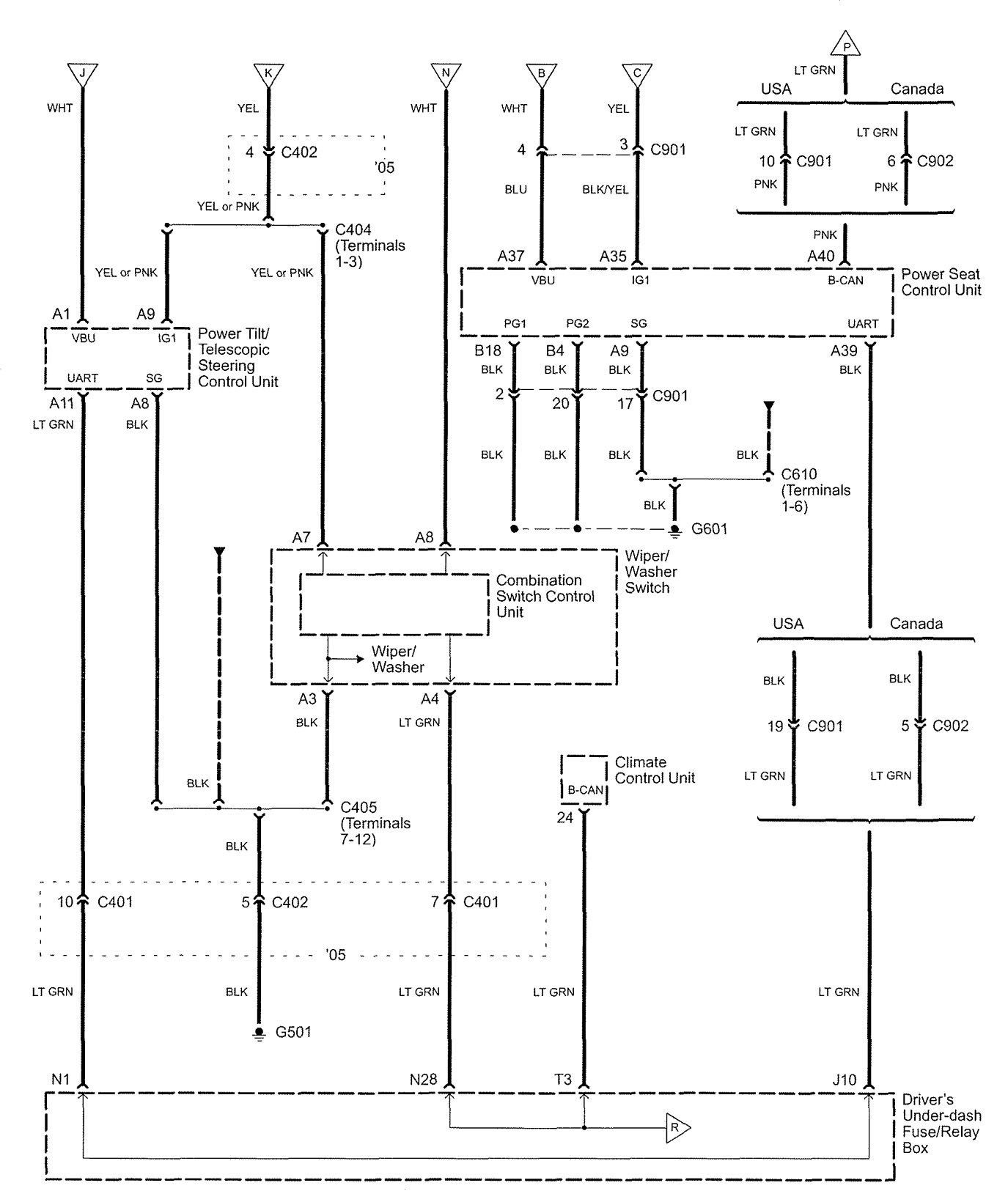

Acura RL – wiring diagram – body control (part 3)
Acura RL - wiring diagram - body control (part 4)

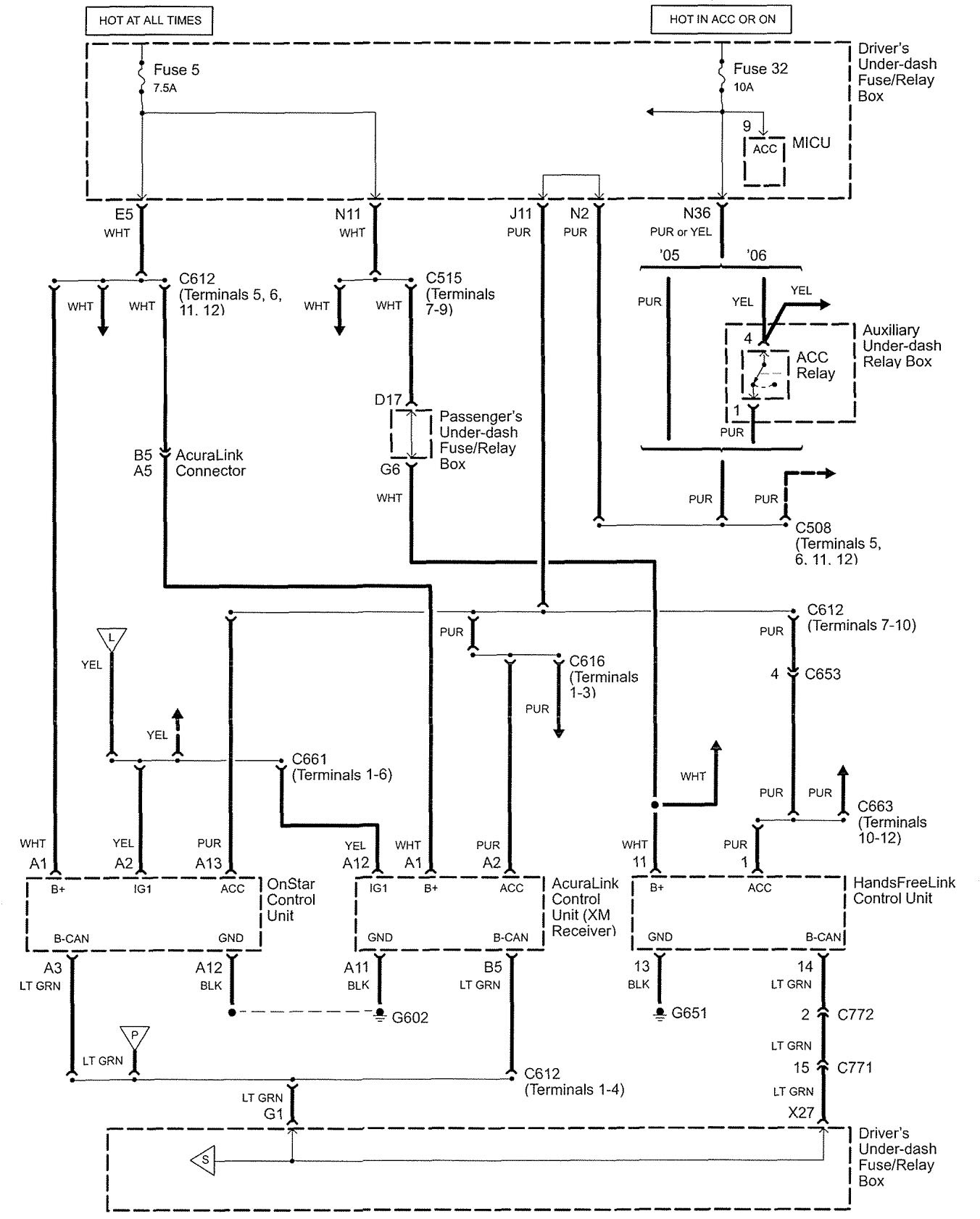

Acura RL – wiring diagram – body control (part 4)
Acura RL - wiring diagram - body control (part 5)

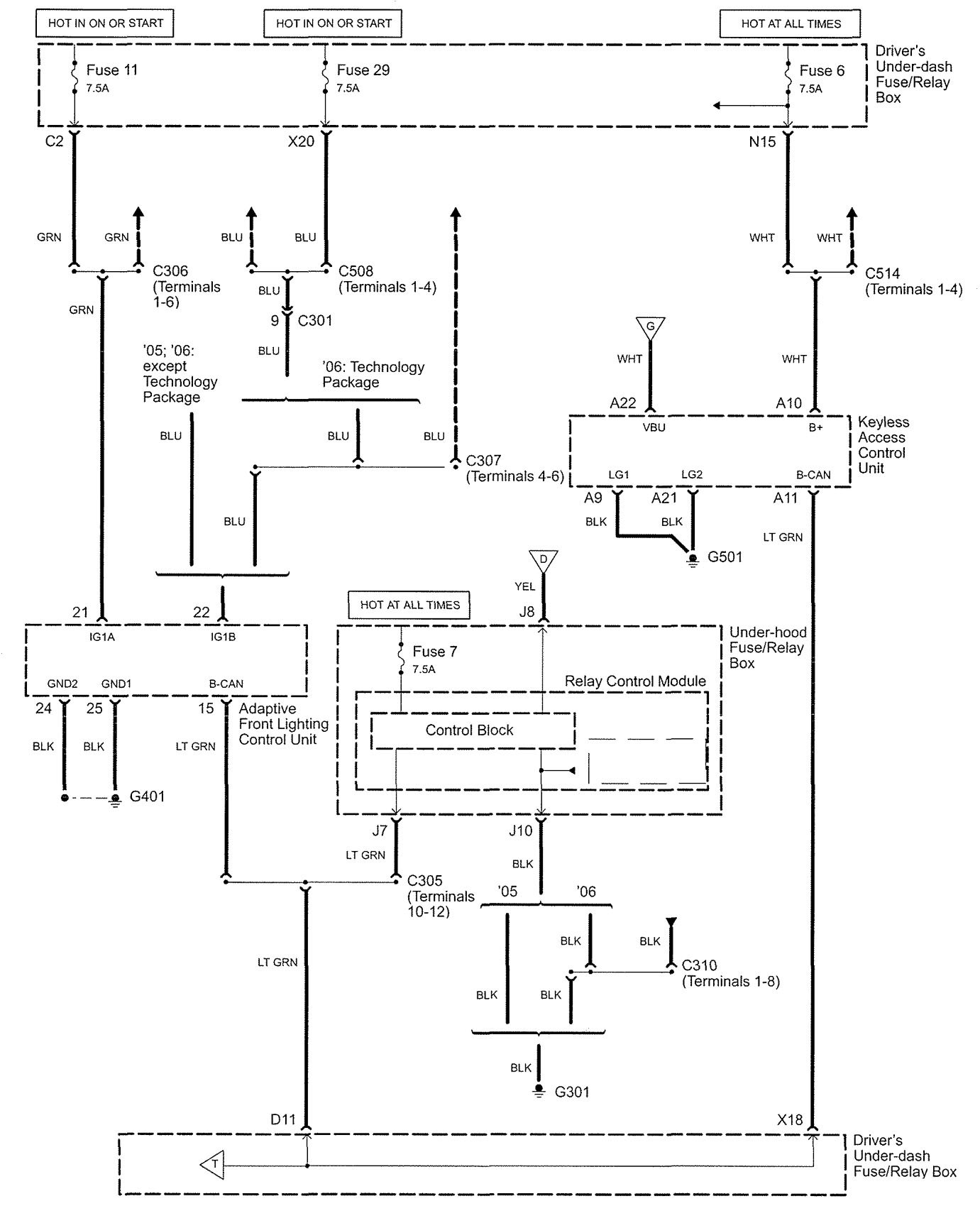

Acura RL – wiring diagram – body control (part 5)
Acura RL - wiring diagram - body control (part 6)
Acura RL – wiring diagram – body control (part 6)
Acura RL - wiring diagram - body control (part 7)

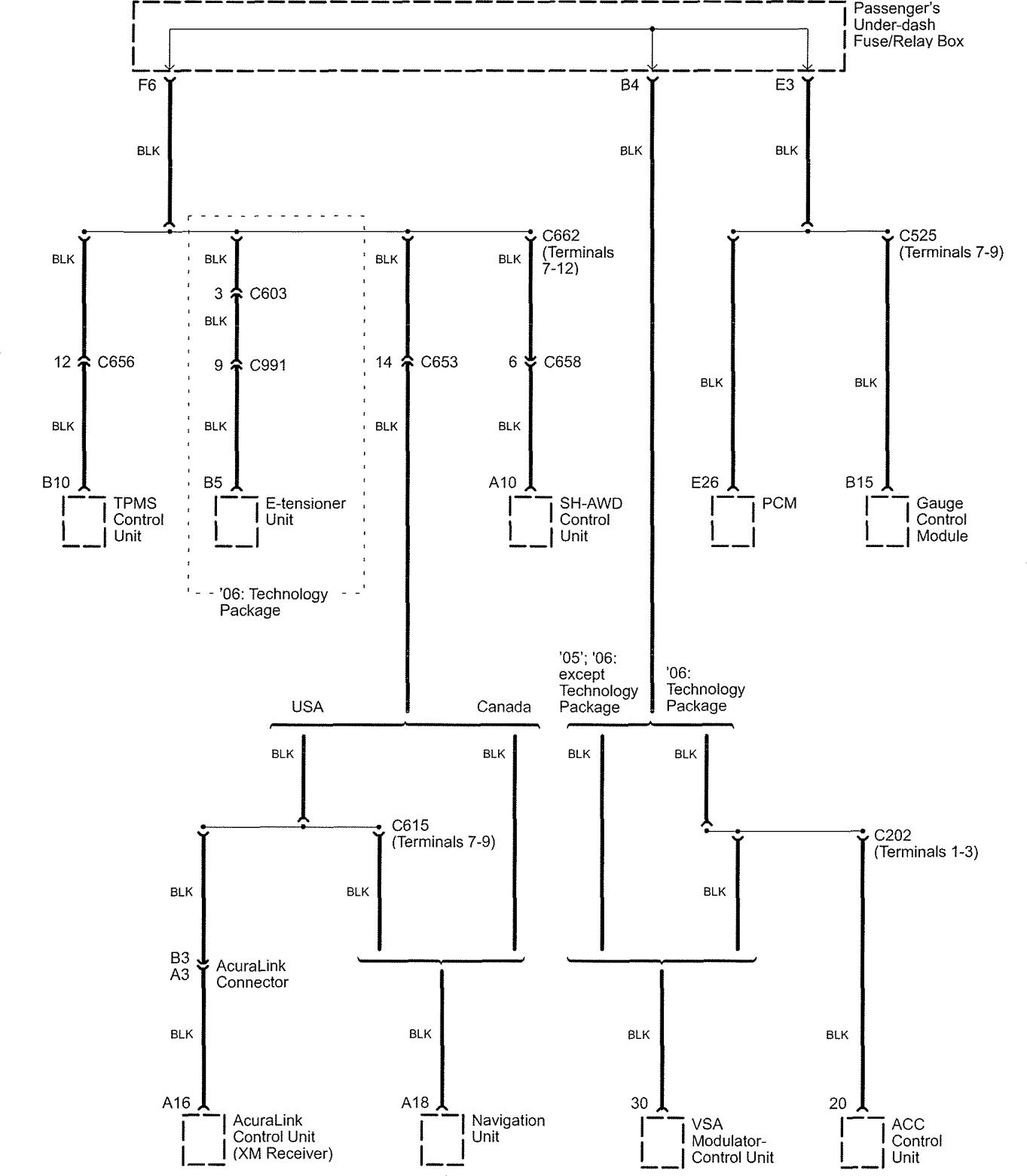

Acura RL – wiring diagram – body control (part 7)
Acura RL - wiring diagram - body control (part 8)

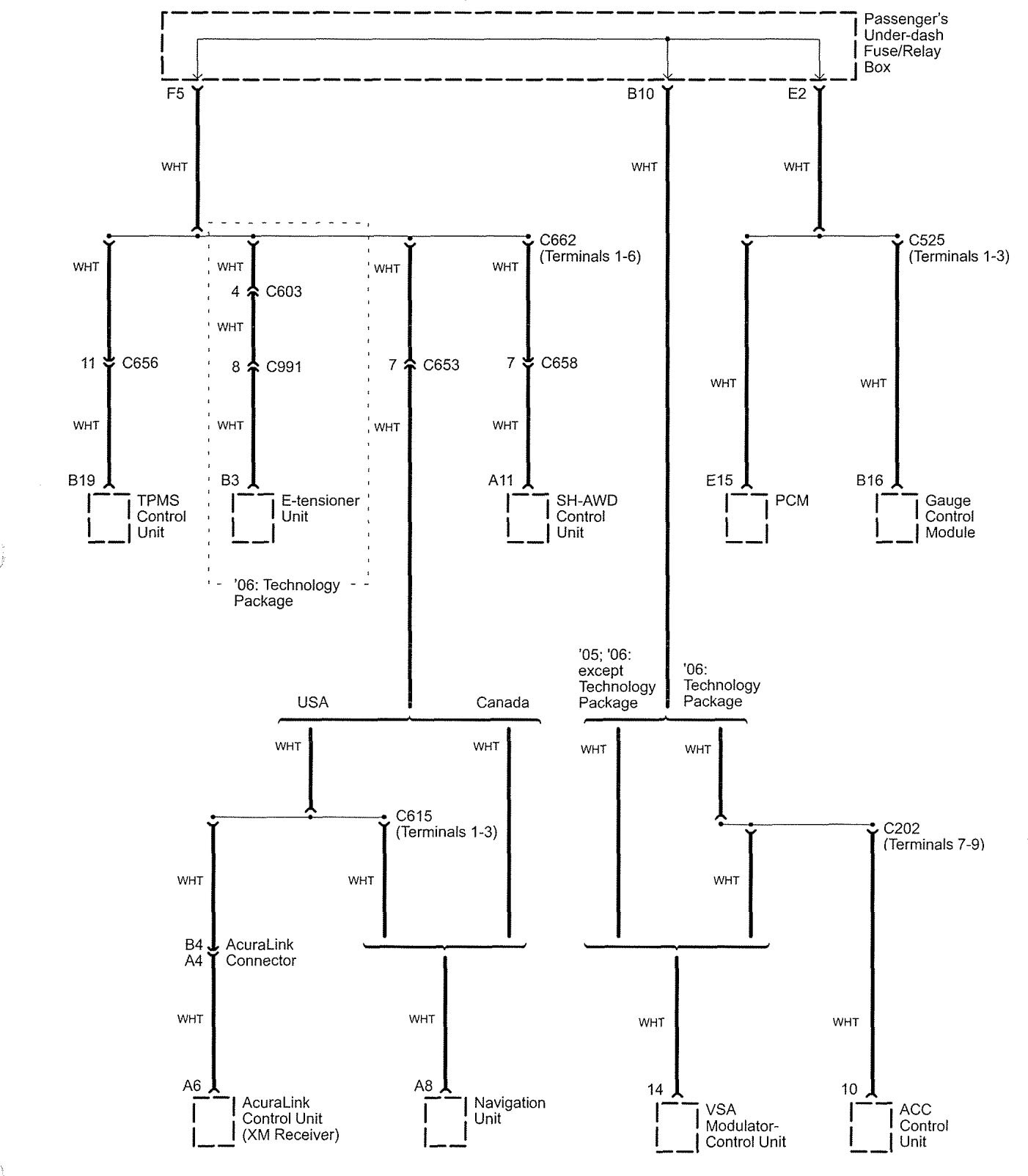

Acura RL – wiring diagram – body control (part 8)

Version 2

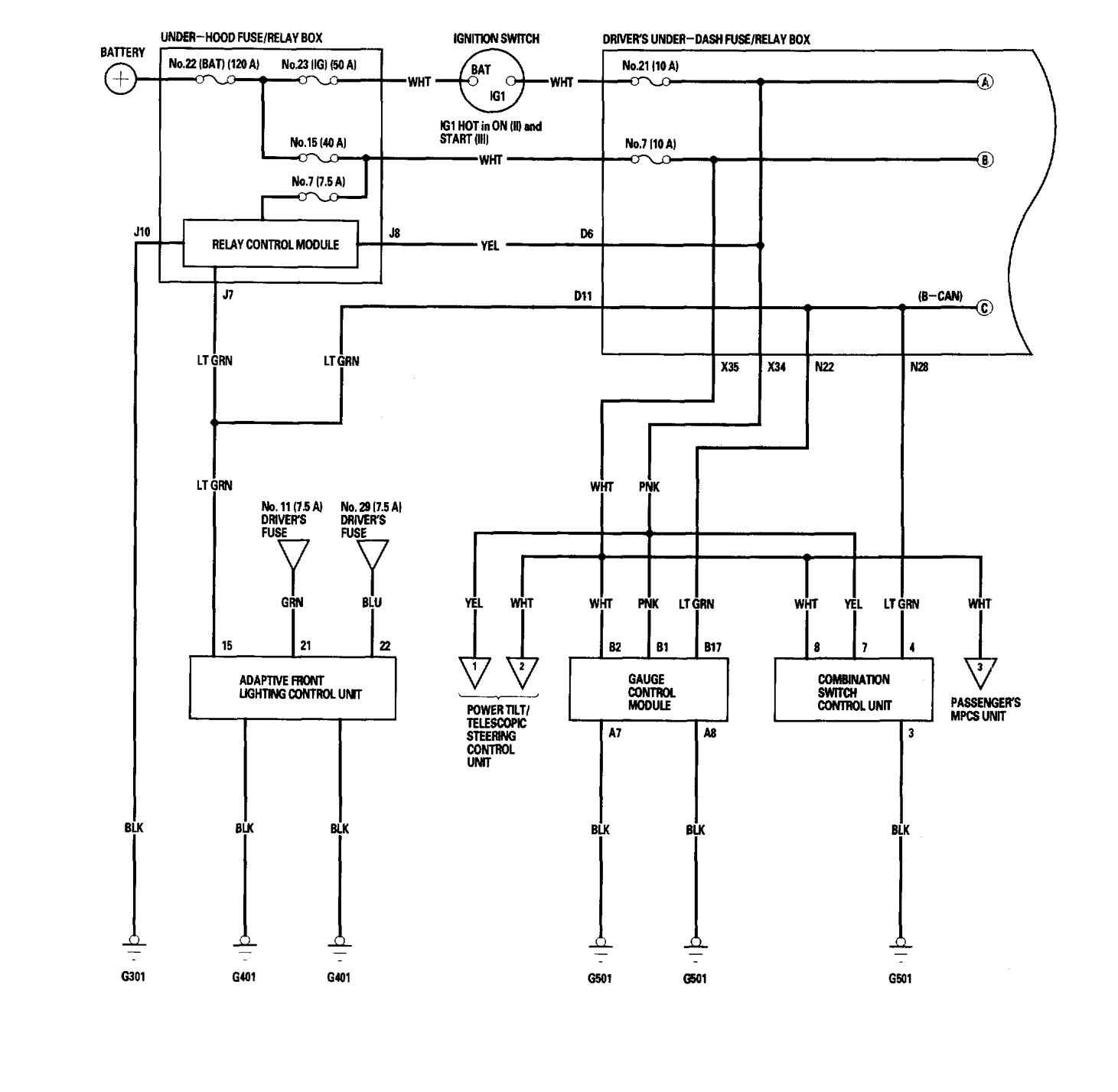

Acura RL - wiring diagram - body control (part 1)
Acura RL – wiring diagram – body control (part 1)

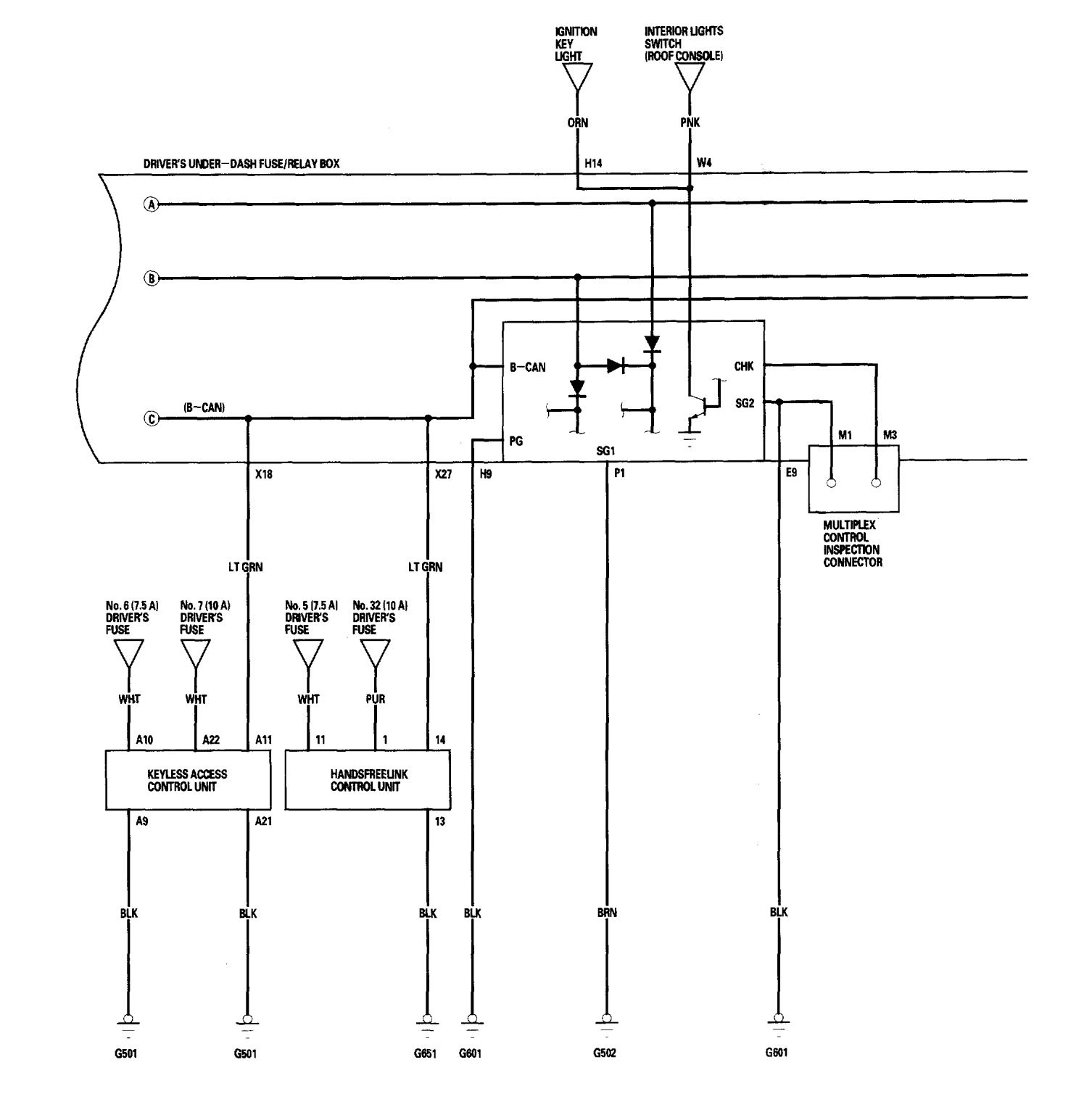

Acura RL - wiring diagram - body control (part 2)
Acura RL – wiring diagram – body control (part 2)

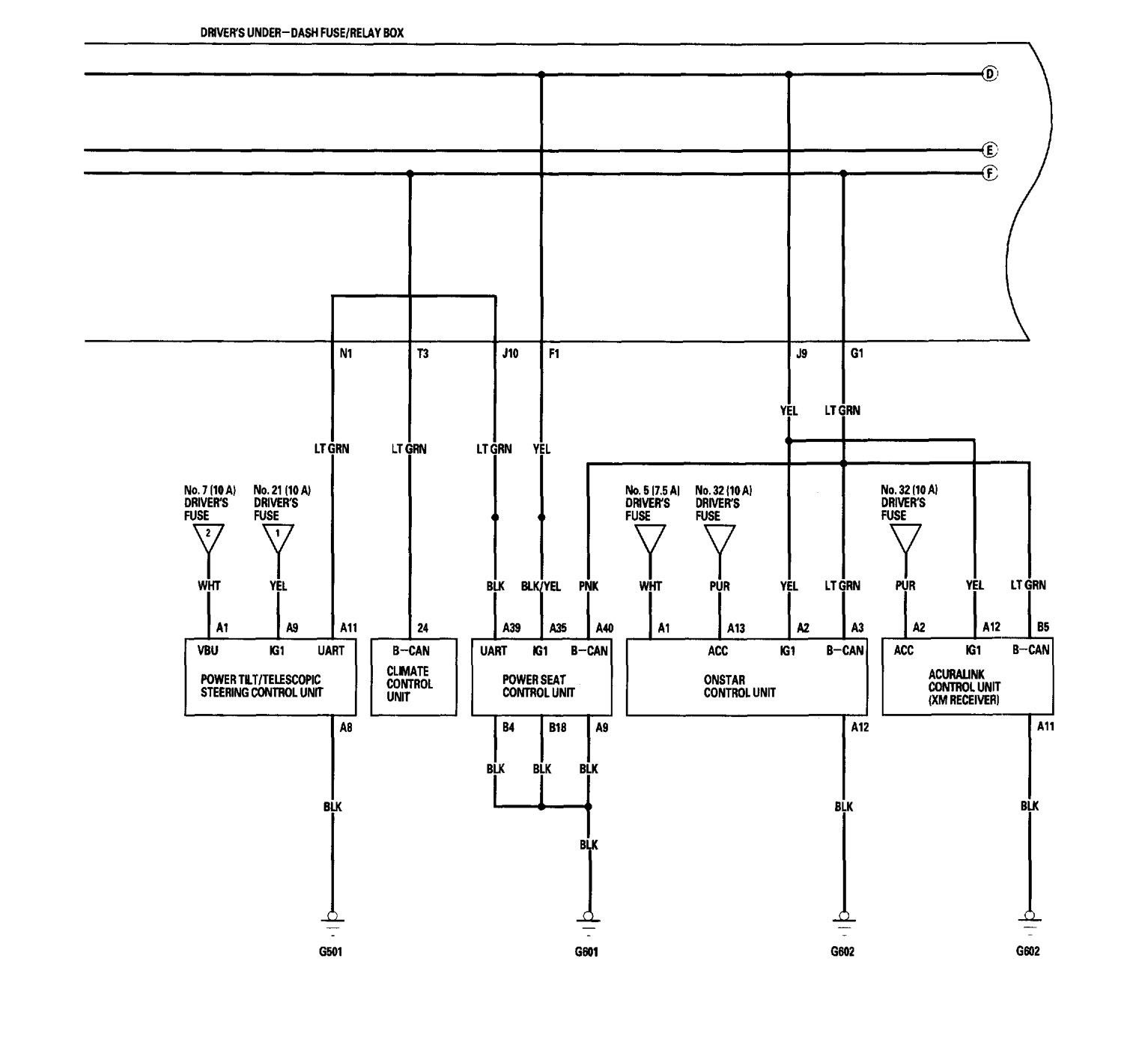

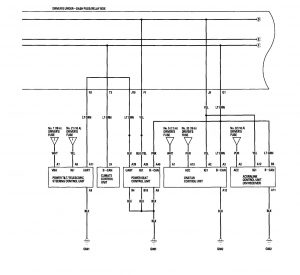

Acura RL - wiring diagram - body control (part 3)
Acura RL – wiring diagram – body control (part 3)

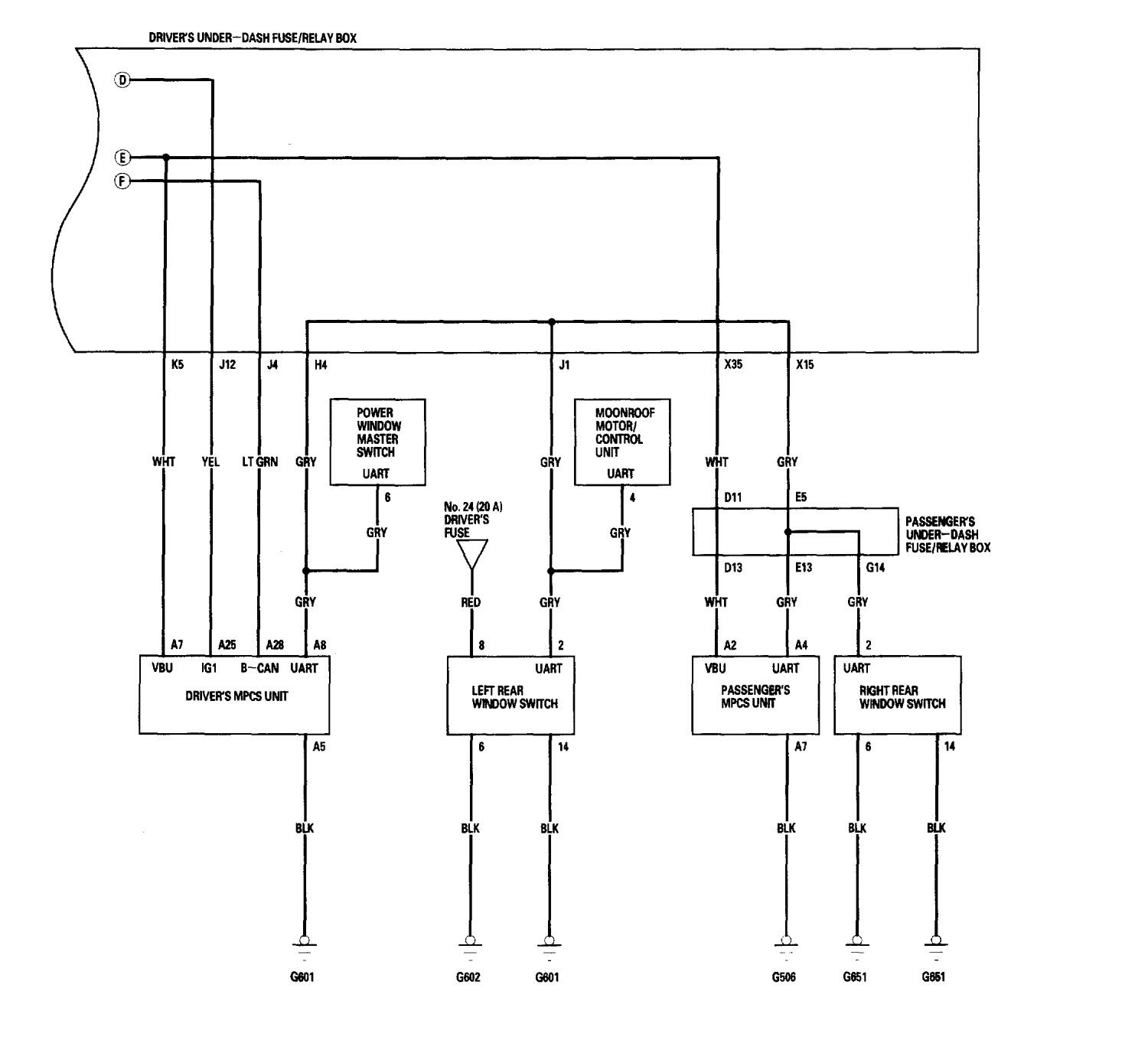

Acura RL - wiring diagram - body control (part 4)
Acura RL – wiring diagram – body control (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
