Differential

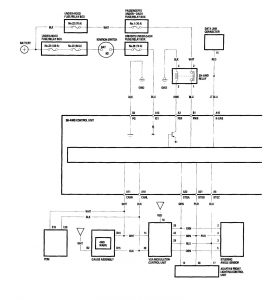

Acura RL - wiring diagram - differential (part 1)
Acura RL – wiring diagram – differential (part 1)

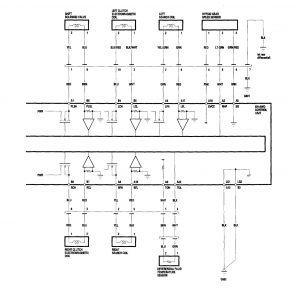

Acura RL - wiring diagram - differential (part 2)
Acura RL – wiring diagram – differential (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
