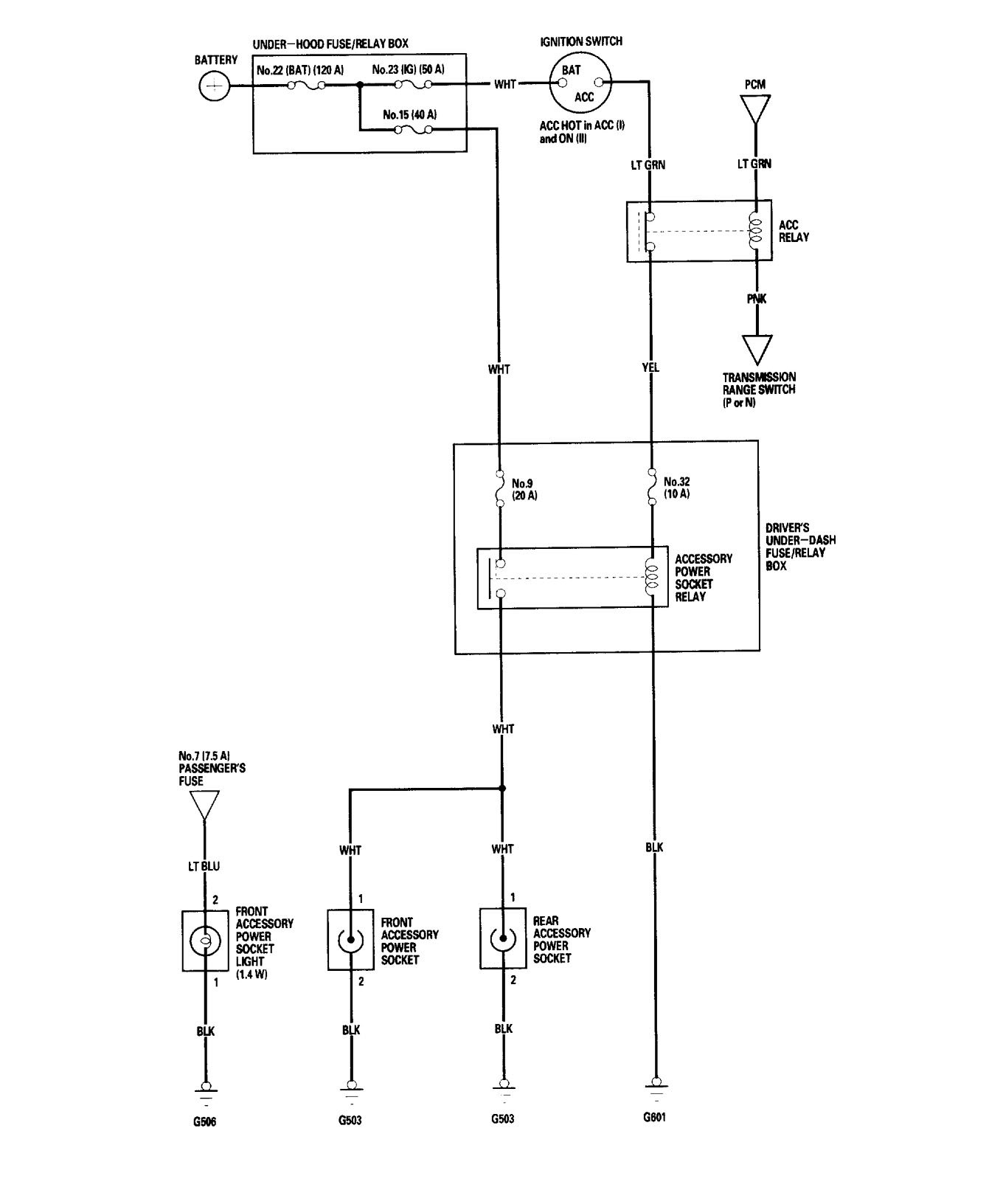

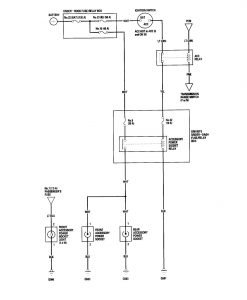

Acura RL (2006) – wiring diagrams – power/auxiliary outlet
Year of productions: 2006
Power/auxiliary outlet
Version 1
Version
2
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
