Acura RL (2006) – wiring diagrams – security/anti-theft

Year of productions:  2006

Security/Anti-theft

Version 1

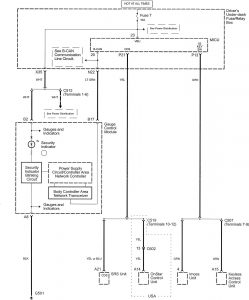

Acura RL - wiring diagram - security/anti theft (part 1)
Acura RL – wiring diagram – security/anti-theft (part 1)

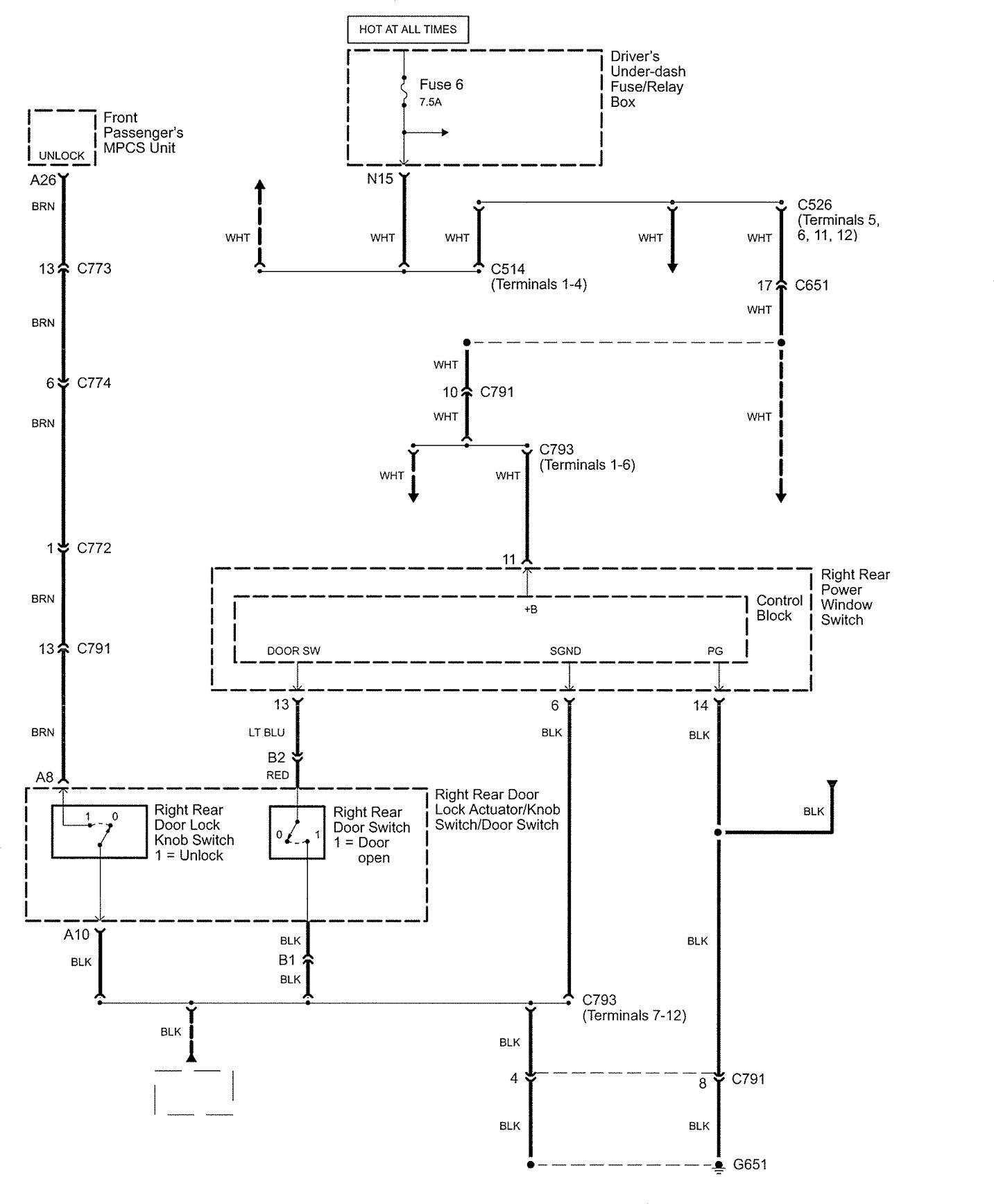

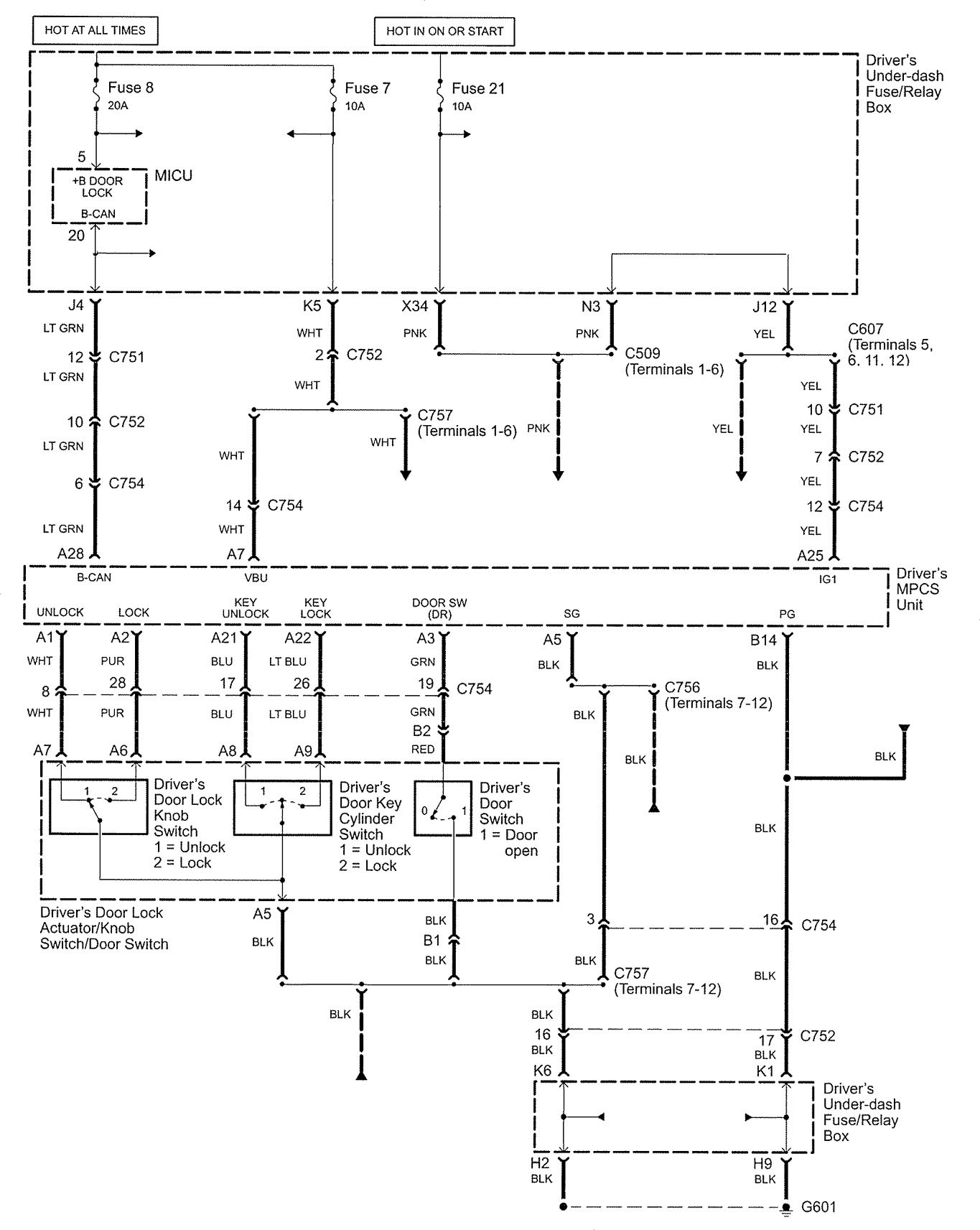

Acura RL - wiring diagram - security/anti-theft (part 2)
Acura RL – wiring diagram – security/anti-theft (part 2)

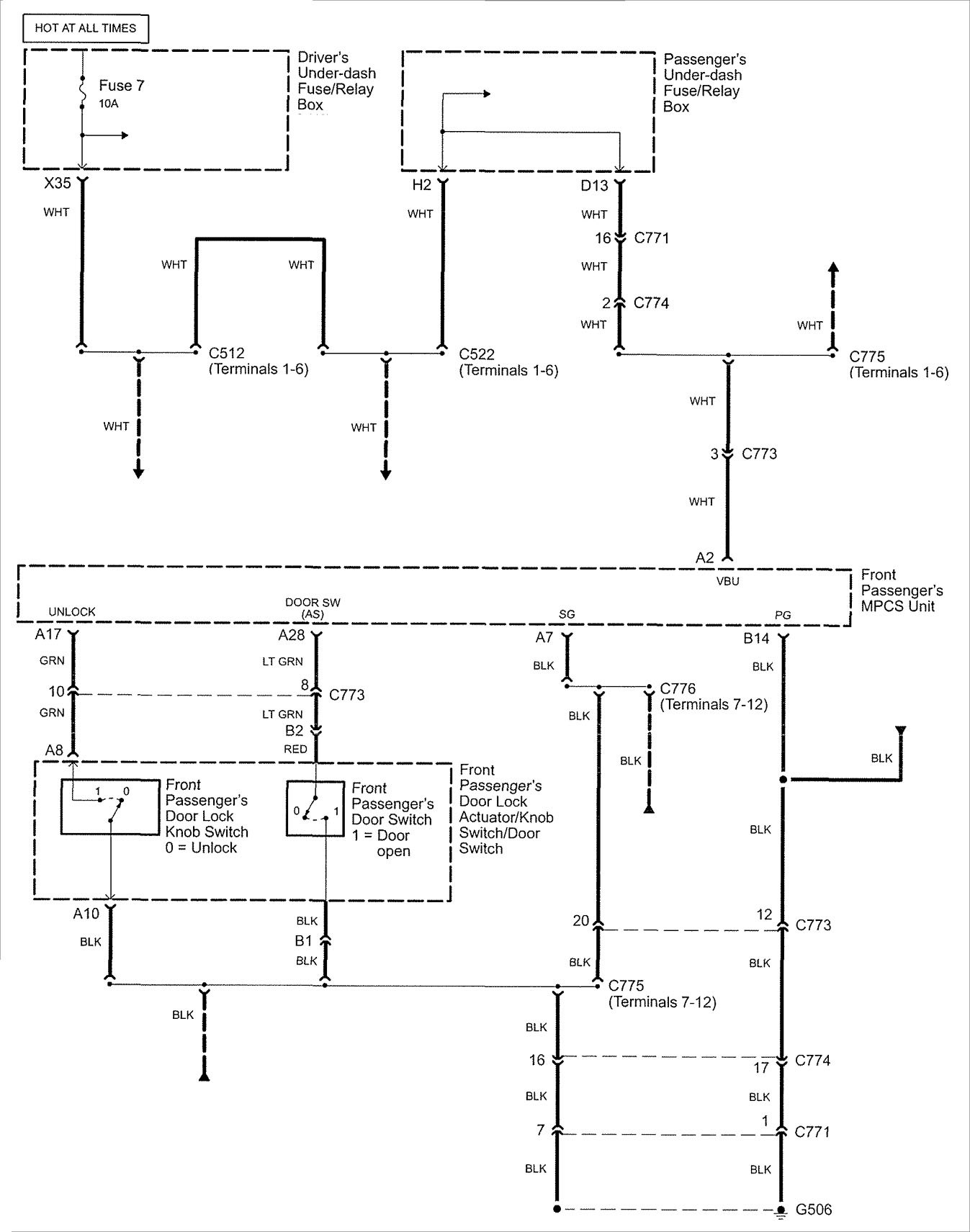

Acura RL - wiring diagram - security/anti-theft (part 3)
Acura RL – wiring diagram – security/anti-theft (part 3)

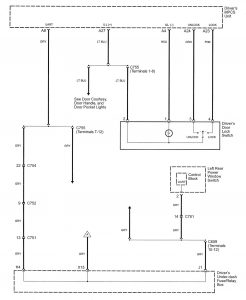

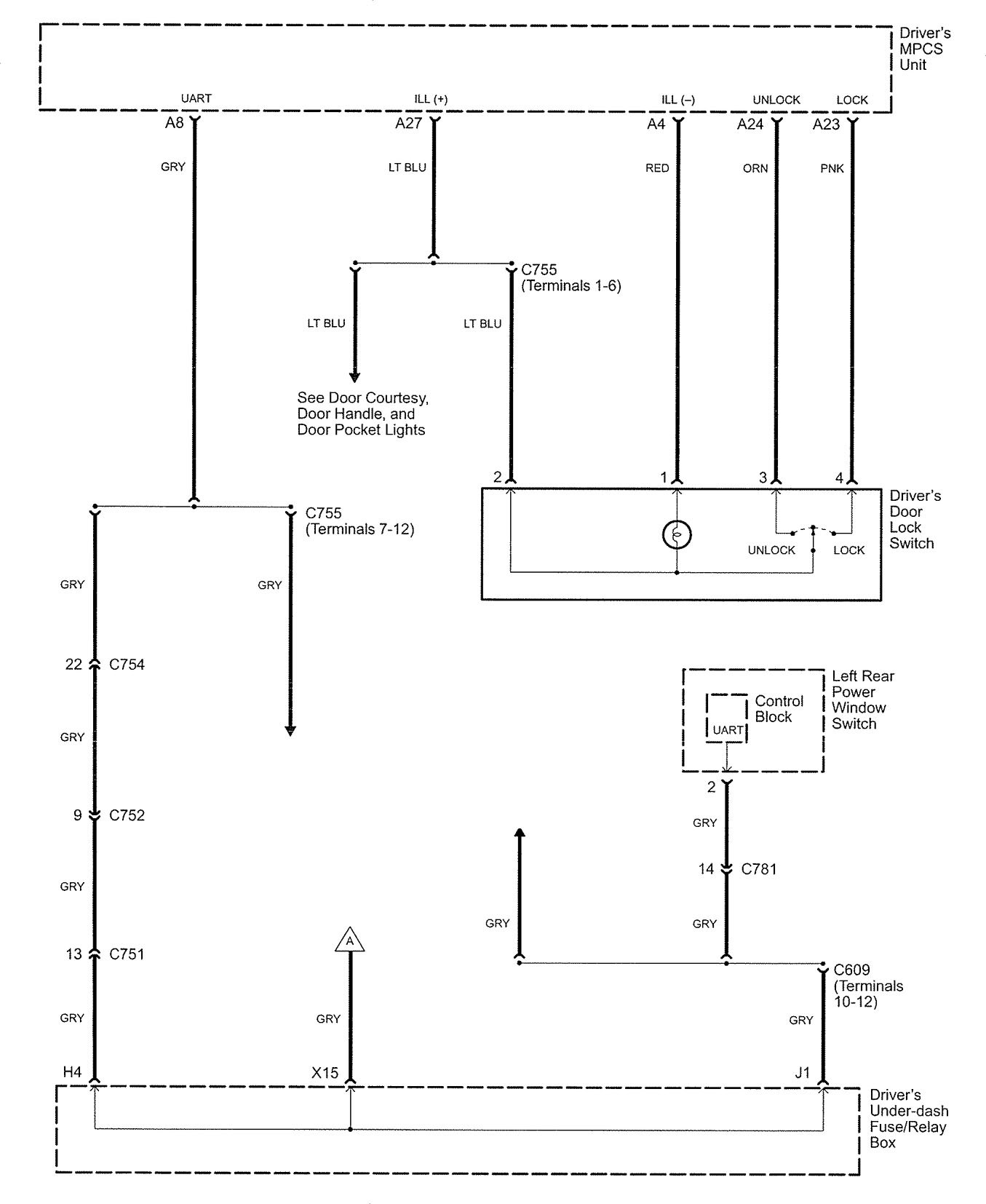

Acura RL - wiring diagram - security/anti-theft (part 4)
Acura RL – wiring diagram – security/anti-theft (part 4)

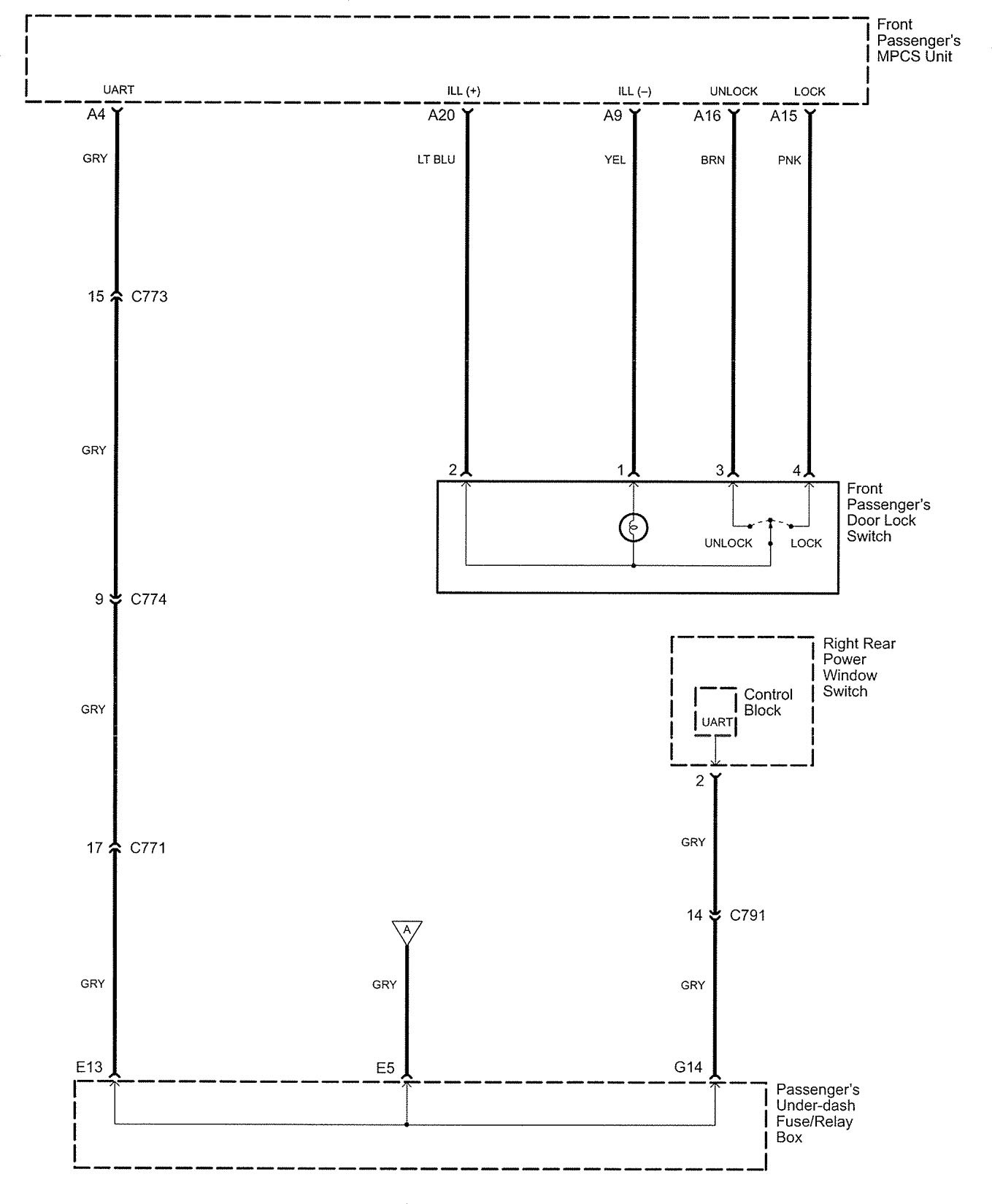

Acura RL - wiring diagram - security/anti-theft (part 5)
Acura RL – wiring diagram – security/anti-theft (part 5)

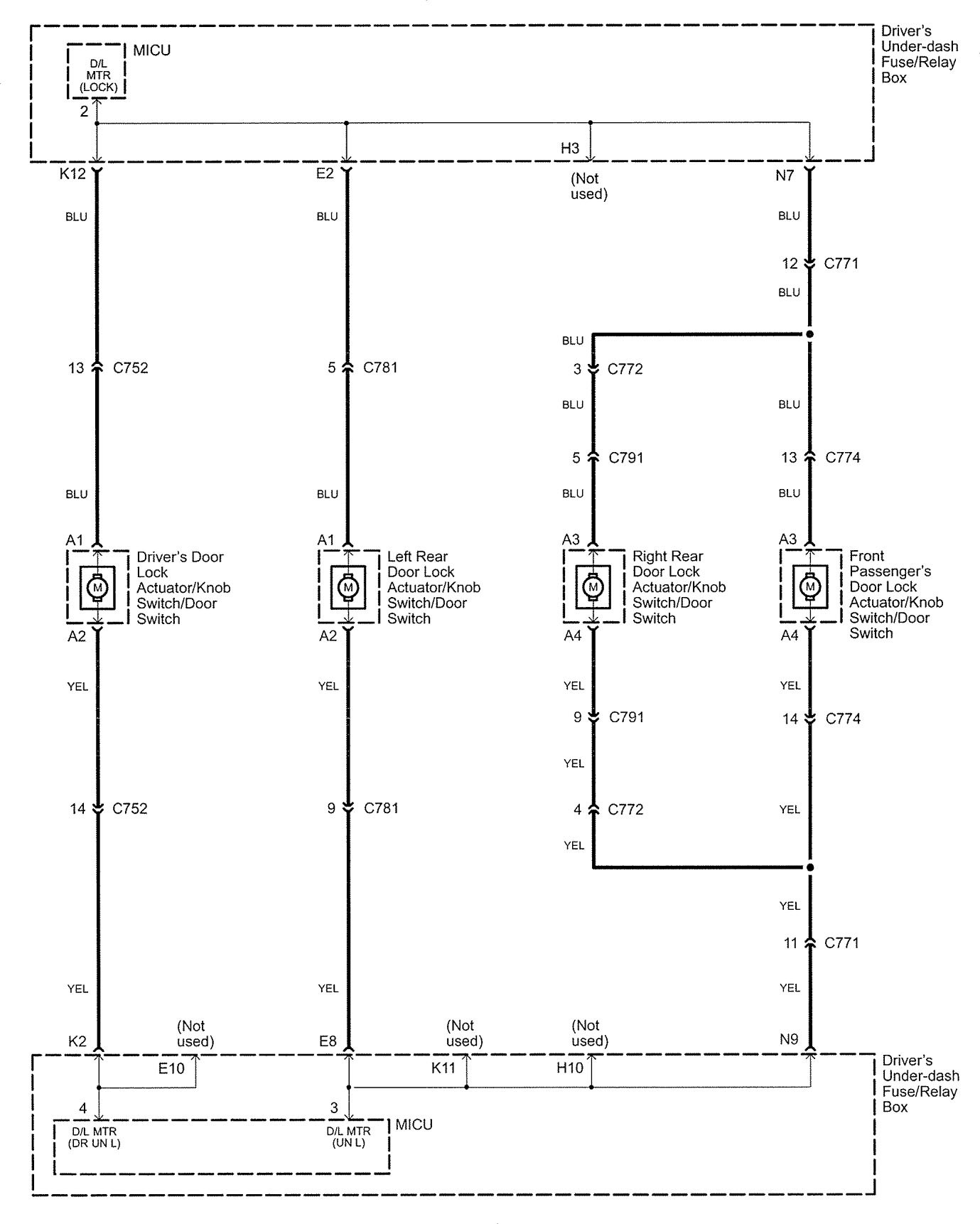

Acura RL - wiring diagram - security/anti-theft (part 6)
Acura RL – wiring diagram – security/anti-theft (part 6)

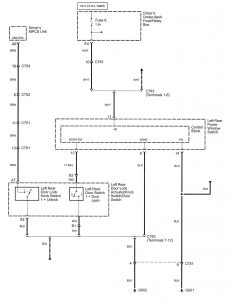

Acura RL - wiring diagram - security/anti-theft (part 7)
Acura RL – wiring diagram – security/anti-theft (part 7)
Acura RL - wiring diagram - security/anti-theft (part 8)
Acura RL – wiring diagram – security/anti-theft (part 8)

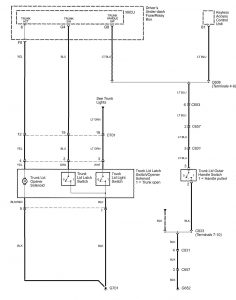

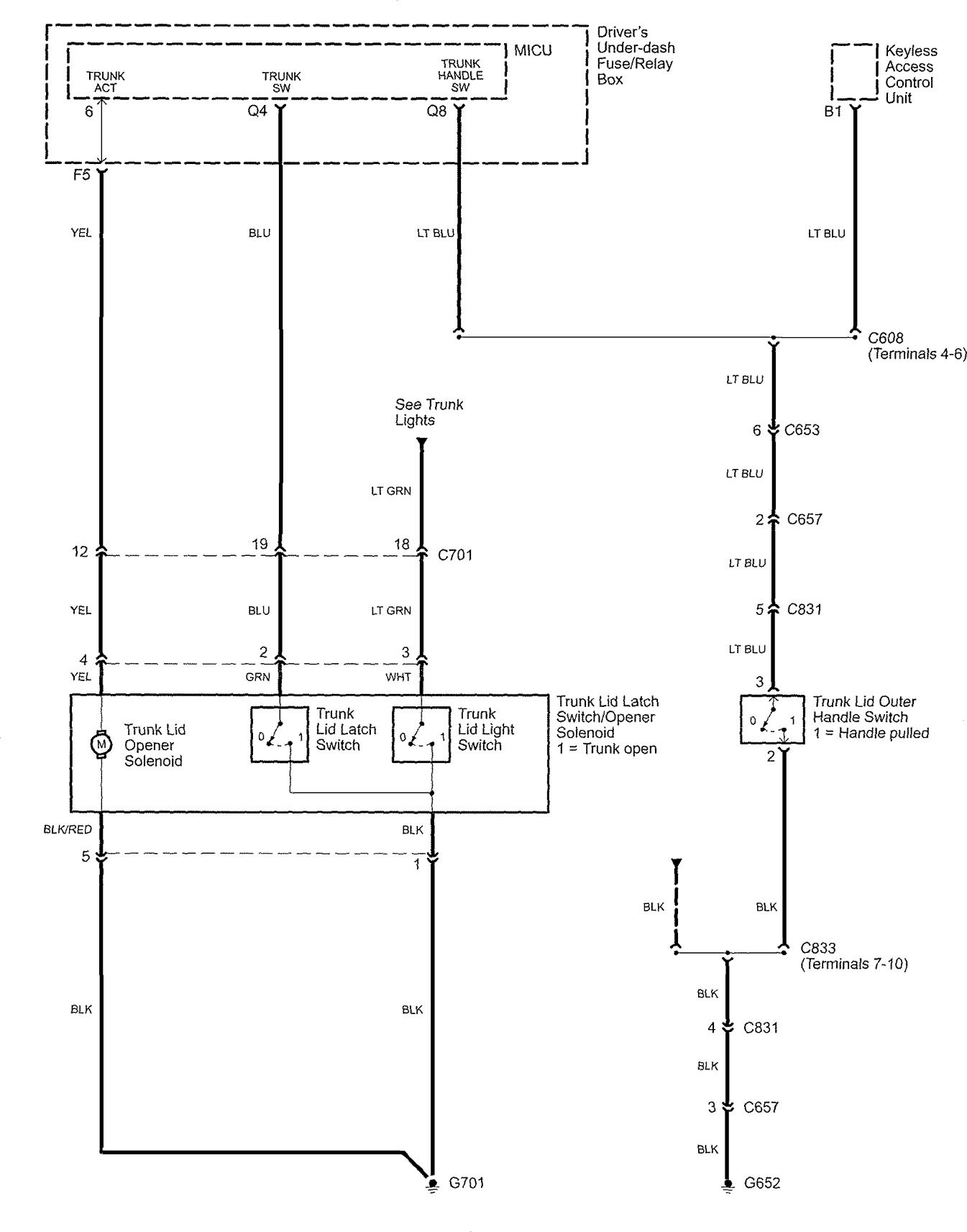

Acura RL - wiring diagram - security/anti-theft (part 9)
Acura RL – wiring diagram – security/anti-theft (part 9)

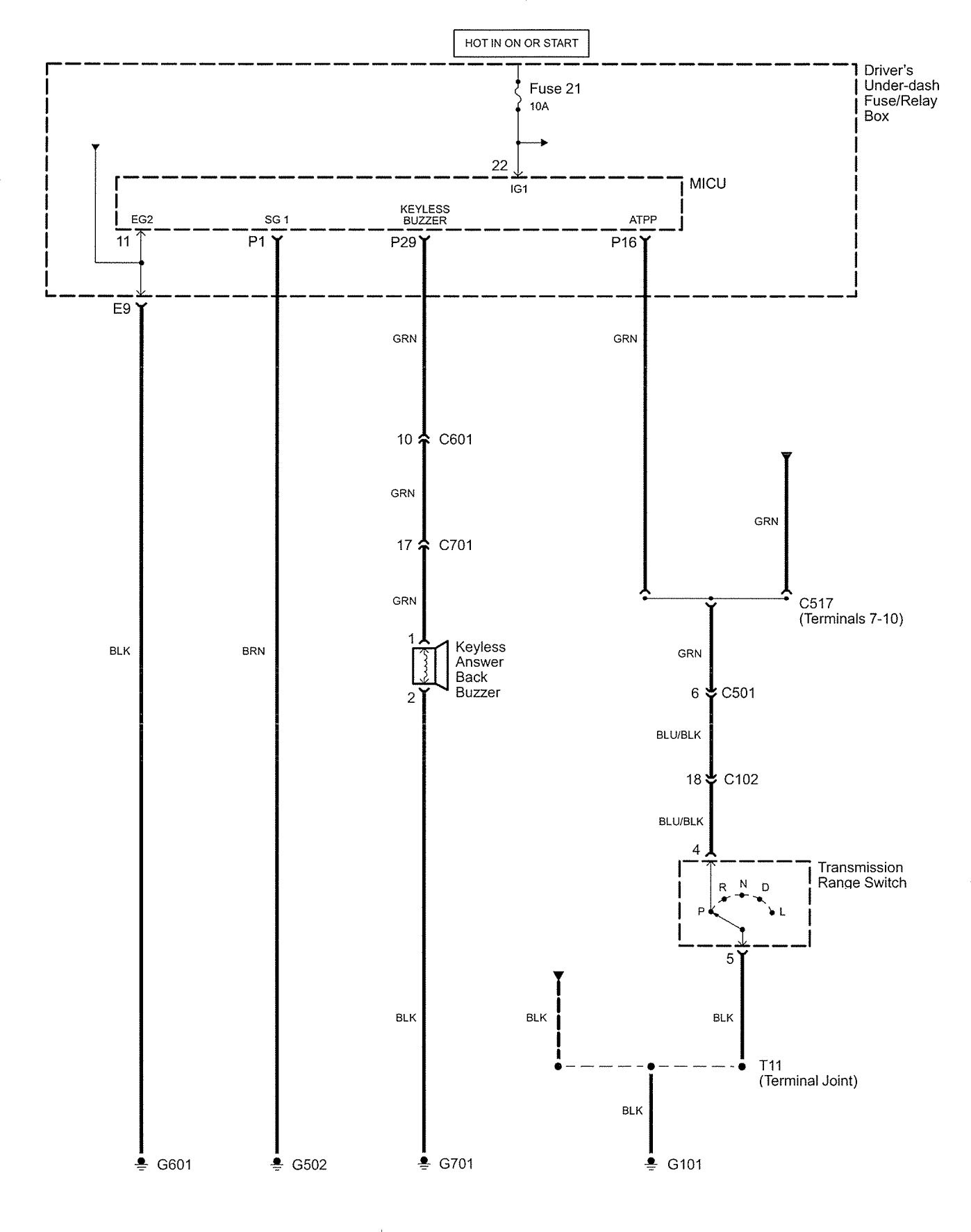

Acura RL - wiring diagram - security/anti-theft (part 10)
Acura RL – wiring diagram – security/anti-theft (part 10)

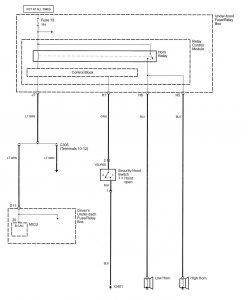

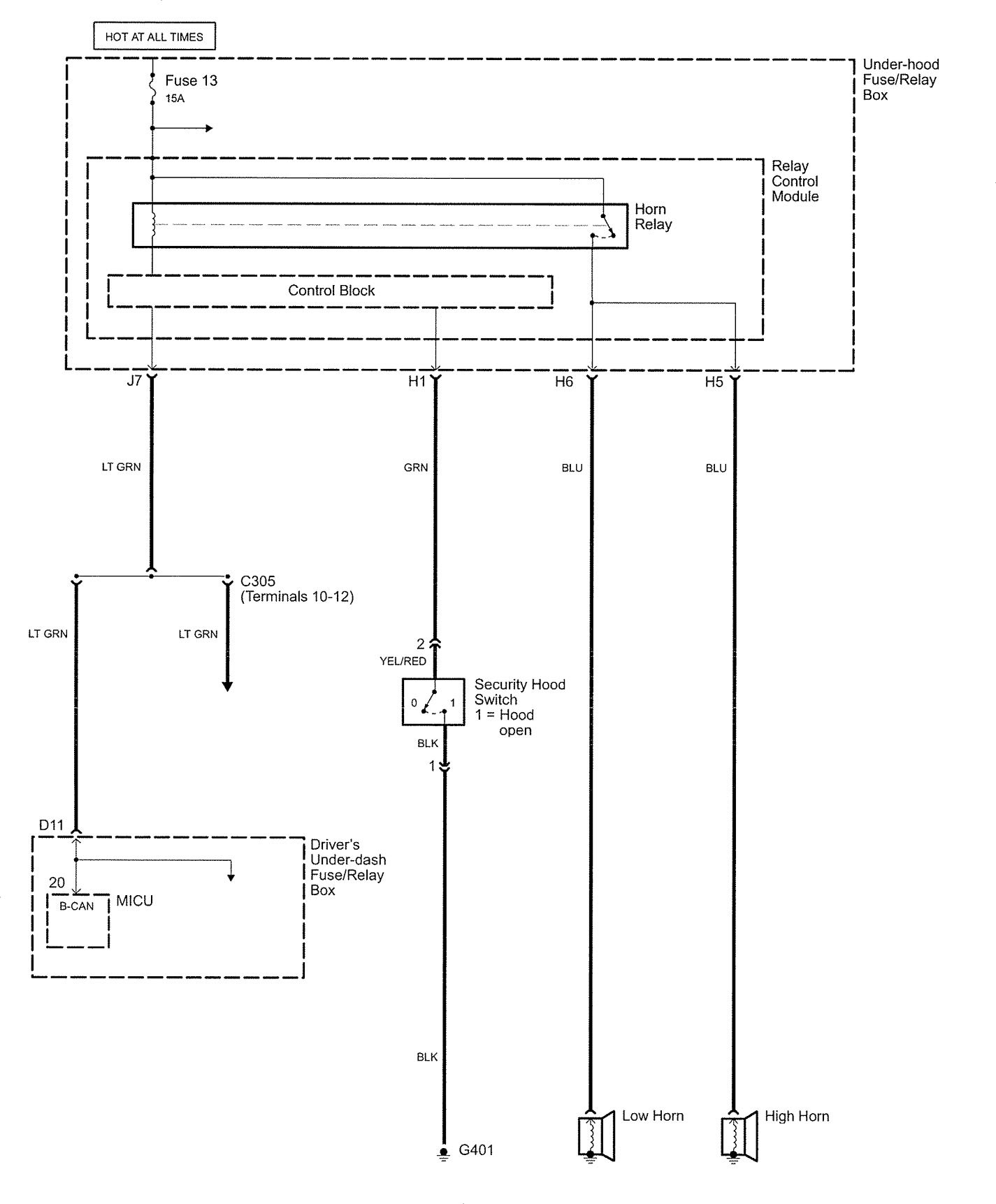

Acura RL - wiring diagram - security/anti-theft (part 11)
Acura RL – wiring diagram – security/anti-theft (part 11)

Version 2

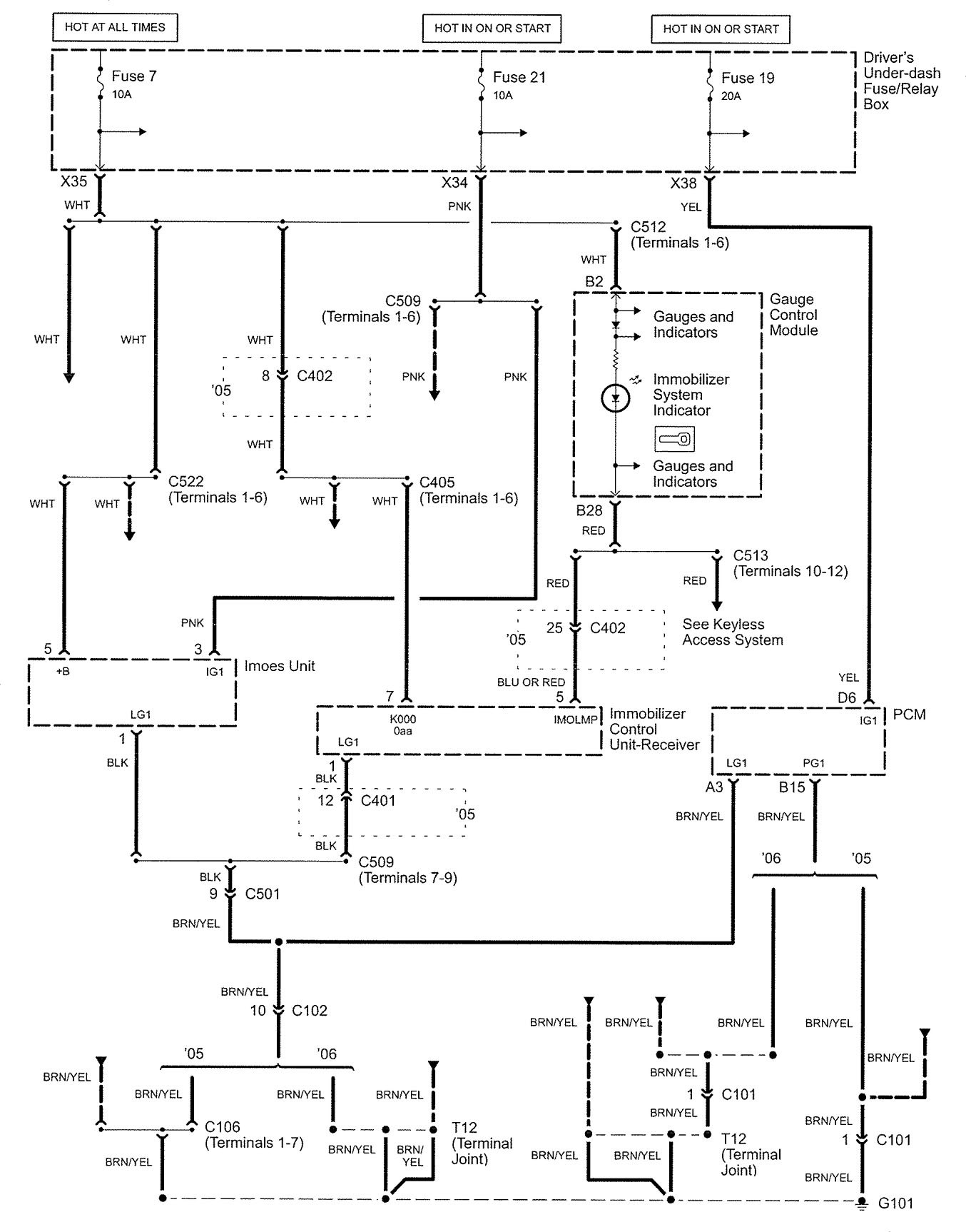

Acura RL - wiring diagram - security/anti-theft (part 1)
Acura RL – wiring diagram – security/anti-theft (part 1)

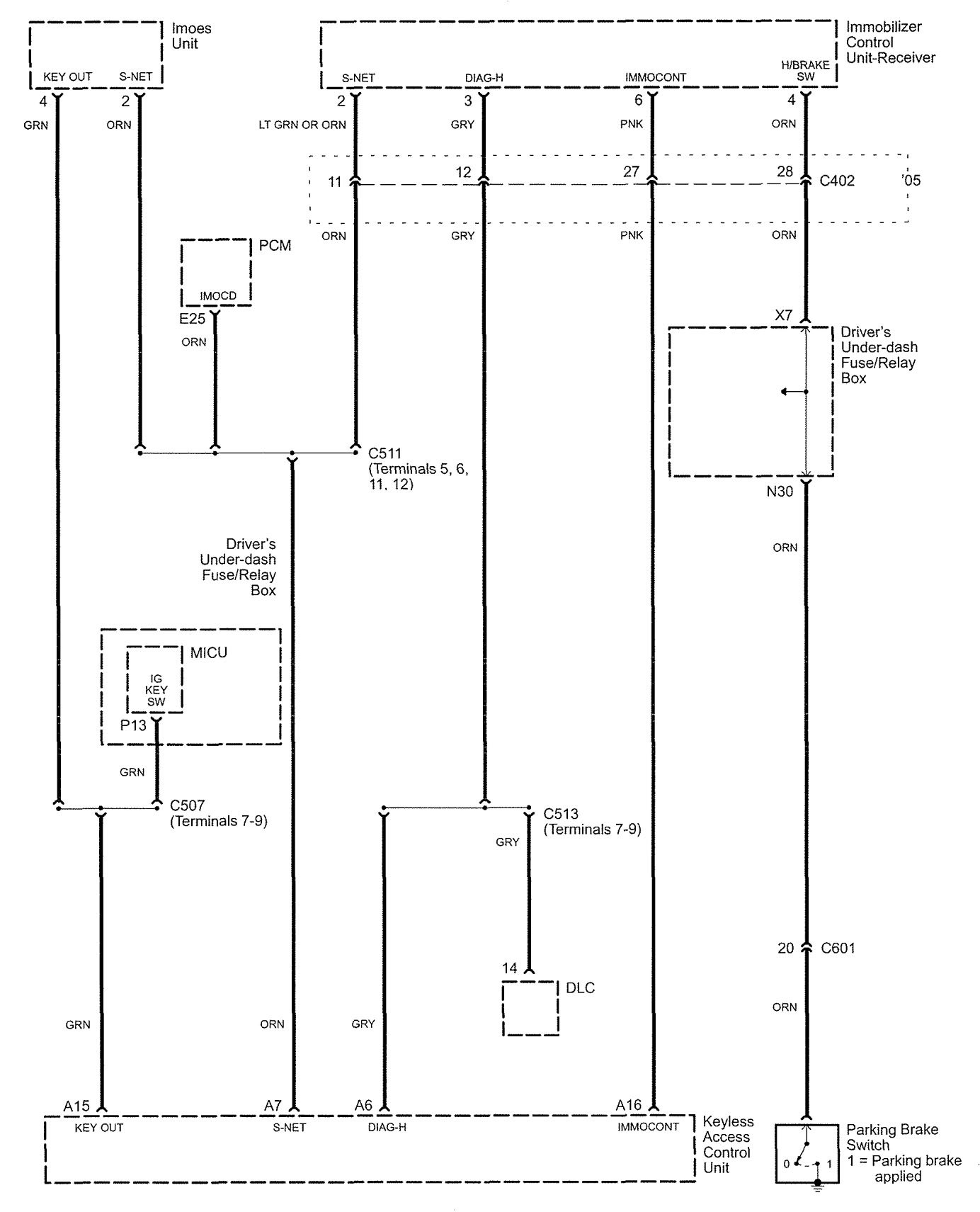

Acura RL - wiring diagram - security/anti-theft (part 2)
Acura RL – wiring diagram – security/anti-theft (part 2)

Version 3

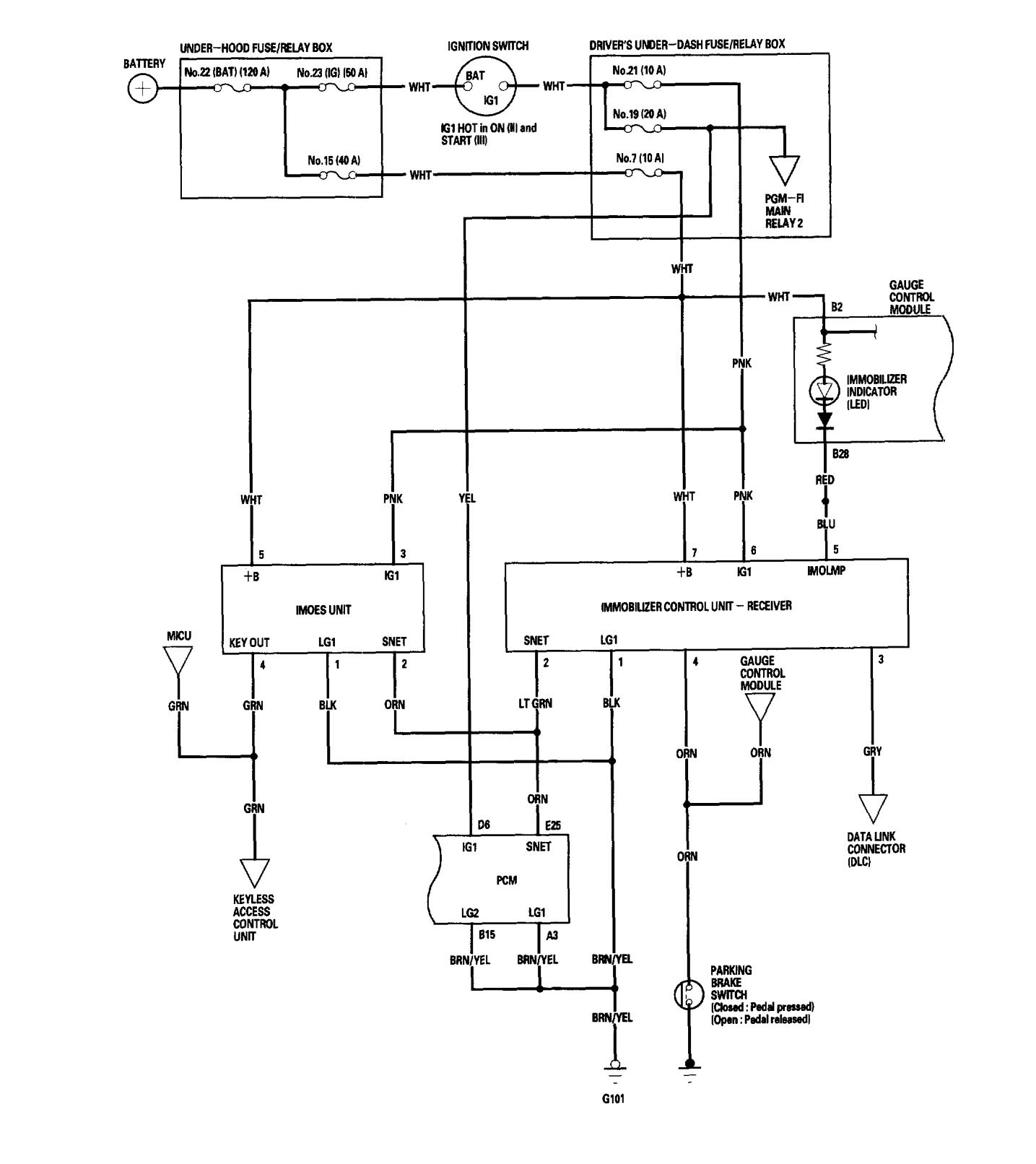

Acura RL - wiring diagram - security/anit-theft
Acura RL – wiring diagram – security/anit-theft

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
