Year of productions:  2006

Wiper/washer

Version 1

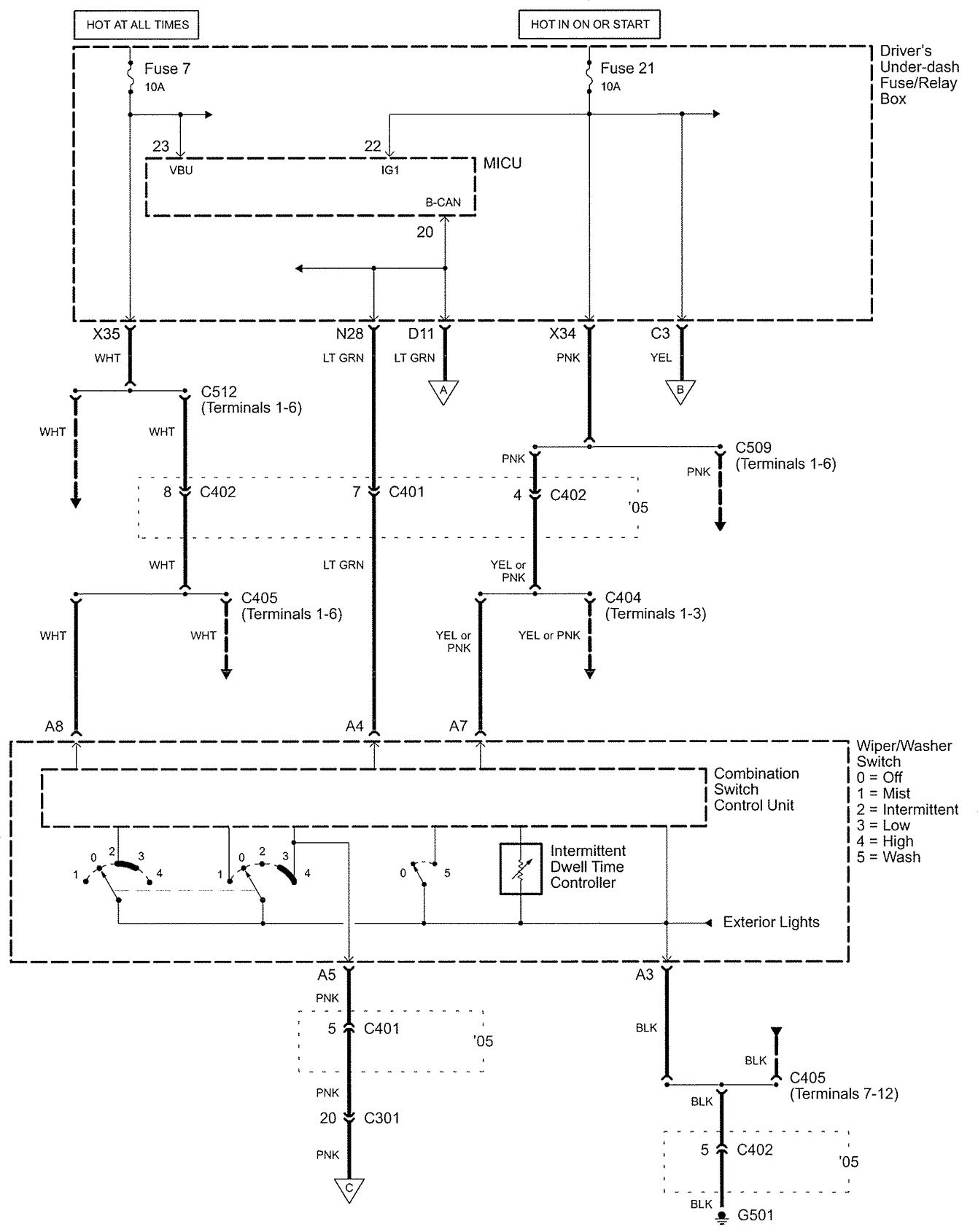

Acura RL - wiring diagram - wiper/washer (part 1)
Acura RL – wiring diagram – wiper/washer (part 1)

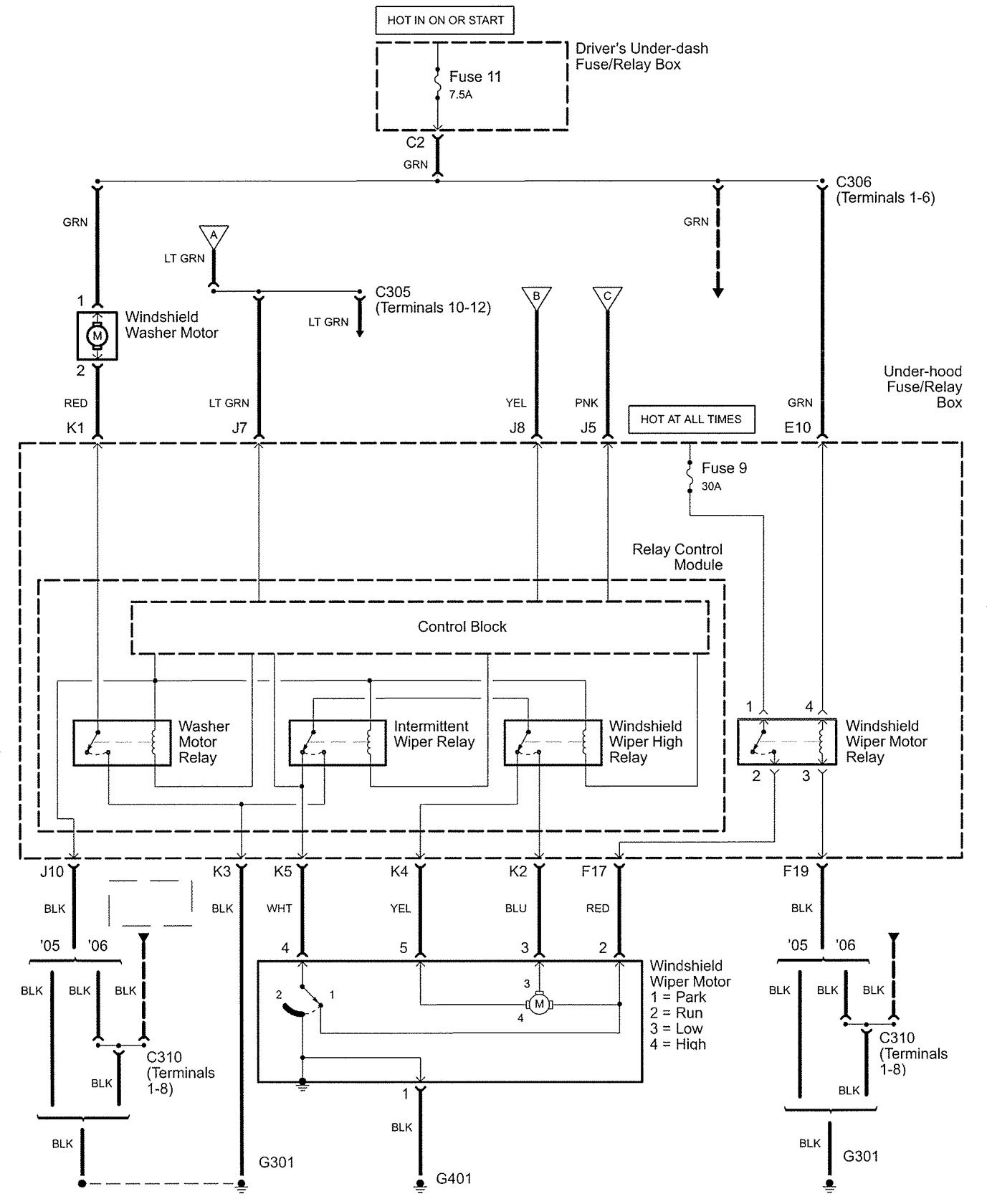

Acura RL - wiring diagram - wiper/washer (part 2)
Acura RL – wiring diagram – wiper/washer (part 2)

Version 2

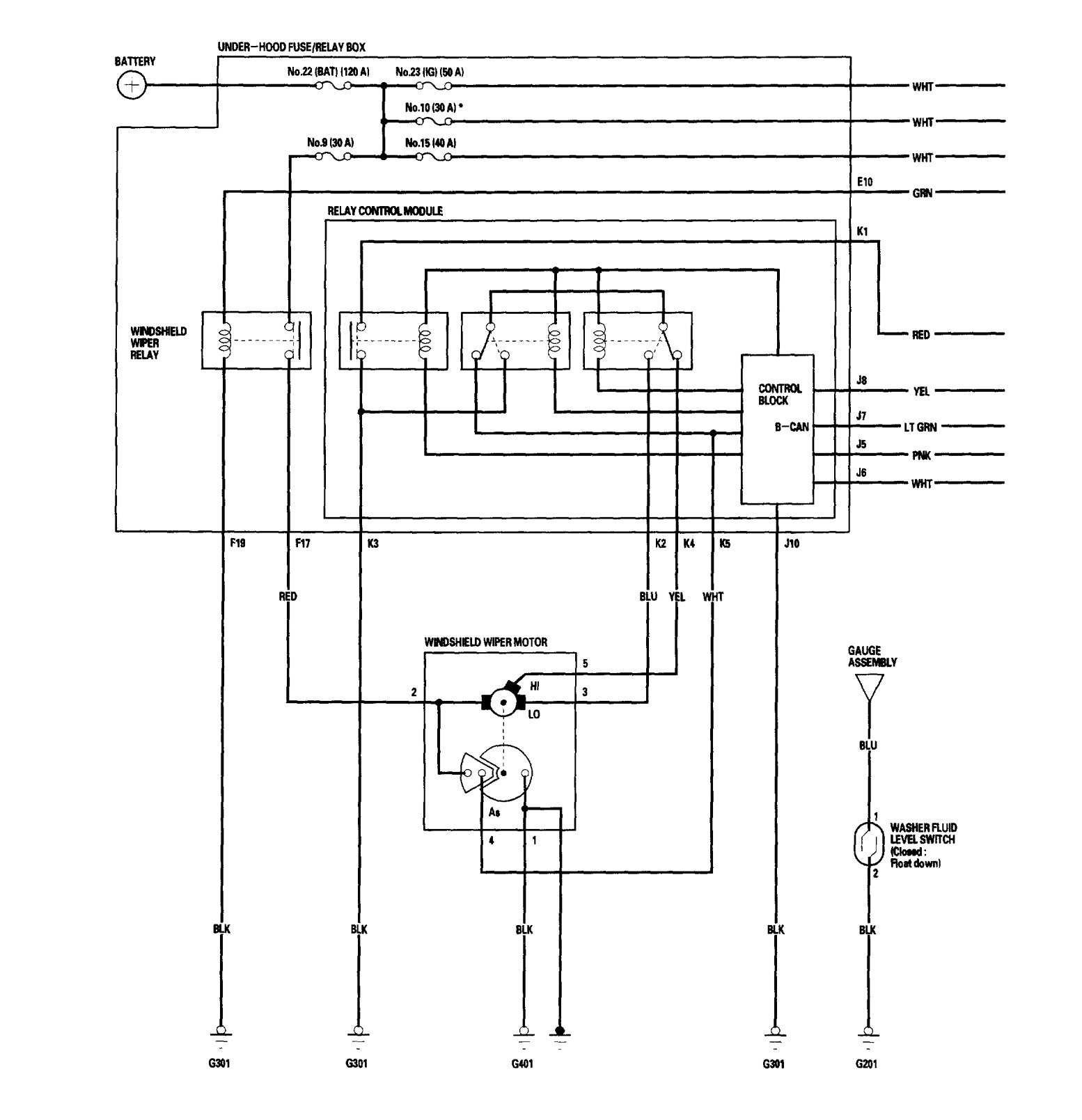

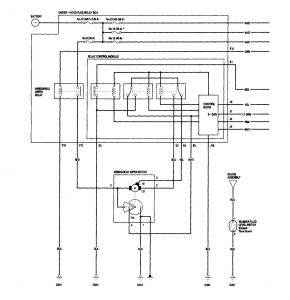

Acura RL - wiring diagram - wiper/washer (part 1)
Acura RL – wiring diagram – wiper/washer (part 1)

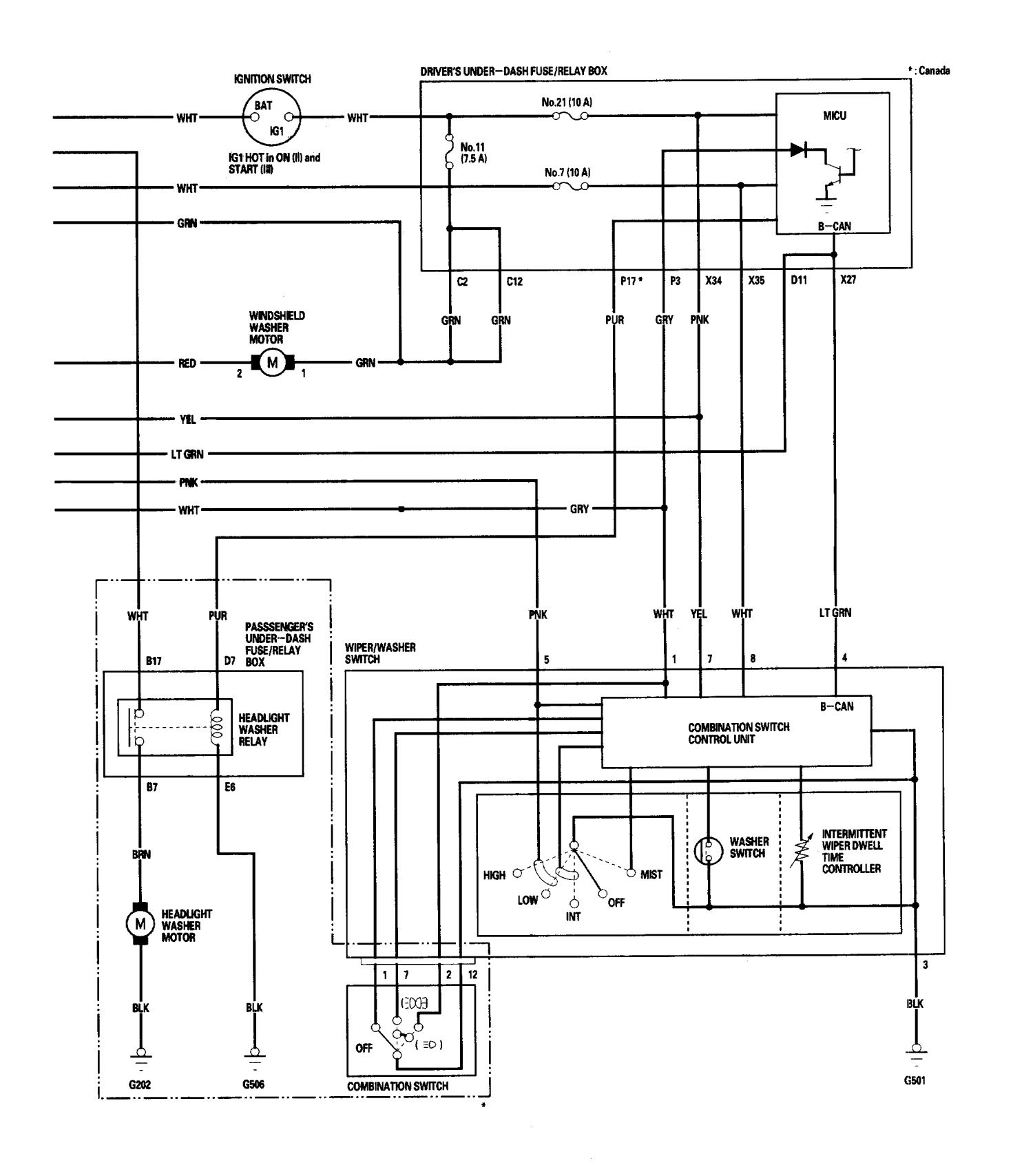

Acura RL - wiring diagram - wiper/washer (part 2)
Acura RL – wiring diagram – wiper/washer (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
