Acura RL (2007 – 2008) – wiring diagrams – all wheel drive system
Year of productions: 2007, 2008

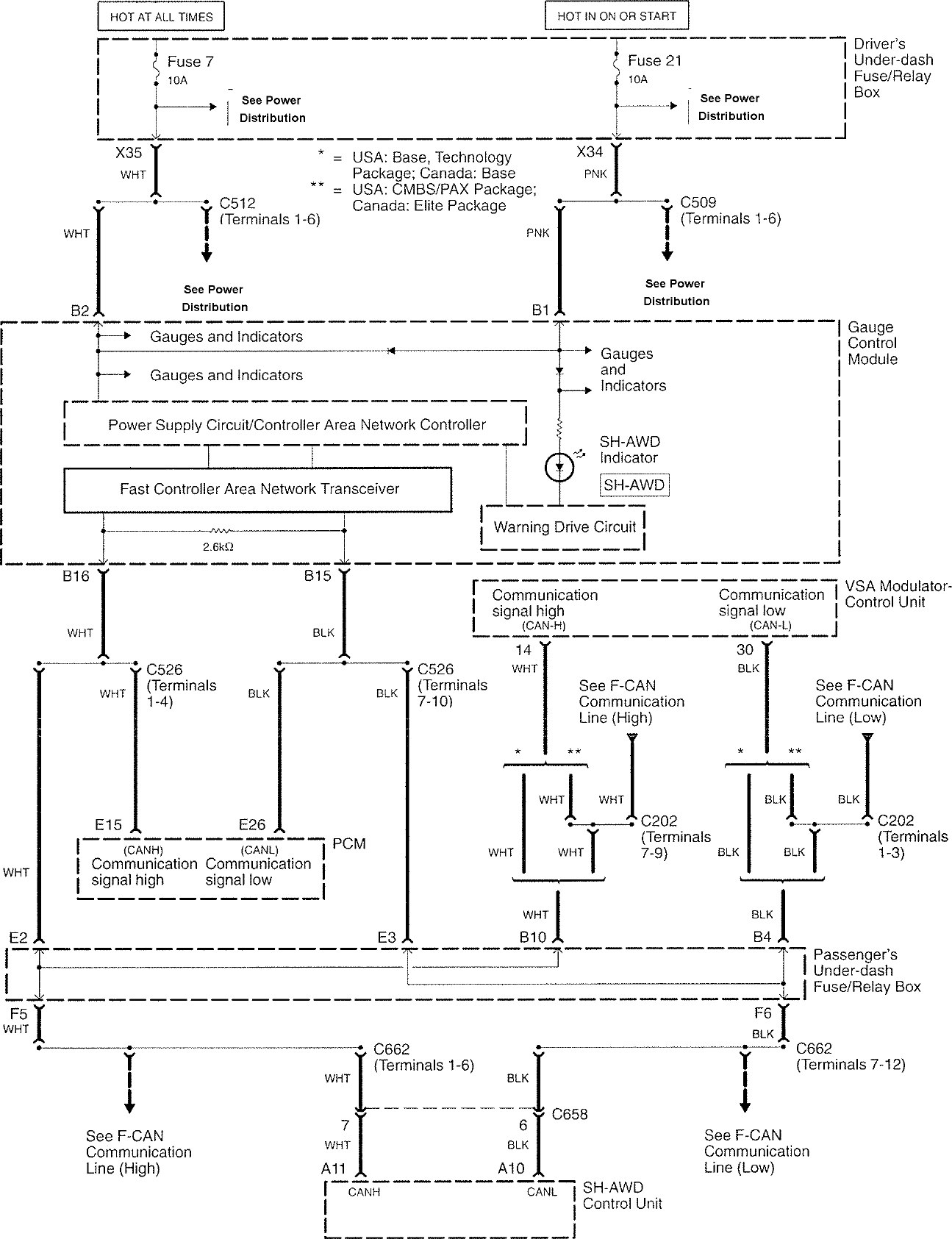

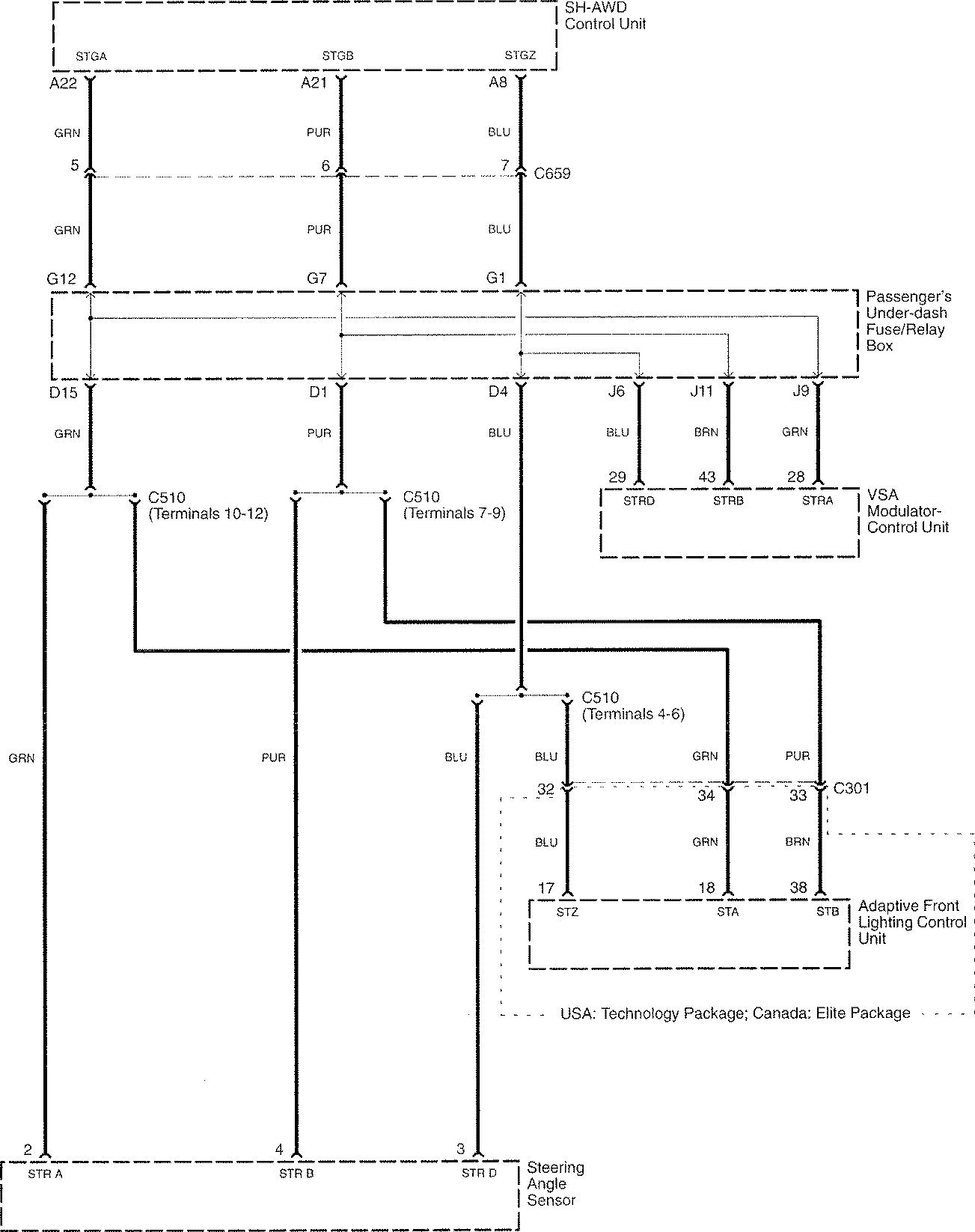

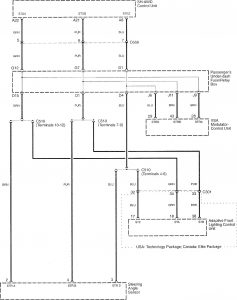

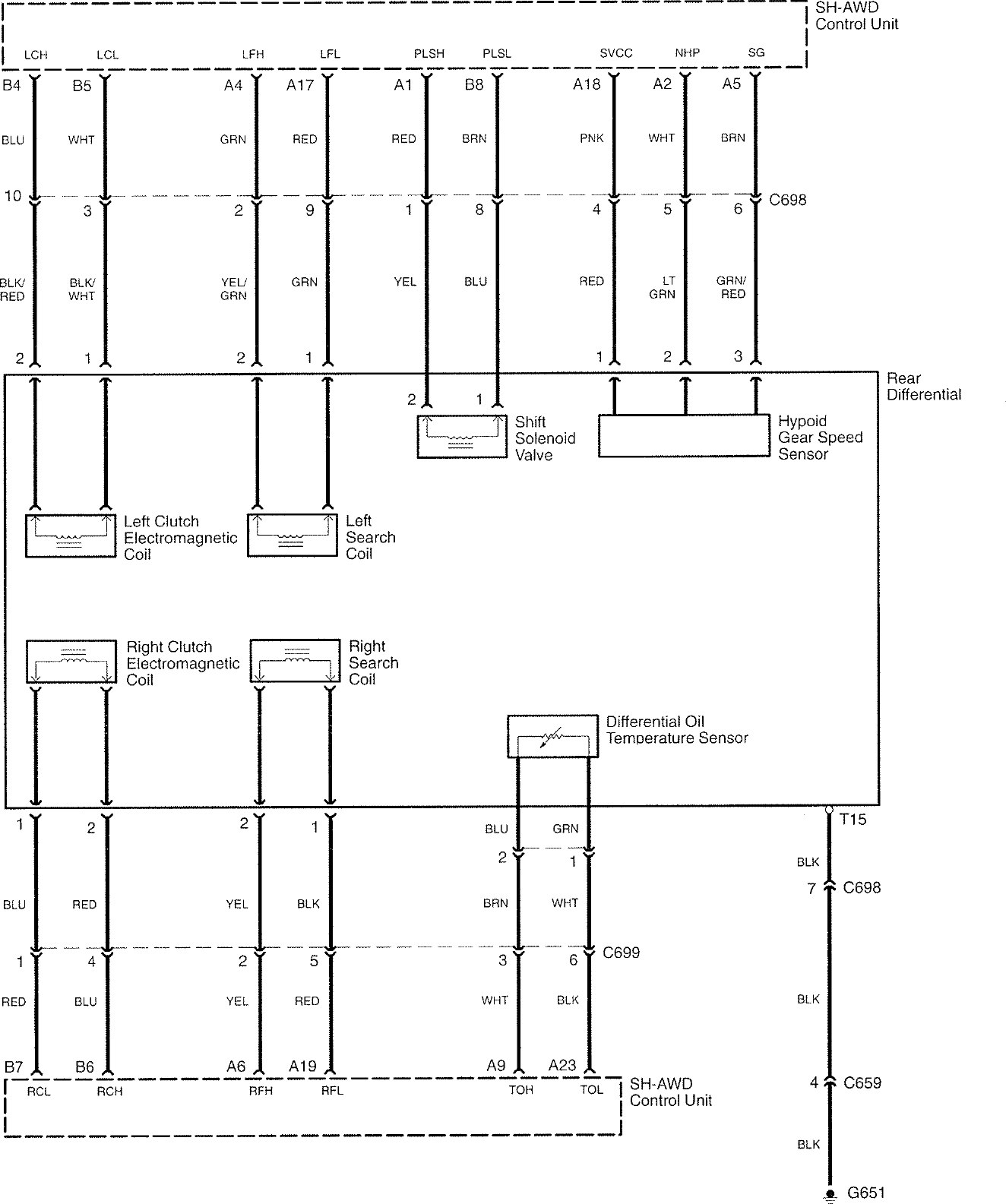

All wheel drive system
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
