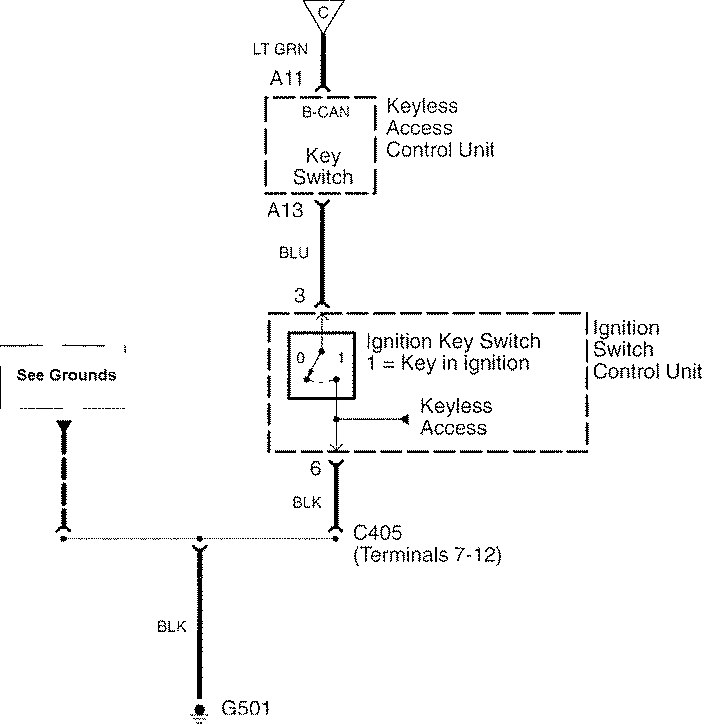

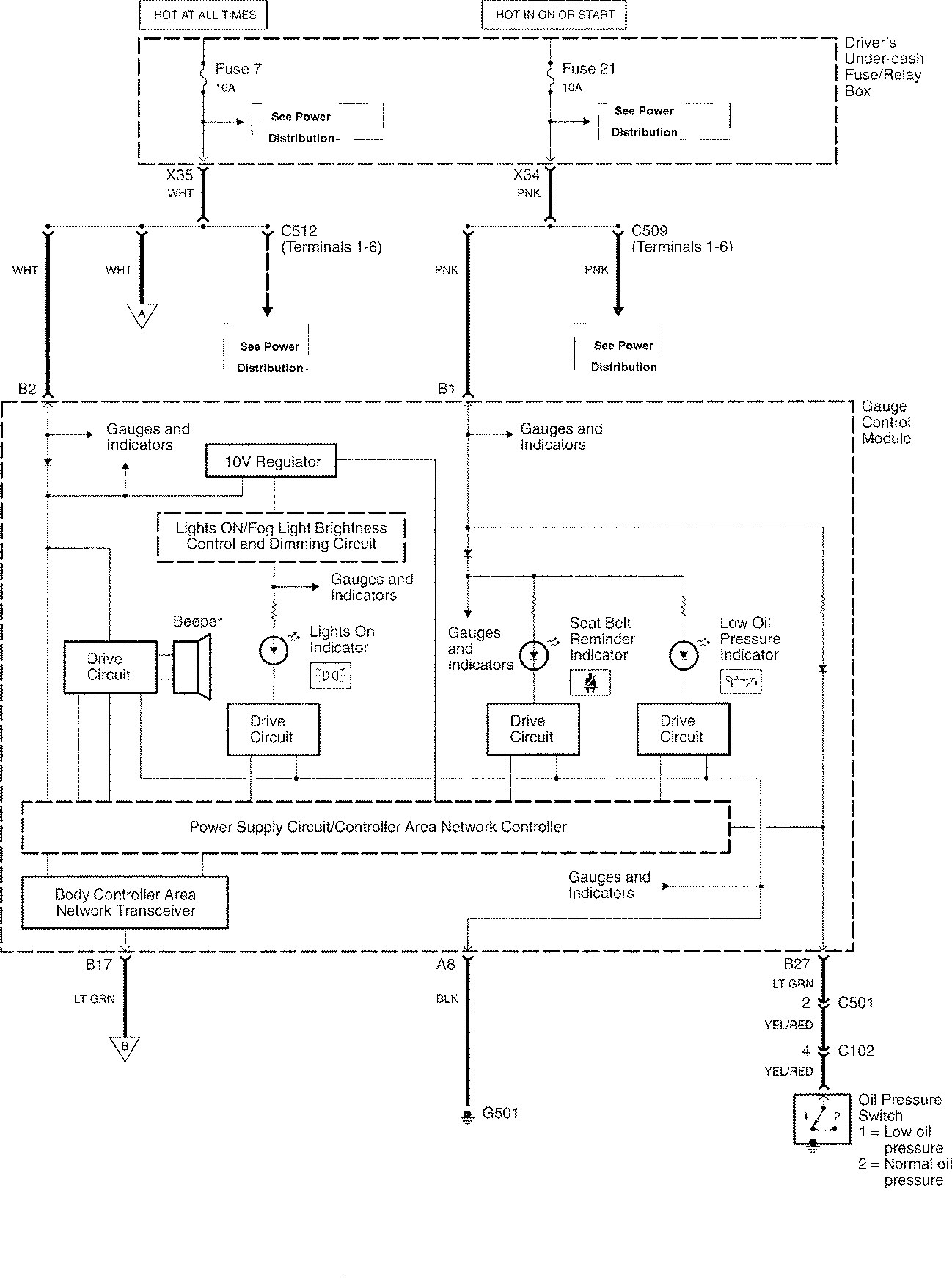

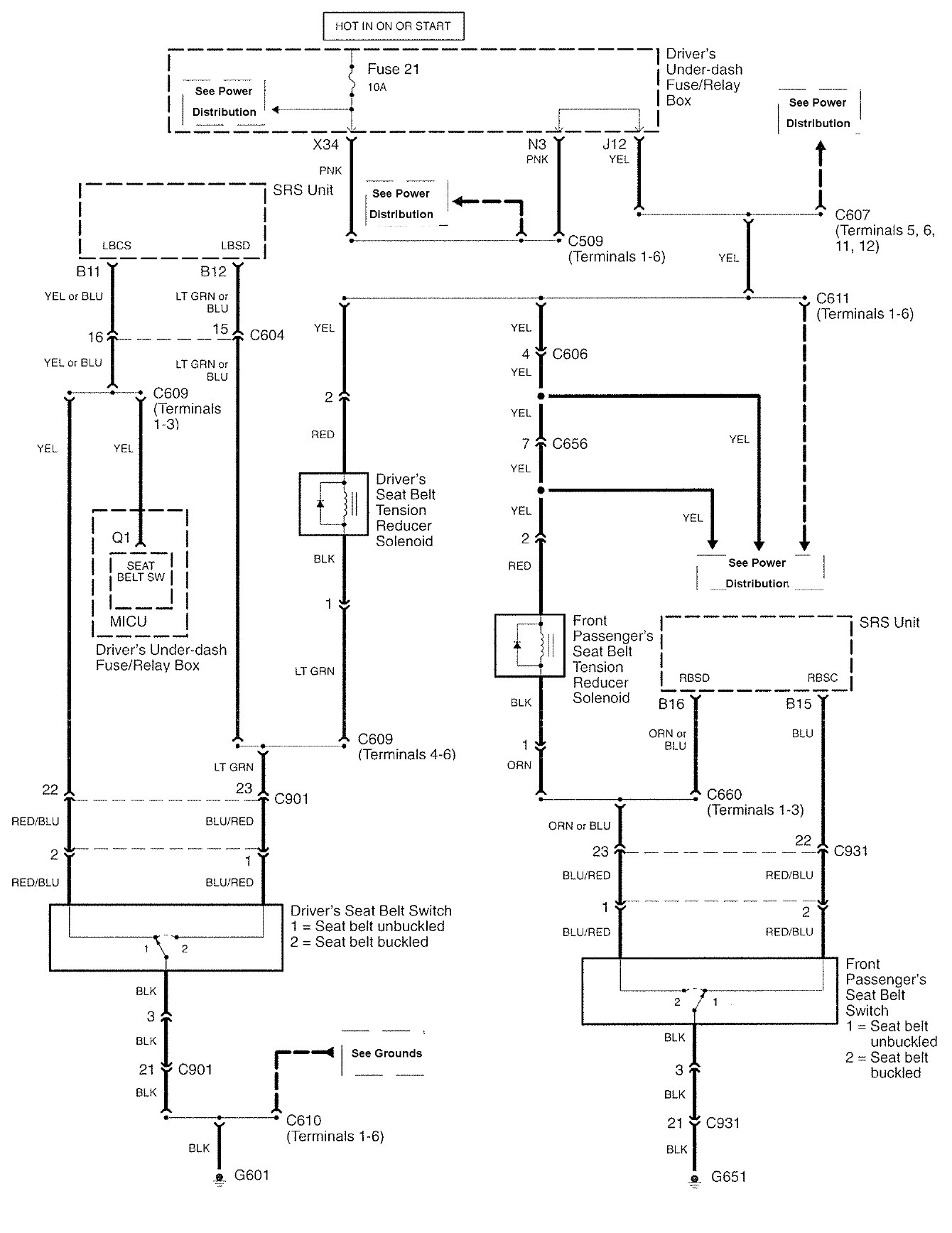

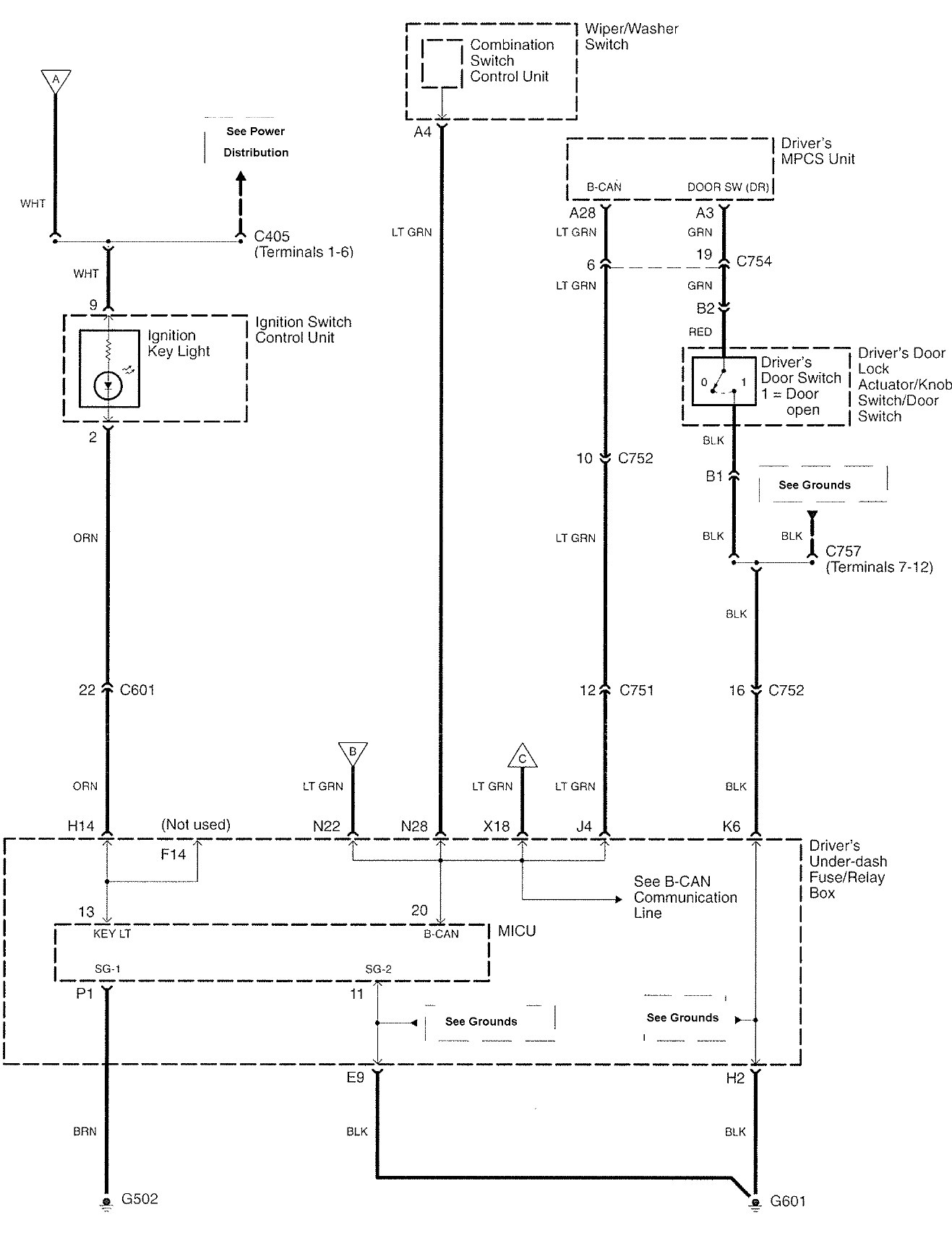

Acura RL (2007) – wiring diagrams – audible warning system

Acura TL (2000) – wiring diagrams – fuse panel Year of productions:  2000 Fuse panel WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Acura Integra (1995) – wiring diagrams – interior lighting Year of productions: 1995 Interior lighting WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Acura Legend (1990) – wiring diagram – license plate lamp Year of productions:  1990 License plate lamp Version 1 Version 2 WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment […]
