Acura RL (2007 – 2008) – wiring diagrams – communication system

Year of productions:  2007, 2008

Communication system

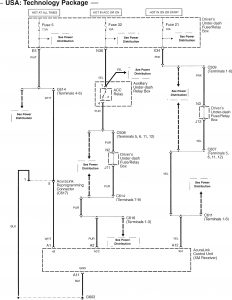

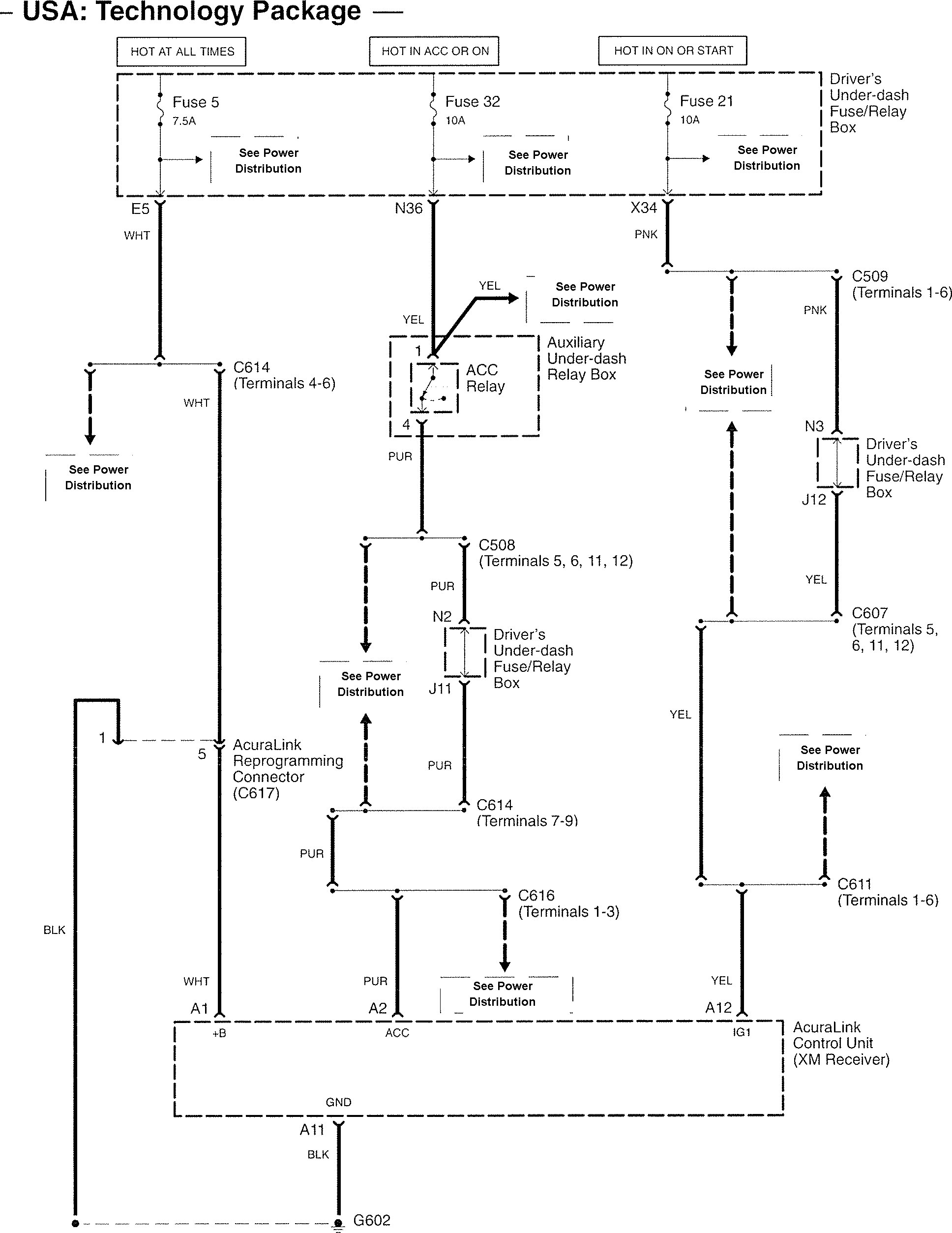

Acura RL - wiring diagram - communication system (part 1)
Acura RL – wiring diagram – communication system (part 1)

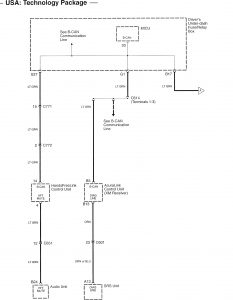

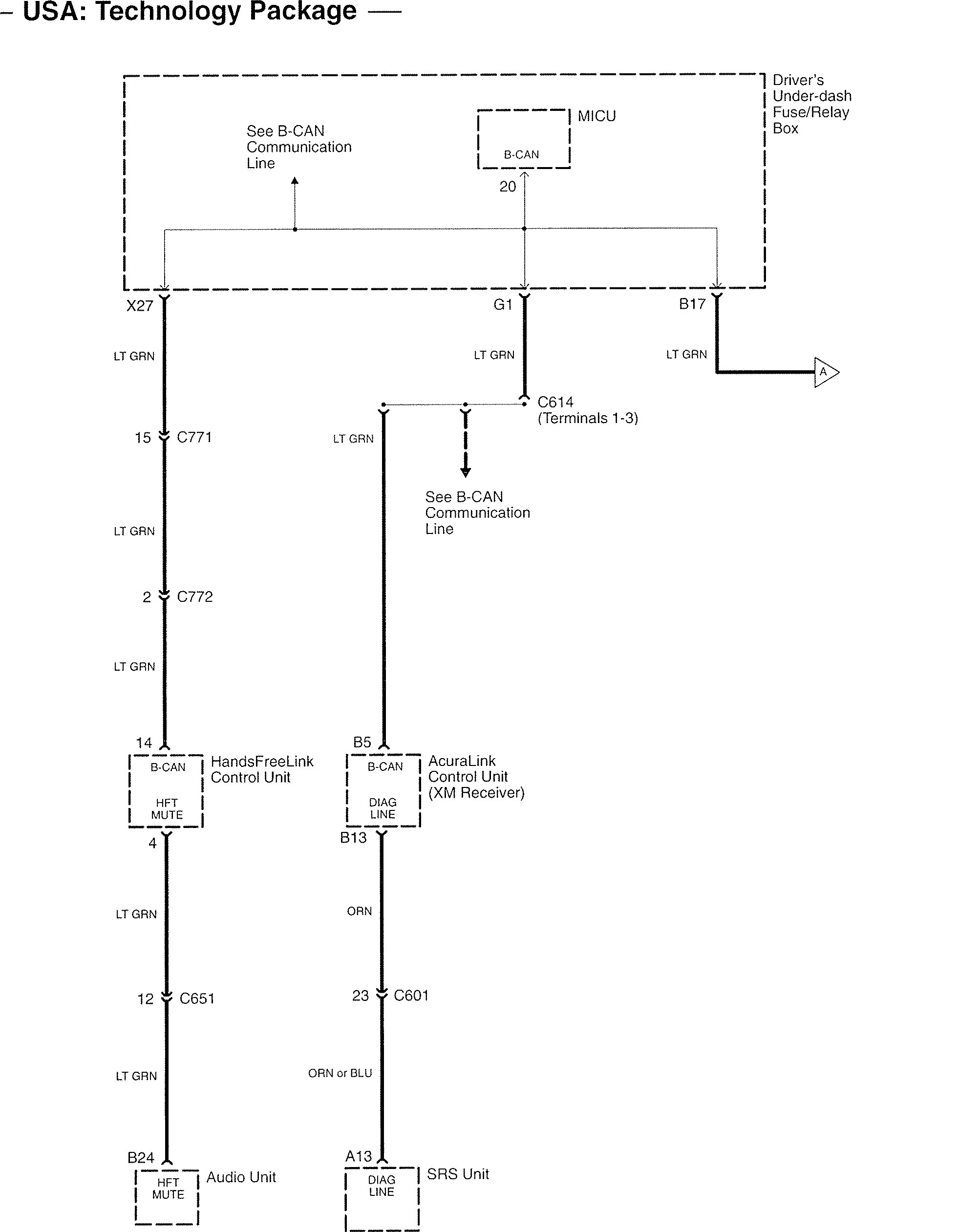

Acura RL - wiring diagram - communication system (part 2)
Acura RL – wiring diagram – communication system (part 2)

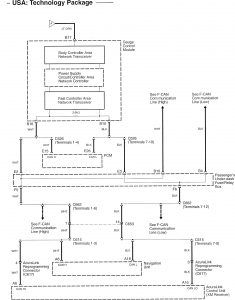

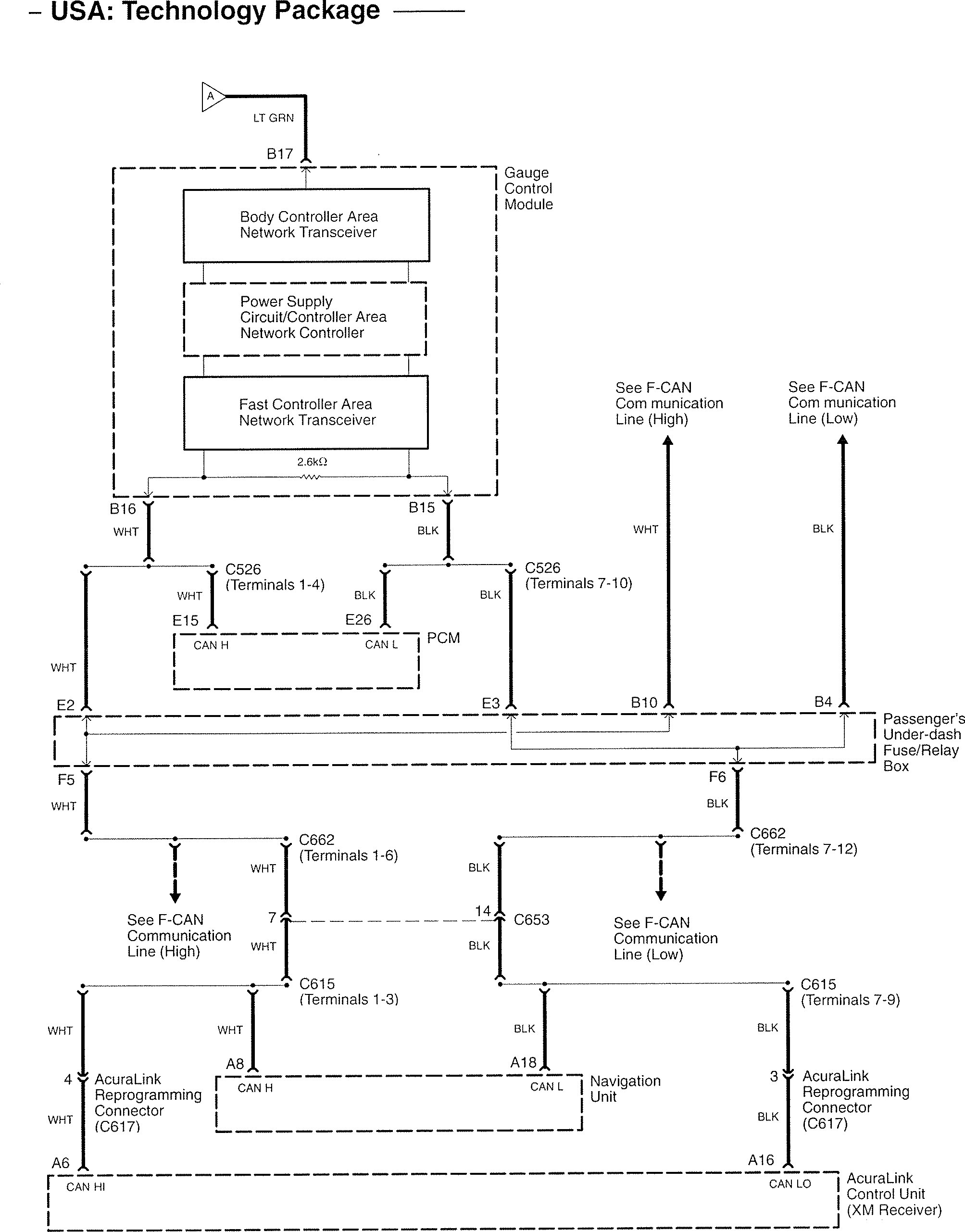

Acura RL - wiring diagram - communication system (part 3)
Acura RL – wiring diagram – communication system (part 3)

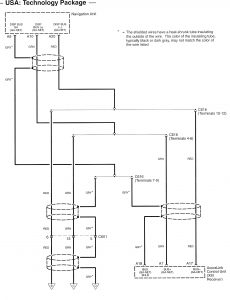

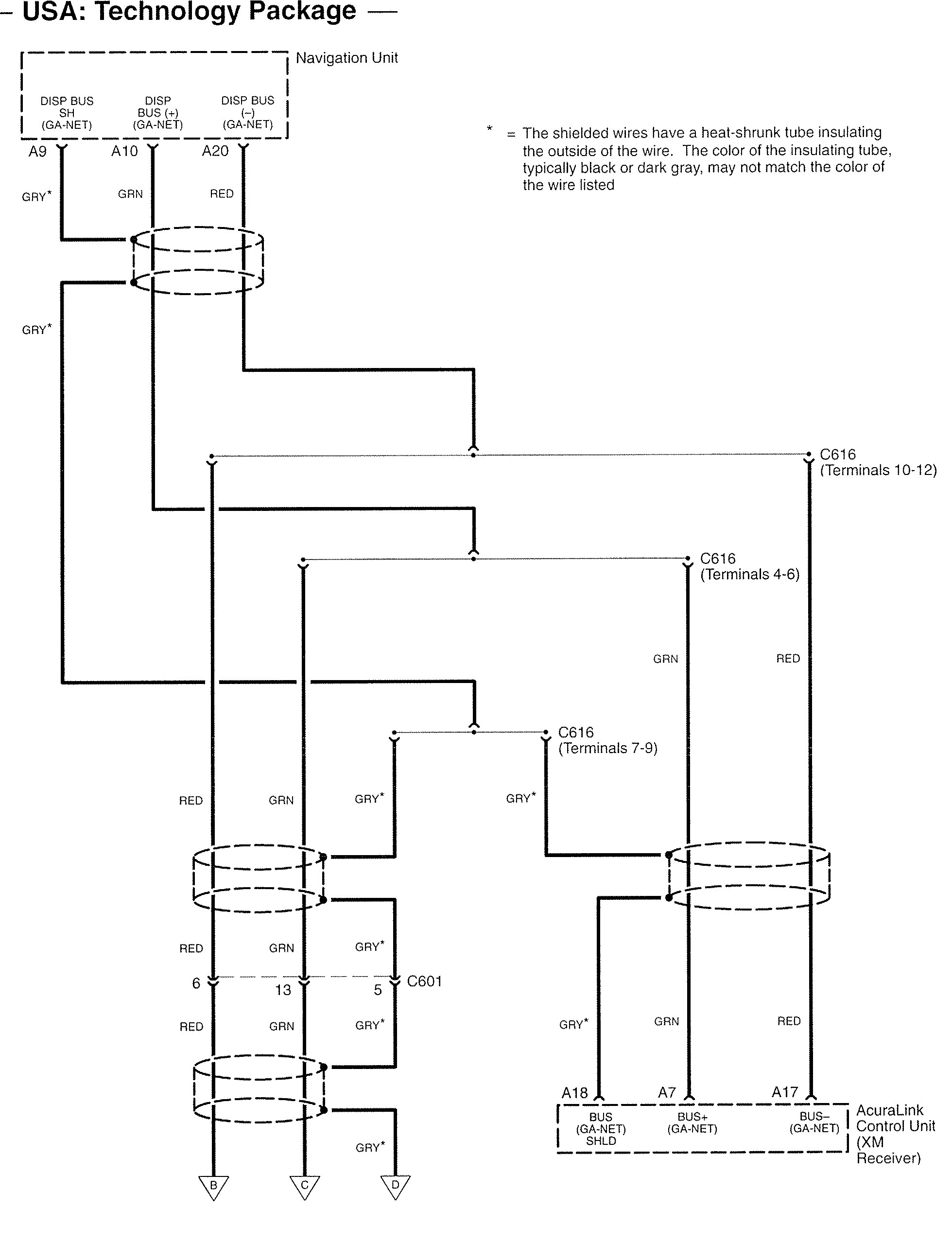

Acura RL - wiring diagram - communication system (part 4)
Acura RL – wiring diagram – communication system (part 4)

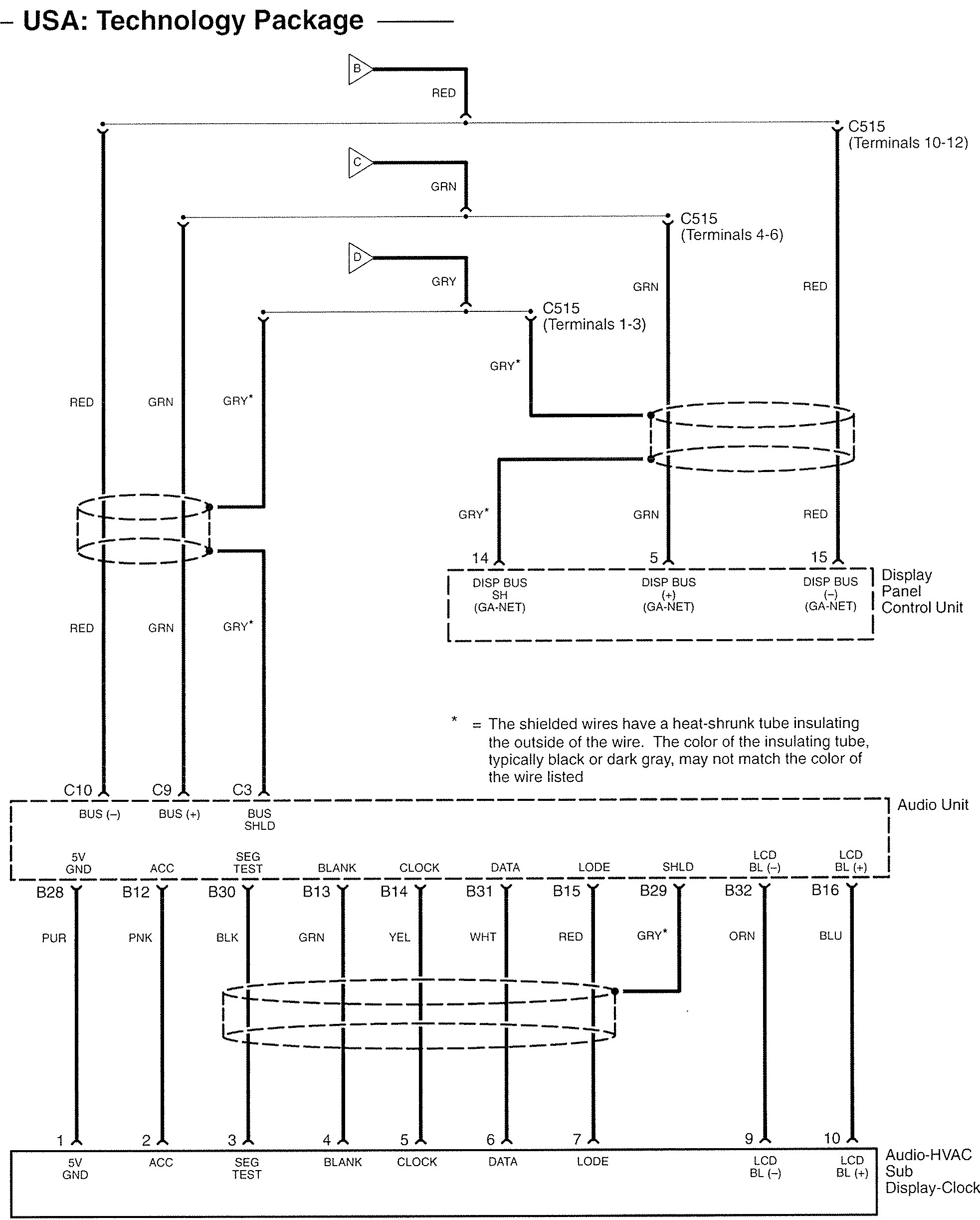

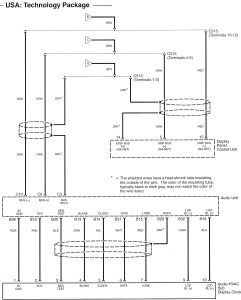

Acura RL - wiring diagram - communication system (part 5)
Acura RL – wiring diagram – communication system (part 5)

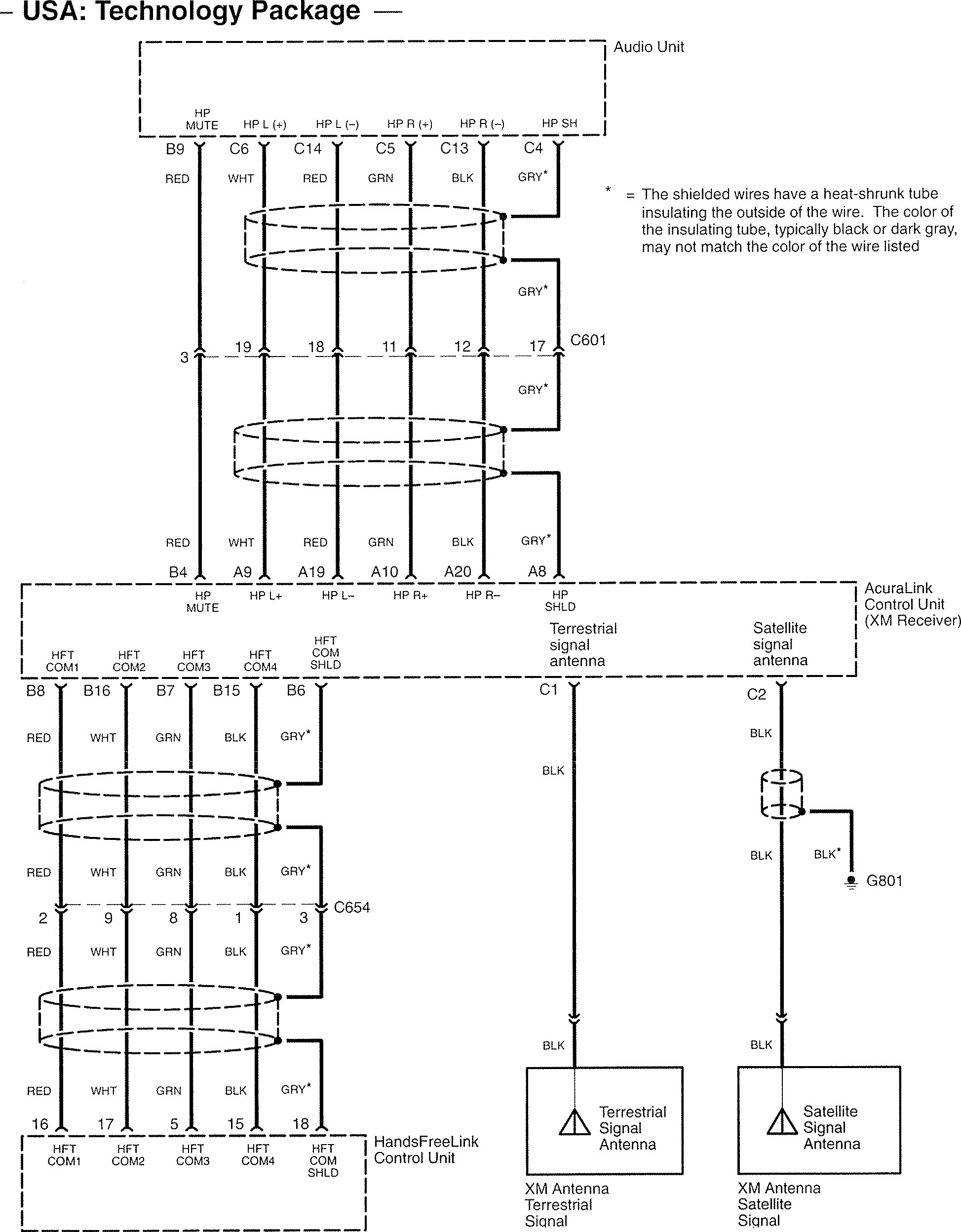

Acura RL - wiring diagram - communication system (part 6)
Acura RL – wiring diagram – communication system (part 6)

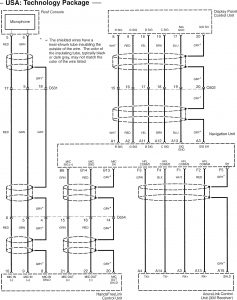

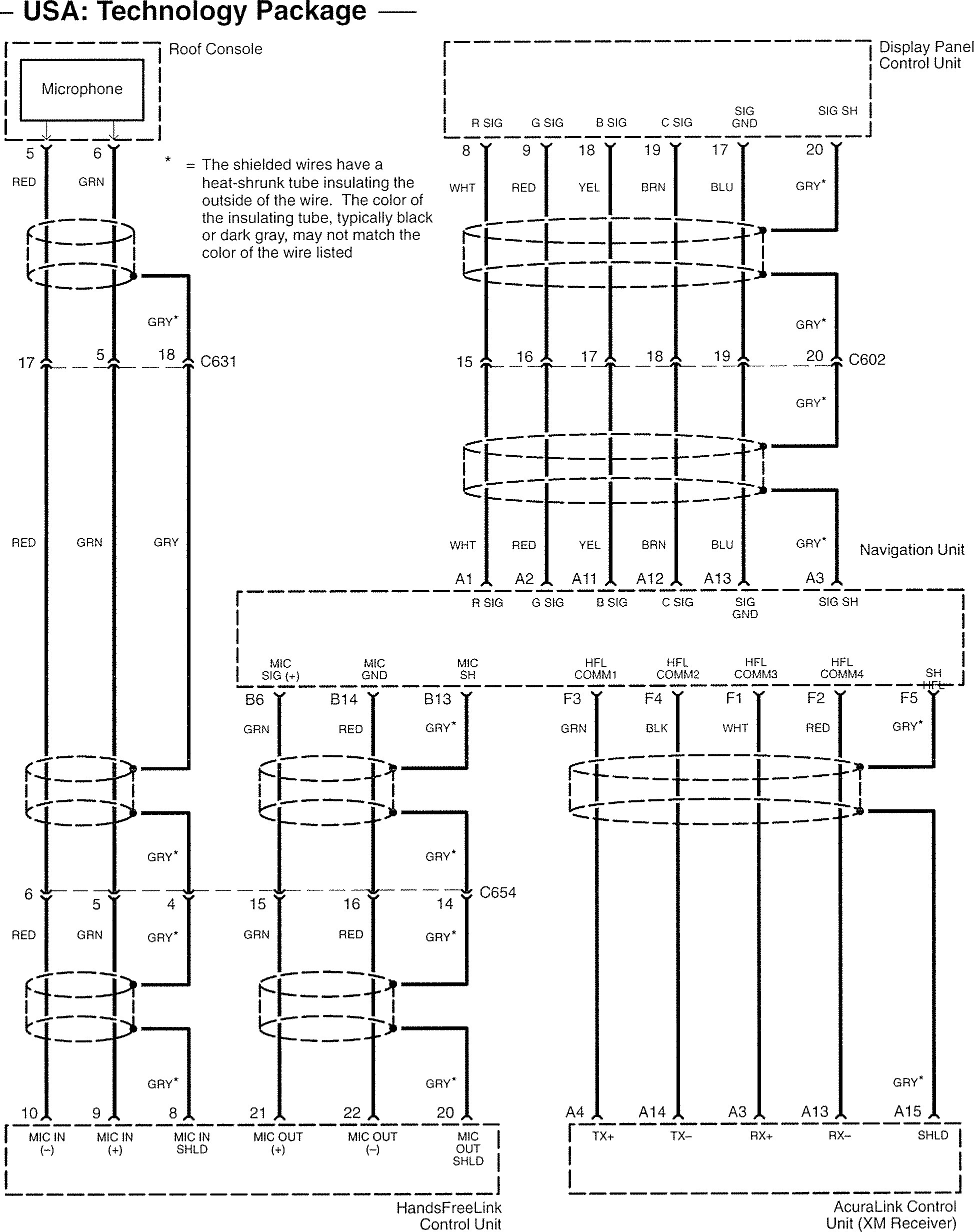

Acura RL - wiring diagram - communication system (part 7)
Acura RL – wiring diagram – communication system (part 7)

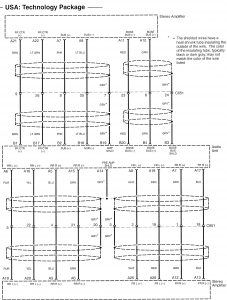

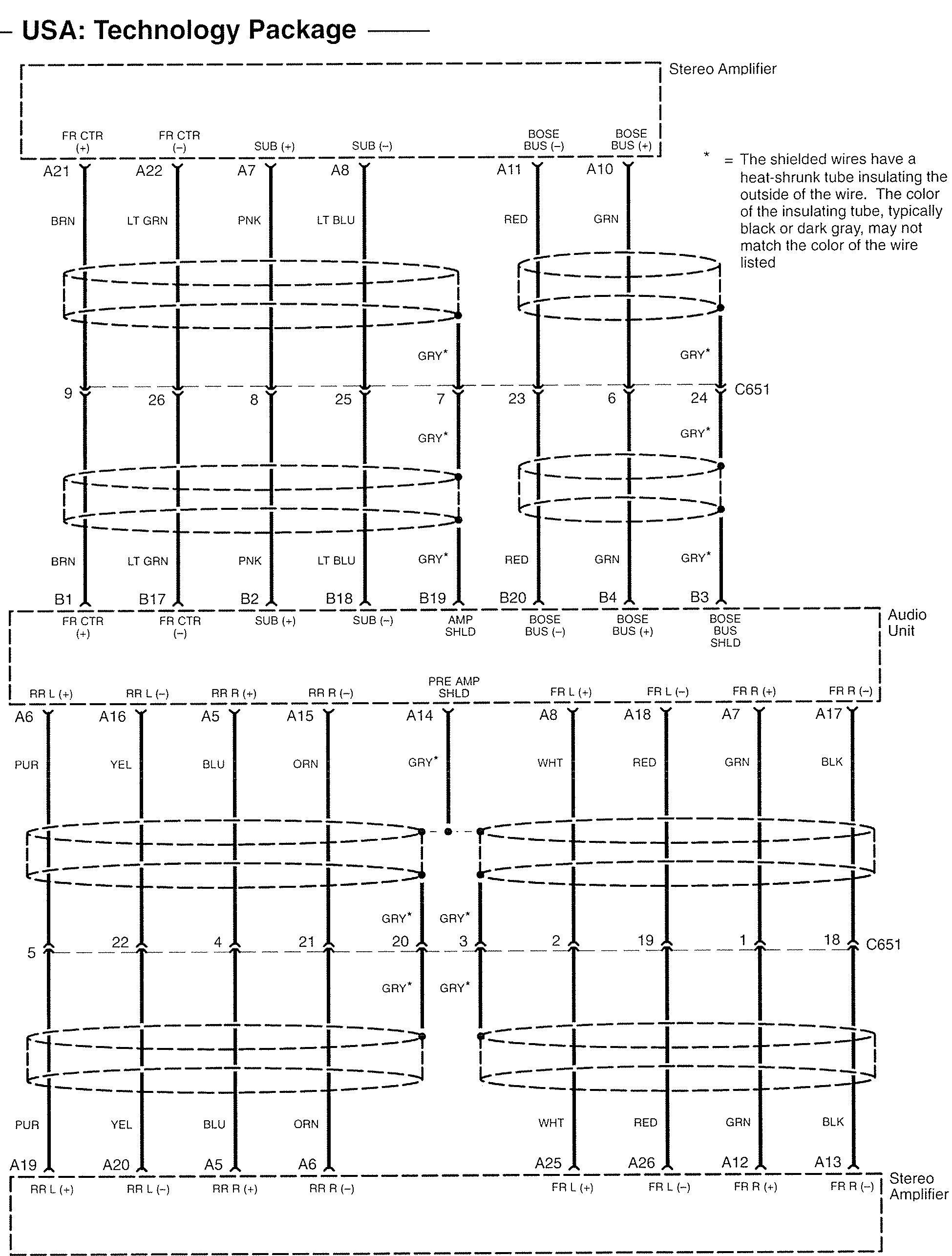

Acura RL - wiring diagram - communication system (part 8)
Acura RL – wiring diagram – communication system (part 8)

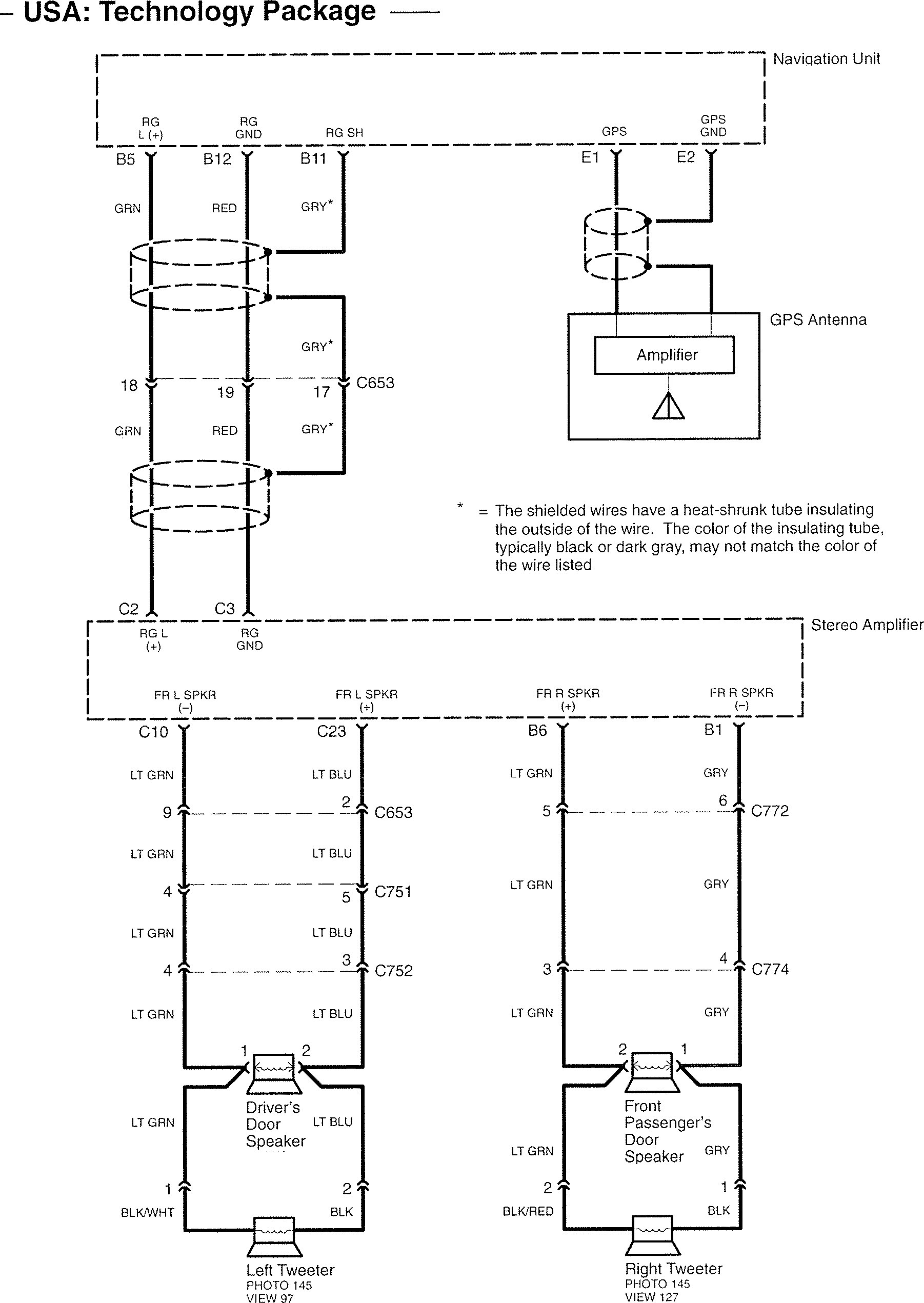

Acura RL - wiring diagram - communication system (part 9)
Acura RL – wiring diagram – communication system (part 9)

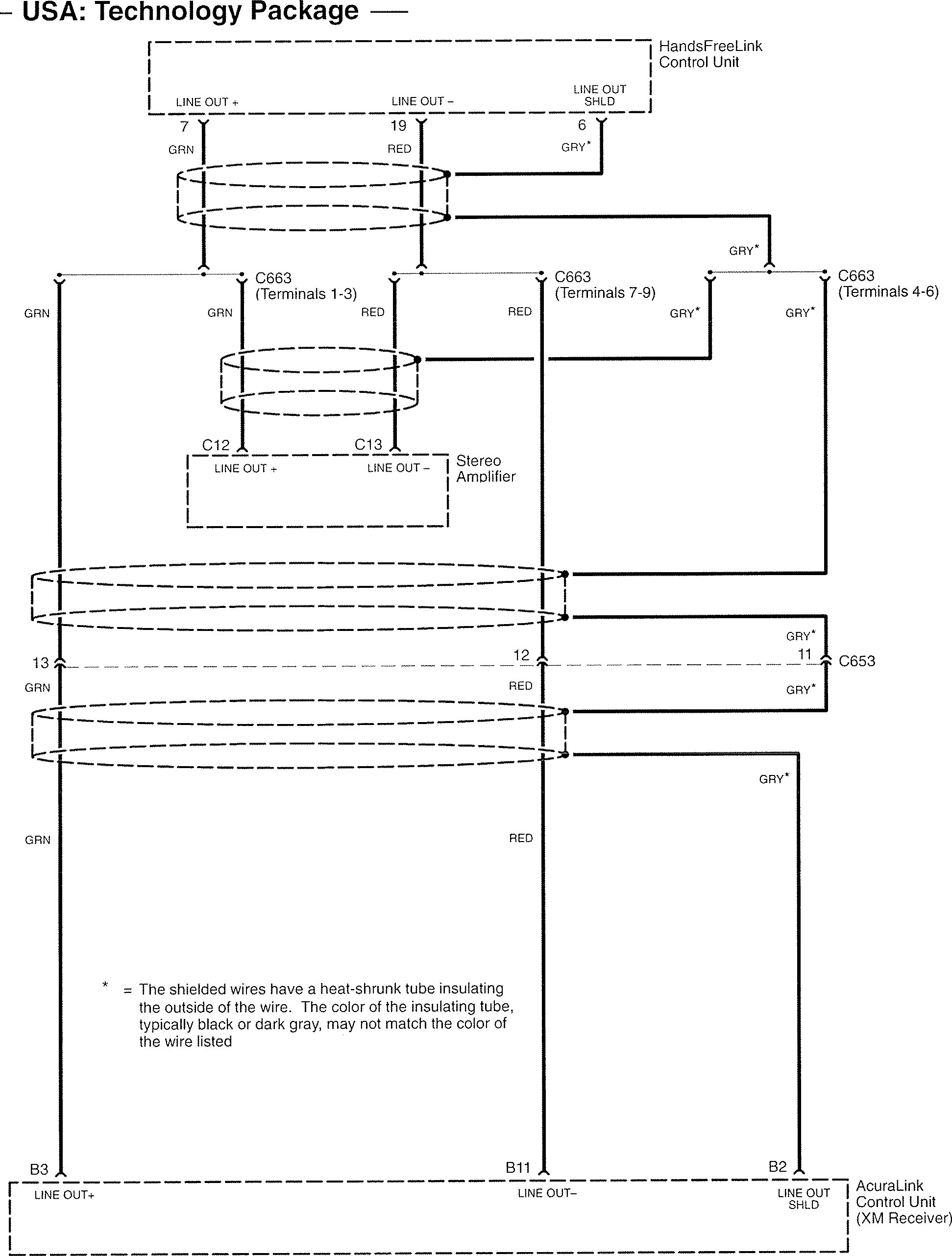

Acura RL - wiring diagram - communication system (part 10)
Acura RL – wiring diagram – communication system (part 10)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
