Acura RL (2007) – wiring diagrams – ground distribution

12 October 2017 admin Acura, RL 0

Acura RL (2007) – wiring diagrams – ground distribution

Year of productions: 2007

Ground distribution

Version 1

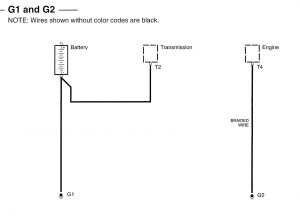

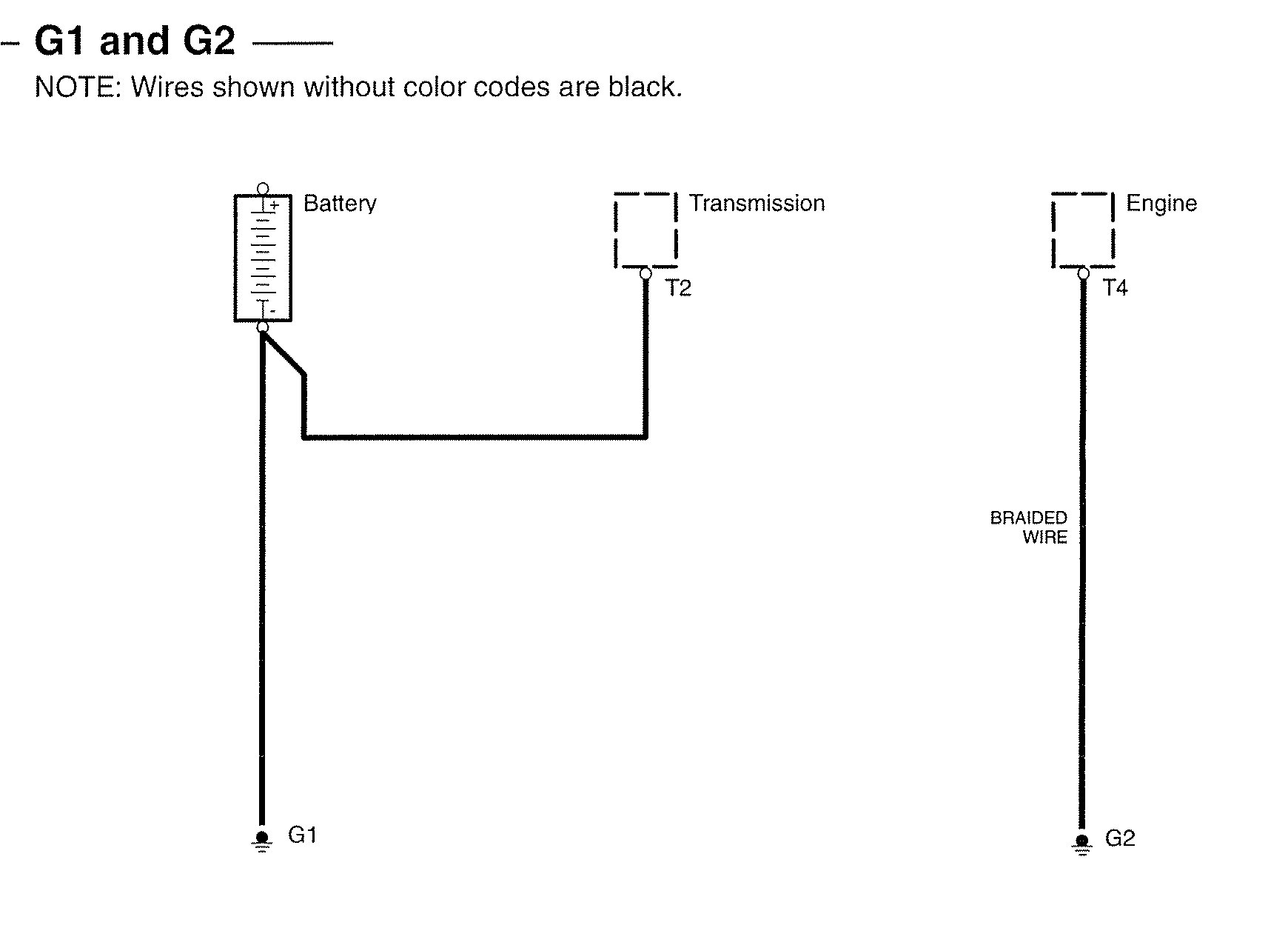

Acura RL - wiring diagram - ground distribution (part 1) — Acura RL – wiring diagram – ground distribution (part 1)

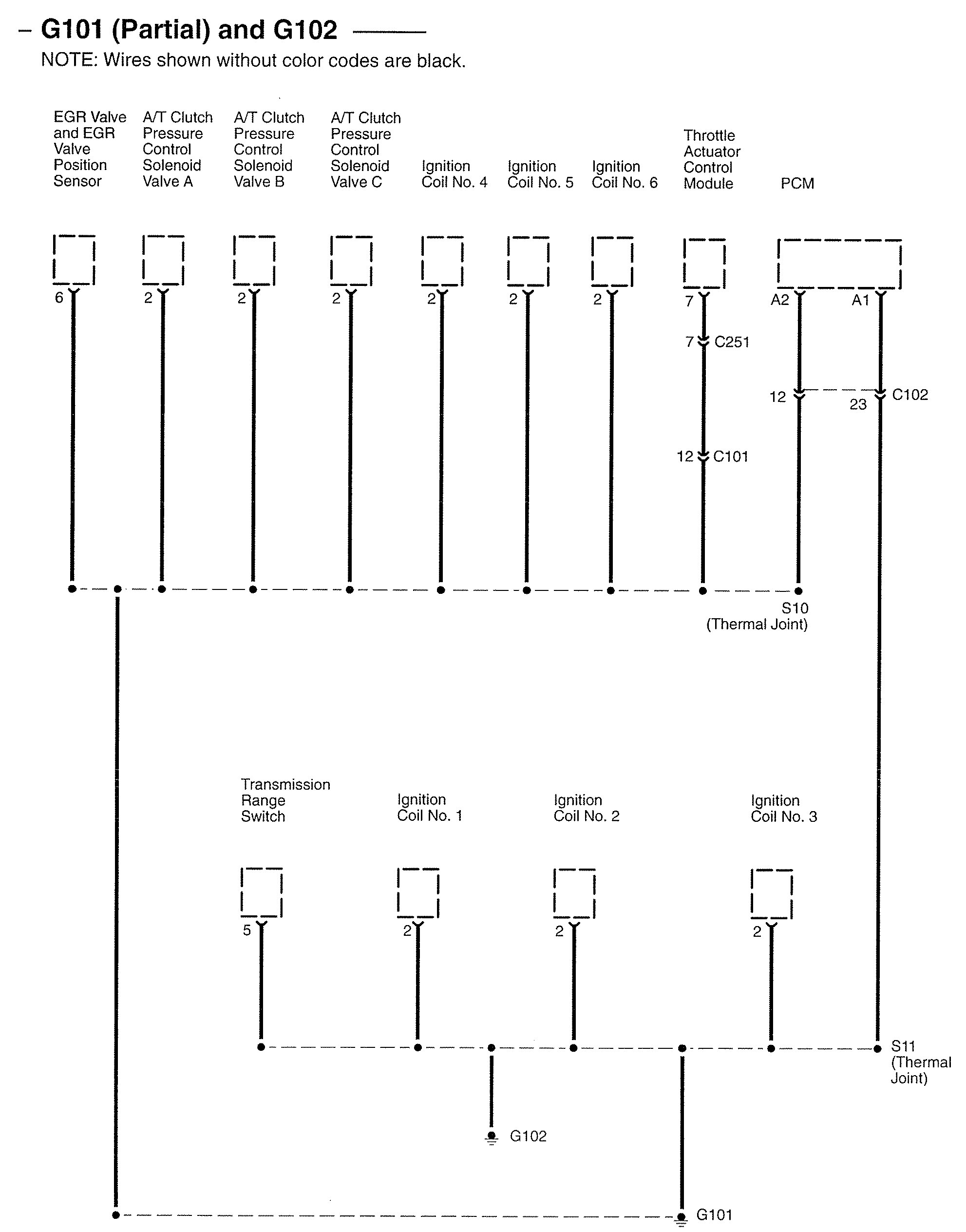

Acura RL - wiring diagram - ground distribution (part 2) — Acura RL – wiring diagram – ground distribution (part 2)

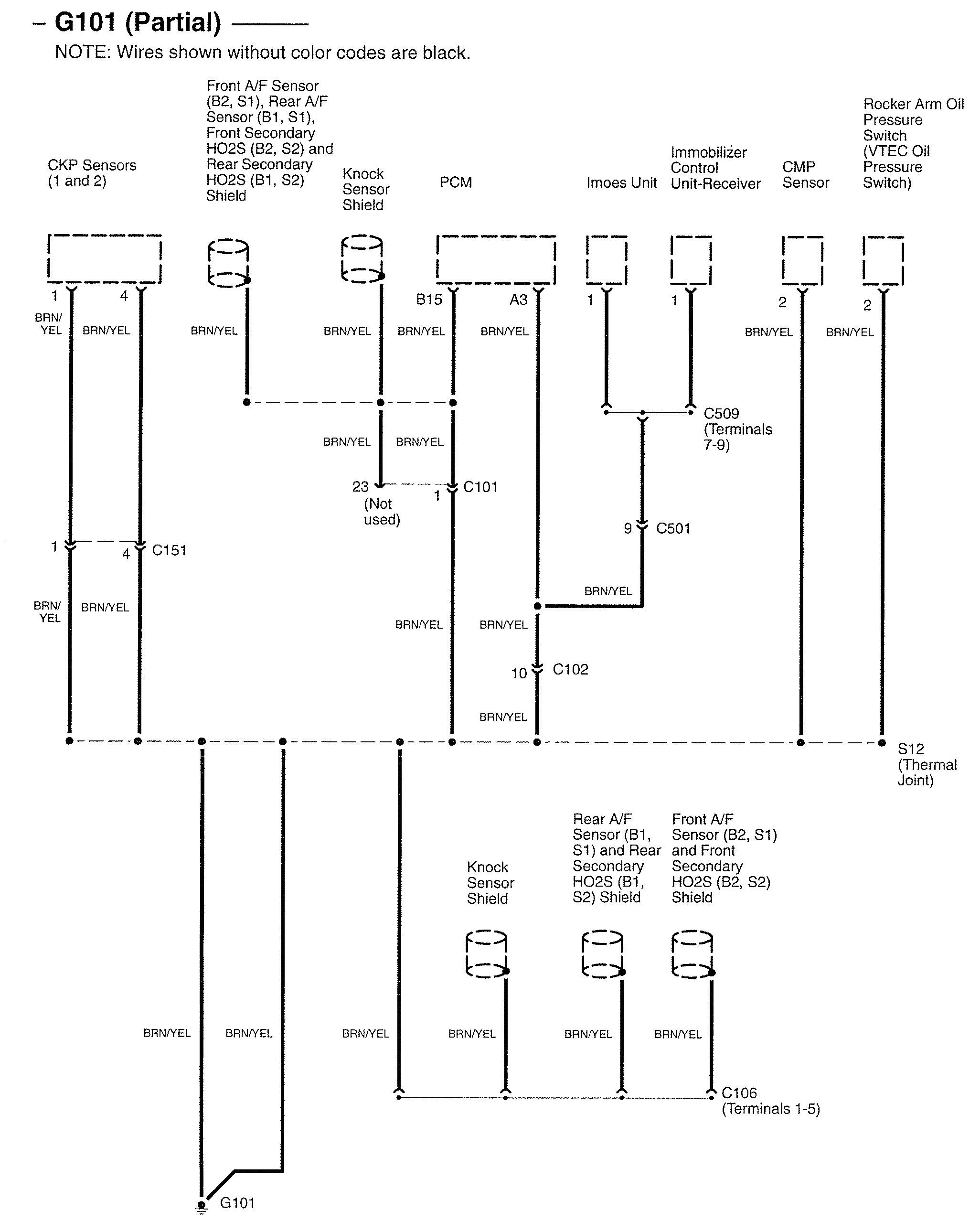

Acura RL - wiring diagram - ground distribution (part 3) — Acura RL – wiring diagram – ground distribution (part 3)

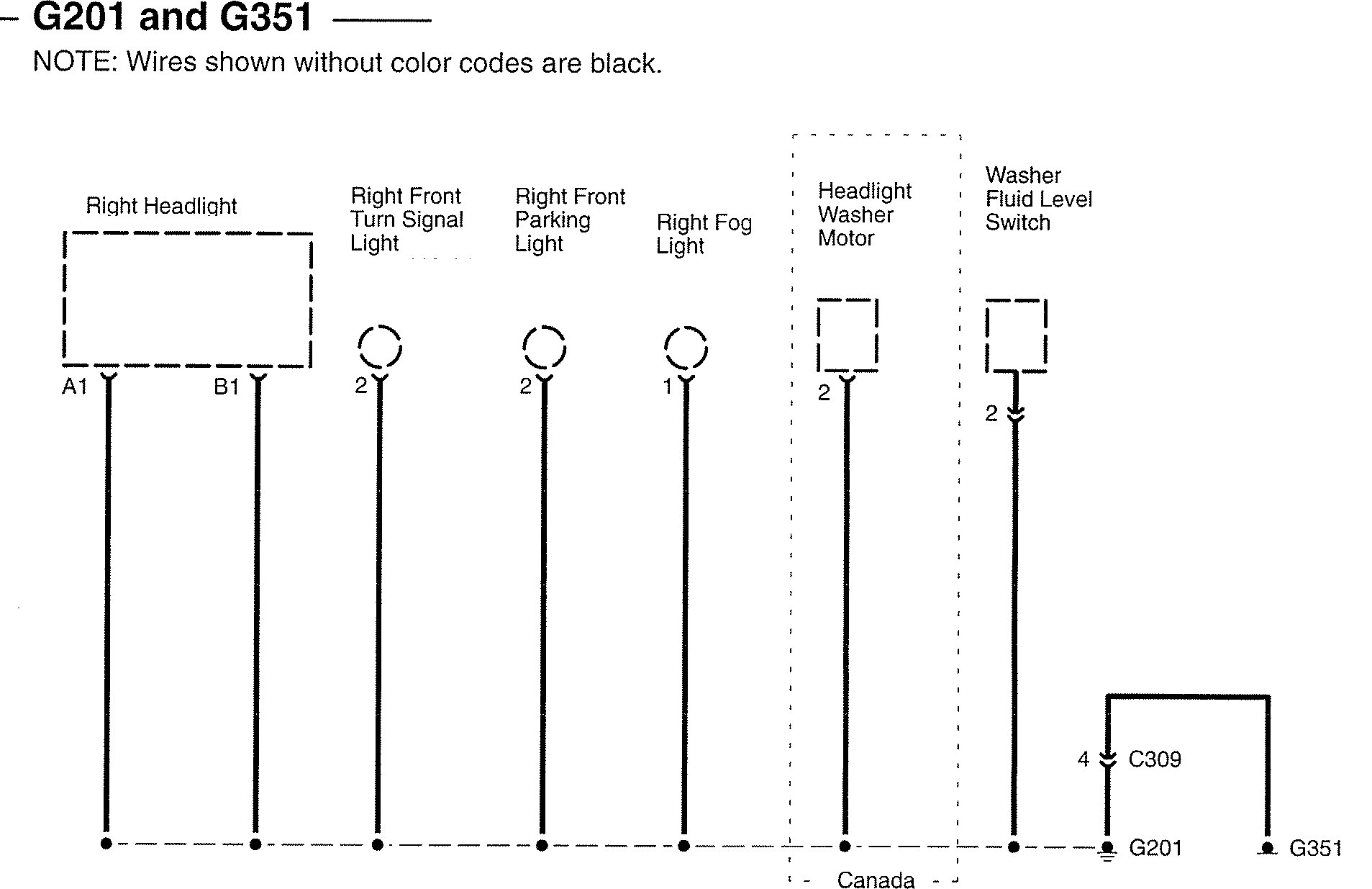

Acura RL - wiring diagram - ground distribution (part 4) — Acura RL – wiring diagram – ground distribution (part 4)

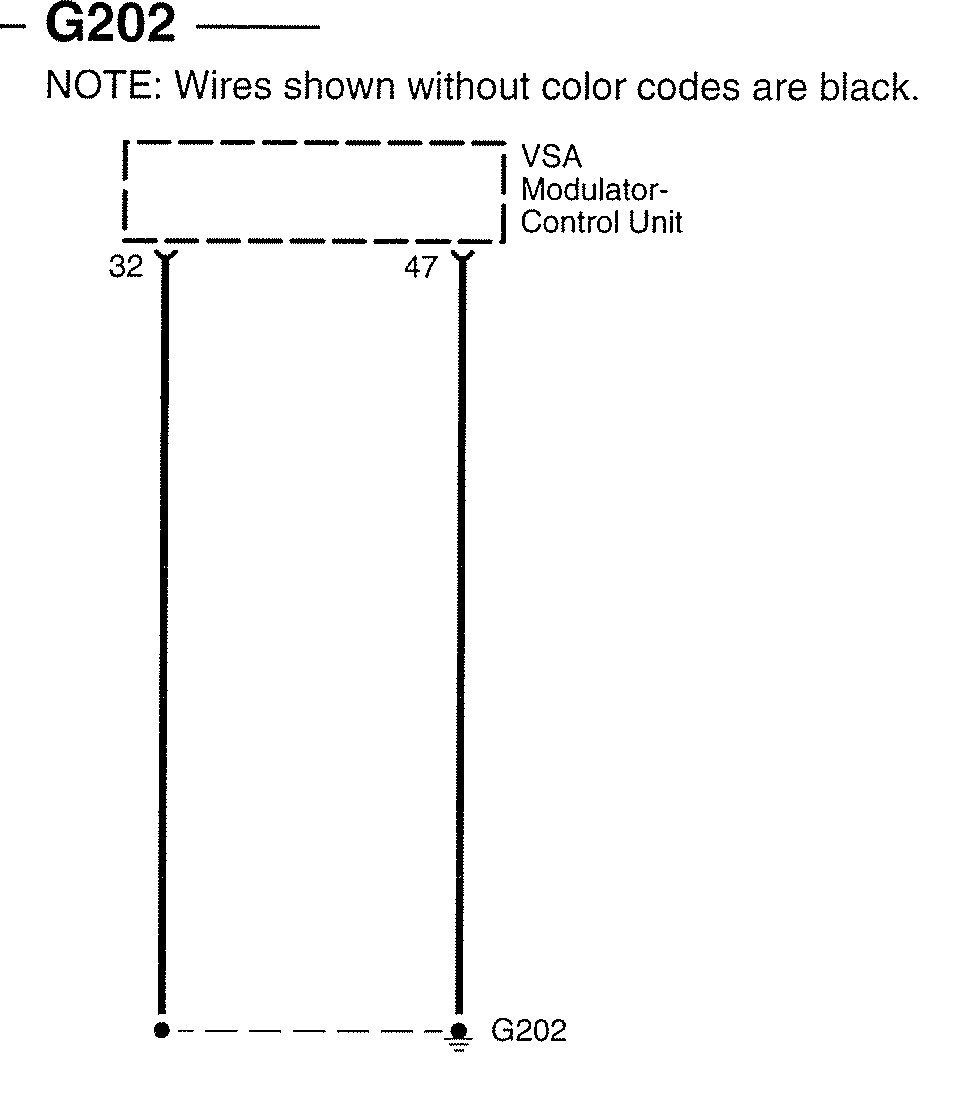

Acura RL - wiring diagram - ground distribution (part 5) — Acura RL – wiring diagram – ground distribution (part 5)

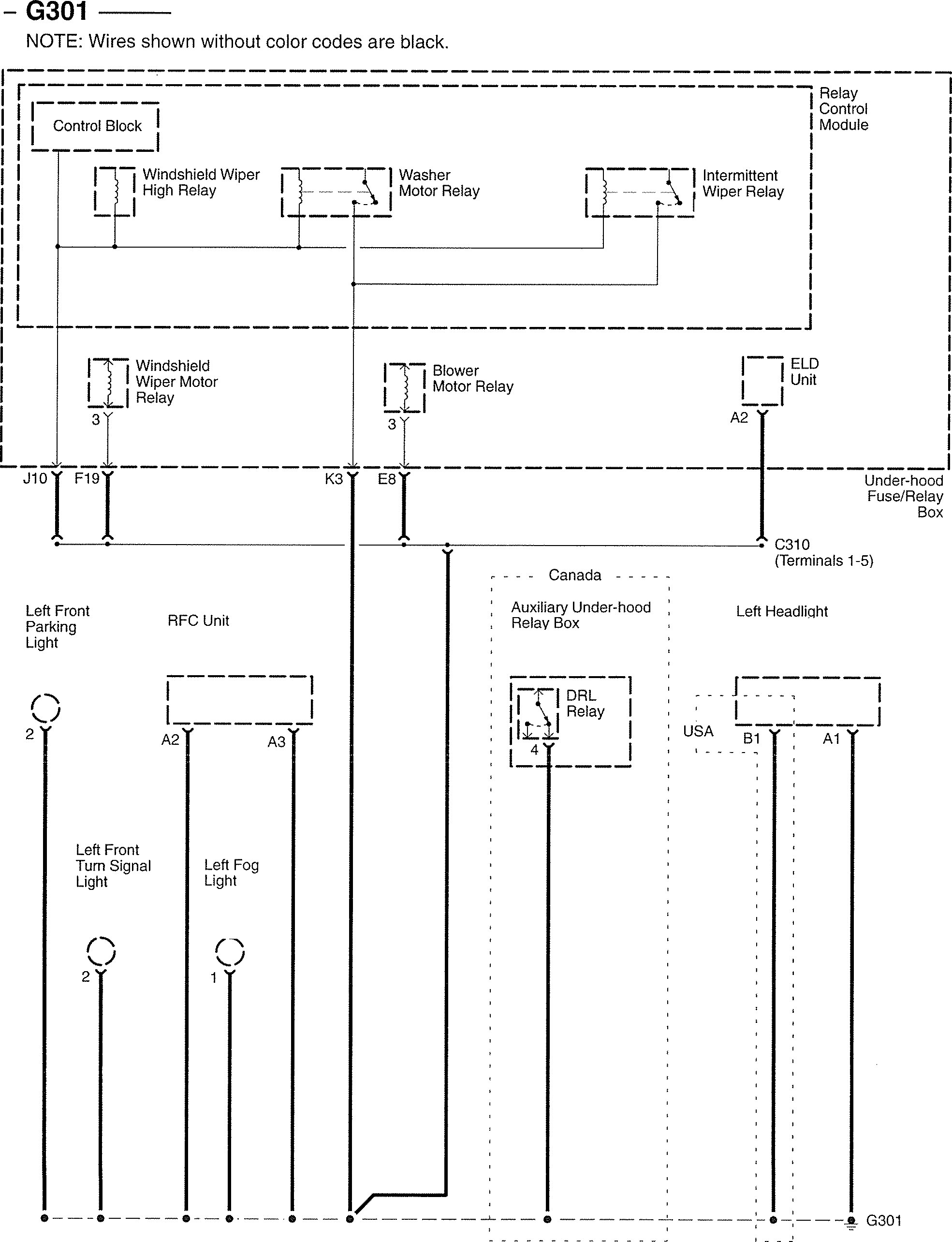

Acura RL - wiring diagram - ground distribution (part 6) — Acura RL – wiring diagram – ground distribution (part 6)

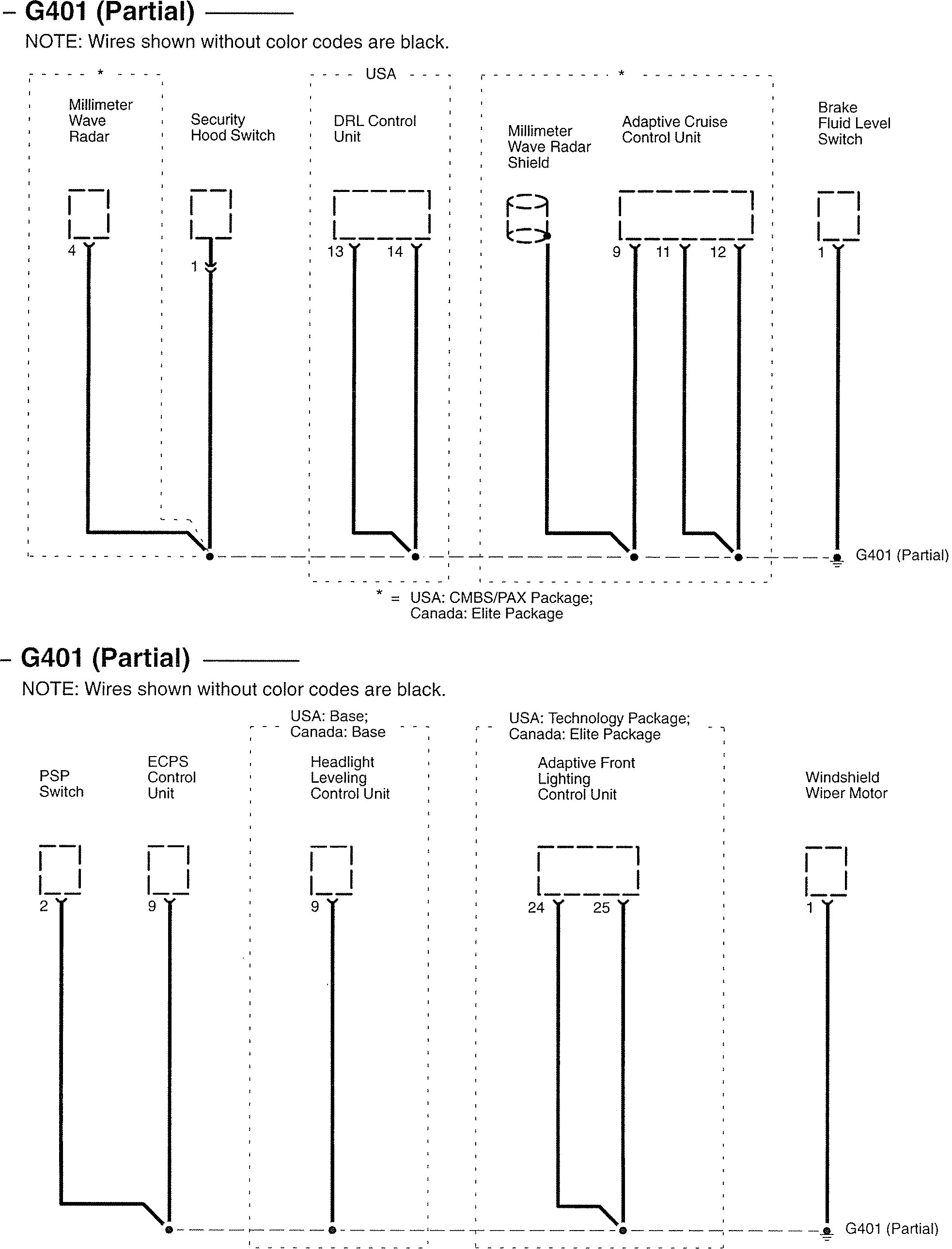

Acura RL - wiring diagram - ground distribution (part 7) — Acura RL – wiring diagram – ground distribution (part 7)

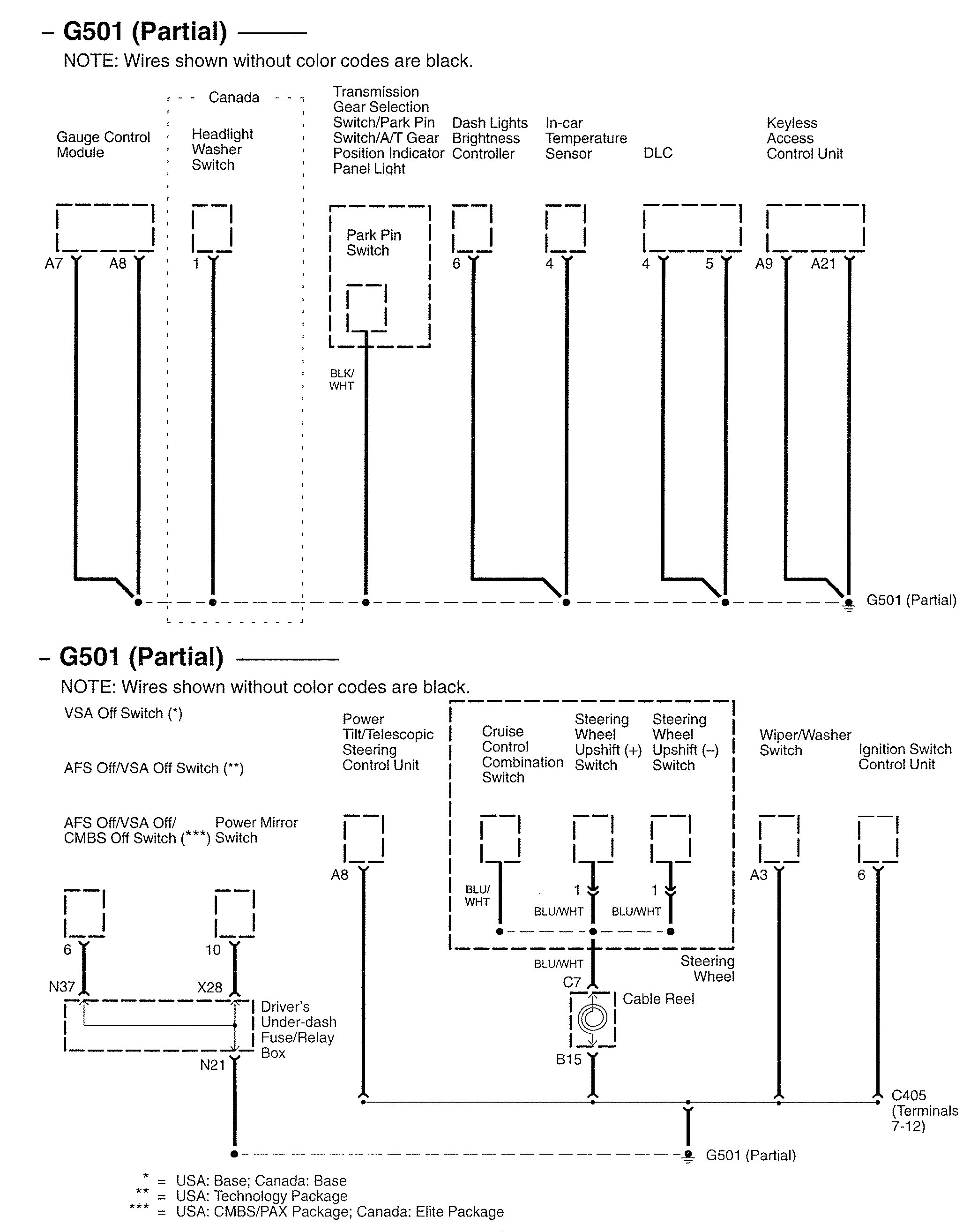

Acura RL - wiring diagram - ground distribution (part 8) — Acura RL – wiring diagram – ground distribution (part 8)

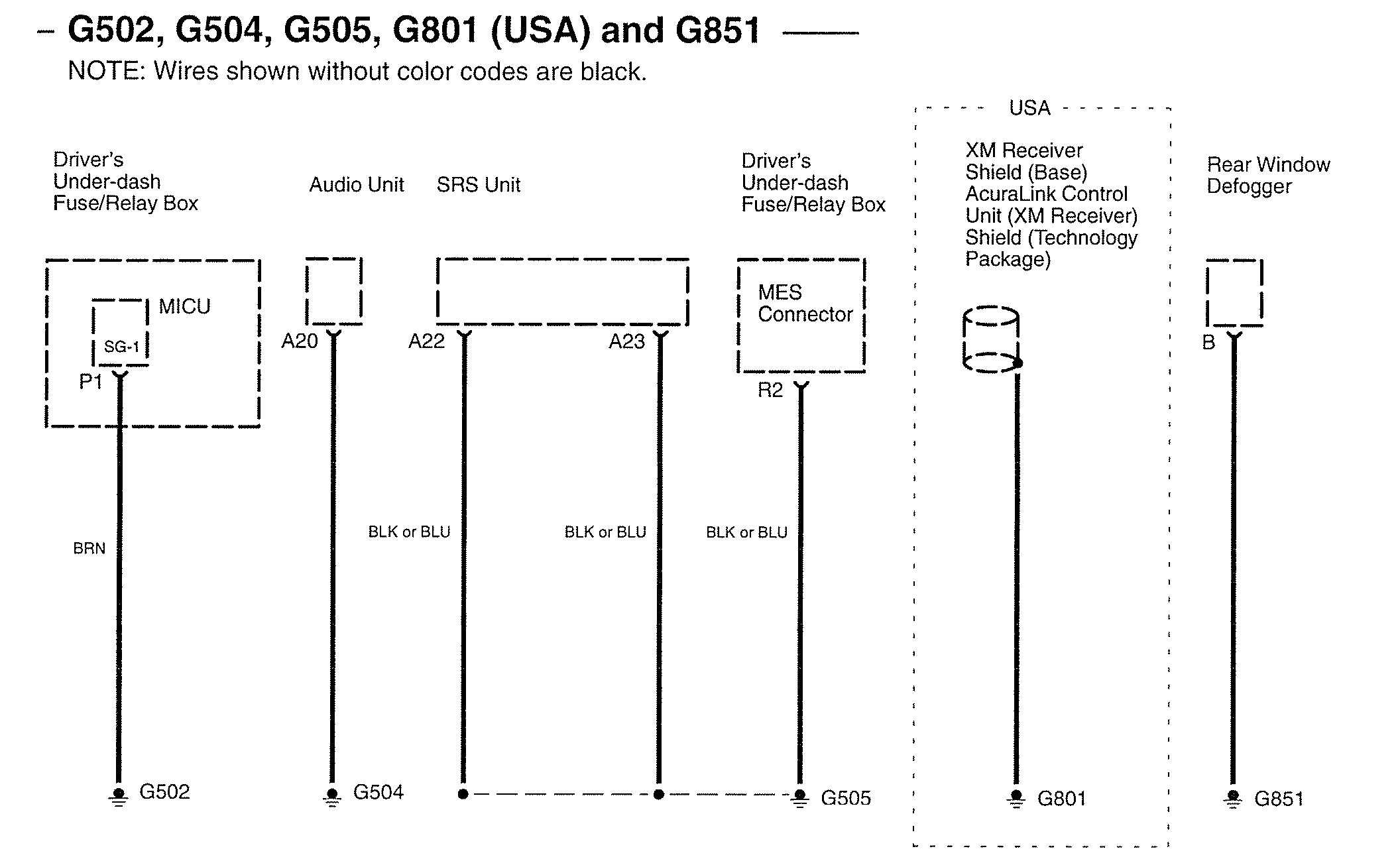

Acura RL - wiring diagram - ground distribution (part 9) — Acura RL – wiring diagram – ground distribution (part 9)

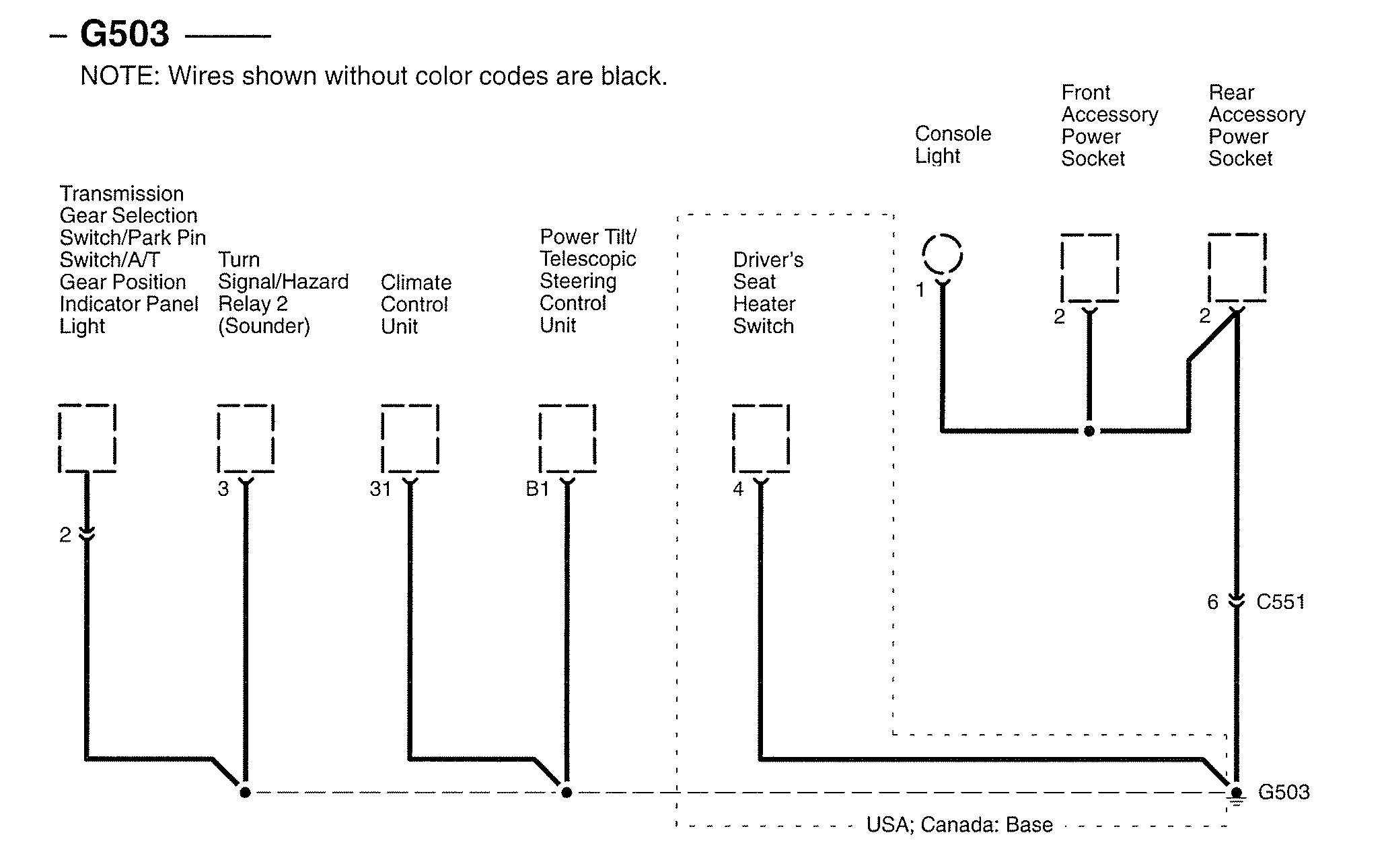

Acura RL - wiring diagram - ground distribution (part 10) — Acura RL – wiring diagram – ground distribution (part 10)

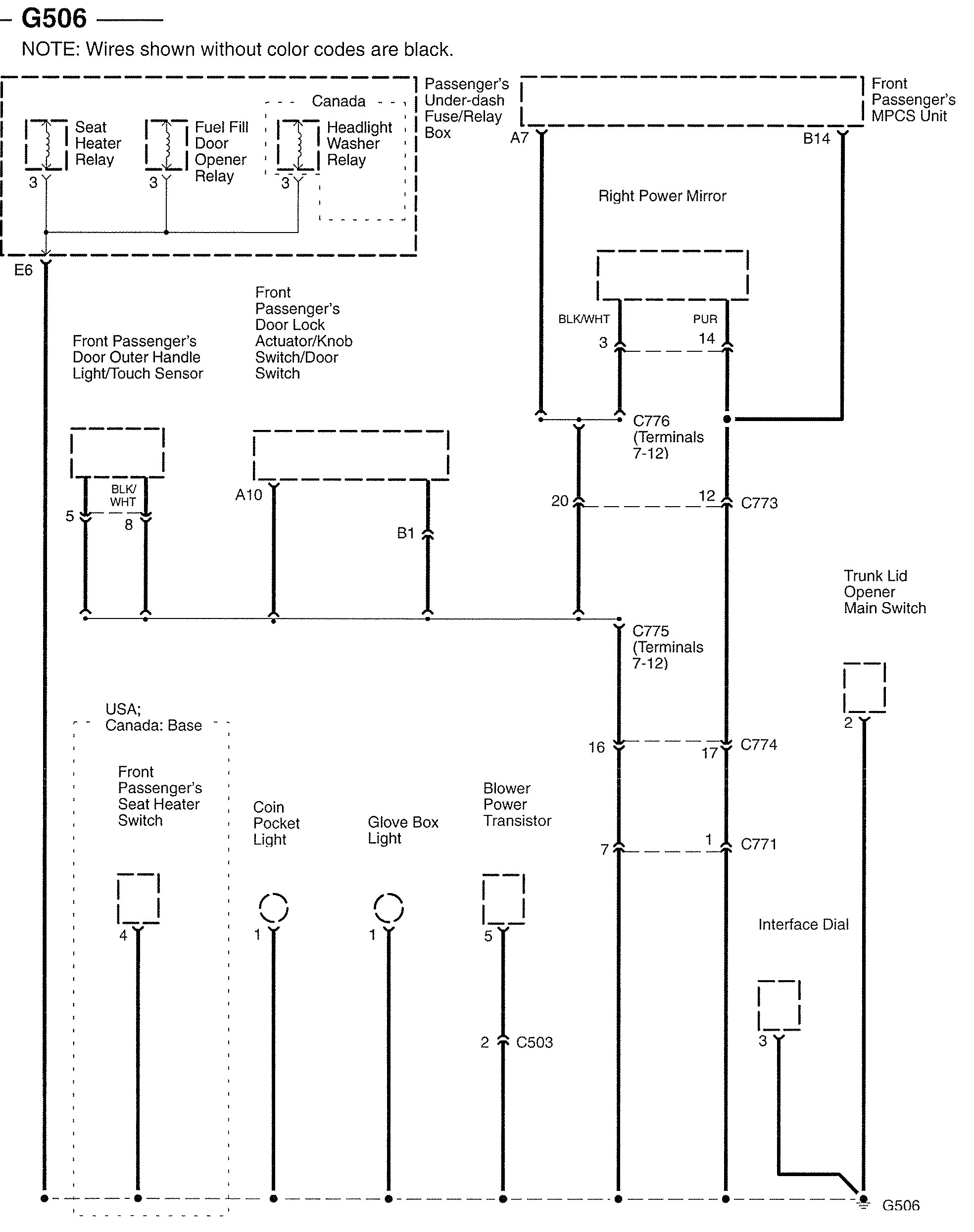

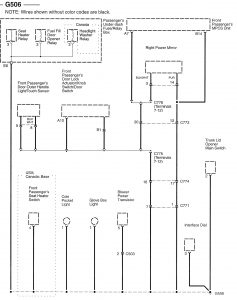

Acura RL - wiring diagram - ground distribution (part 11) — Acura RL – wiring diagram – ground distribution (part 11)

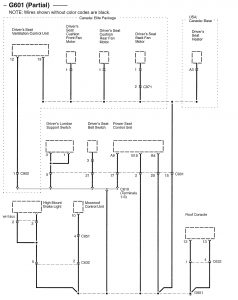

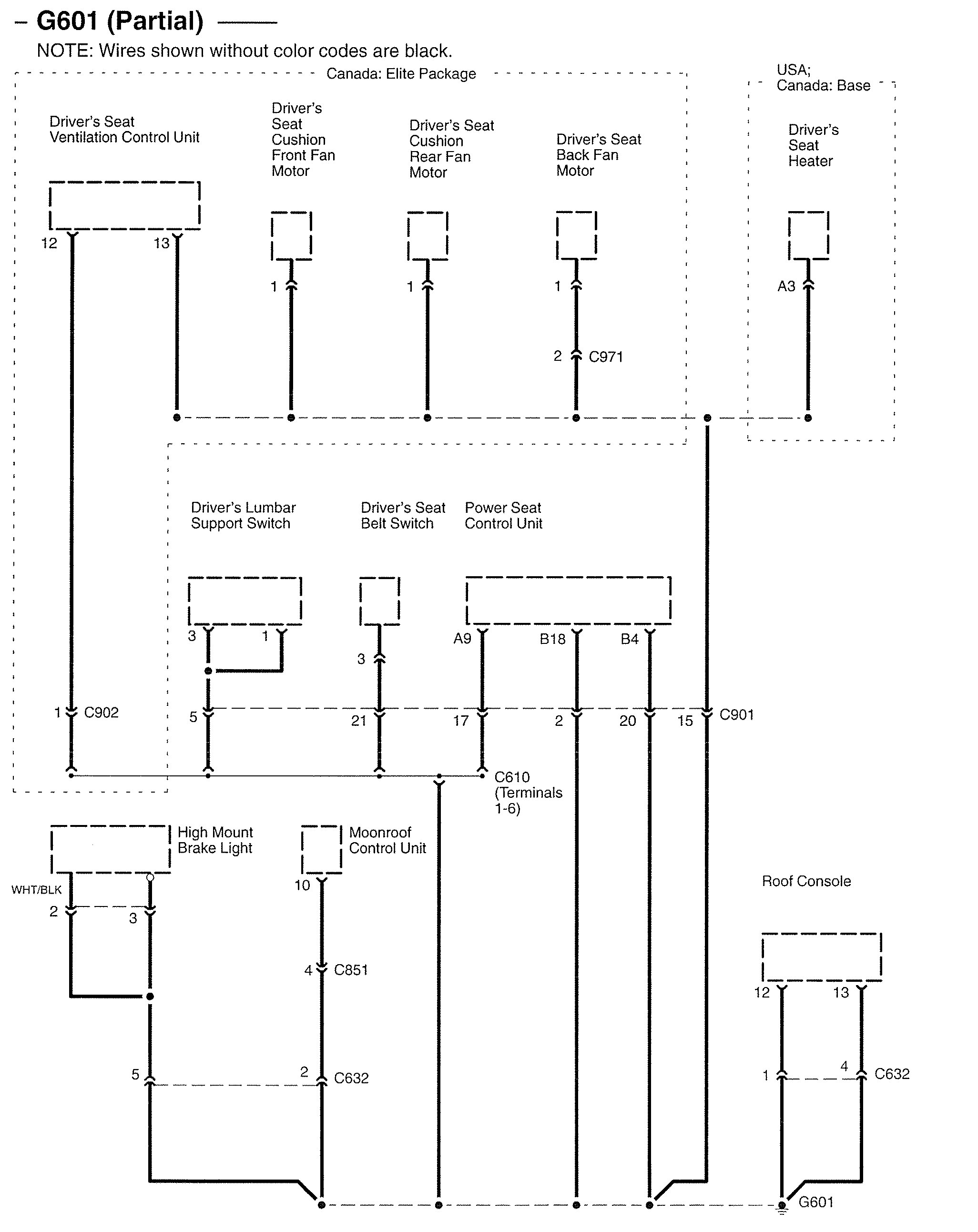

Acura RL - wiring diagram - ground distribution (part 12) — Acura RL – wiring diagram – ground distribution (part 12)

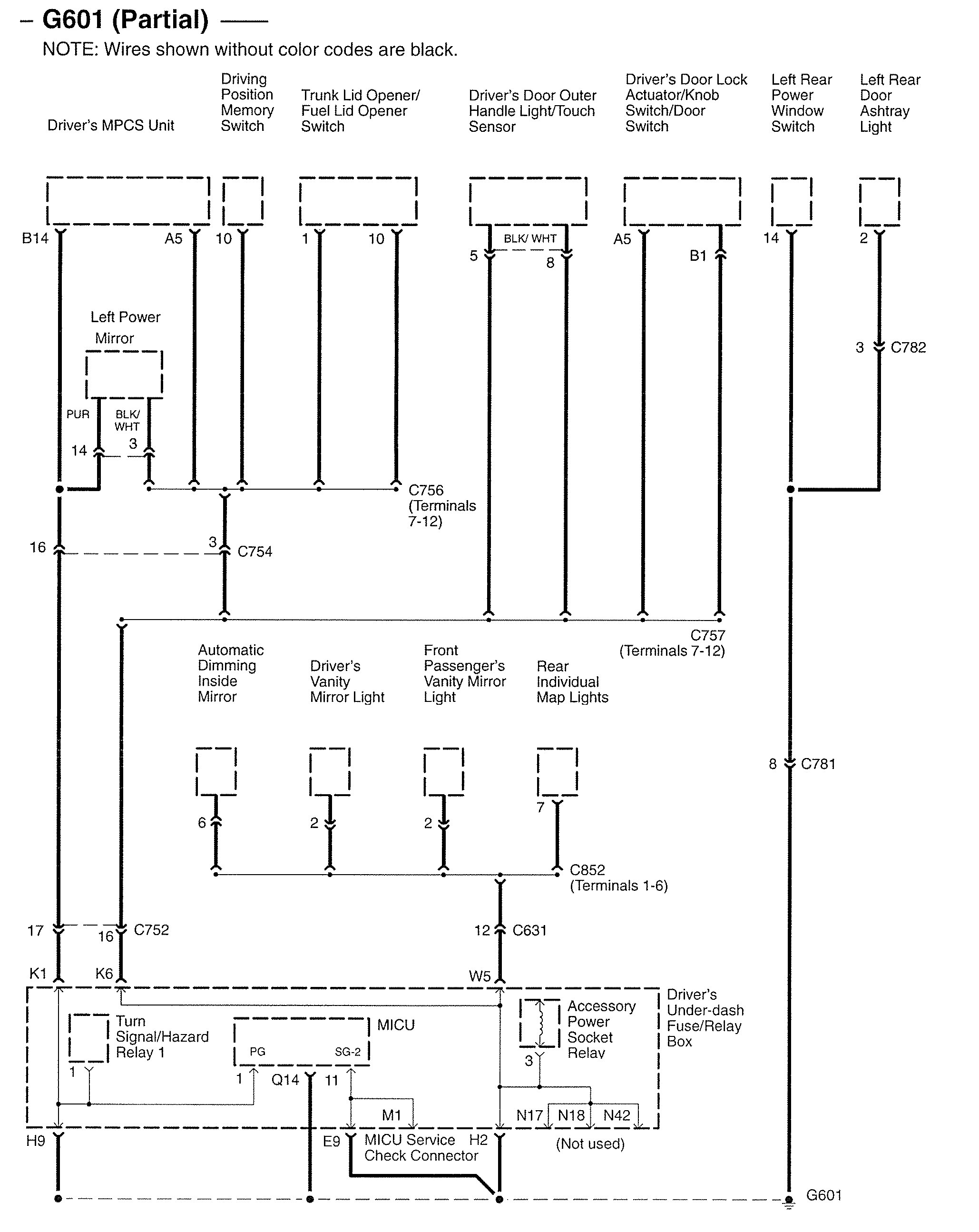

Acura RL - wiring diagram - ground distribution (part 13) — Acura RL – wiring diagram – ground distribution (part 13)

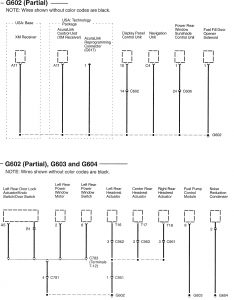

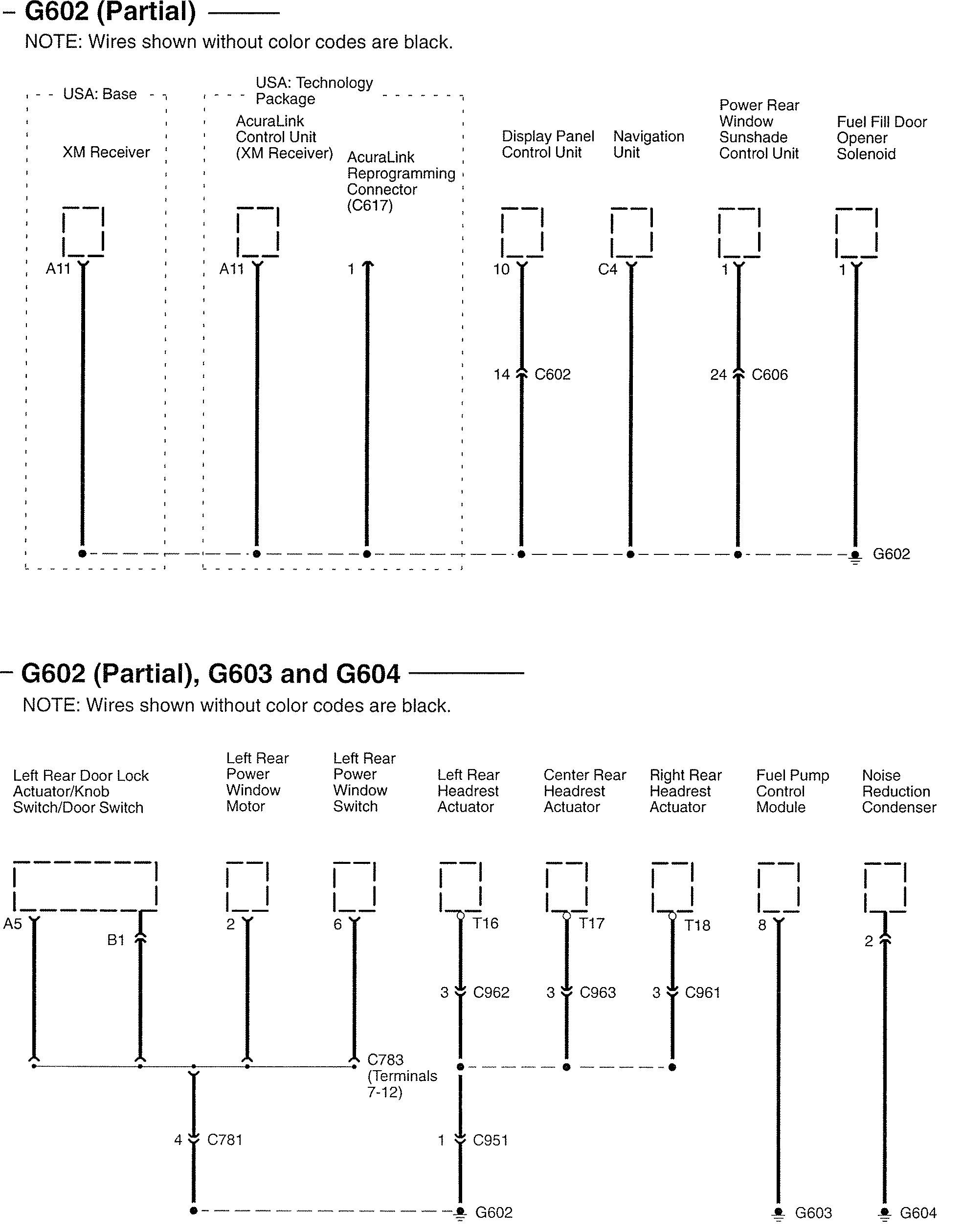

Acura RL - wiring diagram - ground distribution (part 14) — Acura RL – wiring diagram – ground distribution (part 14)

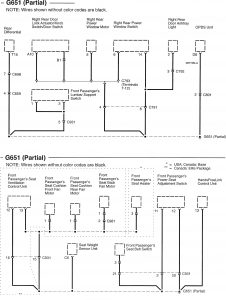

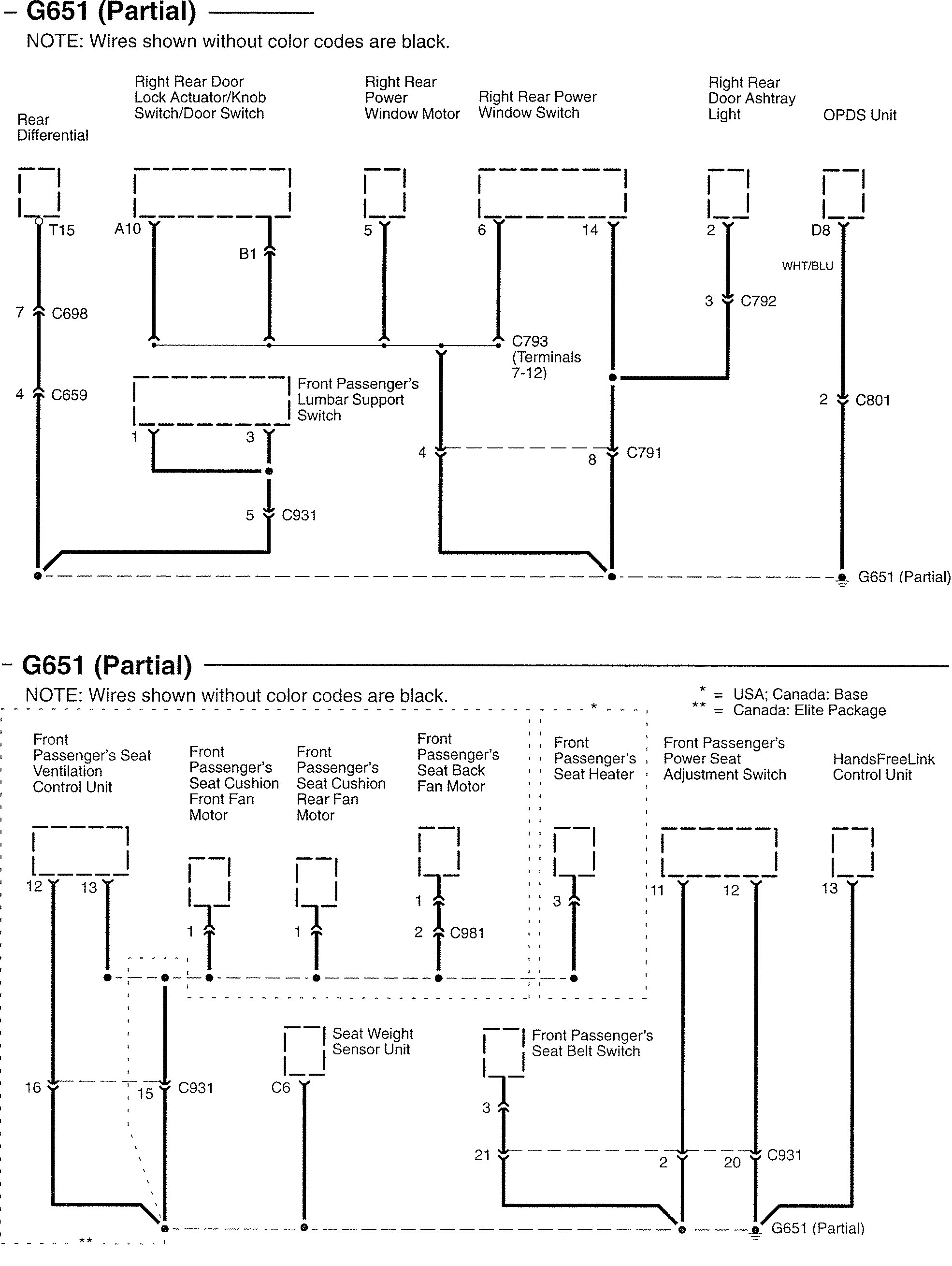

Acura RL - wiring diagram - ground distribution (part 15) — Acura RL – wiring diagram – ground distribution (part 15)

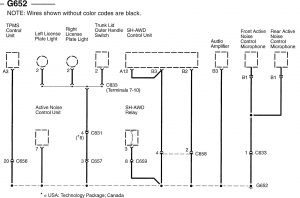

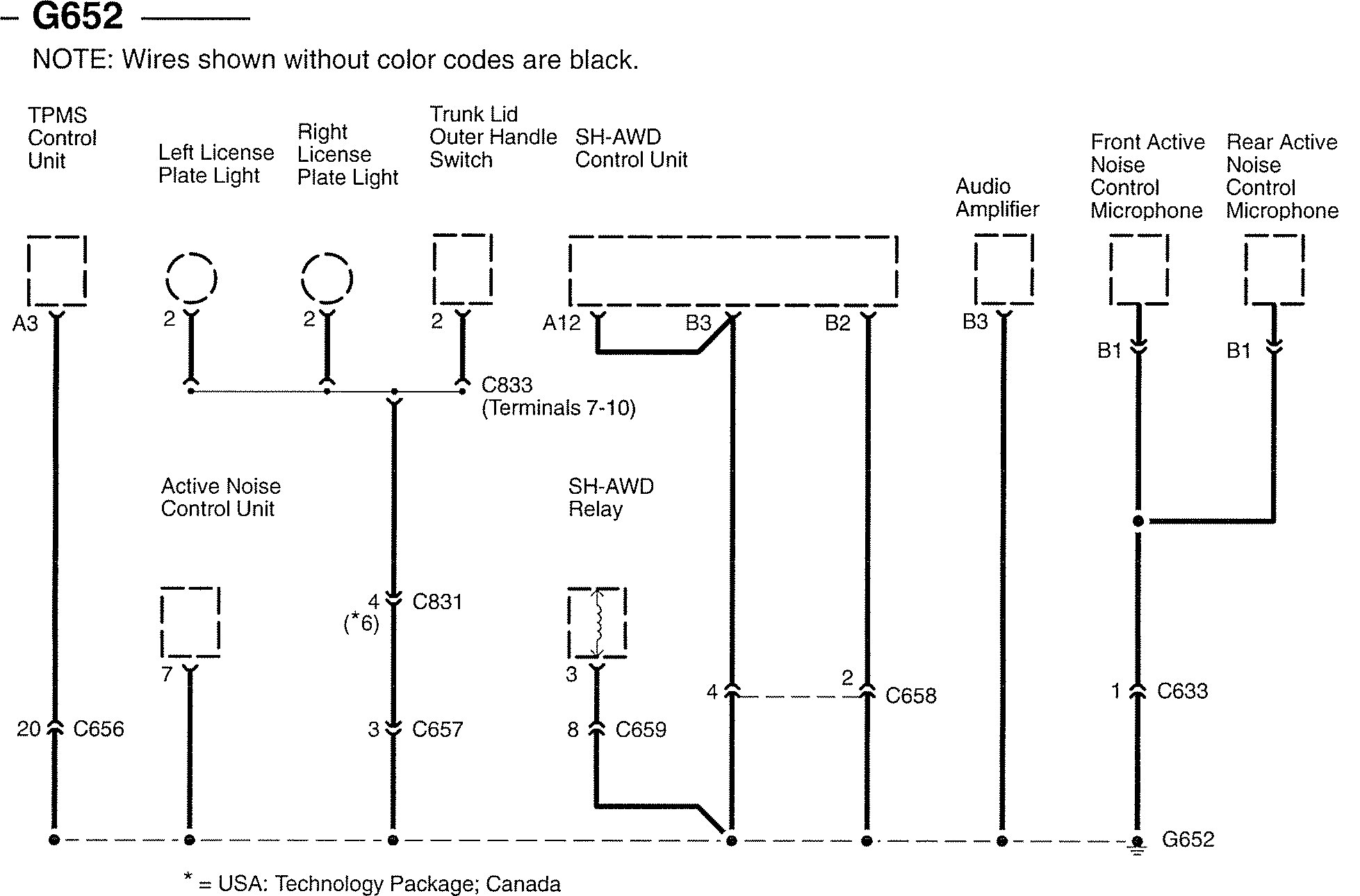

Acura RL - wiring diagram - ground distribution (part 16) — Acura RL – wiring diagram – ground distribution (part 16)

Version 2

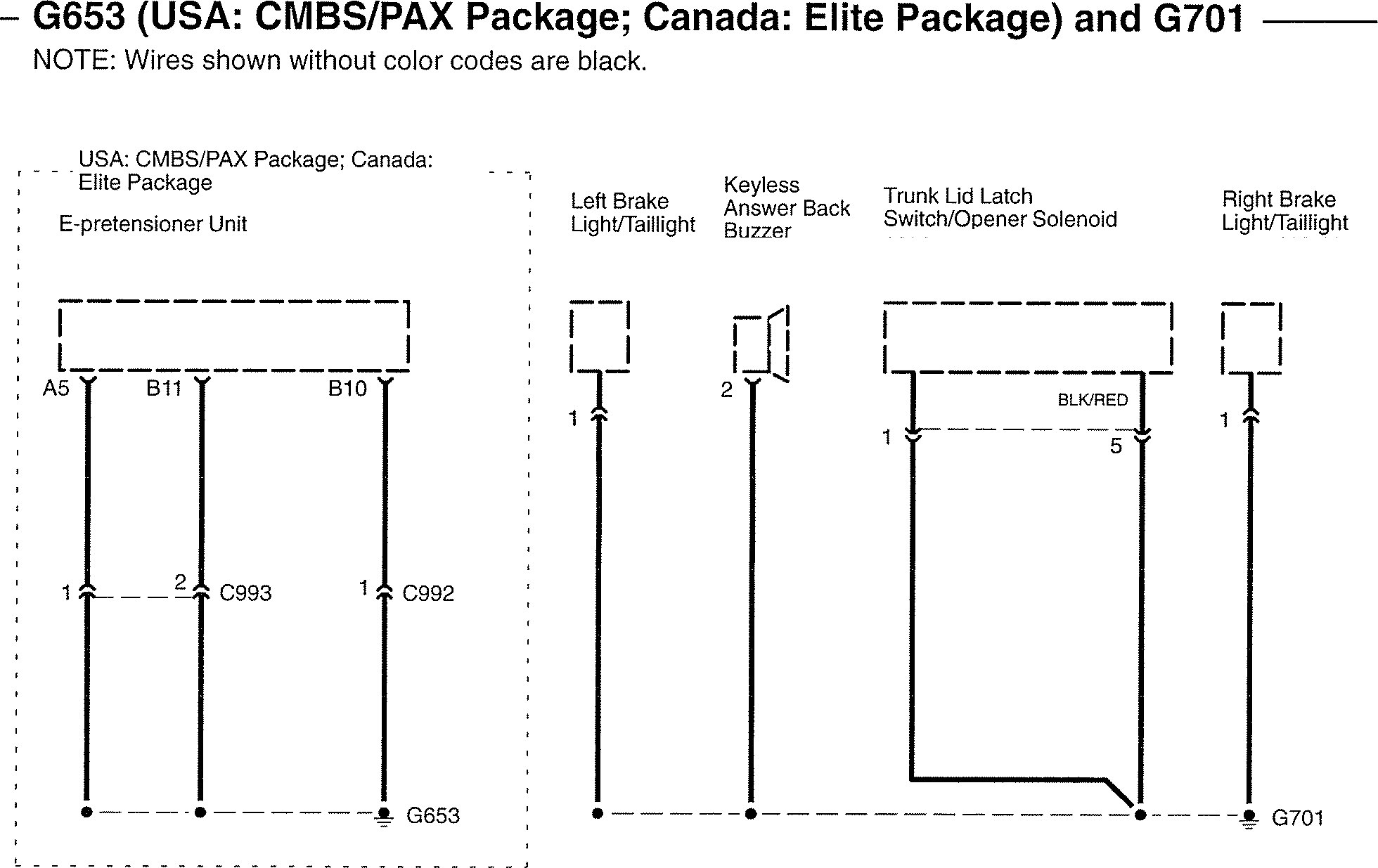

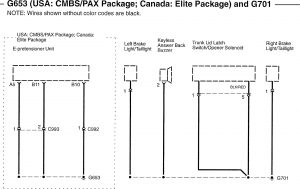

Acura RL - wiring diagram - ground distribution — Acura RL – wiring diagram – ground distribution

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
