Acura RL (2007 – 2008) – wiring diagrams – hands free link system
Year of productions: 2007, 2008

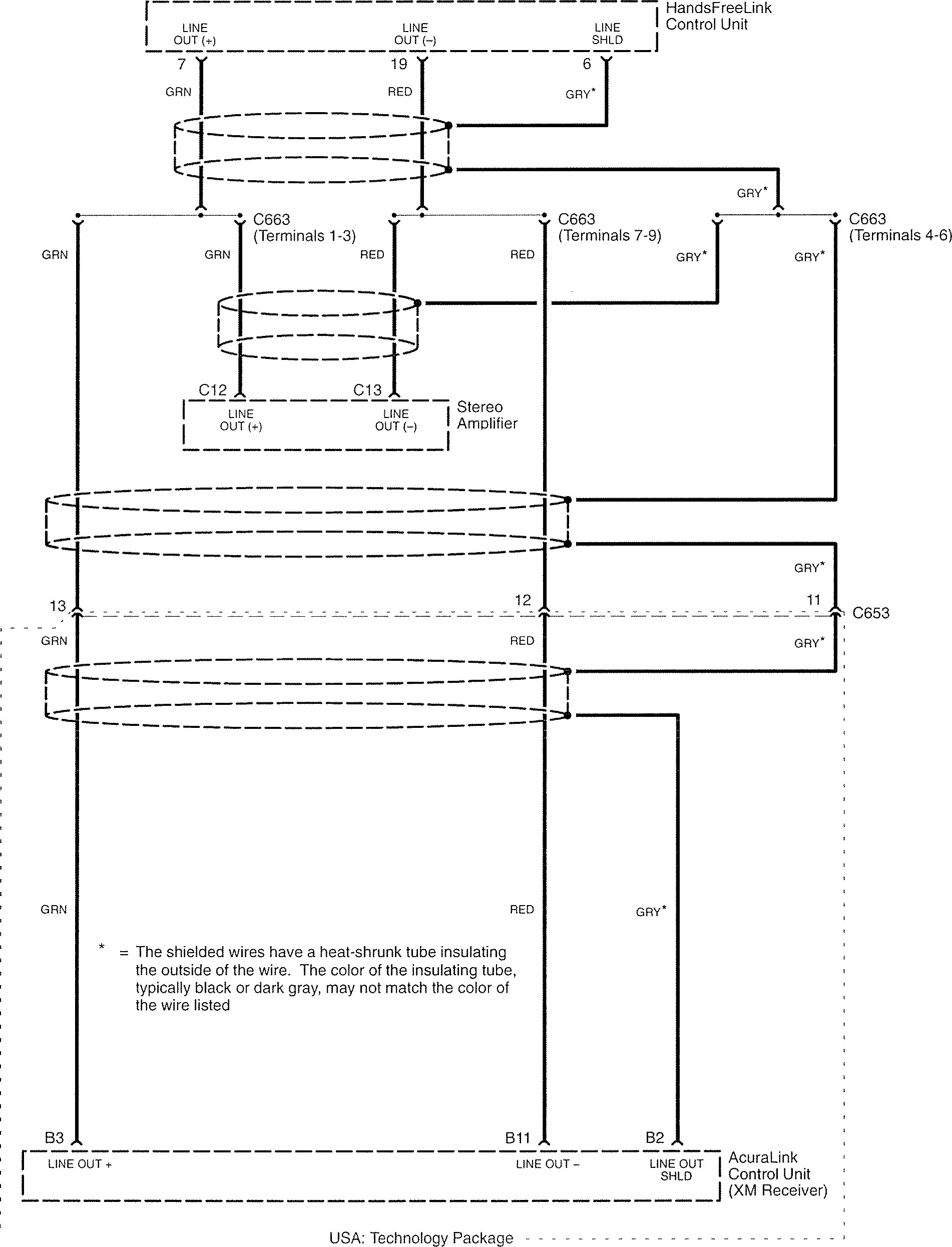

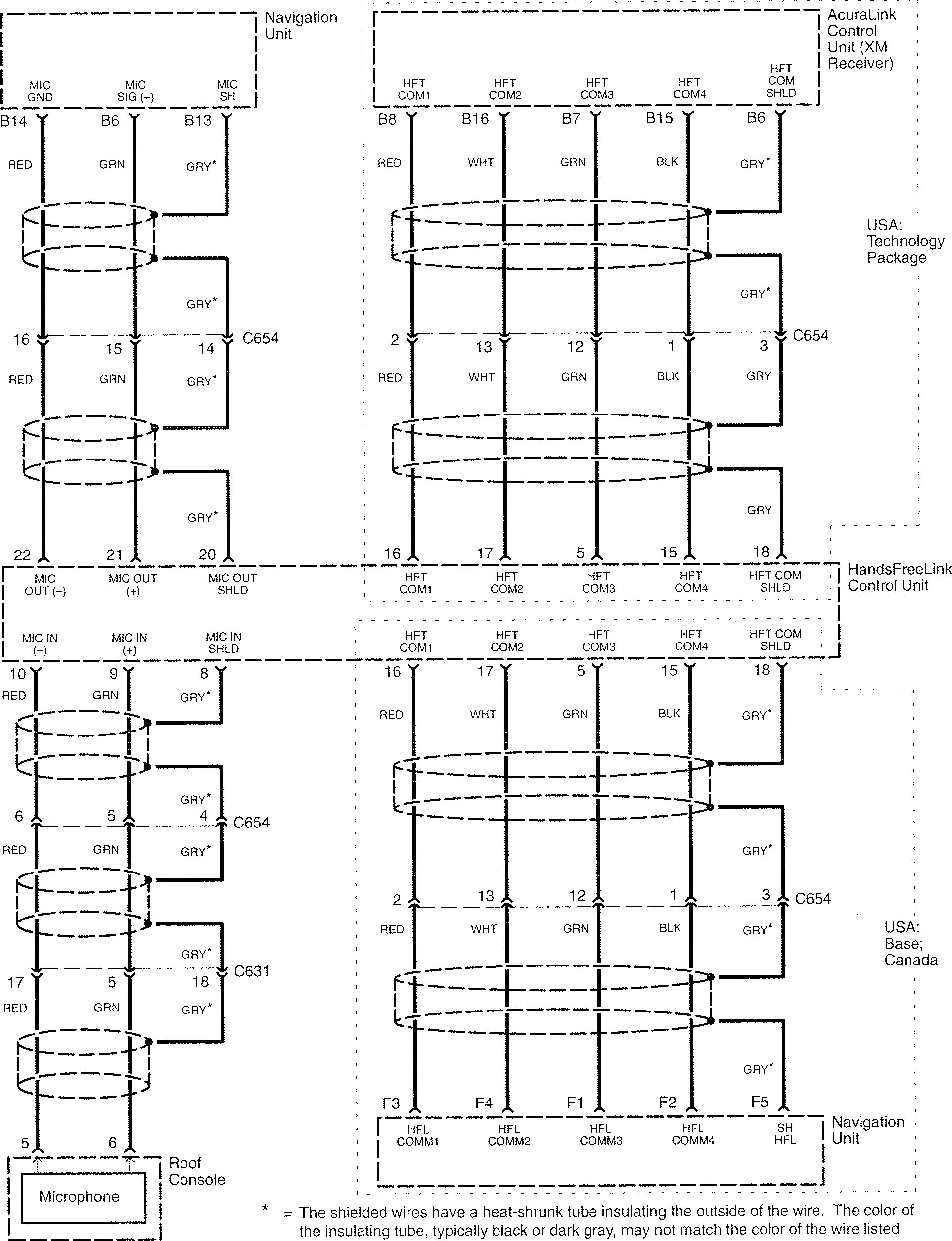

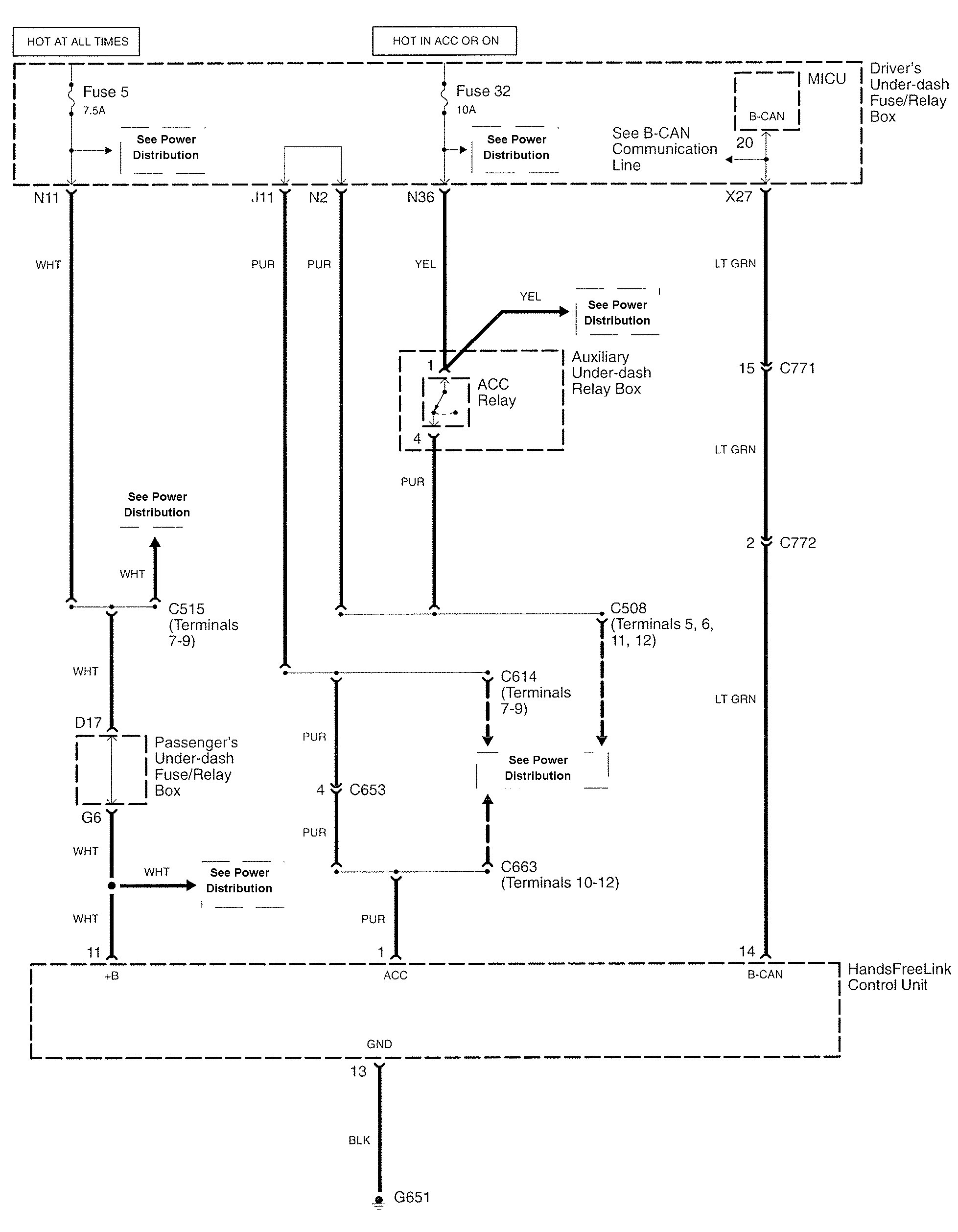

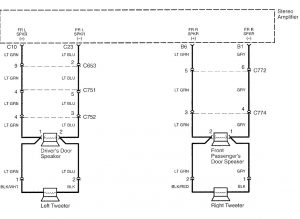

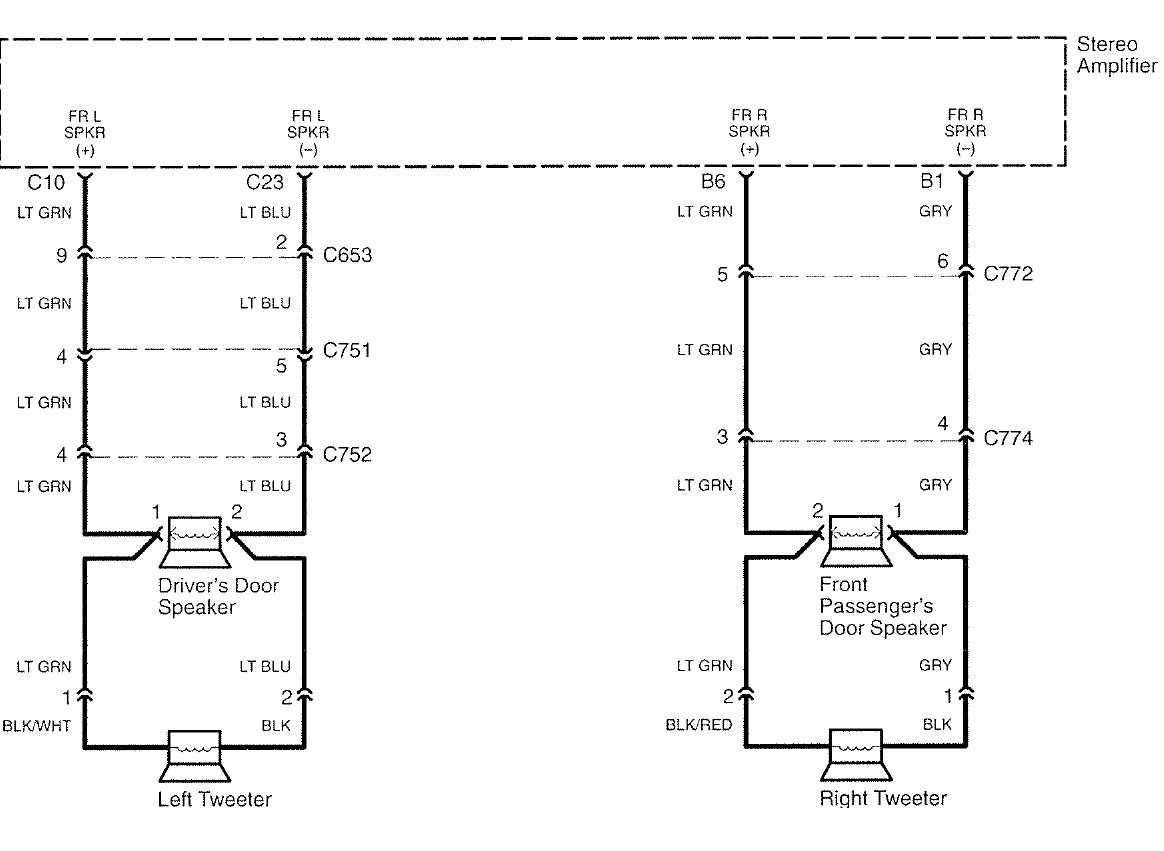

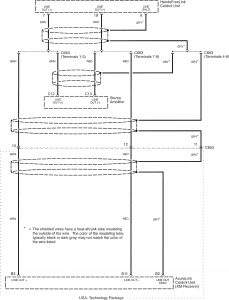

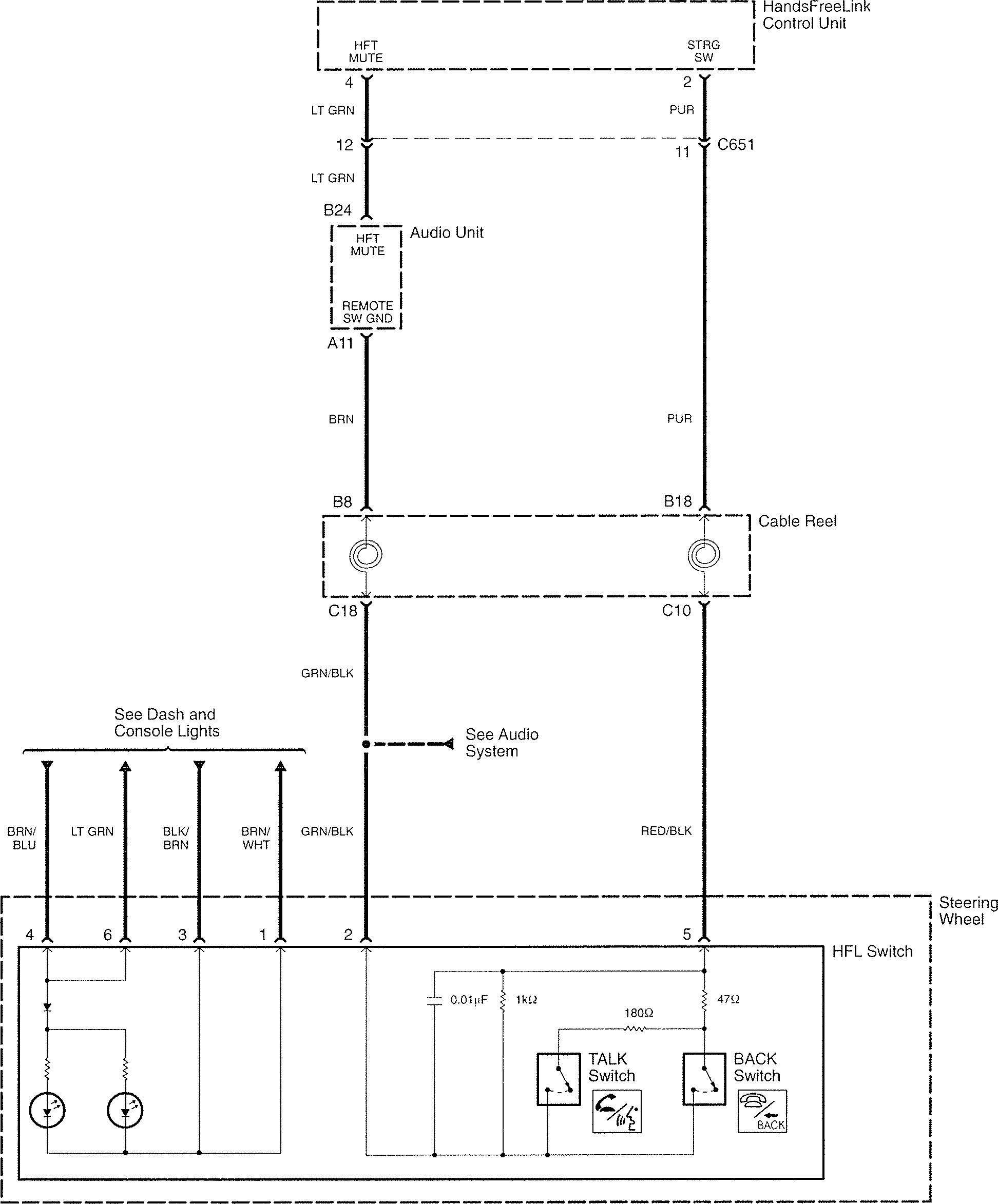

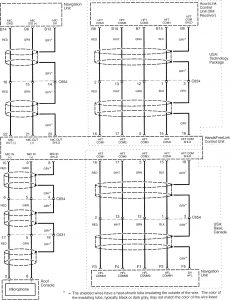

Hands free link system
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
