Acura RL (2007 – 2008) – wiring diagrams – heated seats

Acura RL (2007 – 2008) – wiring diagrams – heated seats

Year of productions:  2007, 2008

Heated seats

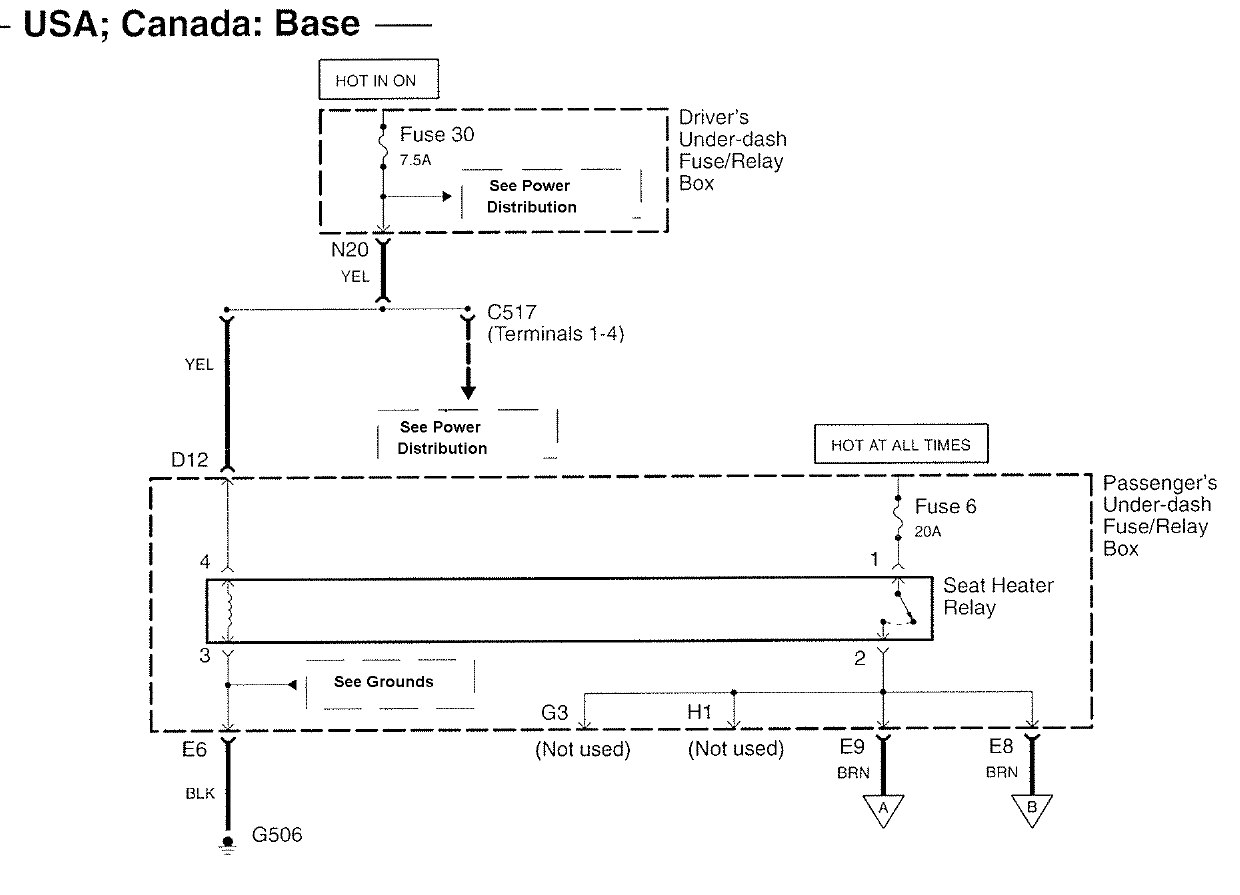

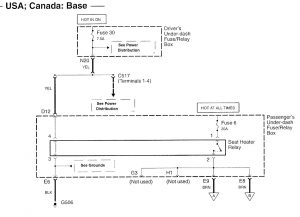

Acura RL - wiring diagram - heated seats (part 1)
Acura RL – wiring diagram – heated seats (part 1)

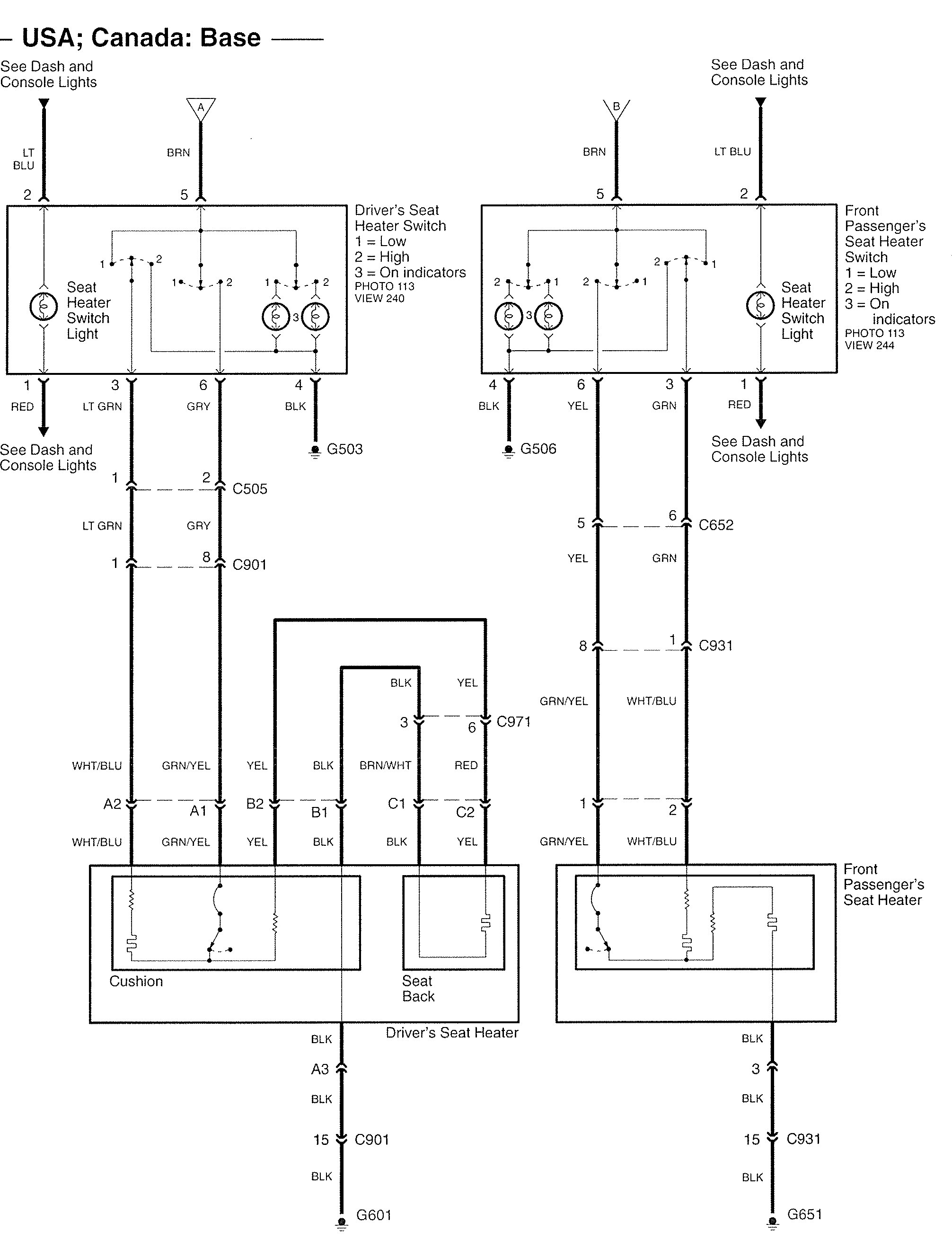

Acura RL - wiring diagram - heated seats (part 2)
Acura RL – wiring diagram – heated seats (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
