Acura RL (2007 – 2010) – wiring diagrams – horn

Acura RL (2007 – 2010) – wiring diagrams – horn

Year of productions:  2007, 2008, 2009, 2010

Horn

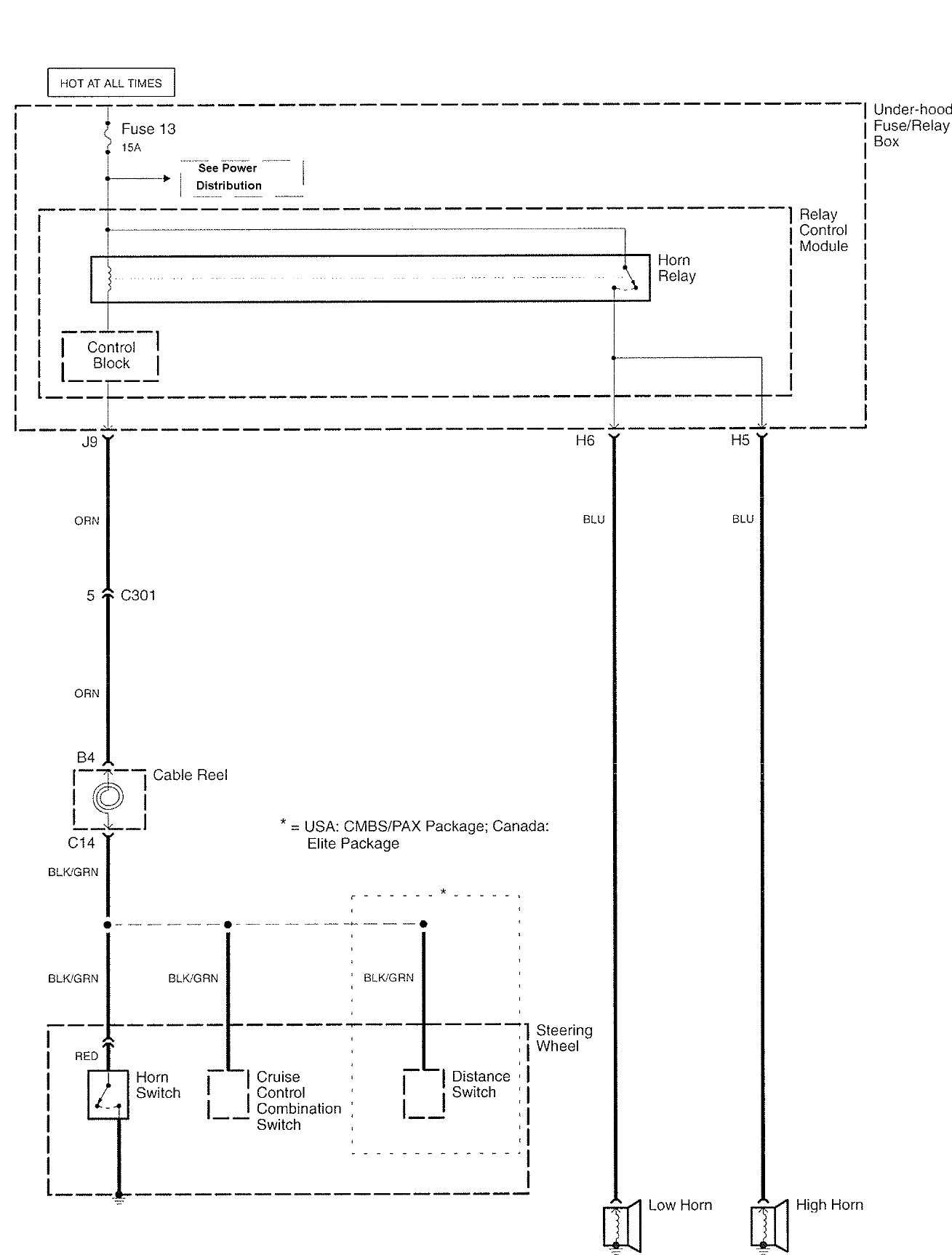

Acura RL - wiring diagram - horn
Acura RL – wiring diagram – horn

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
