Acura RL (2007 – 2011) – wiring diagrams – parking lamp

Acura RL (2007 – 2011) – wiring diagrams – parking lamp

Year of production:  2007, 2008, 2009, 2010, 2011

Parking lamp

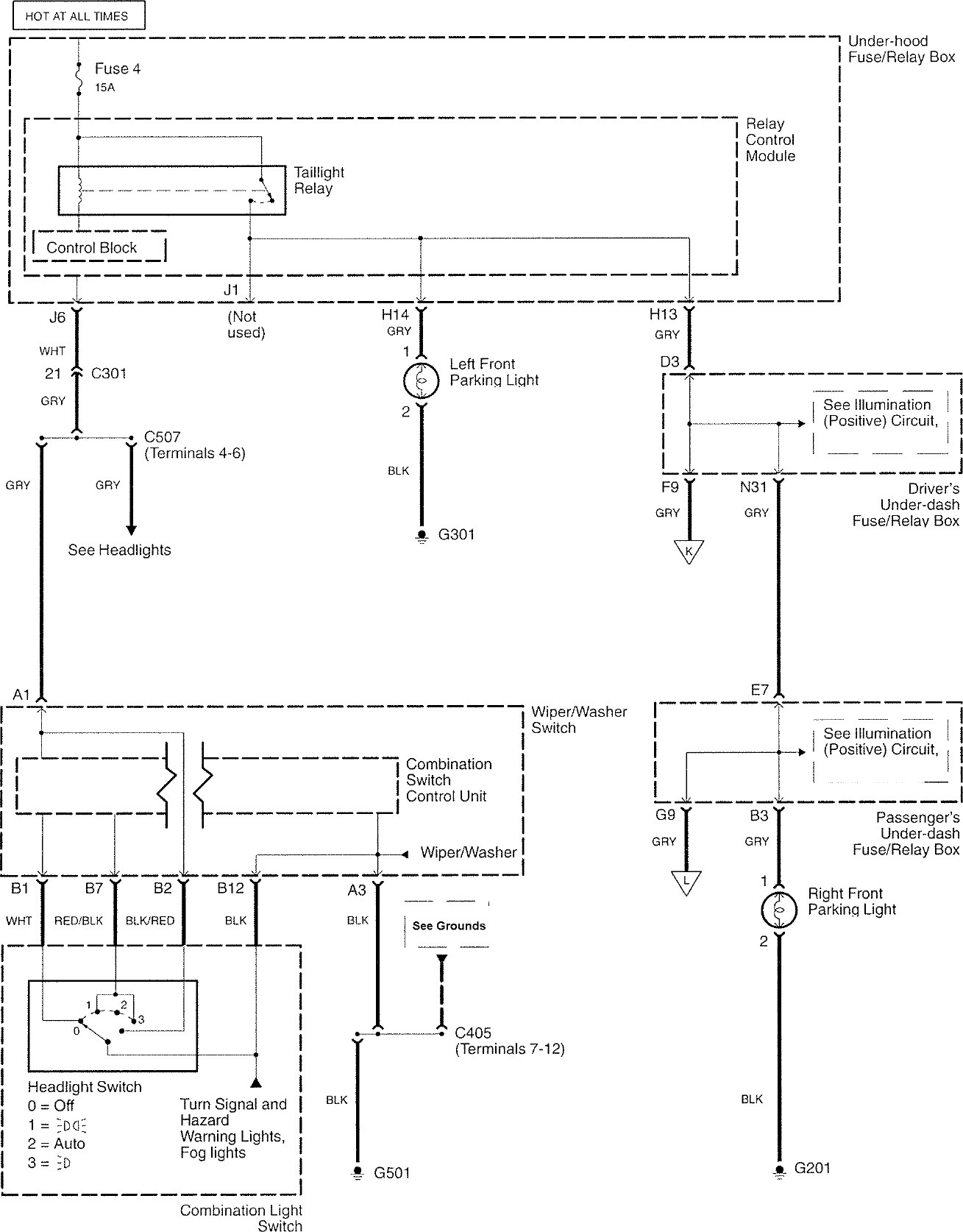

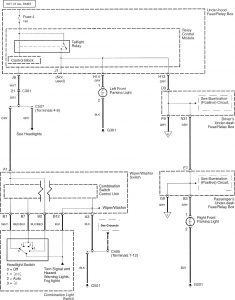

Acura RL - wiring diagram - parking lamp (part 1)
Acura RL – wiring diagram – parking lamp (part 1)

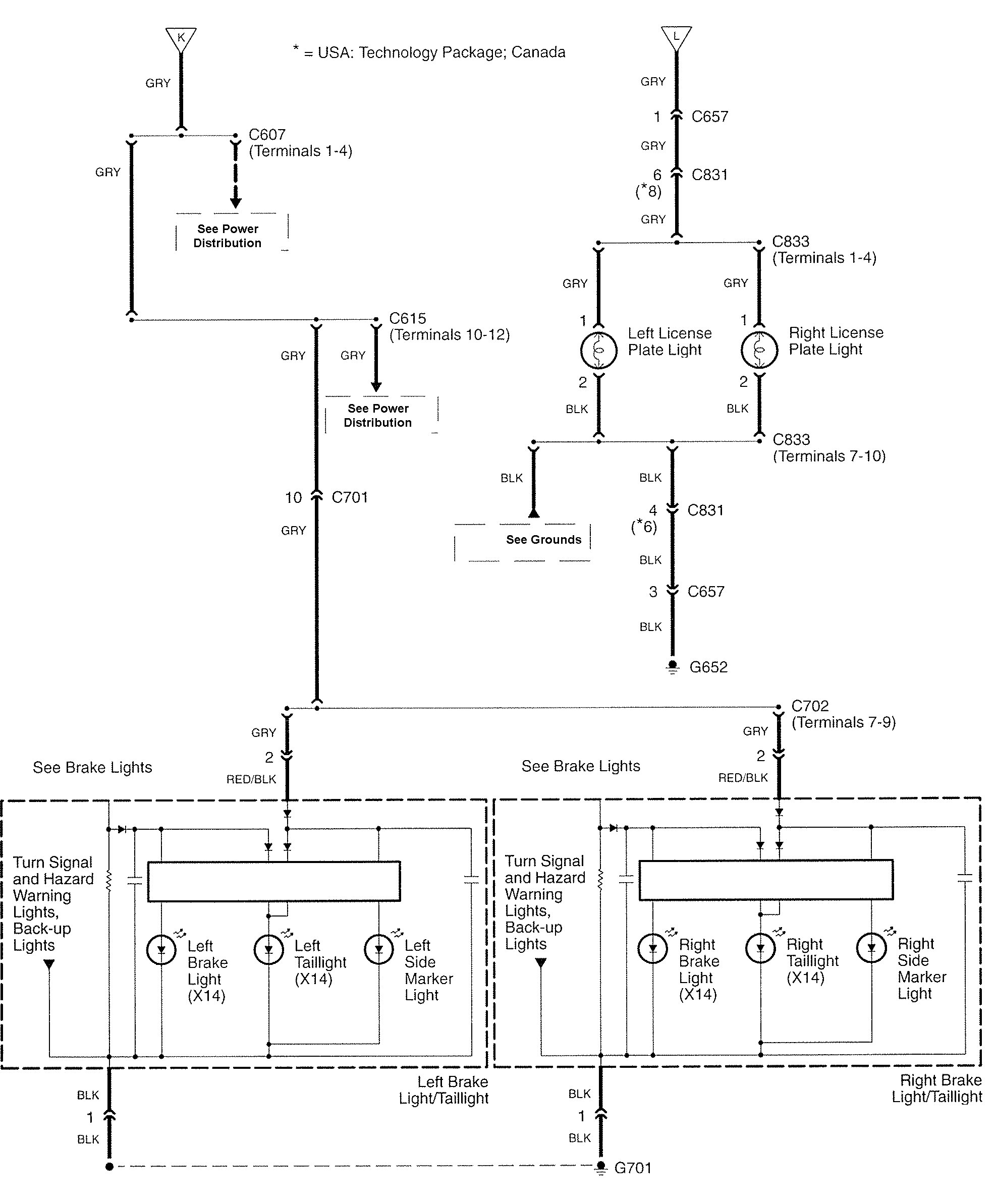

Acura RL - wiring diagram - parking lamp (part 2)
Acura RL – wiring diagram – parking lamp (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
