Acura RL (2007 – 2008) – wiring diagrams – speed control

12 October 2017 admin Acura, RL 0

Acura RL (2007 – 2008) – wiring diagrams – speed control

Year of productions:  2007, 2008

Speed control

Version 1

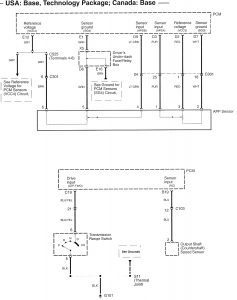

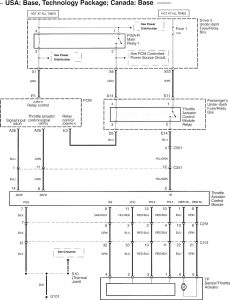

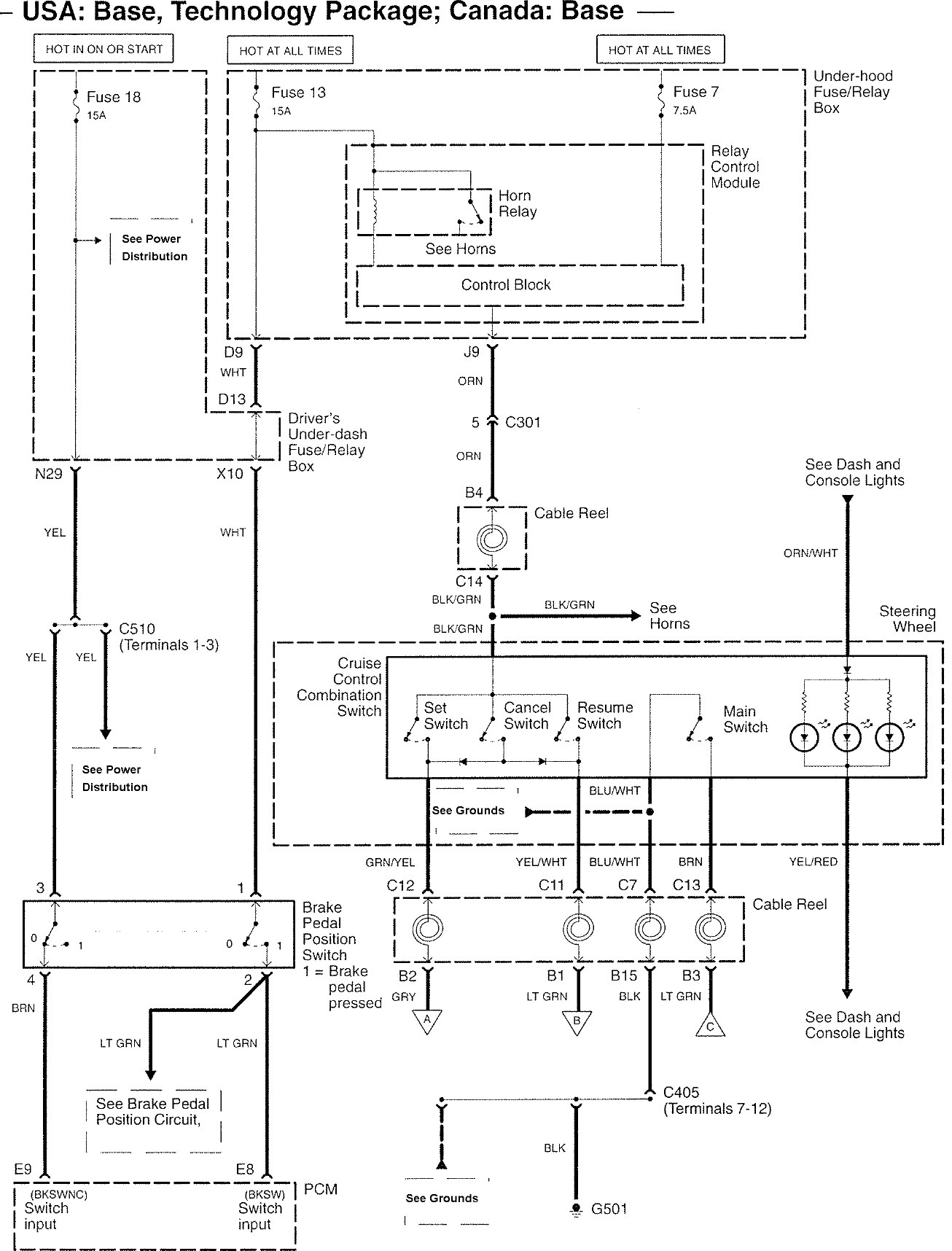

Acura RL - wiring diagram - speed control (part 1)
Acura RL – wiring diagram – speed control (part 1)

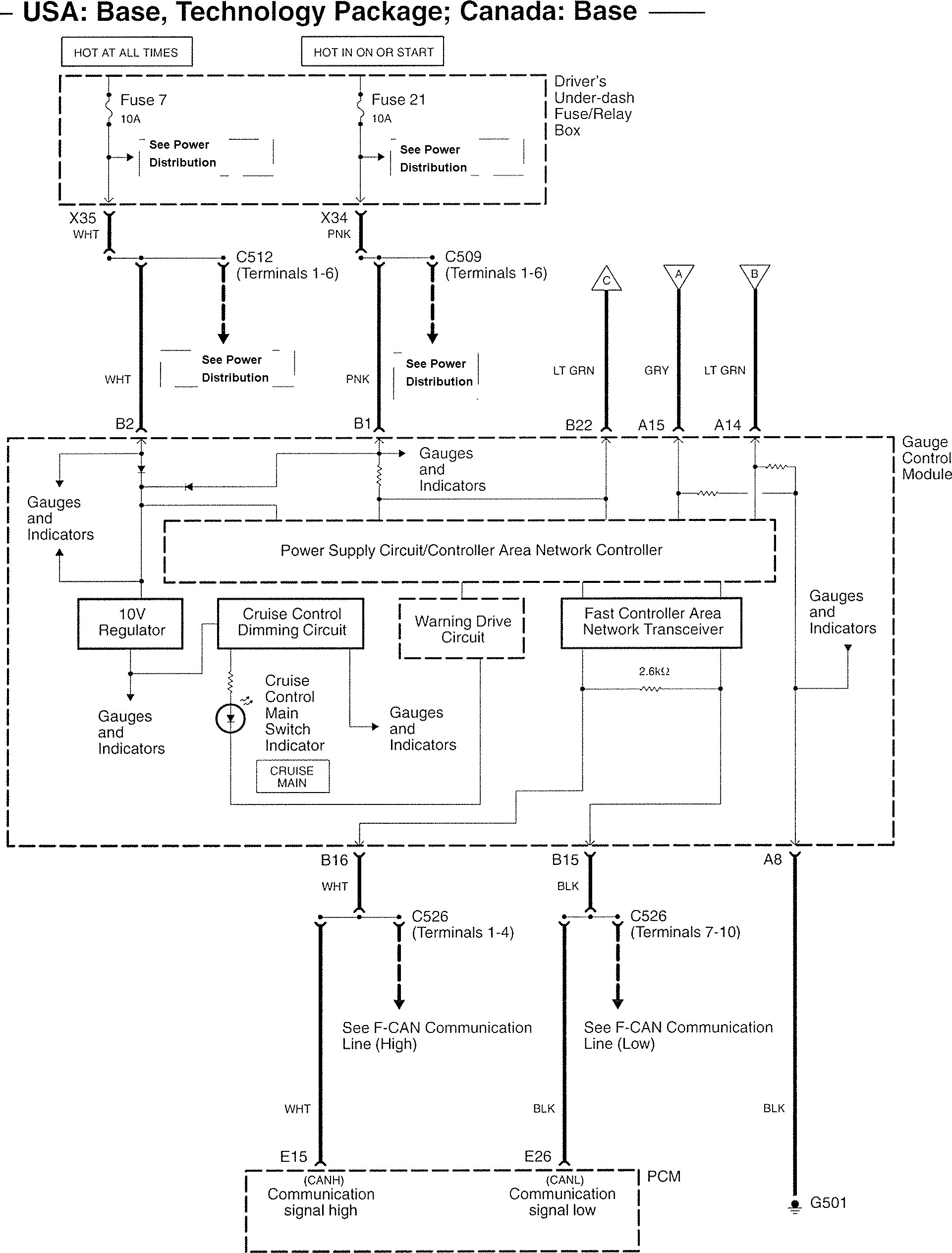

Acura RL - wiring diagram - speed control (part 2)
Acura RL – wiring diagram – speed control (part 2)

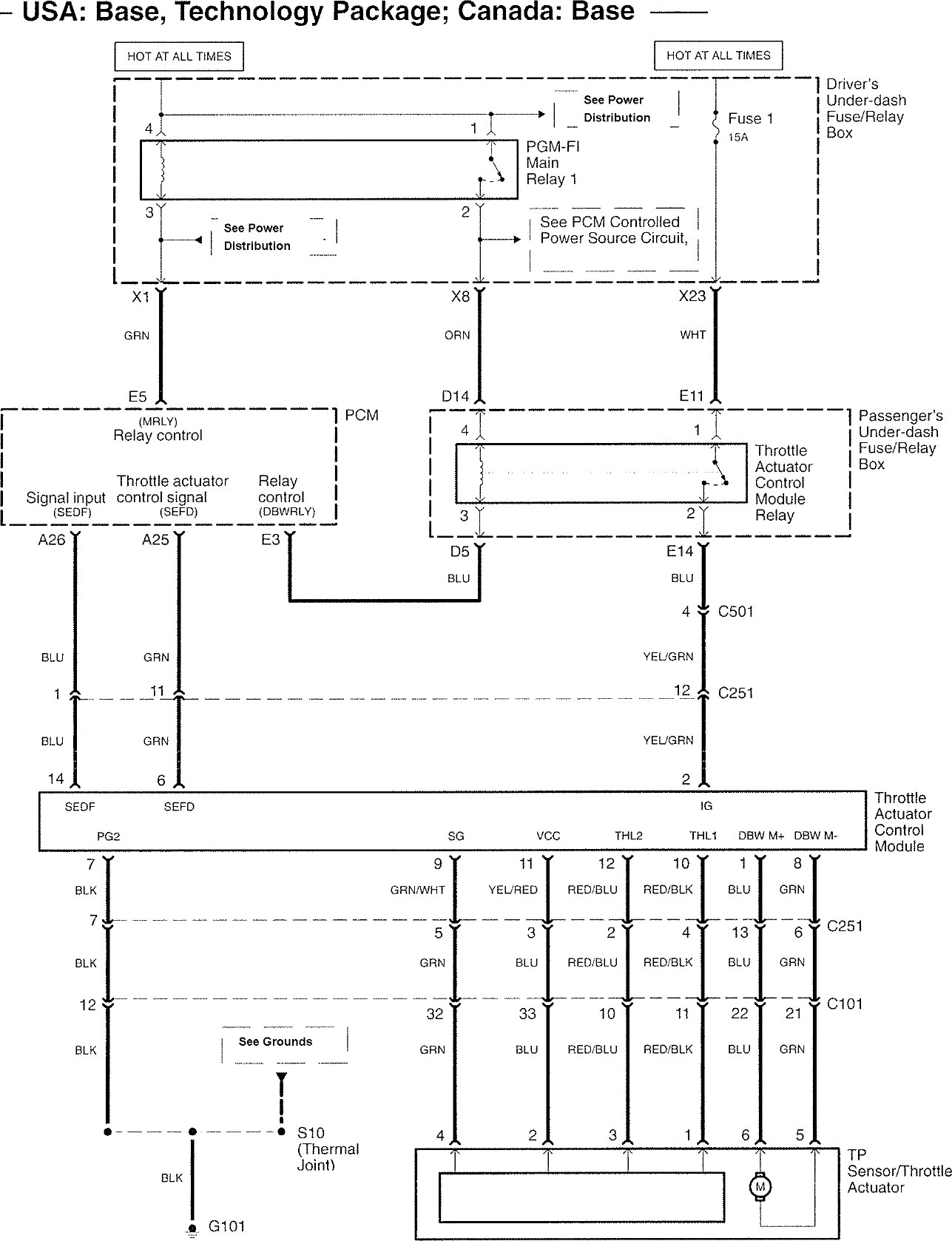

Acura RL - wiring diagram - speed control (part 3)
Acura RL – wiring diagram – speed control (part 3)

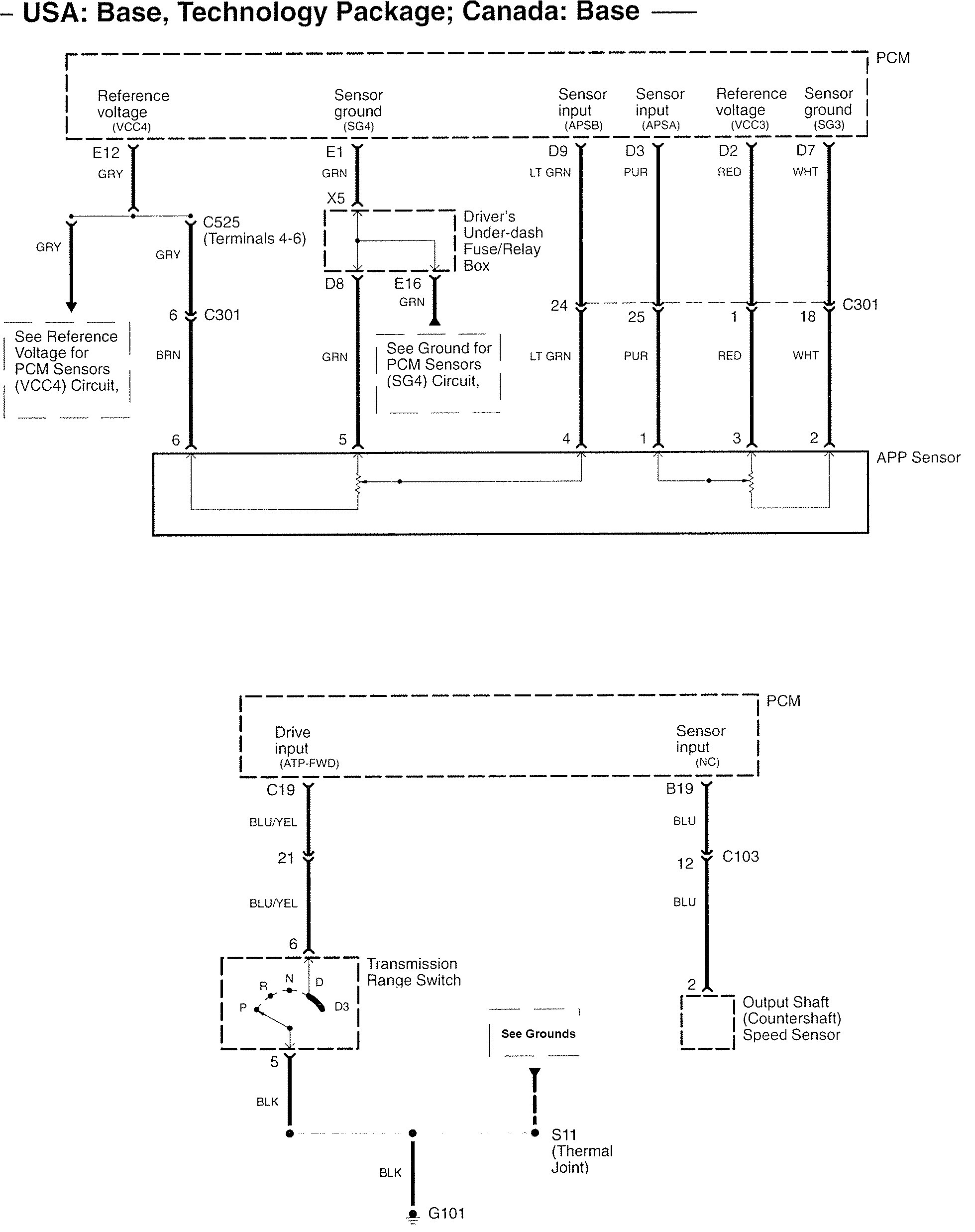

Acura RL - wiring diagram - speed control (part 4)
Acura RL – wiring diagram – speed control (part 4)

Version 2

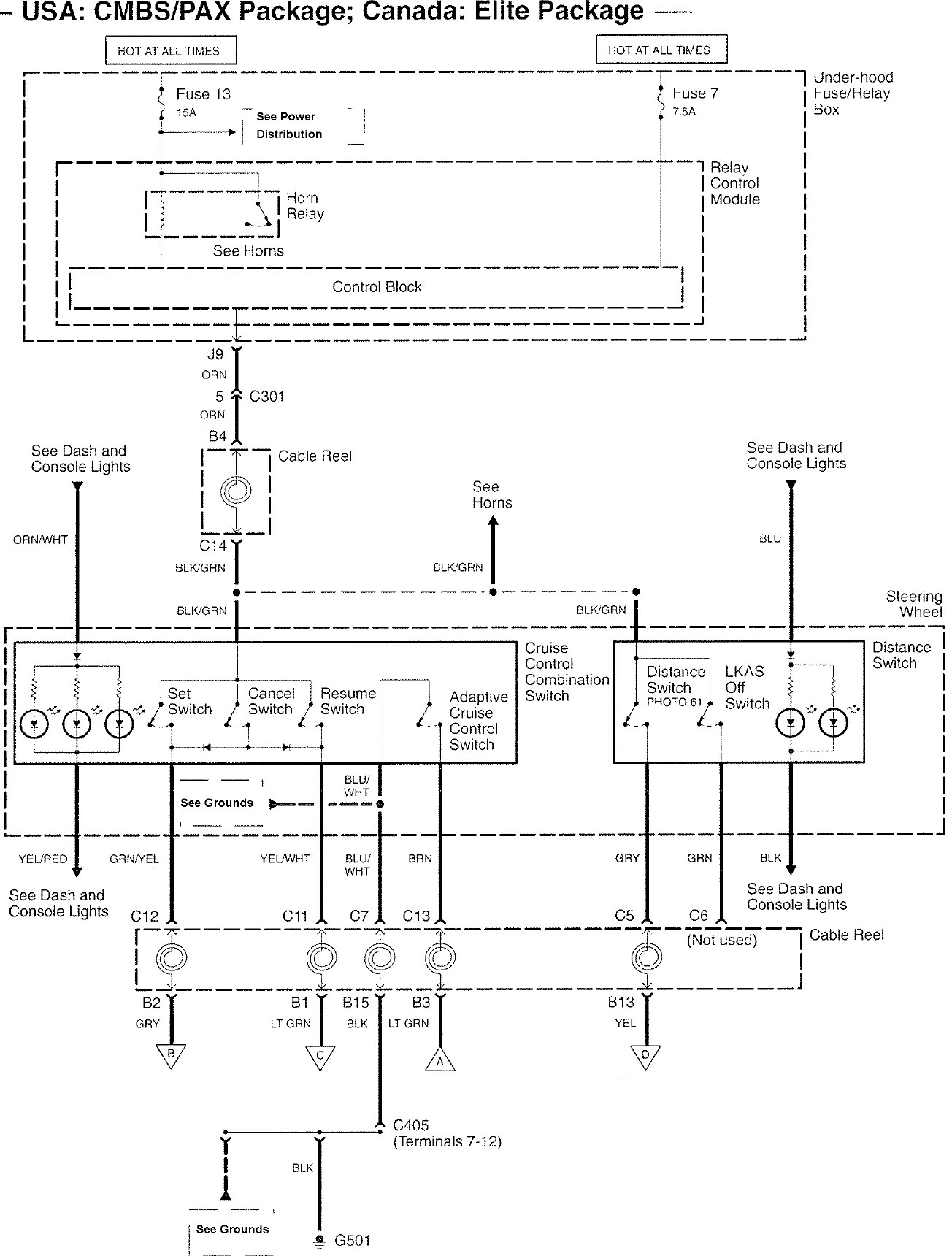

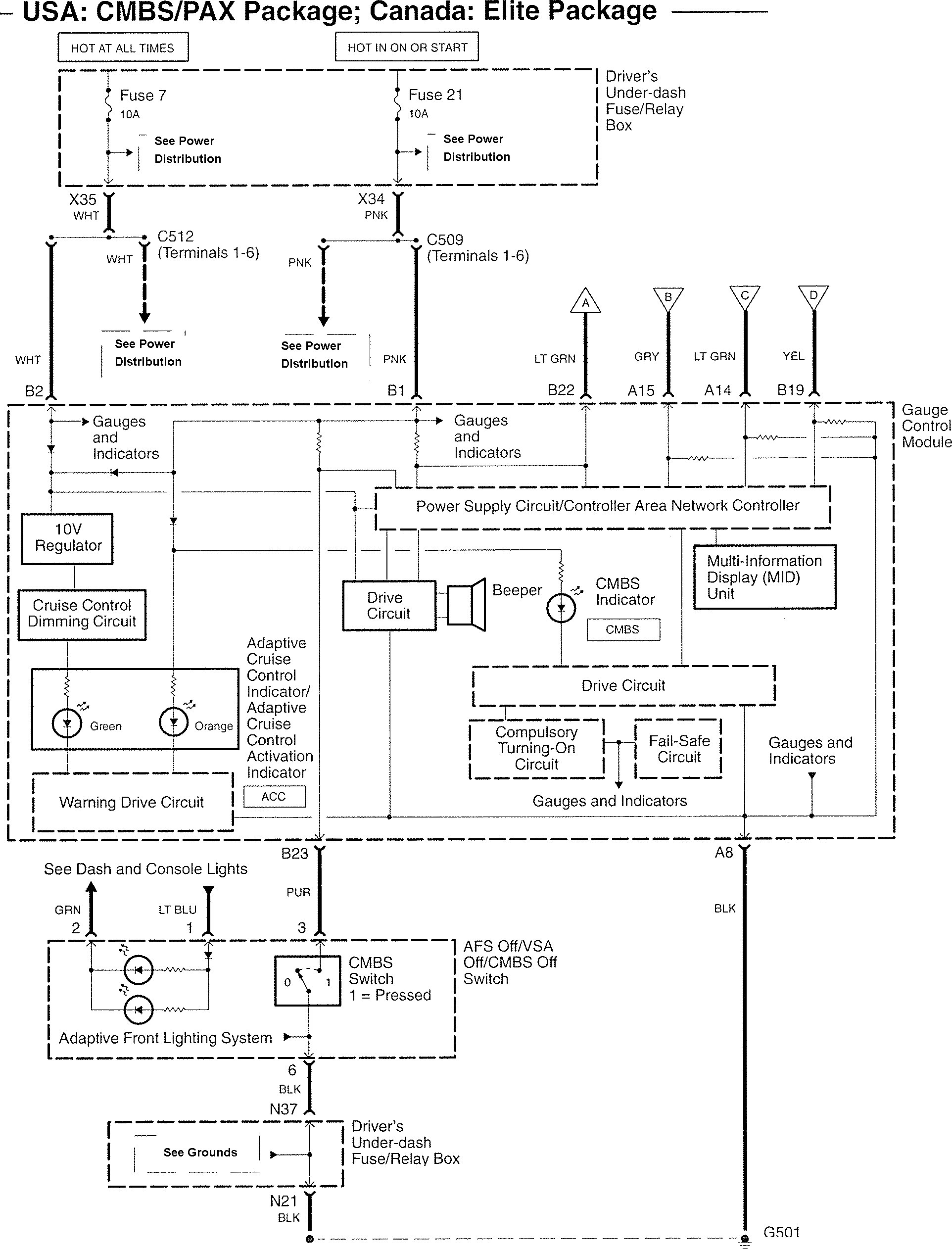

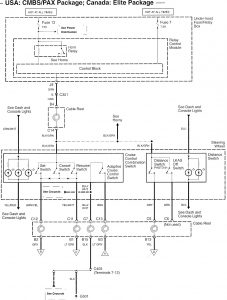

Acura RL - wiring diagram - speed control (part 1)
Acura RL – wiring diagram – speed control (part 1)
Acura RL - wiring diagram - speed control (part 2)
Acura RL – wiring diagram – speed control (part 2)

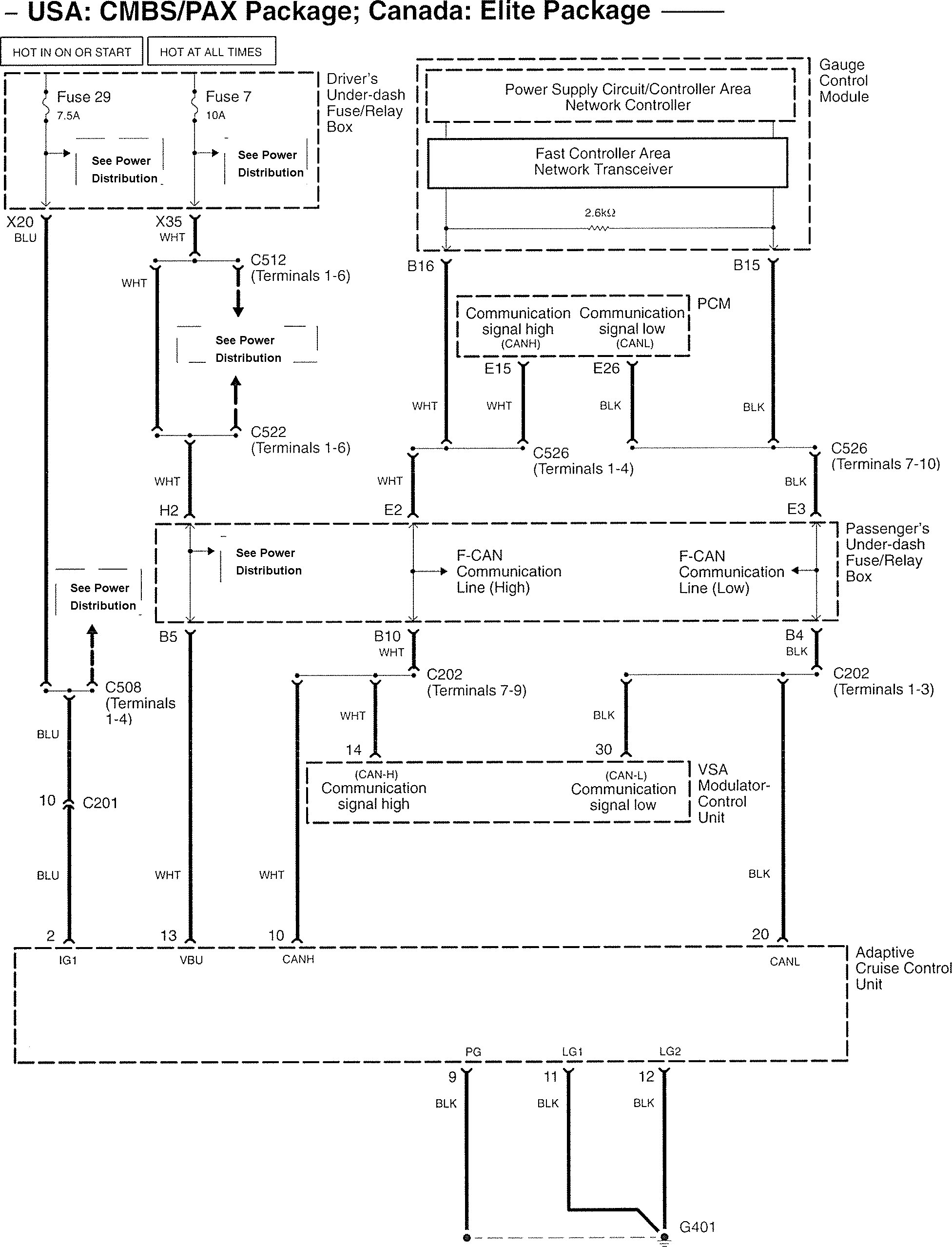

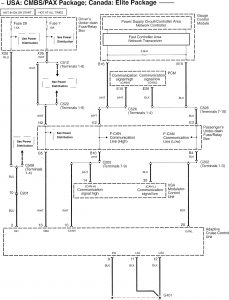

Acura RL - wiring diagram - speed control (part 3)
Acura RL – wiring diagram – speed control (part 3)

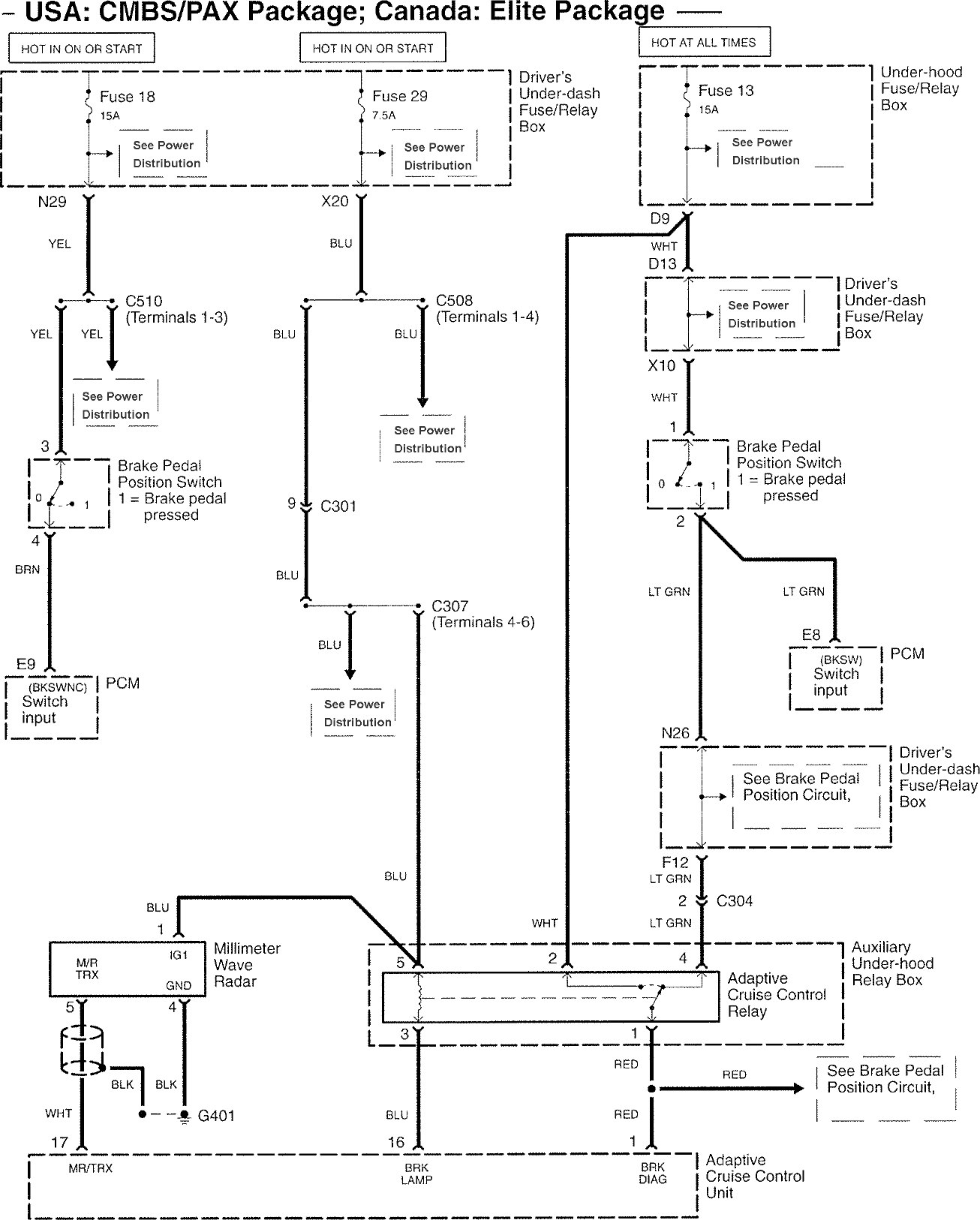

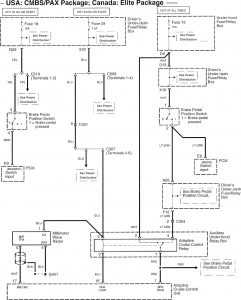

Acura RL - wiring diagram - speed control (part 4)
Acura RL – wiring diagram – speed control (part 4)

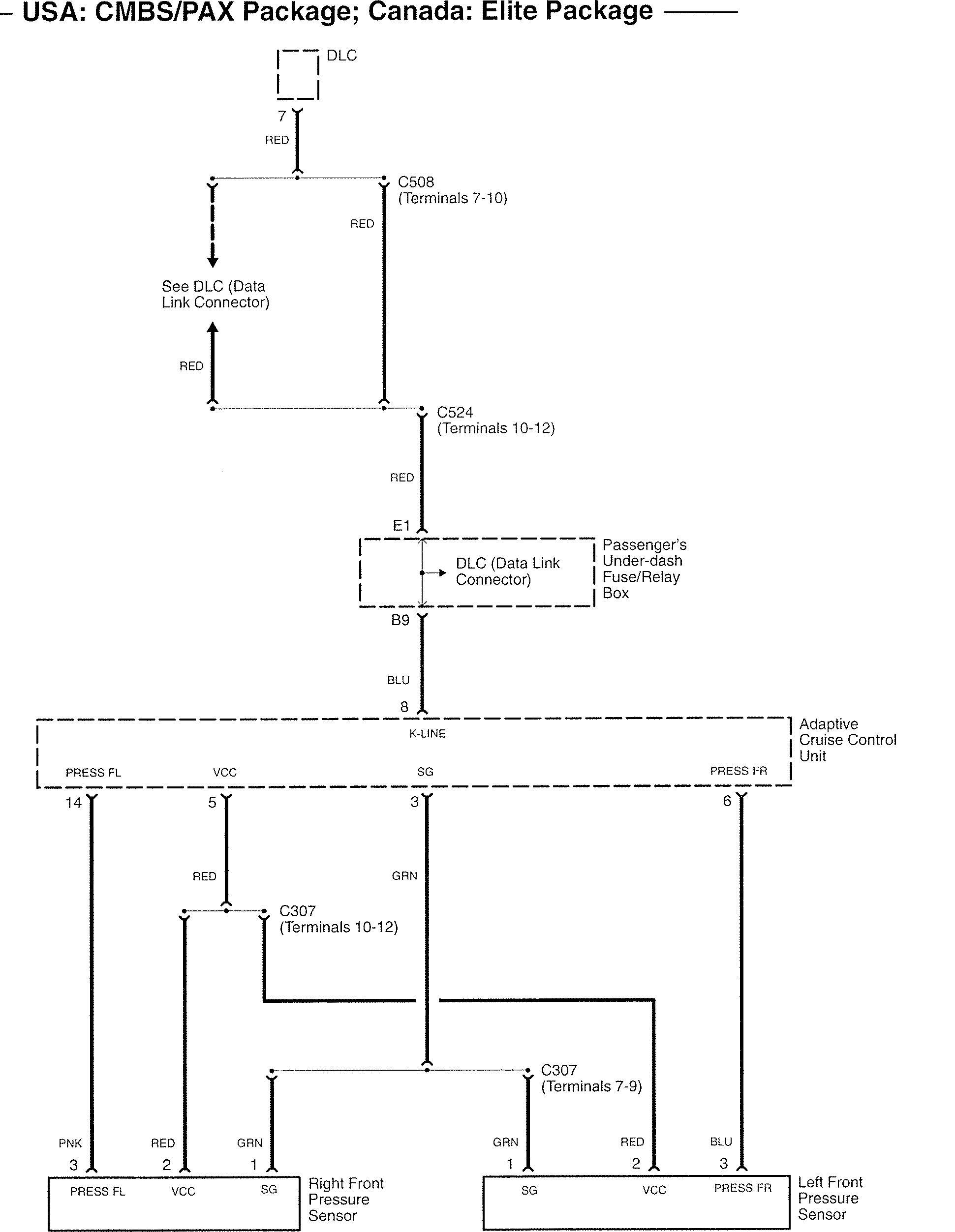

Acura RL - wiring diagram - speed control (part 5)
Acura RL – wiring diagram – speed control (part 5)

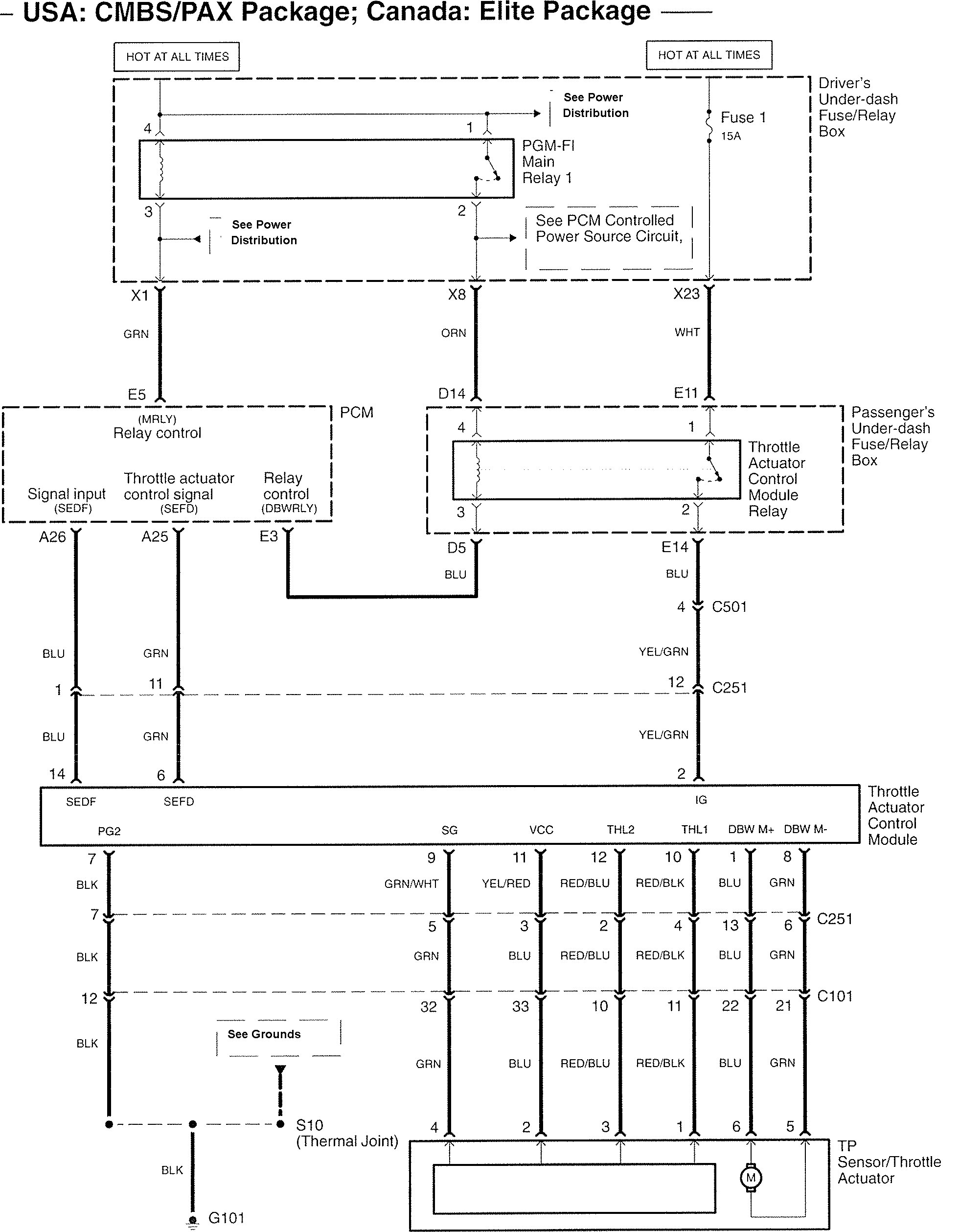

Acura RL - wiring diagram - speed control (part 6)
Acura RL – wiring diagram – speed control (part 6)

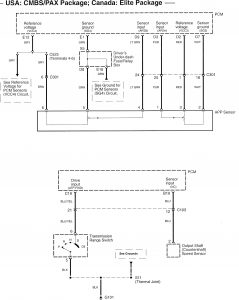

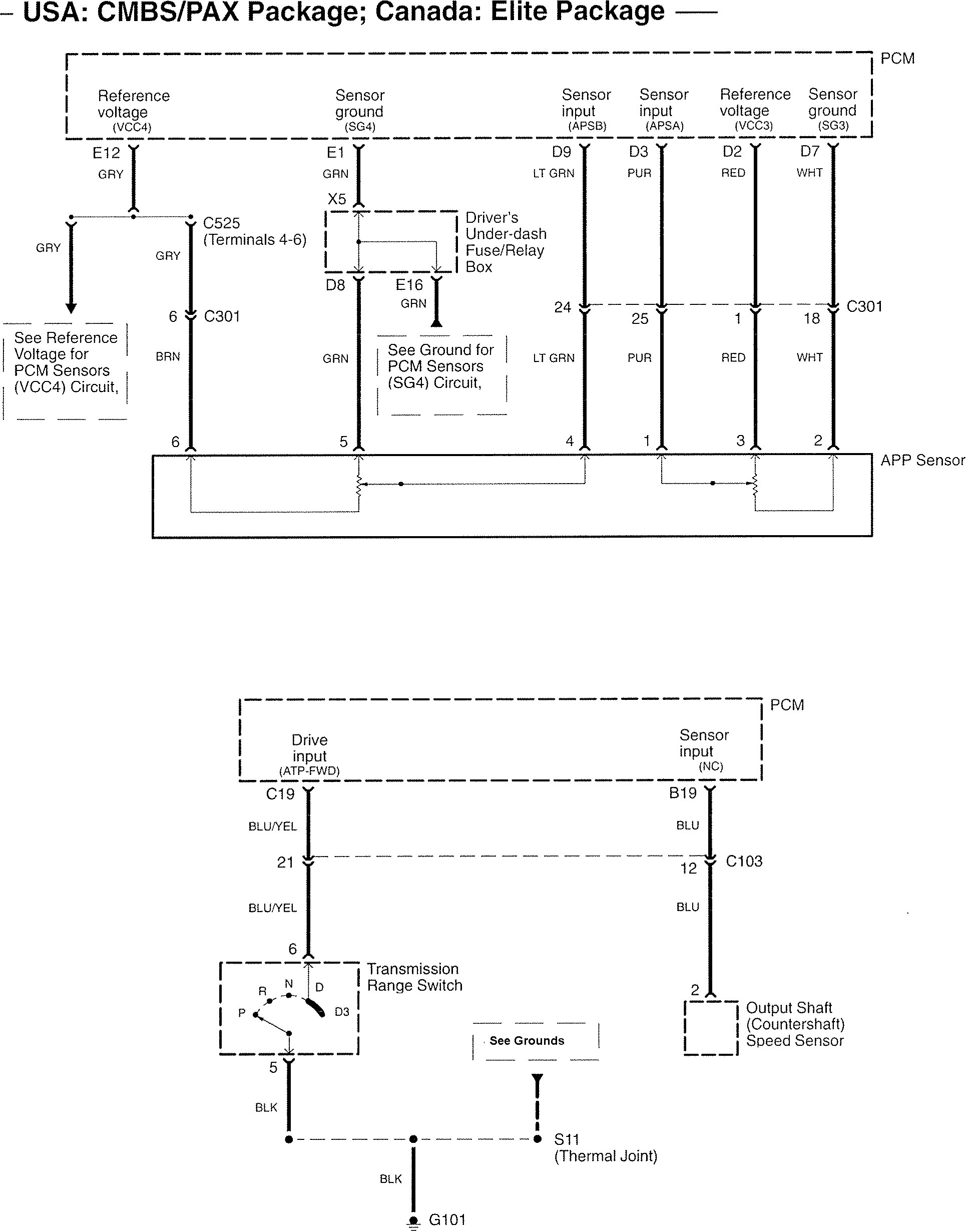

Acura RL - wiring diagram - speed control (part 7)
Acura RL – wiring diagram – speed control (part 7)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
