Acura RL (2007 – 2008) – wiring diagrams – symbol ID

13 October 2017 admin Acura, RL 0

Acura RL (2007 – 2008) – wiring diagrams – symbol ID

Year of production:  2007, 2008

Symbol ID

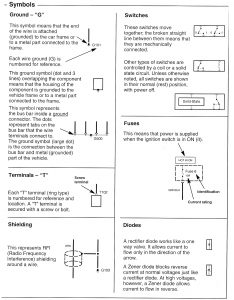

Acura RL - wiring diagram - symbol ID 1 (part 1)
Acura RL – wiring diagram – symbol ID 1 (part 1)
Acura RL - wiring diagram - symbol ID 1 (part 2)
Acura RL – wiring diagram – symbol ID 1 (part 2)
Acura RL - wiring diagram - symbol ID 1 (part 3)
Acura RL – wiring diagram – symbol ID 1 (part 3)
Acura RL - wiring diagram - symbol ID 1 (part 4)
Acura RL – wiring diagram – symbol ID 1 (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
