Acura RL (2007 – 2008) – wiring diagrams – turn signal lamp

13 October 2017 admin Acura, RL 0

Acura RL (2007 – 2008) – wiring diagrams – turn signal lamp

Year of production:  2007, 2008

Turn signal lamp

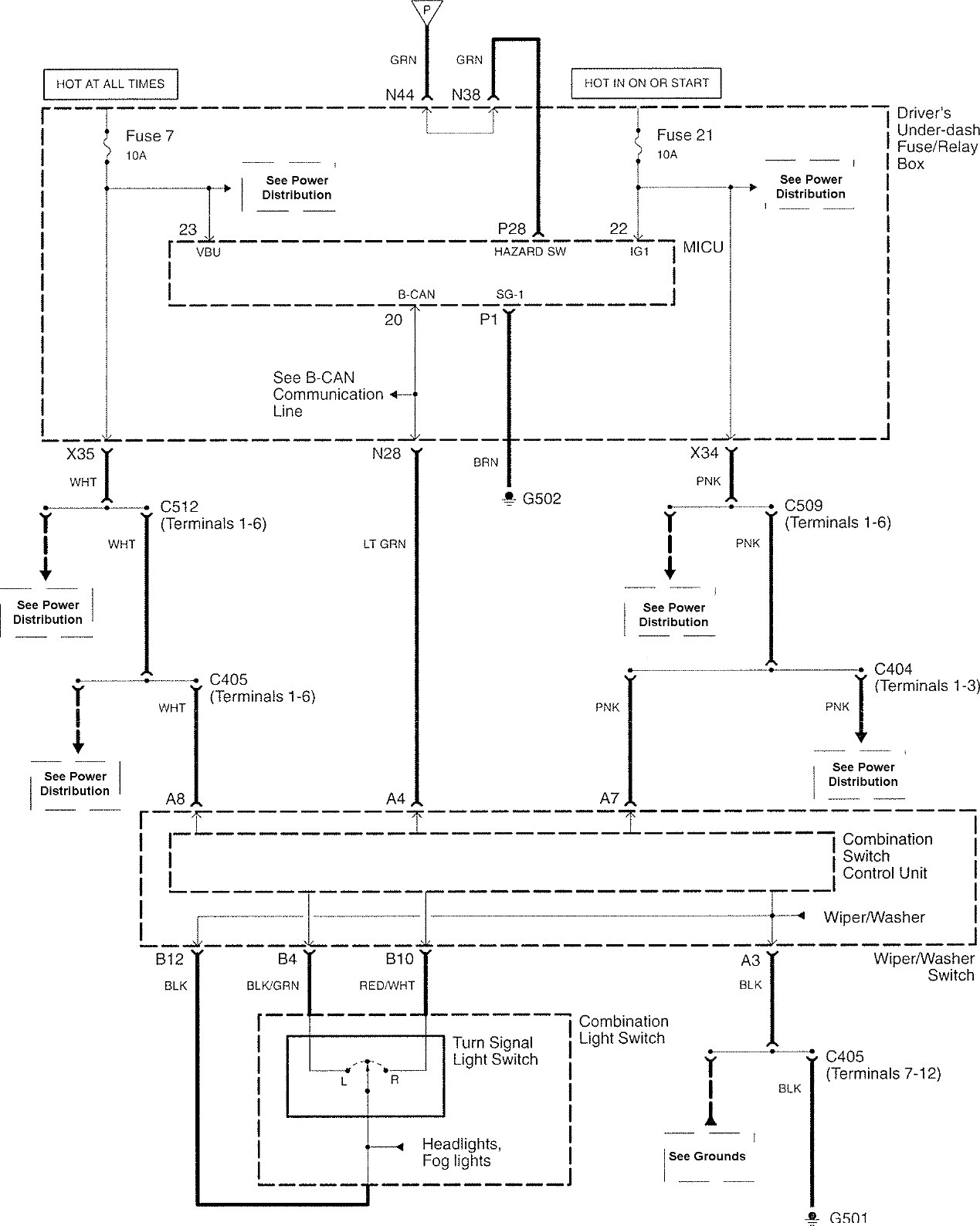

Acura RL - wiring diagram - turn signal (part 1)
Acura RL – wiring diagram – turn signal (part 1)

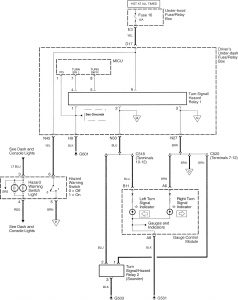

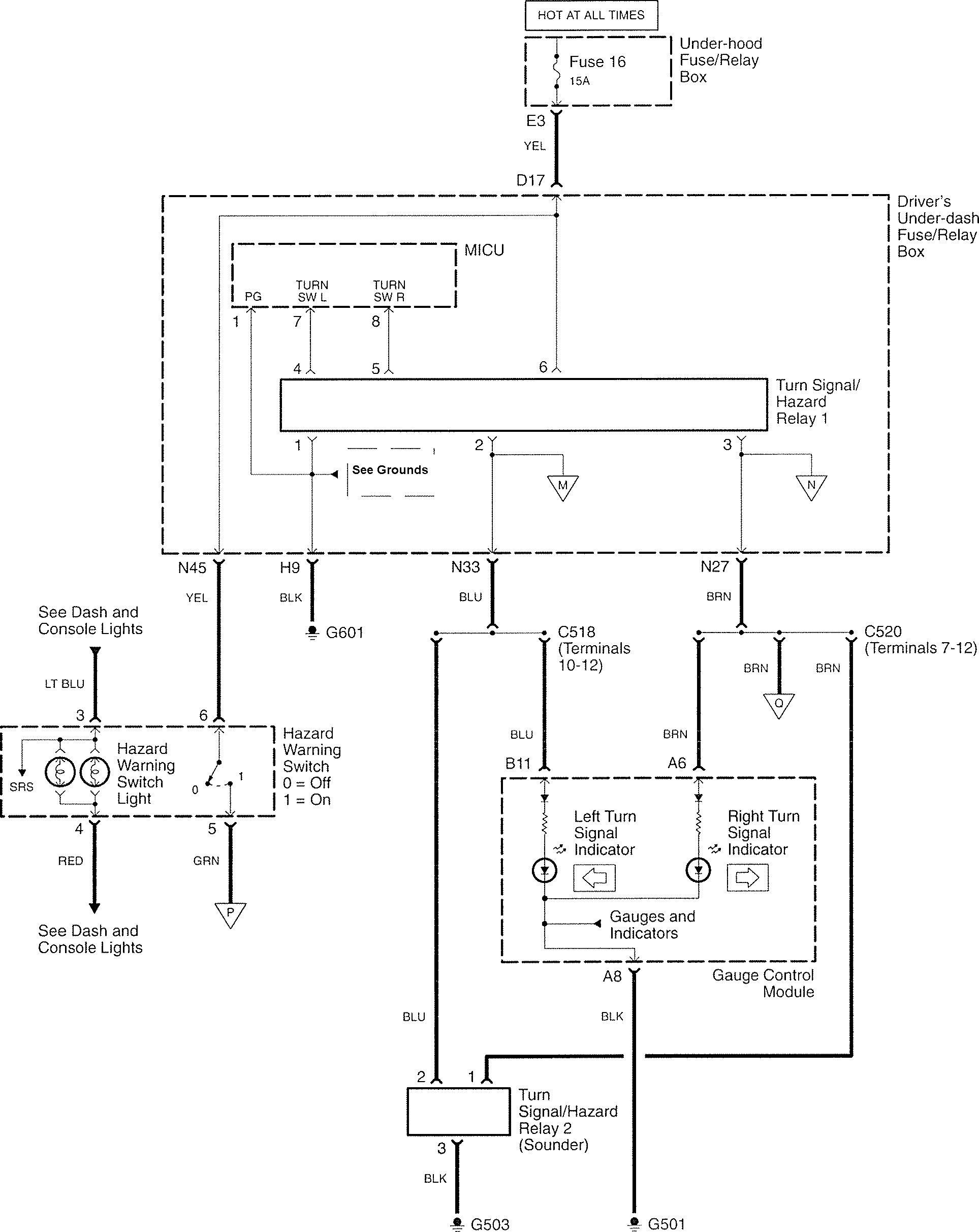

Acura RL - wiring diagram - turn signal (part 2)
Acura RL – wiring diagram – turn signal (part 2)

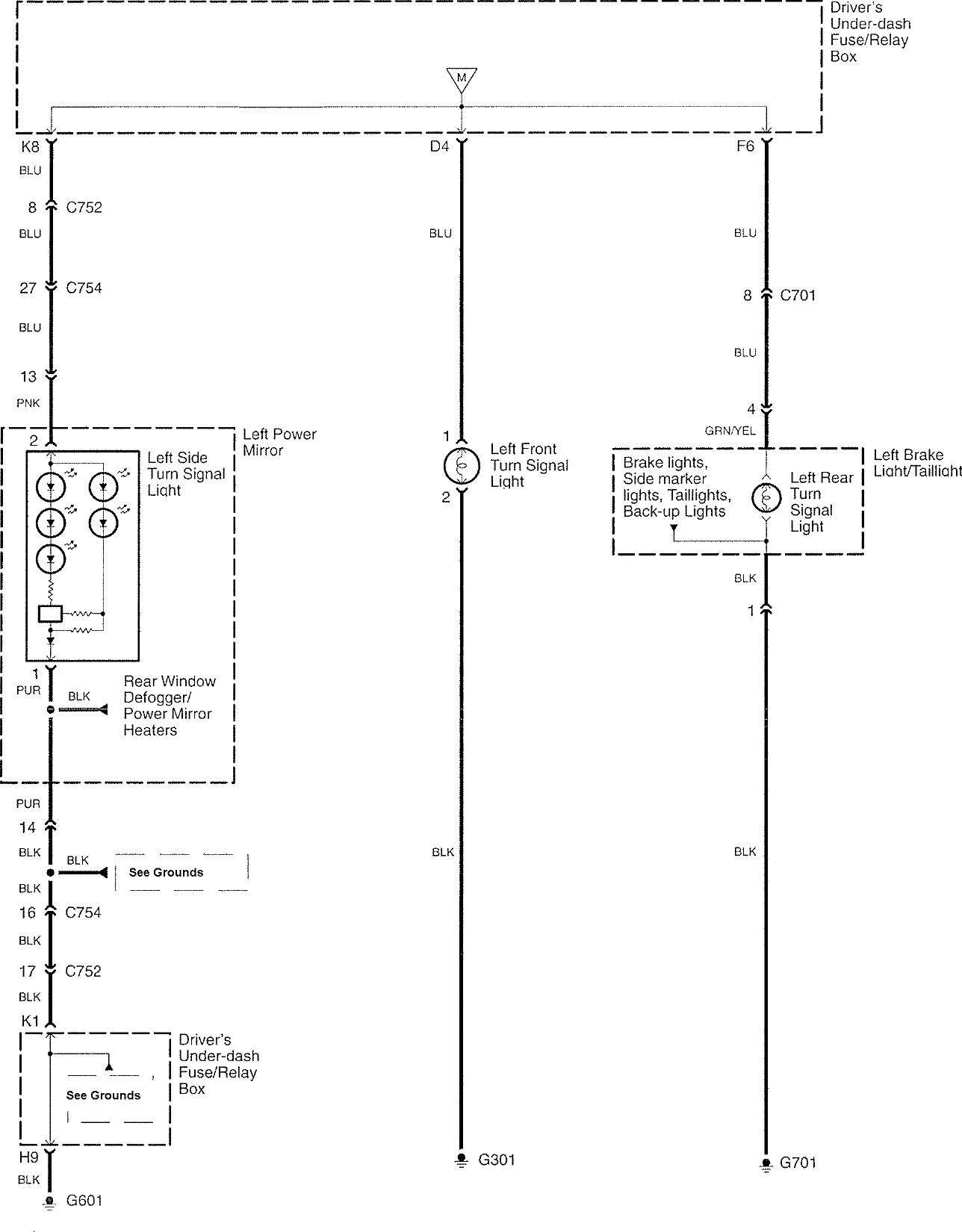

Acura RL - wiring diagram - turn signal (part 3)
Acura RL – wiring diagram – turn signal (part 3)

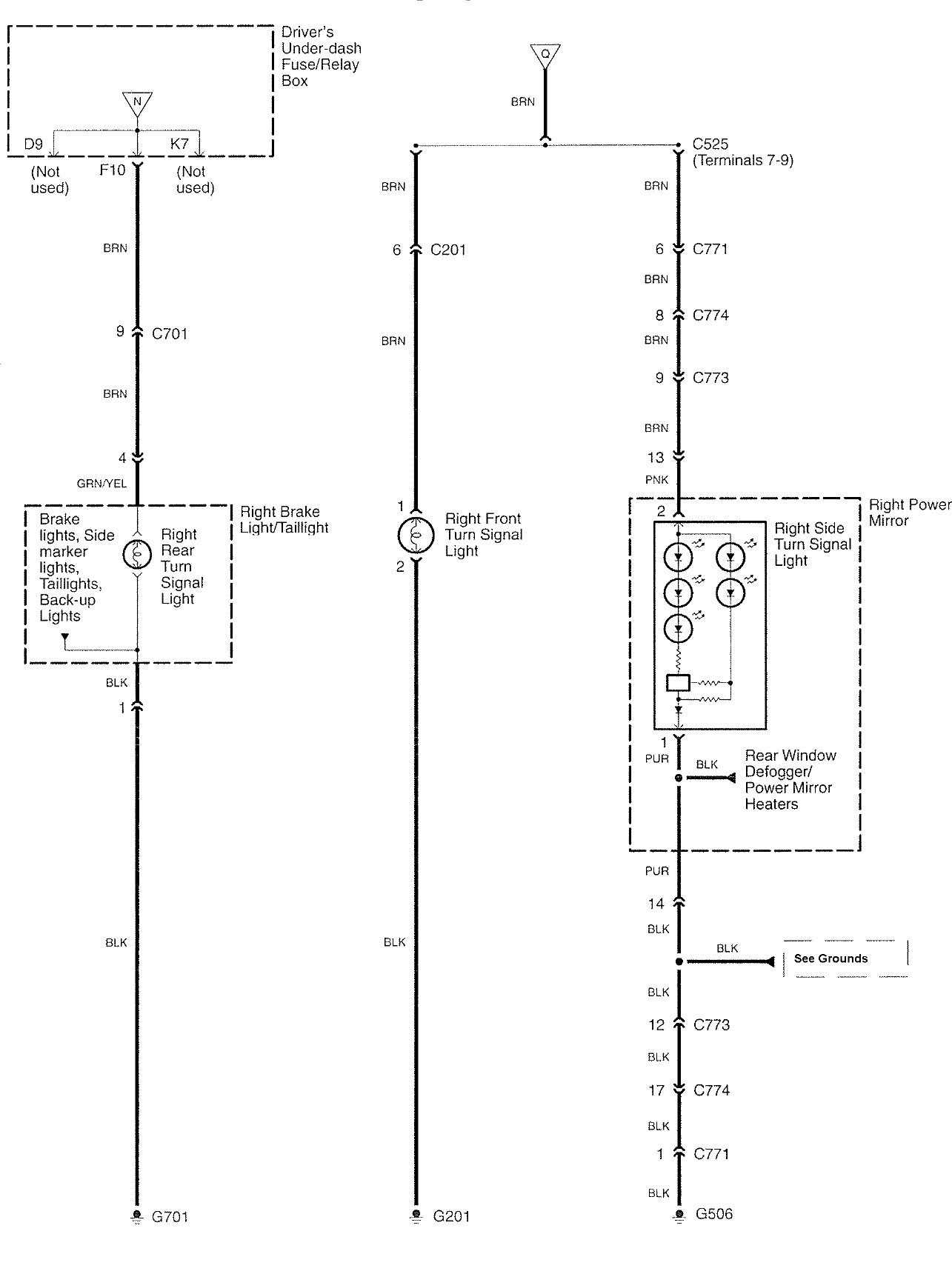

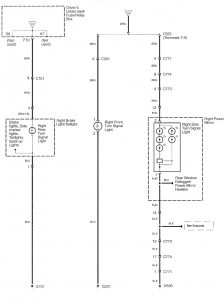

Acura RL - wiring diagram - turn signal (part 4)
Acura RL – wiring diagram – turn signal (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
