Acura RL (2008 – 2009) – wiring diagrams – collision mitigation brake system

Year of productions:  2008, 2009

Collision mitigation brake system

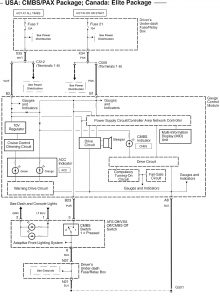

Acura RL - wiring diagram - collision mitigation brake system (part 1)
Acura RL – wiring diagram – collision mitigation brake system (part 1)

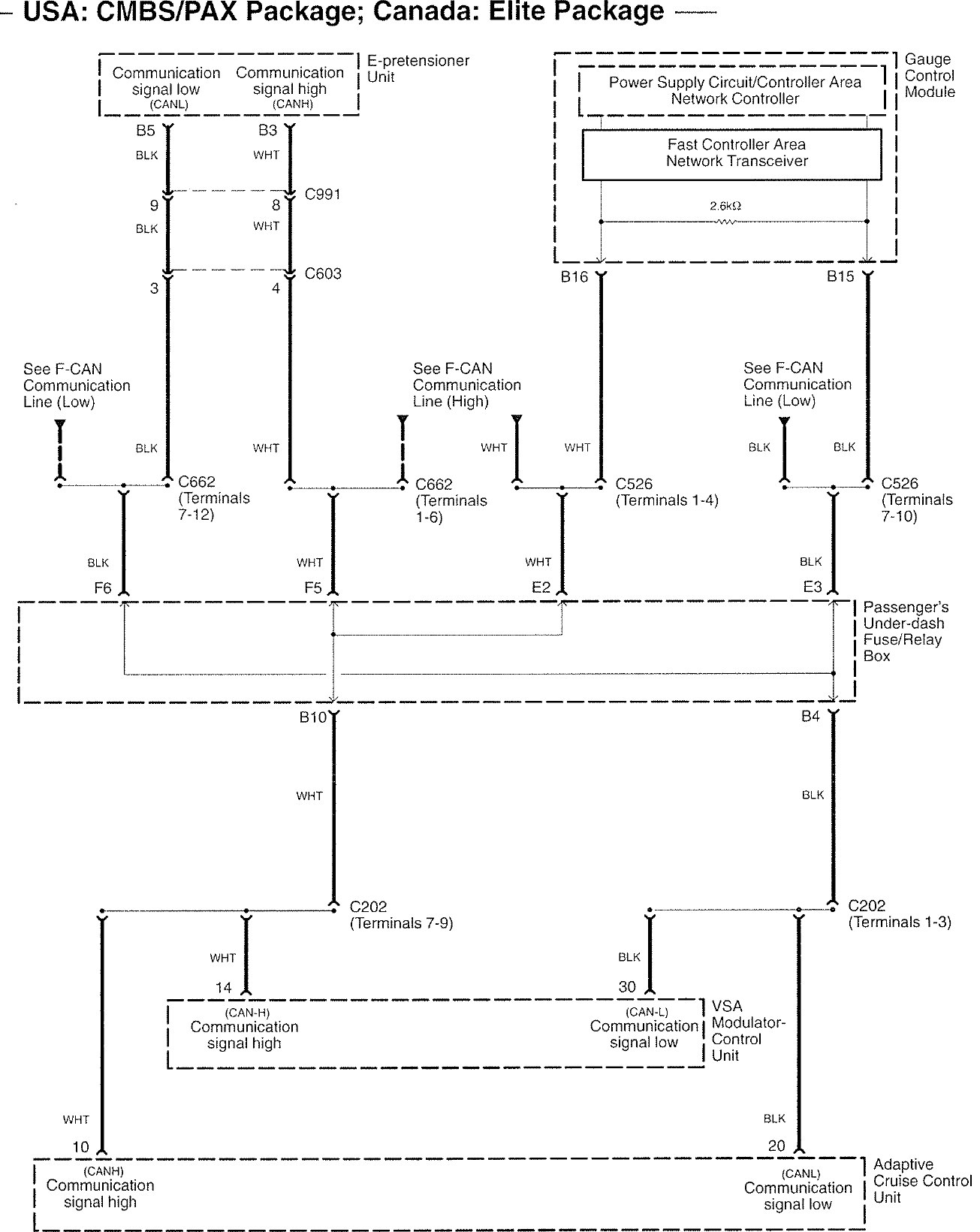

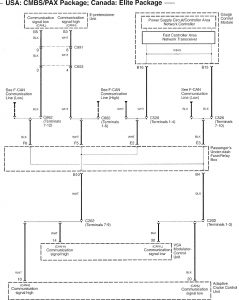

Acura RL - wiring diagram - collision mitigation brake system (part 2)
Acura RL – wiring diagram – collision mitigation brake system (part 2)

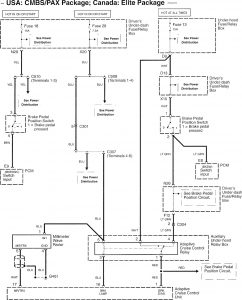

Acura RL - wiring diagram - collision mitigation brake system (part 3)
Acura RL – wiring diagram – collision mitigation brake system (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
