Acura RL (2008) – wiring diagrams – console lamp

Acura RL (2008) – wiring diagrams – console lamp

Year of productions:  2008

Console lamp

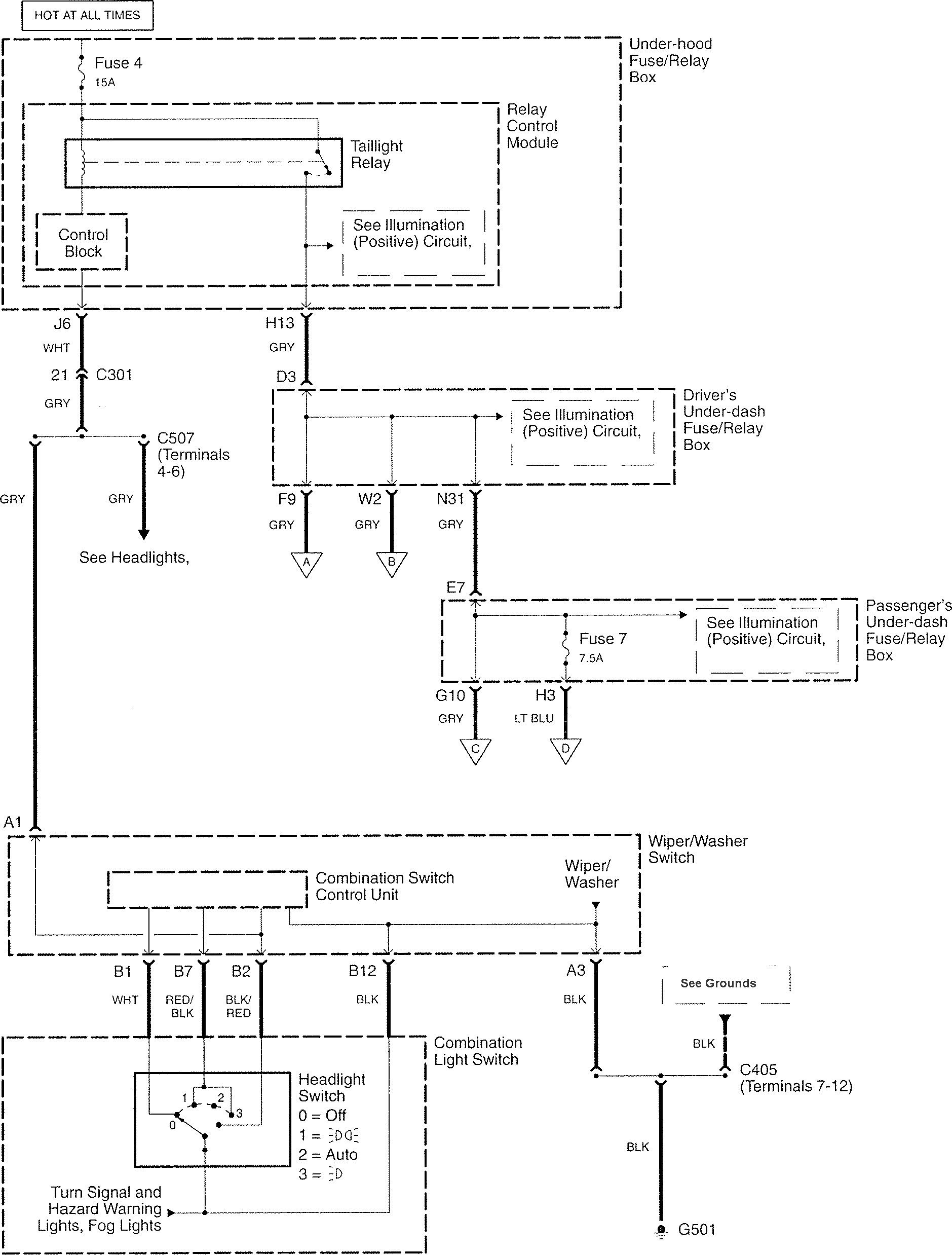

Acura RL - wiring diagram - console lamp (part 1)
Acura RL – wiring diagram – console lamp (part 1)

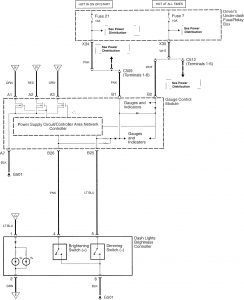

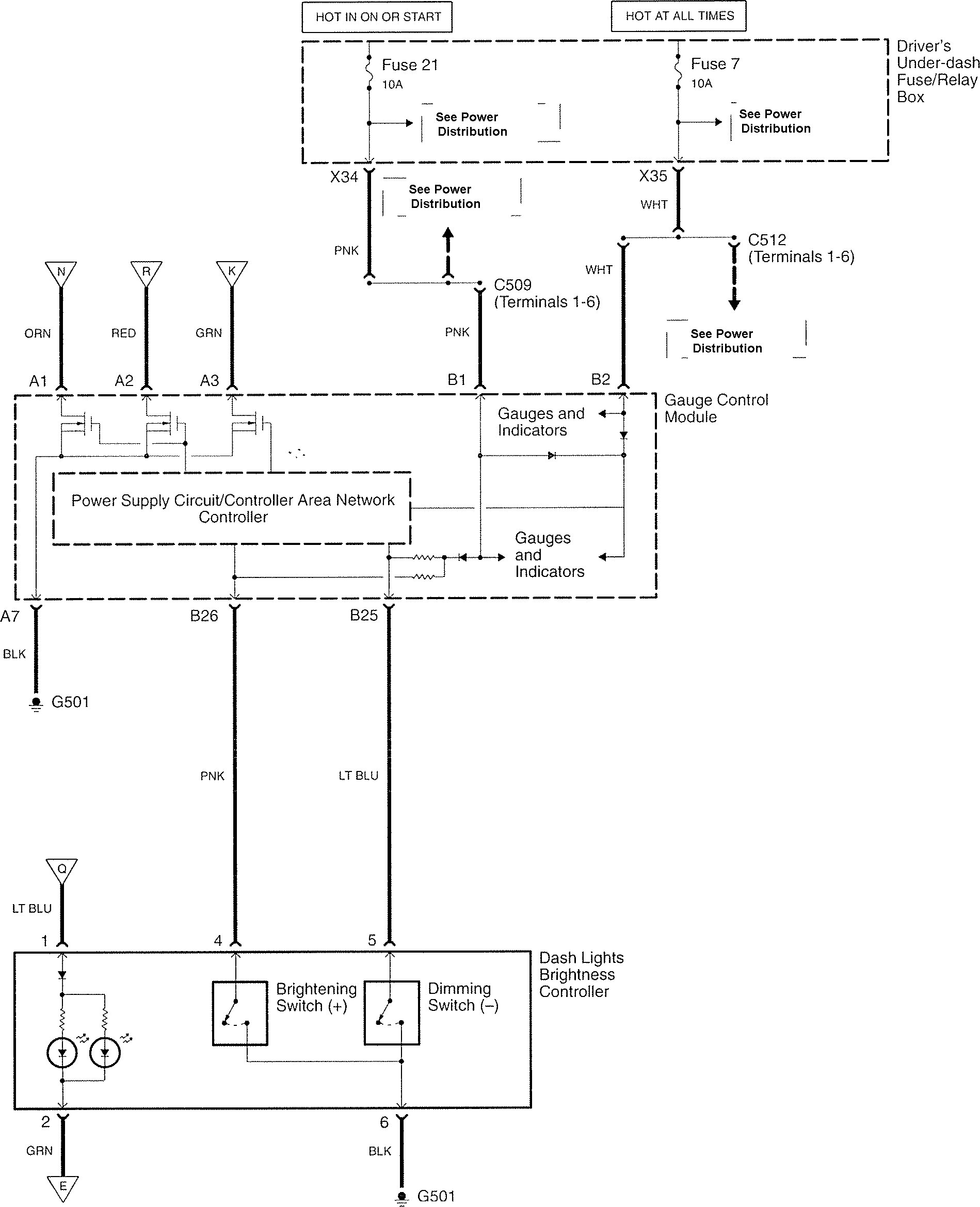

Acura RL - wiring diagram - console lamp (part 2)
Acura RL – wiring diagram – console lamp (part 2)

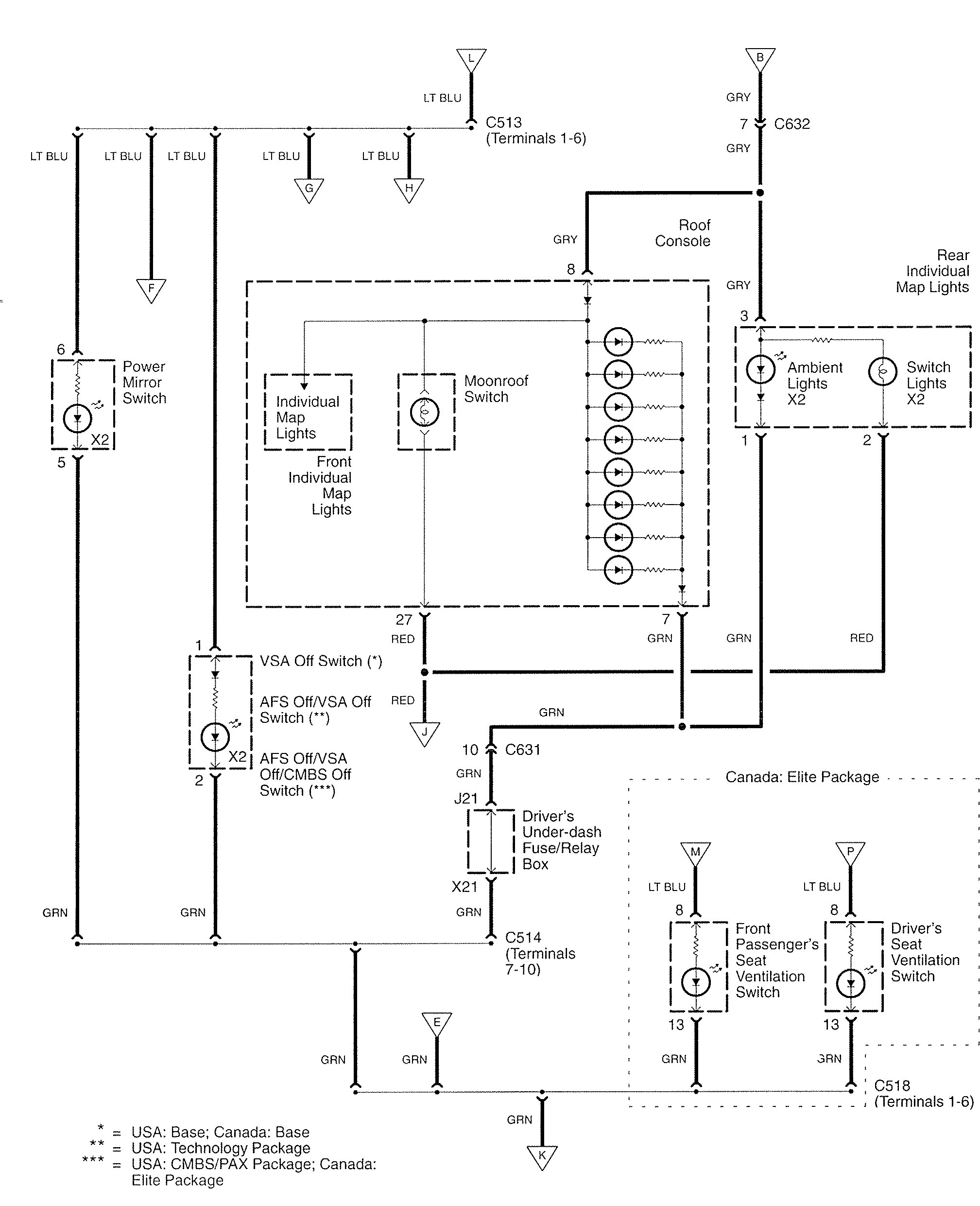

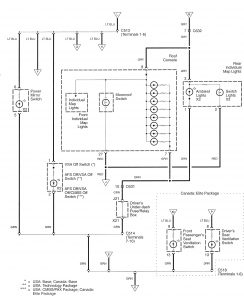

Acura RL - wiring diagram - console lamp (part 3)
Acura RL – wiring diagram – console lamp (part 3)

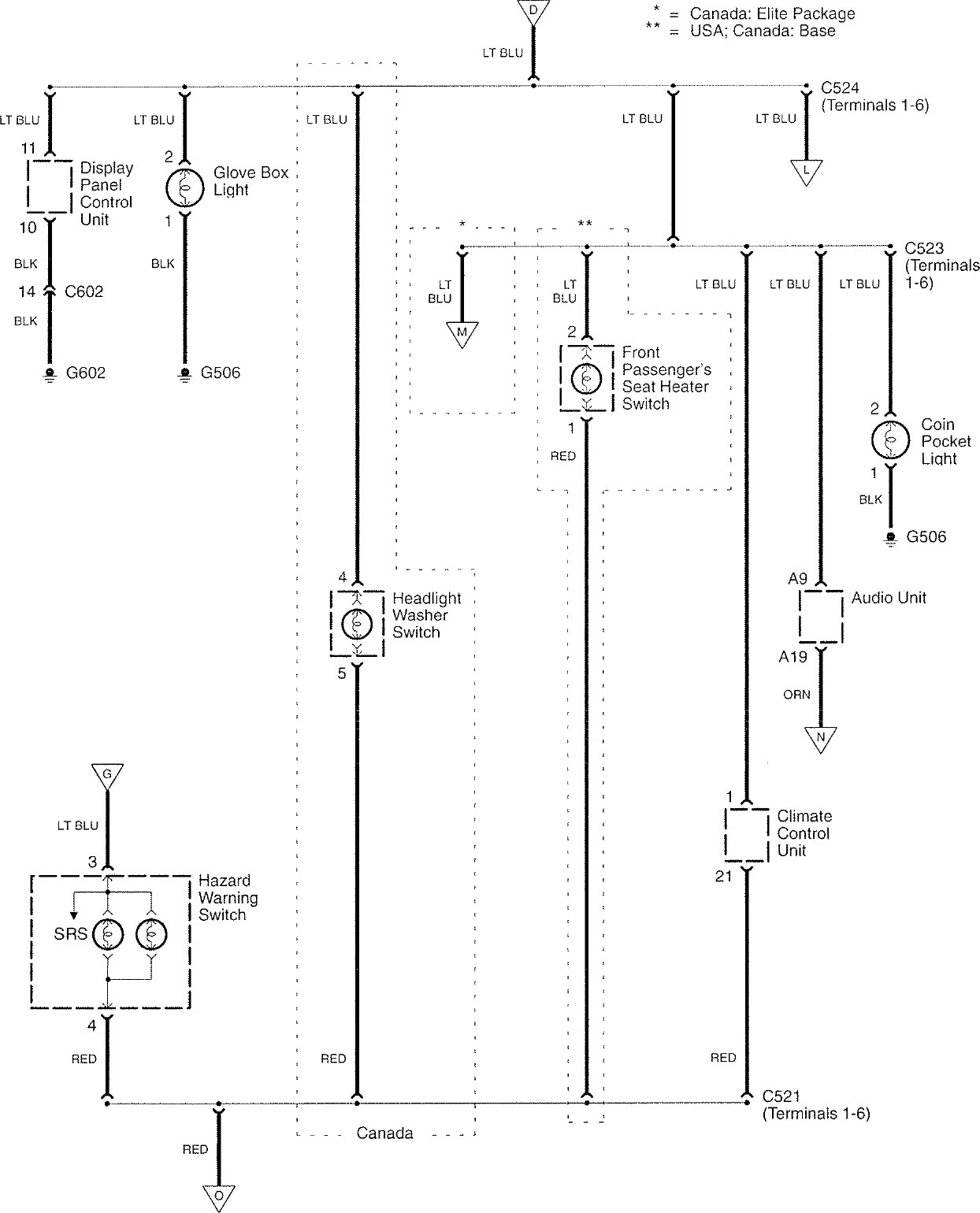

Acura RL - wiring diagram - console lamp (part 4)
Acura RL – wiring diagram – console lamp (part 4)

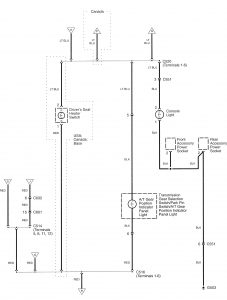

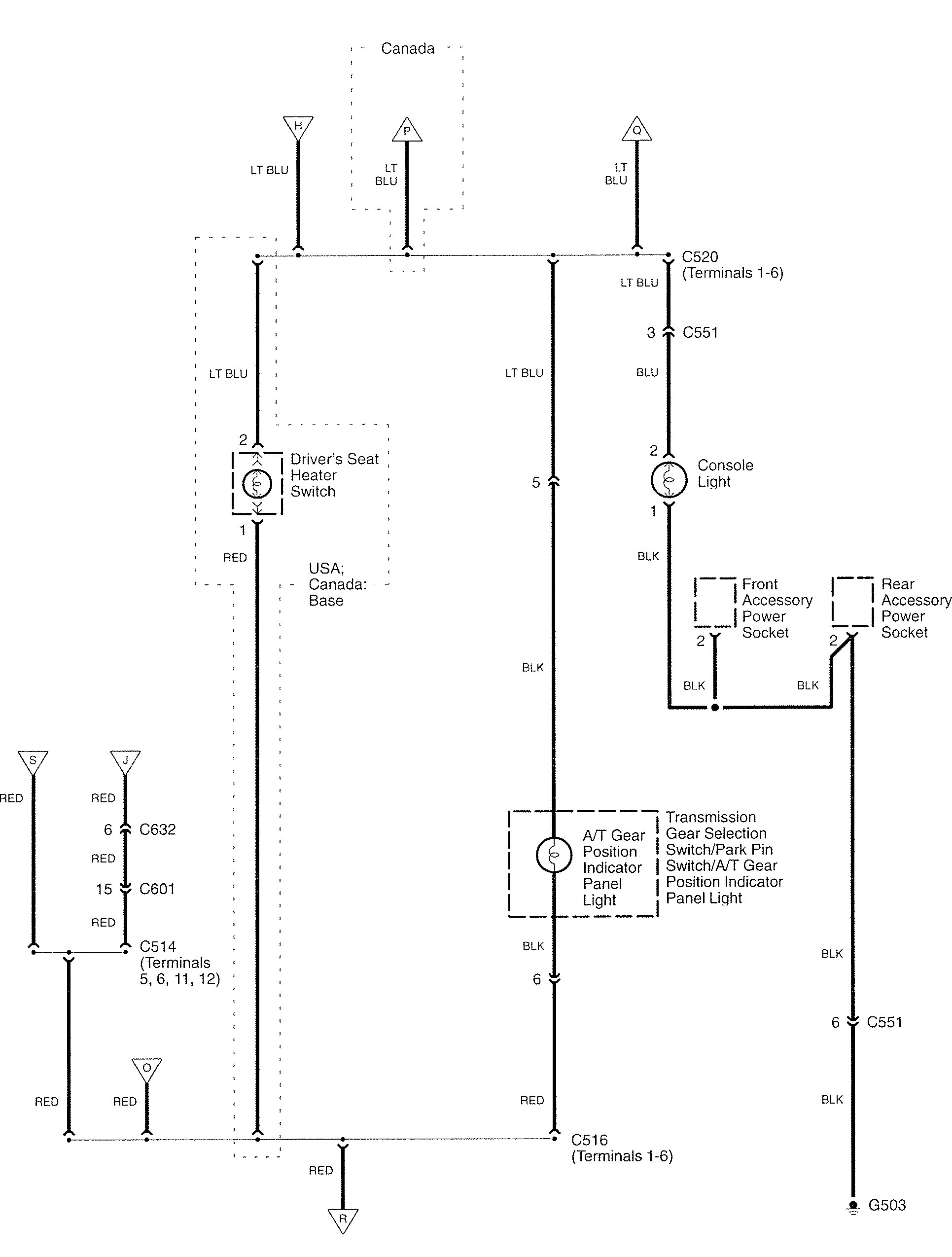

Acura RL - wiring diagram - console lamp (part 5)
Acura RL – wiring diagram – console lamp (part 5)

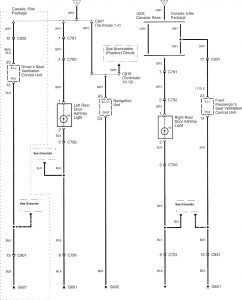

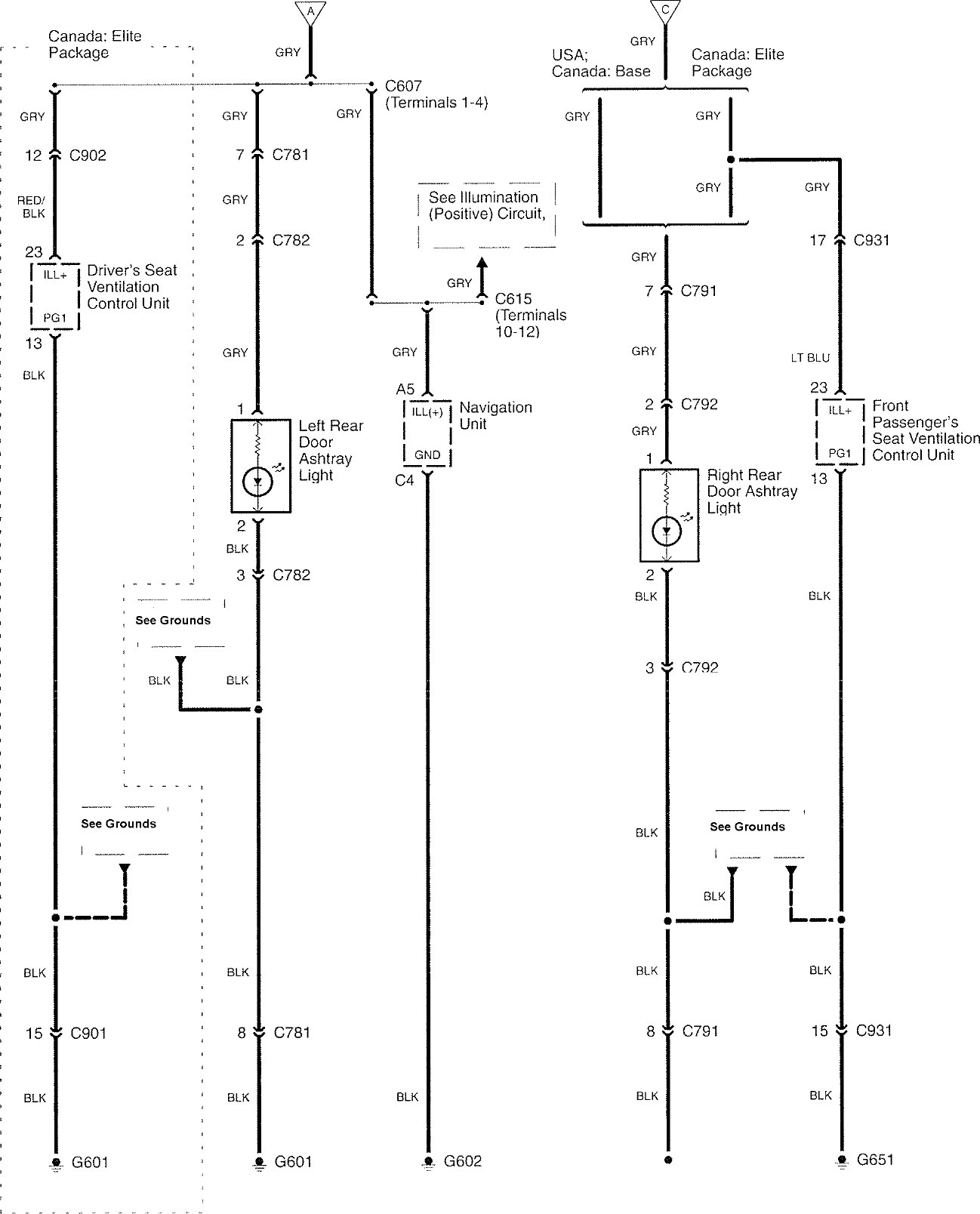

Acura RL - wiring diagram - console lamp (part 6)
Acura RL – wiring diagram – console lamp (part 6)

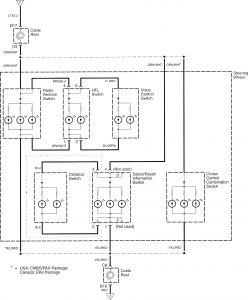

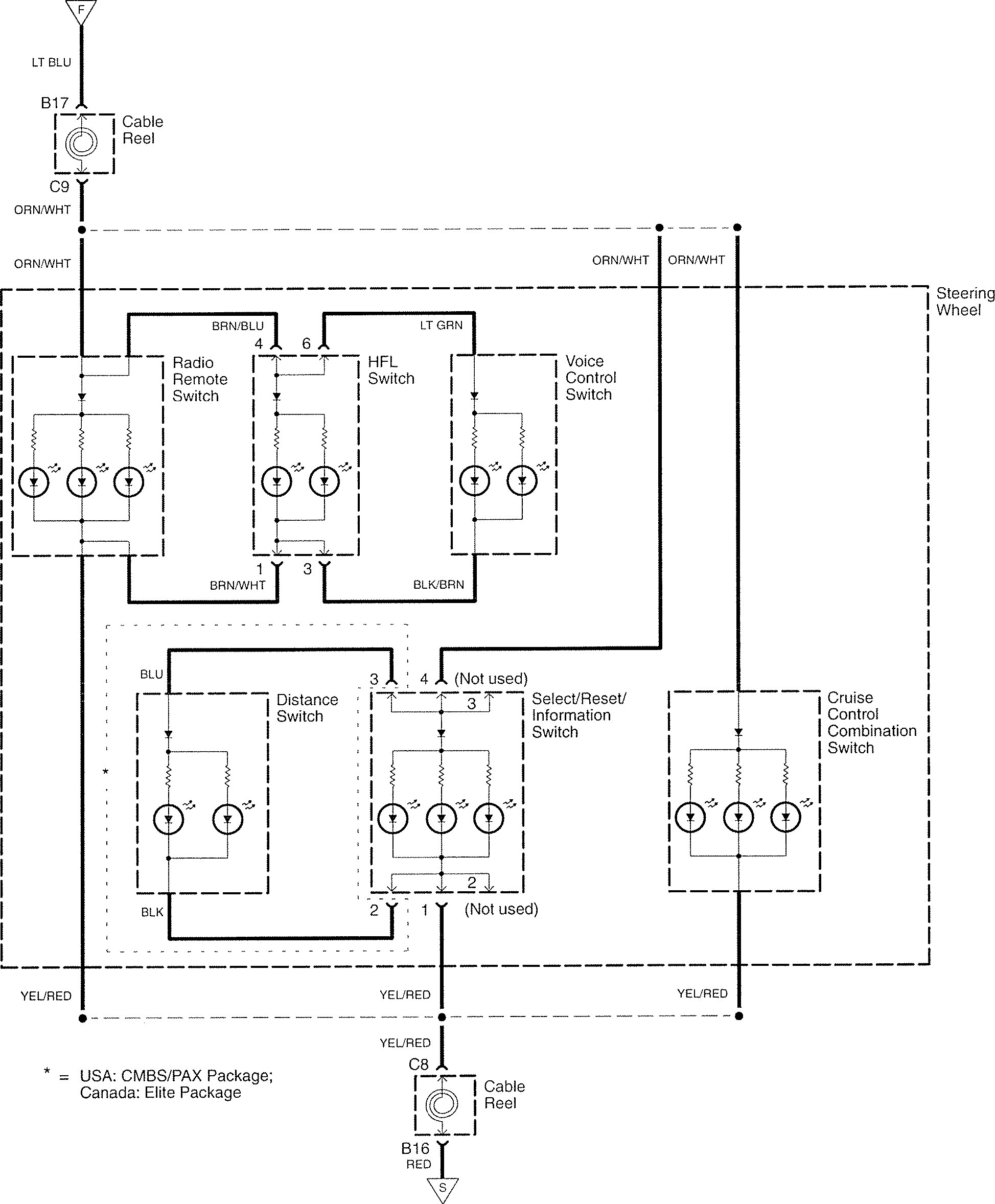

Acura RL - wiring diagram - console lamp (part 7)
Acura RL – wiring diagram – console lamp (part 7)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
