Acura RL (2008) – wiring diagrams – ground distribution

Acura RL (2008) – wiring diagrams – ground distribution

Year of productions:  2008

Ground distribution

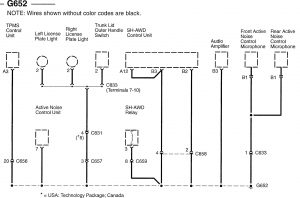

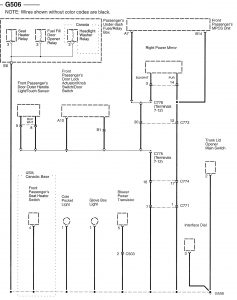

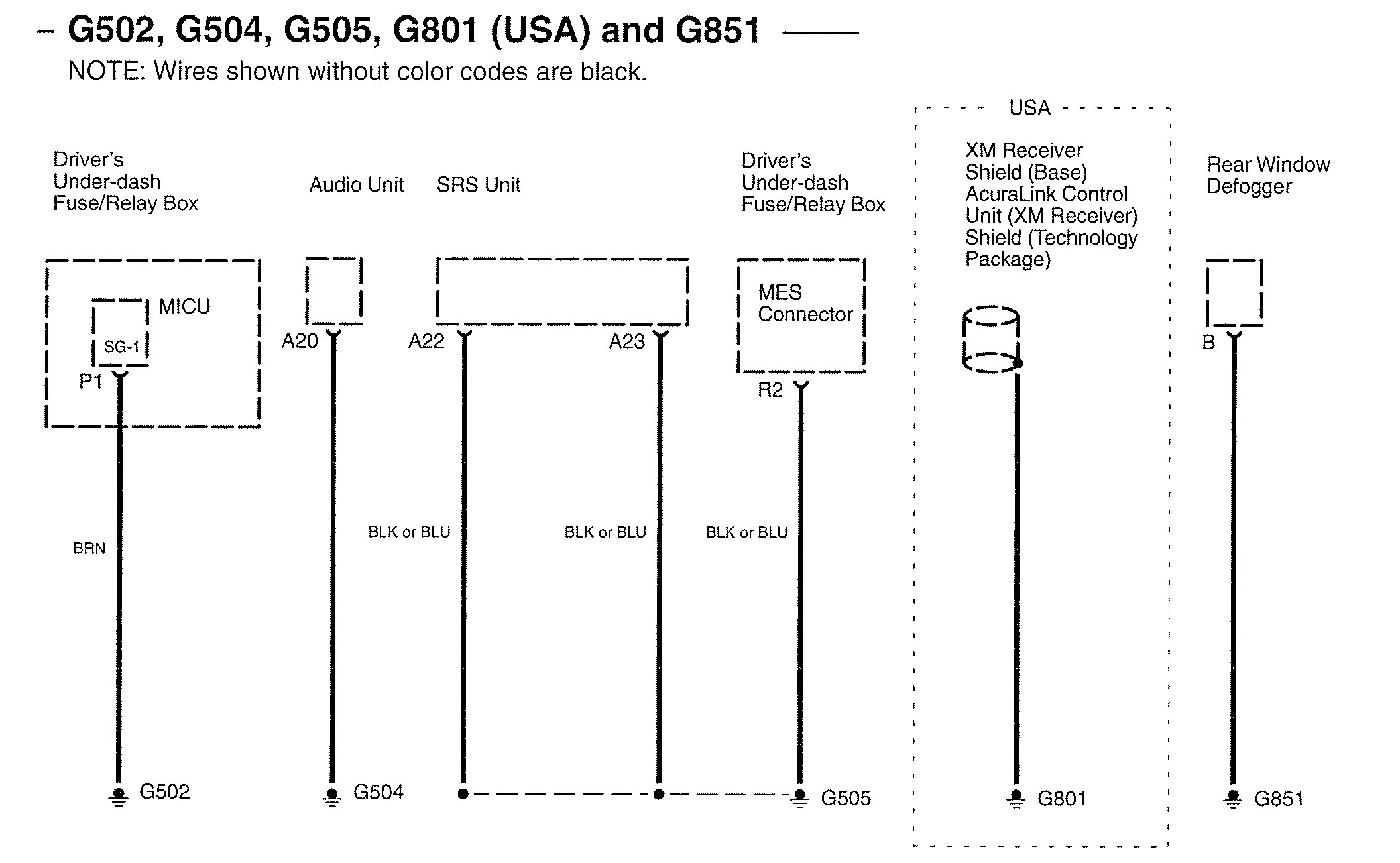

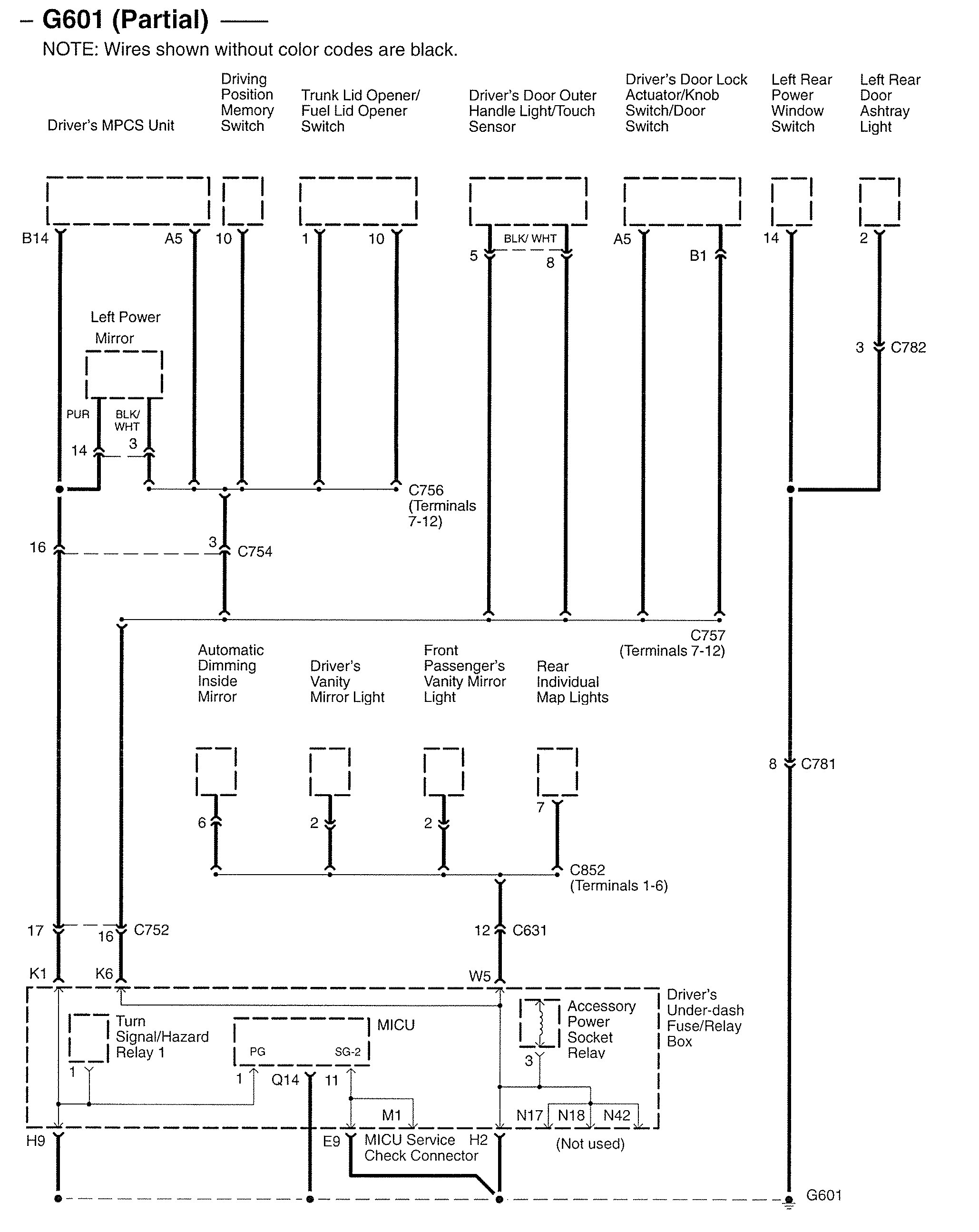

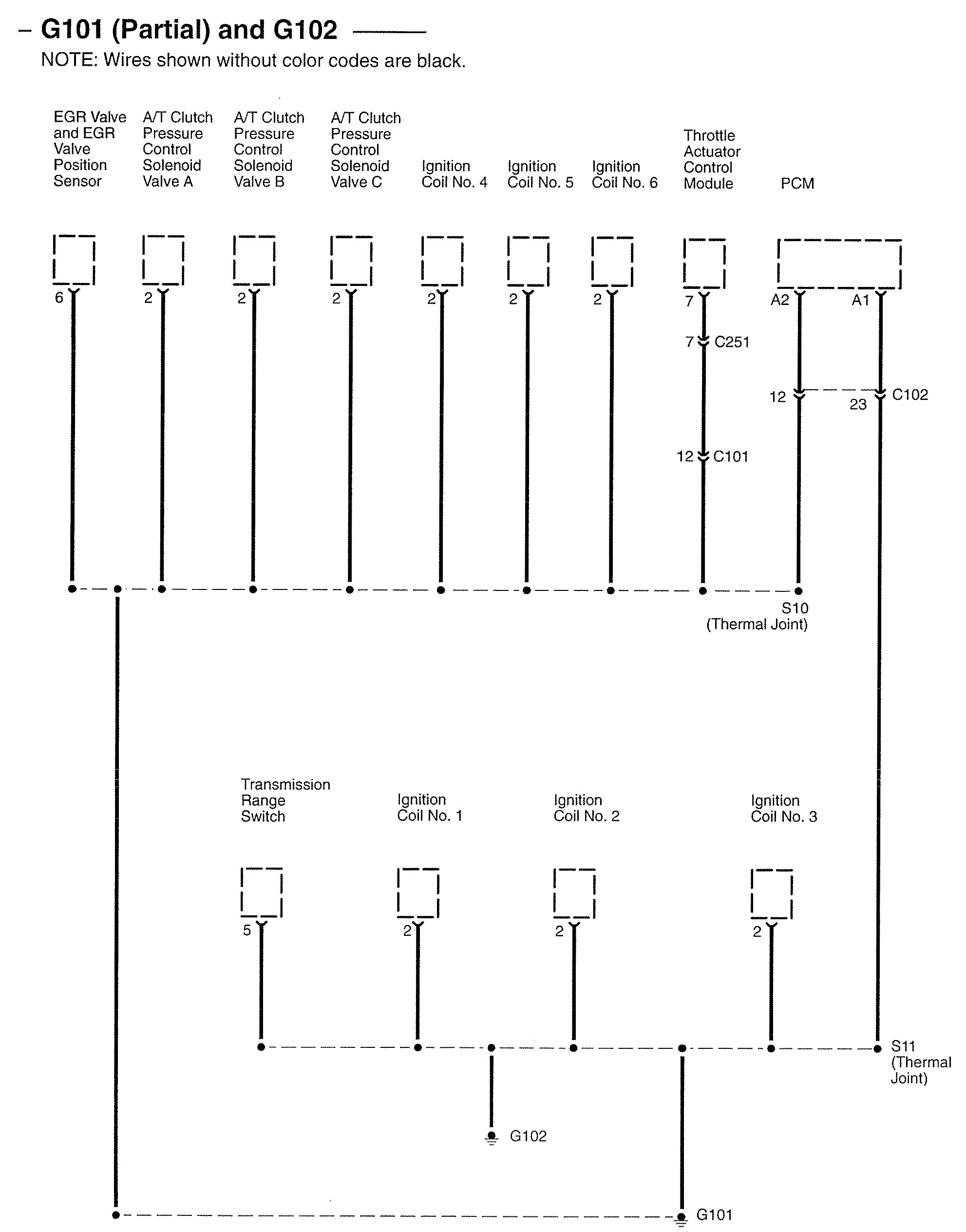

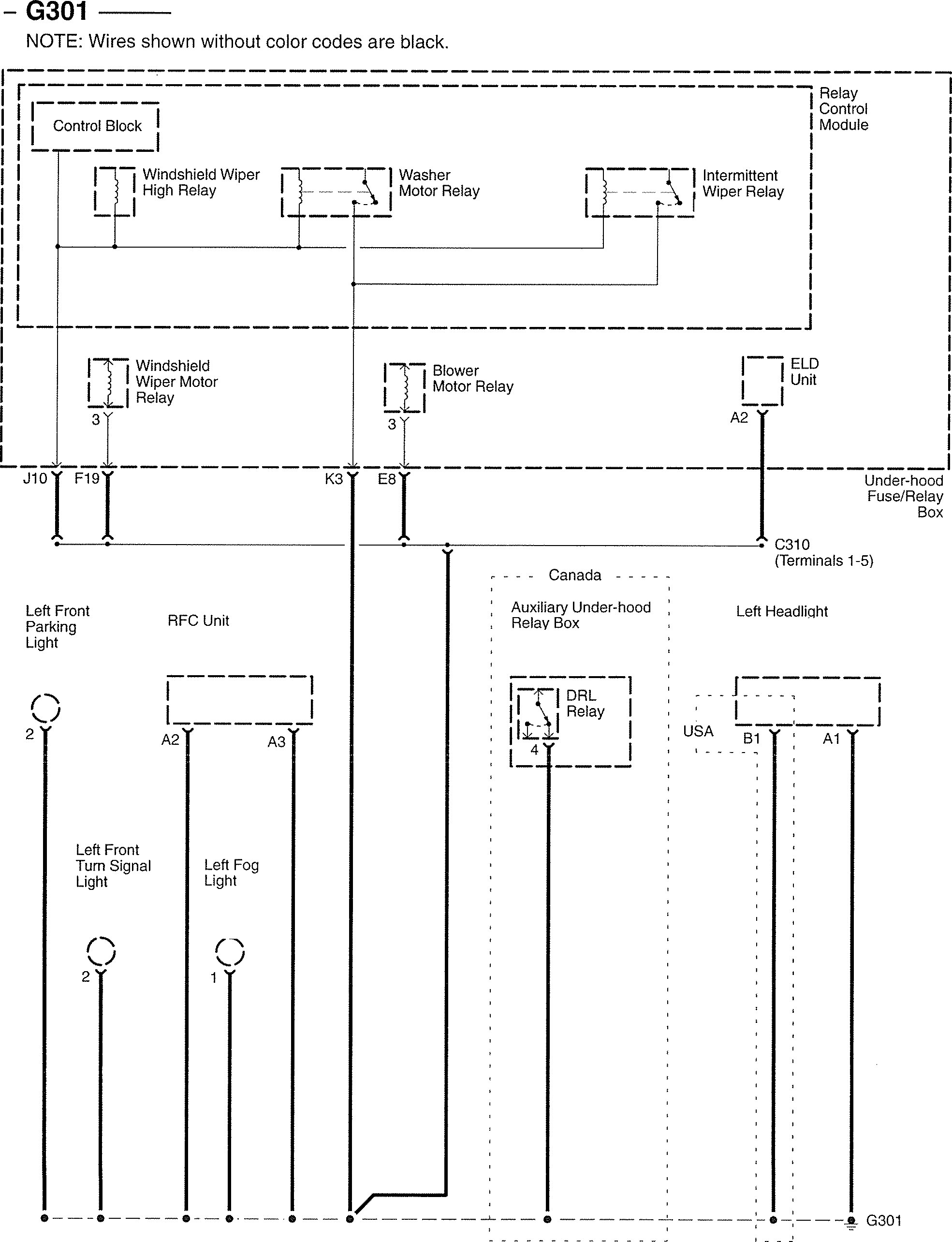

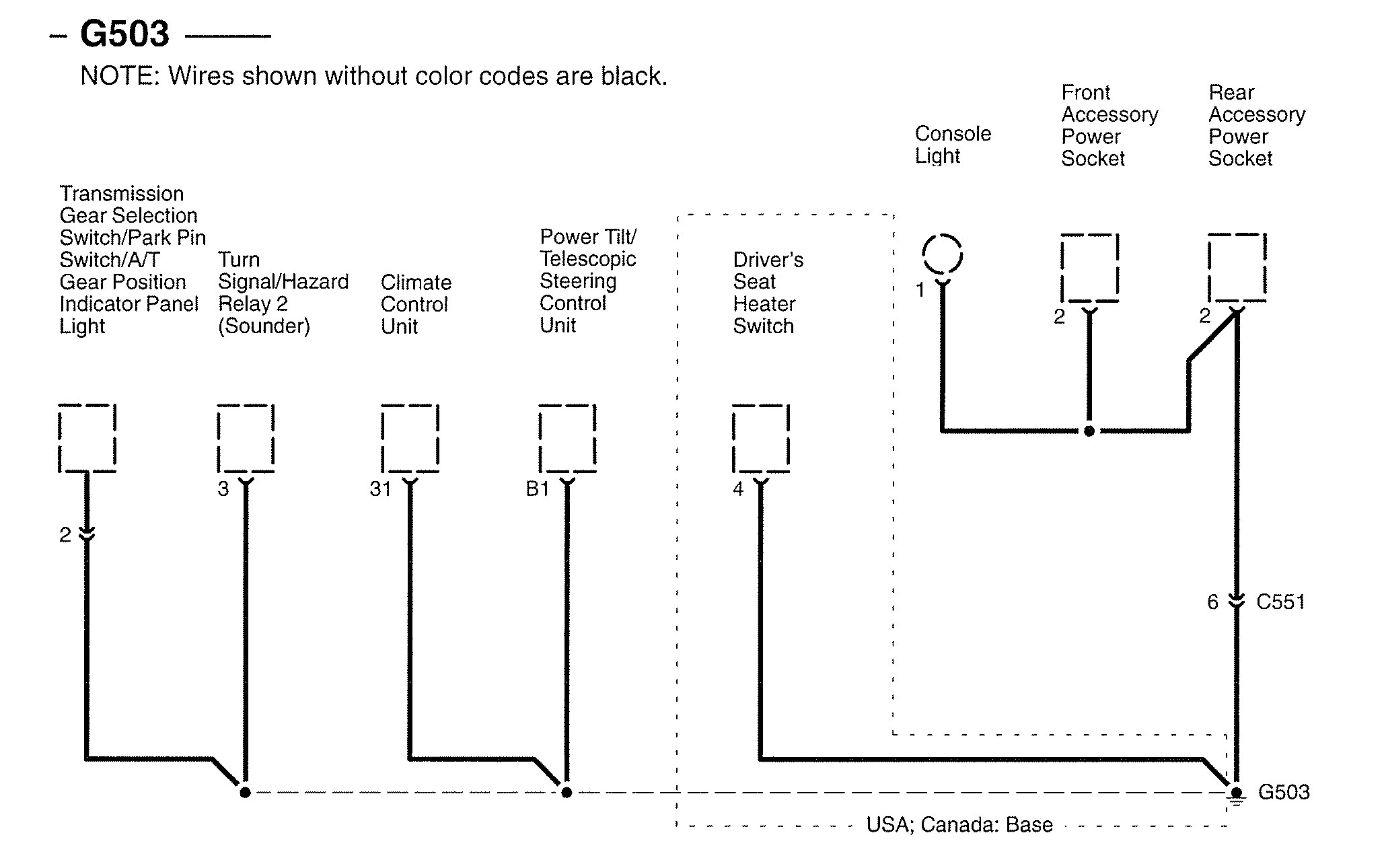

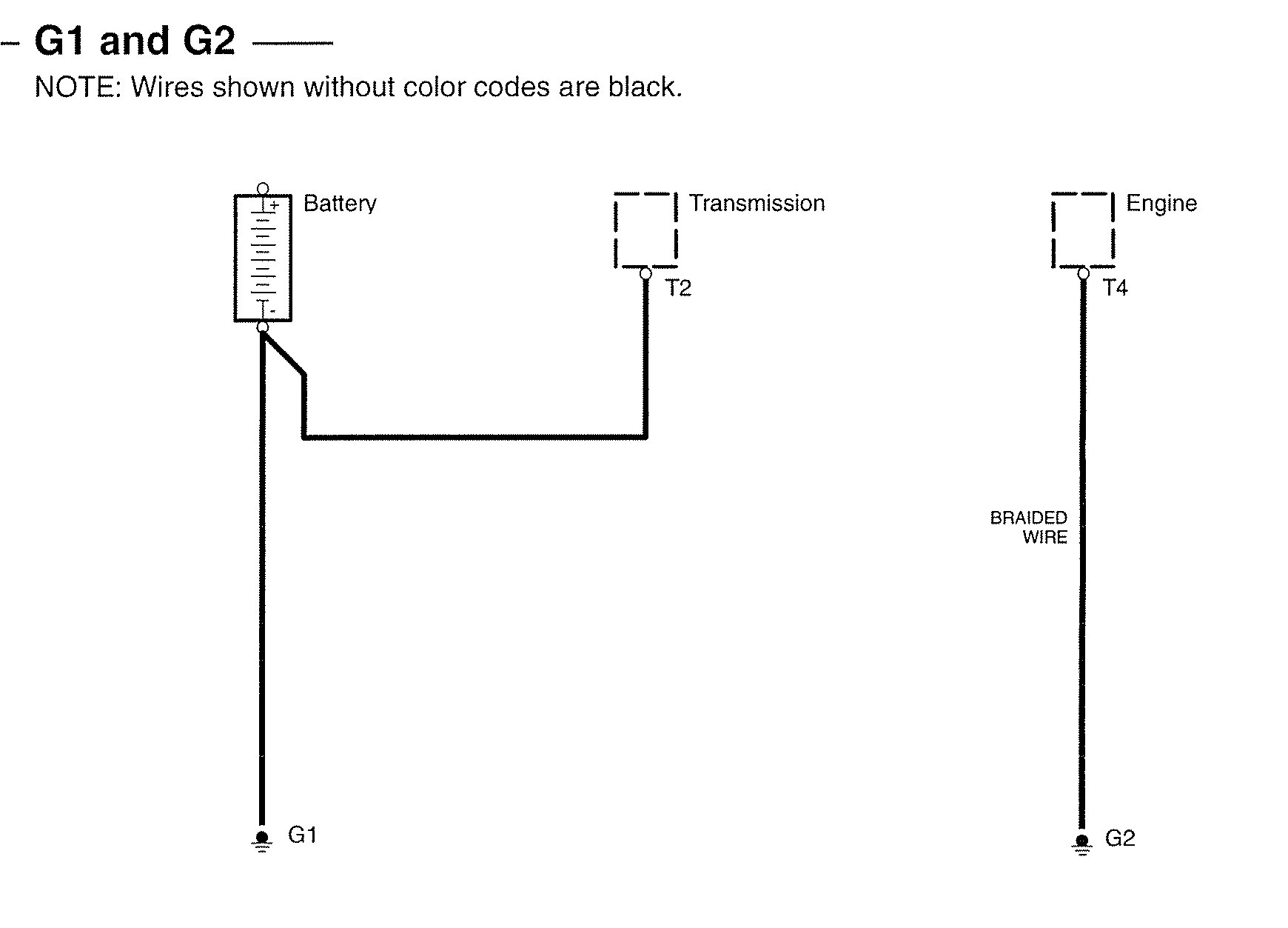

Acura RL - wiring diagram - ground distribution (part 1)
Acura RL – wiring diagram – ground distribution (part 1)

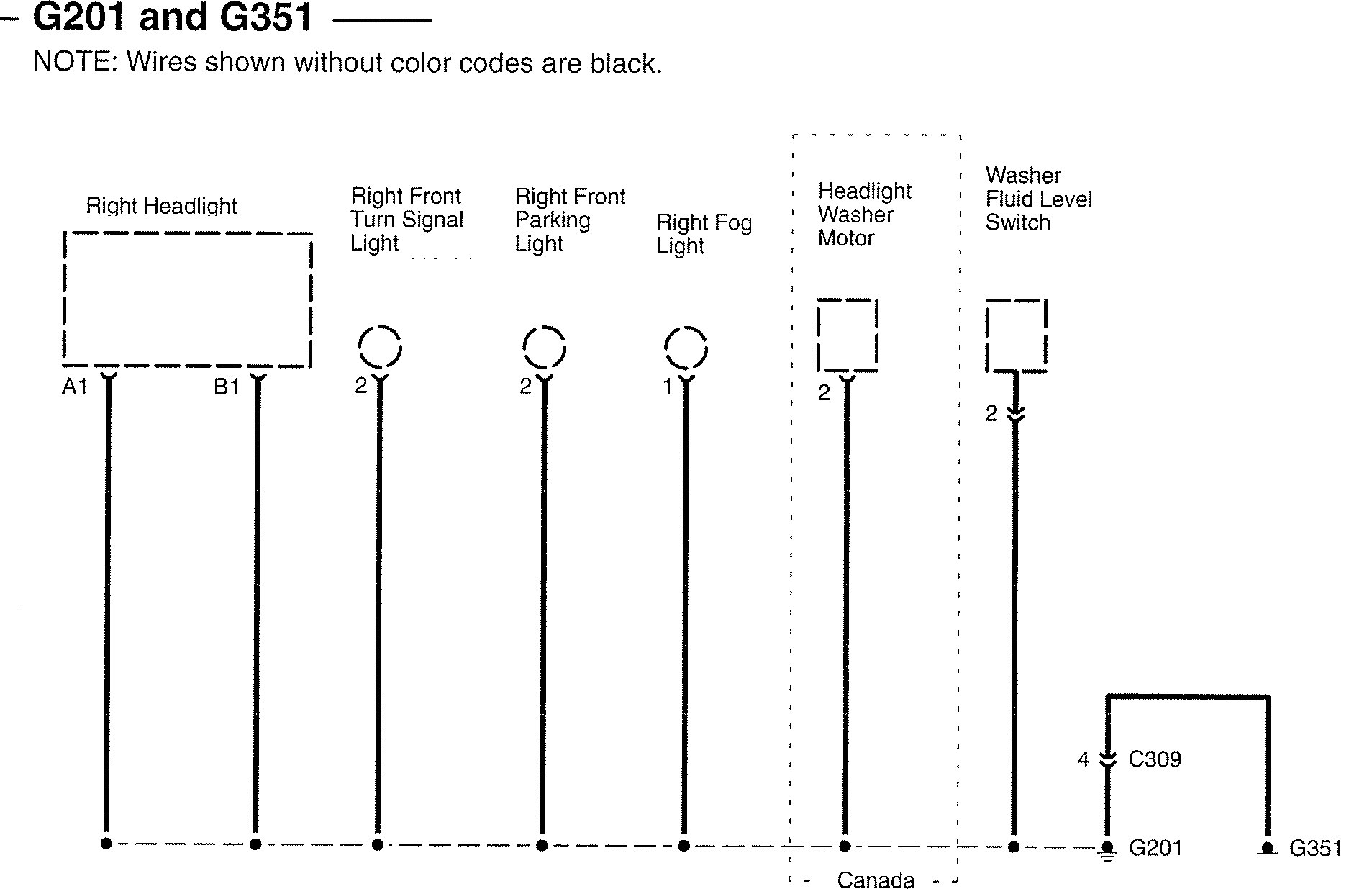

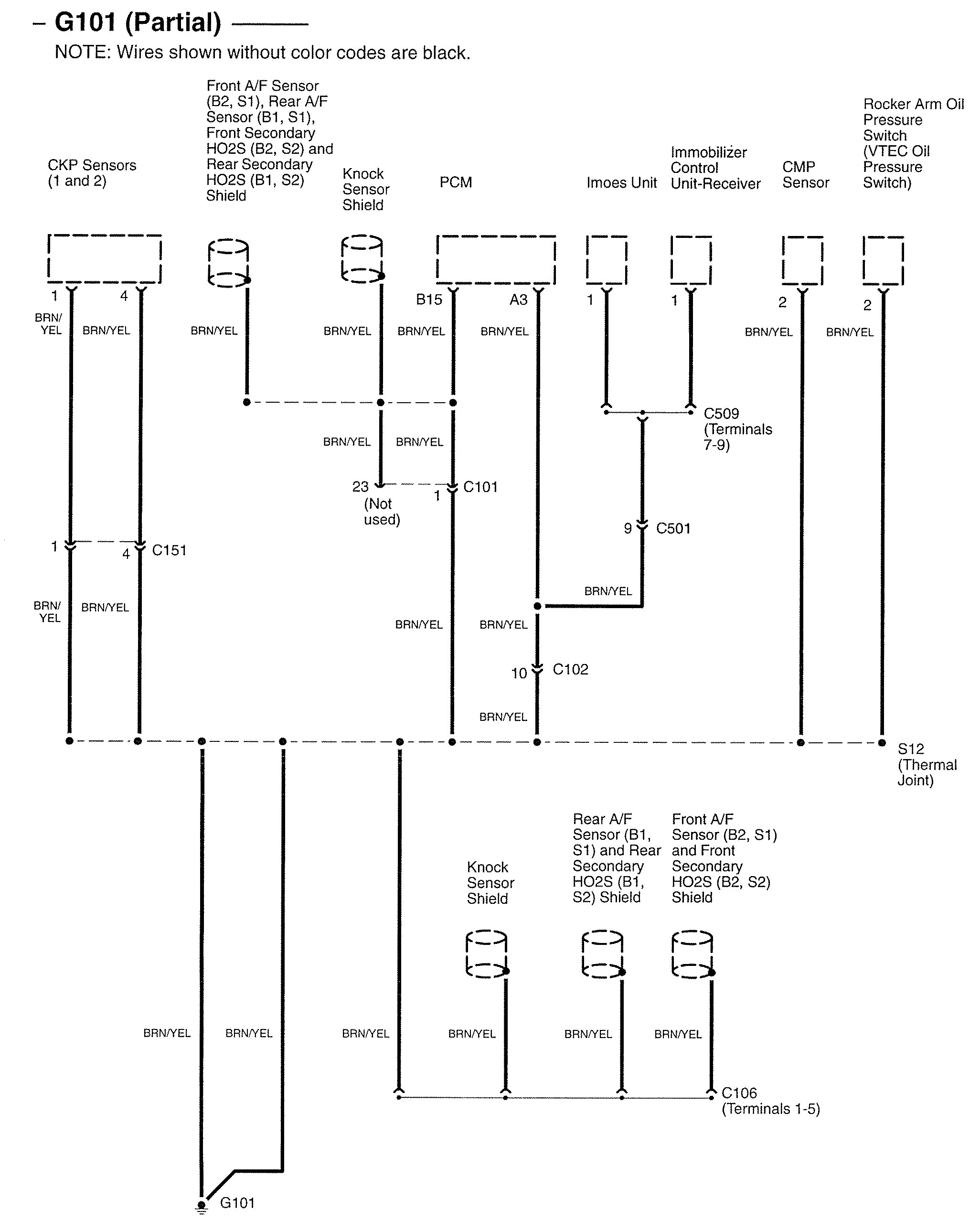

Acura RL - wiring diagram - ground distribution (part 2)
Acura RL – wiring diagram – ground distribution (part 2)

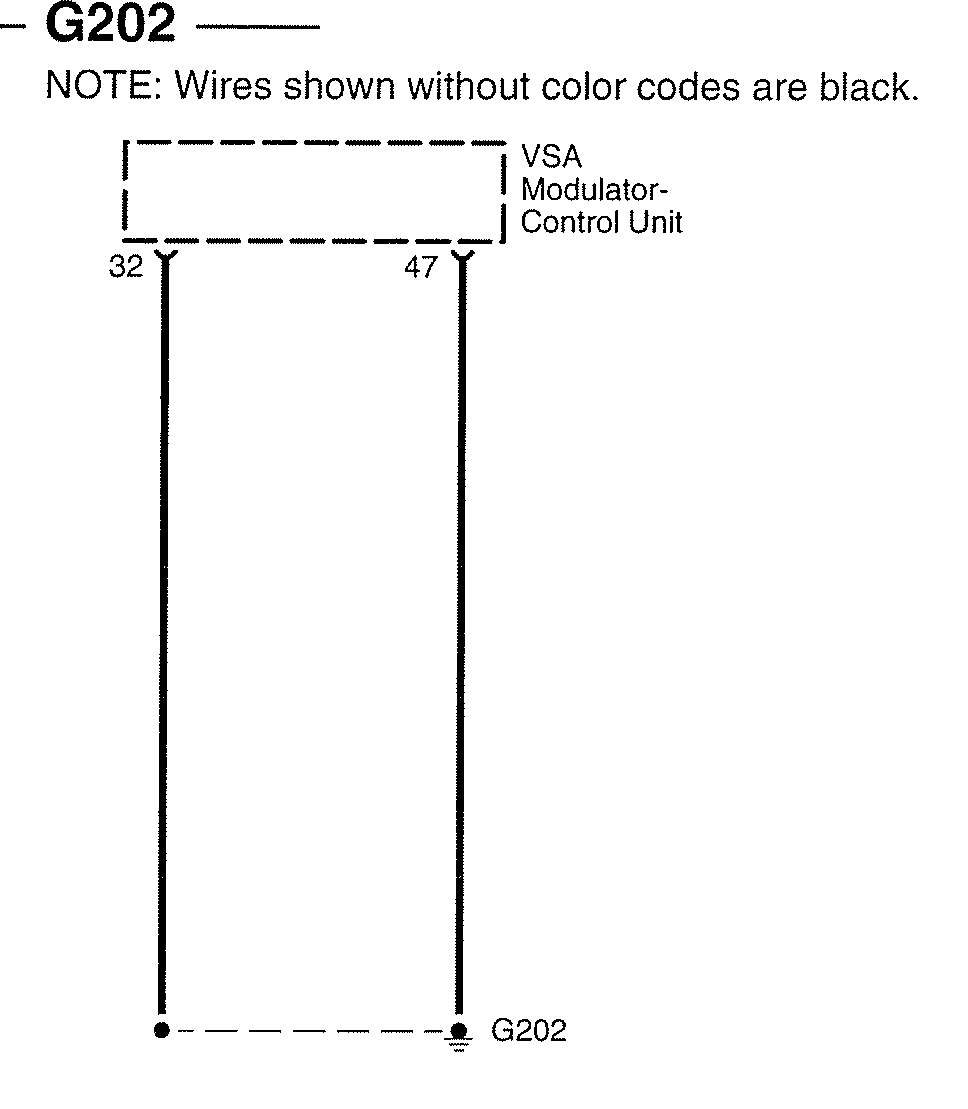

Acura RL - wiring diagram - ground distribution (part 3)
Acura RL – wiring diagram – ground distribution (part 3)
Acura RL - wiring diagram - ground distribution (part 4)
Acura RL – wiring diagram – ground distribution (part 4)

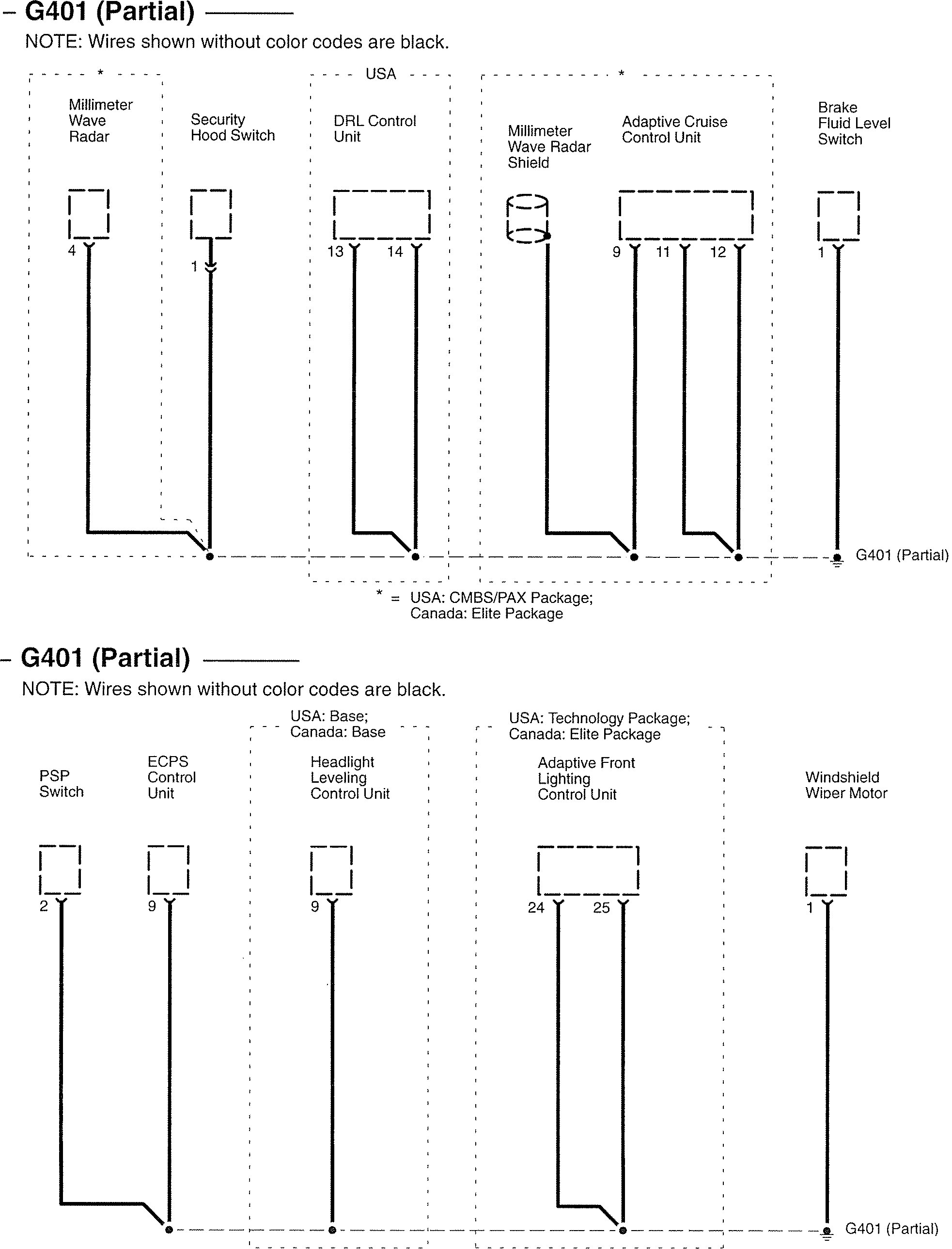

Acura RL - wiring diagram - ground distribution (part 5)
Acura RL – wiring diagram – ground distribution (part 5)

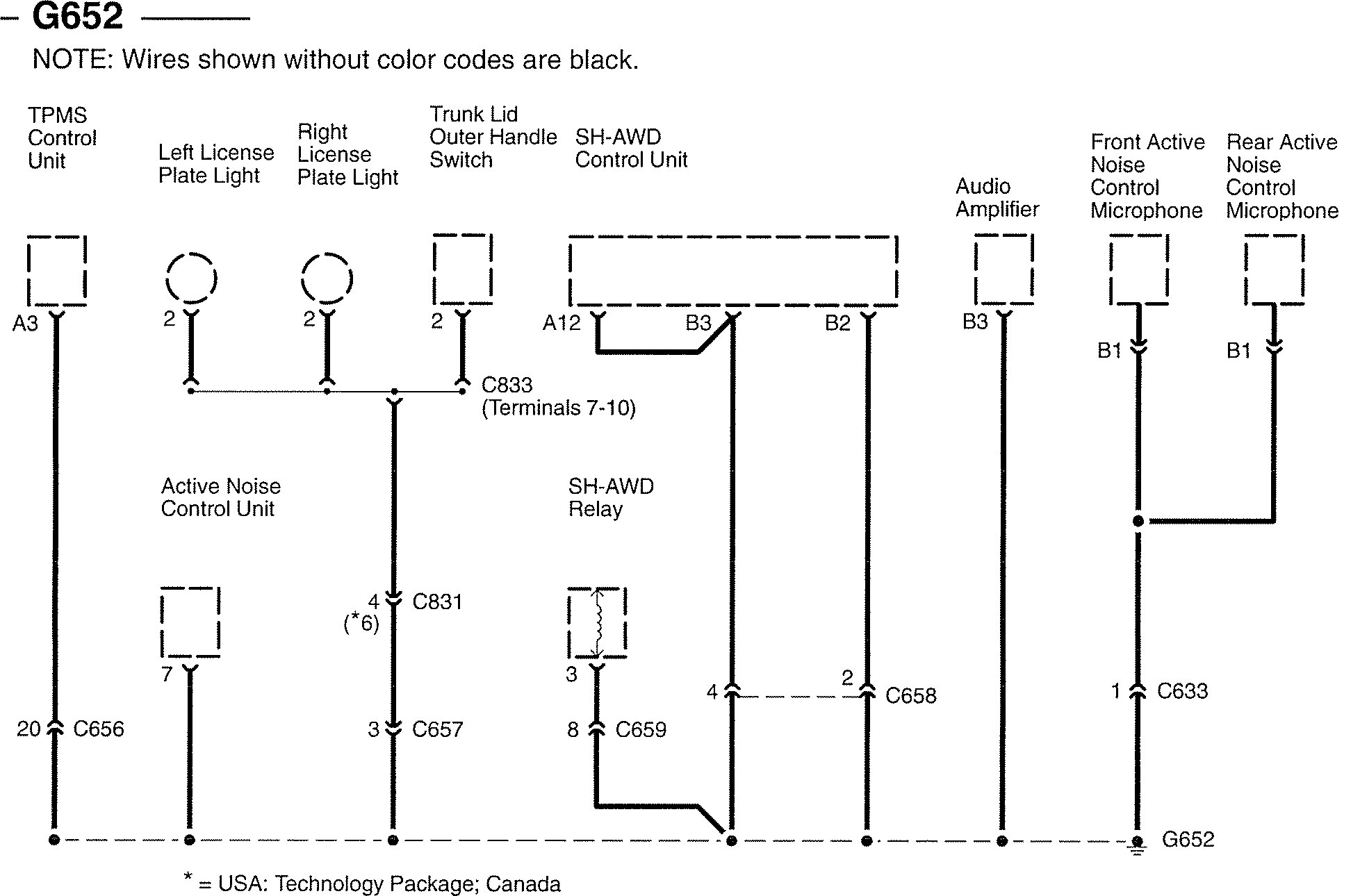

Acura RL - wiring diagram - ground distribution (part 6)
Acura RL – wiring diagram – ground distribution (part 6)

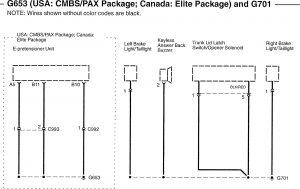

Acura RL - wiring diagram - ground distribution (part 7)
Acura RL – wiring diagram – ground distribution (part 7)

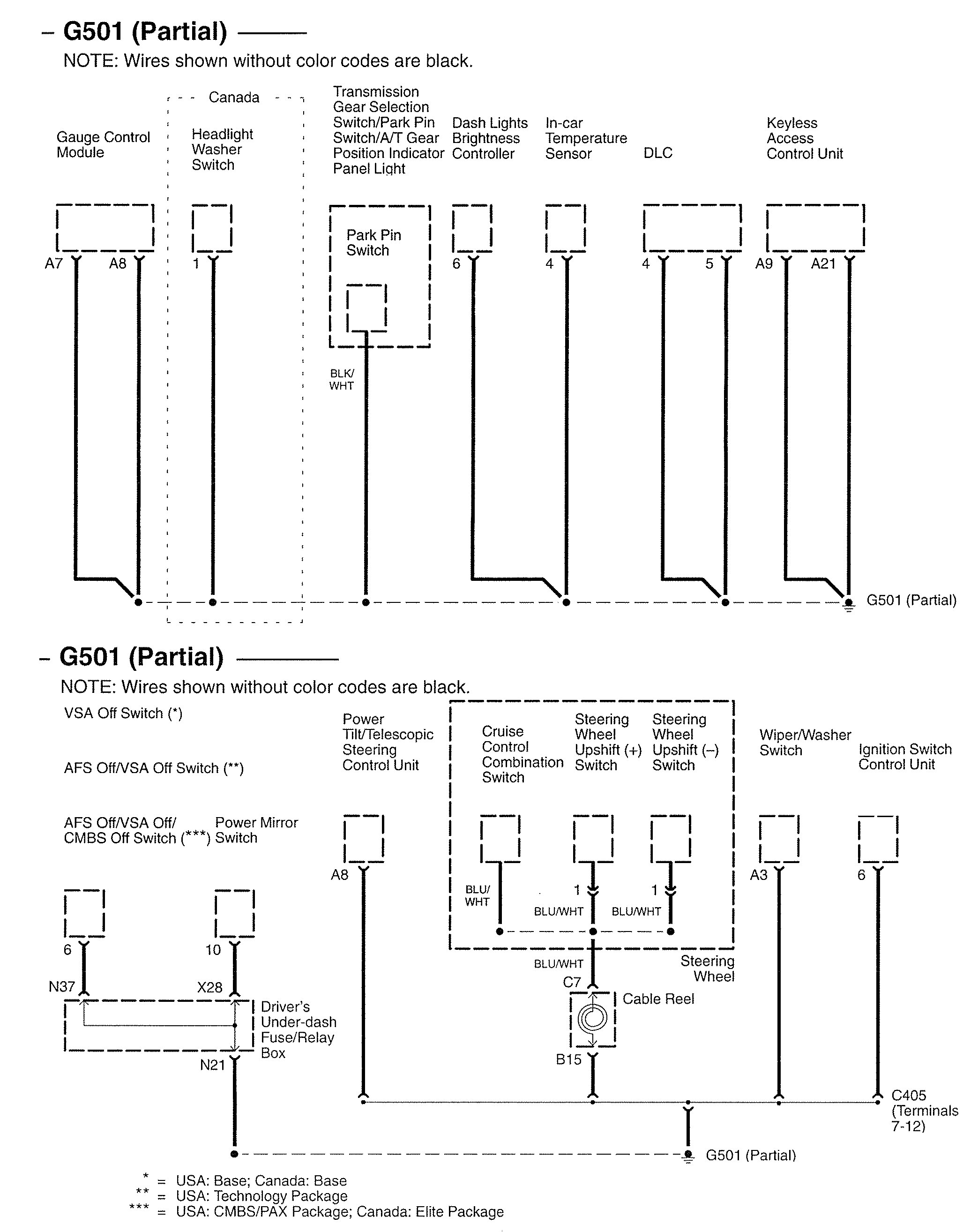

Acura RL - wiring diagram - ground distribution (part 8)
Acura RL – wiring diagram – ground distribution (part 8)
Acura RL - wiring diagram - ground distribution (part 9)
Acura RL – wiring diagram – ground distribution (part 9)
Acura RL - wiring diagram - ground distribution (part 10)
Acura RL – wiring diagram – ground distribution (part 10)

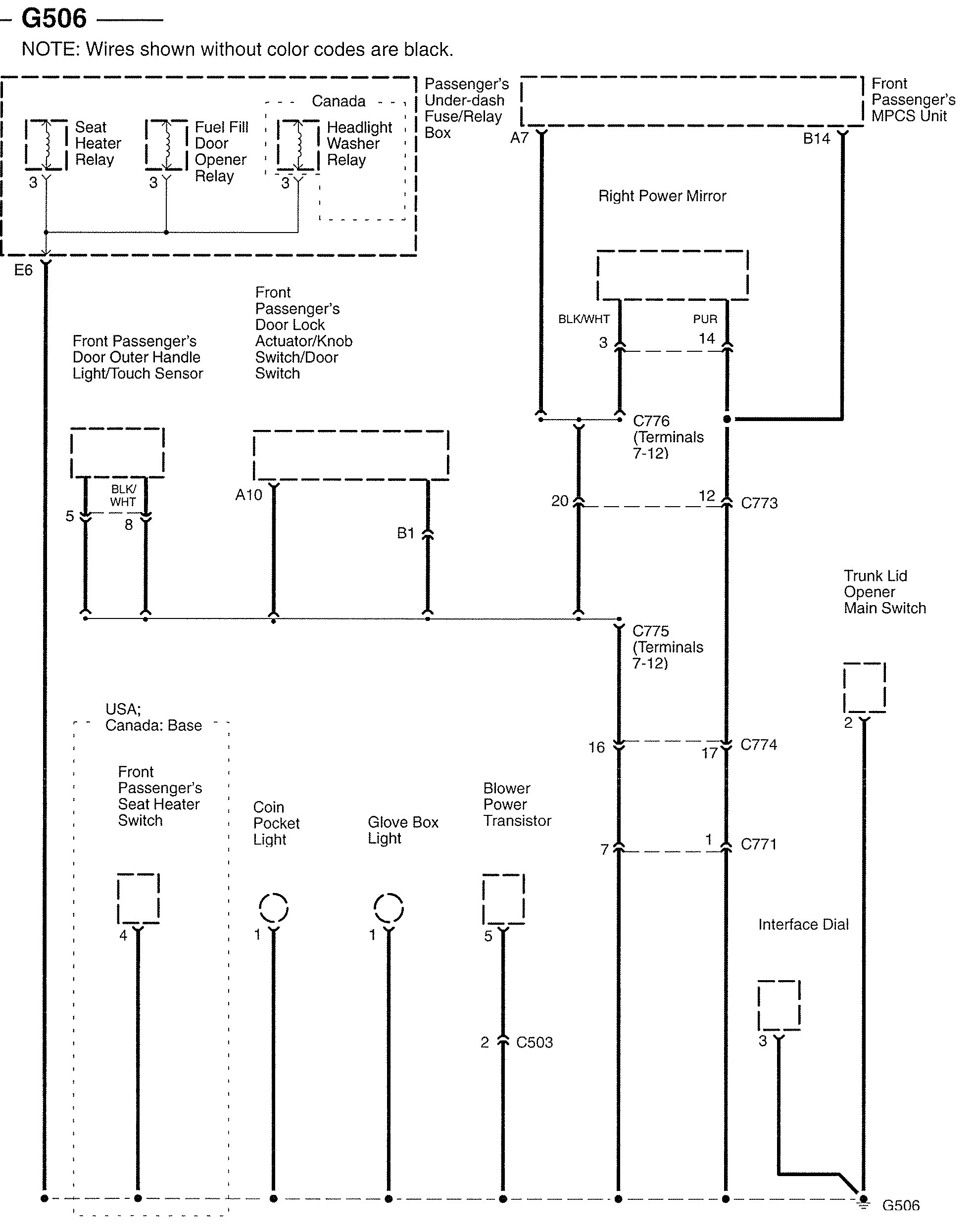

Acura RL - wiring diagram - ground distribution (part 11)
Acura RL – wiring diagram – ground distribution (part 11)

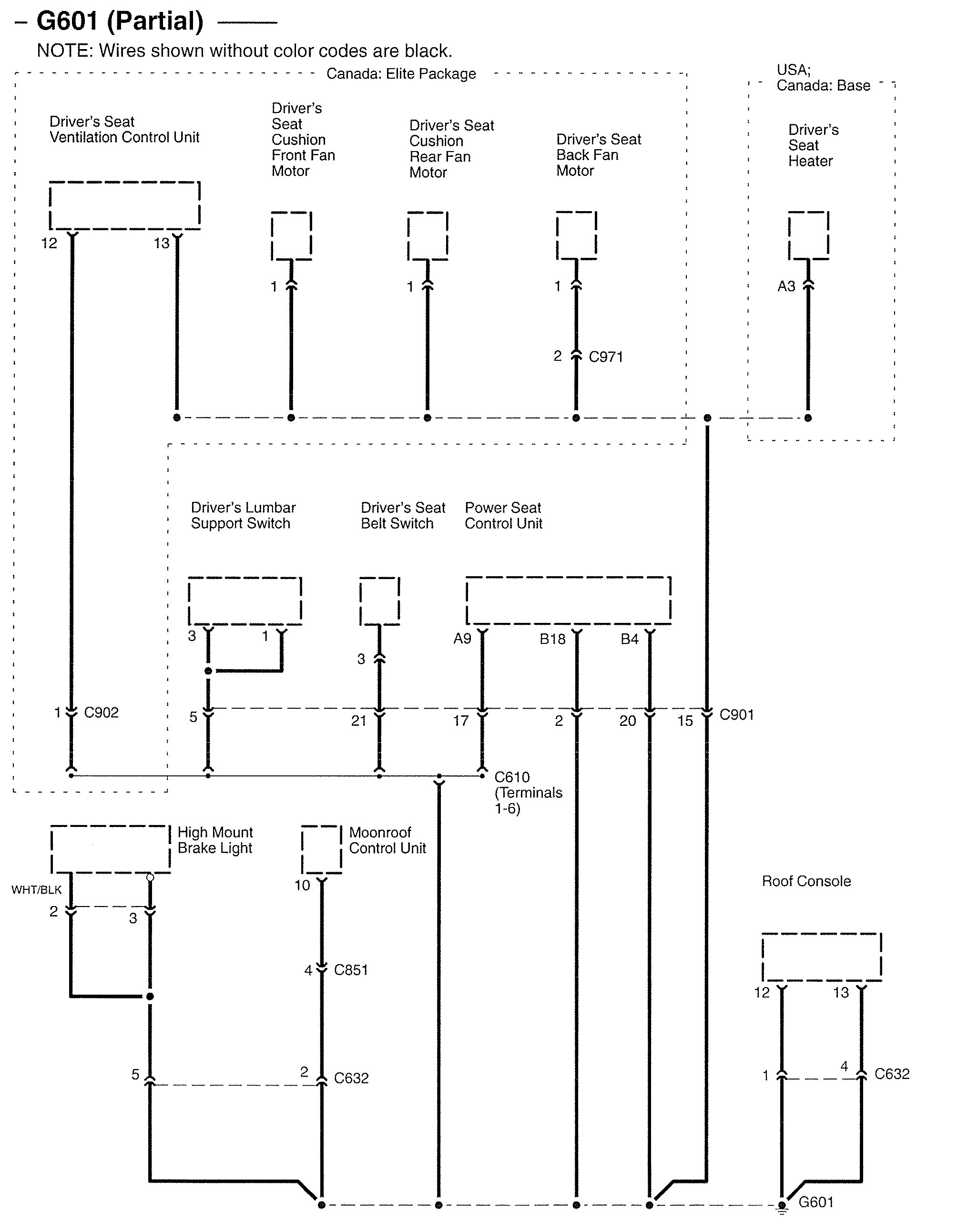

Acura RL - wiring diagram - ground distribution (part 12)
Acura RL – wiring diagram – ground distribution (part 12)
Acura RL - wiring diagram - ground distribution (part 13)
Acura RL – wiring diagram – ground distribution (part 13)

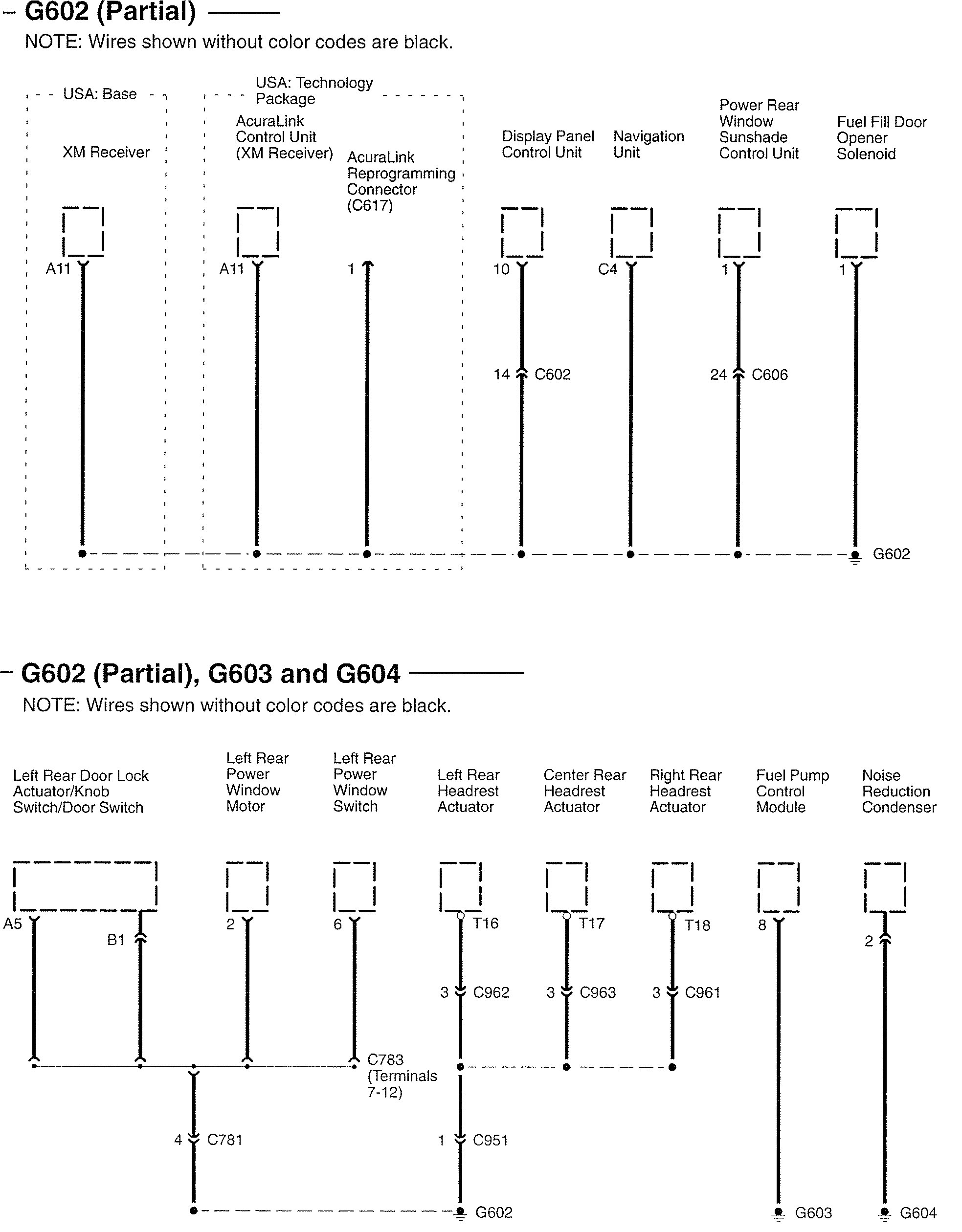

Acura RL - wiring diagram - ground distribution (part 14)
Acura RL – wiring diagram – ground distribution (part 14)

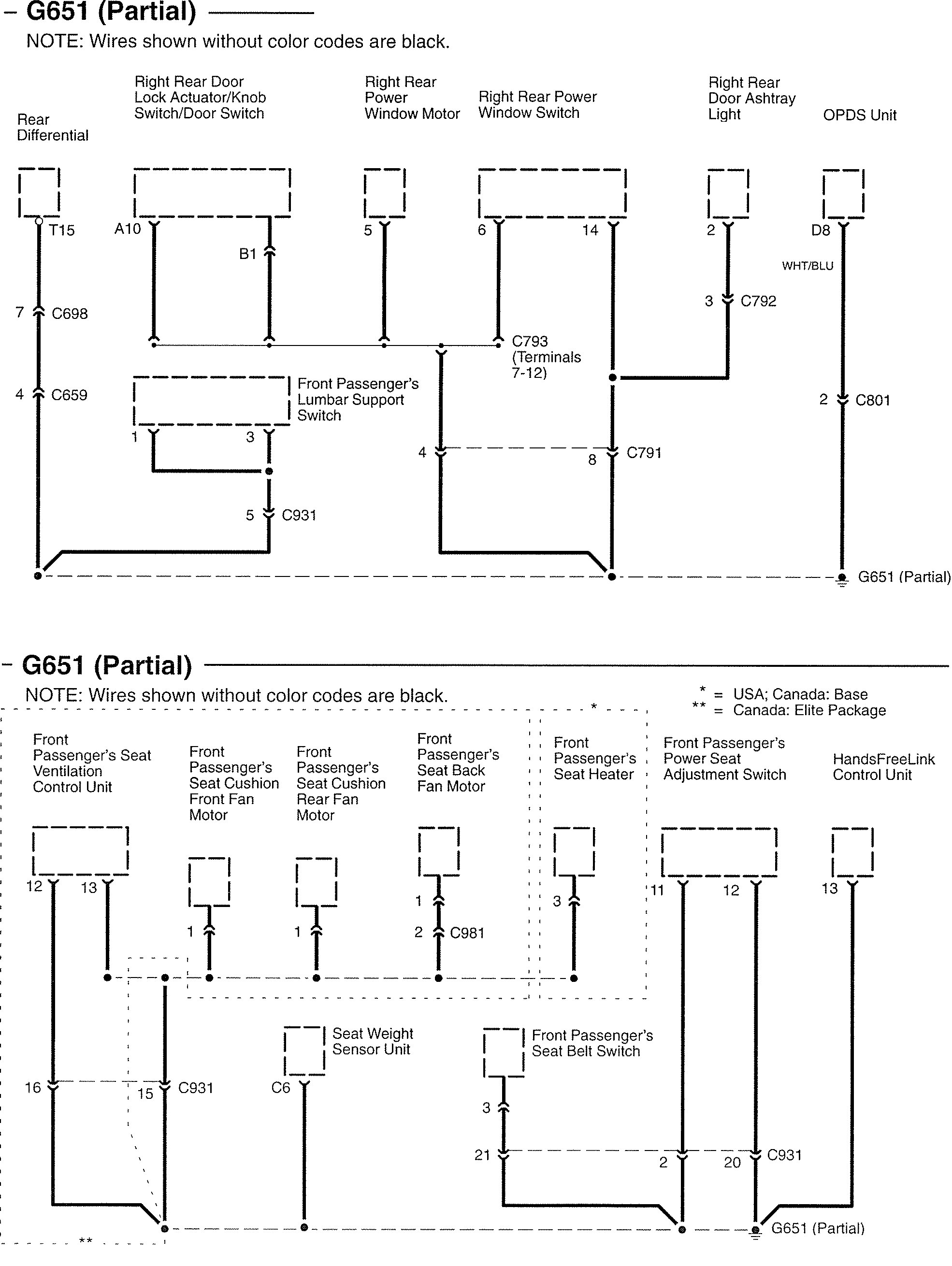

Acura RL - wiring diagram - ground distribution (part 15)
Acura RL – wiring diagram – ground distribution (part 15)
Acura RL - wiring diagram - ground distribution (part 16)
Acura RL – wiring diagram – ground distribution (part 16)

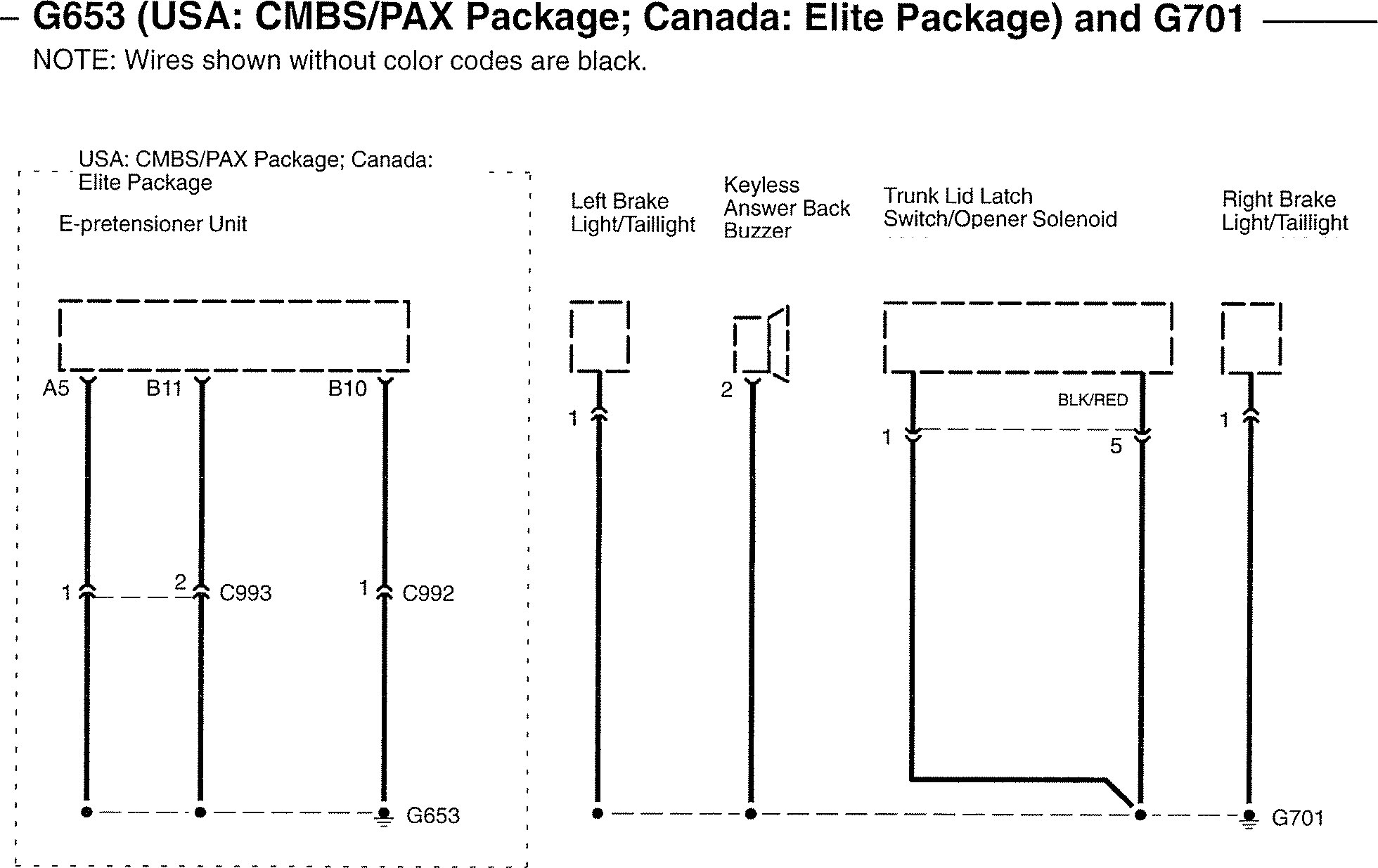

Acura RL - wiring diagram - ground distribution (part 17)
Acura RL – wiring diagram – ground distribution (part 17)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
