Acura RL (2008) – wiring diagrams – power seats

14 October 2017 admin Acura, RL 0

Acura RL (2008) – wiring diagrams – power seats

Year of productions: 2008

Power seats

Version 1

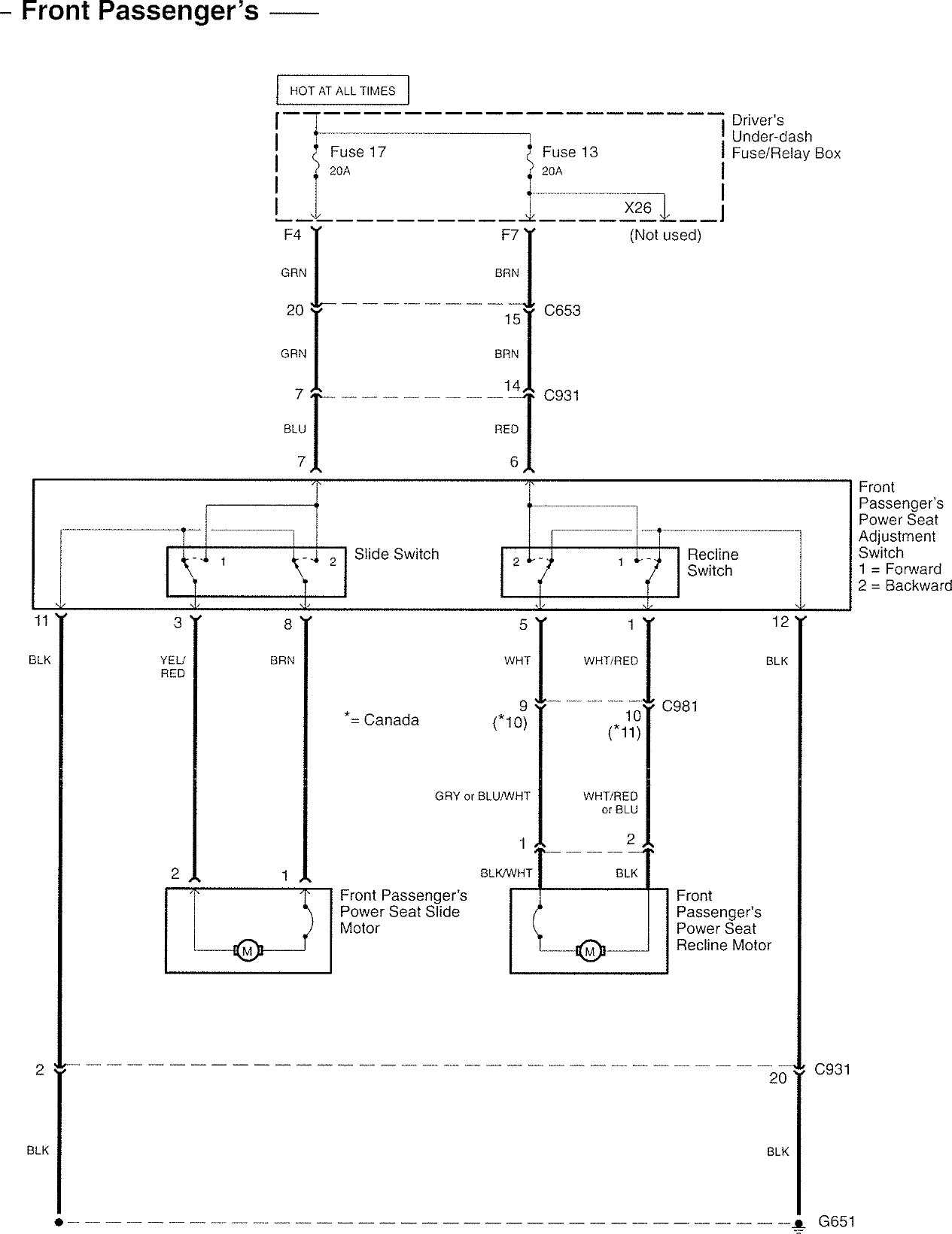

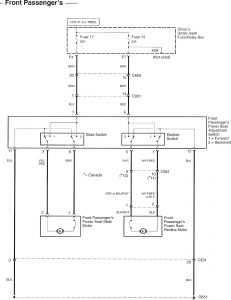

Acura RL - wiring diagram - power seats — Acura RL – wiring diagram – power seats

Version 2

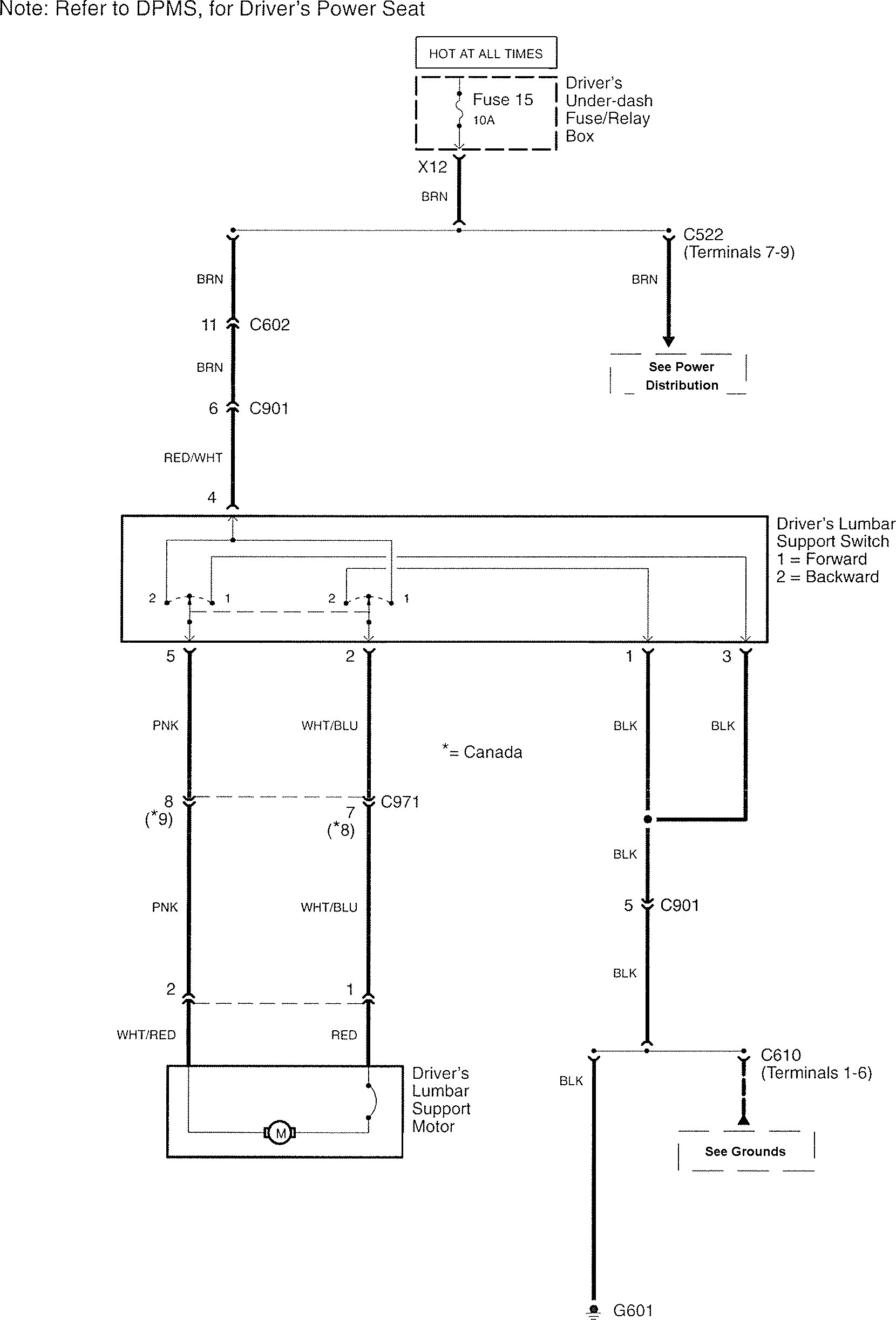

Acura RL - wiring diagram - power seats (part 1) — Acura RL – wiring diagram – power seats (part 1)

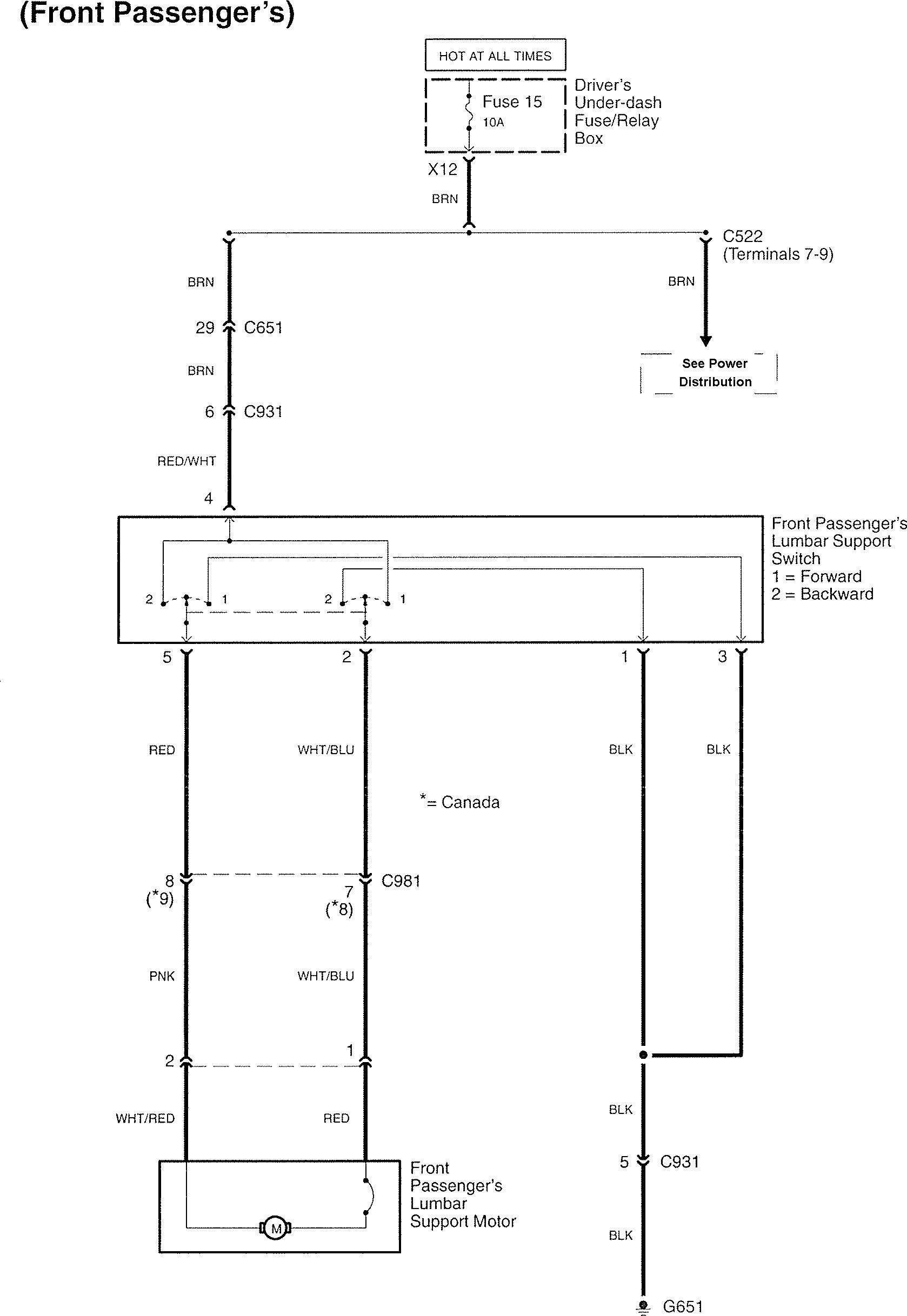

Acura RL - wiring diagram - power seats (part 2) — Acura RL – wiring diagram – power seats (part 2)

Version 3

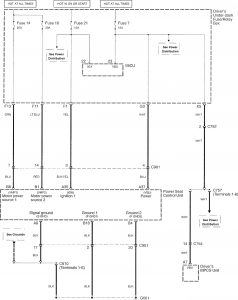

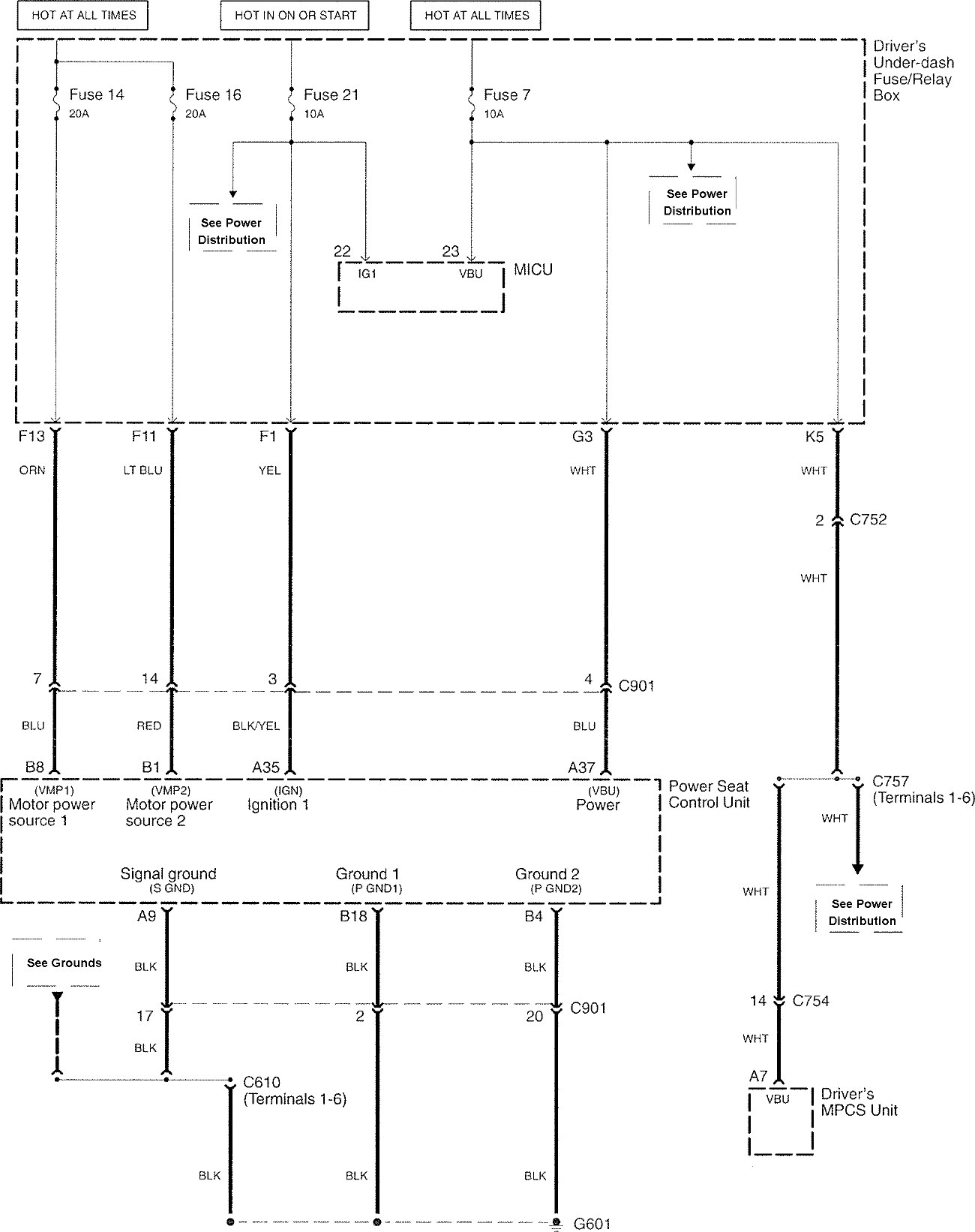

Acura RL - wiring diagram - power seats (part 1) — Acura RL – wiring diagram – power seats (part 1)

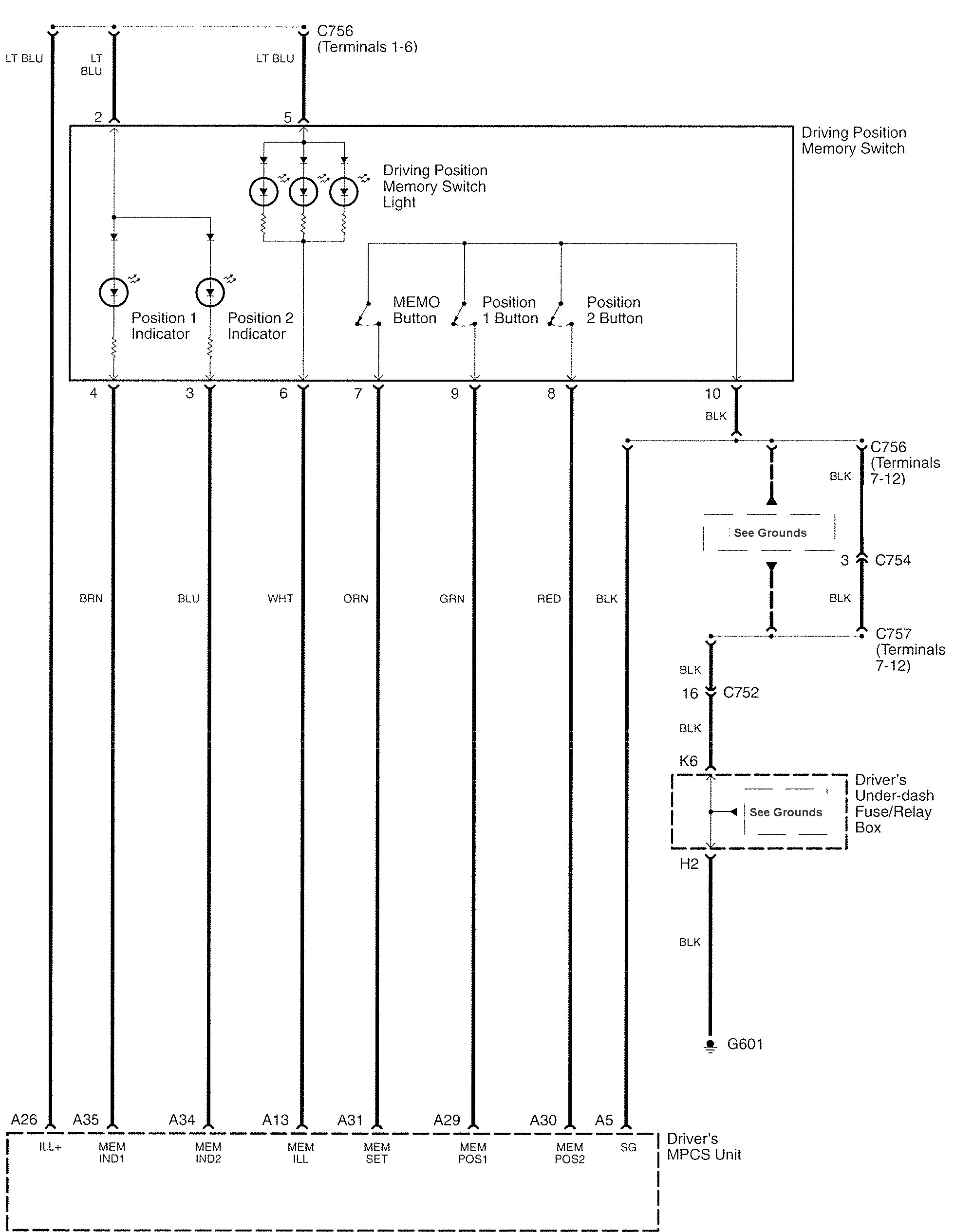

Acura RL - wiring diagram - power seats (part 2) — Acura RL – wiring diagram – power seats (part 2)

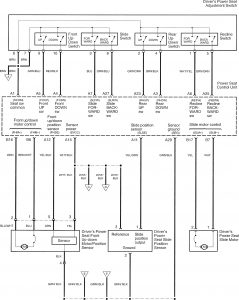

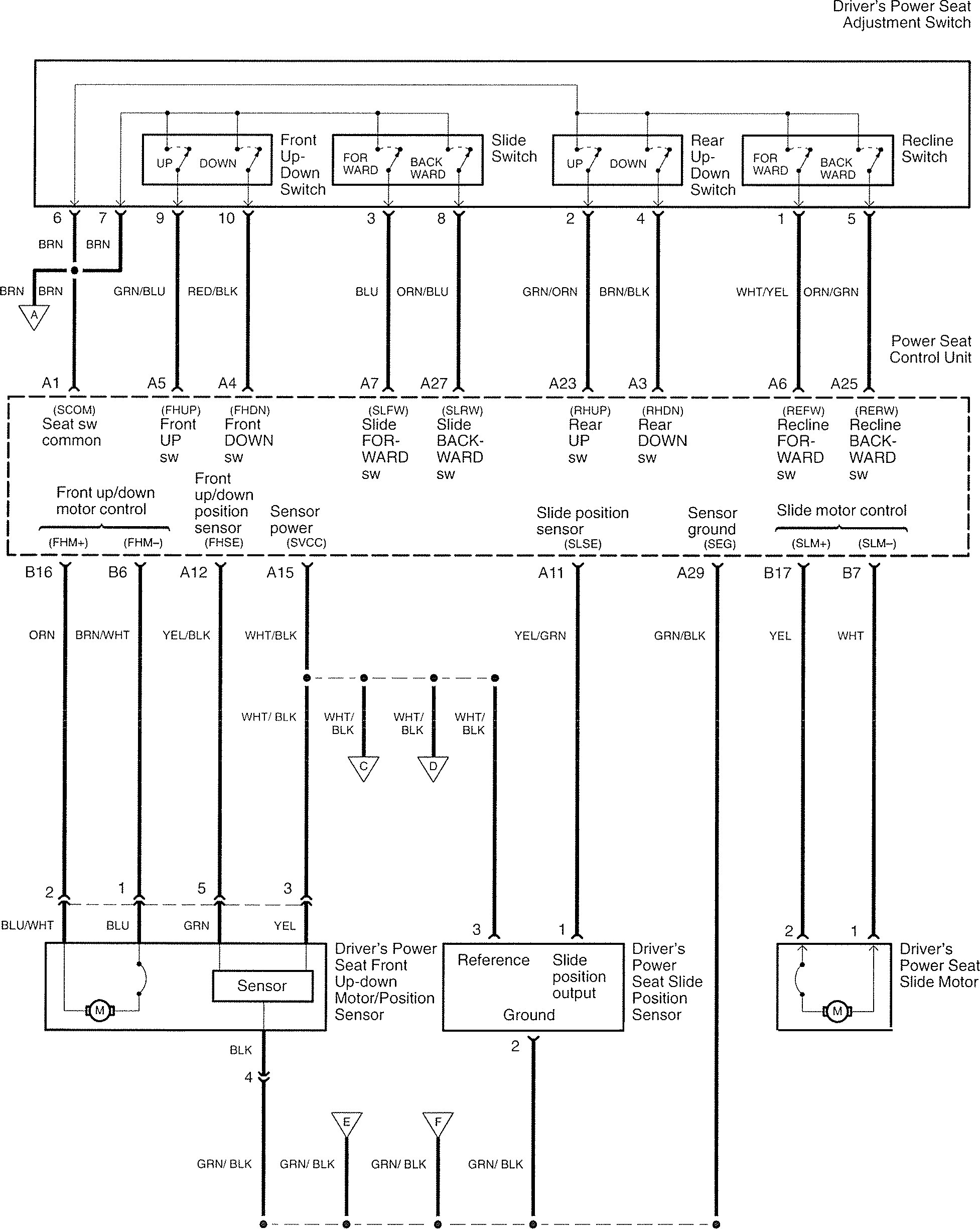

Acura RL - wiring diagram - power seats (part 3) — Acura RL – wiring diagram – power seats (part 3)

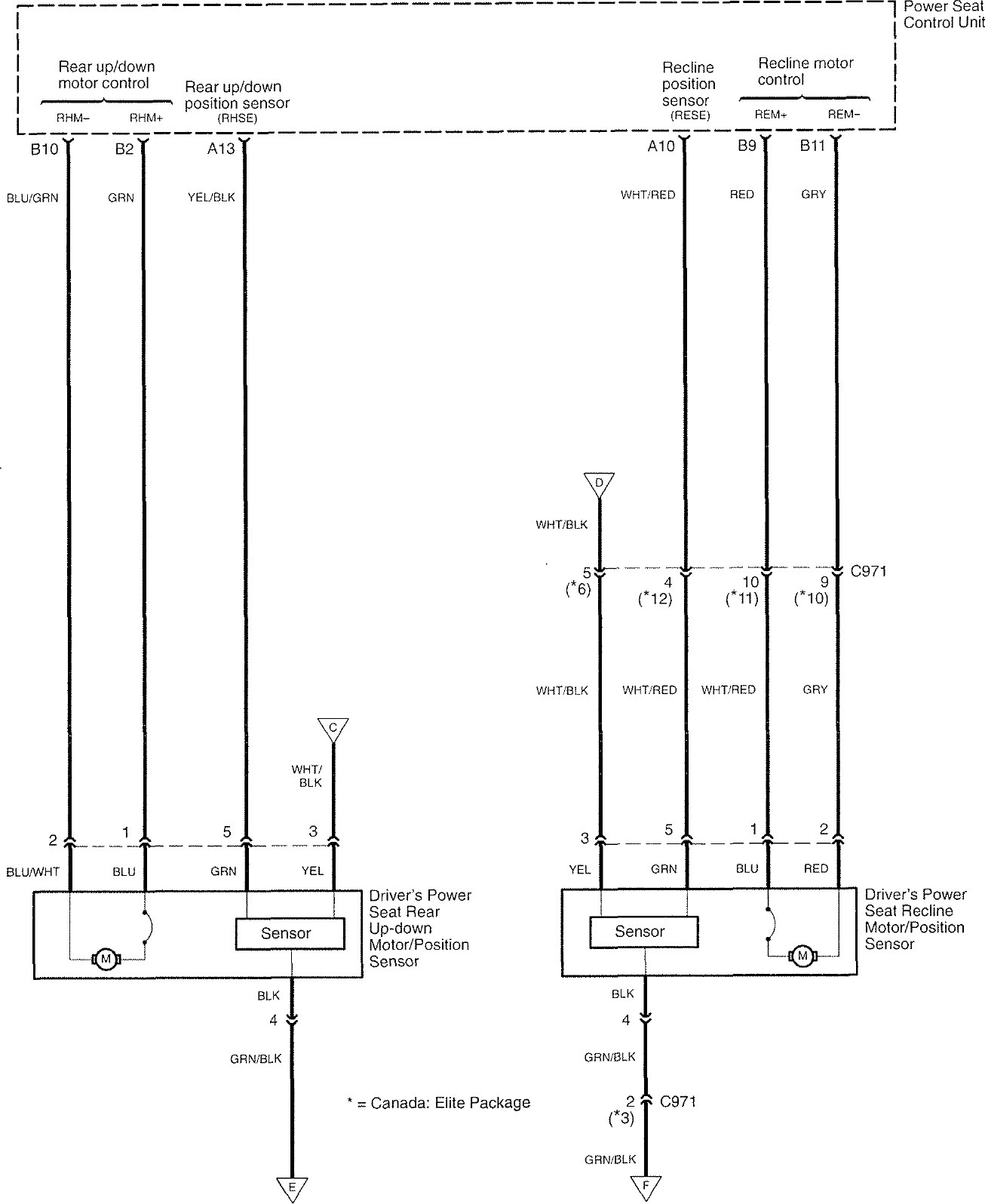

Acura RL - wiring diagram - power seats (part 4) — Acura RL – wiring diagram – power seats (part 4)

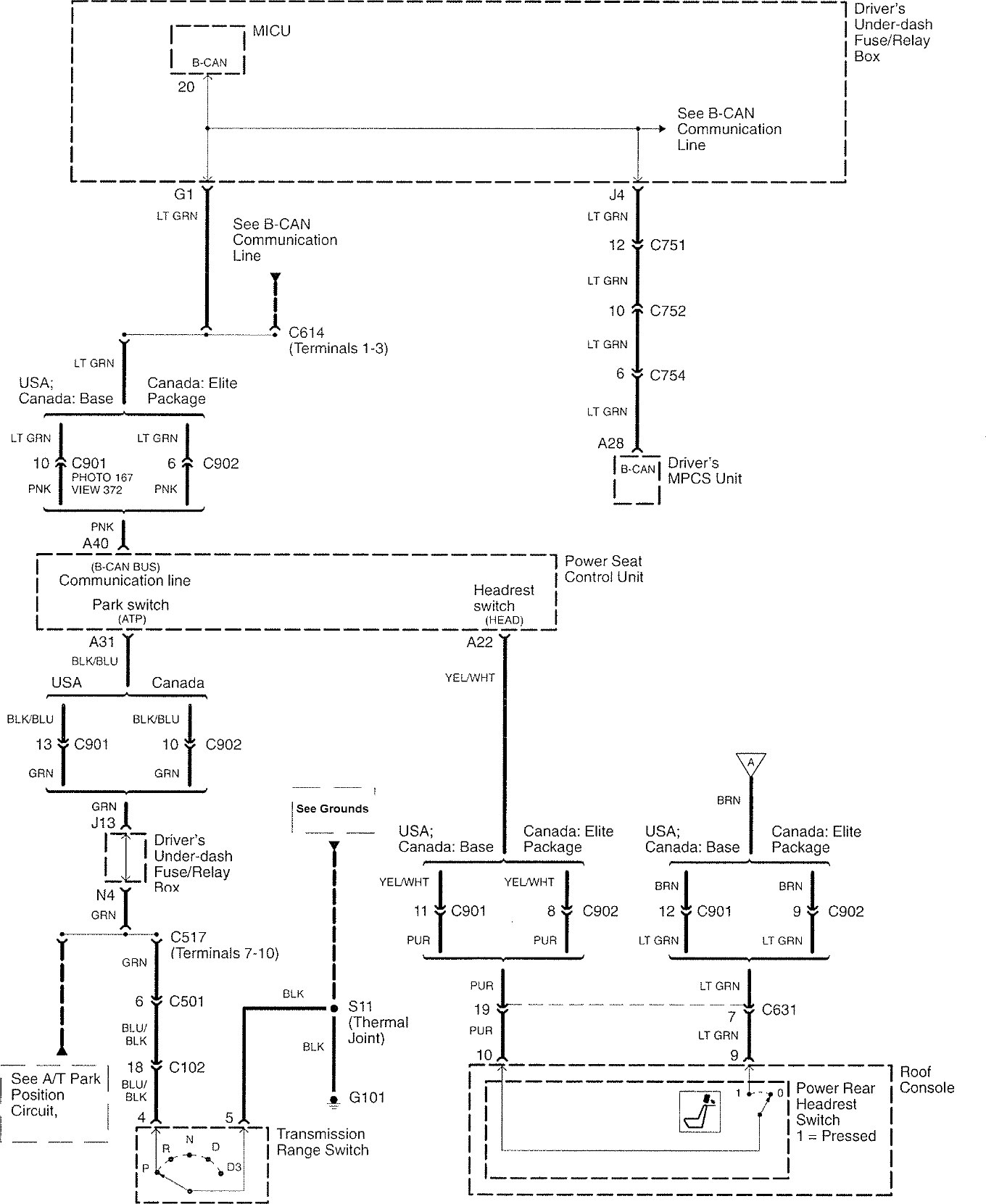

Acura RL - wiring diagram - power seats (part 5) — Acura RL – wiring diagram – power seats (part 5)

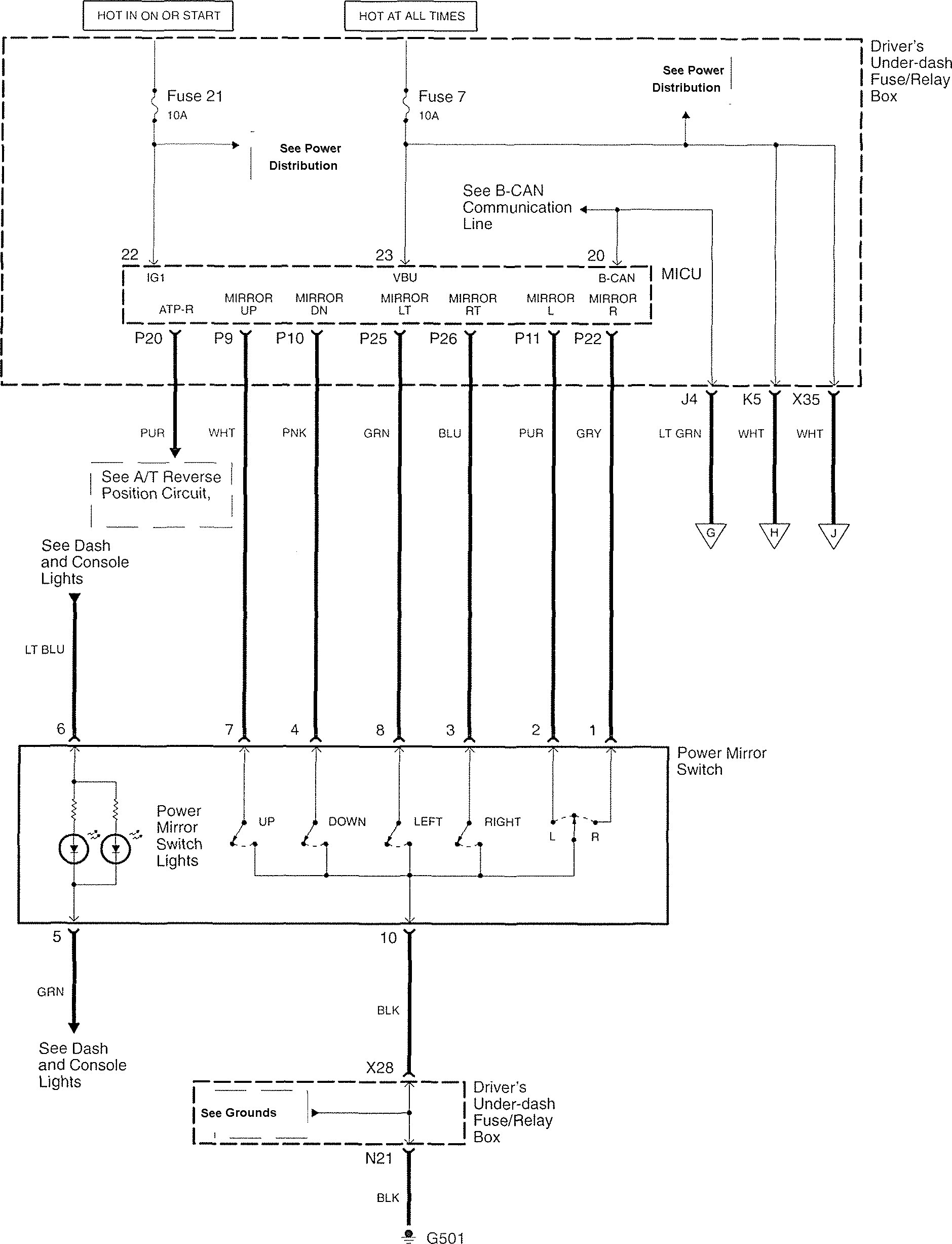

Acura RL - wiring diagram - power seats (part 6) — Acura RL – wiring diagram – power seats (part 6)

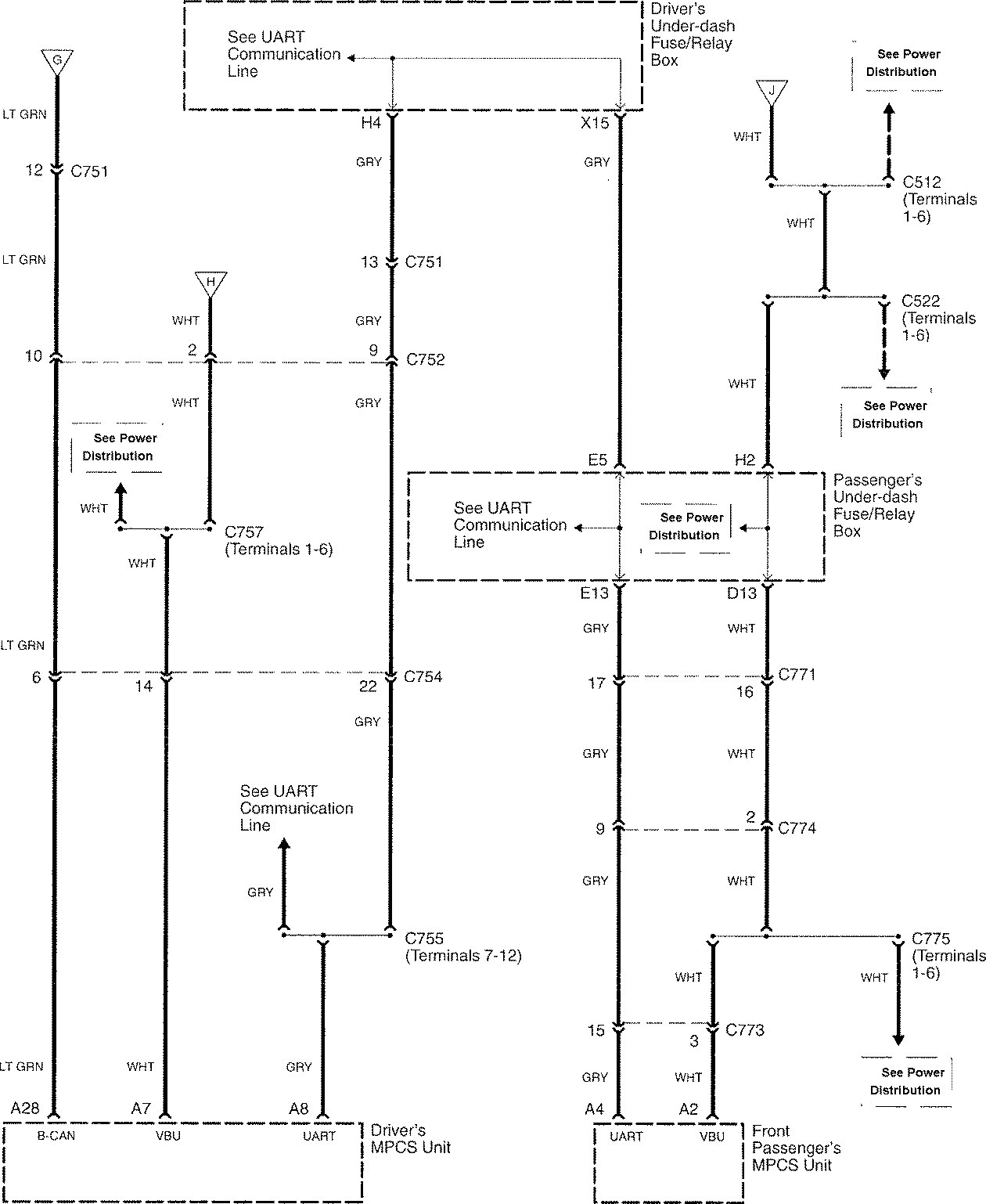

Acura RL - wiring diagram - power seats (part 7) — Acura RL – wiring diagram – power seats (part 7)

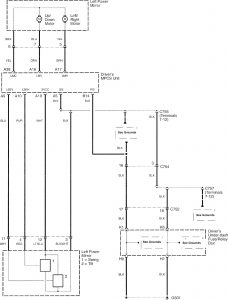

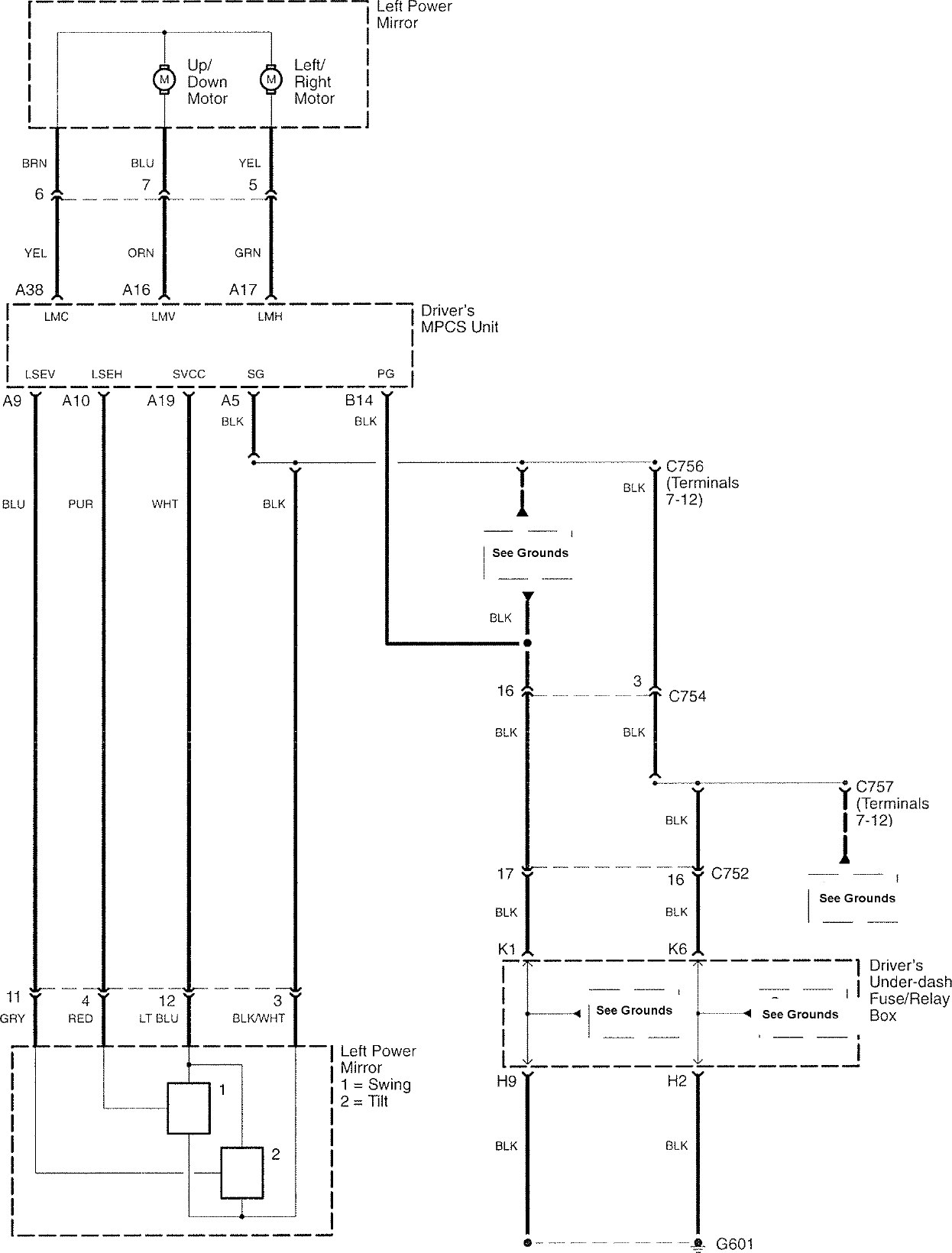

Acura RL - wiring diagram - power seats (part 8) — Acura RL – wiring diagram – power seats (part 8)

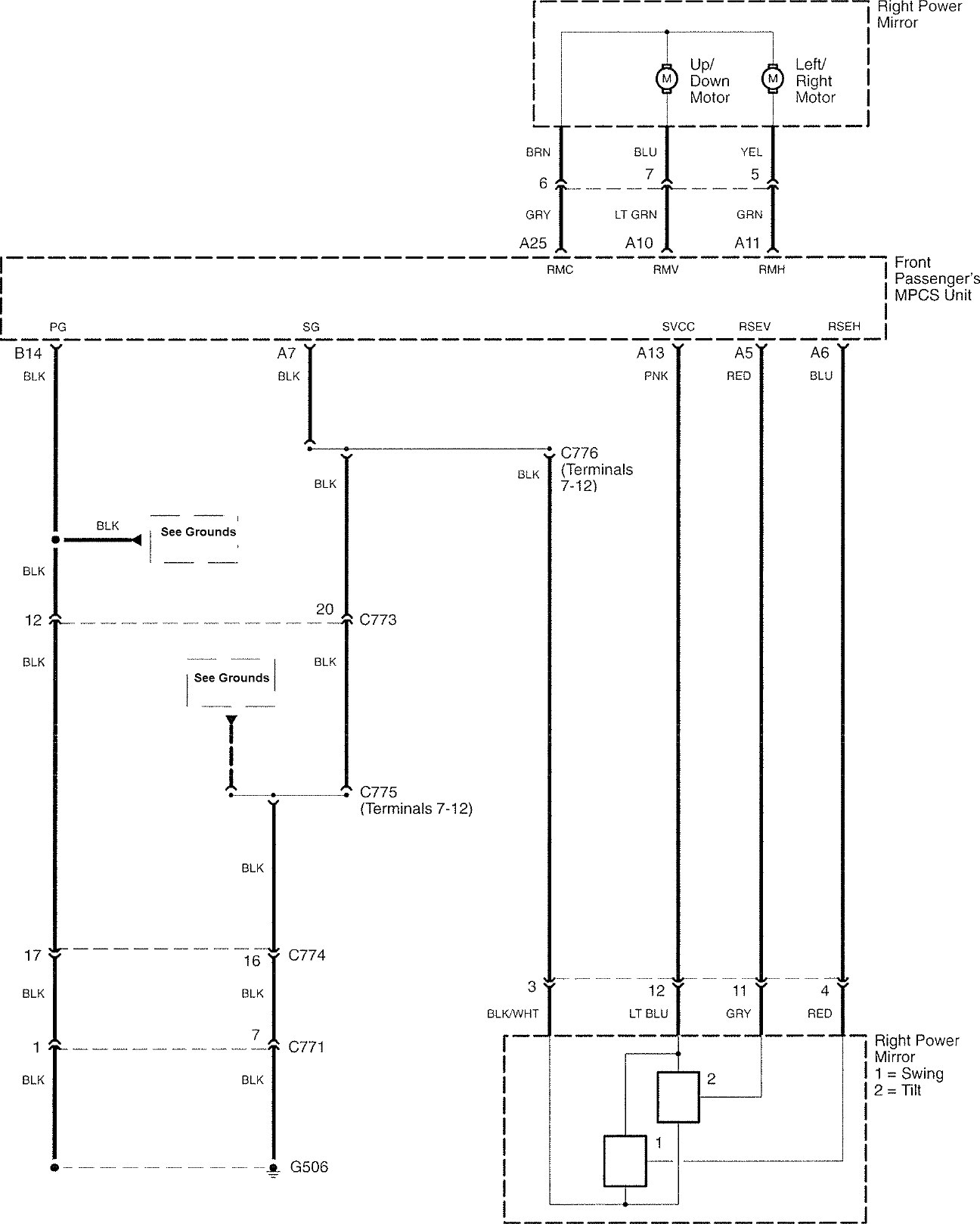

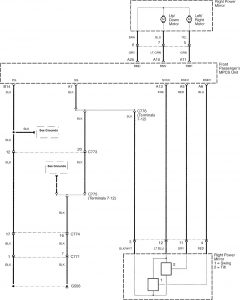

Acura RL - wiring diagram - power seats (part 9) — Acura RL – wiring diagram – power seats (part 9)

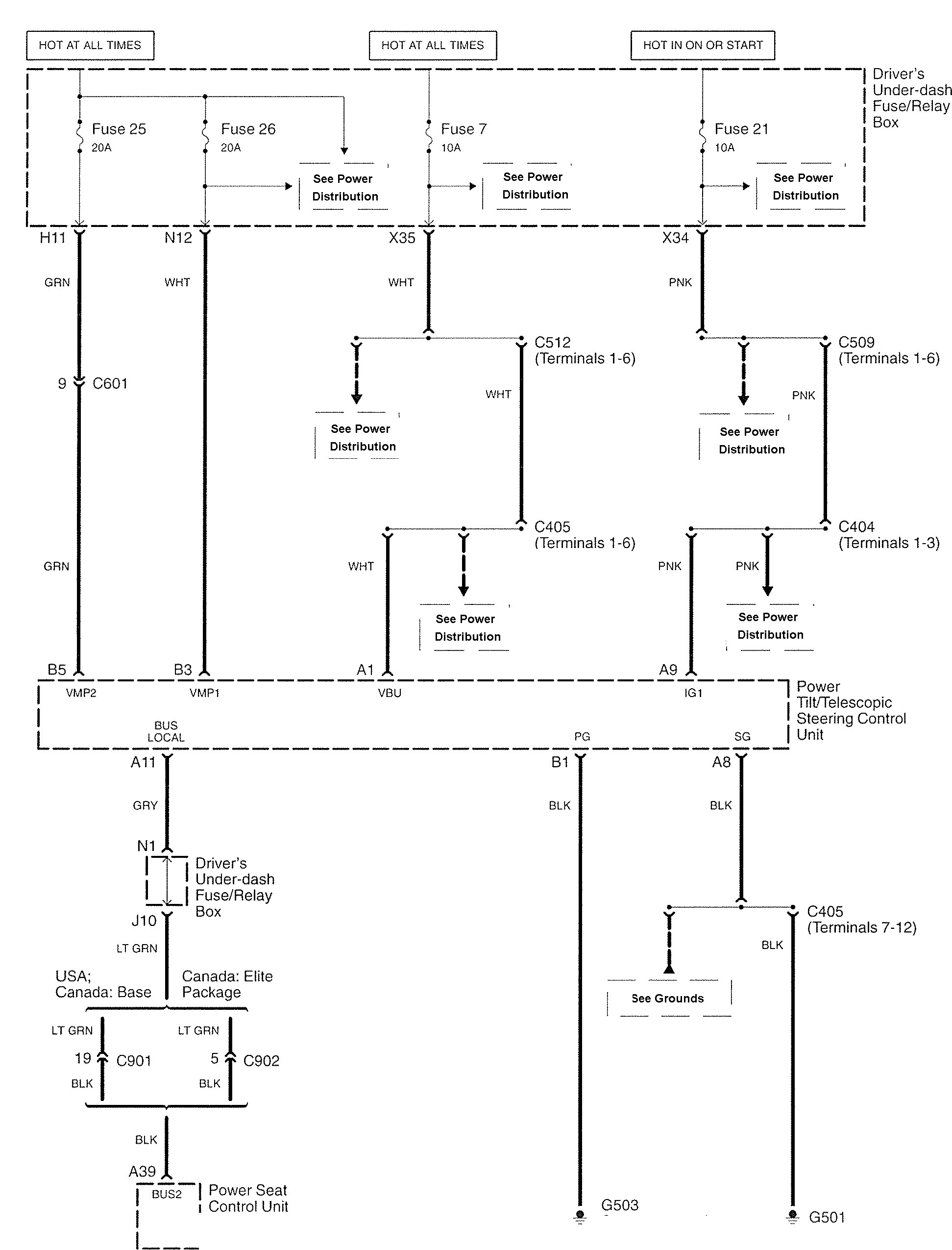

Acura RL – wiring diagram – power seats (part 10)

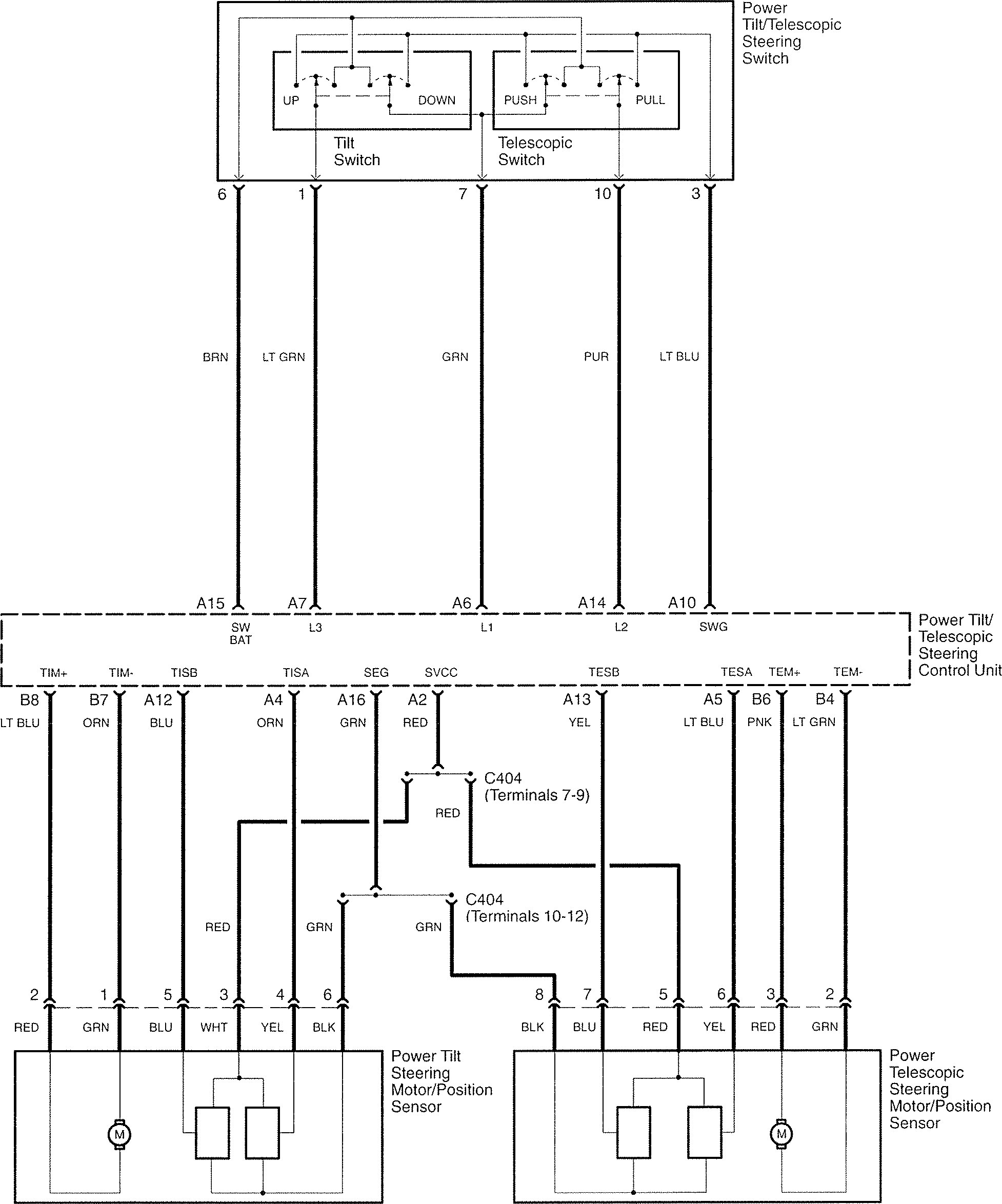

Acura RL - wiring diagram - power seats (part 11) — Acura RL – wiring diagram – power seats (part 11)

Version 4

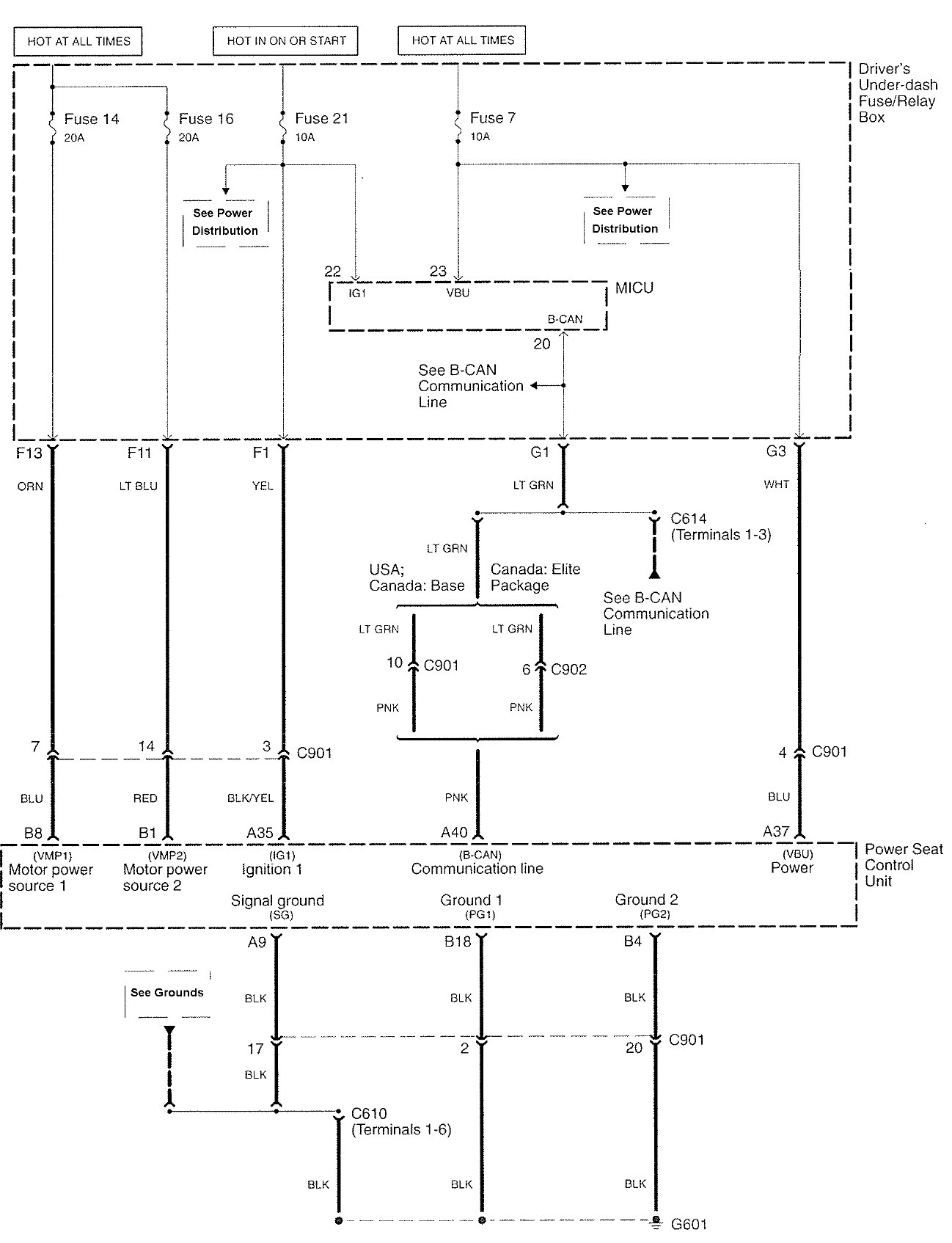

Acura RL - wiring diagram - power seats (part 1) — Acura RL – wiring diagram – power seats (part 1)

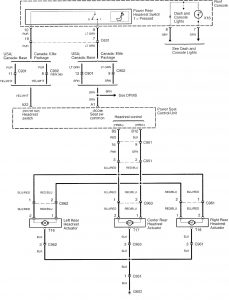

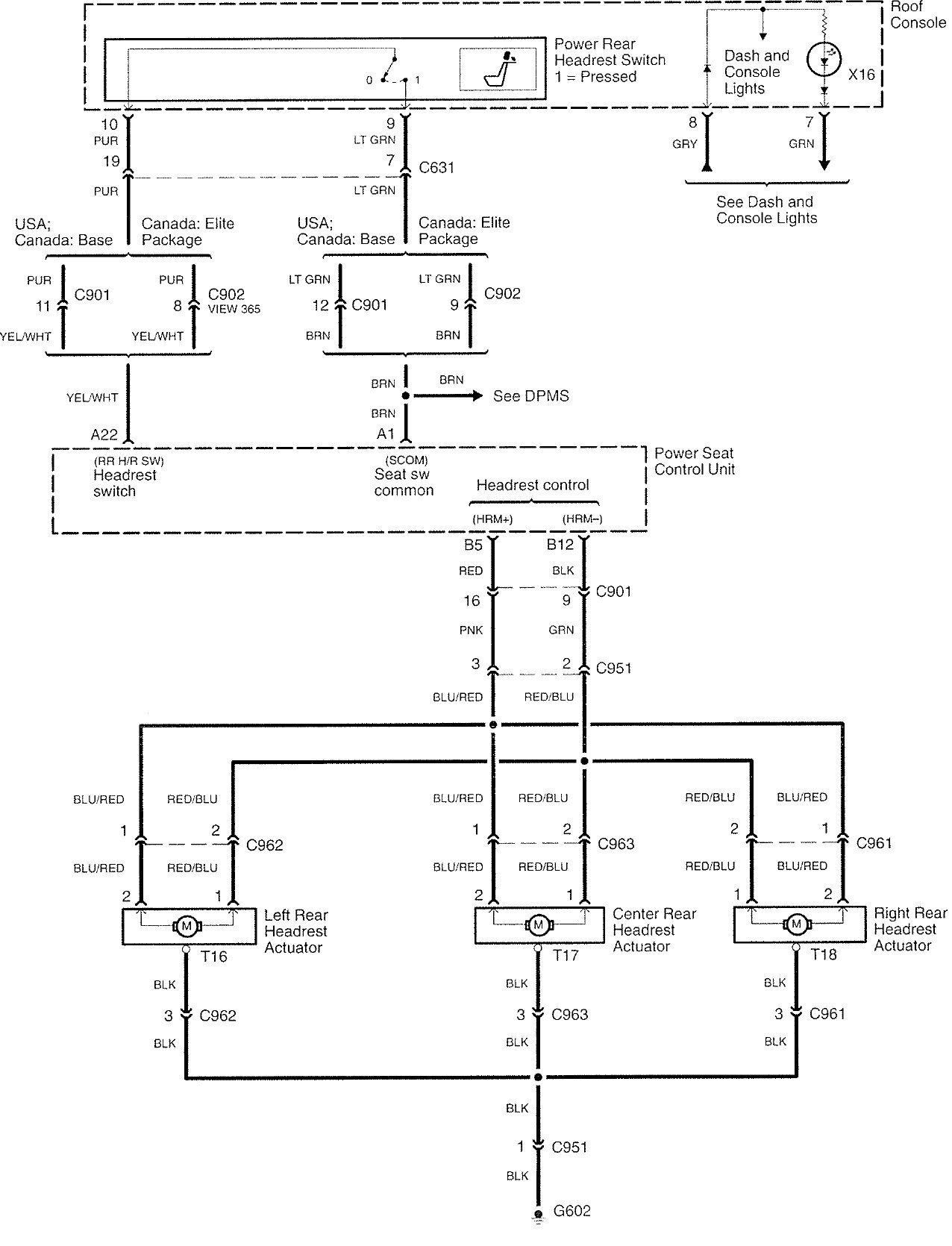

Acura RL - wiring diagram - power seats (part 2) — Acura RL – wiring diagram – power seats (part 2)

Version 5

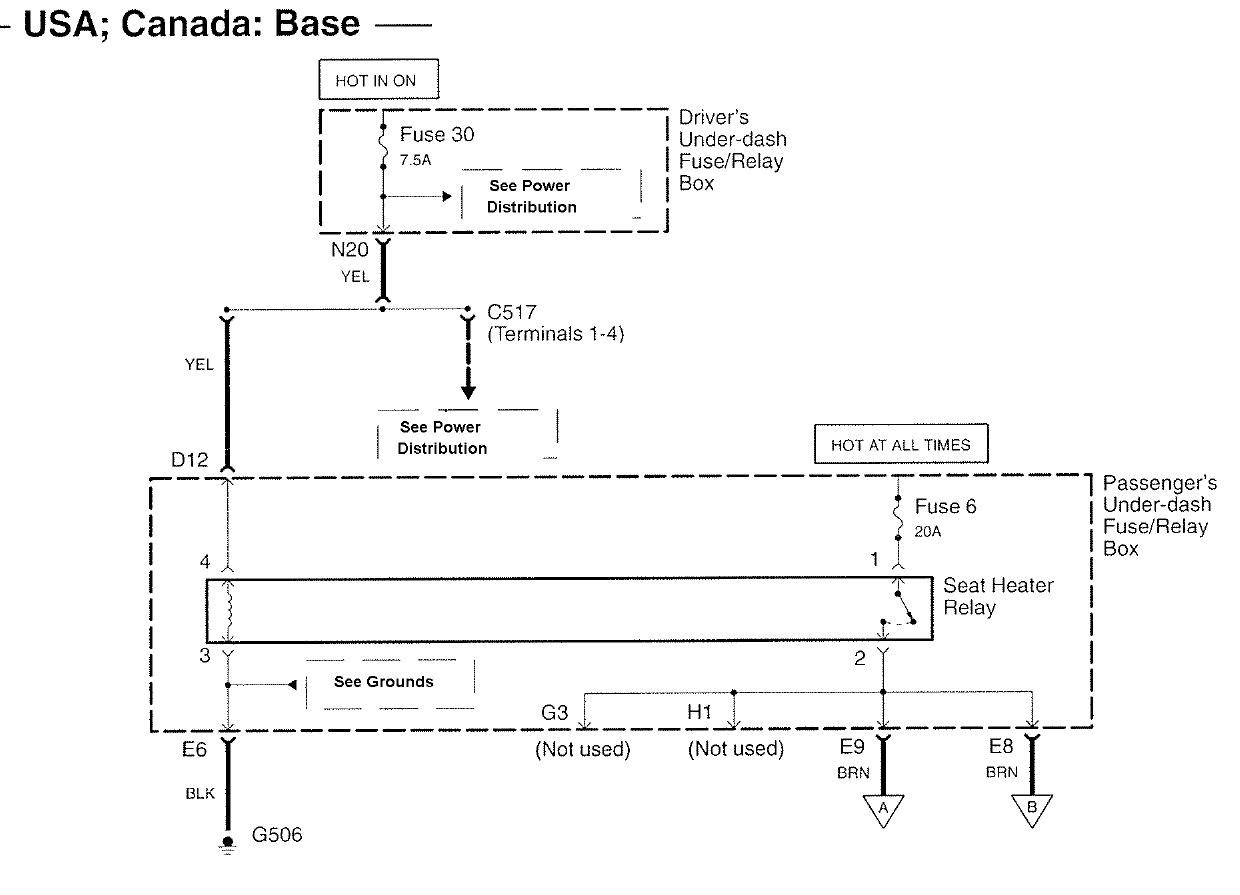

Acura RL - wiring diagram - power seats (part 1) — Acura RL – wiring diagram – power seats (part 1)

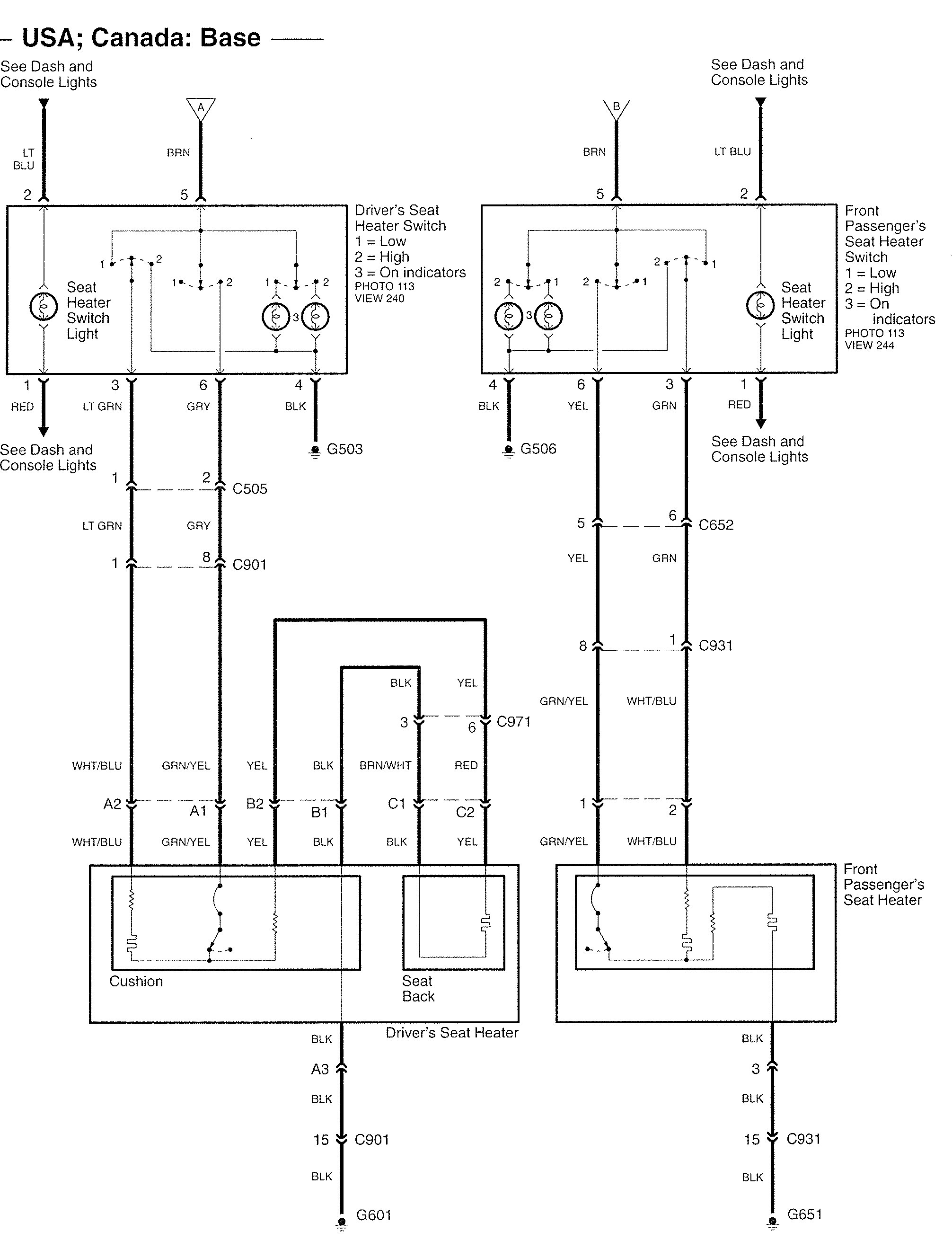

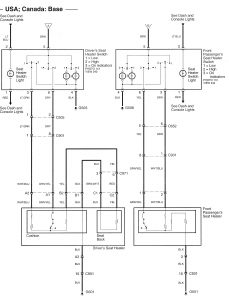

Acura RL - wiring diagram - power seats (part 2) — Acura RL – wiring diagram – power seats (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
