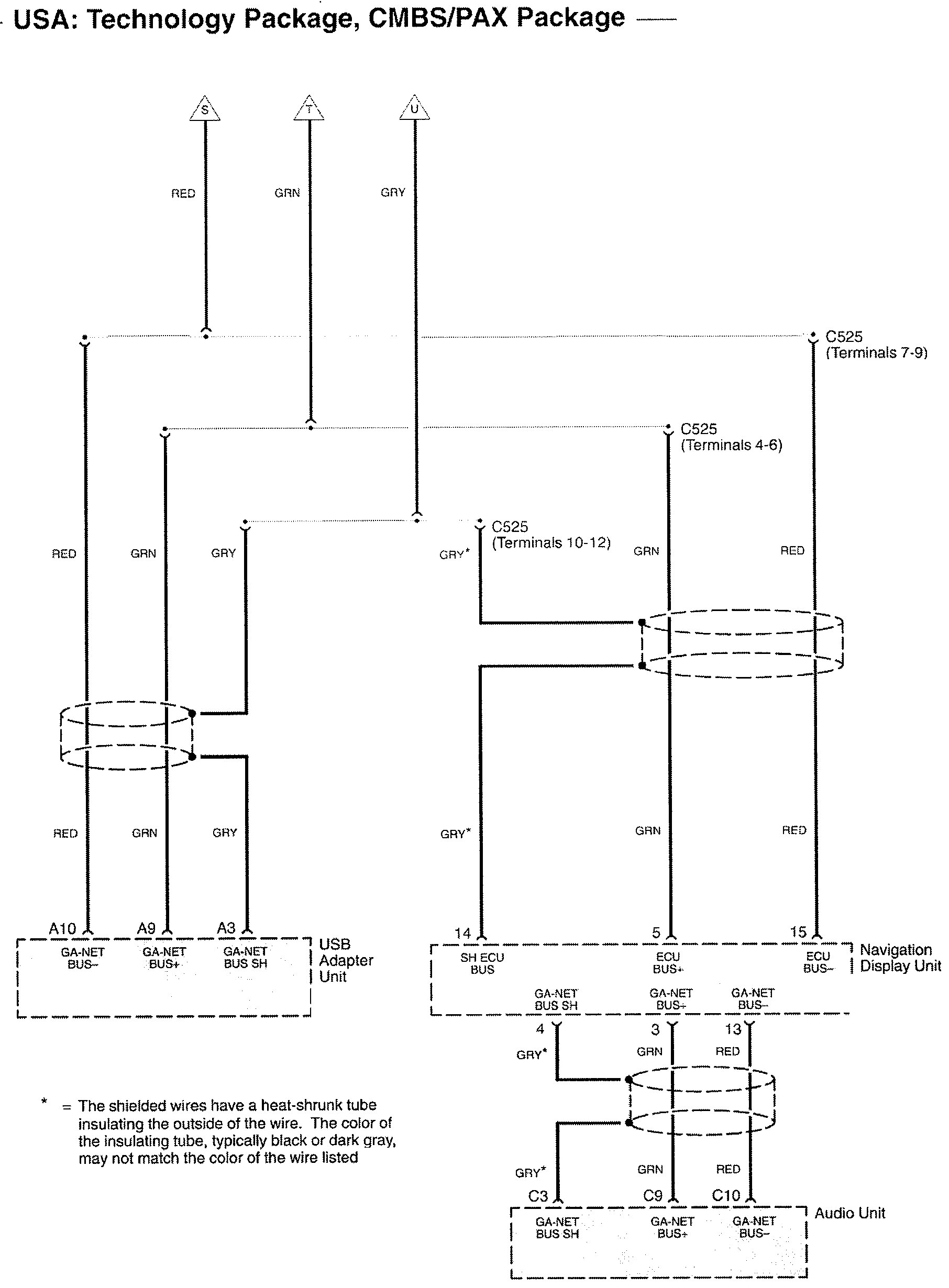

Acura RL (2009 – 2010) – wiring diagrams – audio

22 October 2017 admin Acura, RL 0

Acura RL (2009 – 2010) – wiring diagrams – audio

Year of productions: 2009, 2010

Audio

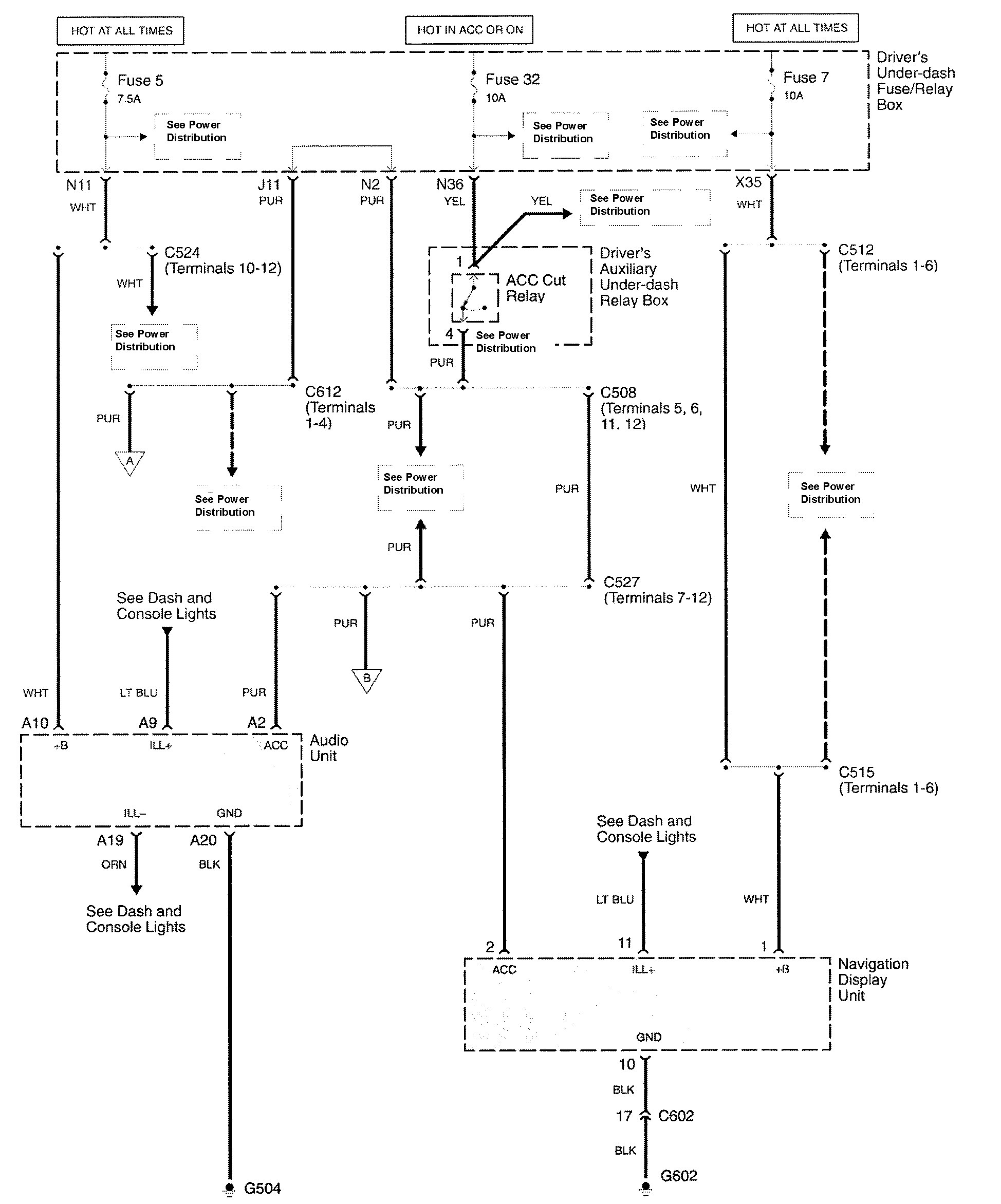

Acura RL - wiring diagram - audio (part 1) — Acura RL – wiring diagram – audio (part 1)

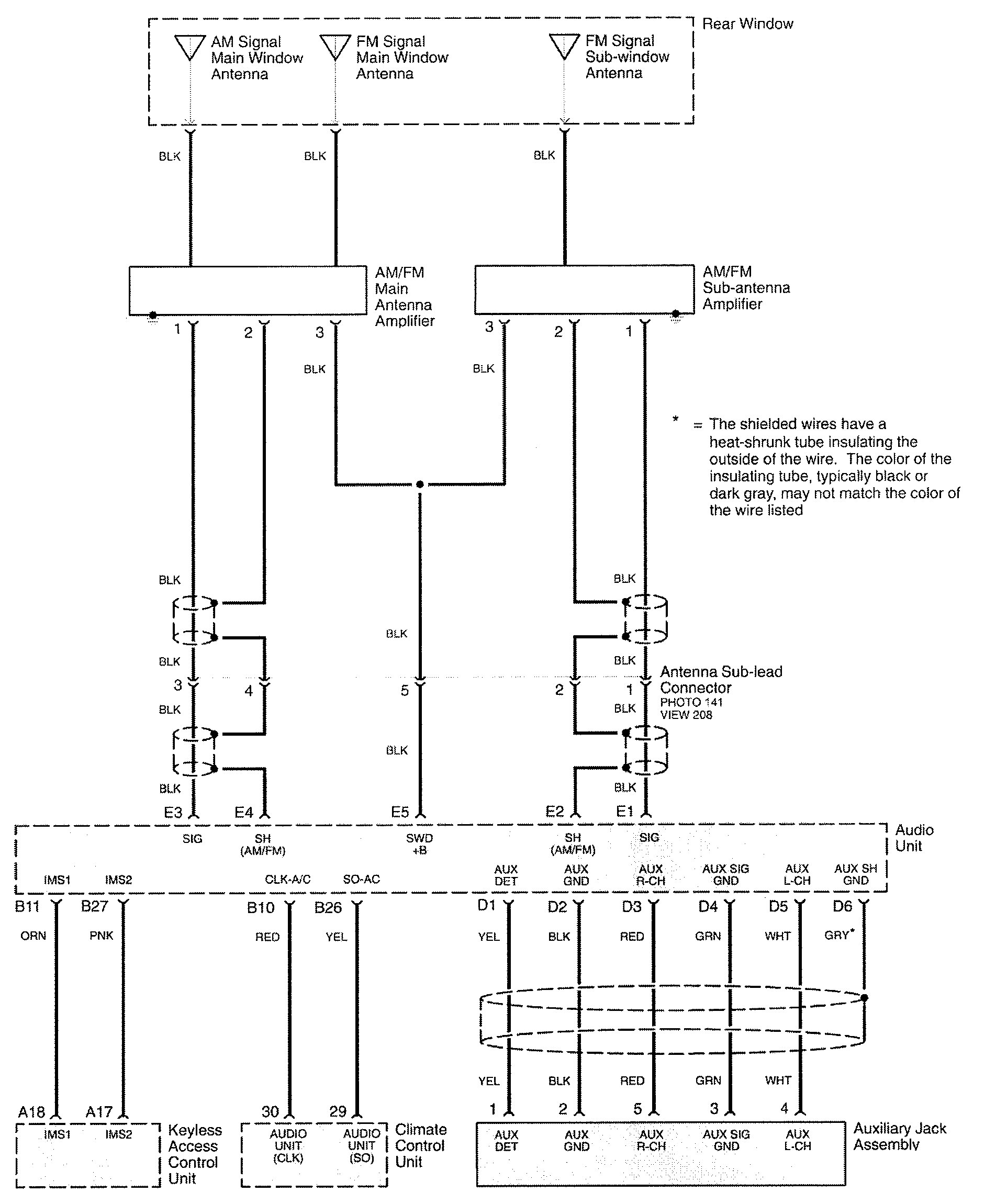

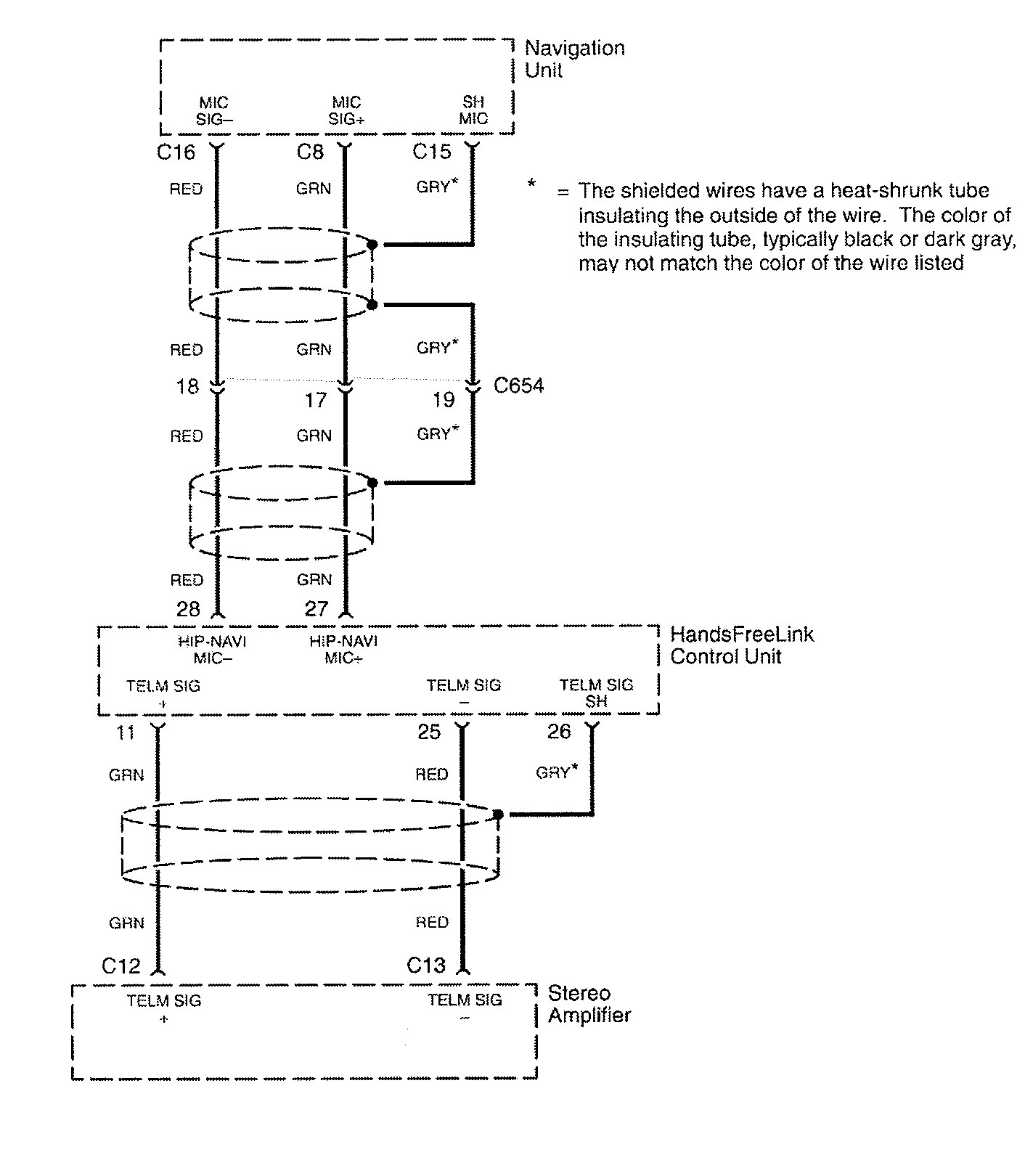

Acura RL - wiring diagram - audio (part 2) — Acura RL – wiring diagram – audio (part 2)

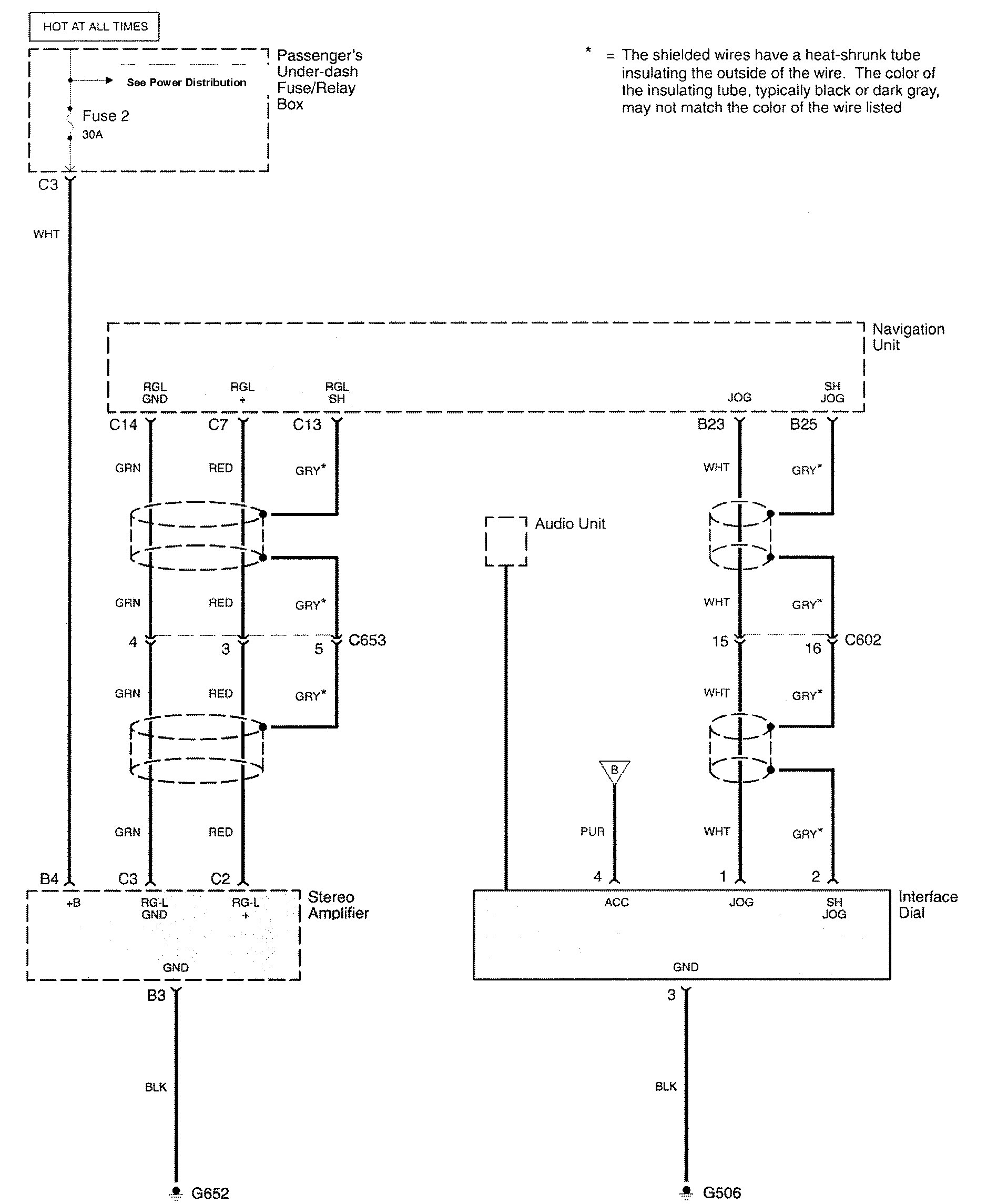

Acura RL - wiring diagram - audio (part 3) — Acura RL – wiring diagram – audio (part 3)

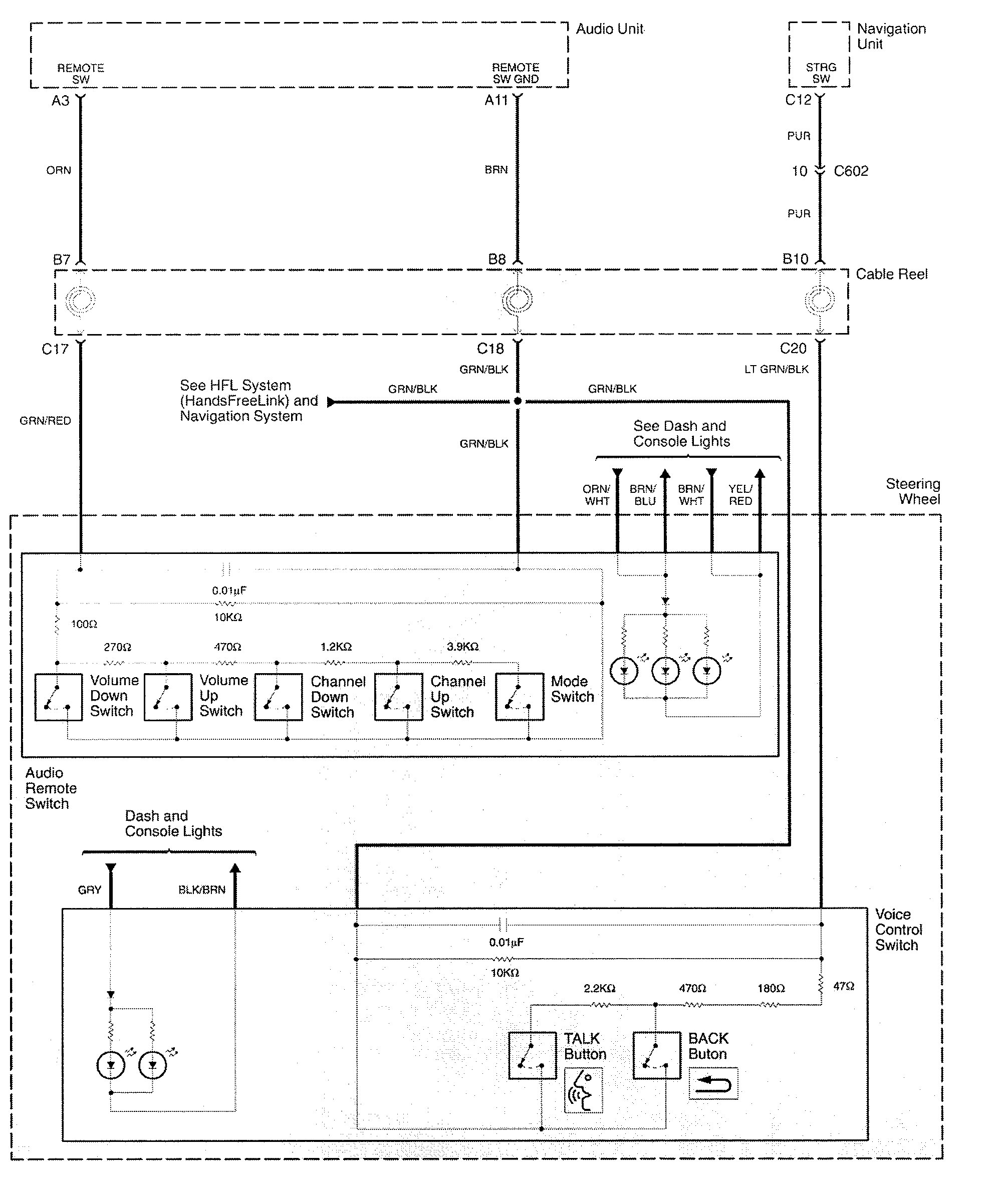

Acura RL - wiring diagram - audio (part 4) — Acura RL – wiring diagram – audio (part 4)

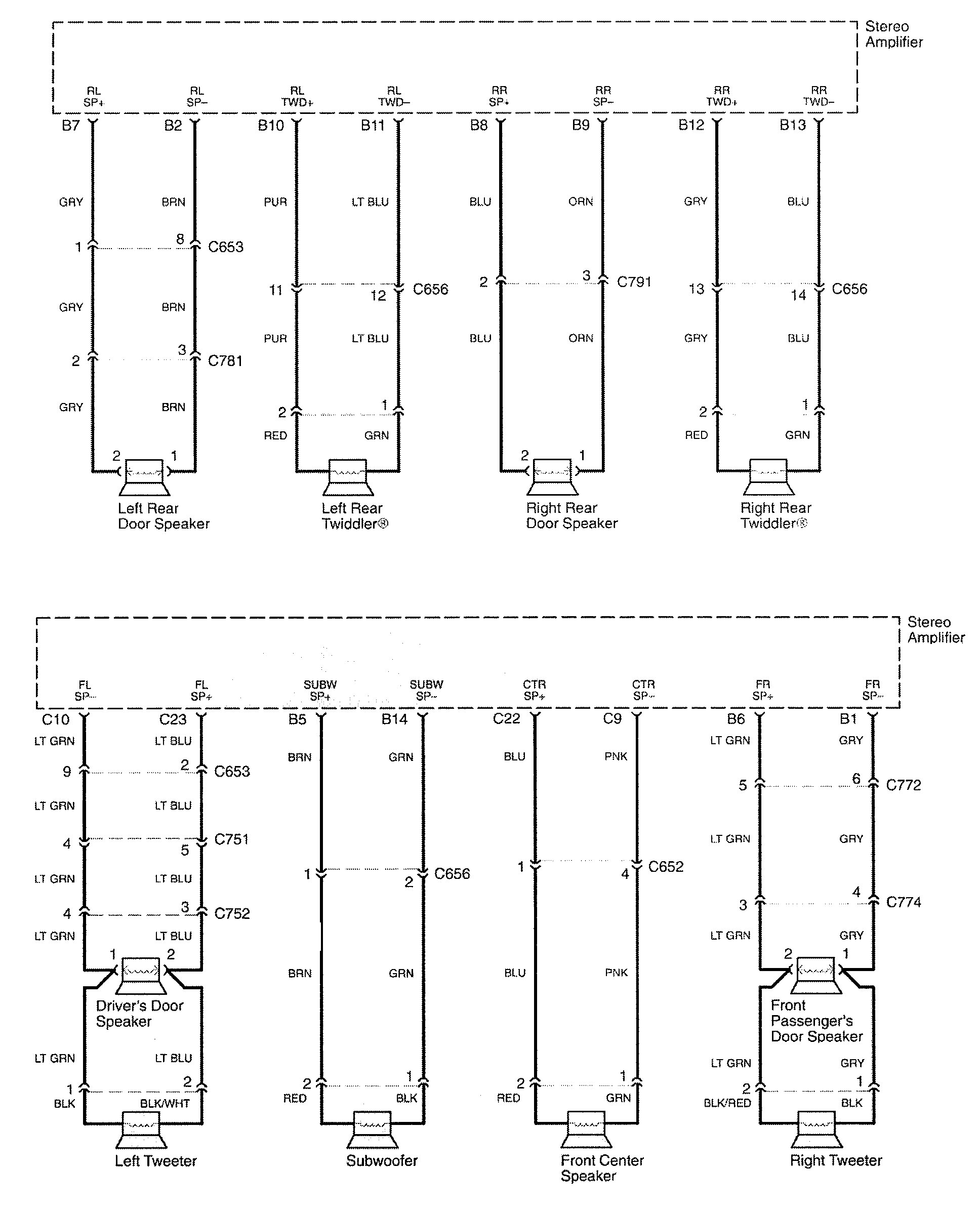

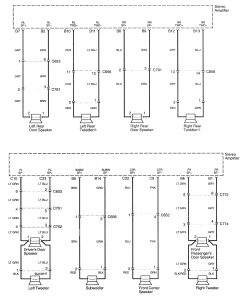

Acura RL - wiring diagram - audio (part 5) — Acura RL – wiring diagram – audio (part 5)

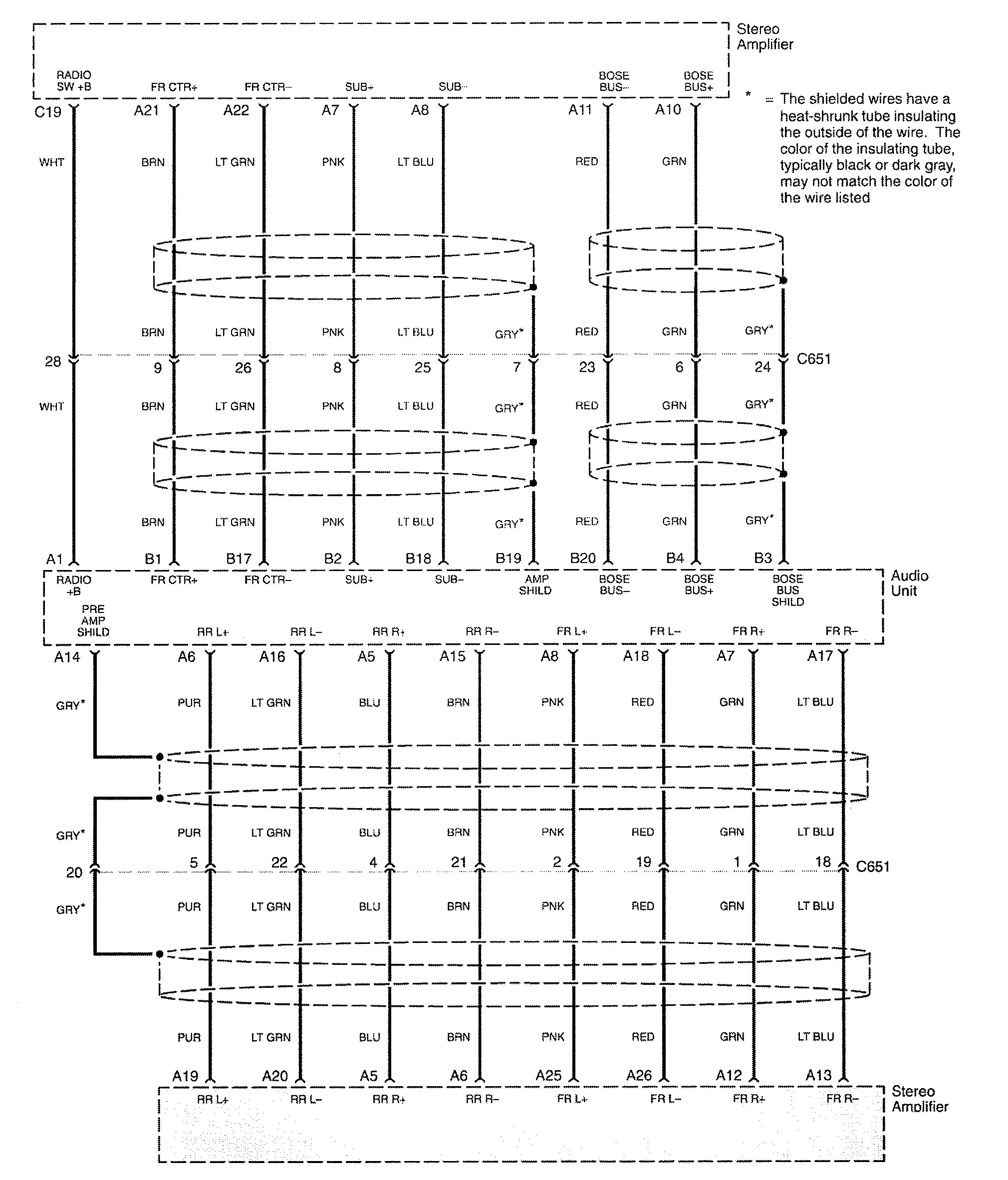

Acura RL - wiring diagram - audio (part 6) — Acura RL – wiring diagram – audio (part 6)

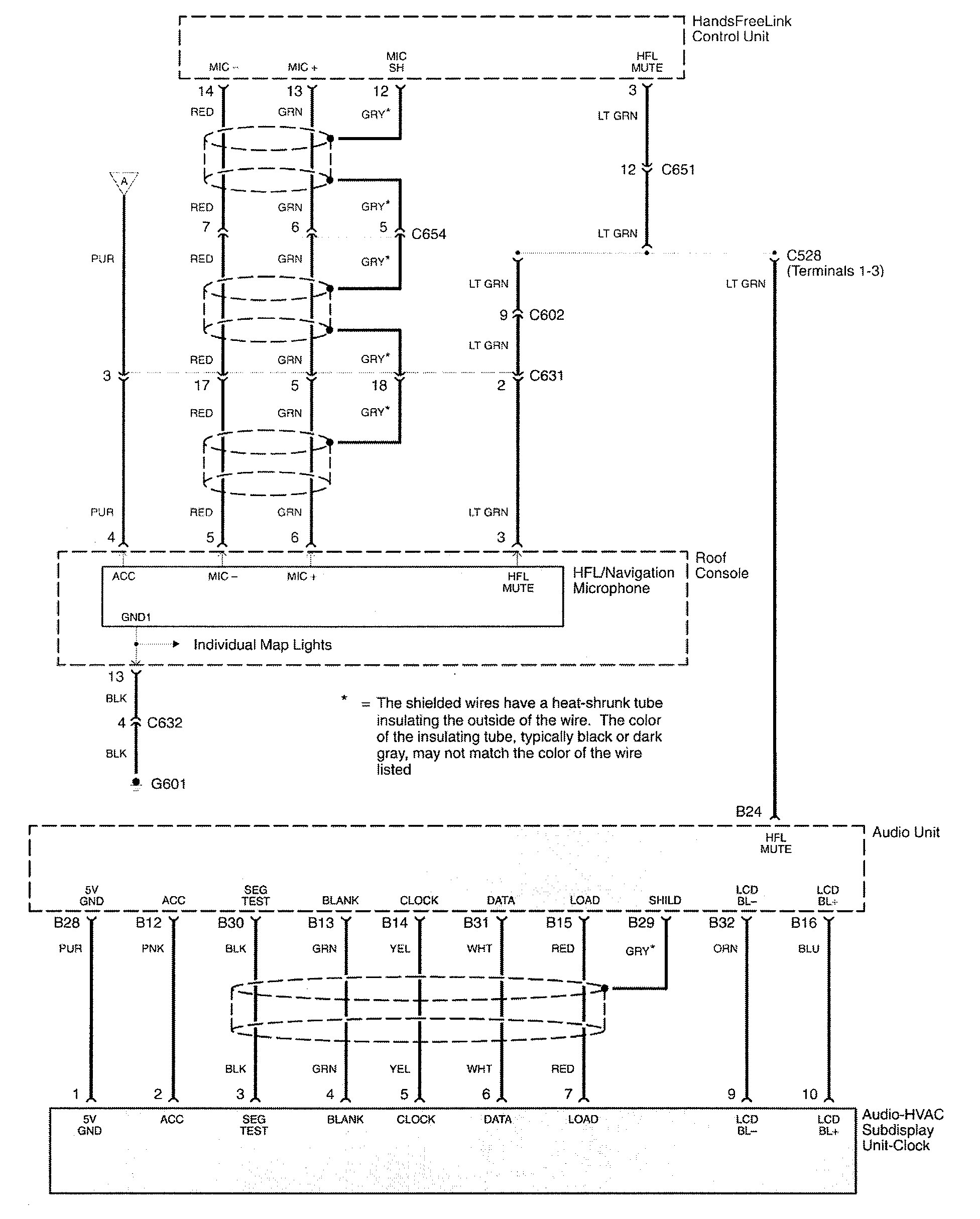

Acura RL - wiring diagram - audio (part 7) — Acura RL – wiring diagram – audio (part 7)

Acura RL - wiring diagram - audio (part 8) — Acura RL – wiring diagram – audio (part 8)

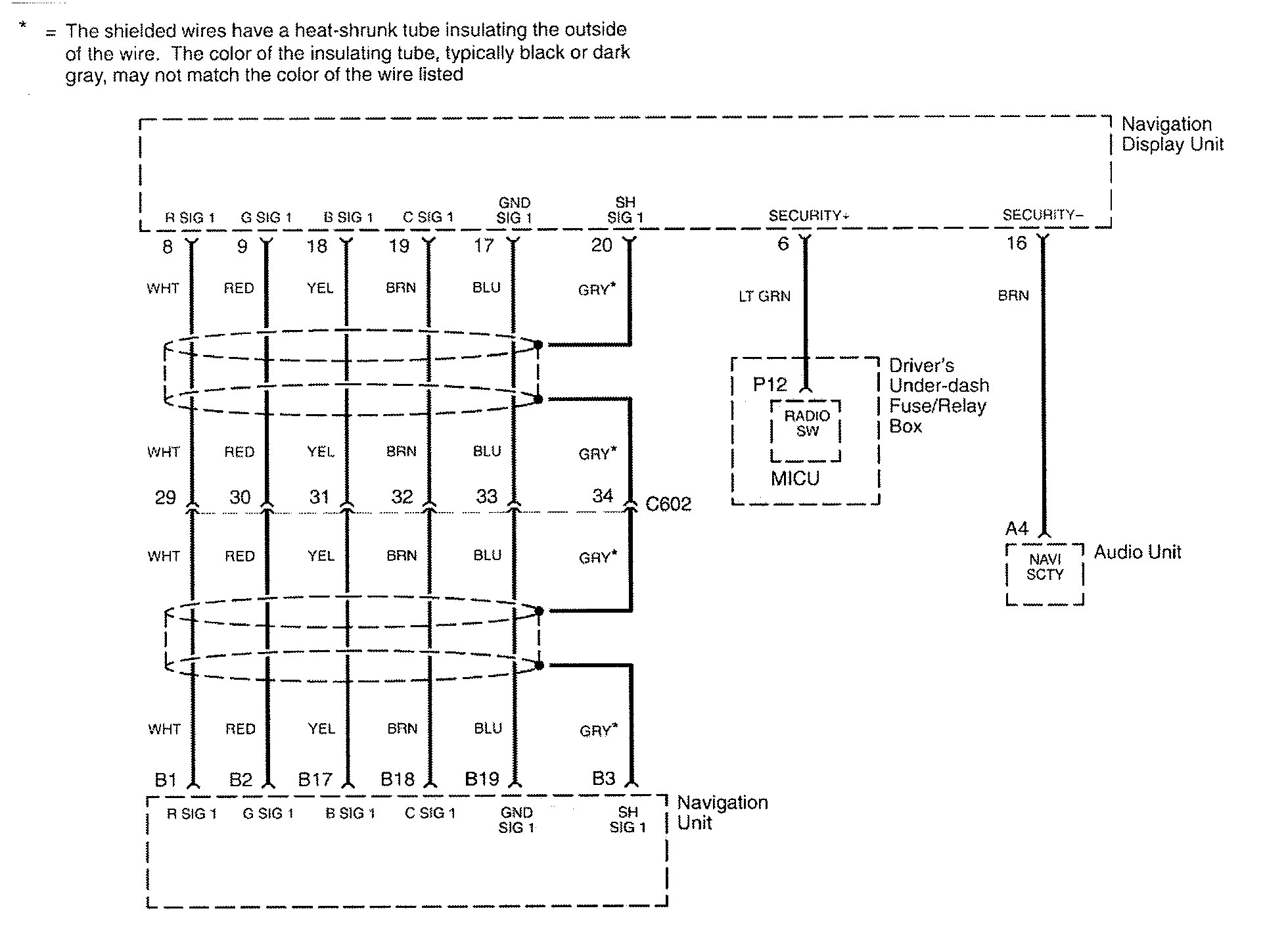

Acura RL - wiring diagram - audio (part 9) — Acura RL – wiring diagram – audio (part 9)

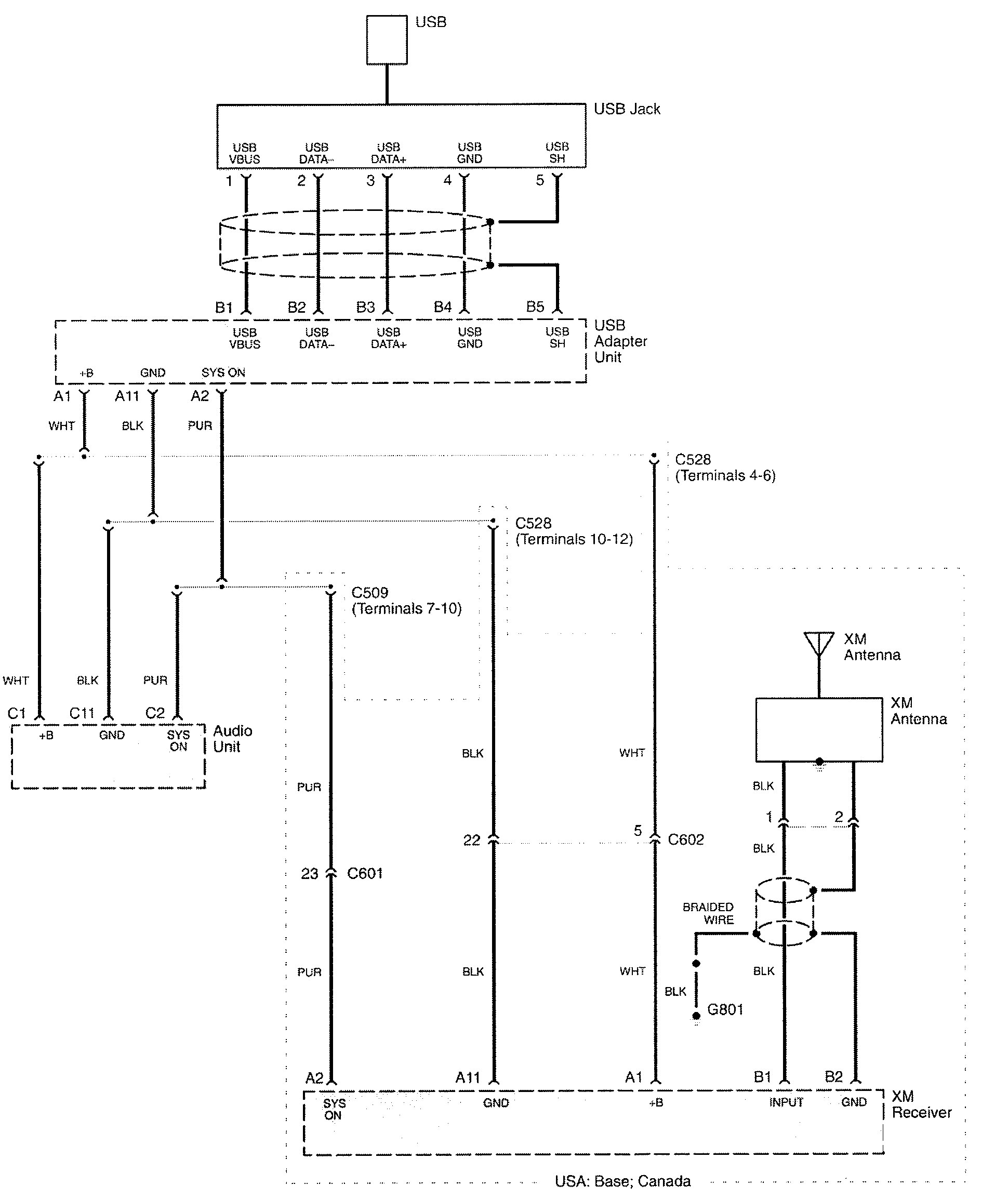

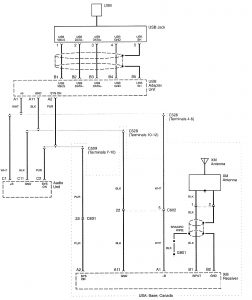

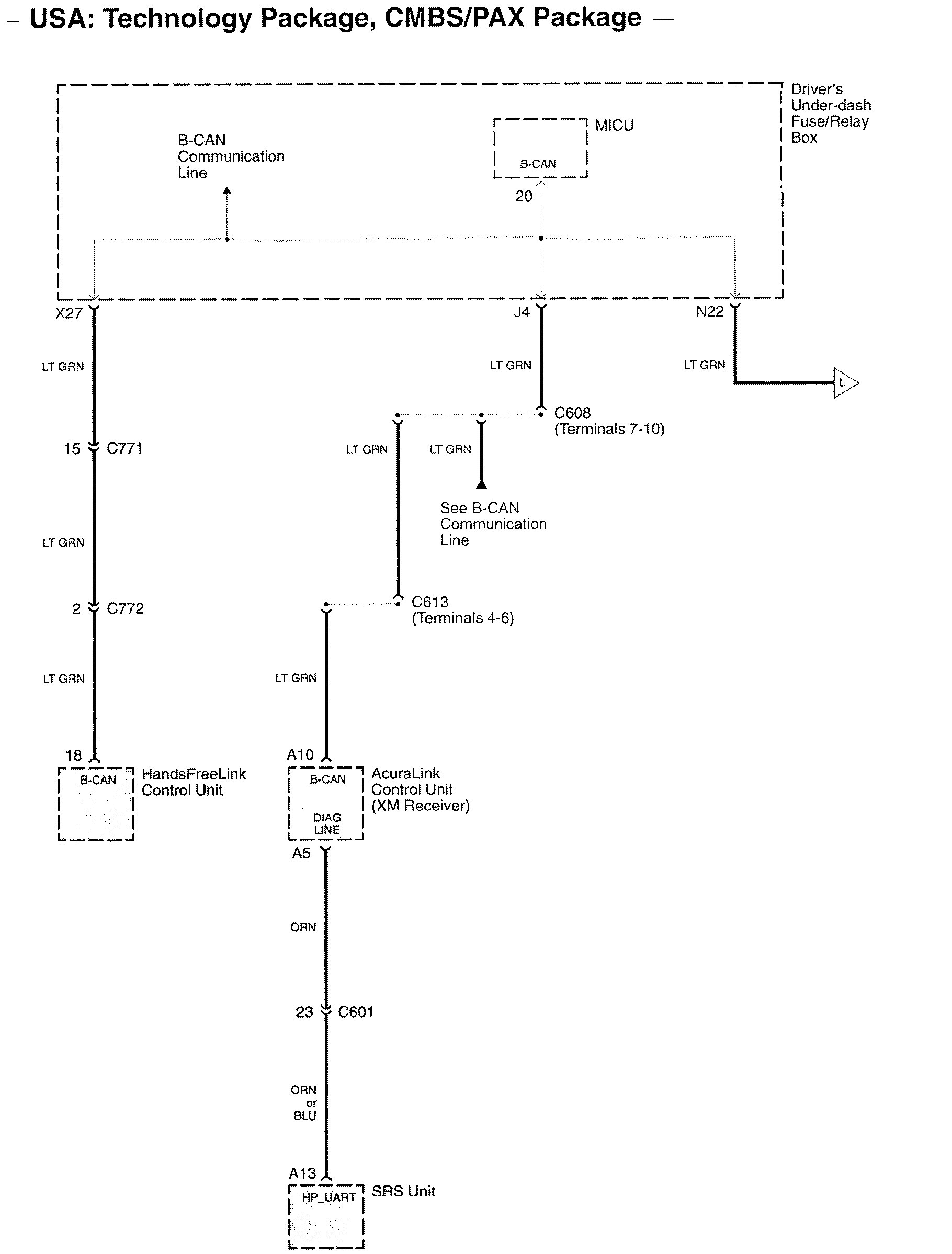

Acura RL - wiring diagram - audio (part 10) — Acura RL – wiring diagram – audio (part 10)

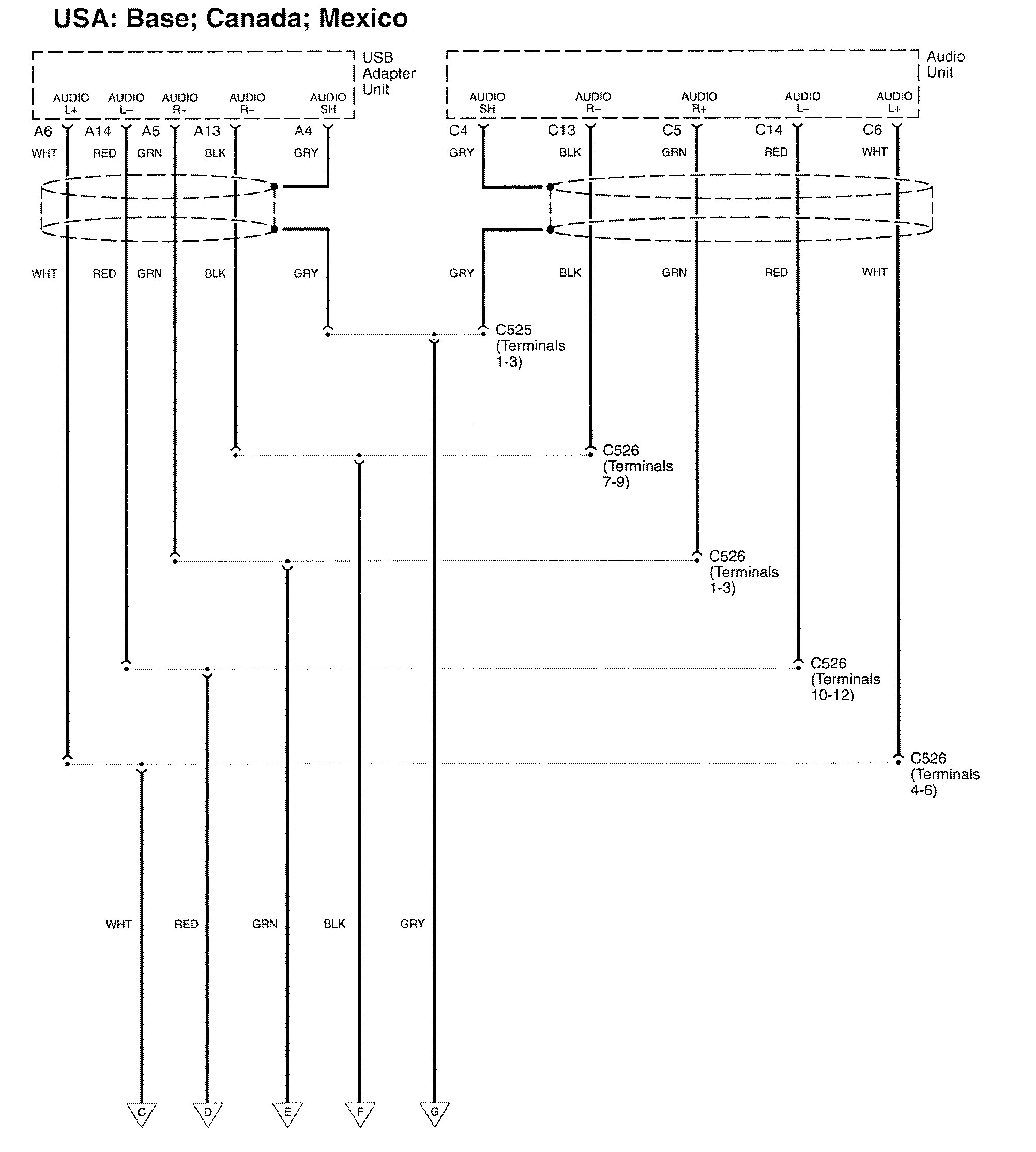

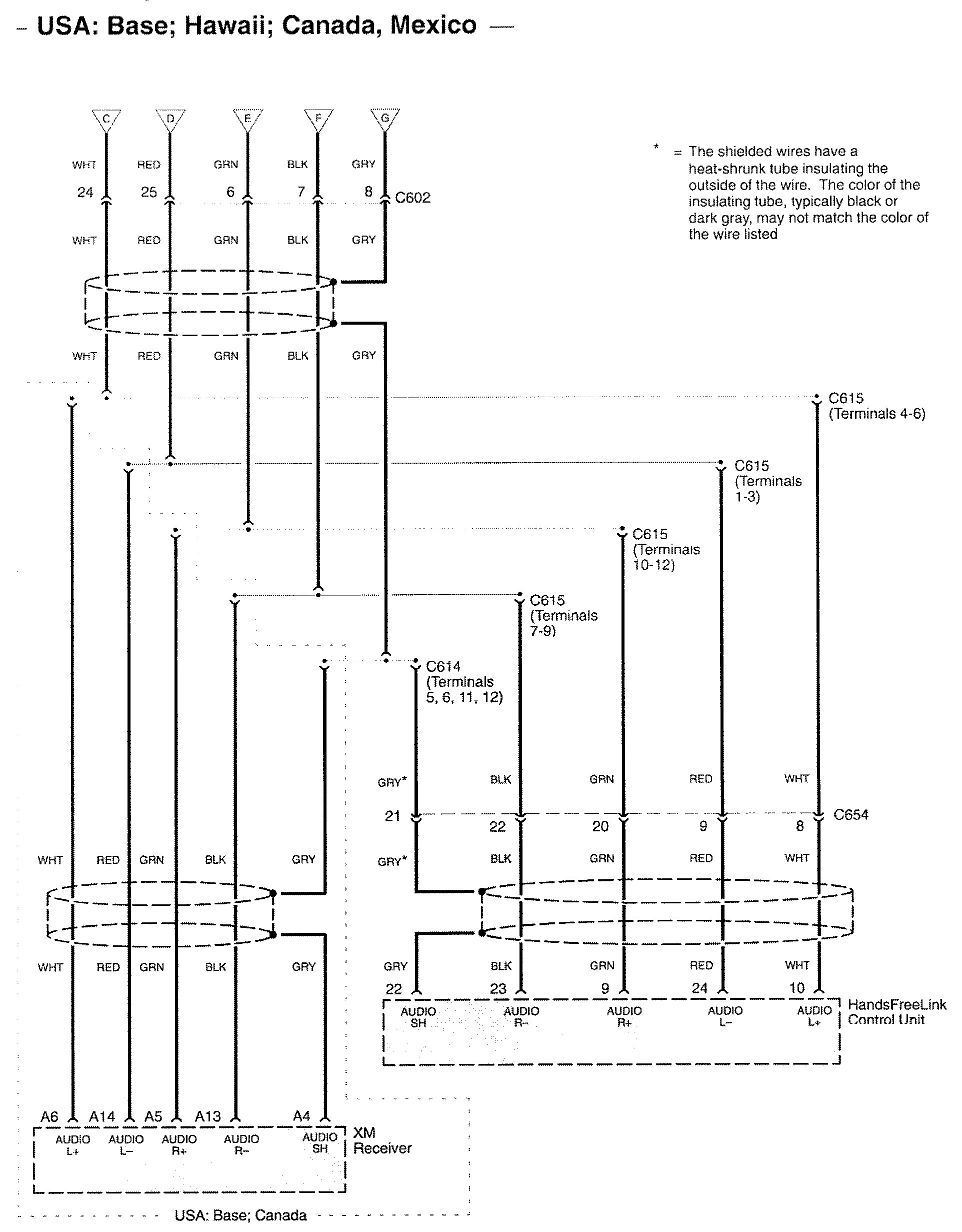

Acura RL - wiring diagram - audio (part 11) — Acura RL – wiring diagram – audio (part 11)

Acura RL - wiring diagram - audio (part 12) — Acura RL – wiring diagram – audio (part 12)

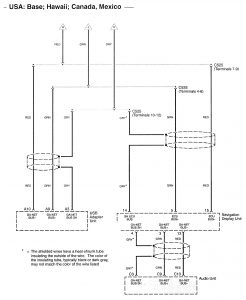

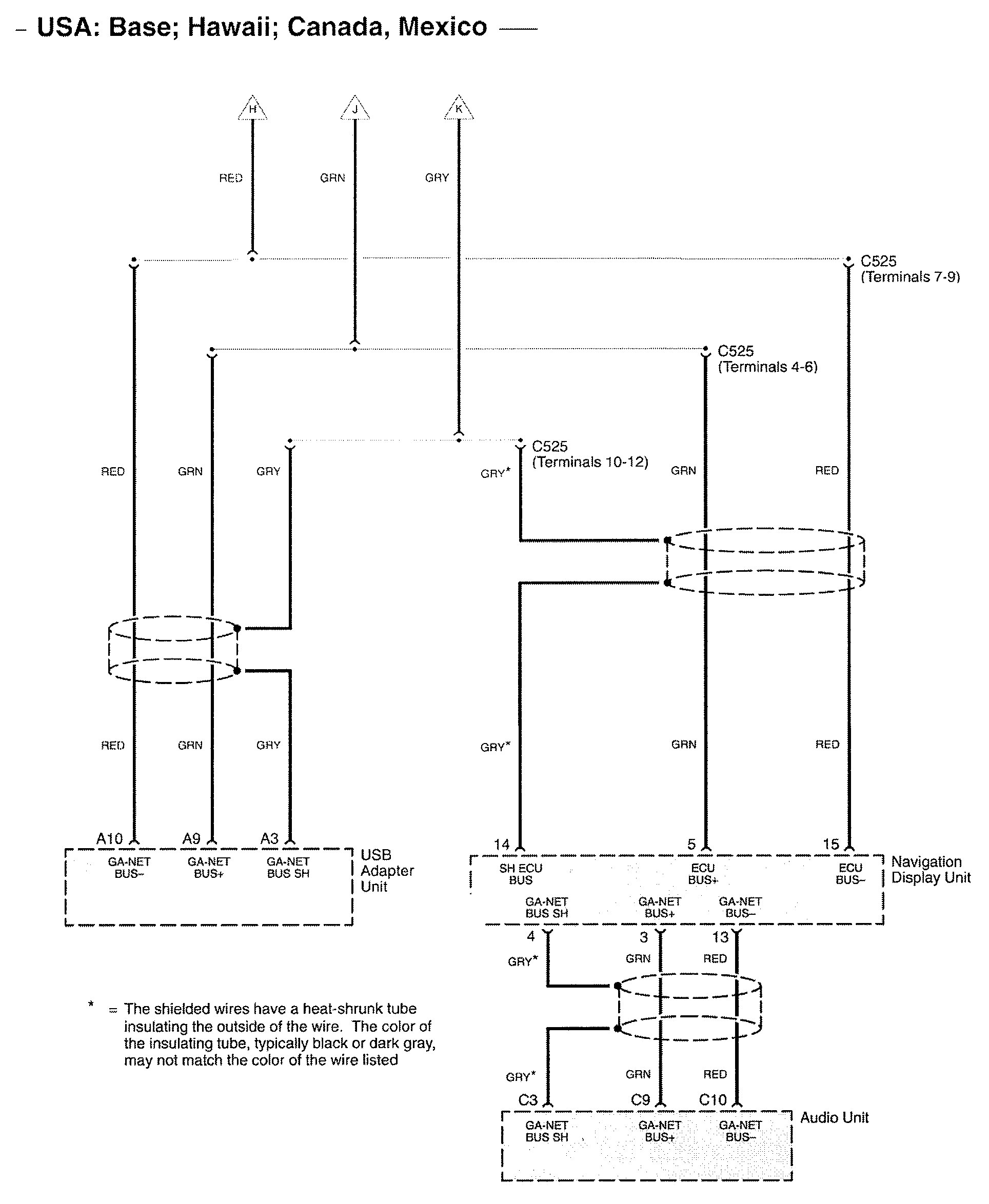

Acura RL - wiring diagram - audio (part 13) — Acura RL – wiring diagram – audio (part 13)

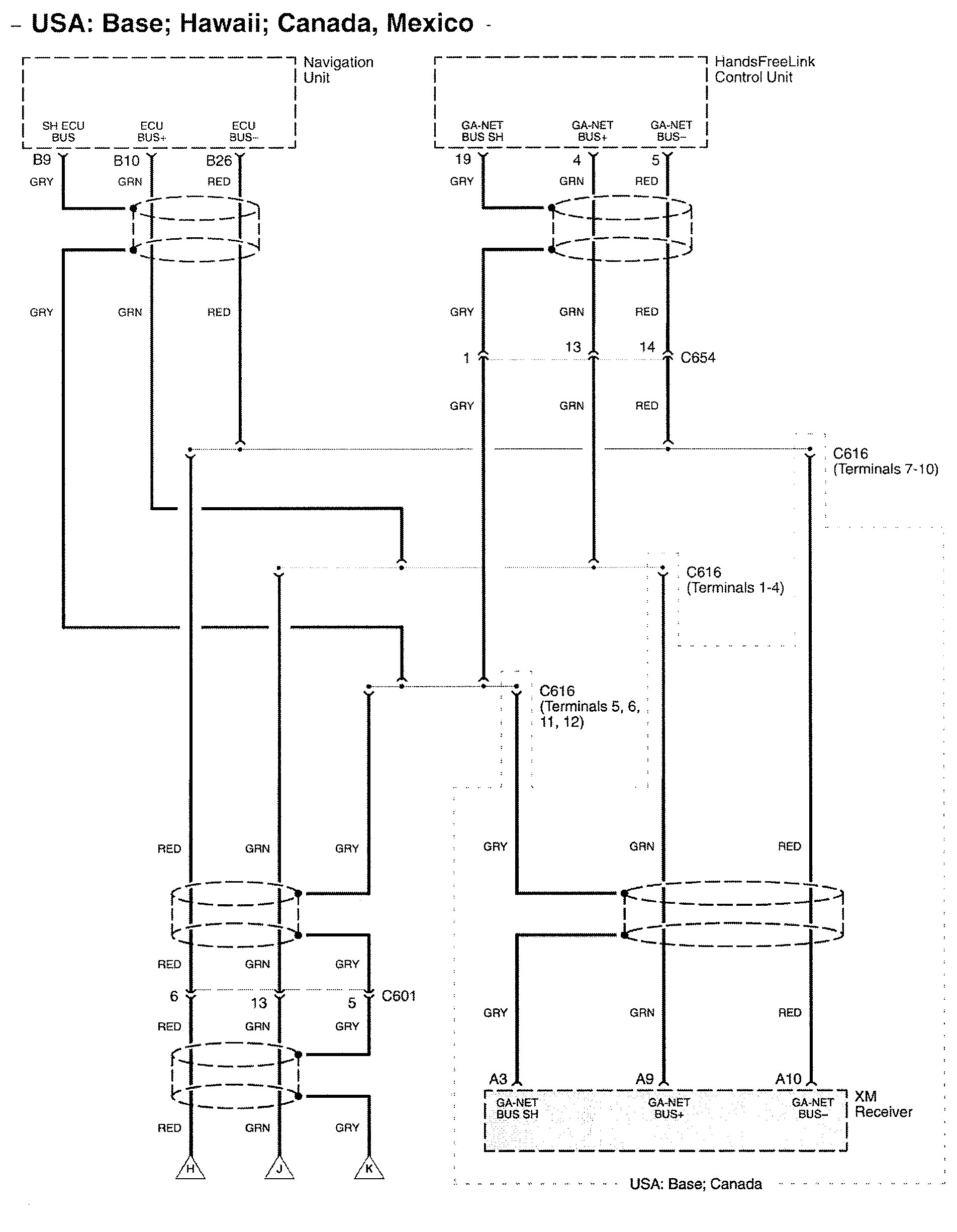

Acura RL - wiring diagram - audio (part 14) — Acura RL – wiring diagram – audio (part 14)

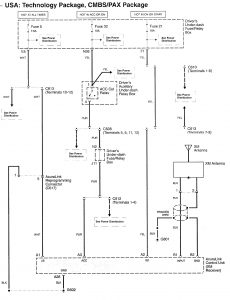

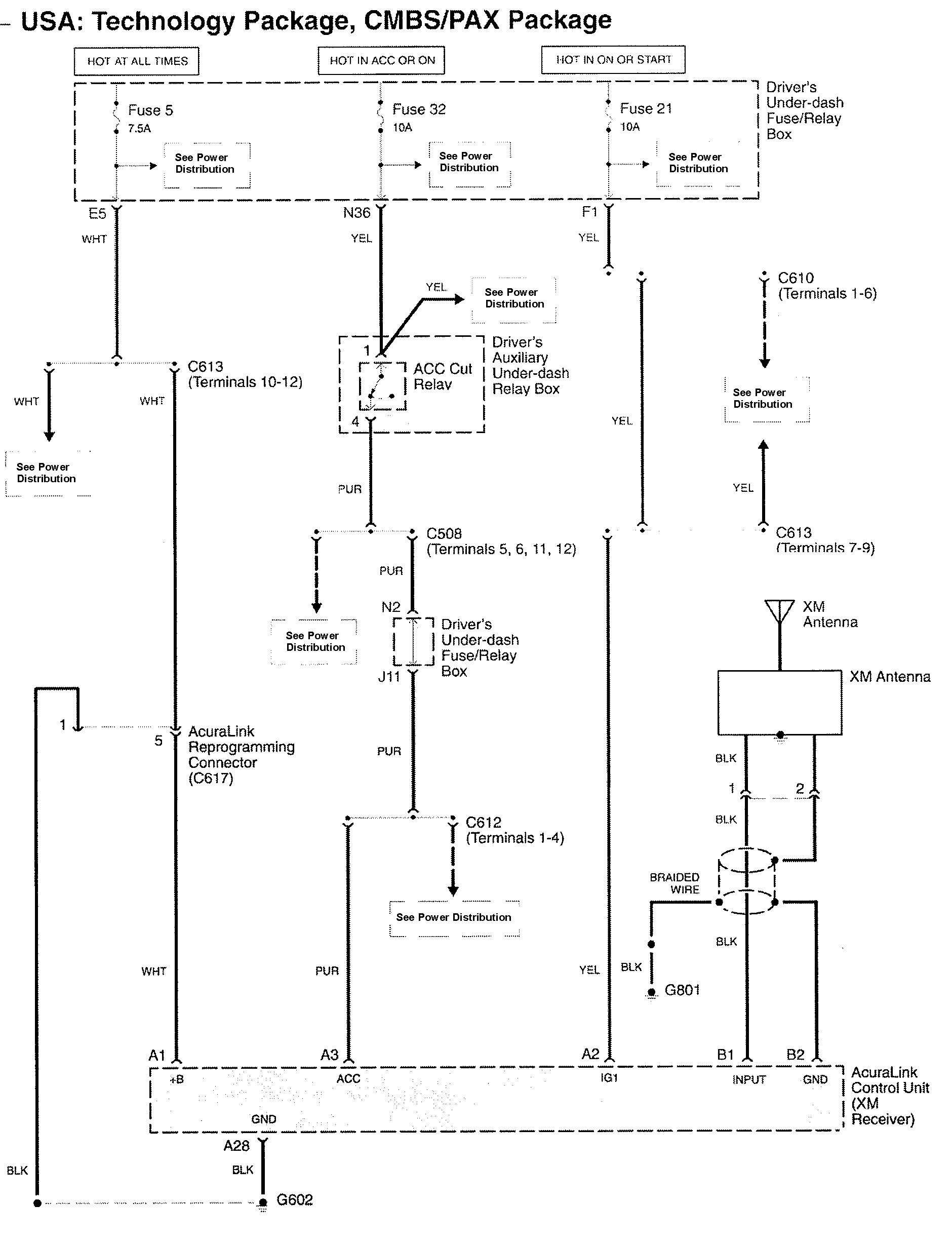

Acura RL - wiring diagram - audio (part 15) — Acura RL – wiring diagram – audio (part 15)

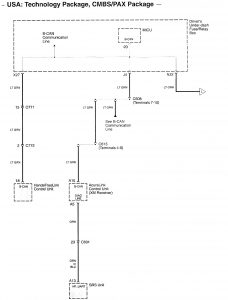

Acura RL - wiring diagram - audio (part 16) — Acura RL – wiring diagram – audio (part 16)

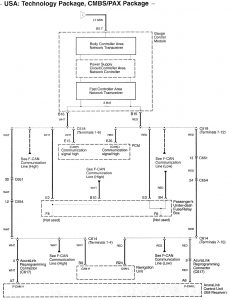

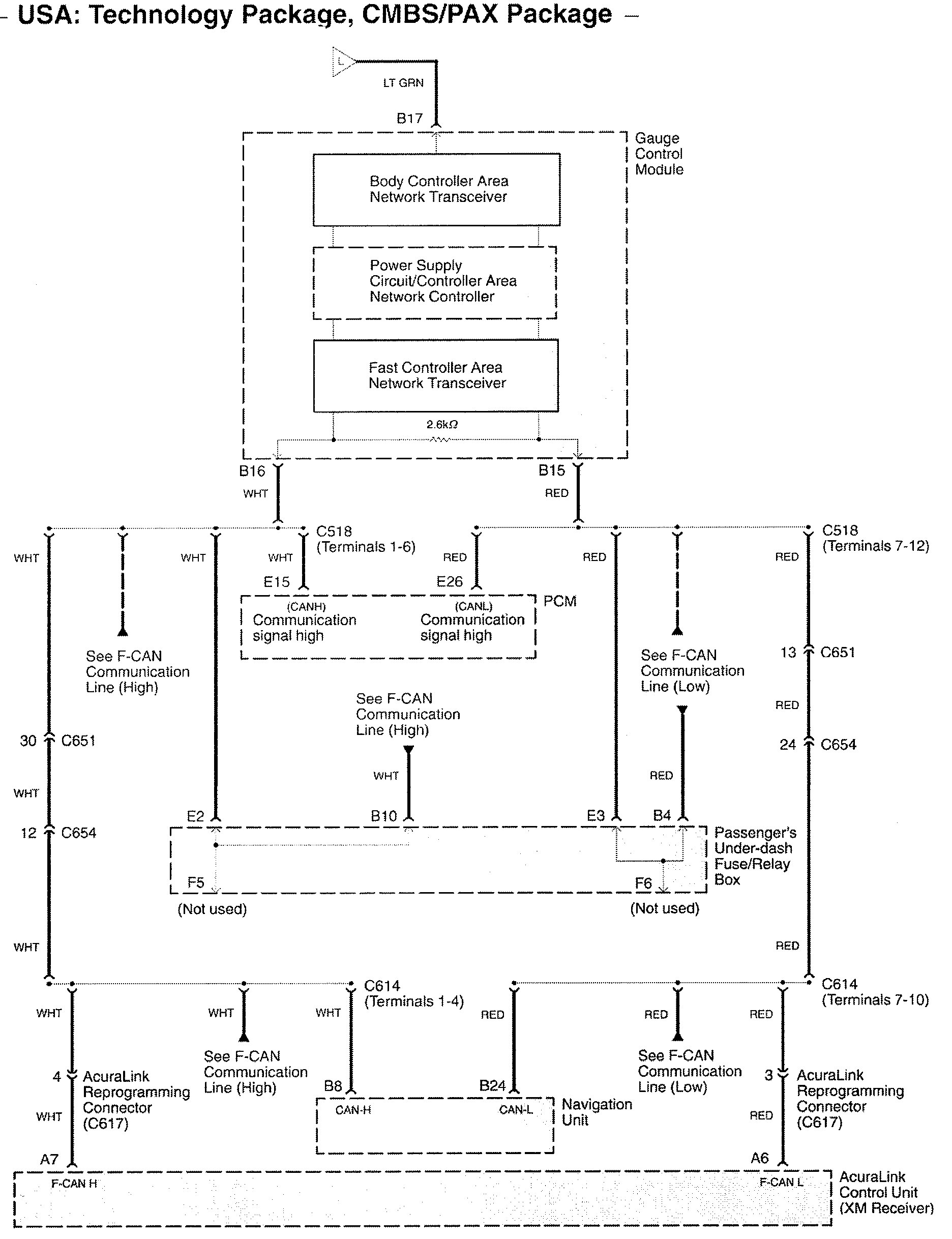

Acura RL - wiring diagram - audio (part 17) — Acura RL – wiring diagram – audio (part 17)

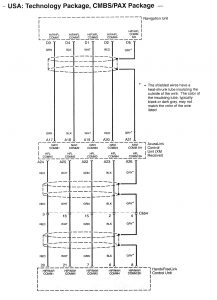

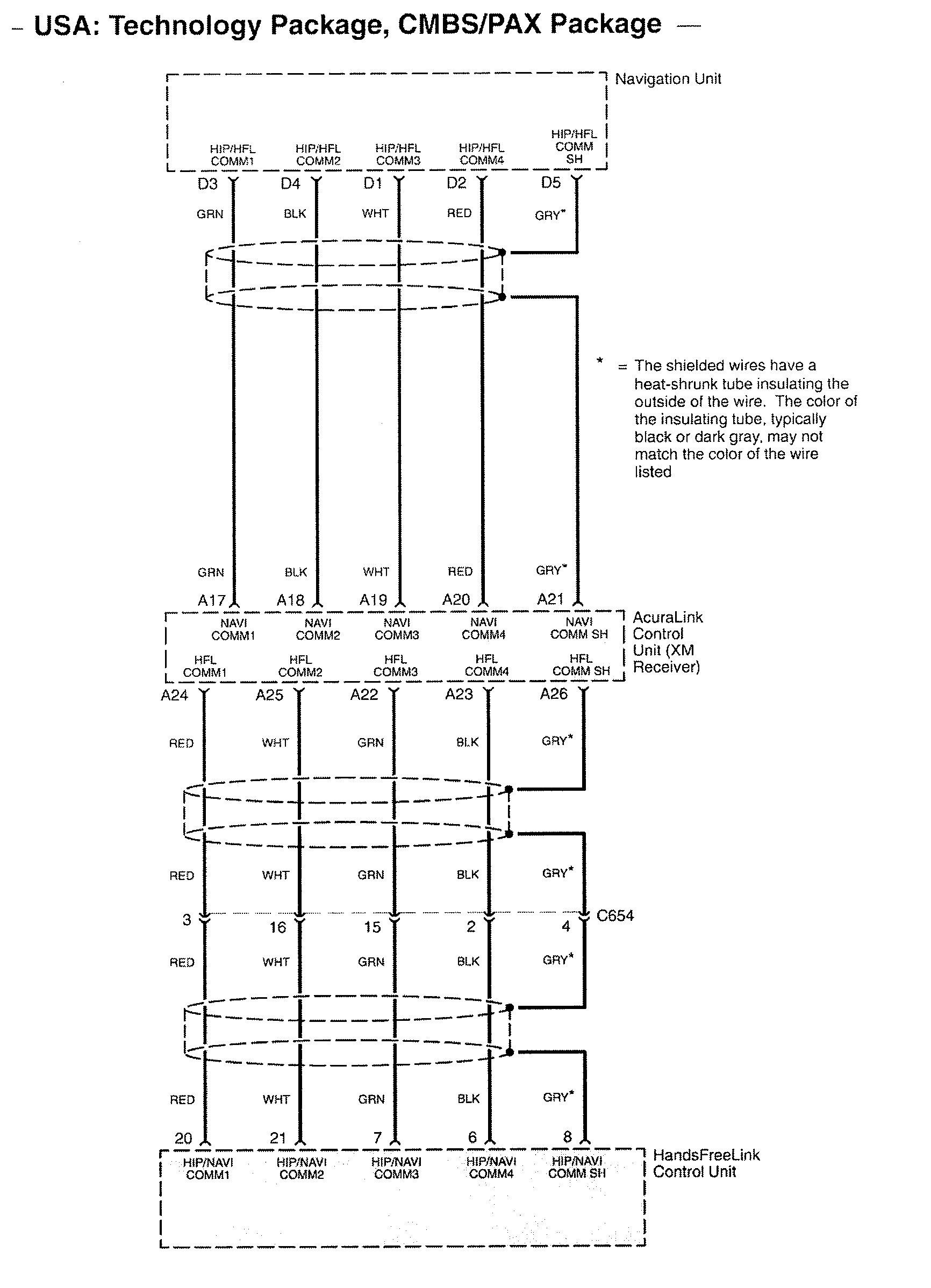

Acura RL - wiring diagram - audio (part 18) — Acura RL – wiring diagram – audio (part 18)

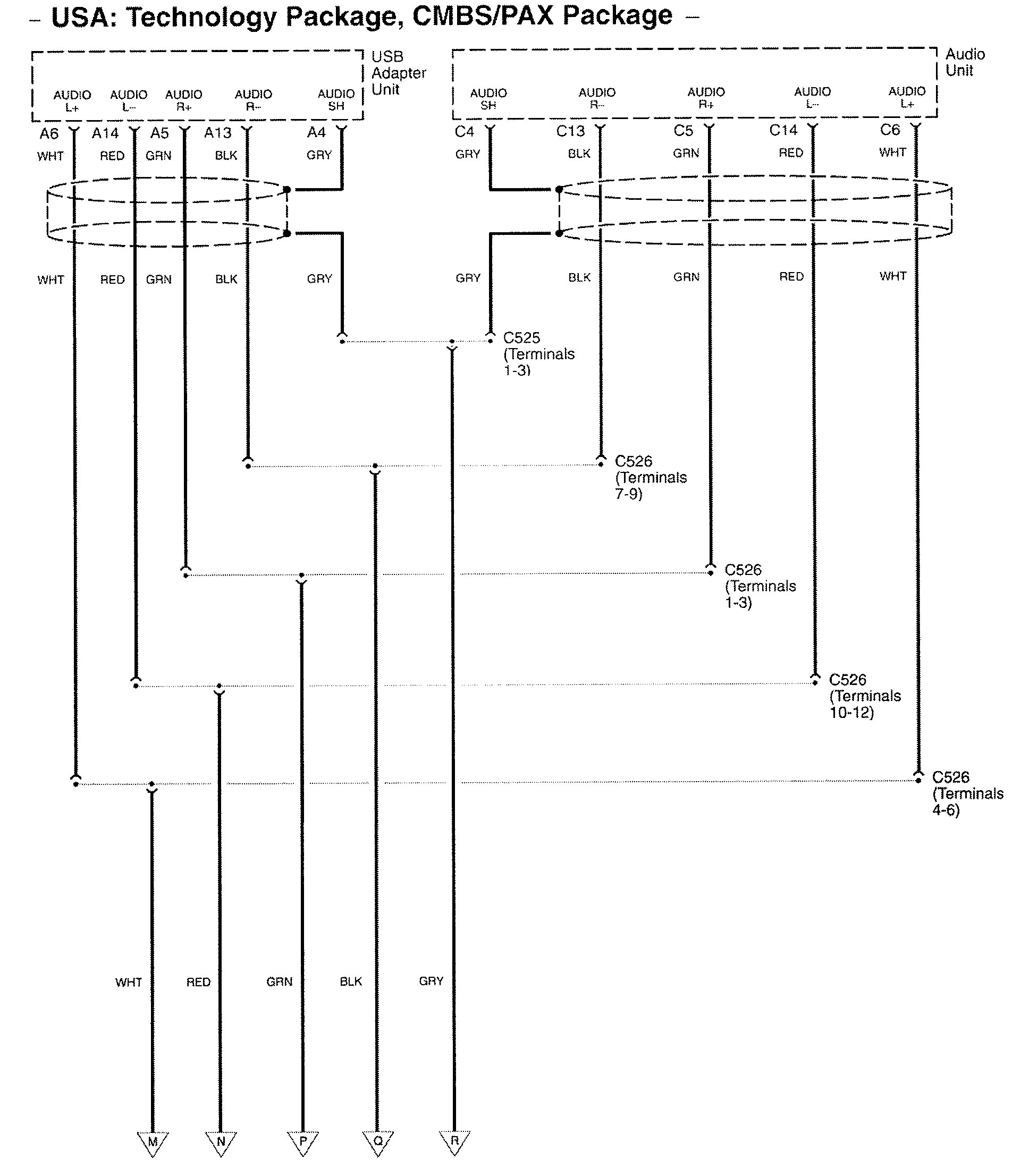

Acura RL - wiring diagram - audio (part 19) — Acura RL – wiring diagram – audio (part 19)

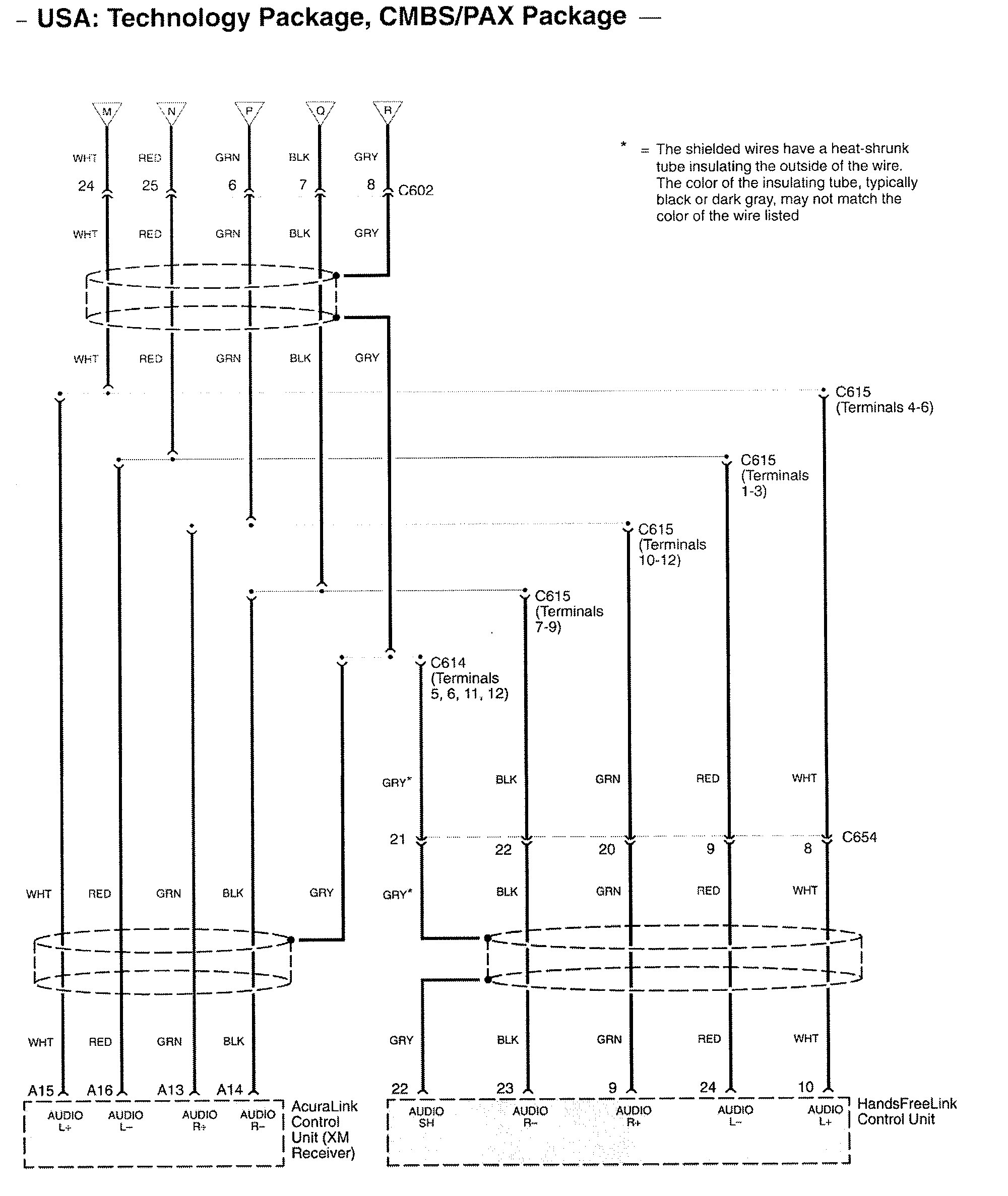

Acura RL - wiring diagram - audio (part 20) — Acura RL – wiring diagram – audio (part 20)

Acura RL - wiring diagram - audio (part 21) — Acura RL – wiring diagram – audio (part 21)

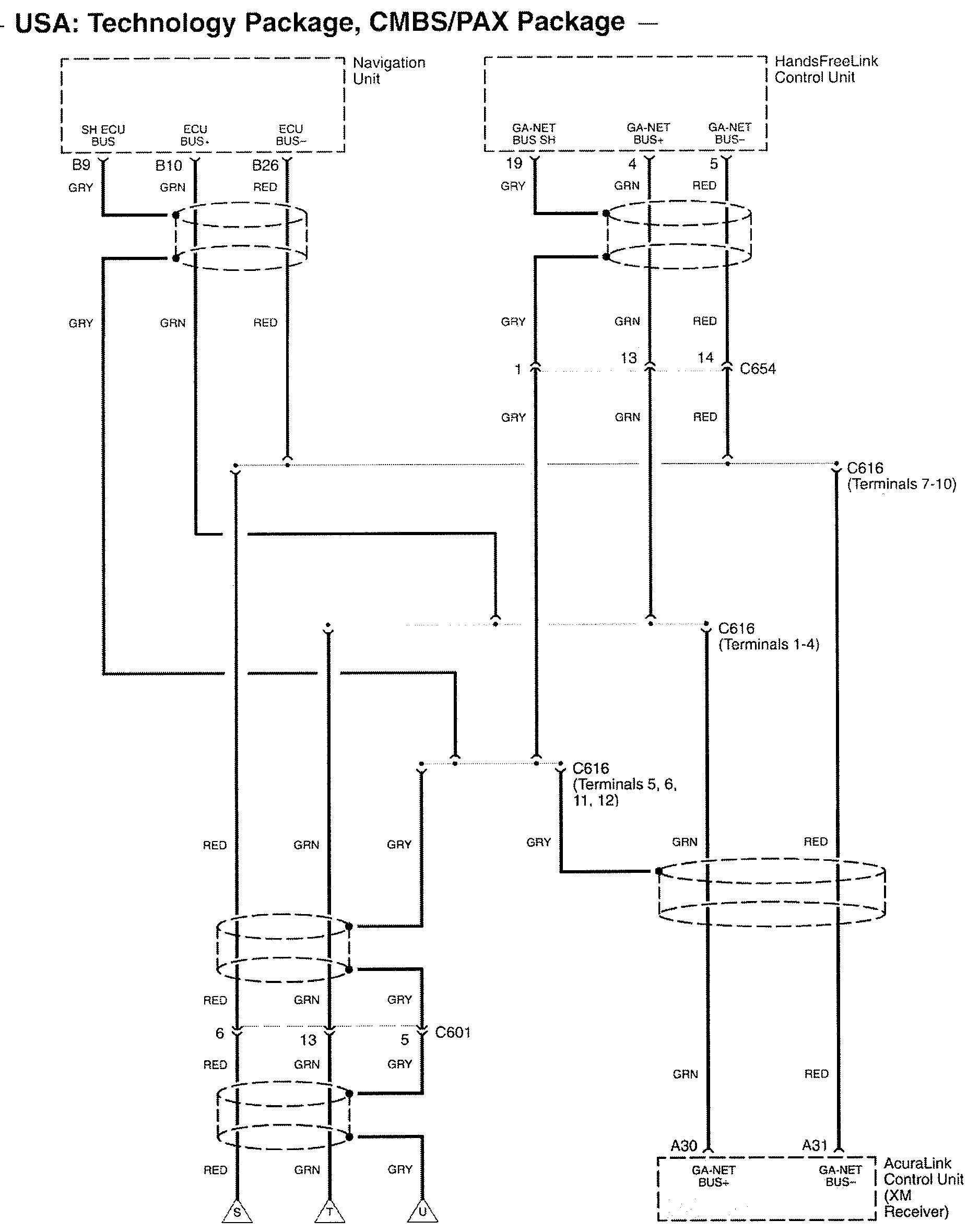

Acura RL - wiring diagram - audio (part 22) — Acura RL – wiring diagram – audio (part 22)

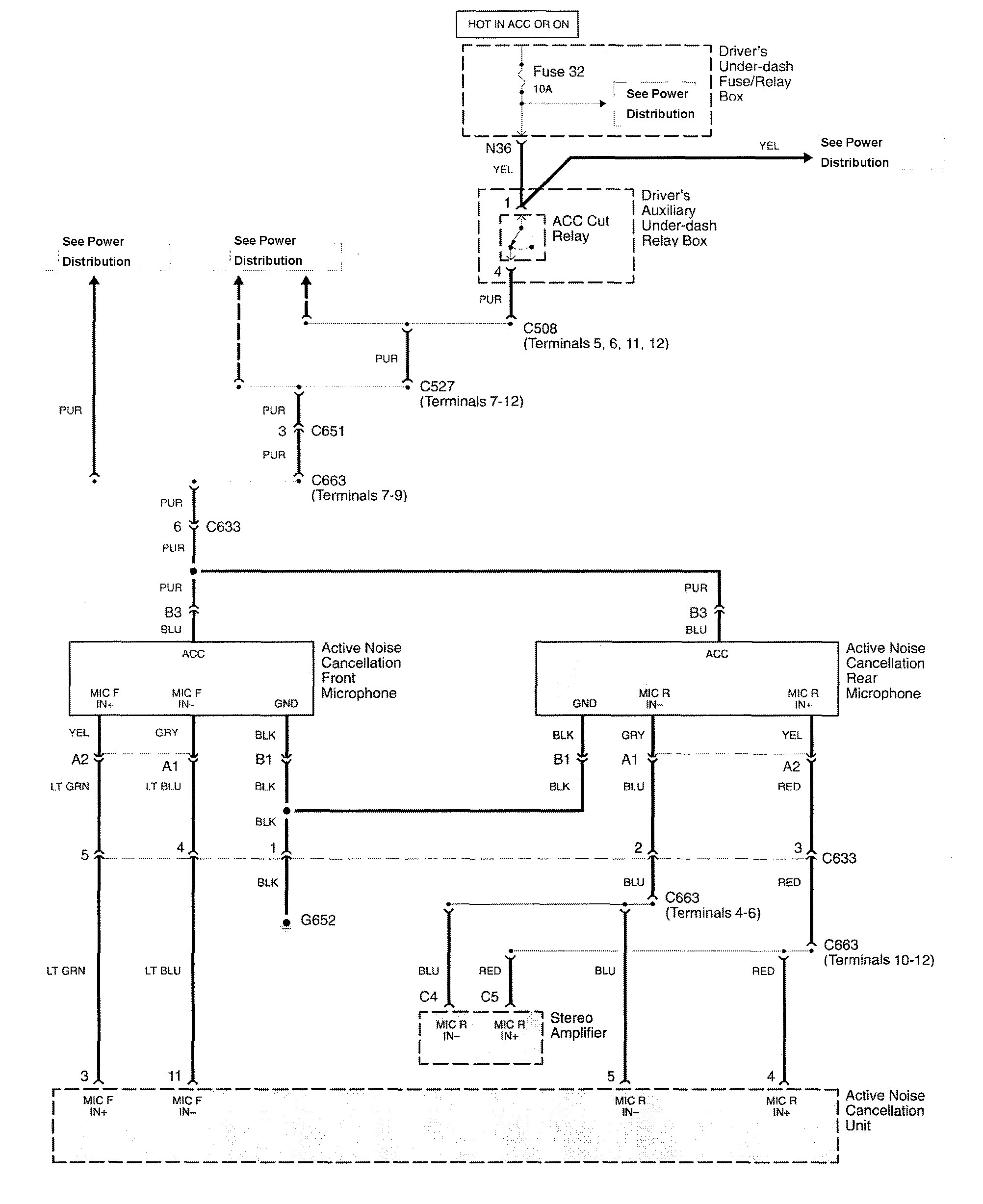

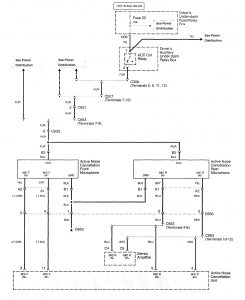

Acura RL - wiring diagram - audio (part 23) — Acura RL – wiring diagram – audio (part 23)

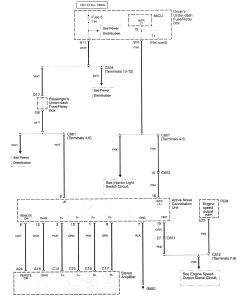

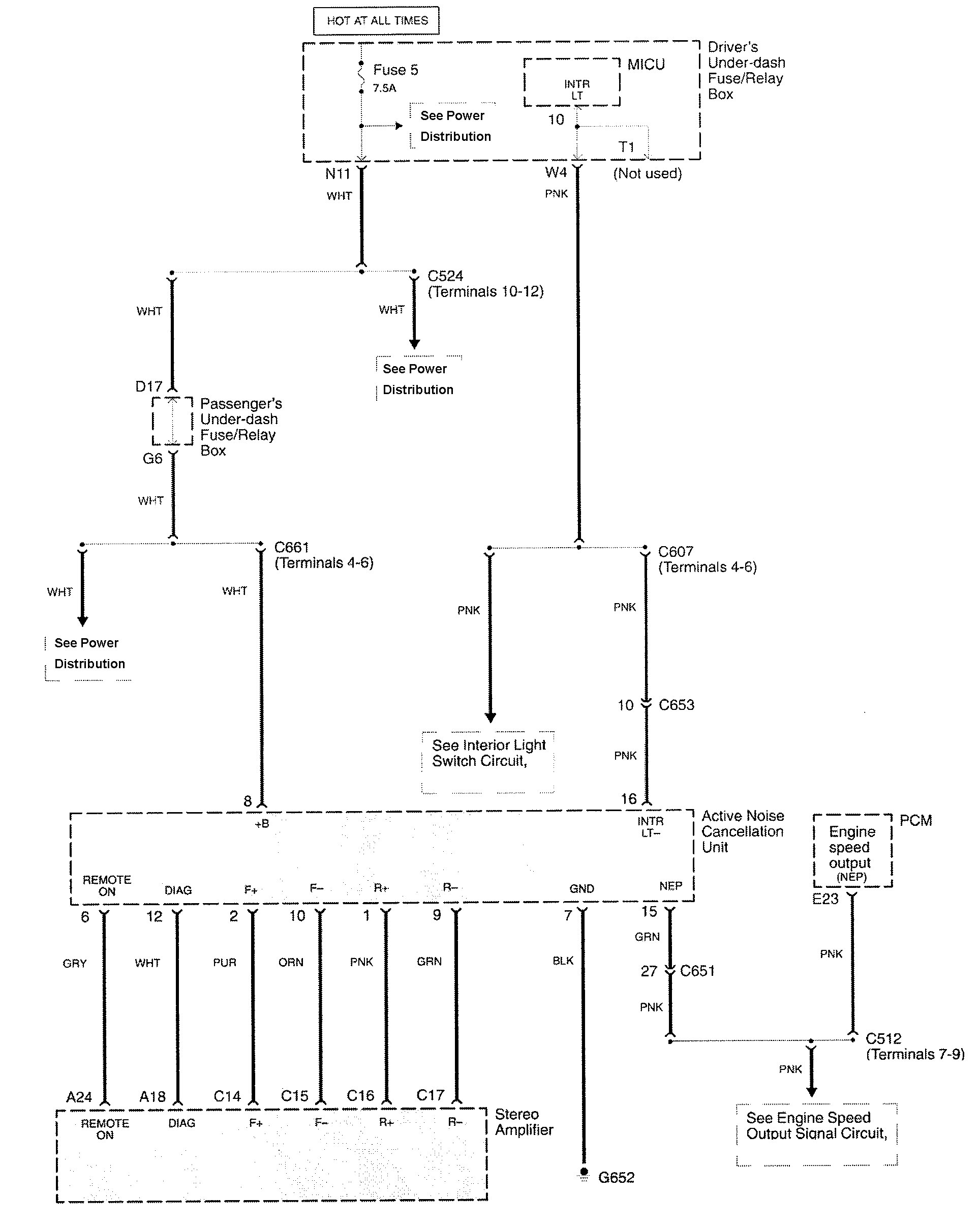

Acura RL - wiring diagram - audio (part 24) — Acura RL – wiring diagram – audio (part 24)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
