Acura RL (2009 – 2010) – wiring diagrams – engine mount control

Year of productions:  2009, 2010

Engine mount control

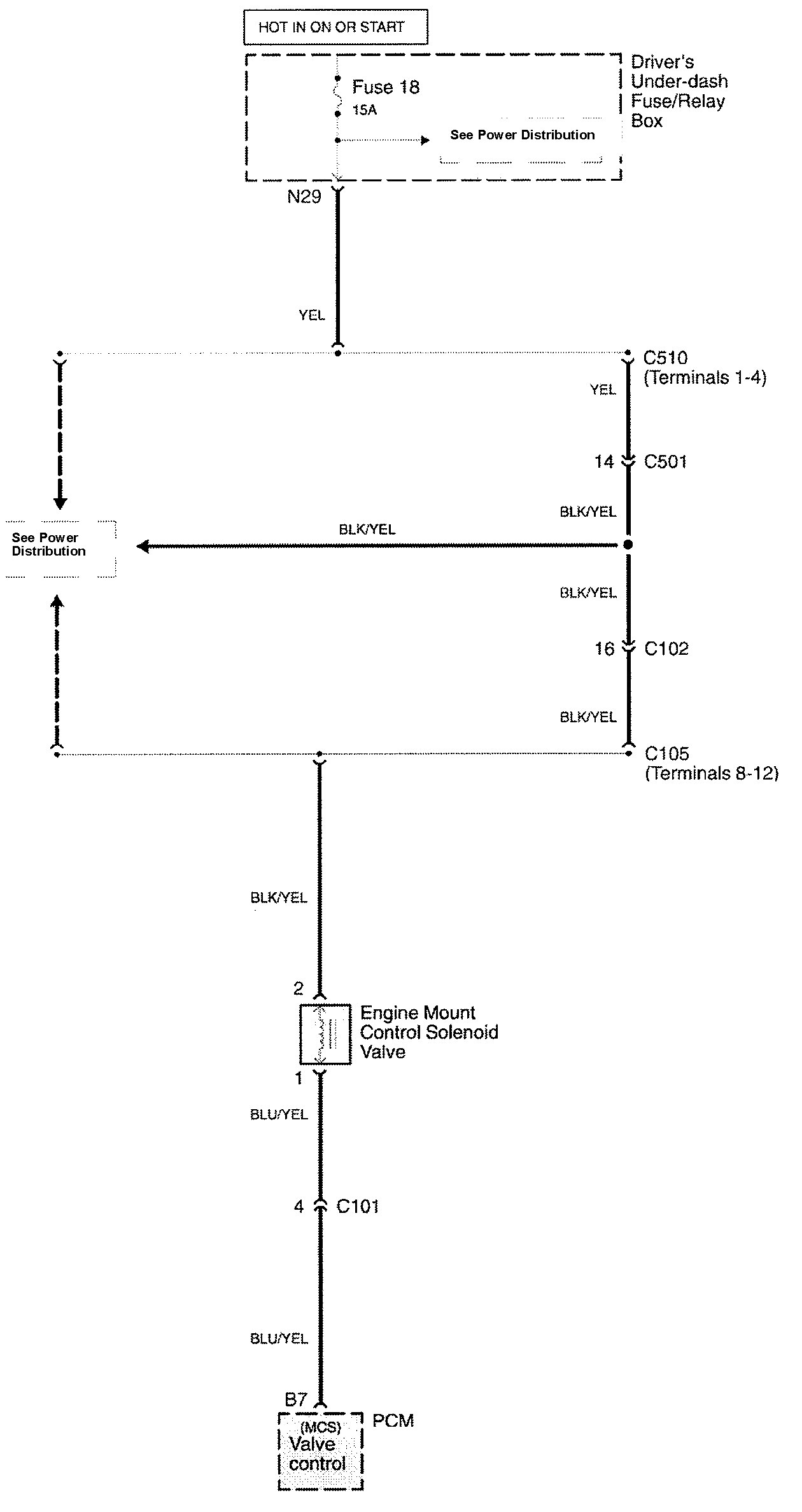

Acura RL - wiring diagram - engine mount control
Acura RL – wiring diagram – engine mount control

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
