Acura RL (2009 – 2011) – wiring diagrams – fuel controls

21 October 2017 admin Acura, RL 0

Acura RL (2009 – 2011) – wiring diagrams – fuel controls

Year of productions: 2009, 2010, 2011

Fuel controls

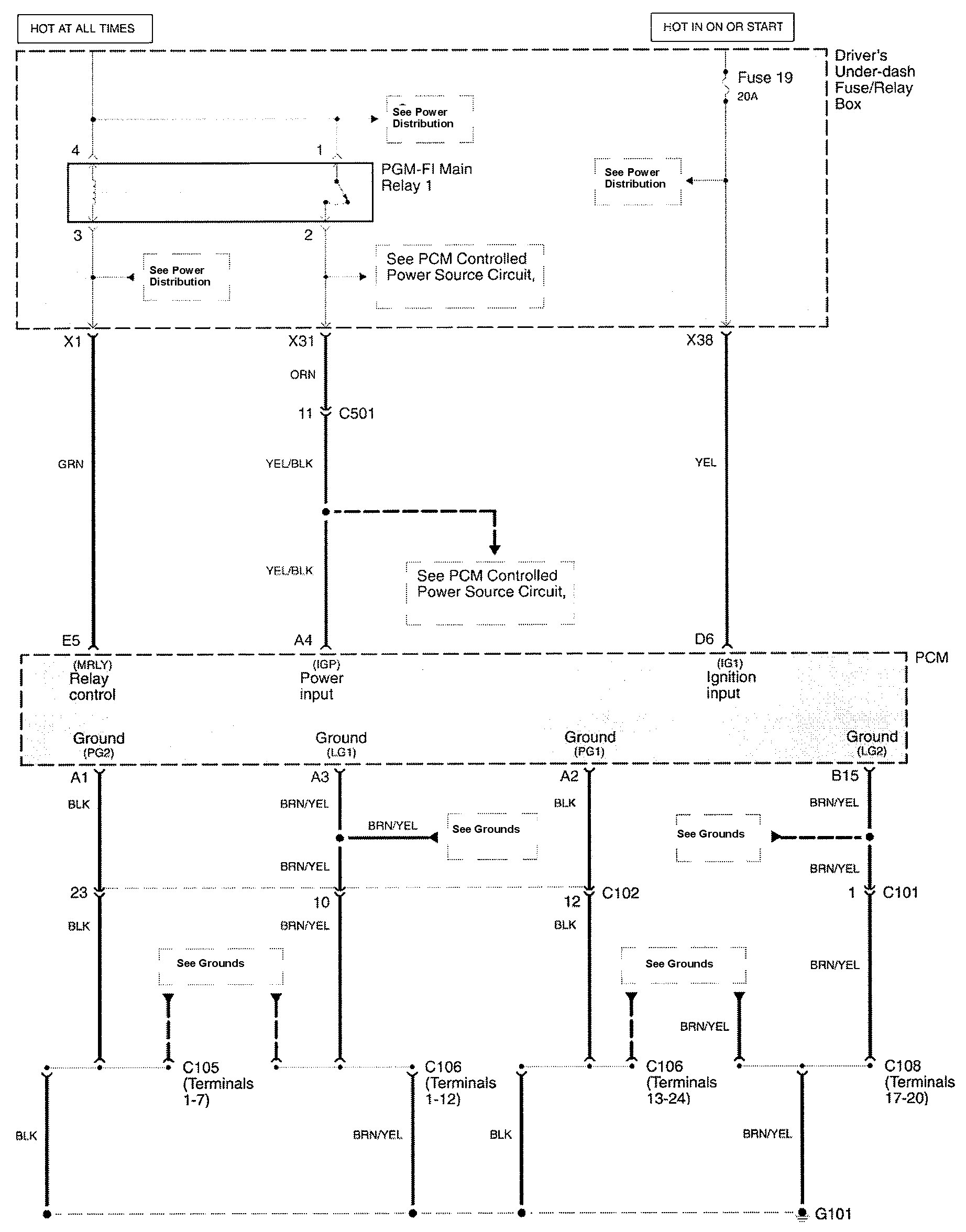

Acura RL - wiring diagram - fuel controls (part 1) — Acura RL – wiring diagram – fuel controls (part 1)

Acura RL – wiring diagram – fuel controls (part 1)

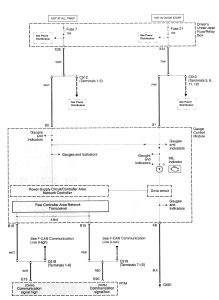

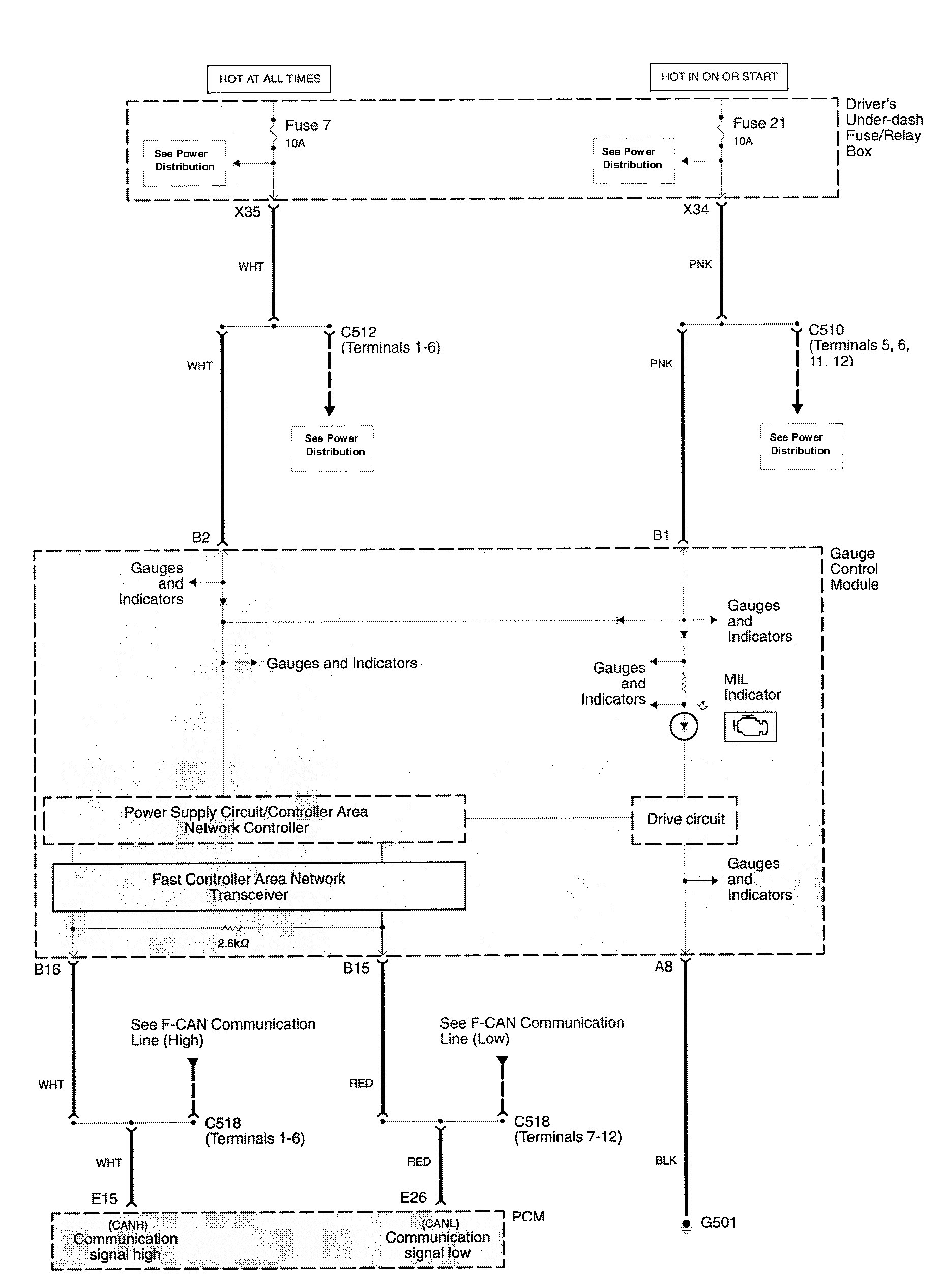

Acura RL - wiring diagram - fuel controls (part 2) — Acura RL – wiring diagram – fuel controls (part 2)

Acura RL – wiring diagram – fuel controls (part 1)

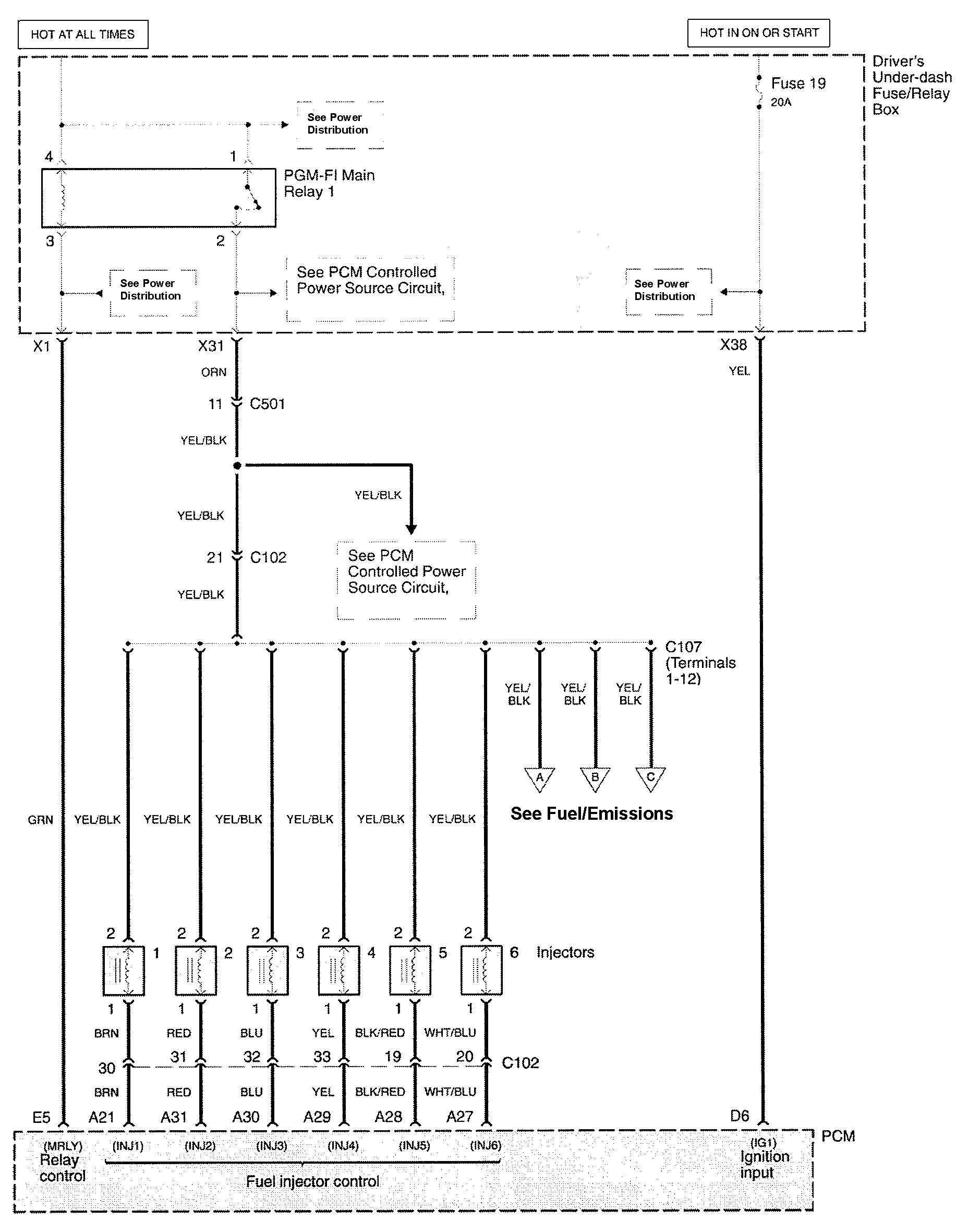

Acura RL - wiring diagram - fuel controls (part 3) — Acura RL – wiring diagram – fuel controls (part 3)

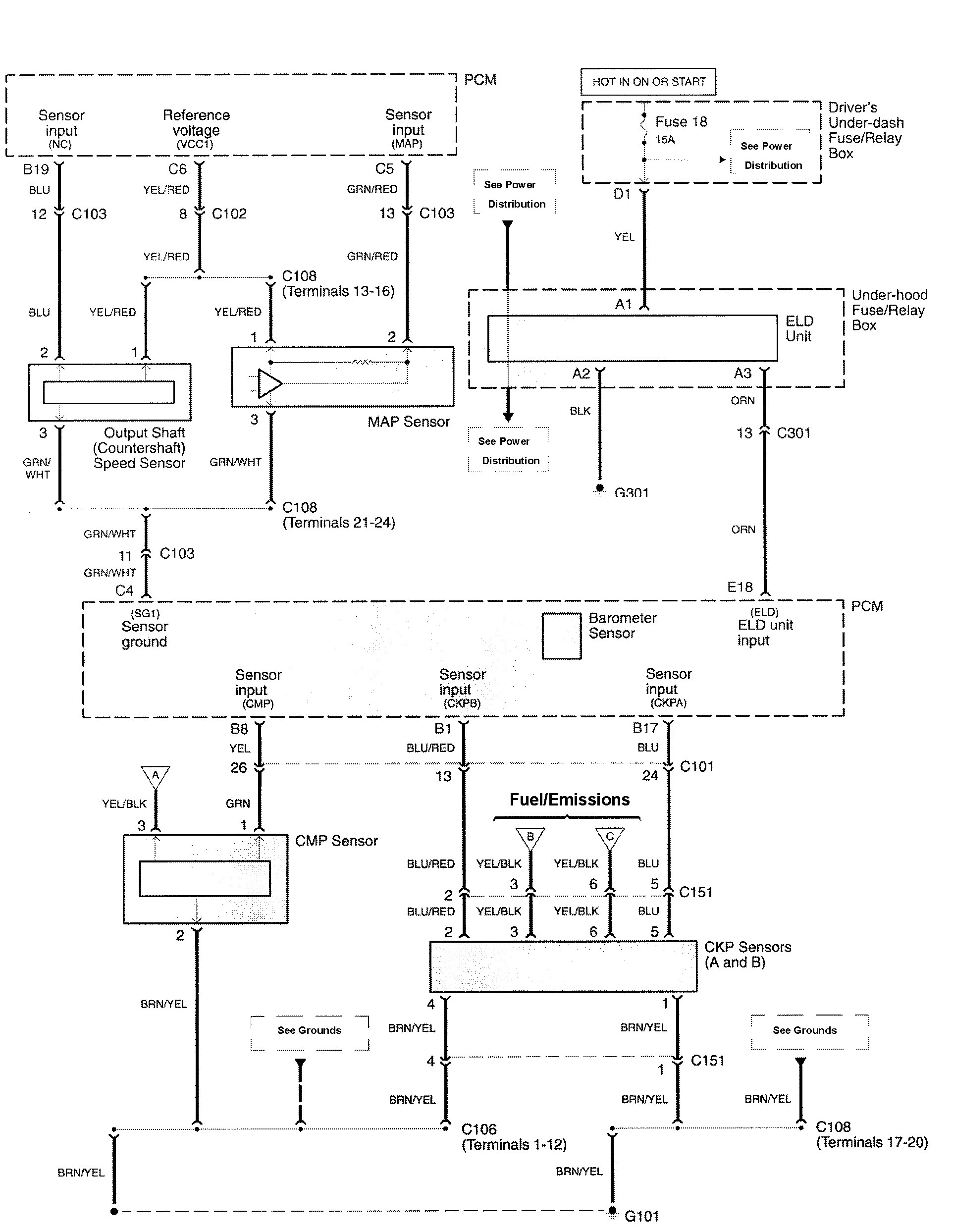

Acura RL - wiring diagram - fuel controls (part 4) — Acura RL – wiring diagram – fuel controls (part 4)

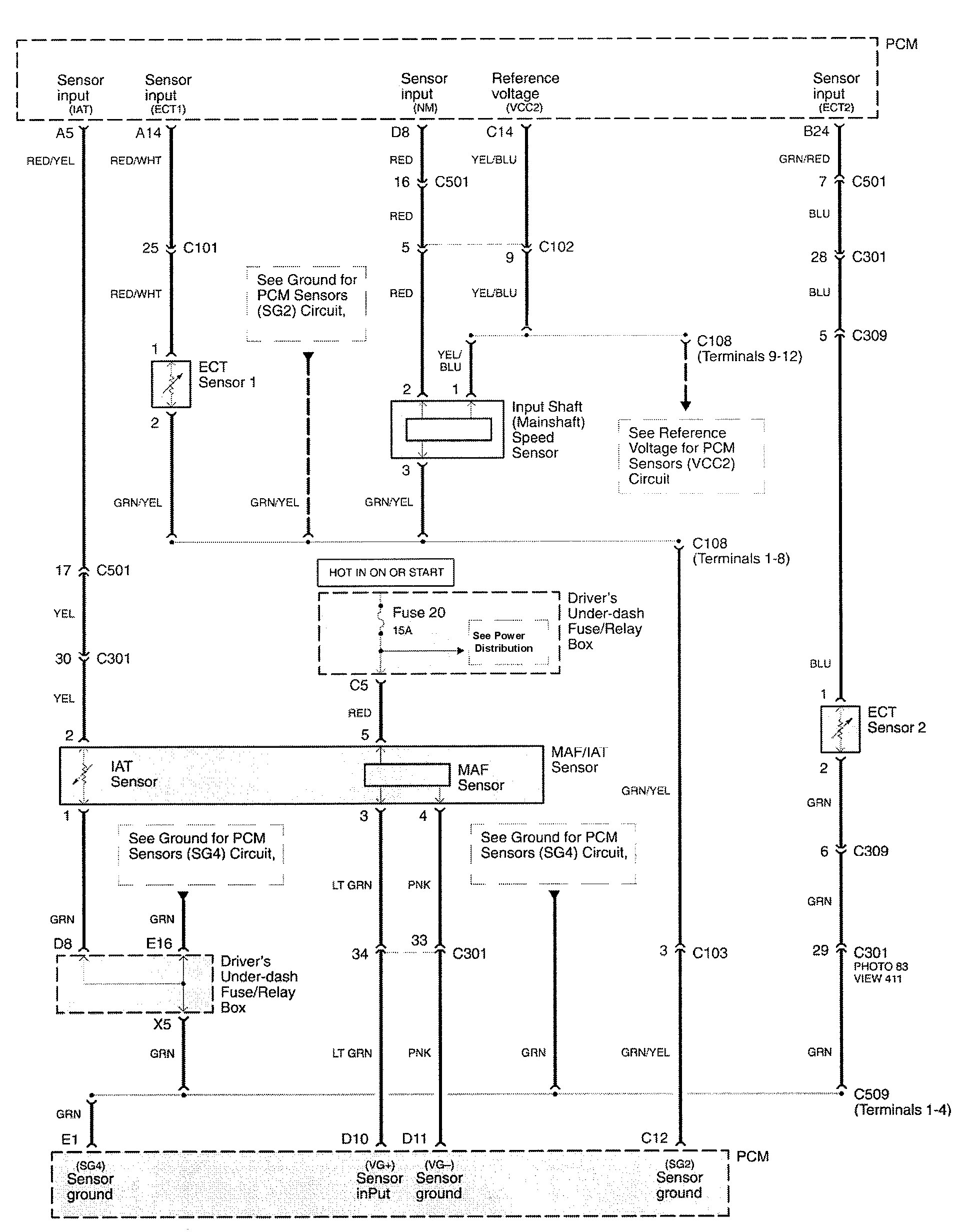

Acura RL - wiring diagram - fuel controls (part 5) — Acura RL – wiring diagram – fuel controls (part 5)

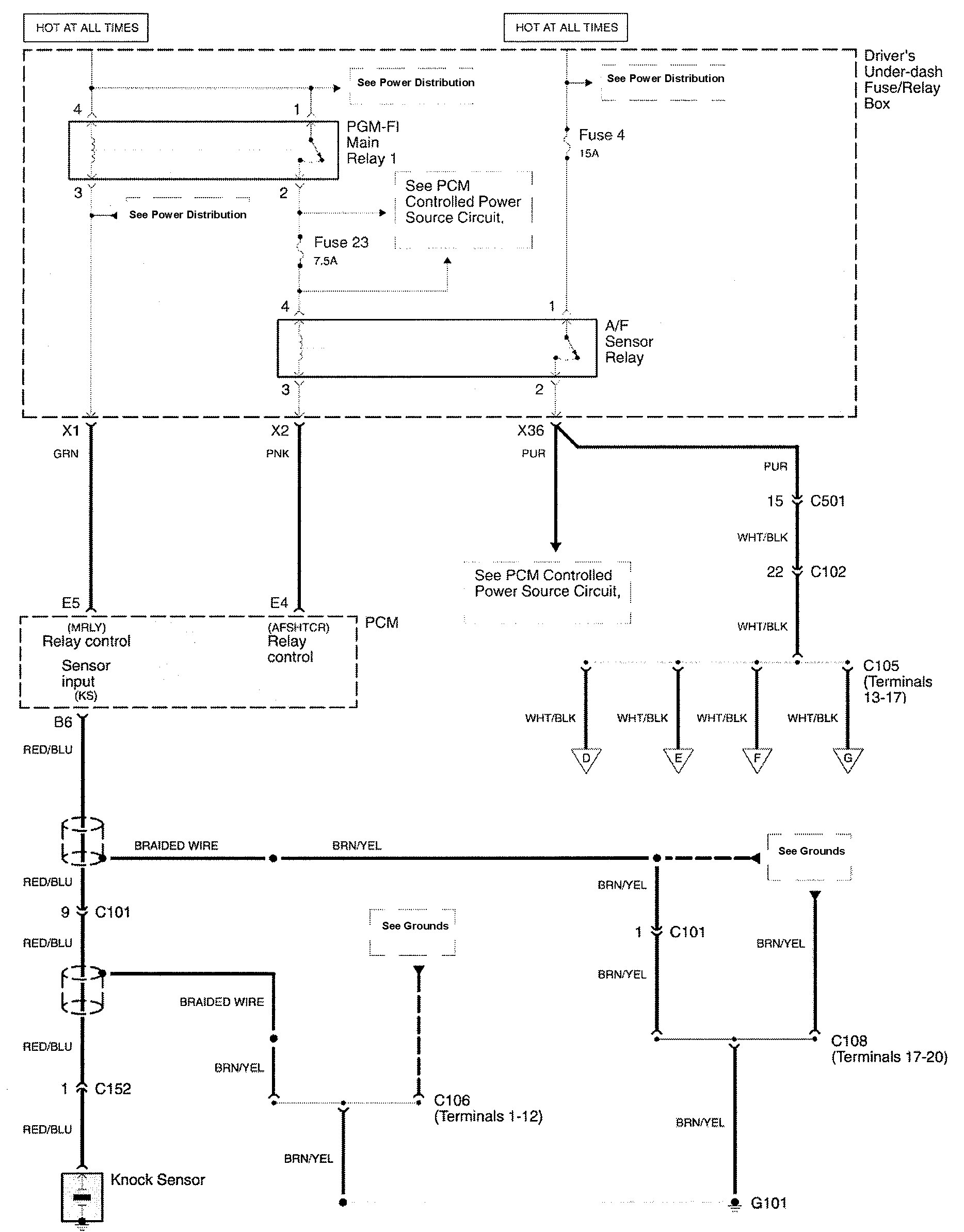

Acura RL - wiring diagram - fuel controls (part 6) — Acura RL – wiring diagram – fuel controls (part 6)

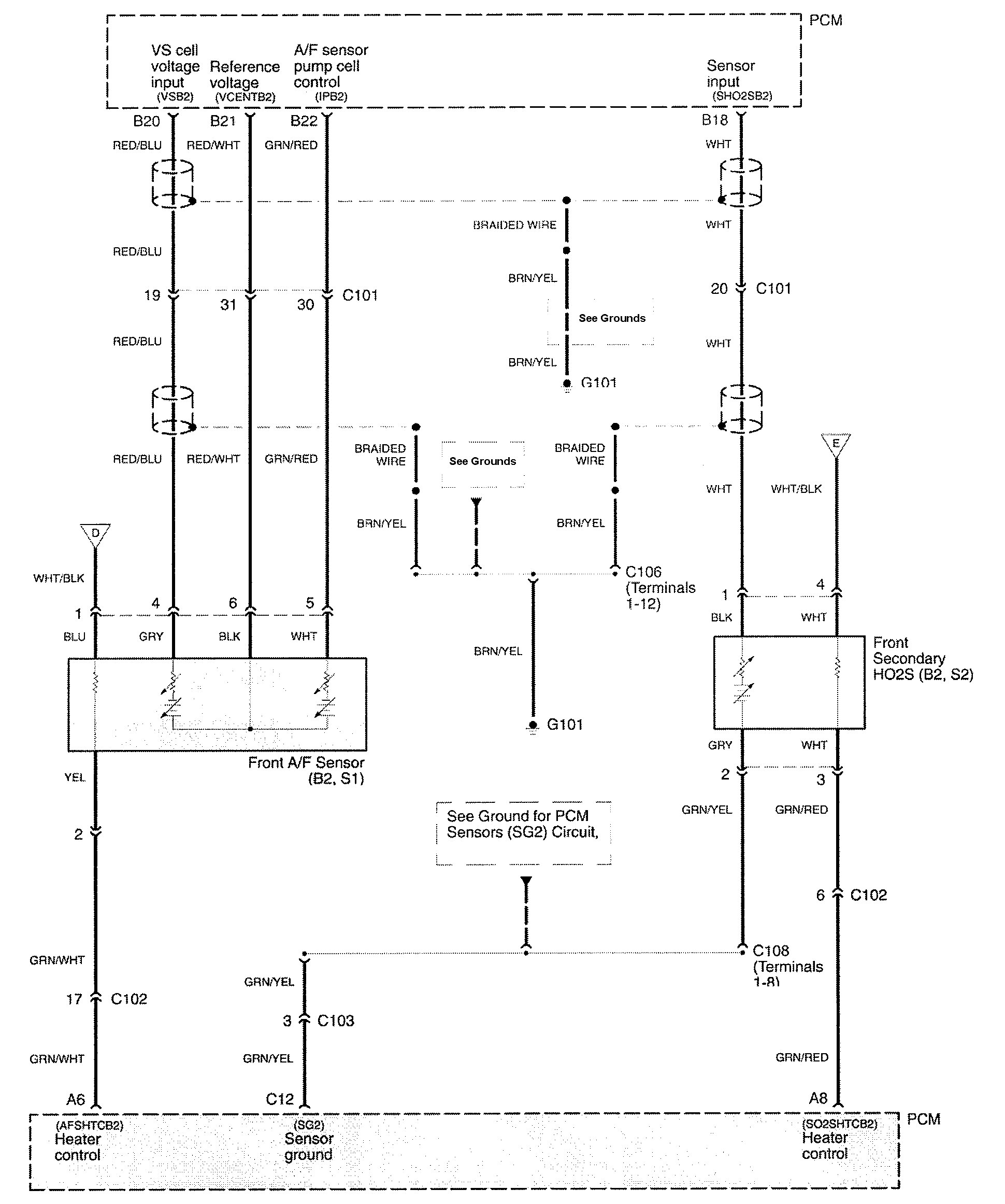

Acura RL - wiring diagram - fuel controls (part 7) — Acura RL – wiring diagram – fuel controls (part 7)

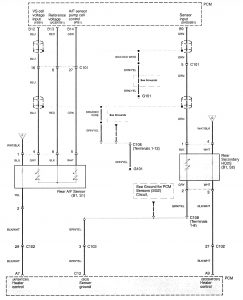

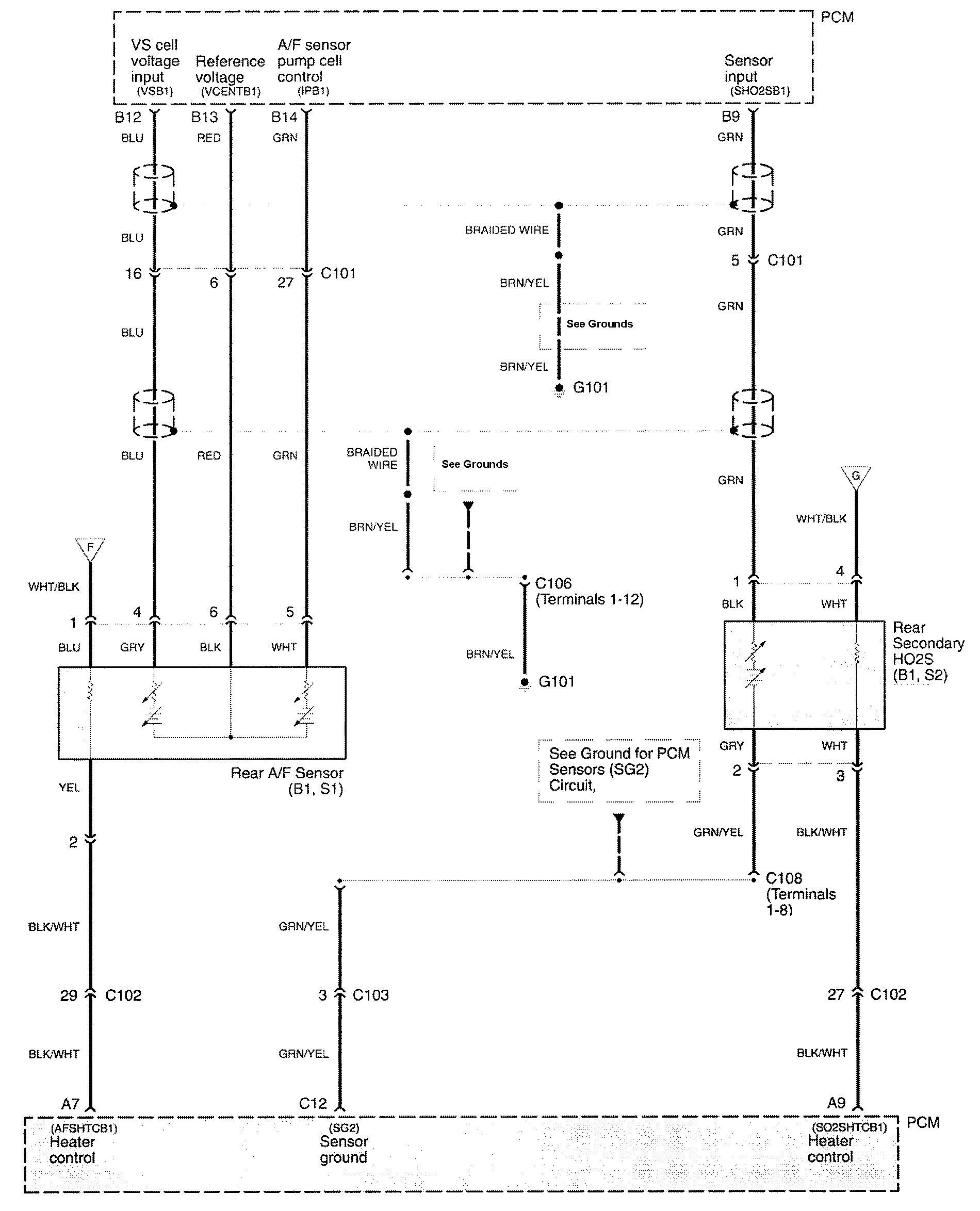

Acura RL - wiring diagram - fuel controls (part 8) — Acura RL – wiring diagram – fuel controls (part 8)

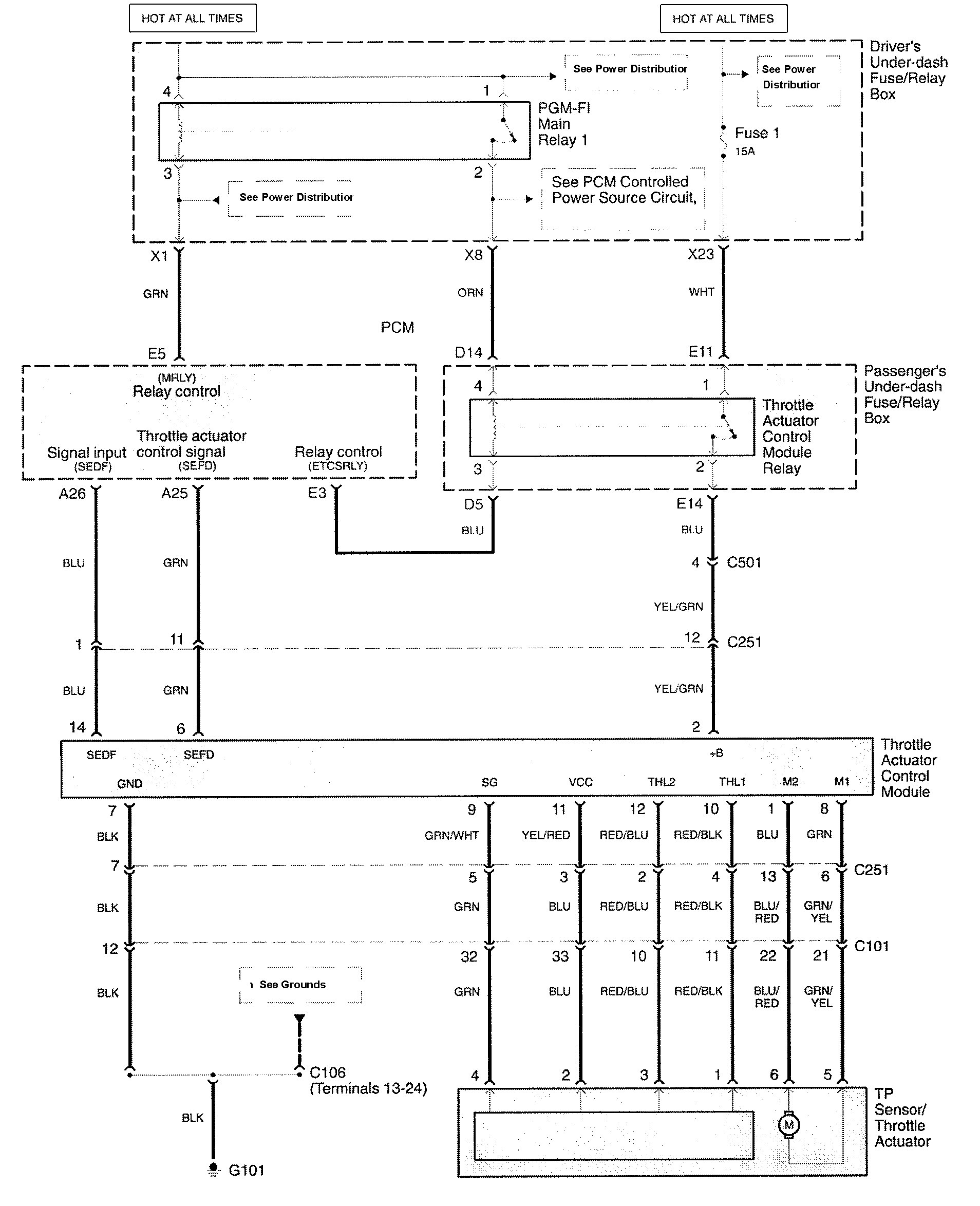

Acura RL - wiring diagram - fuel controls (part 9) — Acura RL – wiring diagram – fuel controls (part 9)

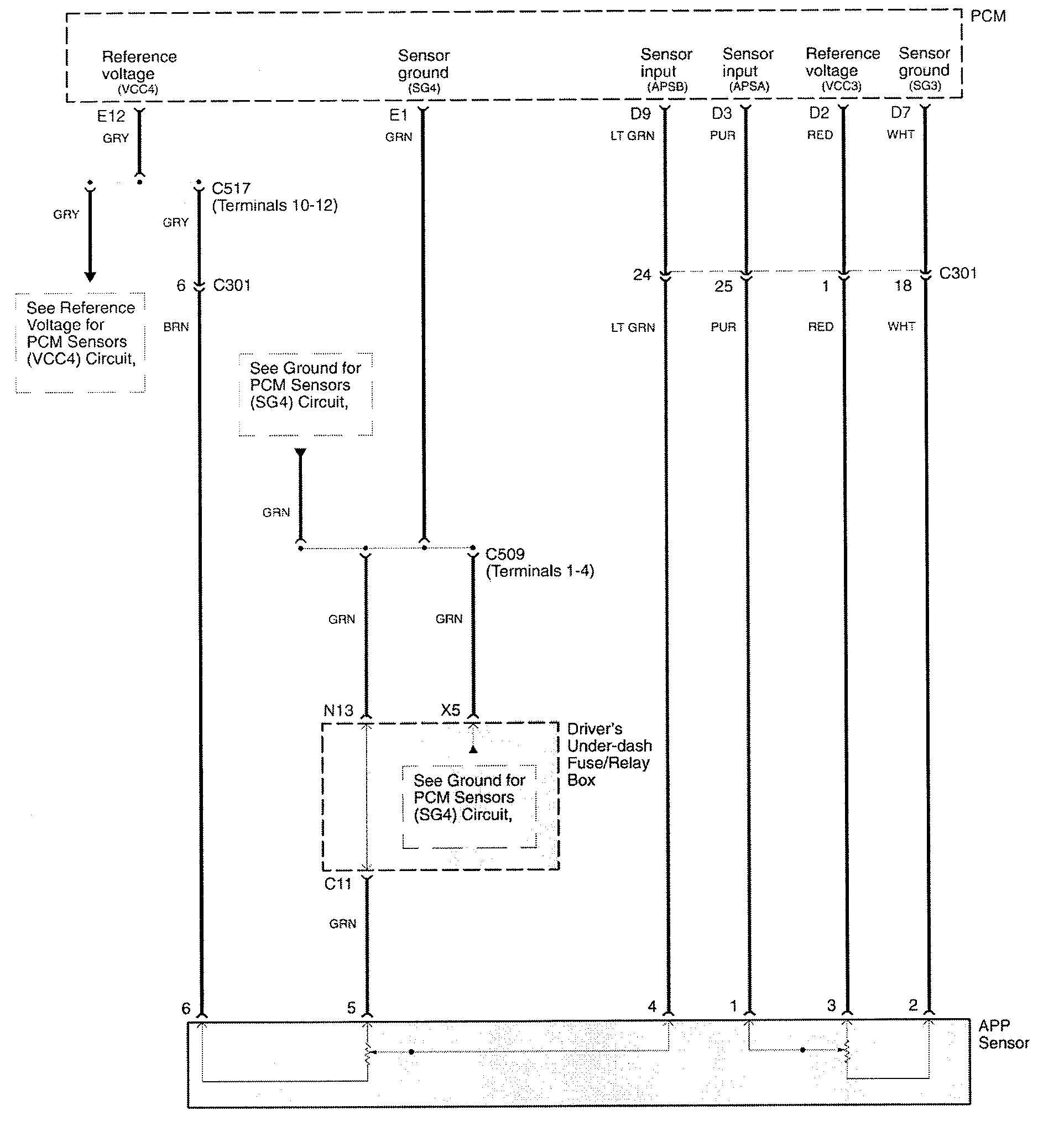

Acura RL - wiring diagram - fuel controls (part 10) — Acura RL – wiring diagram – fuel controls (part 10)

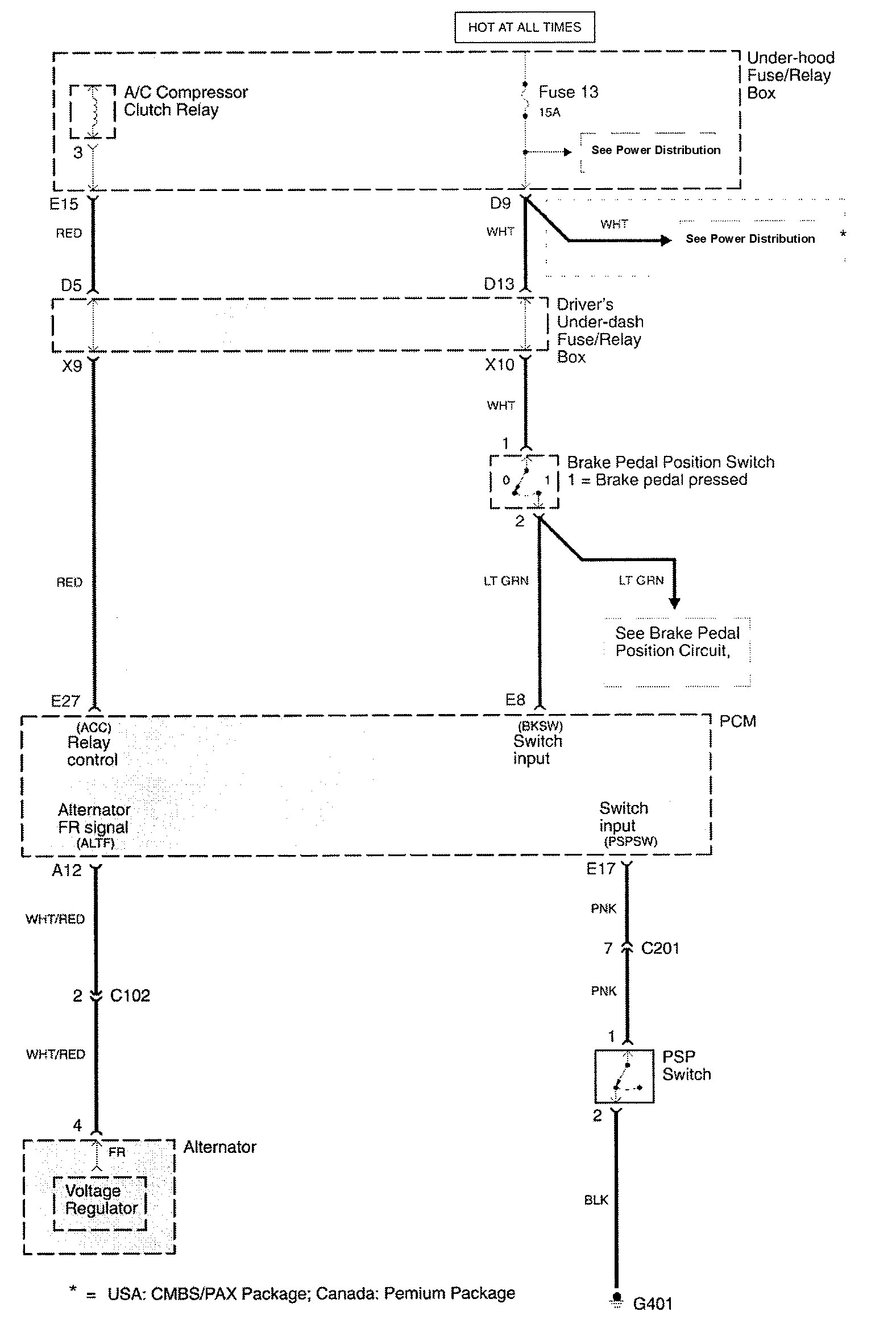

Acura RL - wiring diagram - fuel controls (part 11) — Acura RL – wiring diagram – fuel controls (part 11)

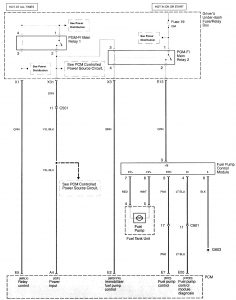

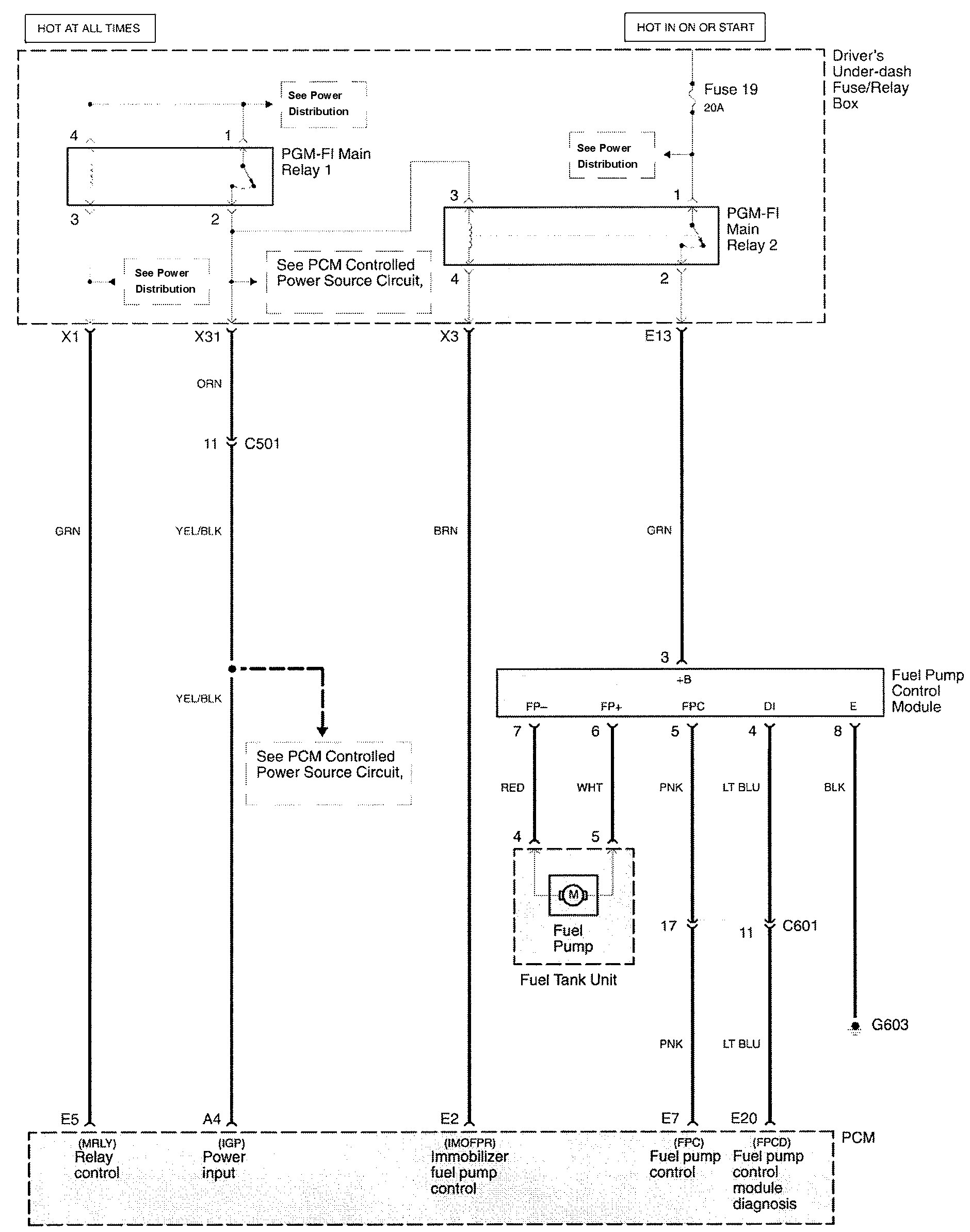

Acura RL - wiring diagram - fuel controls (part 12) — Acura RL – wiring diagram – fuel controls (part 12)

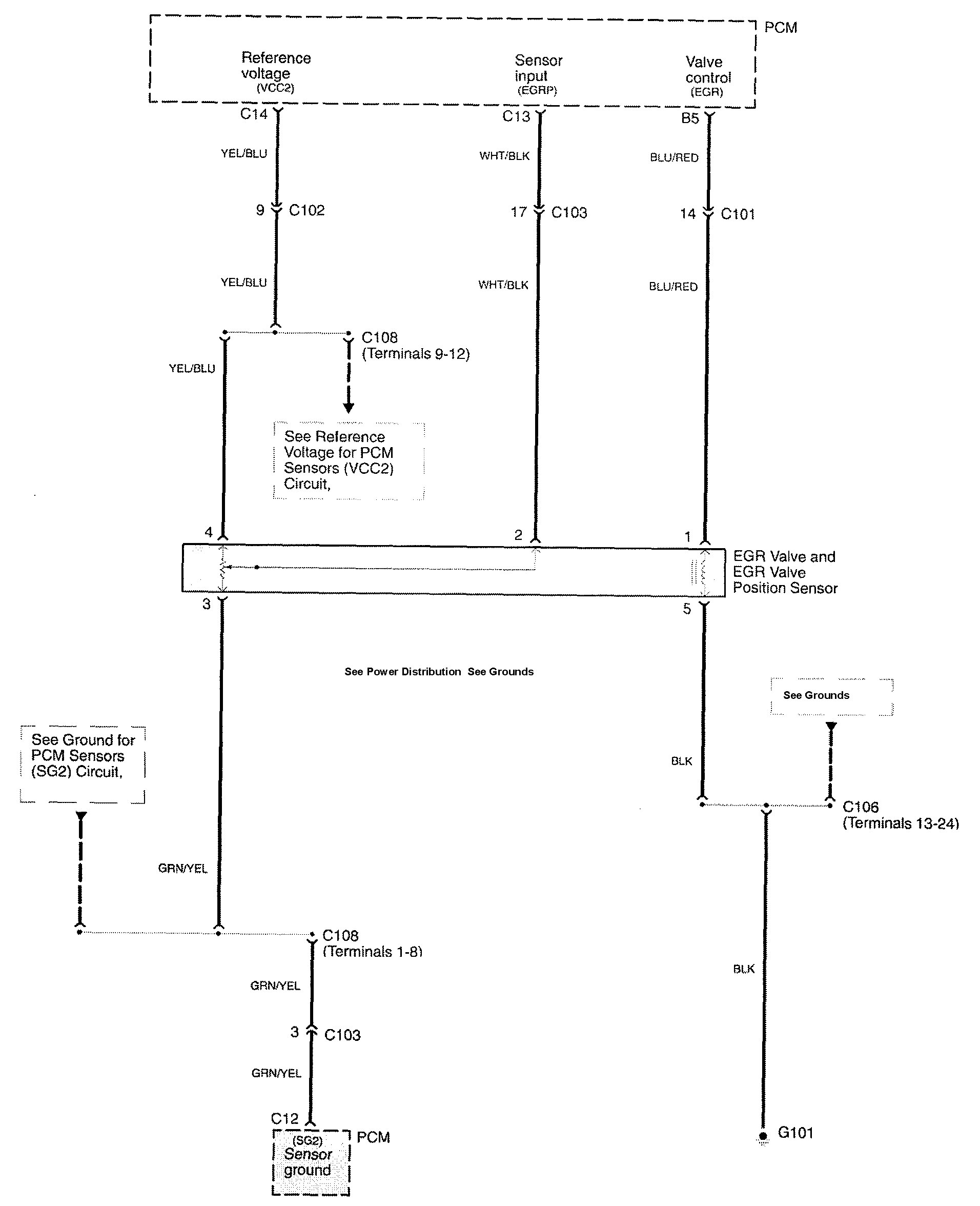

Acura RL - wiring diagram - fuel controls (part 13) — Acura RL – wiring diagram – fuel controls (part 13)

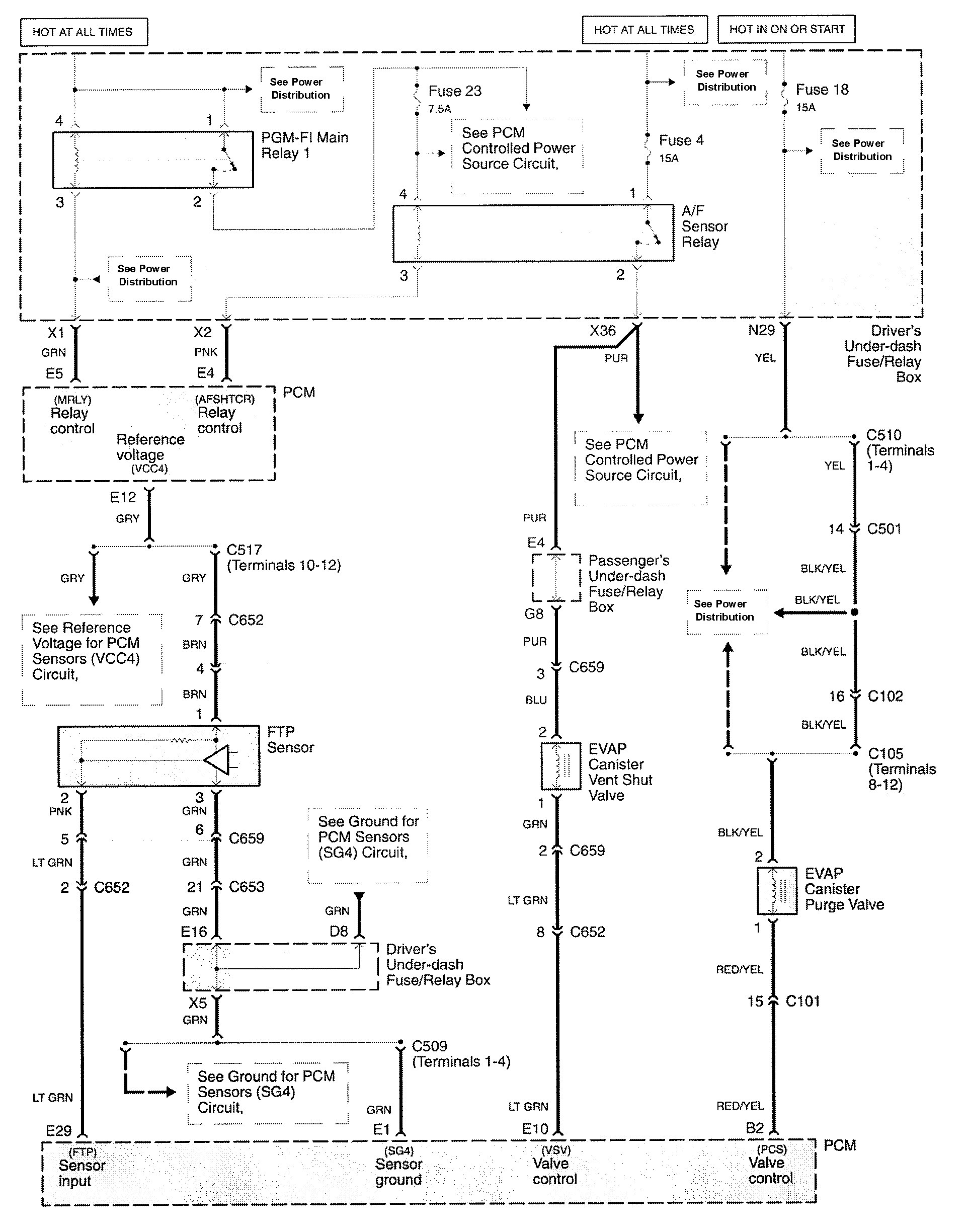

Acura RL - wiring diagram - fuel controls (part 14) — Acura RL – wiring diagram – fuel controls (part 14)

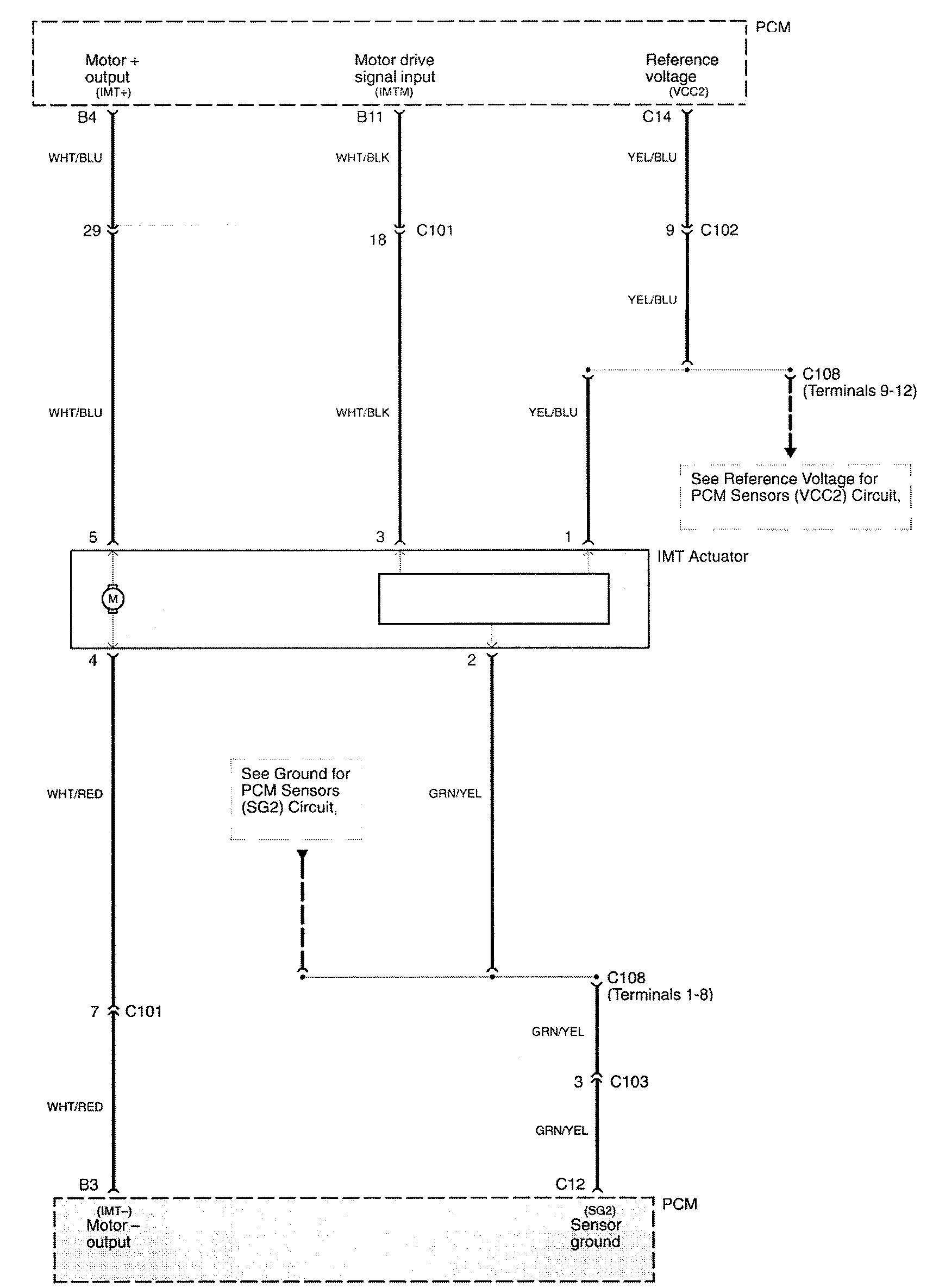

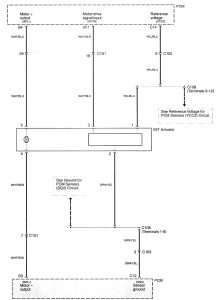

Acura RL - wiring diagram - fuel controls (part 15) — Acura RL – wiring diagram – fuel controls (part 15)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
