Acura RL (2009 – 2011) – wiring diagrams – ignition

Acura RL (2009 – 2011) – wiring diagrams – ignition

Year of productions:  2009, 2010, 2011

Ignition

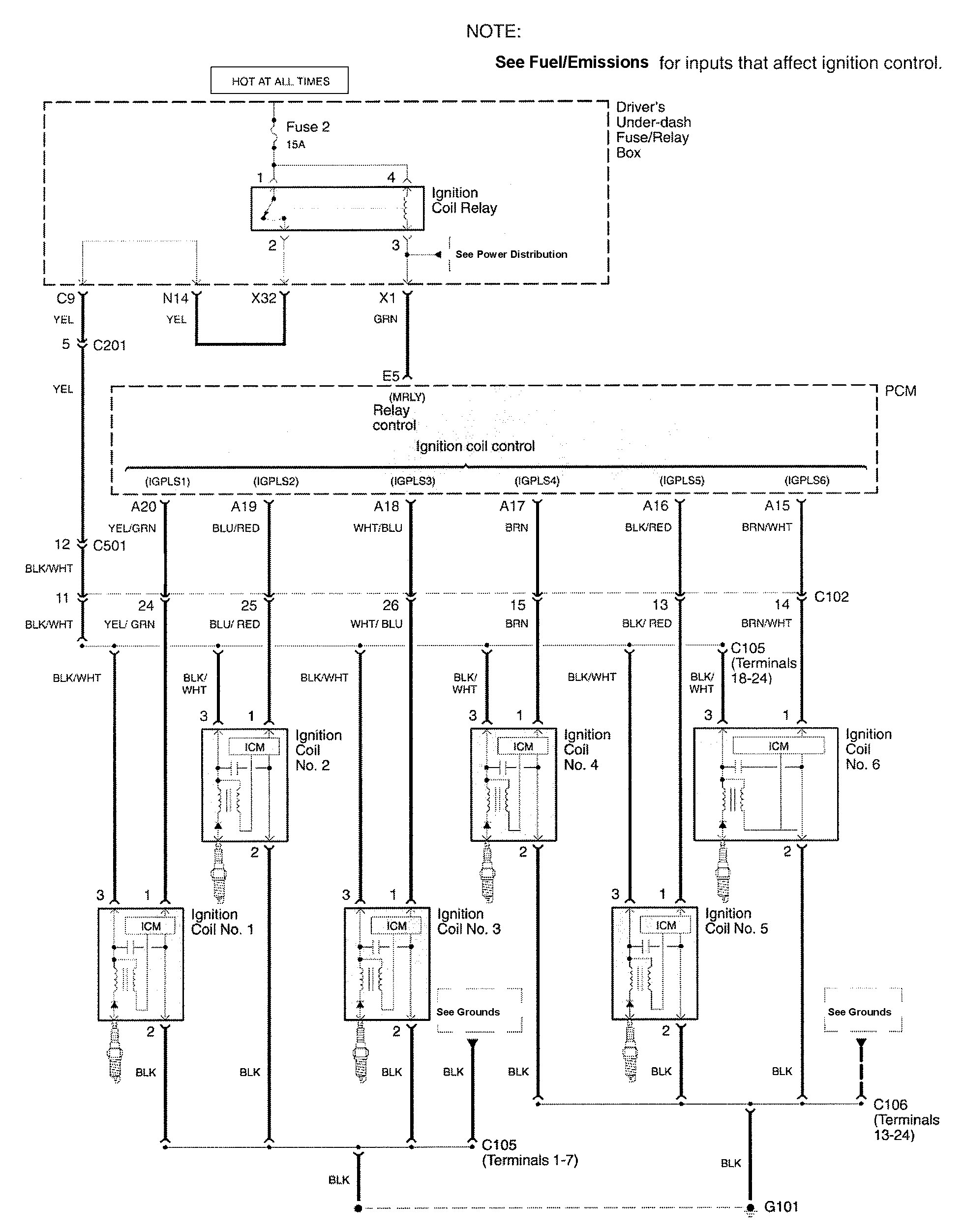

Acura RL - wiring diagram - ignition
Acura RL – wiring diagram – ignition

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
