Acura RL (2009) – wiring diagrams – interior lighting

Year of productions:  2009

Interior lighting

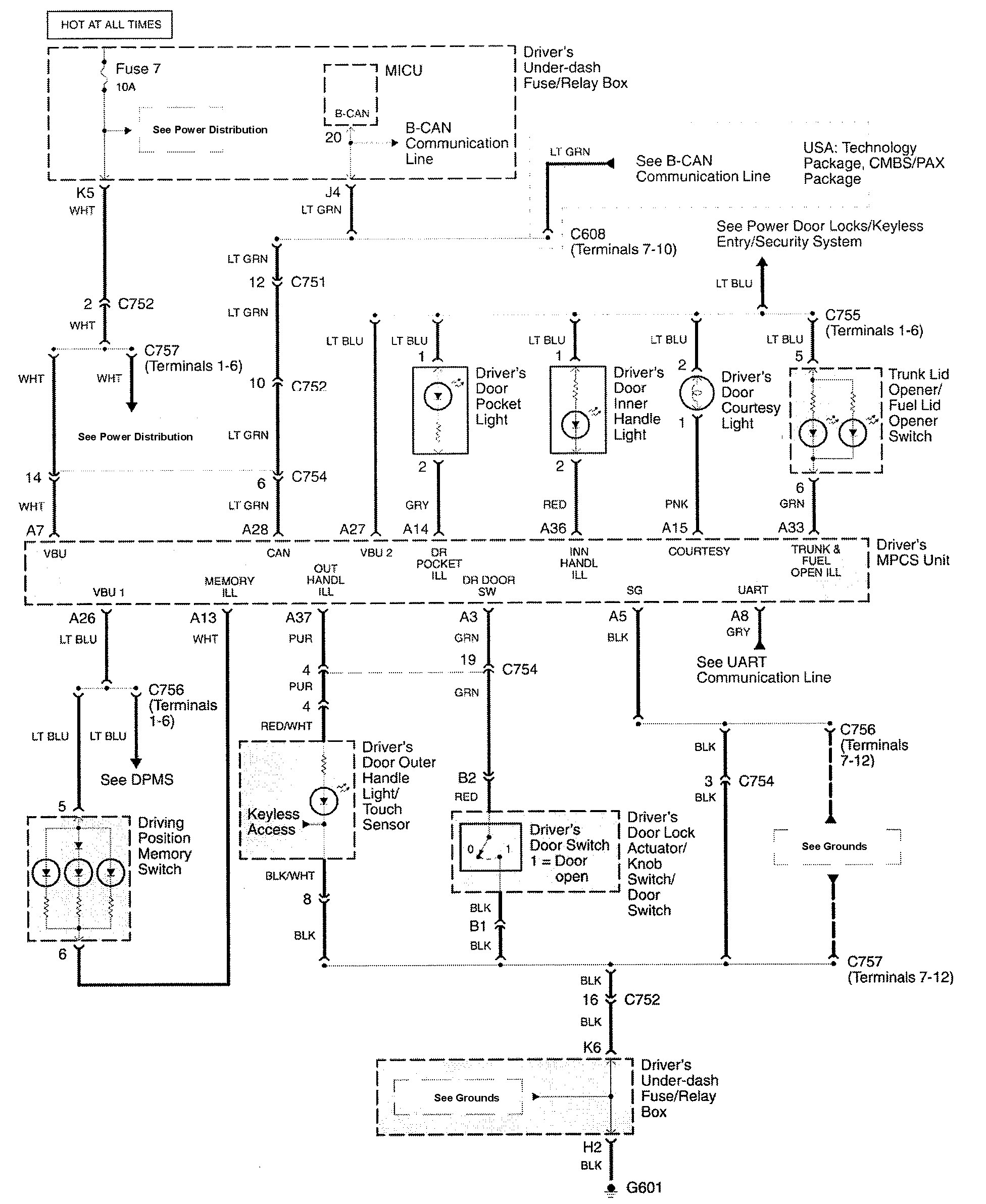

Acura RL - wiring diagram - interior lighting (part 1)
Acura RL – wiring diagram – interior lighting (part 1)

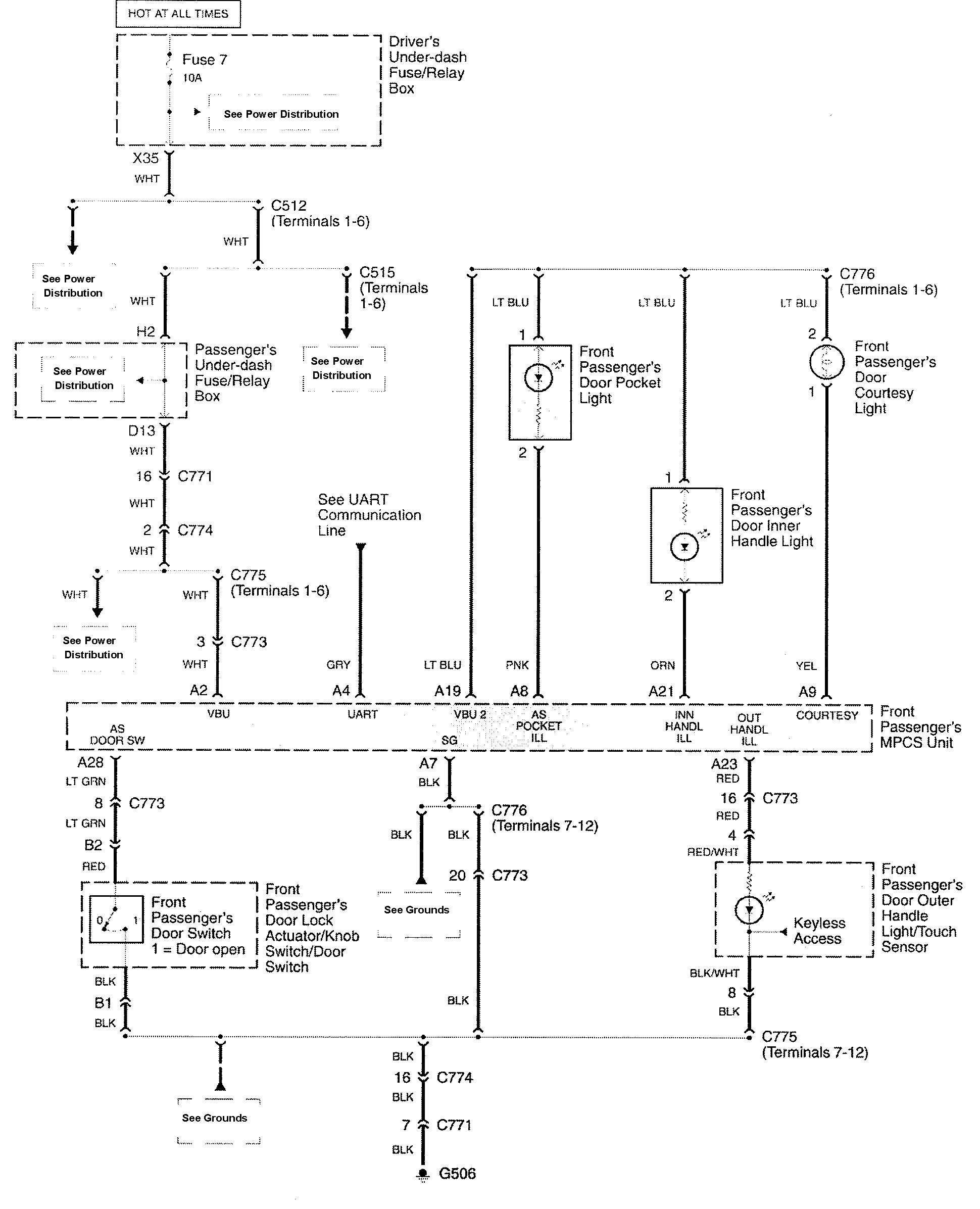

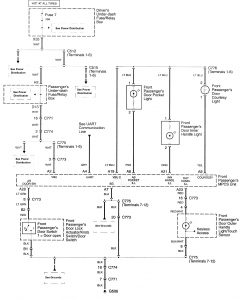

Acura RL - wiring diagram - interior lighting (part 2)
Acura RL – wiring diagram – interior lighting (part 2)

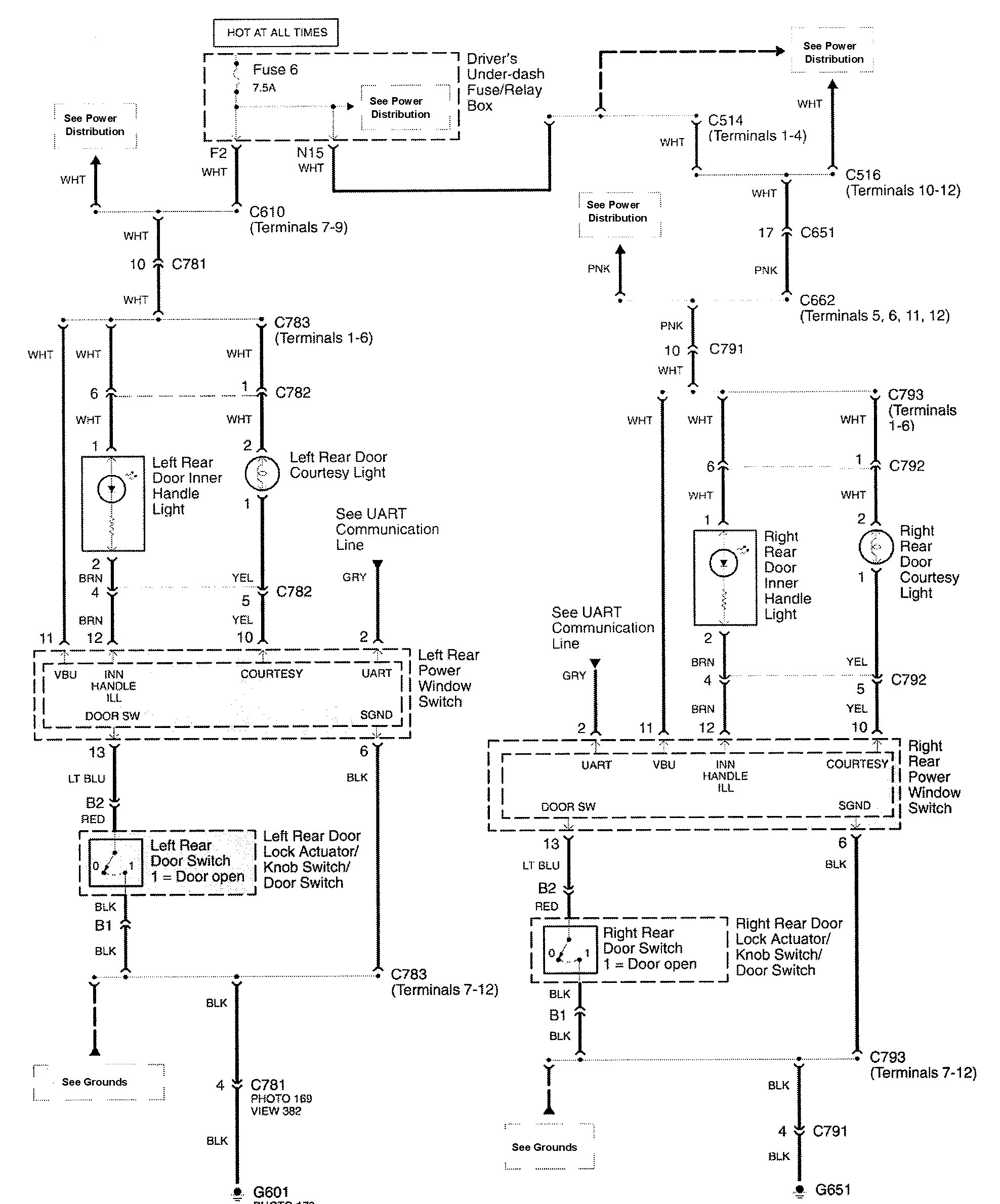

Acura RL - wiring diagram - interior lighting (part 3)
Acura RL – wiring diagram – interior lighting (part 3)

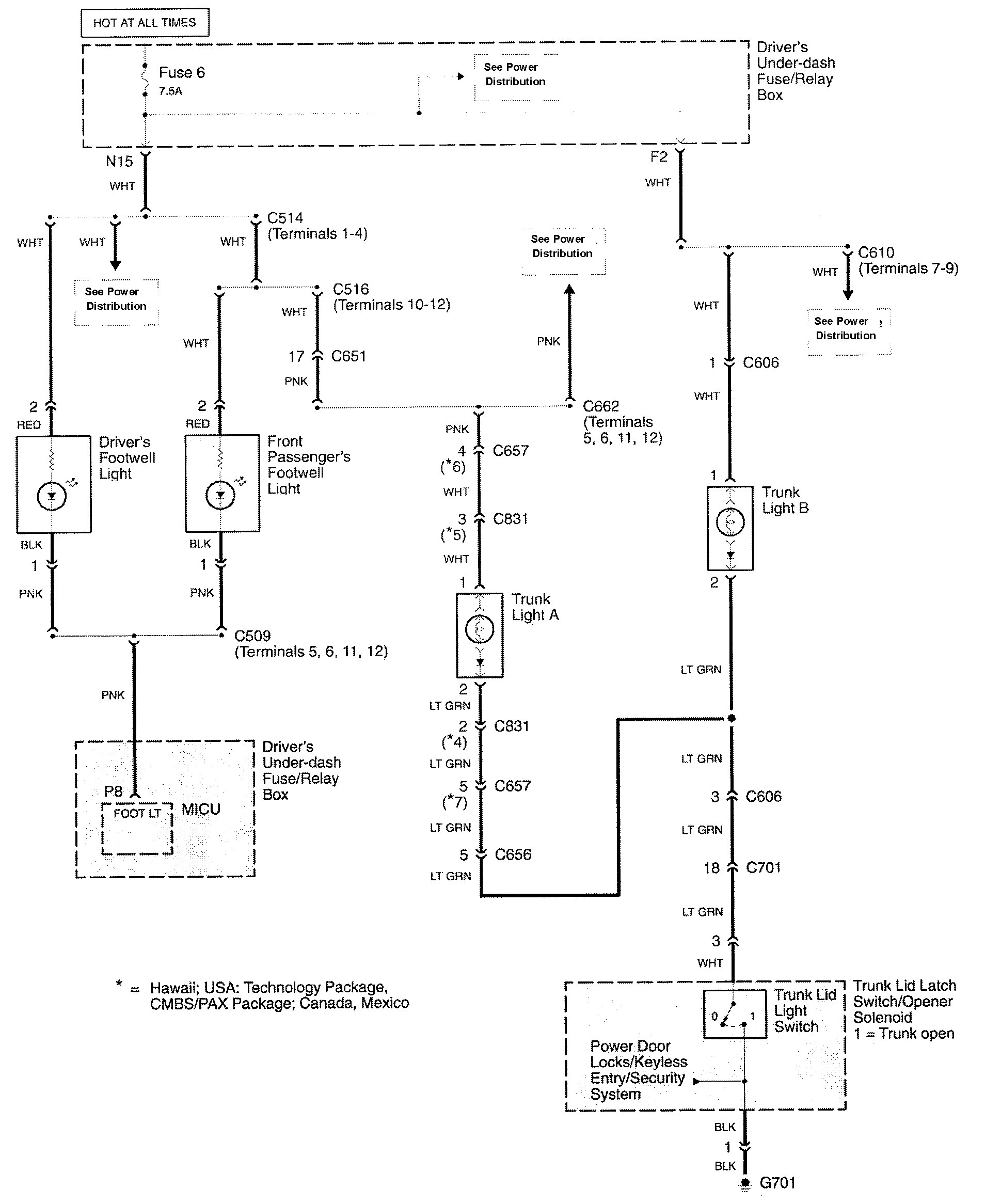

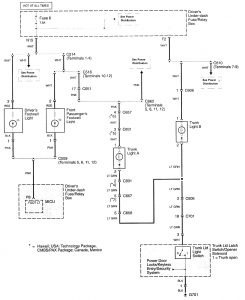

Acura RL - wiring diagram - interior lighting (part 4)
Acura RL – wiring diagram – interior lighting (part 4)

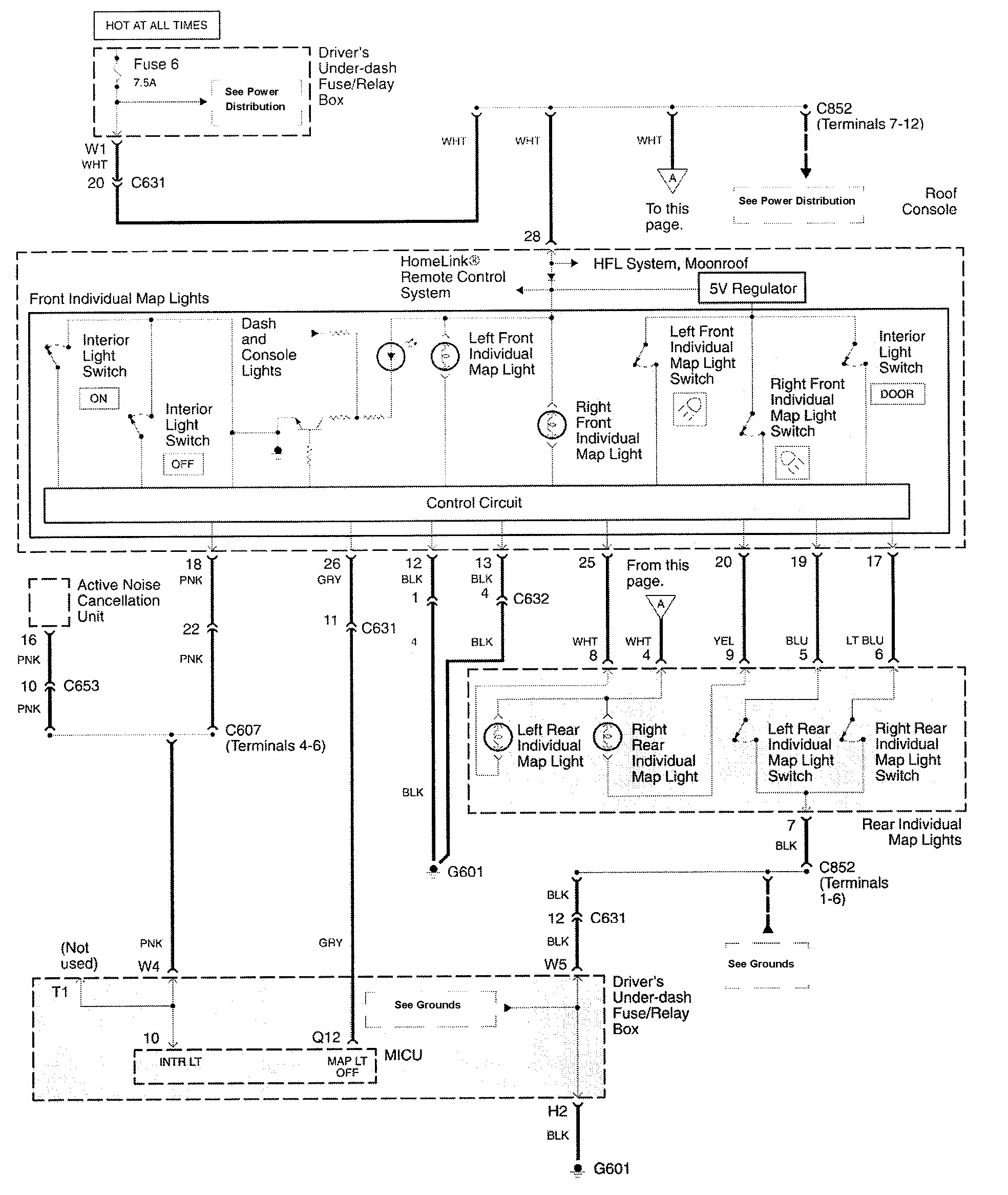

Acura RL - wiring diagram - interior lighting (part 5)
Acura RL – wiring diagram – interior lighting (part 5)

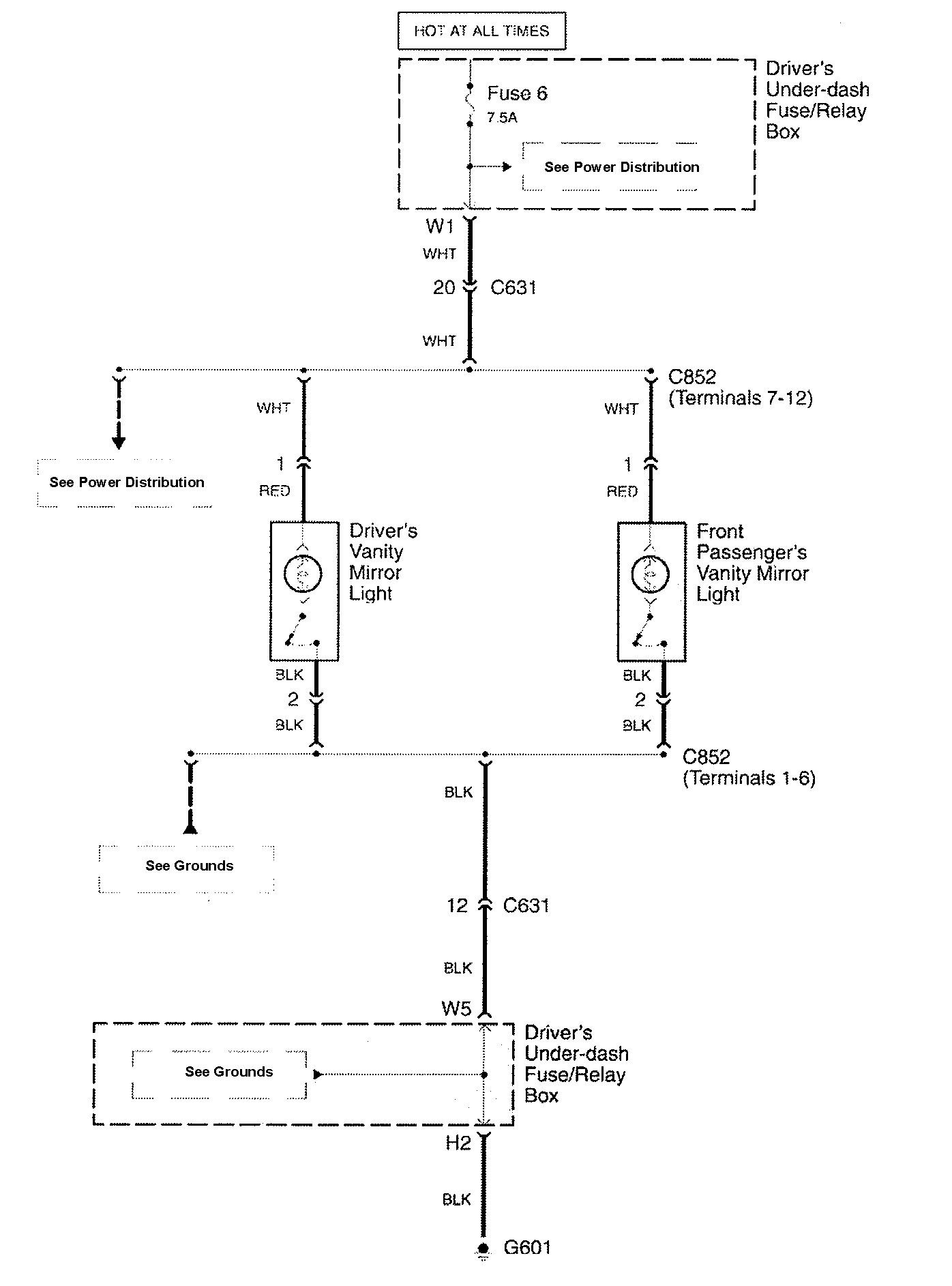

Acura RL - wiring diagram - interior lighting (part 6)
Acura RL – wiring diagram – interior lighting (part 6)

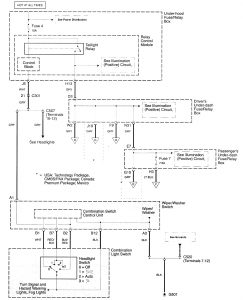

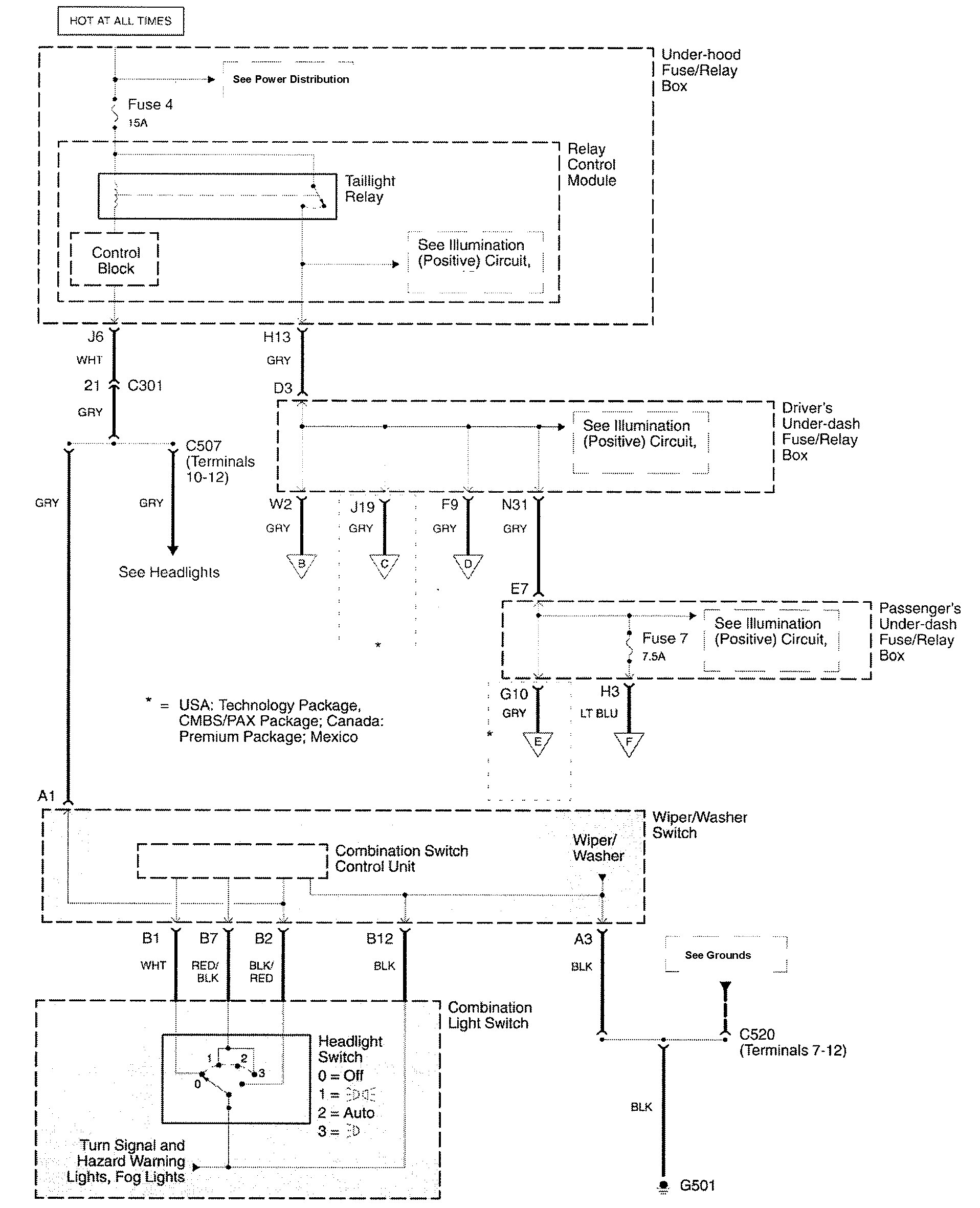

Acura RL - wiring diagram - interior lighting (part 7)
Acura RL – wiring diagram – interior lighting (part 7)

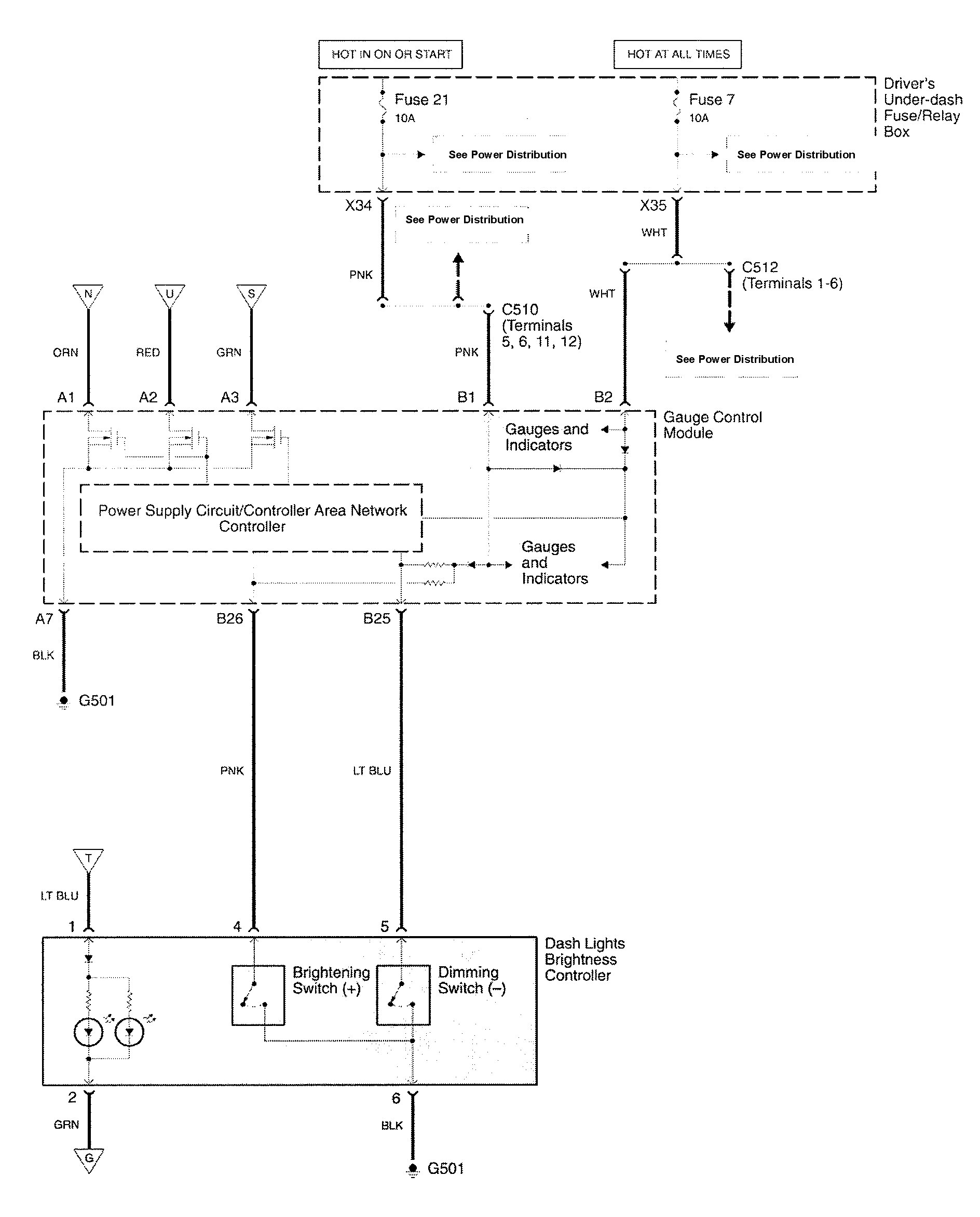

Acura RL - wiring diagram - interior lighting (part 8)
Acura RL – wiring diagram – interior lighting (part 8)

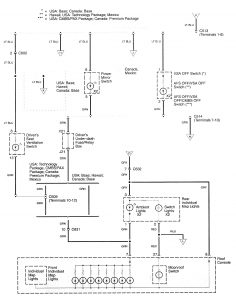

Acura RL - wiring diagram - interior lighting (part 9)
Acura RL – wiring diagram – interior lighting (part 9)

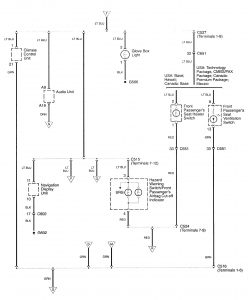

Acura RL - wiring diagram - interior lighting (part 10)
Acura RL – wiring diagram – interior lighting (part 10)

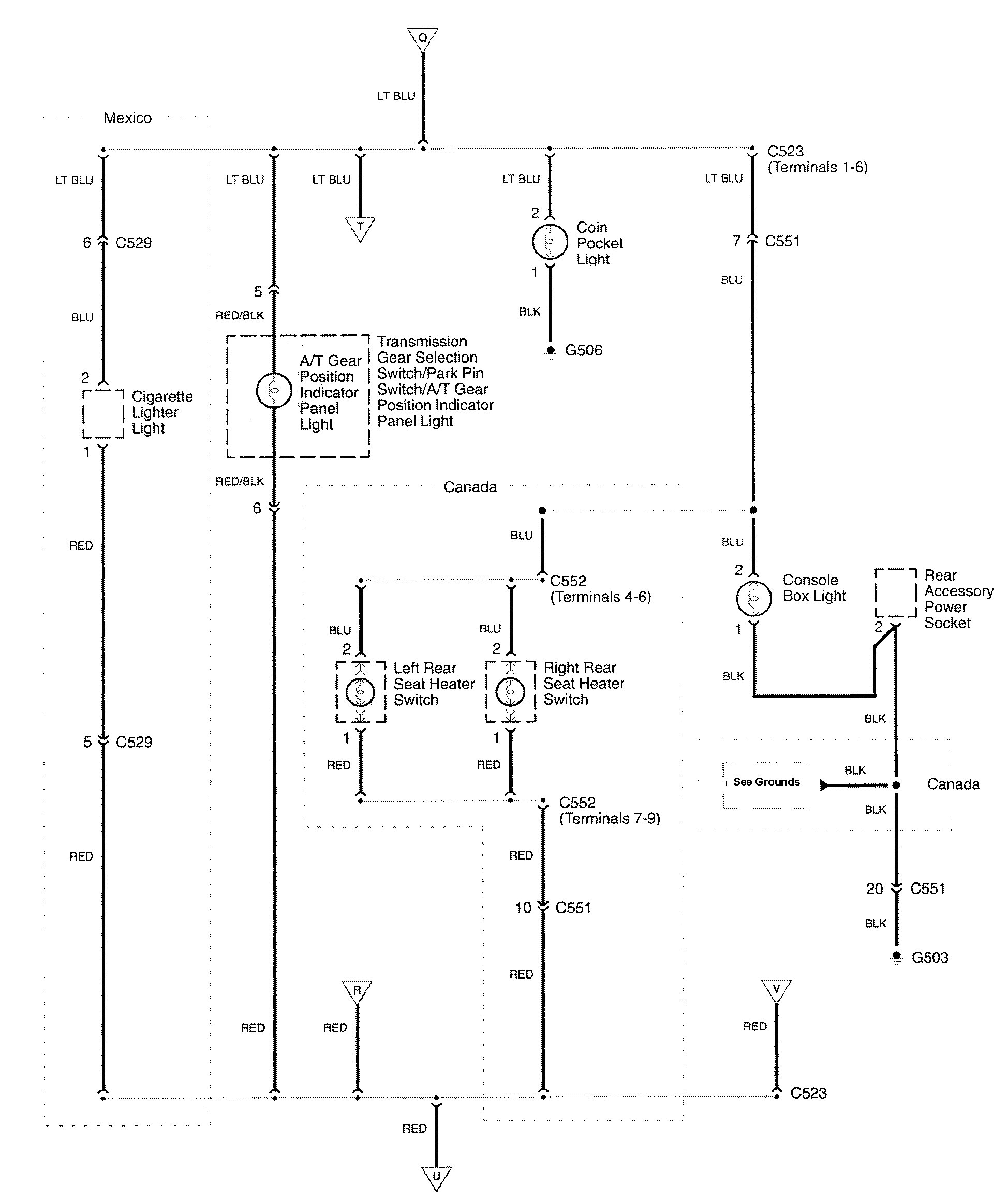

Acura RL - wiring diagram - interior lighting (part 11)
Acura RL – wiring diagram – interior lighting (part 11)

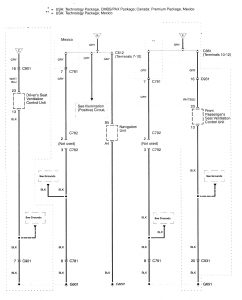

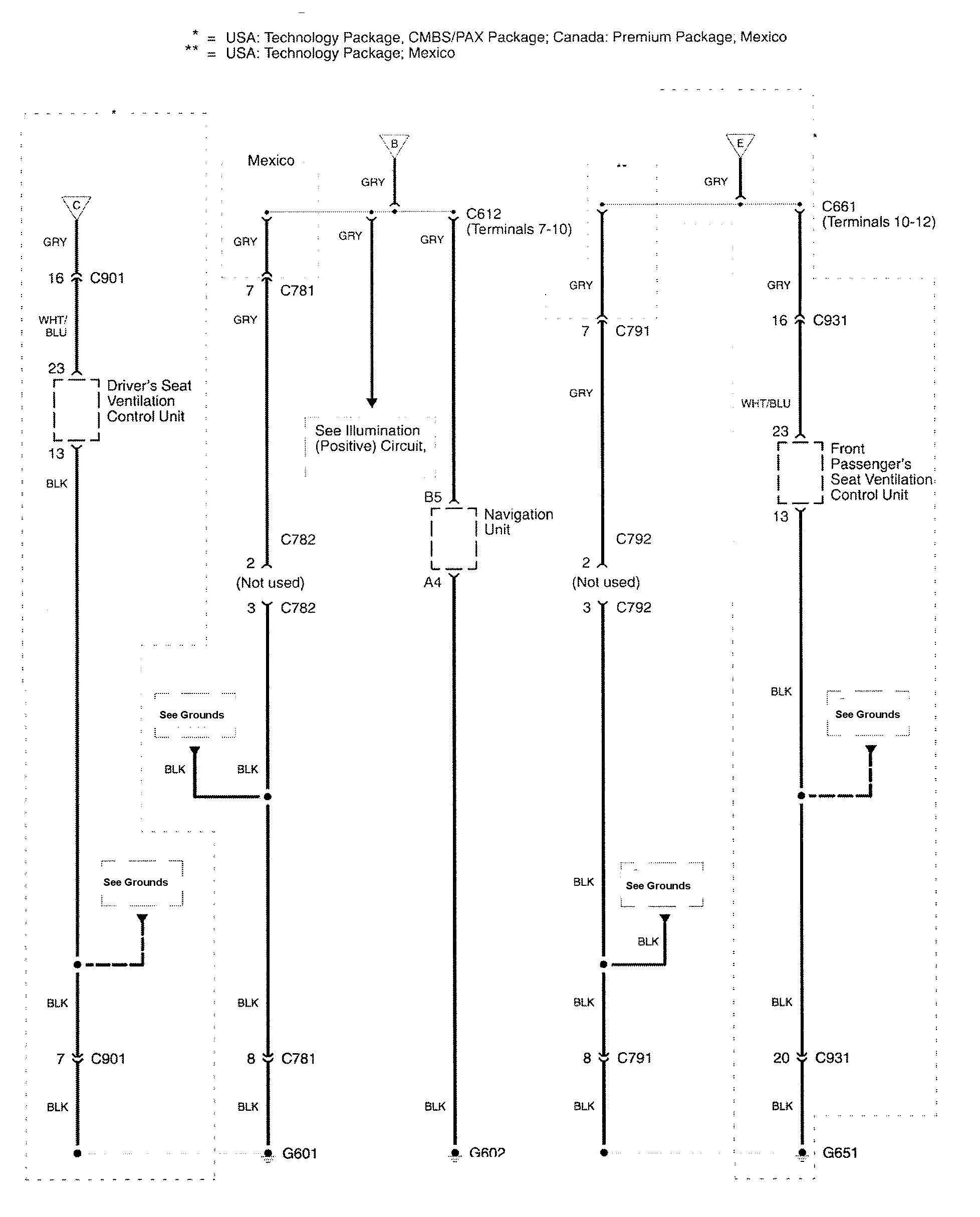

Acura RL - wiring diagram - interior lighting (part 12)
Acura RL – wiring diagram – interior lighting (part 12)

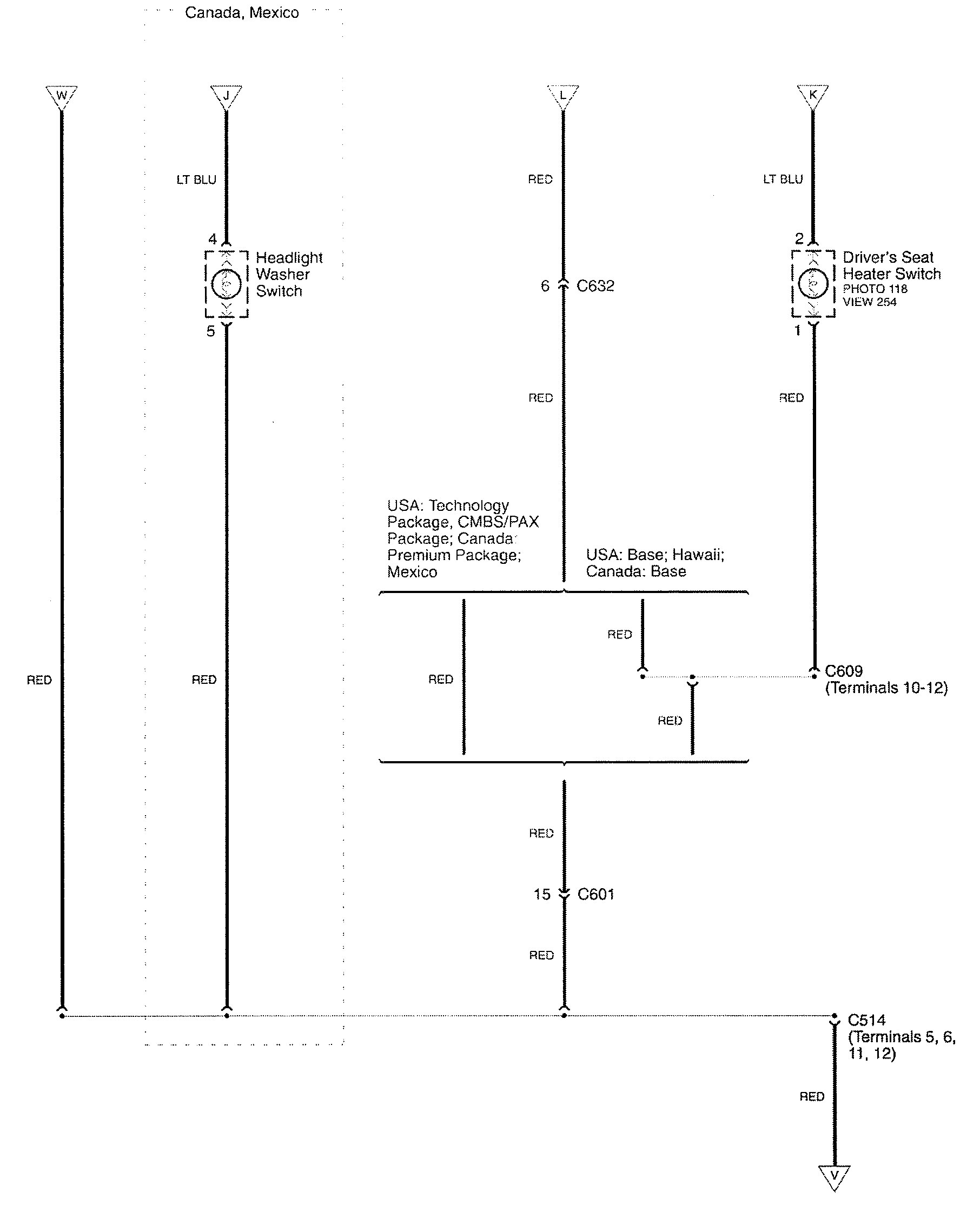

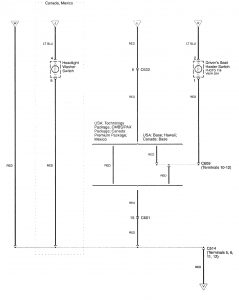

Acura RL - wiring diagram - interior lighting (part 13)
Acura RL – wiring diagram – interior lighting (part 13)

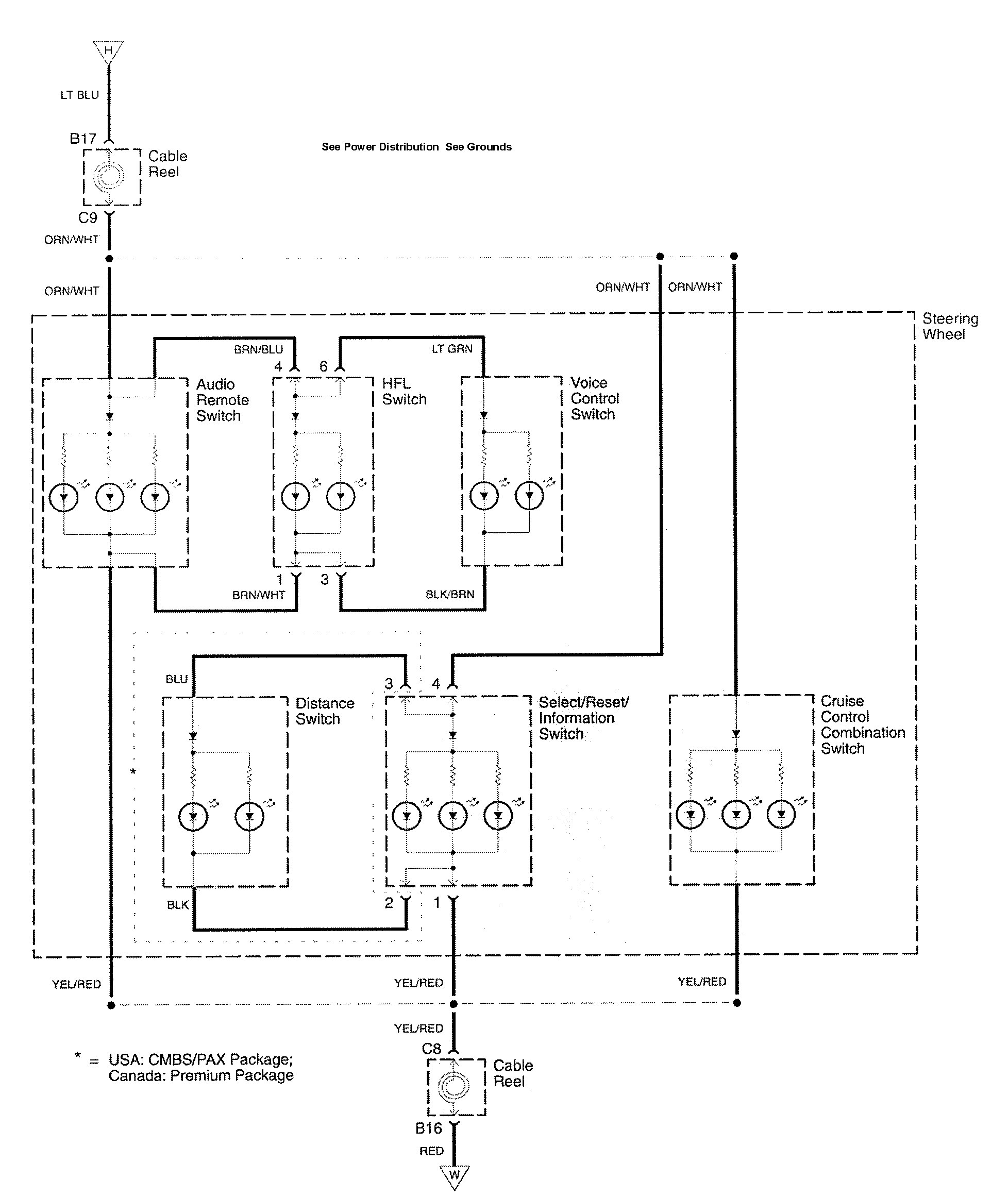

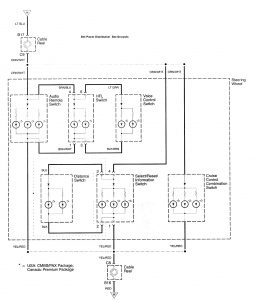

Acura RL - wiring diagram - interior lighting (part 14)
Acura RL – wiring diagram – interior lighting (part 14)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
