Acura RL (2009 – 2010) – wiring diagrams – power/auxiliary outlet

Acura RL (2009 – 2010) – wiring diagrams – power/auxiliary outlet

Year of productions:  2009, 2010

Power/auxiliary outlet

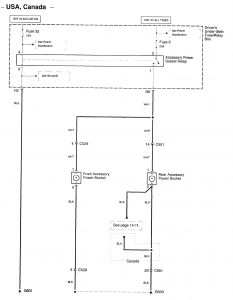

Acura RL - wiring diagram - power/auxiliary outlet
Acura RL – wiring diagram – power/auxiliary outlet

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
