Acura RL (2009 – 2011) – wiring diagrams – rear window defogger

Acura RL (2009 – 2011) – wiring diagrams – rear window defogger

Year of productions:  2009, 2010, 2011

Rear window defogger

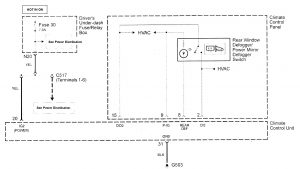

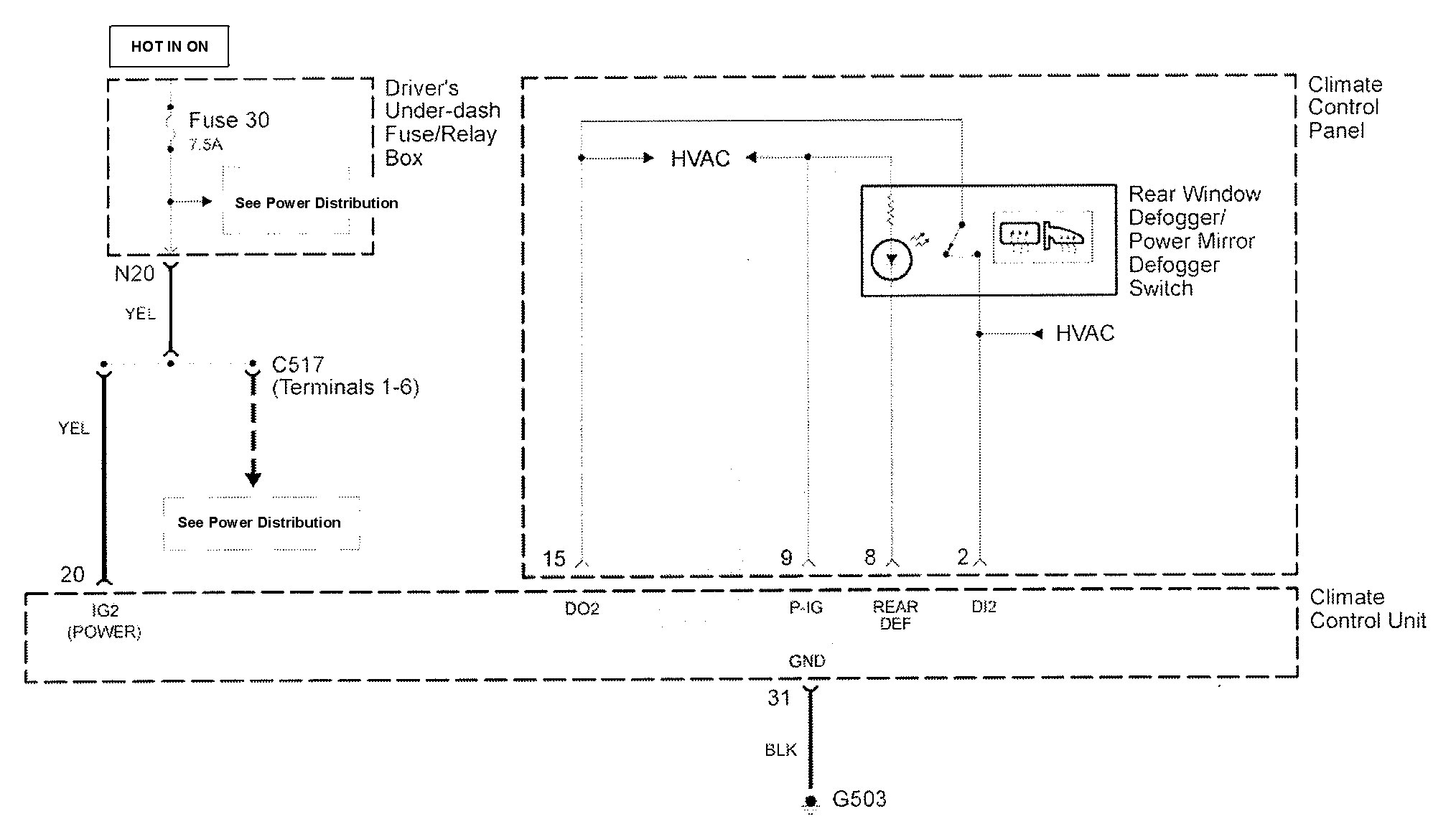

Acura RL - wiring diagram - rear window defogger (part 1)
Acura RL – wiring diagram – rear window defogger (part 1)

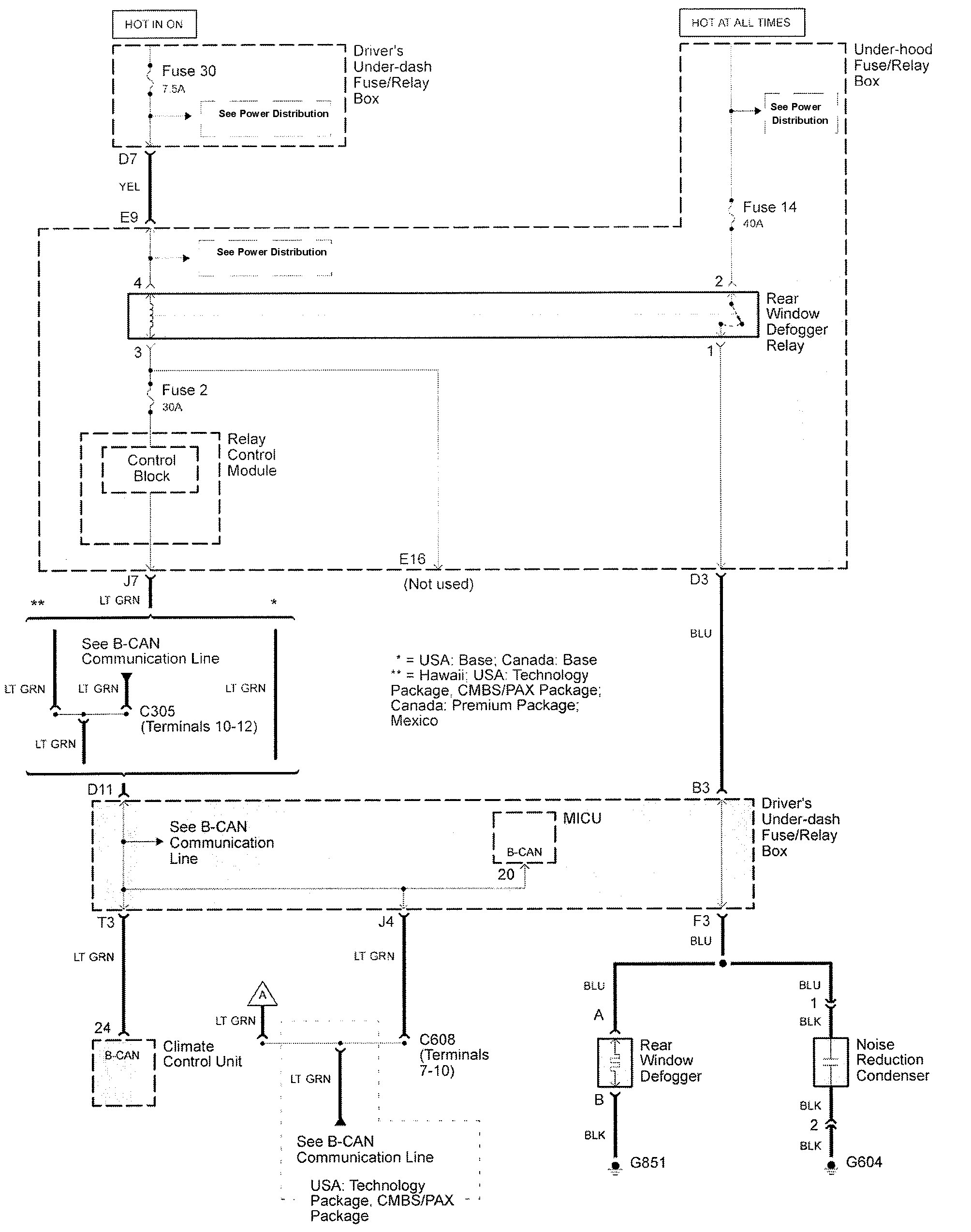

Acura RL - wiring diagram - rear window defogger (part 2)
Acura RL – wiring diagram – rear window defogger (part 2)

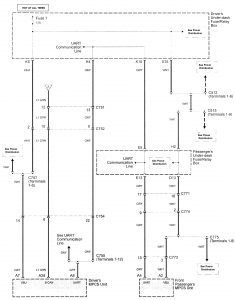

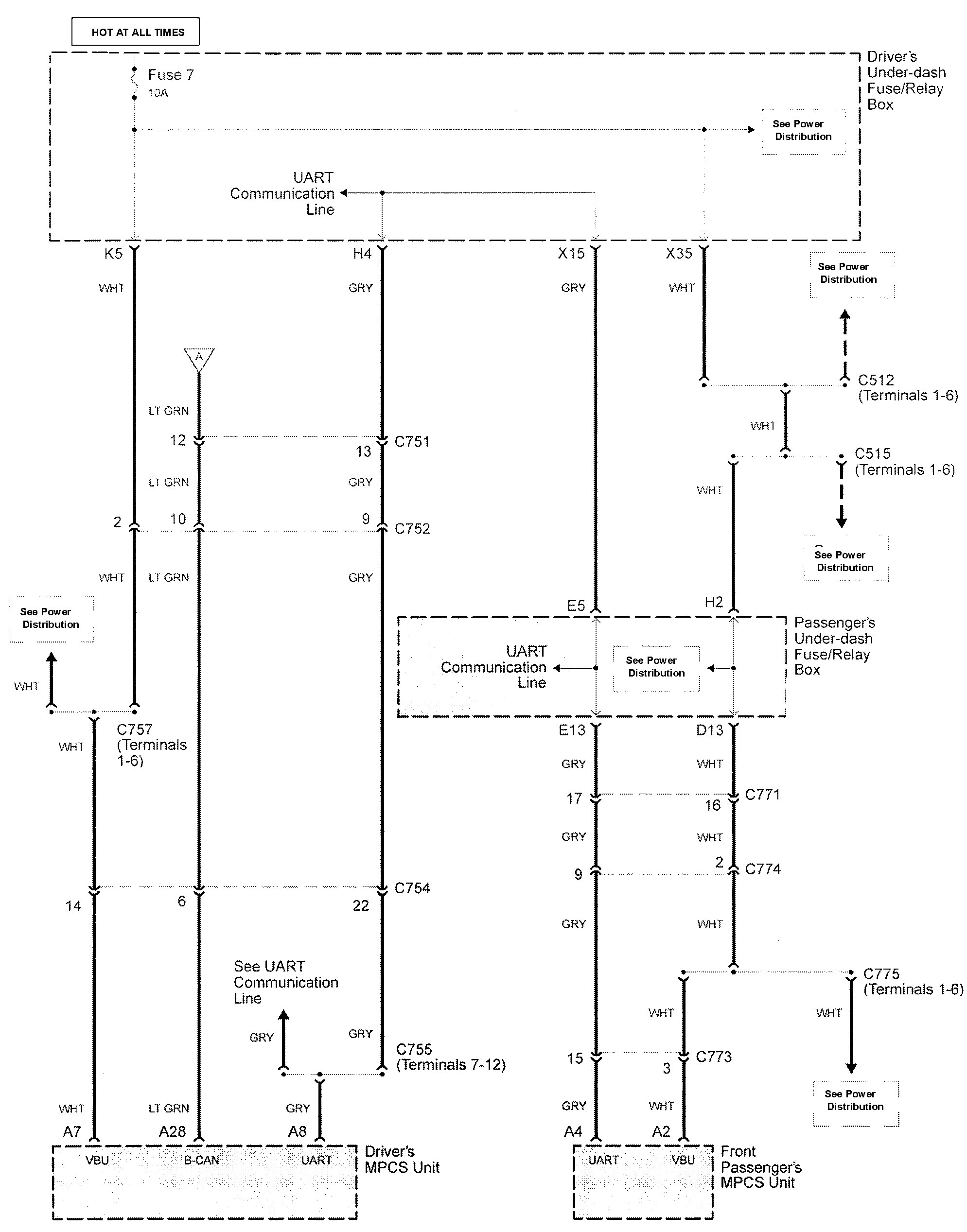

Acura RL - wiring diagram - rear window defogger (part 3)
Acura RL – wiring diagram – rear window defogger (part 3)

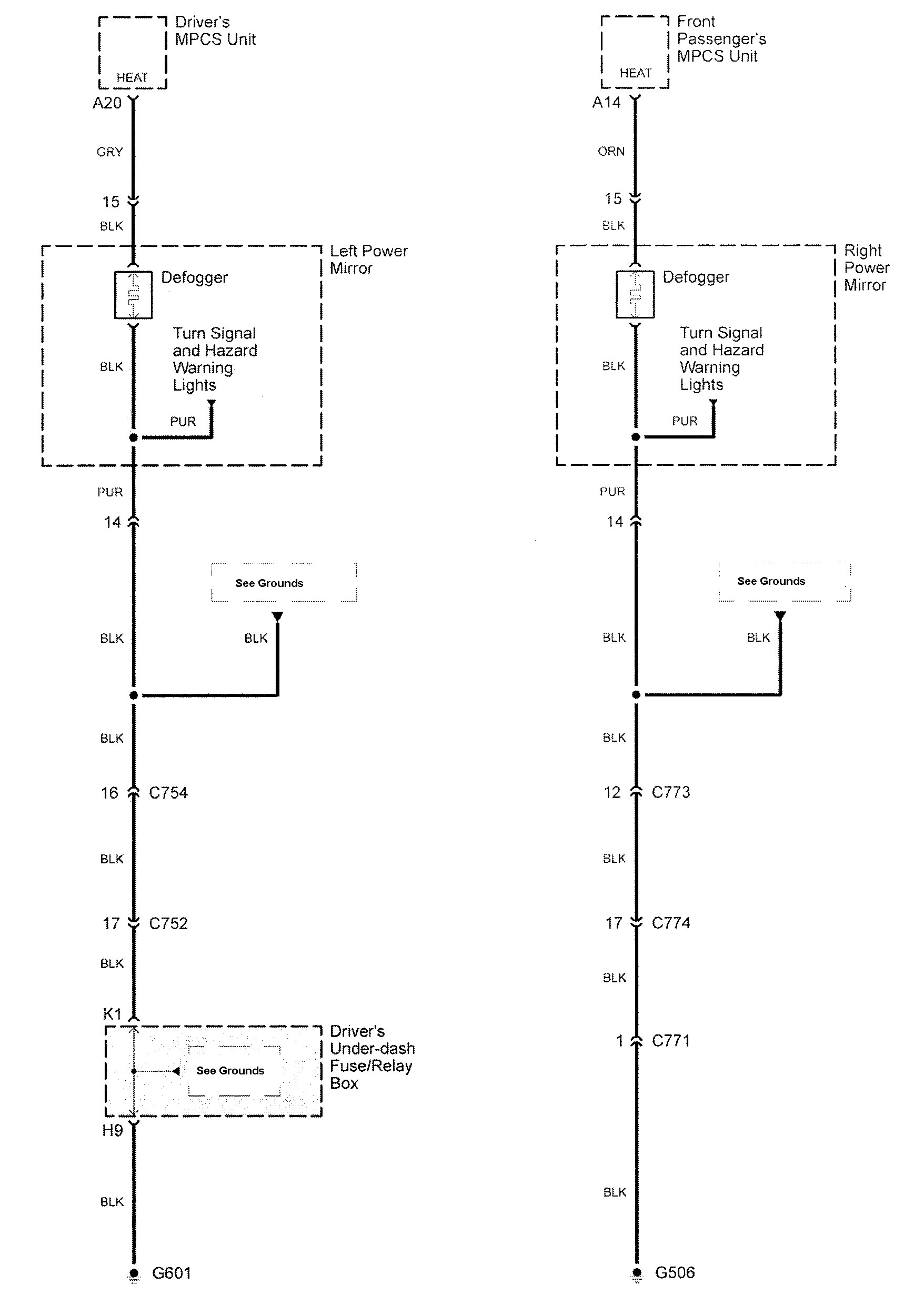

Acura RL - wiring diagram - rear window defogger (part 4)
Acura RL – wiring diagram – rear window defogger (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
