Acura RL (2009 – 2010) – wiring diagrams – security/anti-theft

16 October 2017 admin Acura, RL 0

Acura RL (2009 – 2010) – wiring diagrams – security/anti-theft

Year of productions:  2009, 2010

Security/Anti-theft

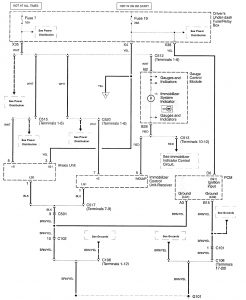

Acura RL - wiring diagram - security/ani-theft (part 1)
Acura RL – wiring diagram – security/ani-theft (part 1)

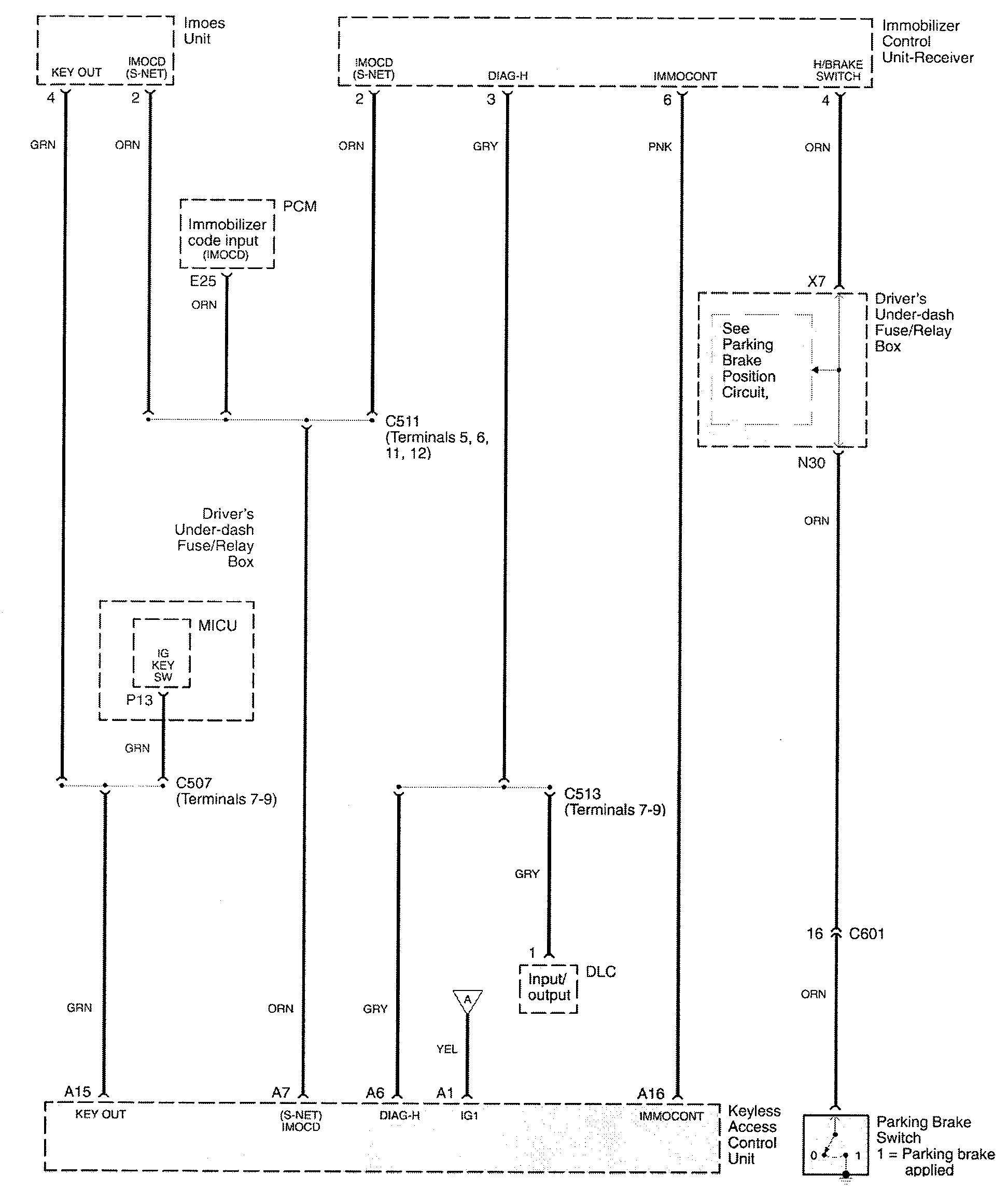

Acura RL - wiring diagram - security/ani-theft (part 2)
Acura RL – wiring diagram – security/ani-theft (part 2)

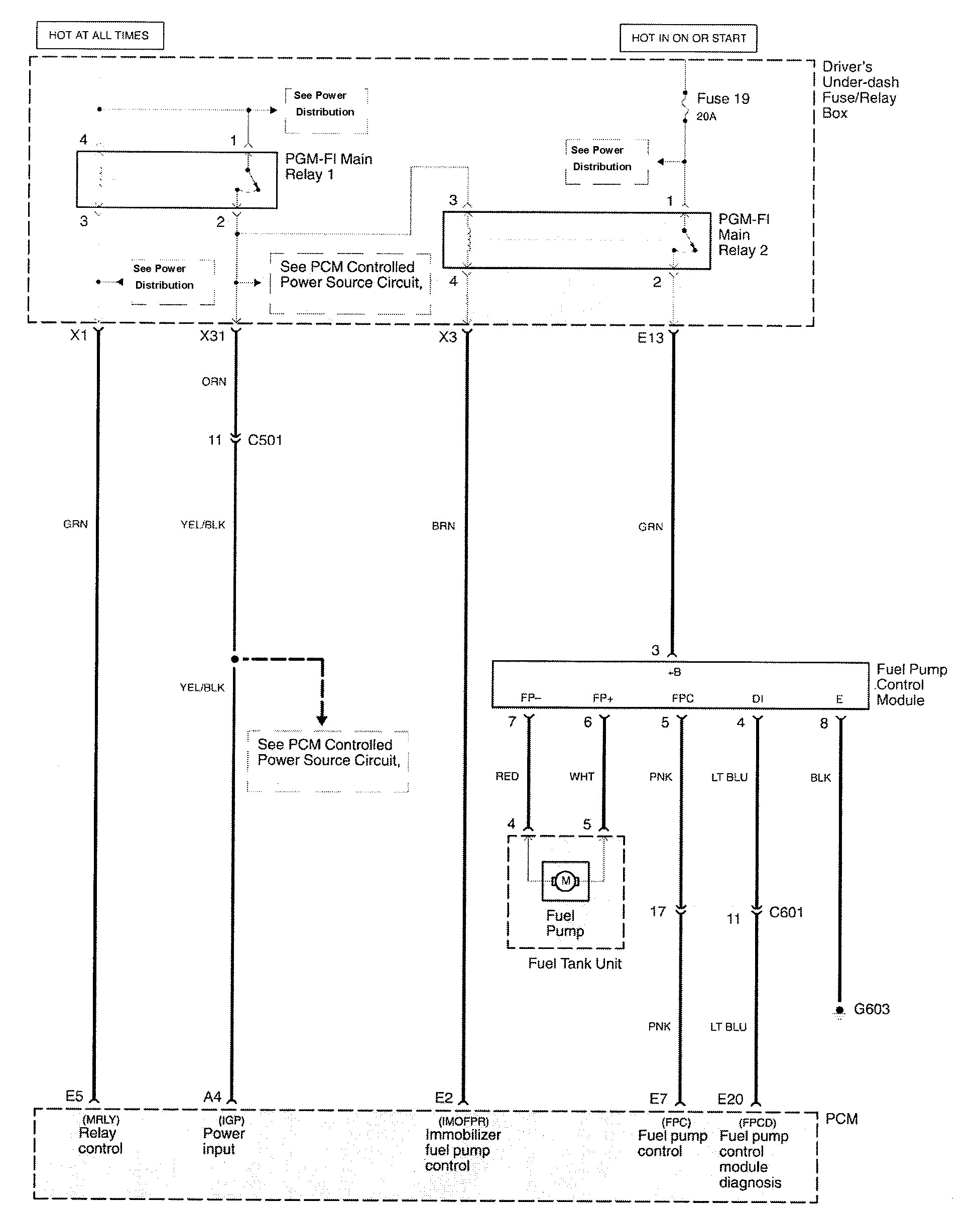

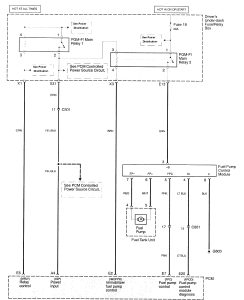

Acura RL - wiring diagram - security/ani-theft (part 3)
Acura RL – wiring diagram – security/ani-theft (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
