Acura RL (2009) – wiring diagrams – variable timing electronic control

21 October 2017 admin Acura, RL 0

Acura RL (2009) – wiring diagrams – variable timing electronic control

Year of productions:  2009

Variable timing electronic control

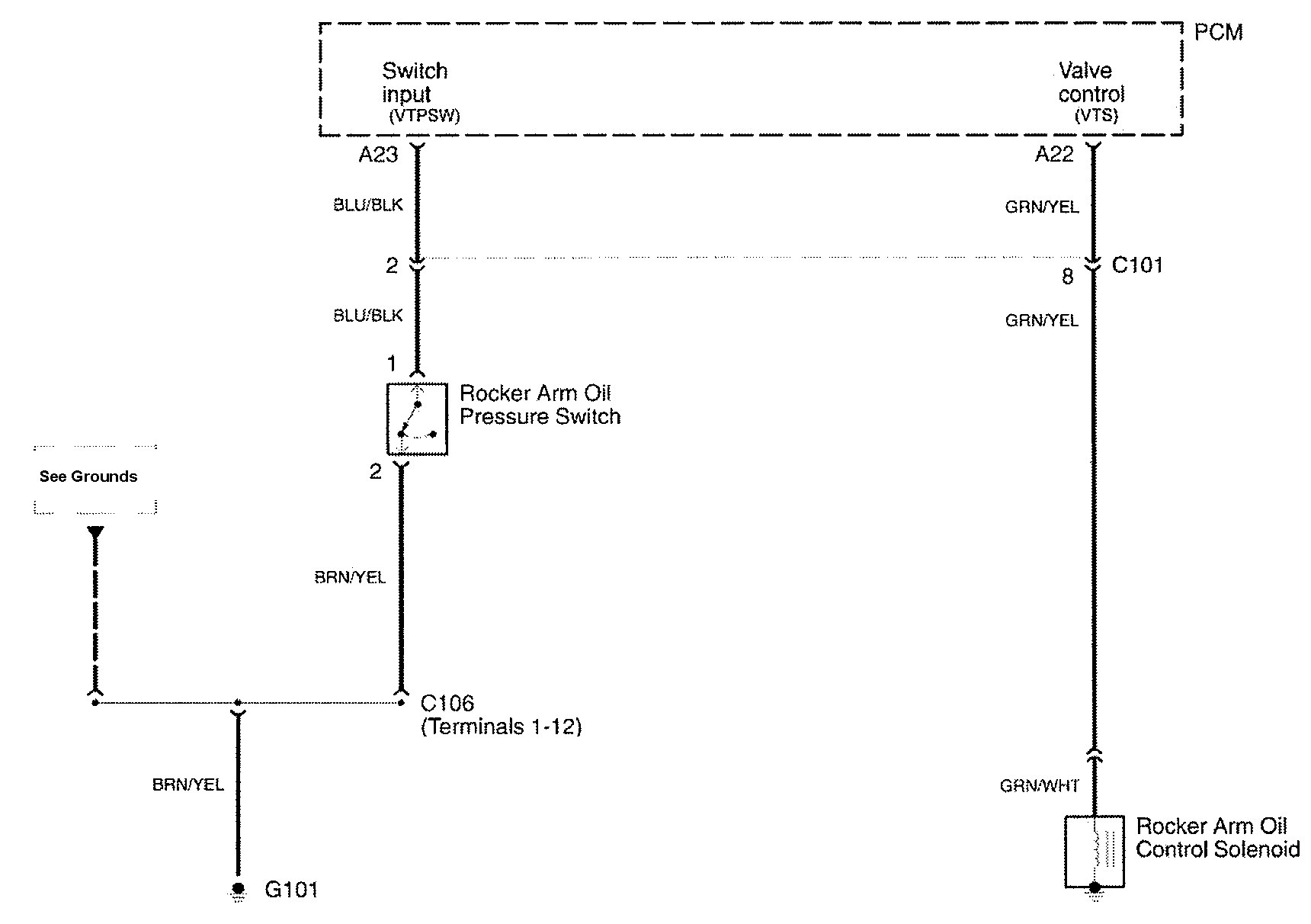

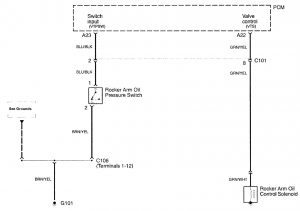

Acura RL - wiring diagram - variable timing electronic control
Acura RL – wiring diagram – variable timing electronic control

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
