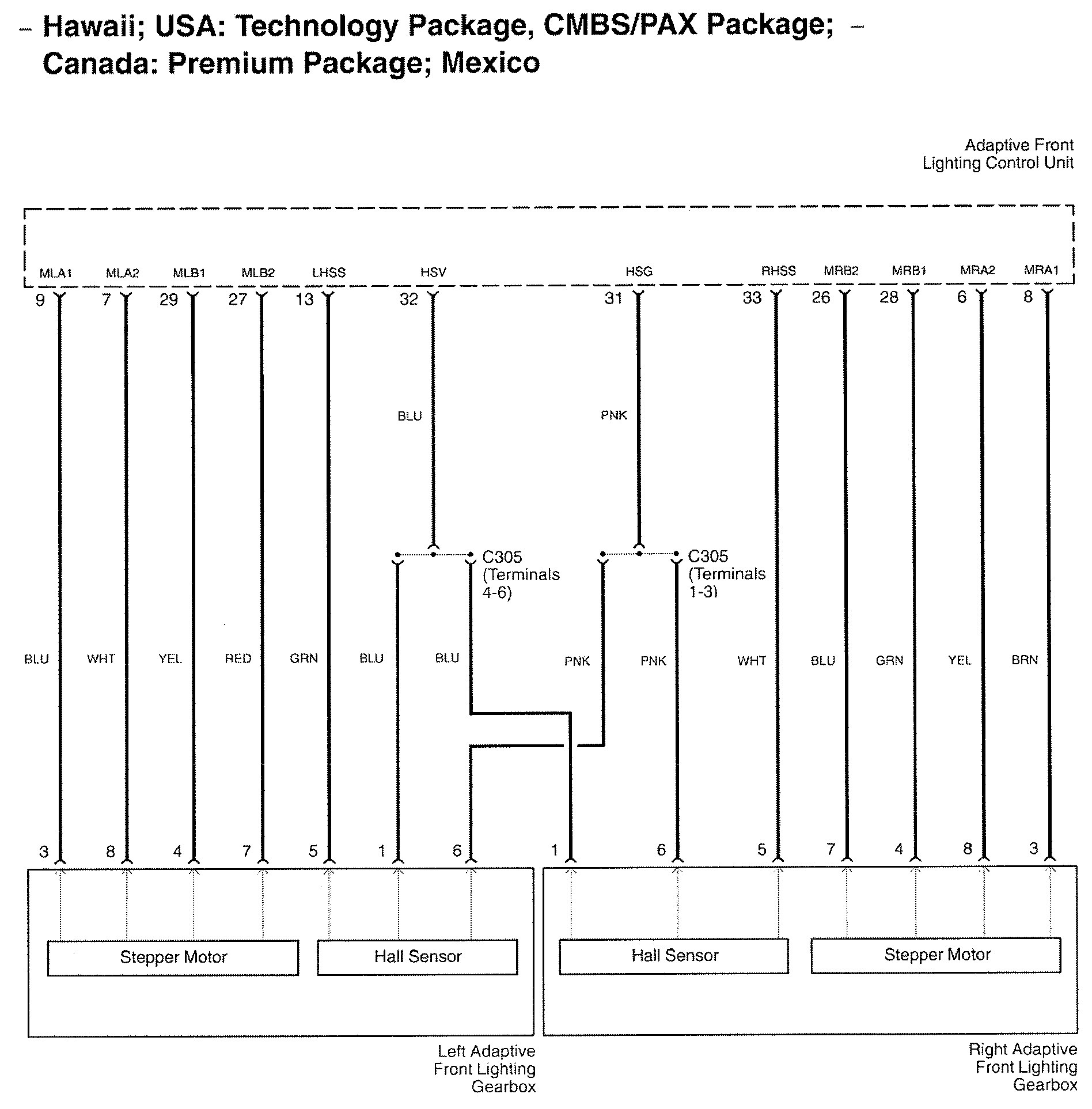

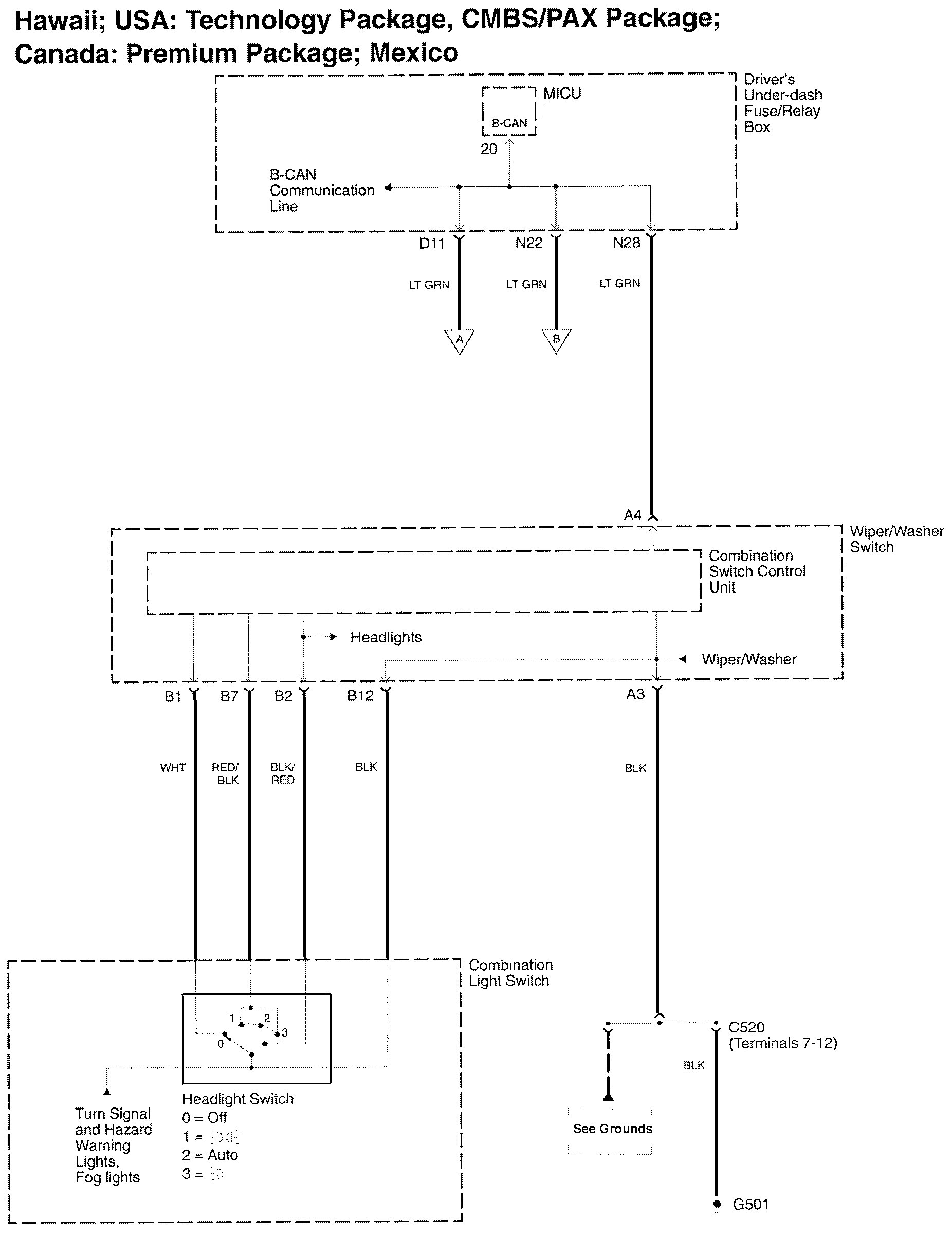

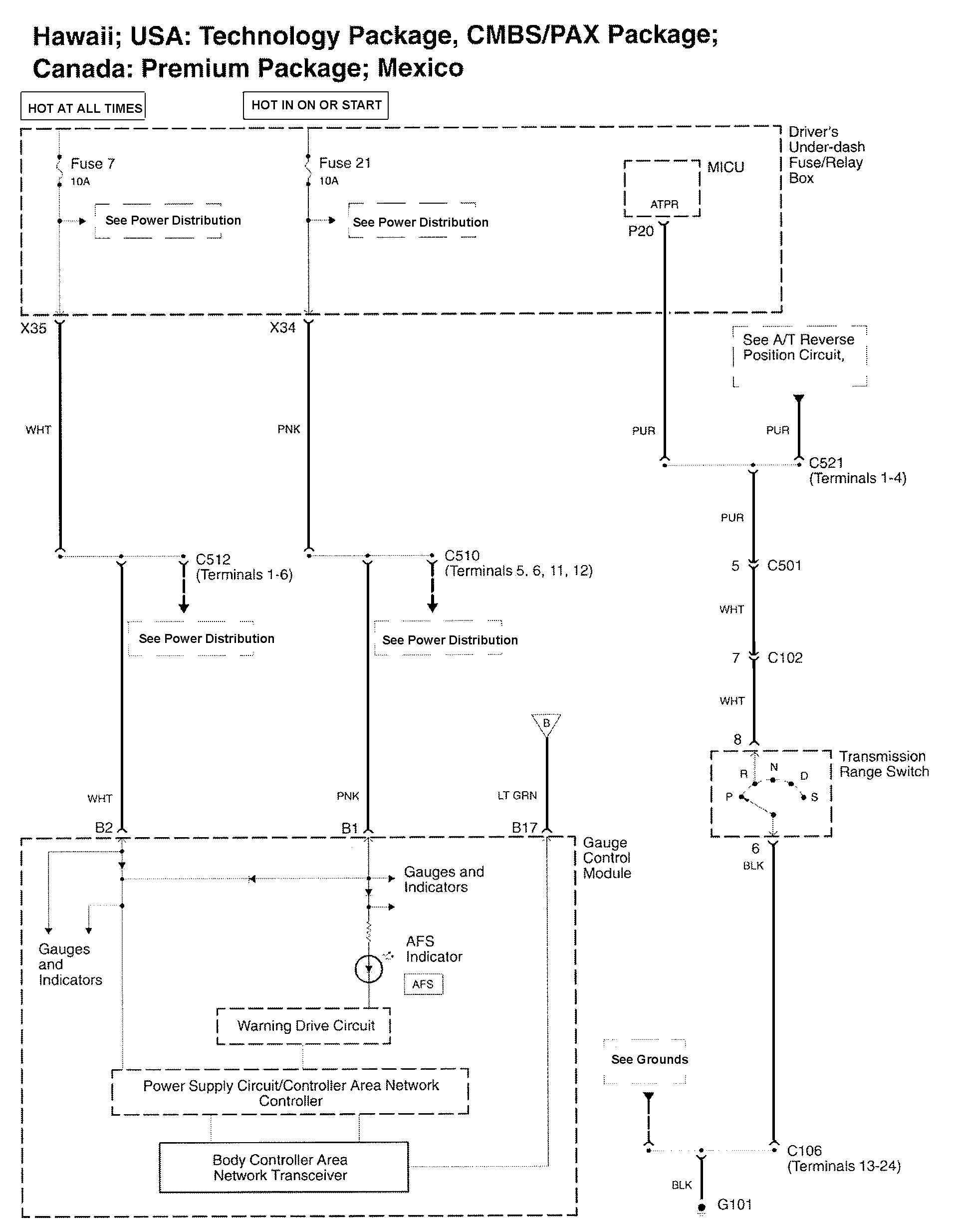

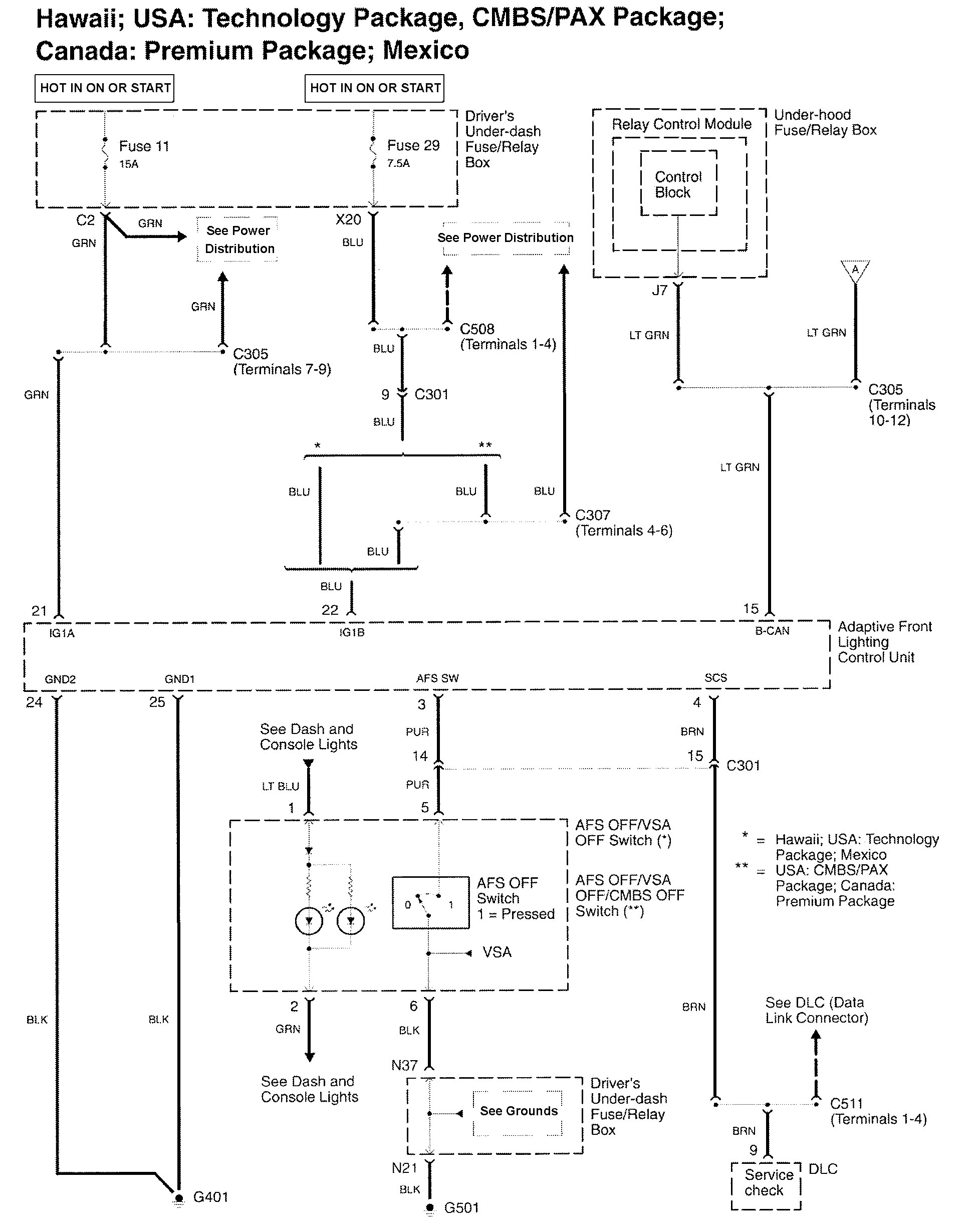

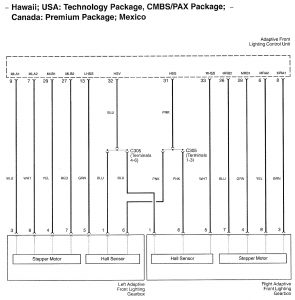

Acura RL (2010) – wiring diagrams – adaptive front lighting system
Year of productions: 2010
Adaptive front lighting system
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
