Hazard lamp

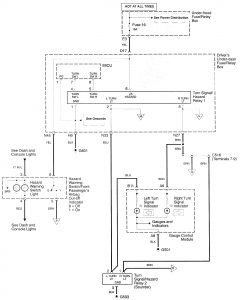

Acura RL - wiring diagram - hazard lamp (part 1)
Acura RL – wiring diagram – hazard lamp (part 1)
Acura RL - wiring diagram - hazard lamp (part 2)
Acura RL – wiring diagram – hazard lamp (part 2)
Acura RL - wiring diagram - hazard lamp (part 3)
Acura RL – wiring diagram – hazard lamp (part 3)
Acura RL - wiring diagram - hazard lamp (part 4)
Acura RL – wiring diagram – hazard lamp (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
