Year of productions:  2011

All wheel drive system

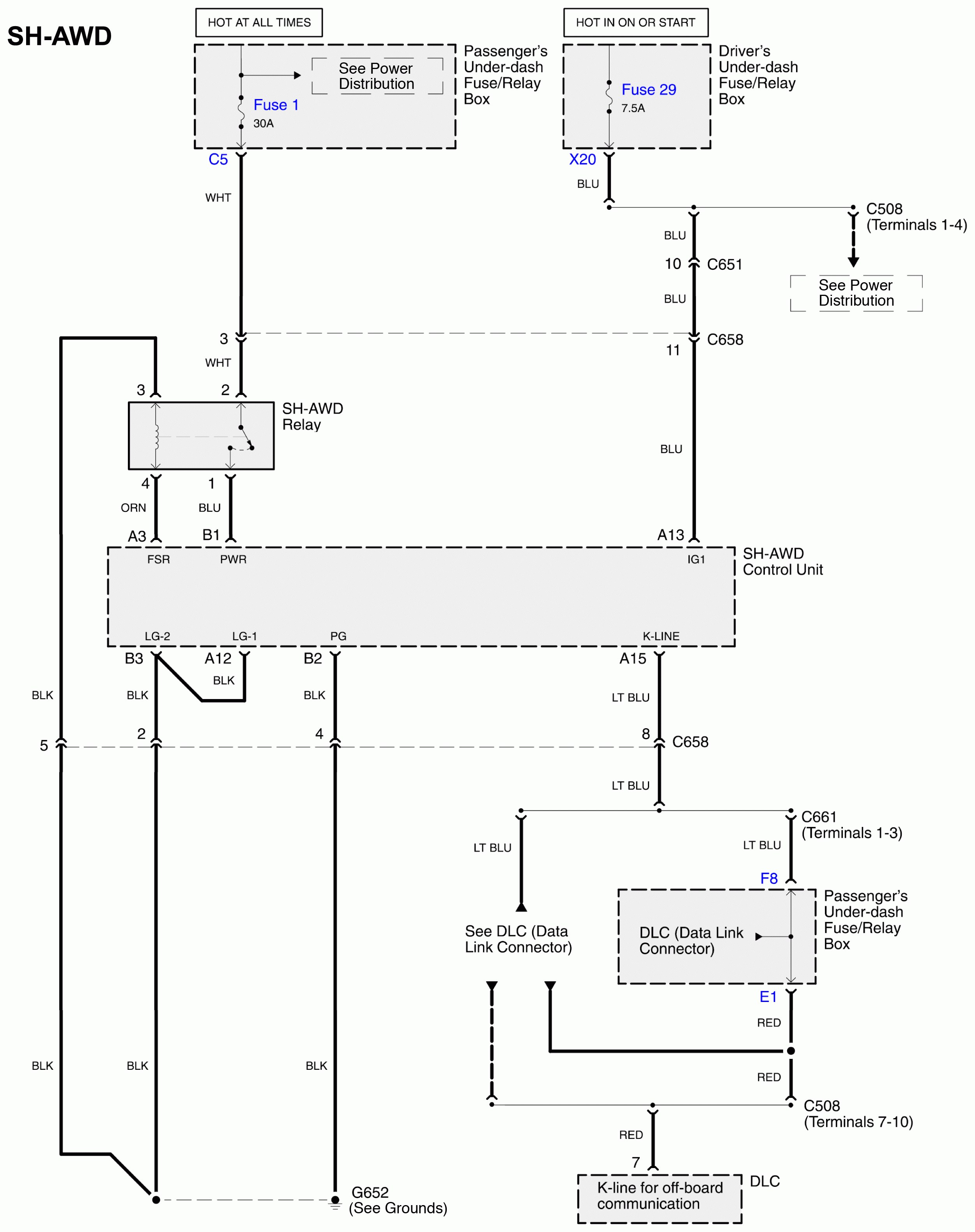

Acura RL - wiring diagram - all wheel drive system (part 1)
Acura RL – wiring diagram – all wheel drive system (part 1)

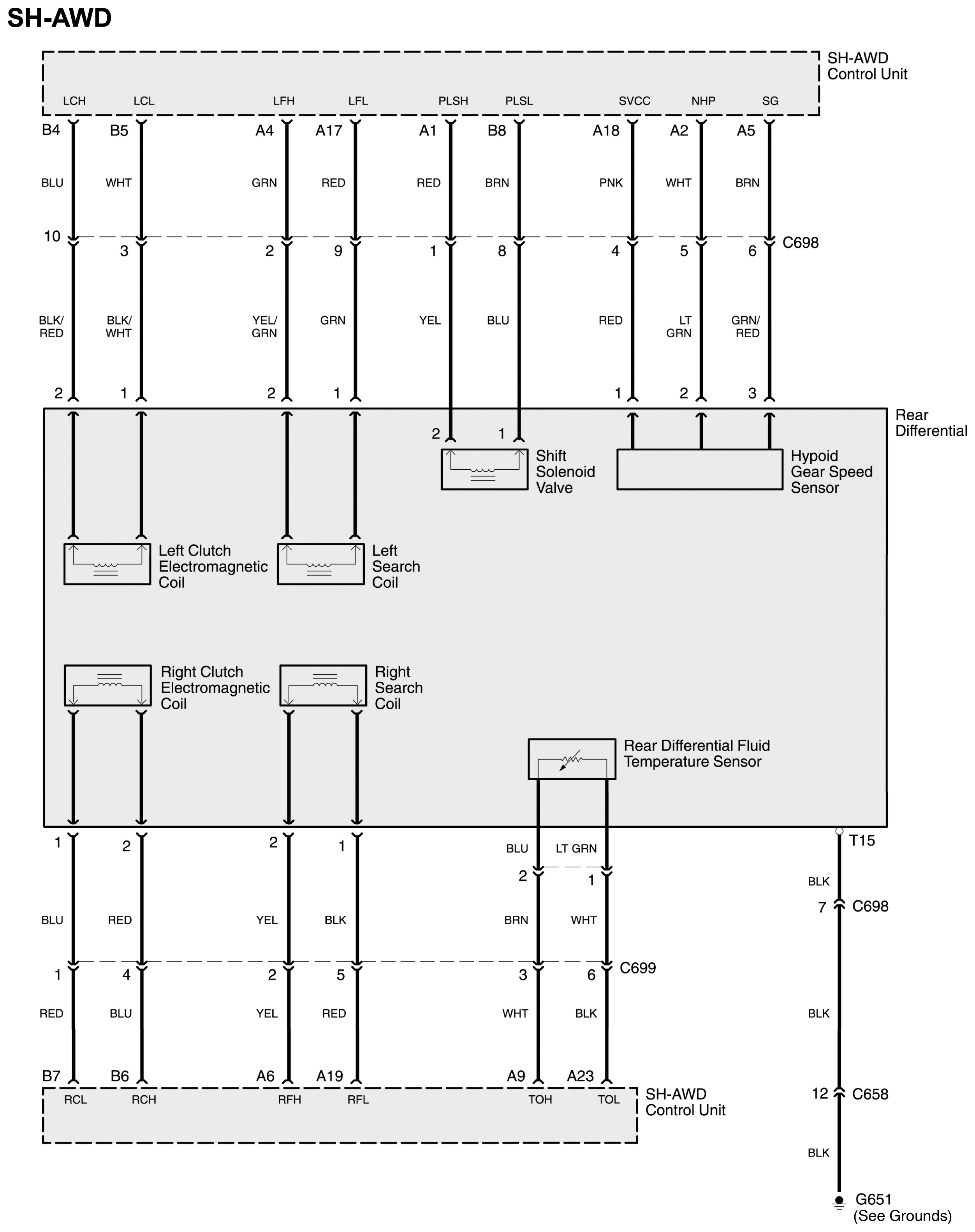

Acura RL - wiring diagram - all wheel drive system (part 2)
Acura RL – wiring diagram – all wheel drive system (part 2)

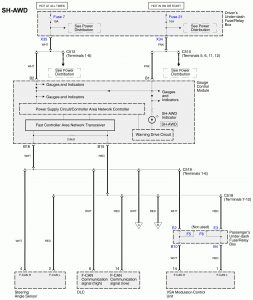

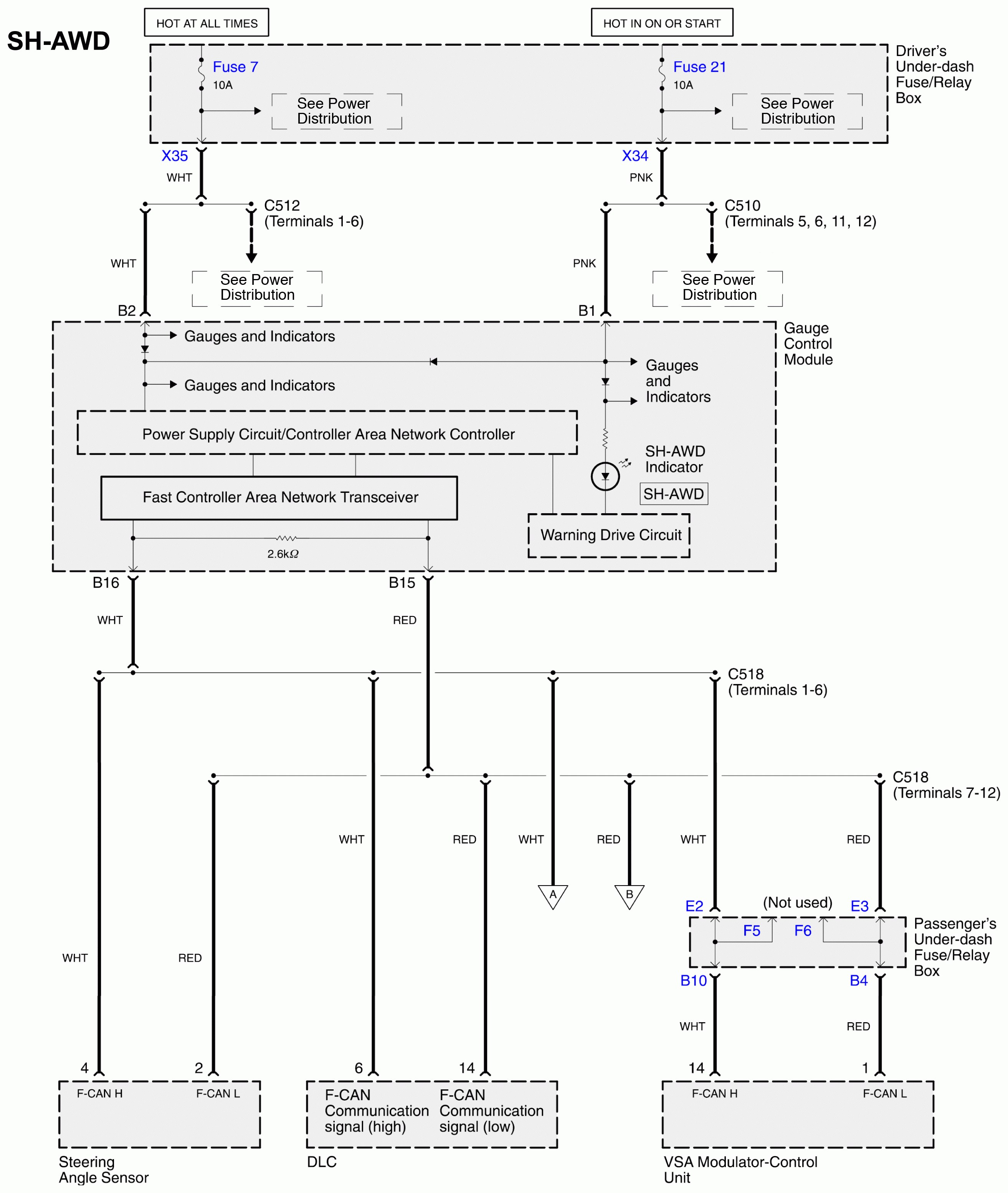

Acura RL - wiring diagram - all wheel drive system (part 3)
Acura RL – wiring diagram – all wheel drive system (part 3)

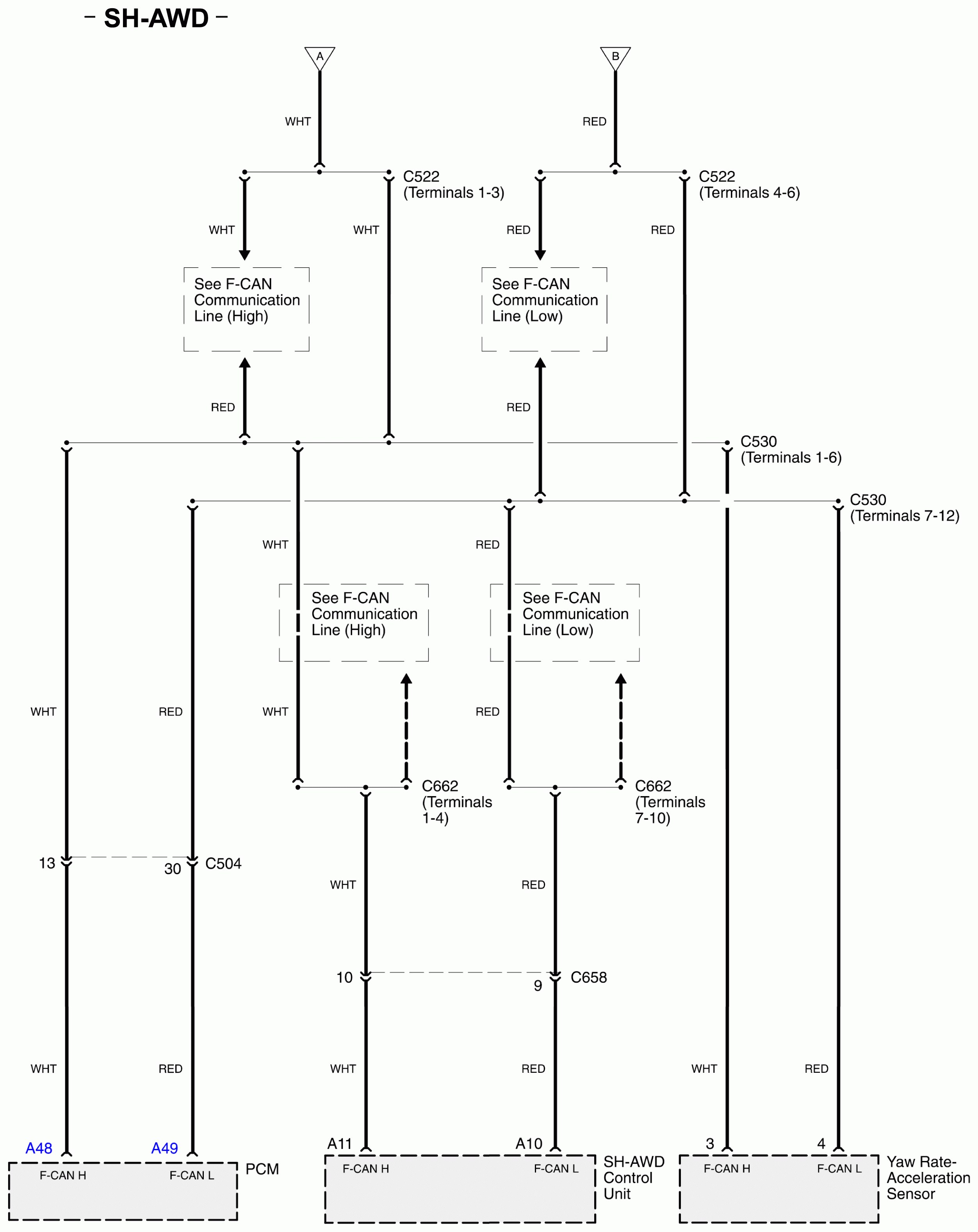

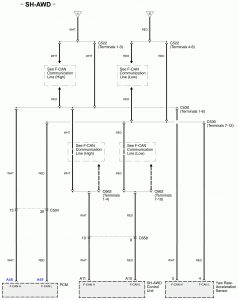

Acura RL - wiring diagram - all wheel drive system (part 4)
Acura RL – wiring diagram – all wheel drive system (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
