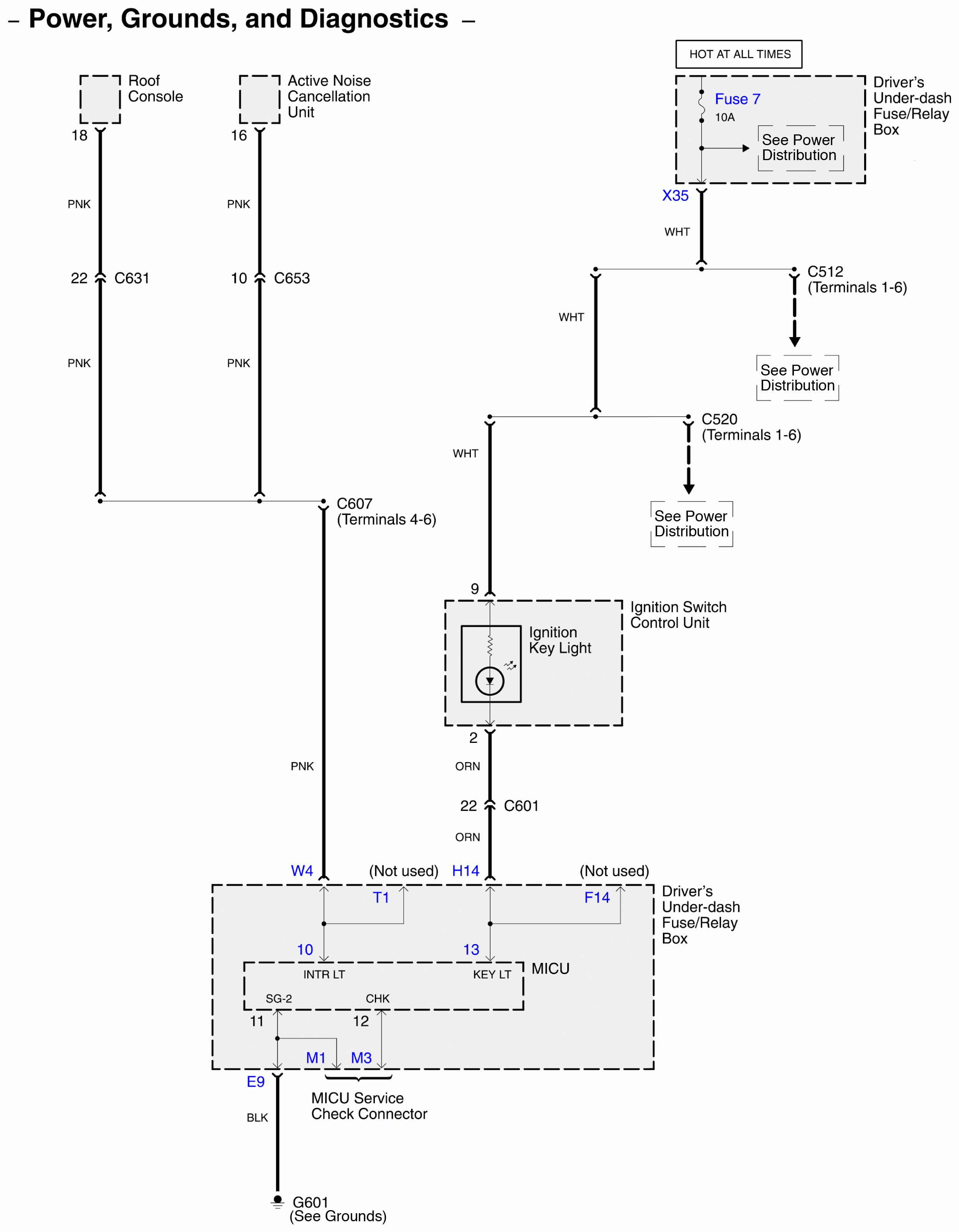

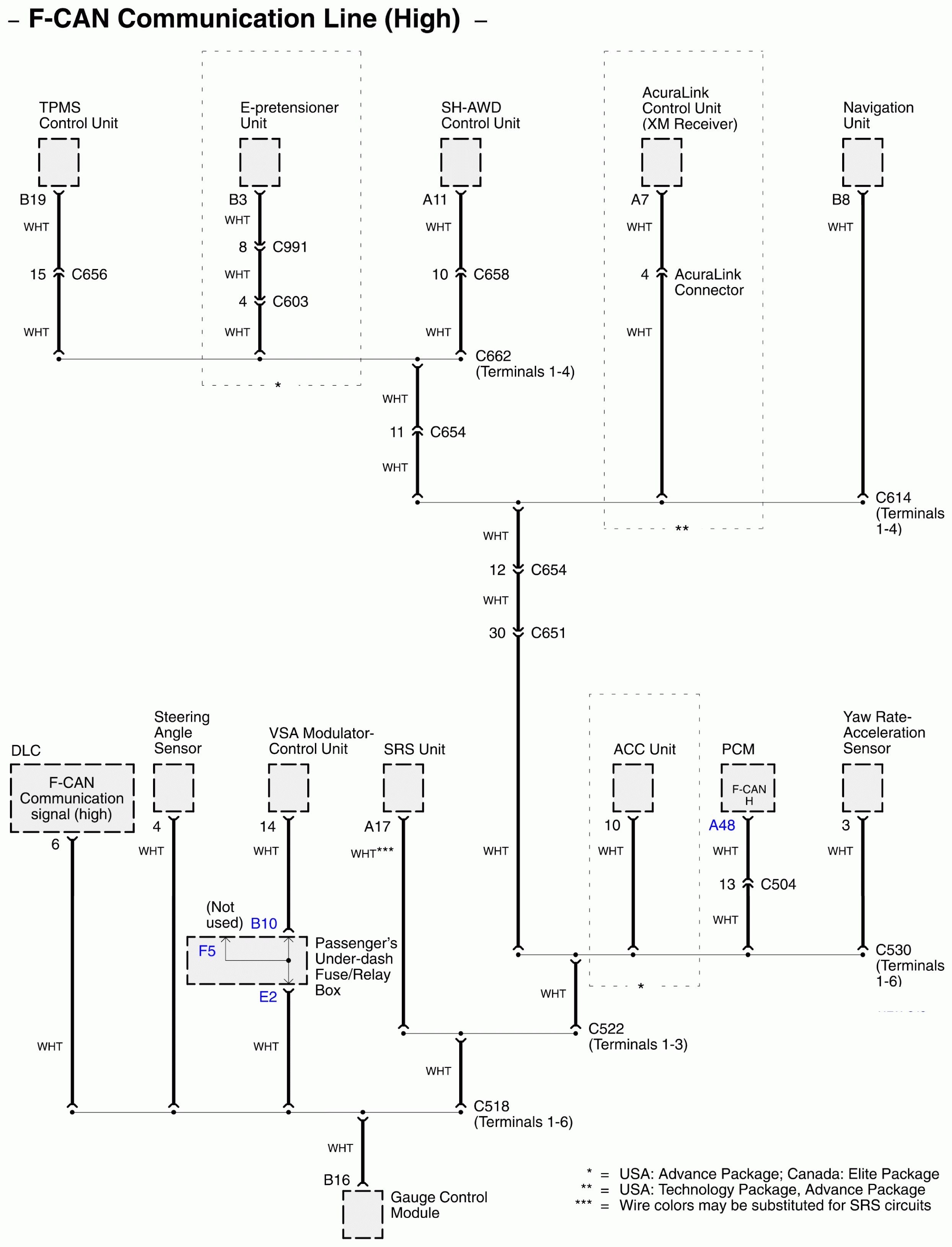

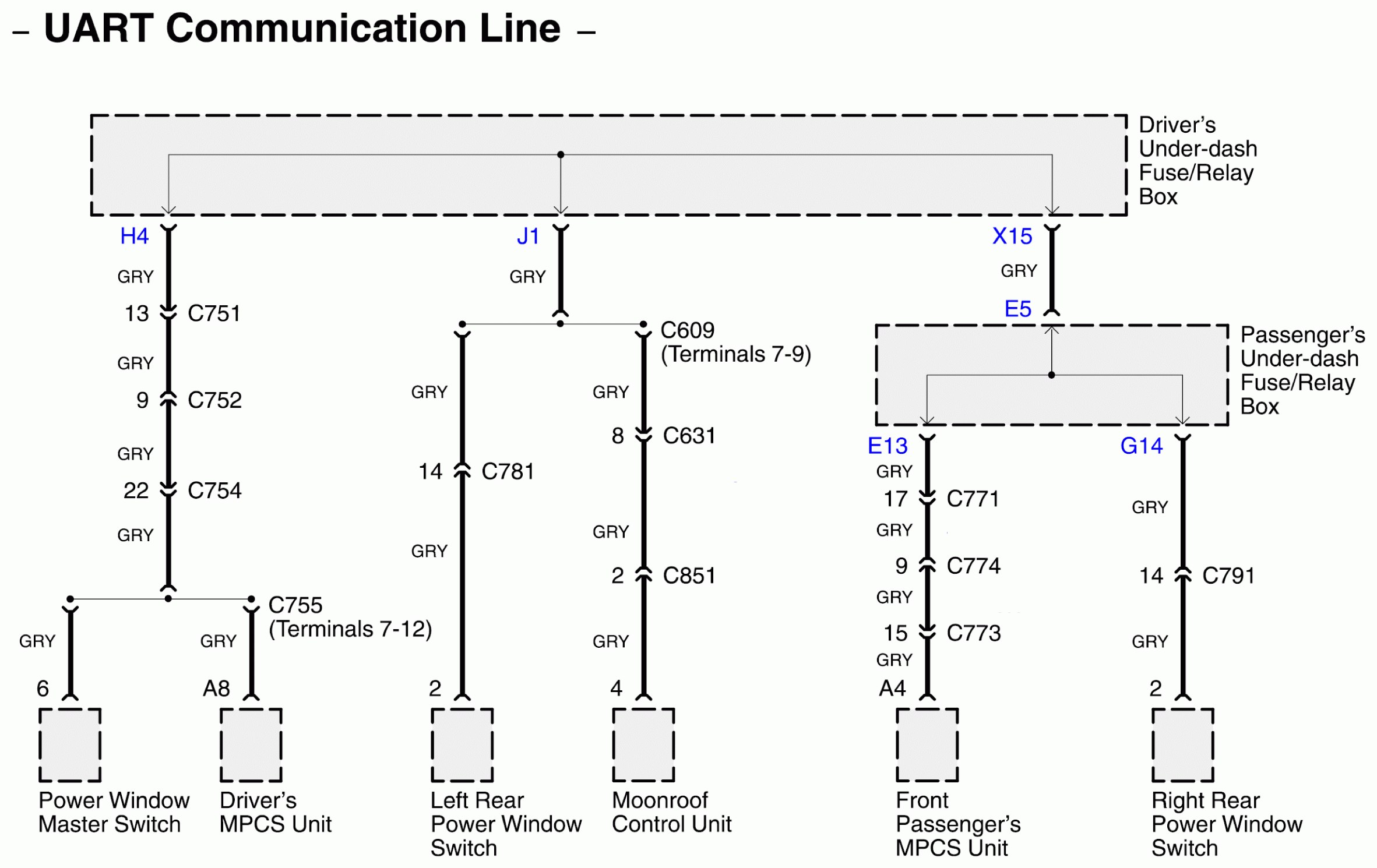

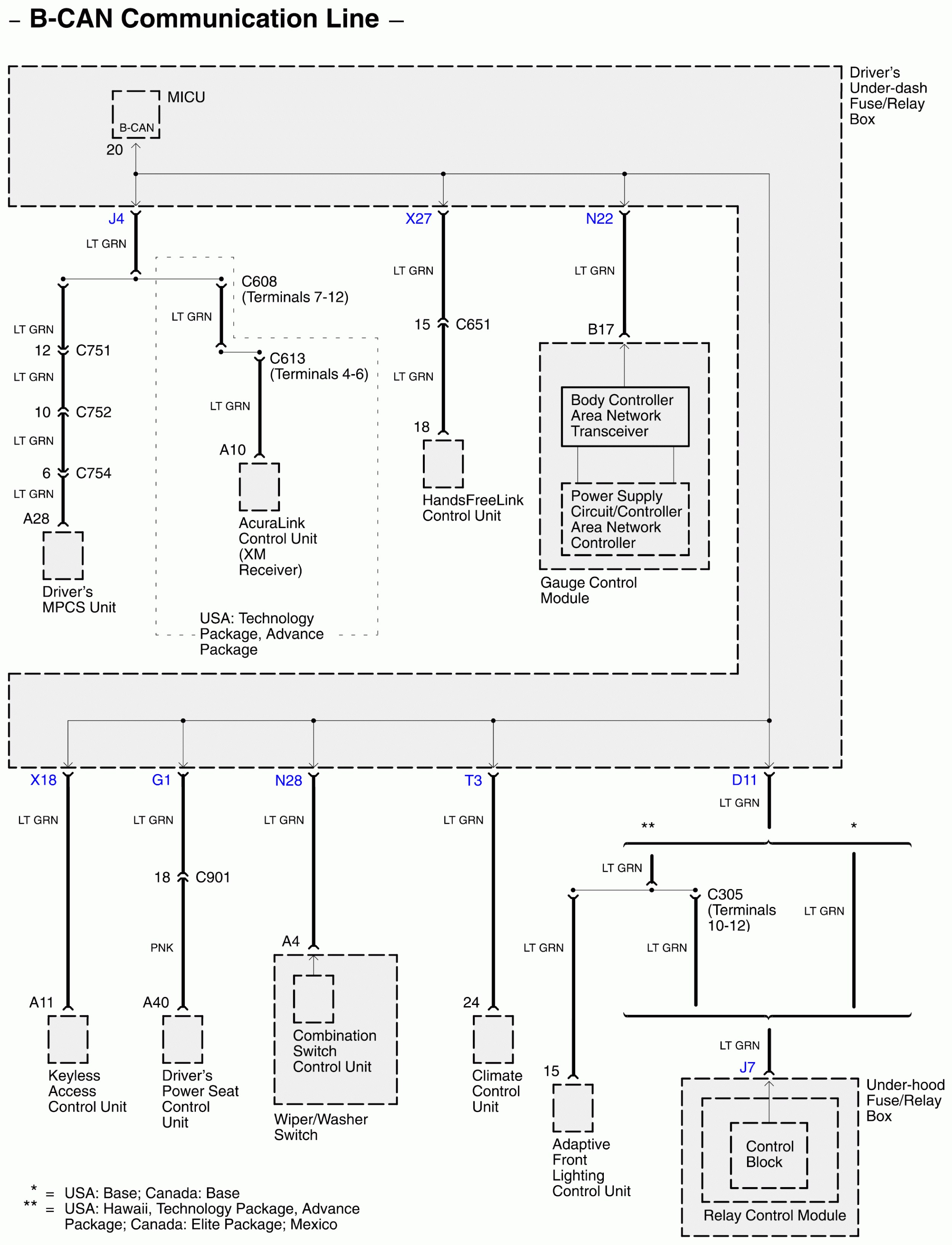

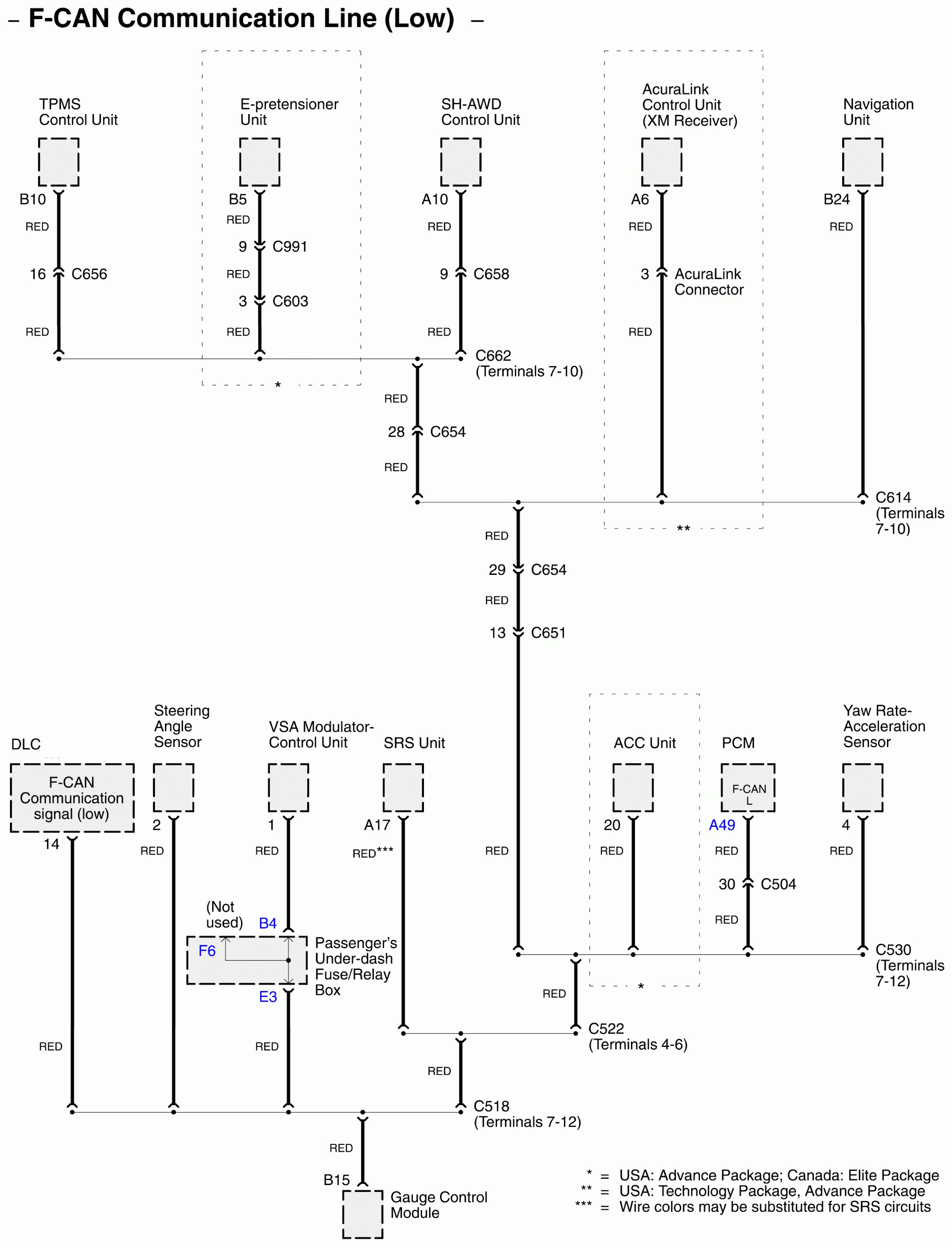

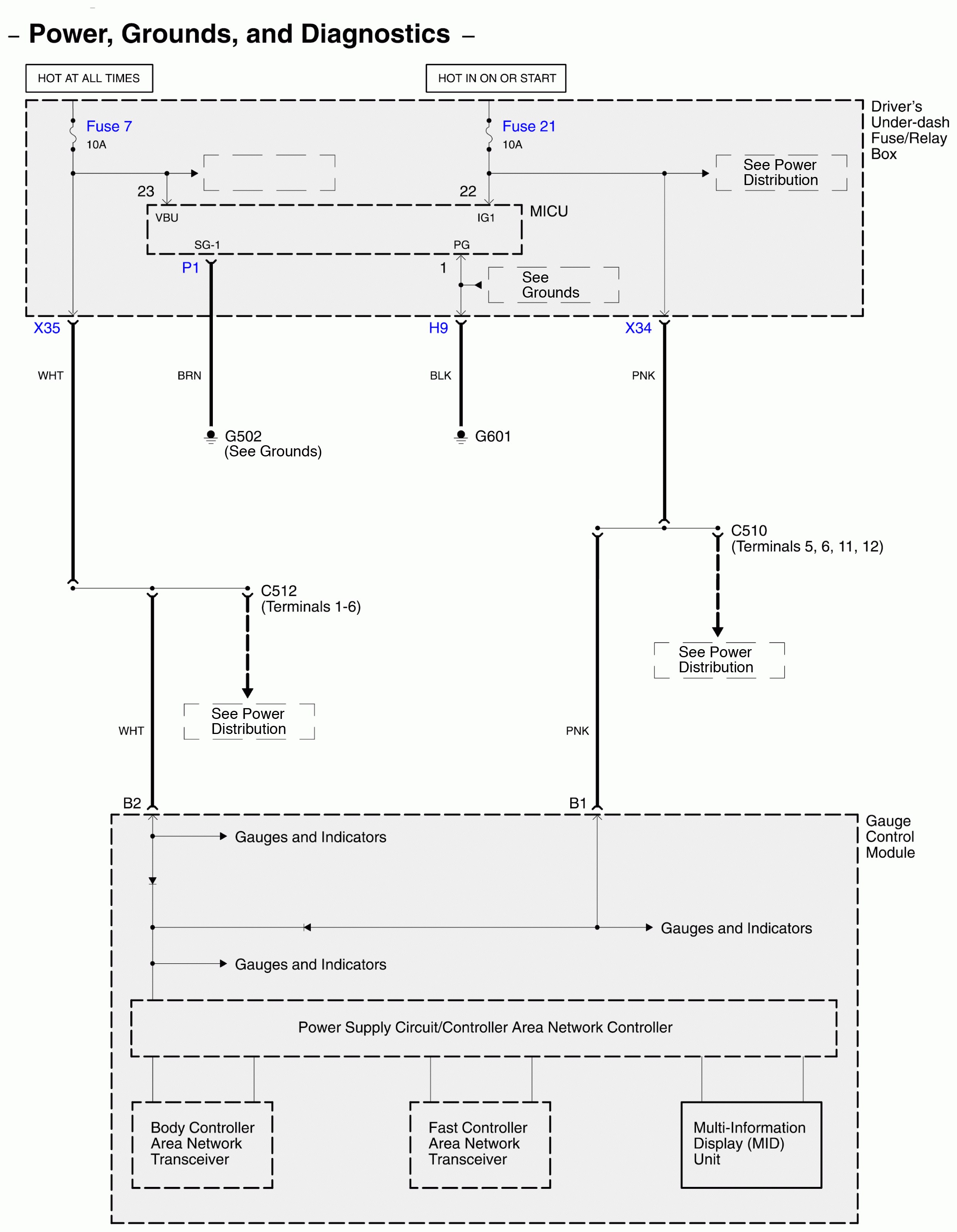

Acura RL (2011) – wiring diagrams – body control

Volvo 960 (1995) – wiring diagrams – rear window defogger Year of productions:  1995 Rear window defogger WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Acura CL (1998 – 1999) – wiring diagrams – instrument panel lamp Year of productions:  1998, 1999 Instrument panel lamp Version 1 Version 2 WARNING: Terminal and harness assignments for individual connectors will vary depending […]

Acura Integra (1992 – 1993) – wiring diagrams – starting Year of productions: 1992, 1993 Starting WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
