Acura RL (2011) – wiring diagrams – hazard lamp

3 December 2017 admin Acura, RL 0

Acura RL (2011) – wiring diagrams – hazard lamp

Year of production:  2011

Hazard lamp

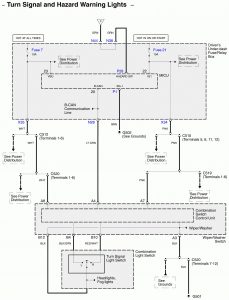

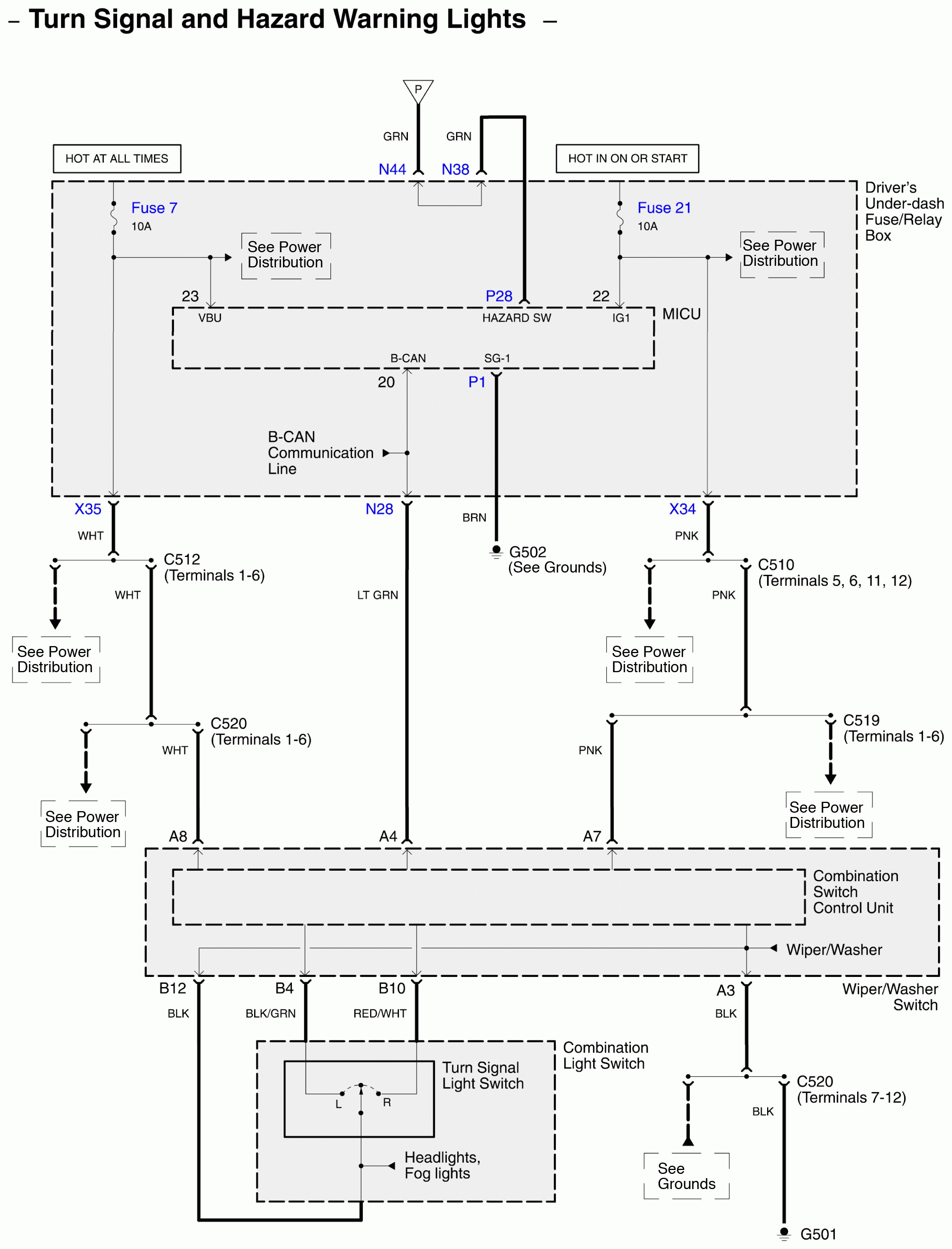

Acura RL - wiring diagram - exterior lights - turn signal and hazard warning lights (part 1)
Acura RL – wiring diagram – exterior lights – turn signal and hazard warning lights (part 1)

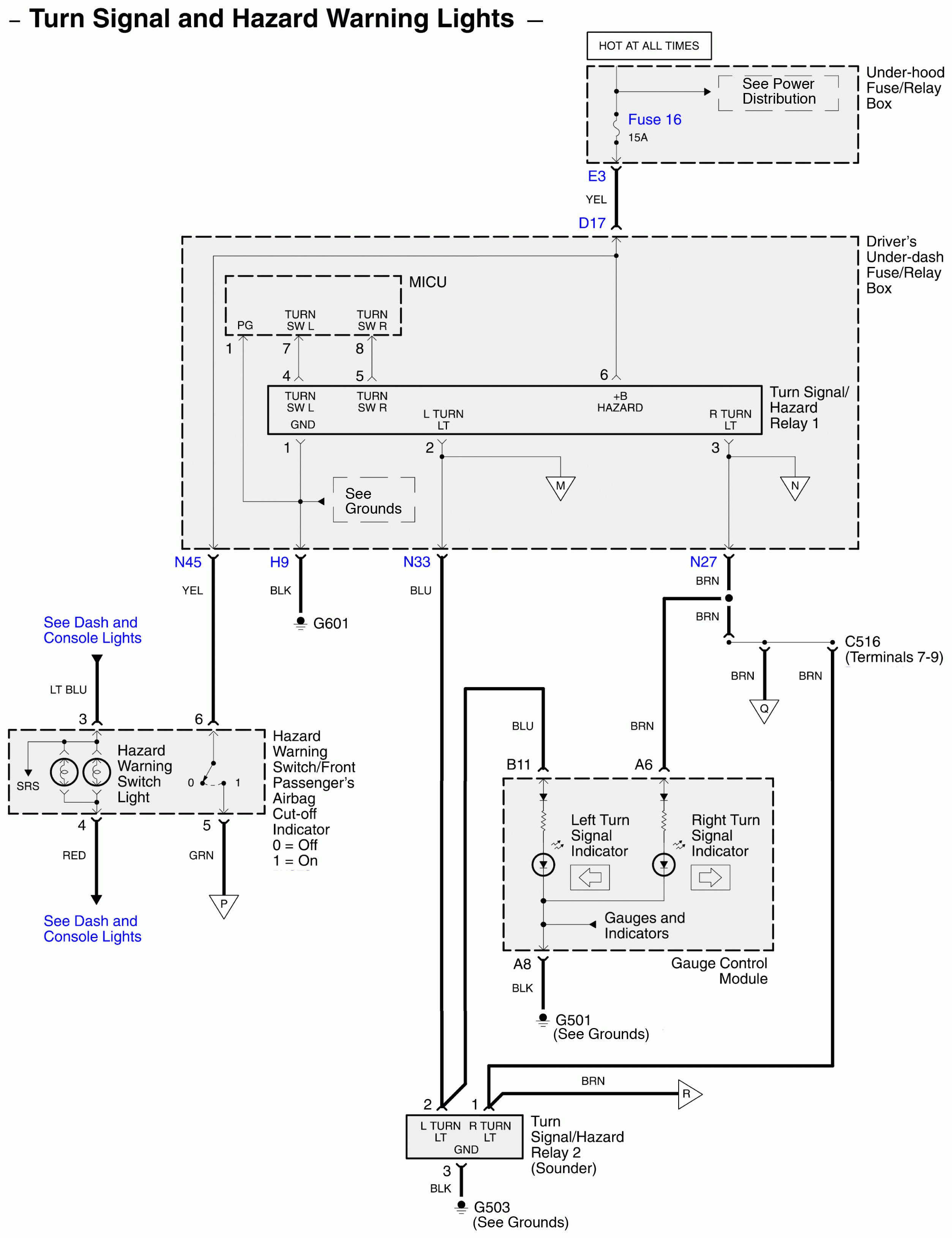

Acura RL - wiring diagram - exterior lights - turn signal and hazard warning lights (part 2)
Acura RL – wiring diagram – exterior lights – turn signal and hazard warning lights (part 2)

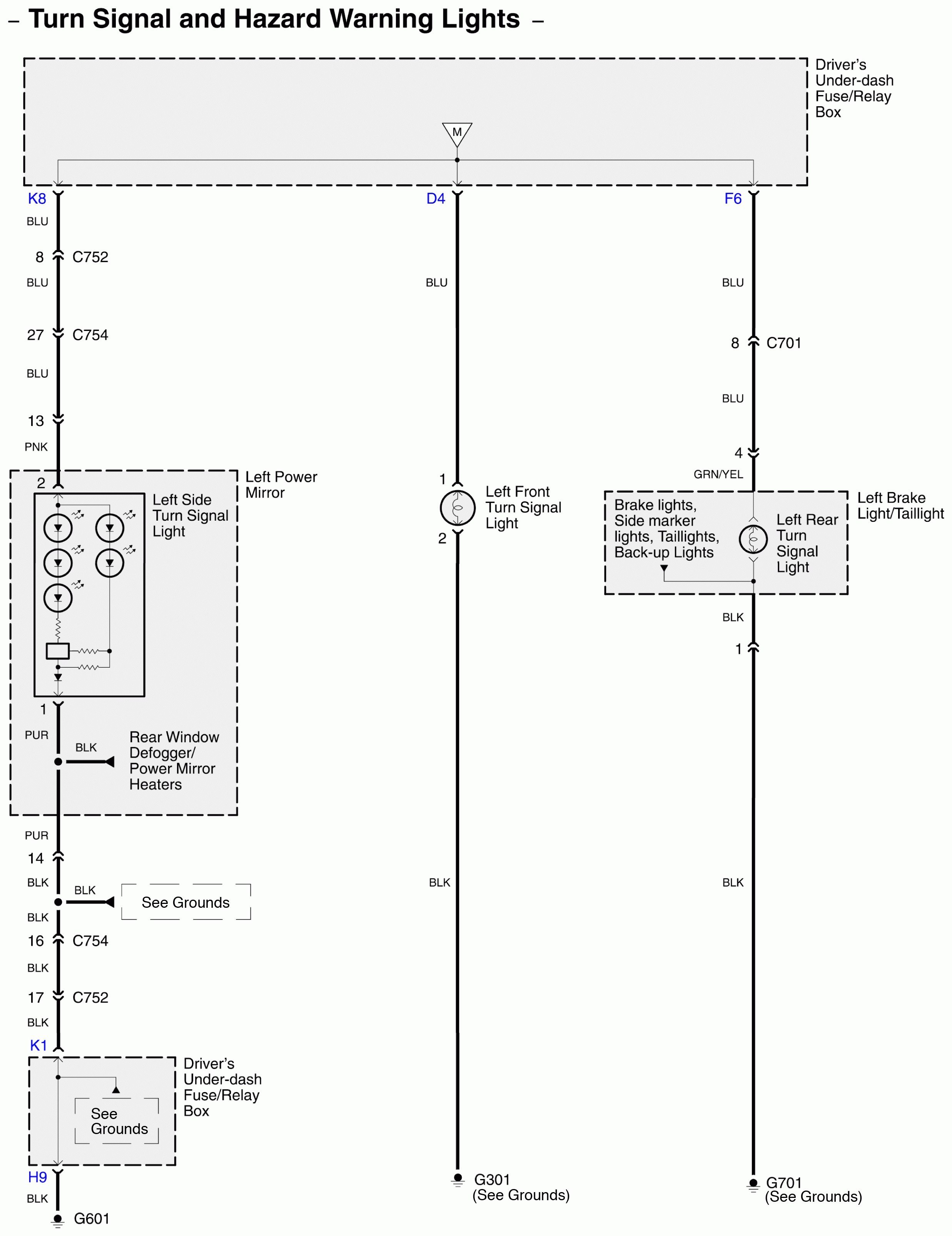

Acura RL - wiring diagram - exterior lights - turn signal and hazard warning lights (part 3)
Acura RL – wiring diagram – exterior lights – turn signal and hazard warning lights (part 3)

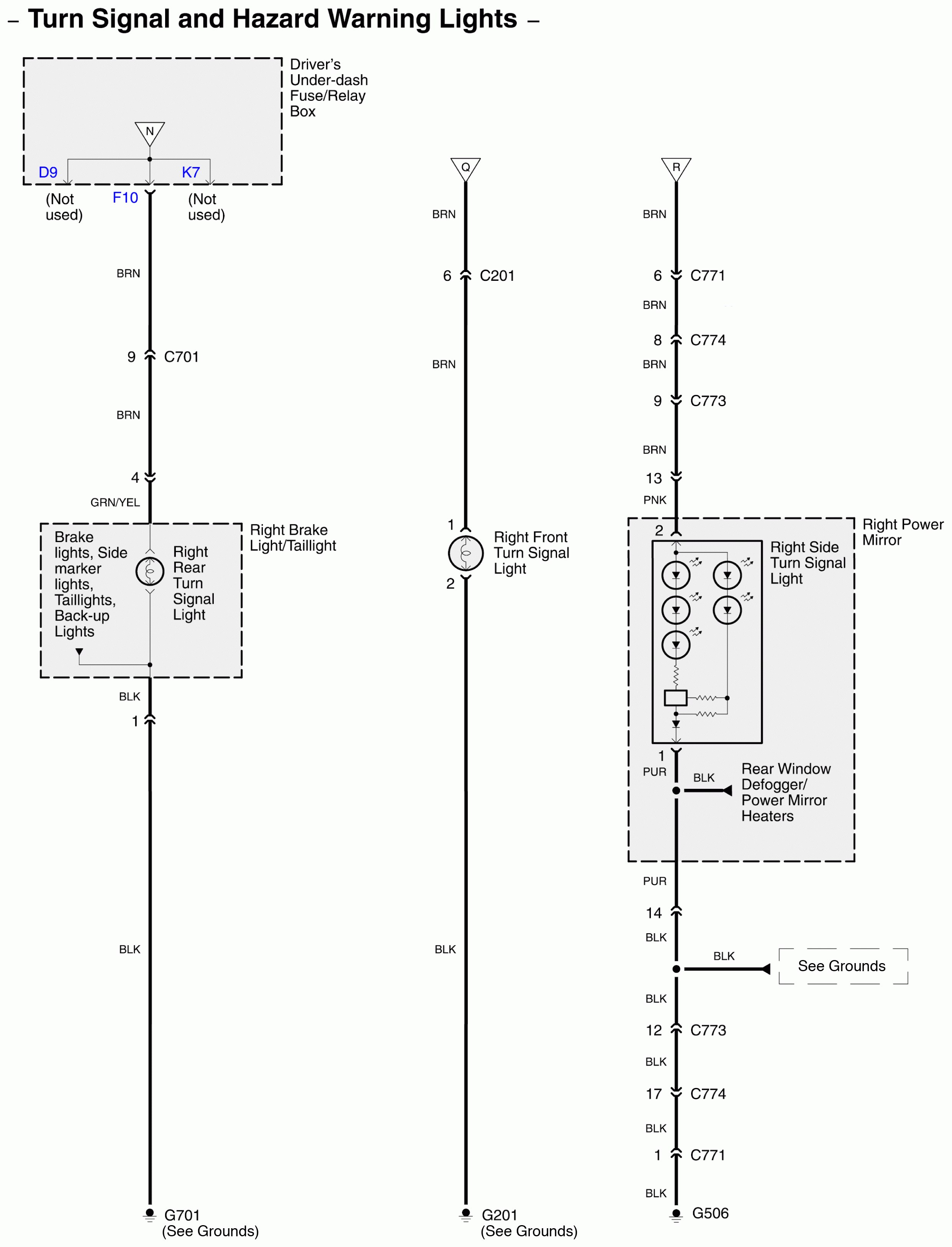

Acura RL - wiring diagram - exterior lights - turn signal and hazard warning lights (part 4)
Acura RL – wiring diagram – exterior lights – turn signal and hazard warning lights (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
