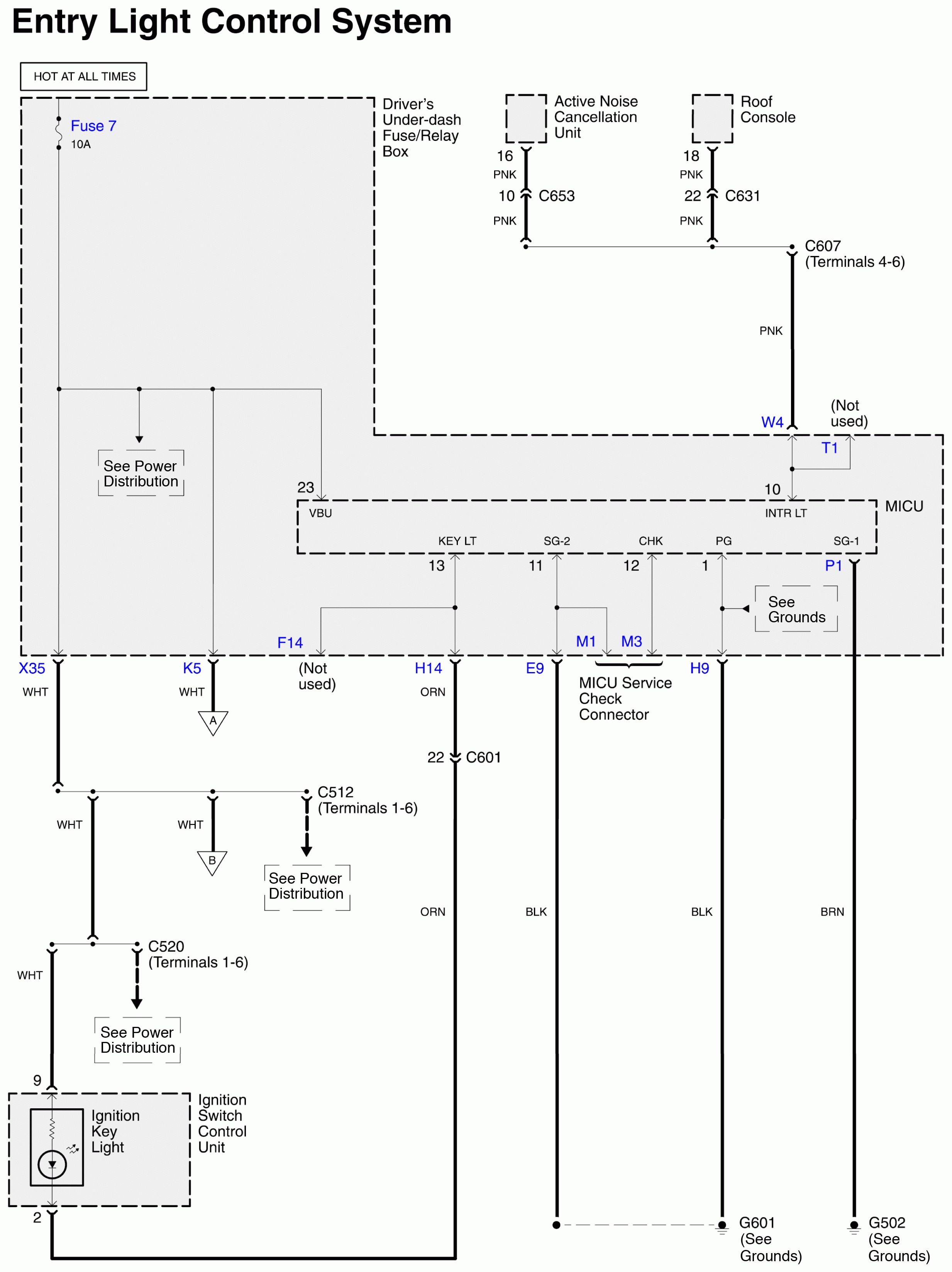

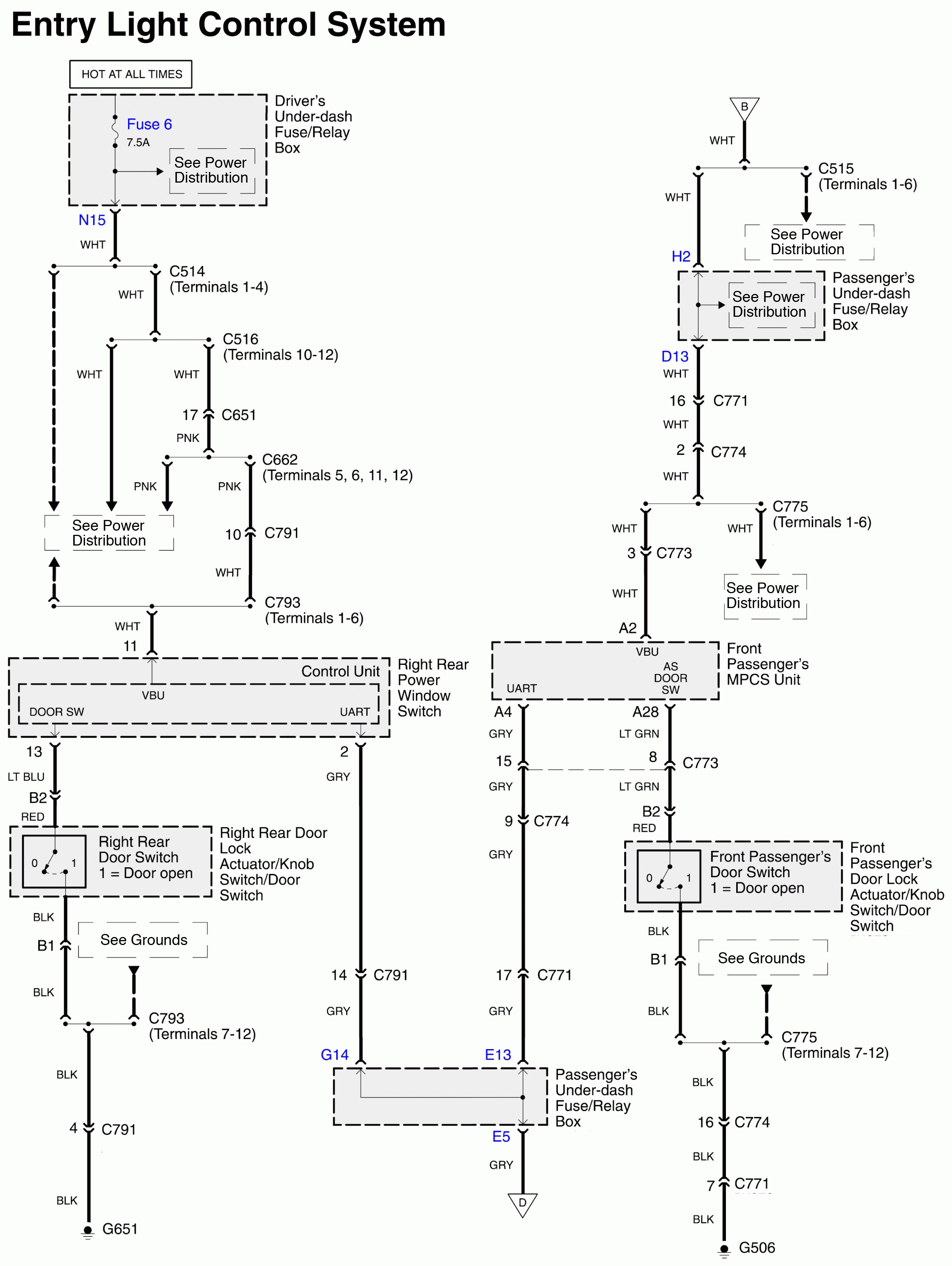

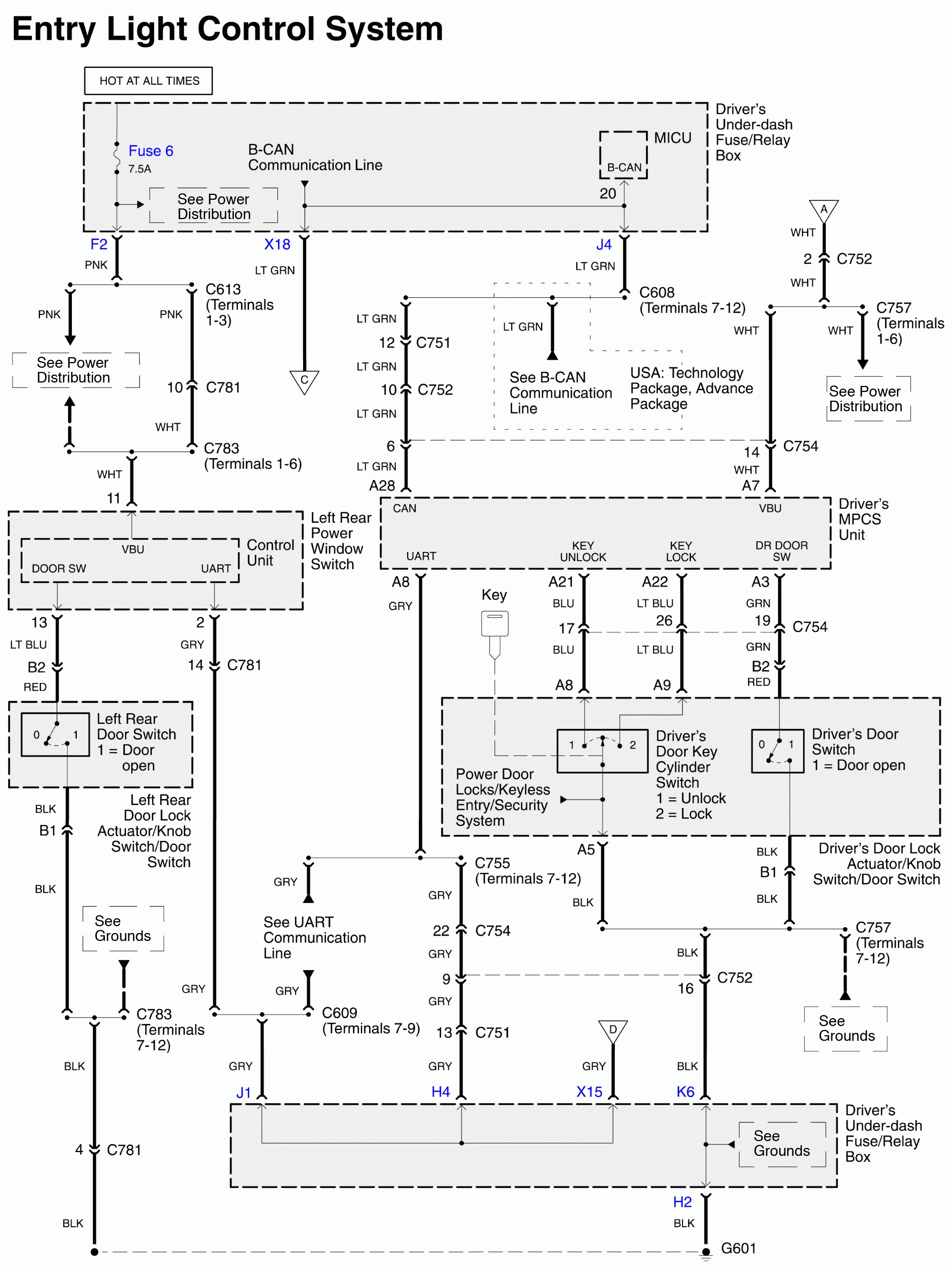

Acura RL (2011) – wiring diagrams – illuminated entry

Acura Legend (1993) – wiring diagram – look up control Year of productions:  1993 Look Up Control WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Acura Integra (1990) – wiring diagrams – hazard lamp Year of productions: 1990 Hazard lamp WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Mercedes-Benz 560SEL (1990 – 1991) – wiring diagrams – starting Year of productions:  1990, 1991 Starting WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
