Acura RL (2011) – wiring diagrams – power locks

Acura RL (2011) – wiring diagrams – power locks

Year of productions:  2011

Power locks

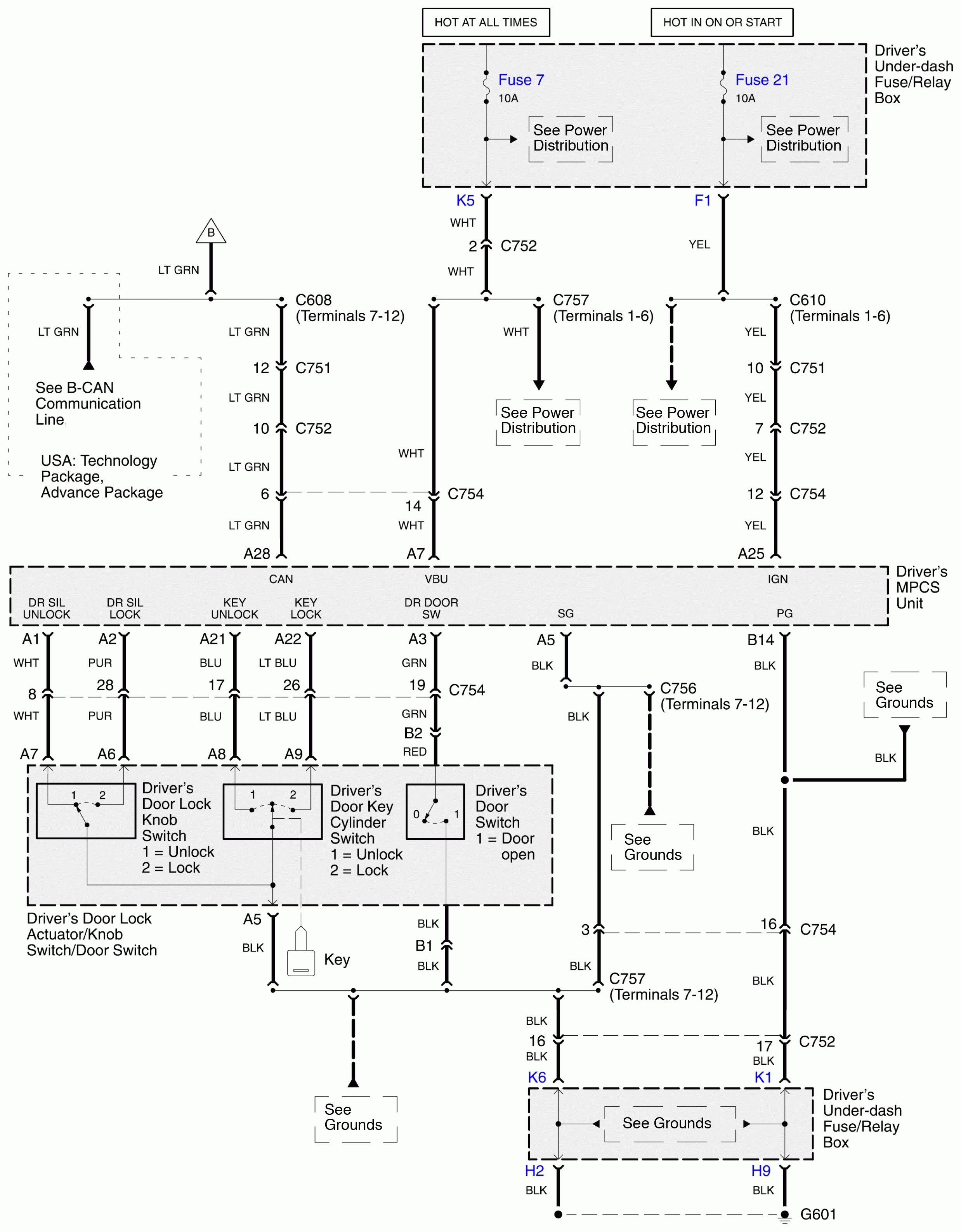

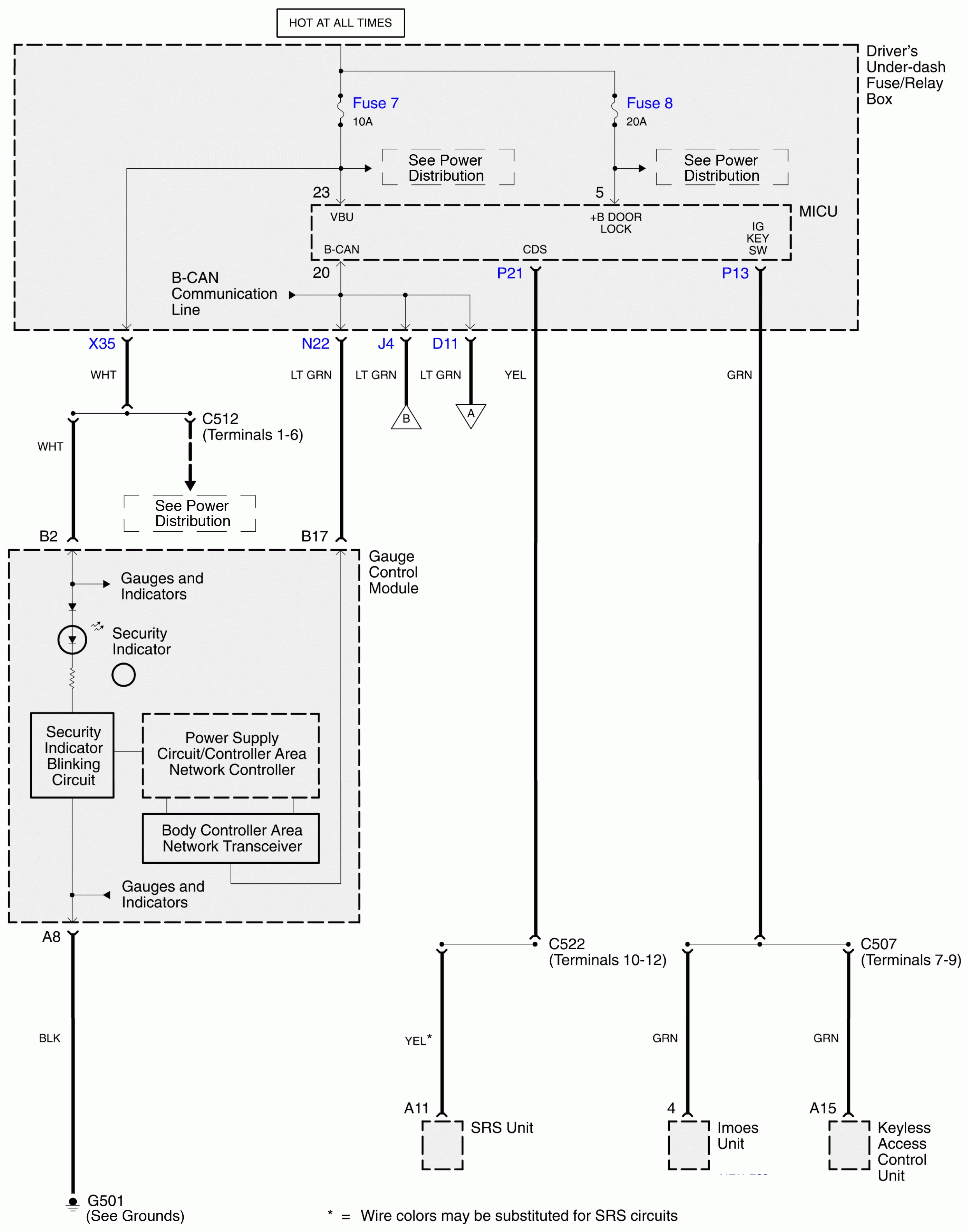

Acura RL - wiring diagram - power locks (part 1)
Acura RL – wiring diagram – power locks (part 1)

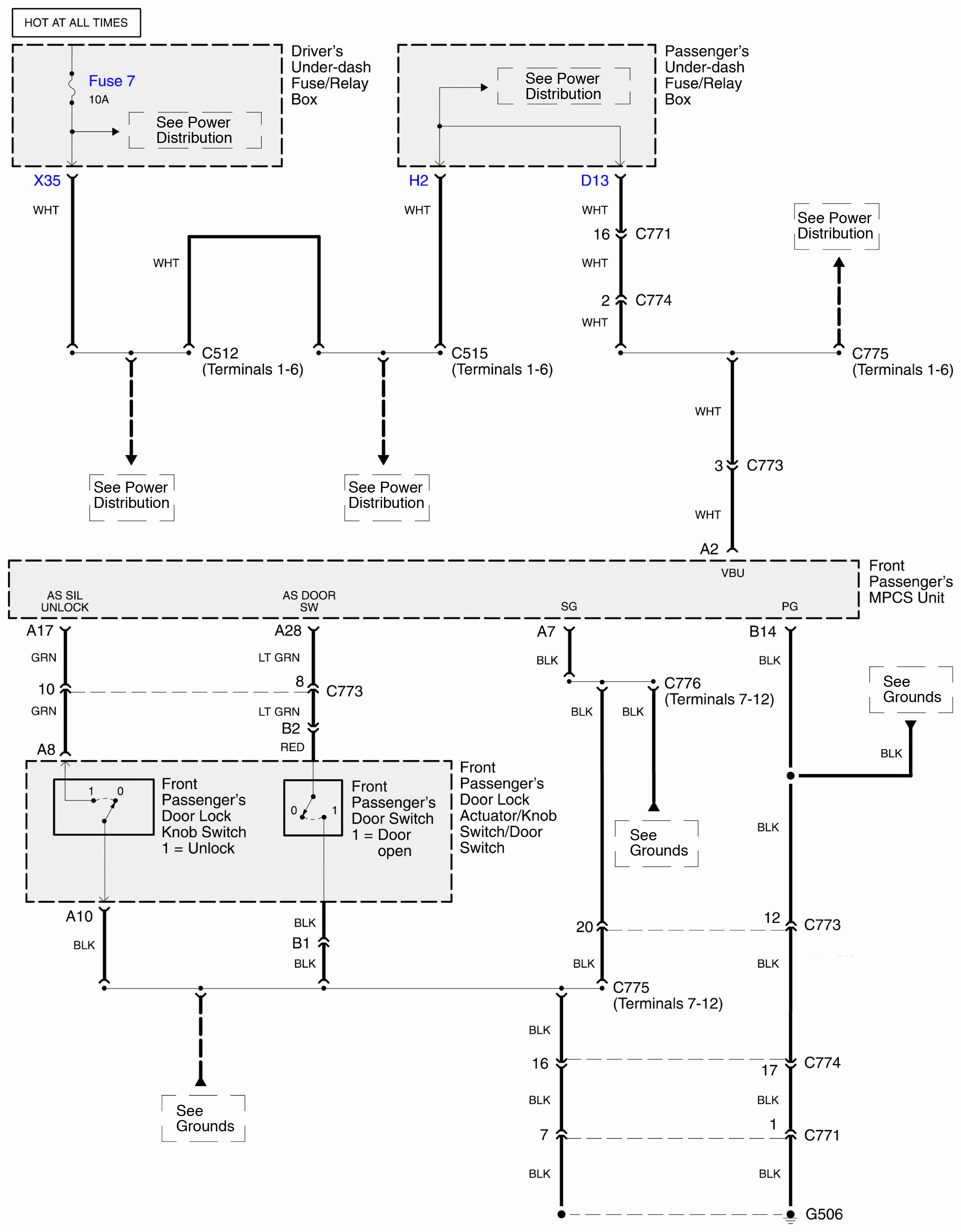

Acura RL - wiring diagram - power locks (part 2)
Acura RL – wiring diagram – power locks (part 2)

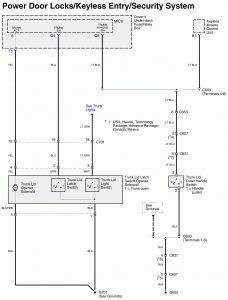

Acura RL - wiring diagram - power locks (part 3)
Acura RL – wiring diagram – power locks (part 3)

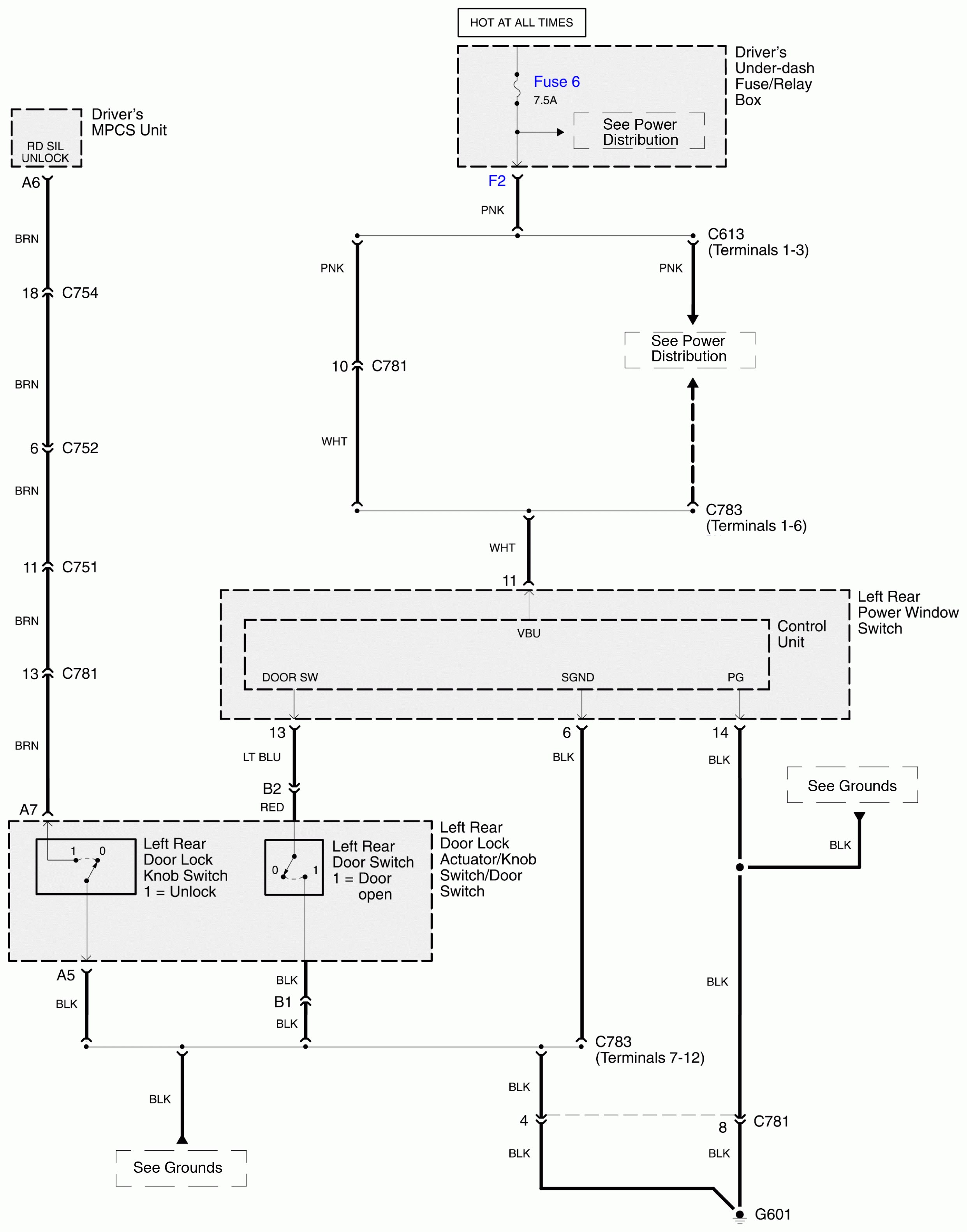

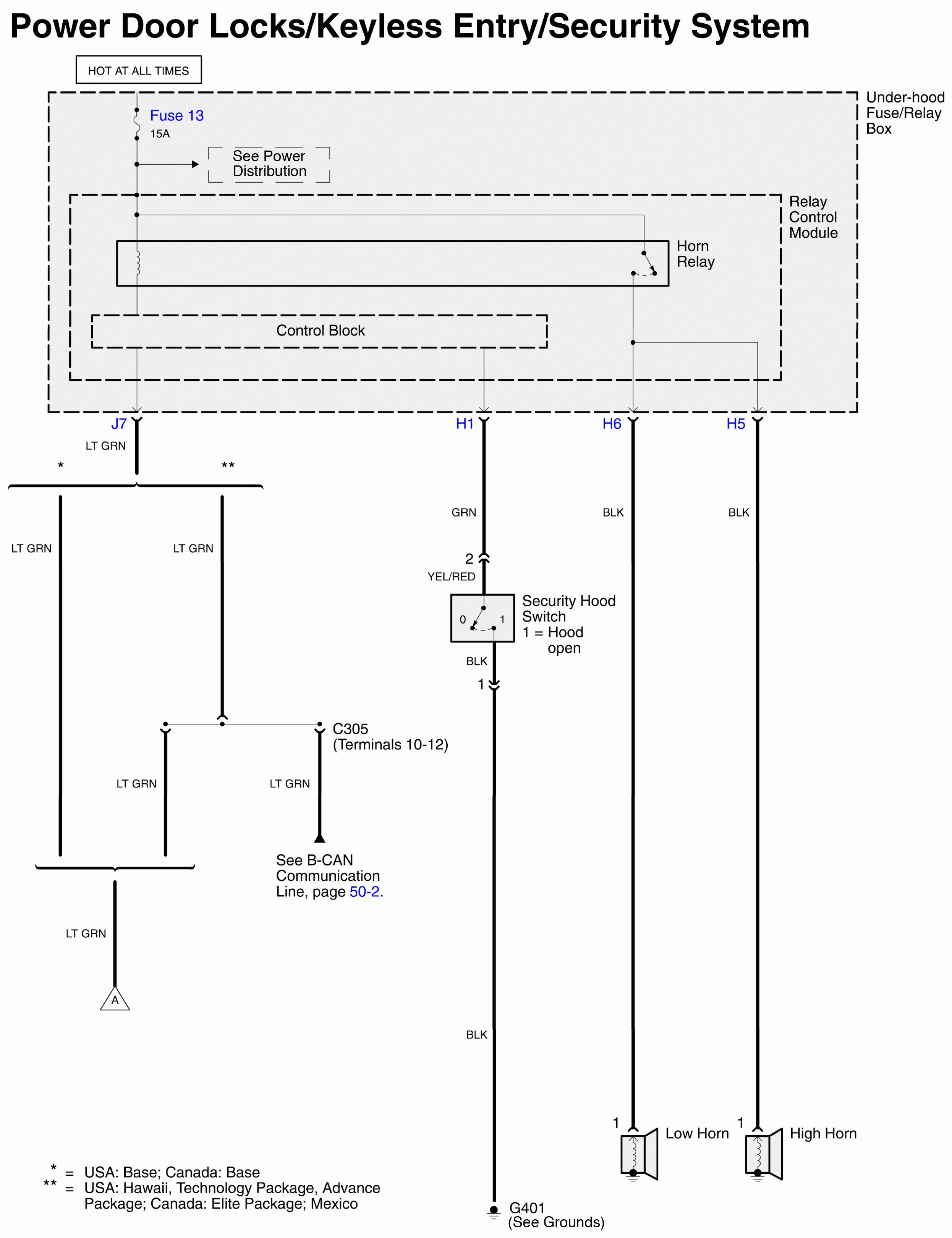

Acura RL - wiring diagram - power locks (part 4)
Acura RL – wiring diagram – power locks (part 4)

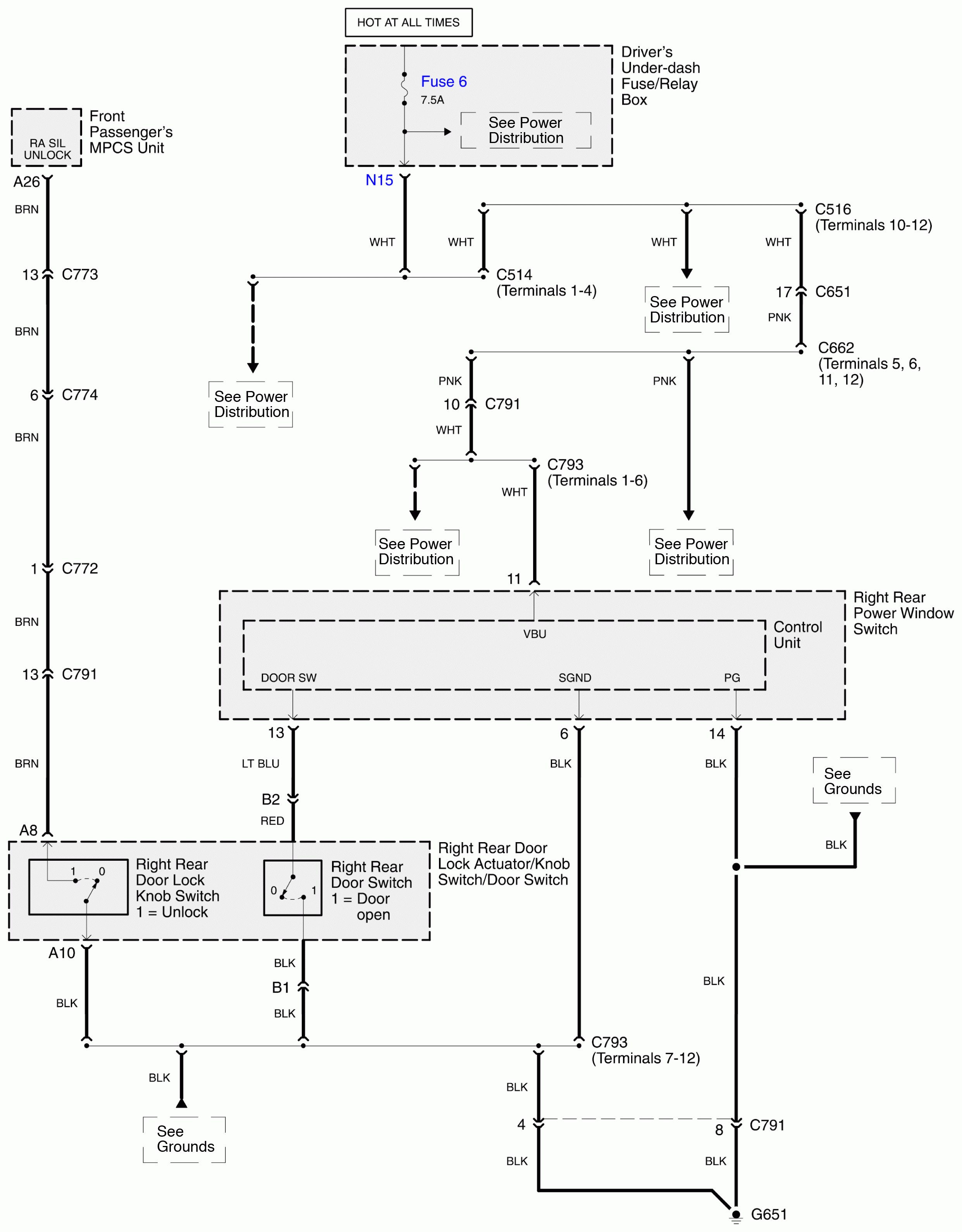

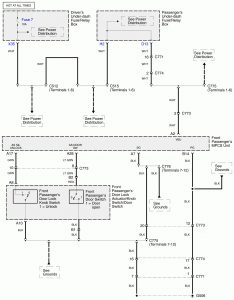

Acura RL - wiring diagram - power locks (part 5)
Acura RL – wiring diagram – power locks (part 5)

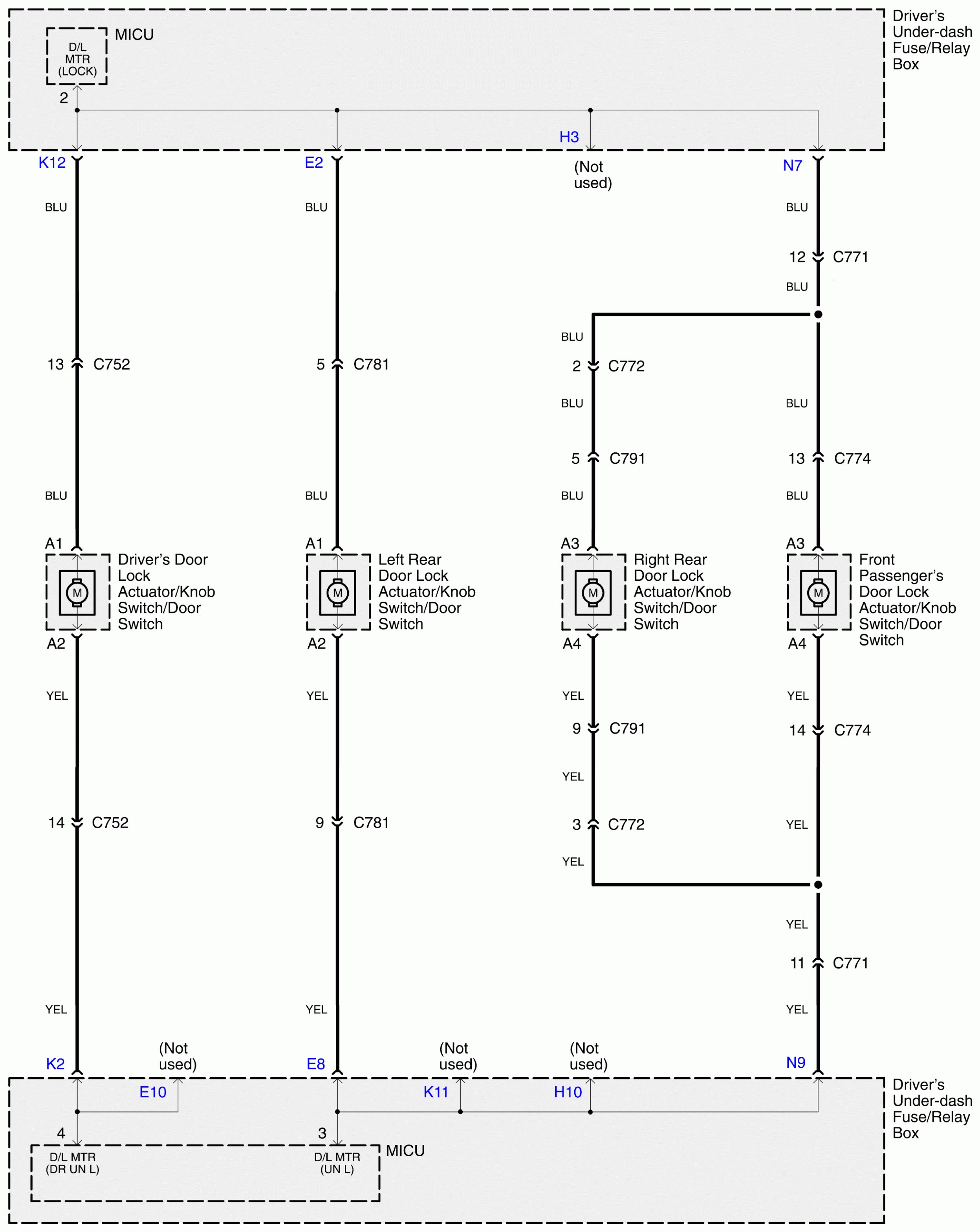

Acura RL - wiring diagram - power locks (part 6)
Acura RL – wiring diagram – power locks (part 6)

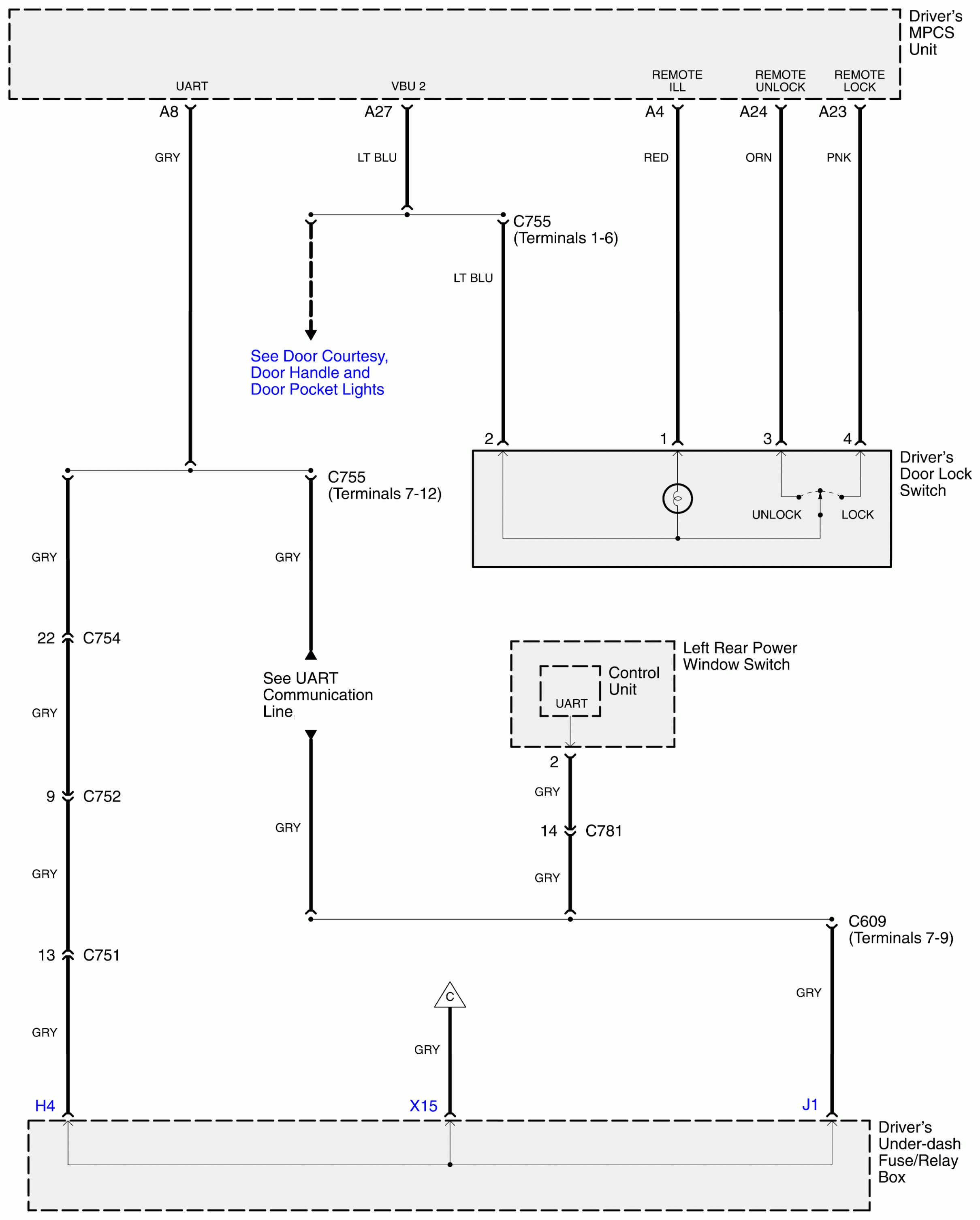

Acura RL - wiring diagram - power locks (part 7)
Acura RL – wiring diagram – power locks (part 7)

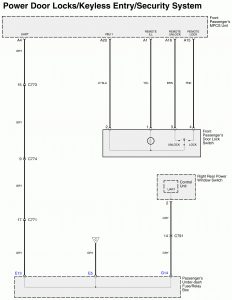

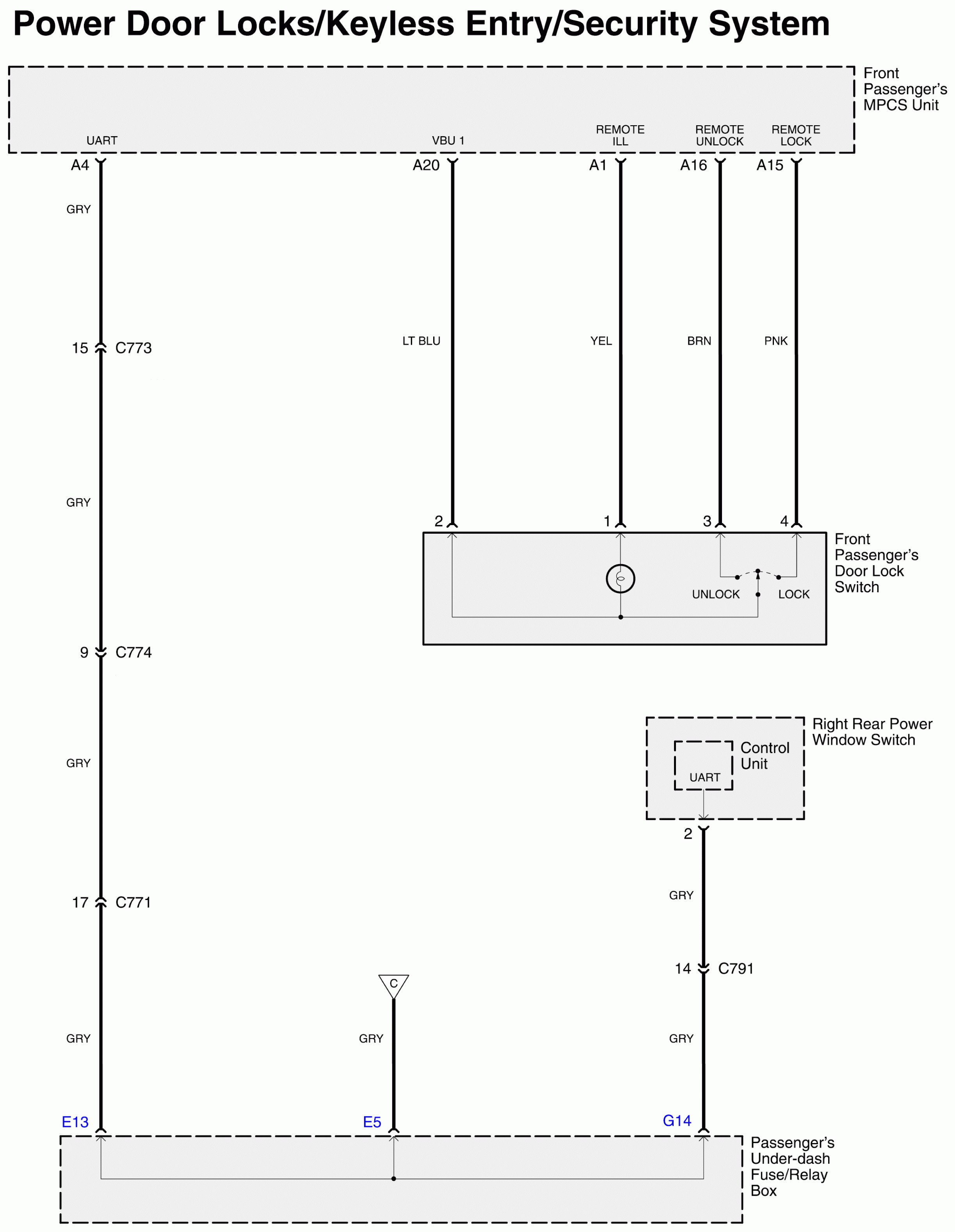

Acura RL - wiring diagram - power locks (part 8)
Acura RL – wiring diagram – power locks (part 8)

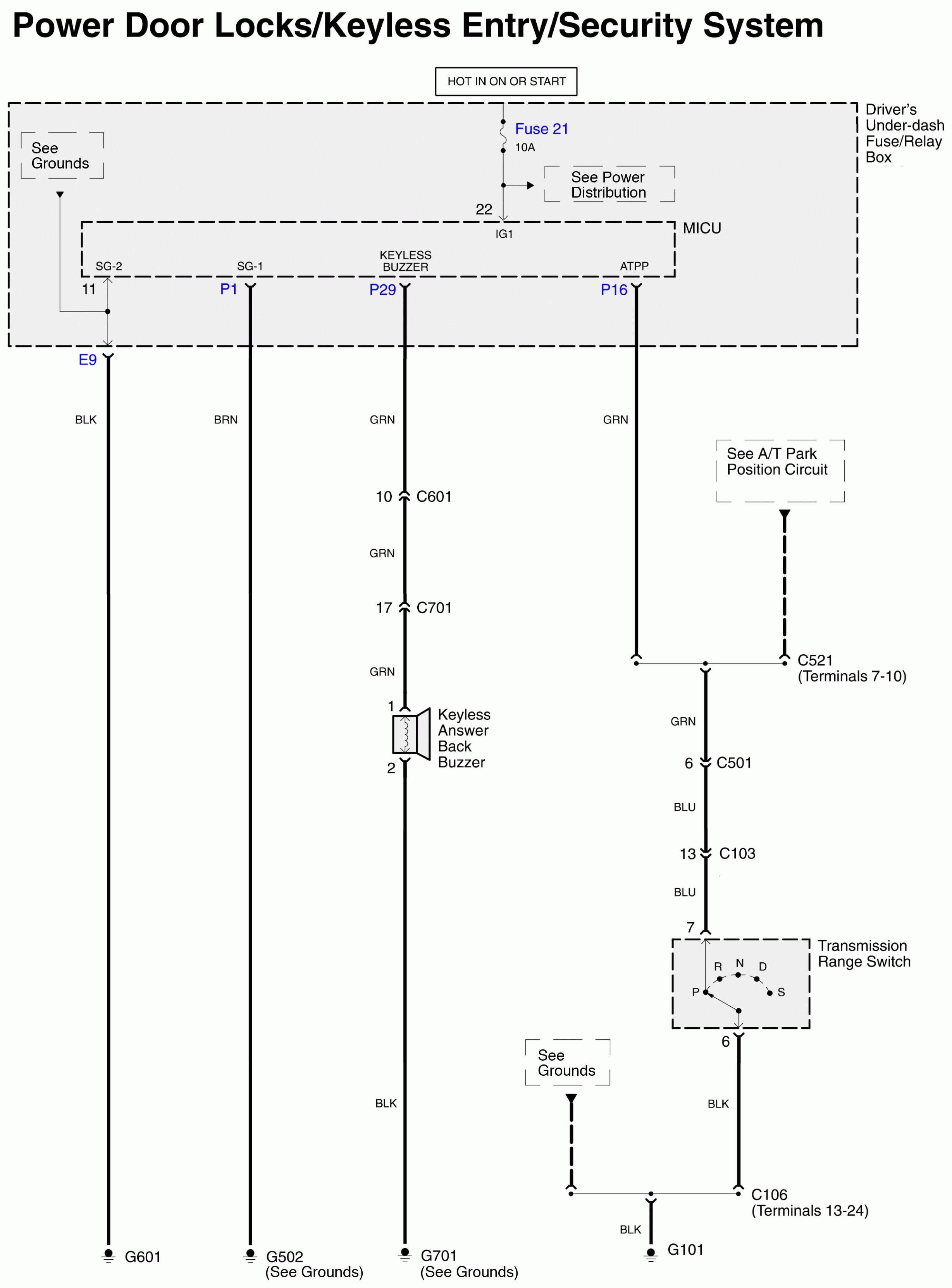

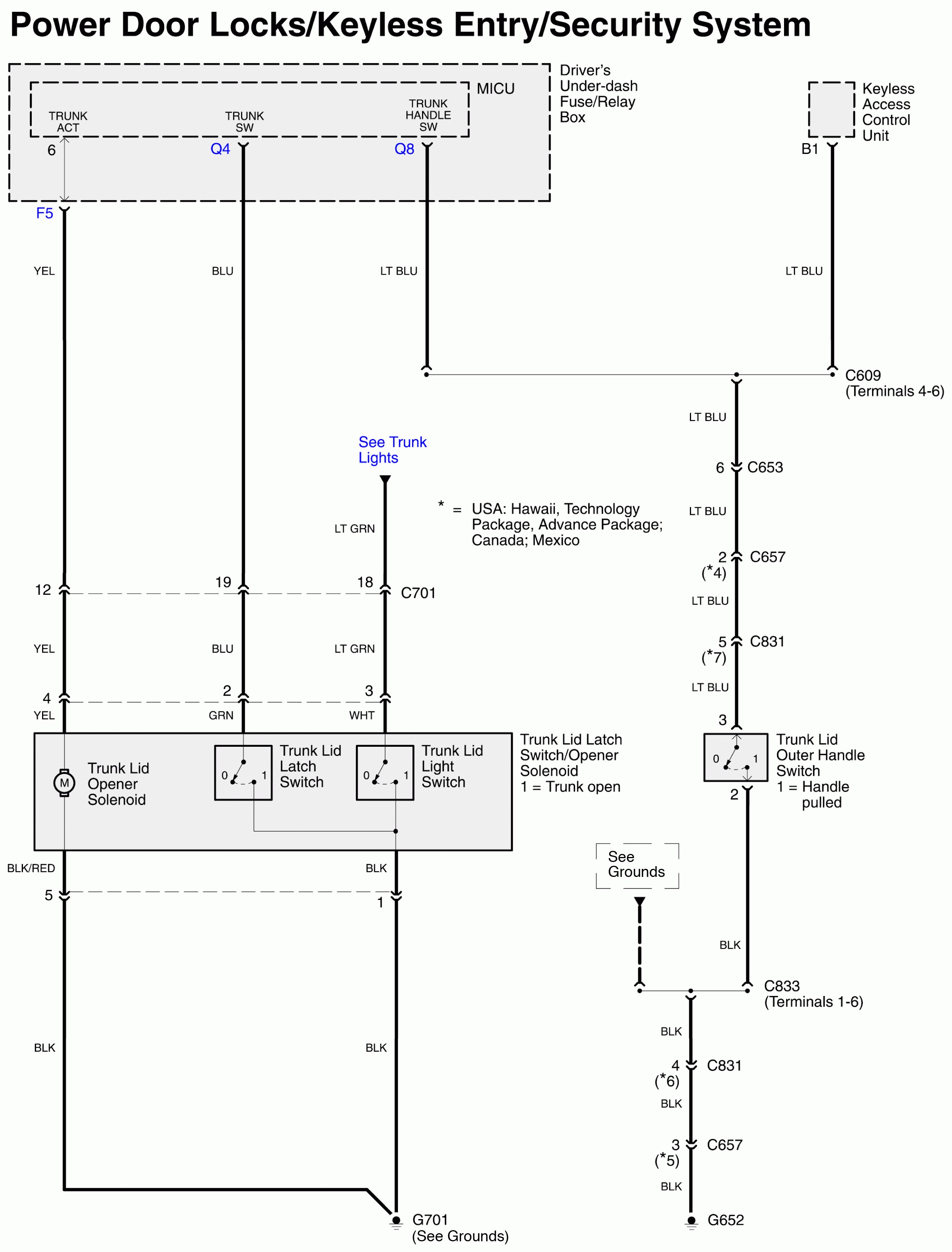

Acura RL - wiring diagram - power locks (part 9)
Acura RL – wiring diagram – power locks (part 9)
Acura RL - wiring diagram - power locks (part 10)
Acura RL – wiring diagram – power locks (part 10)
Acura RL - wiring diagram - power locks (part 11)
Acura RL – wiring diagram – power locks (part 11)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
