Acura RL (2011) – wiring diagrams – rear view monitor

Acura RL (2011) – wiring diagrams – rear view monitor

Year of productions:  2011

Rear view monitor

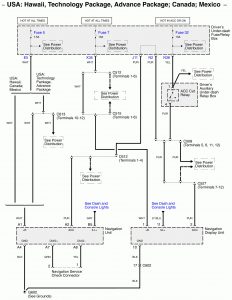

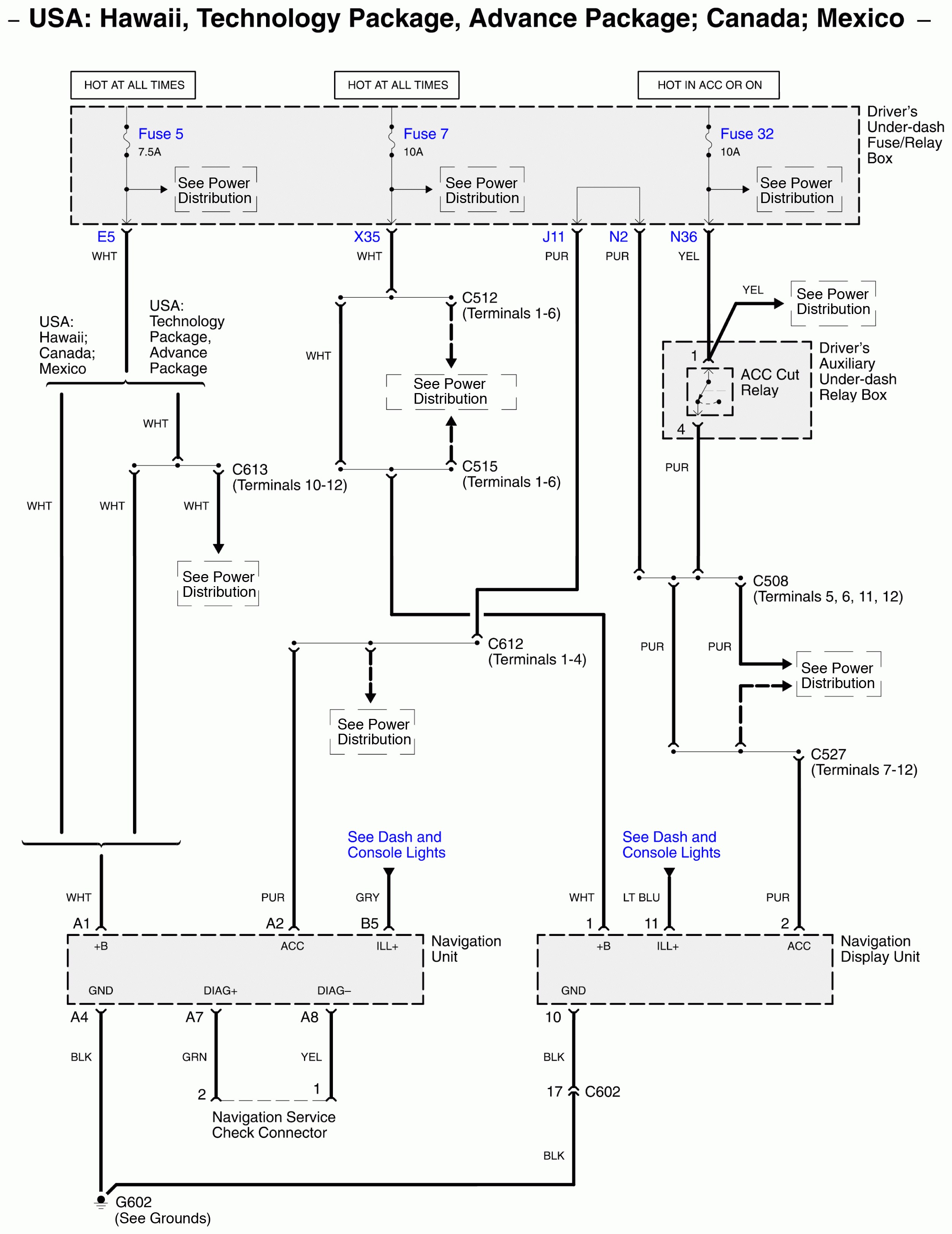

Acura RL - wiring diagram - rear view monitor (part 1)
Acura RL – wiring diagram – rear view monitor (part 1)

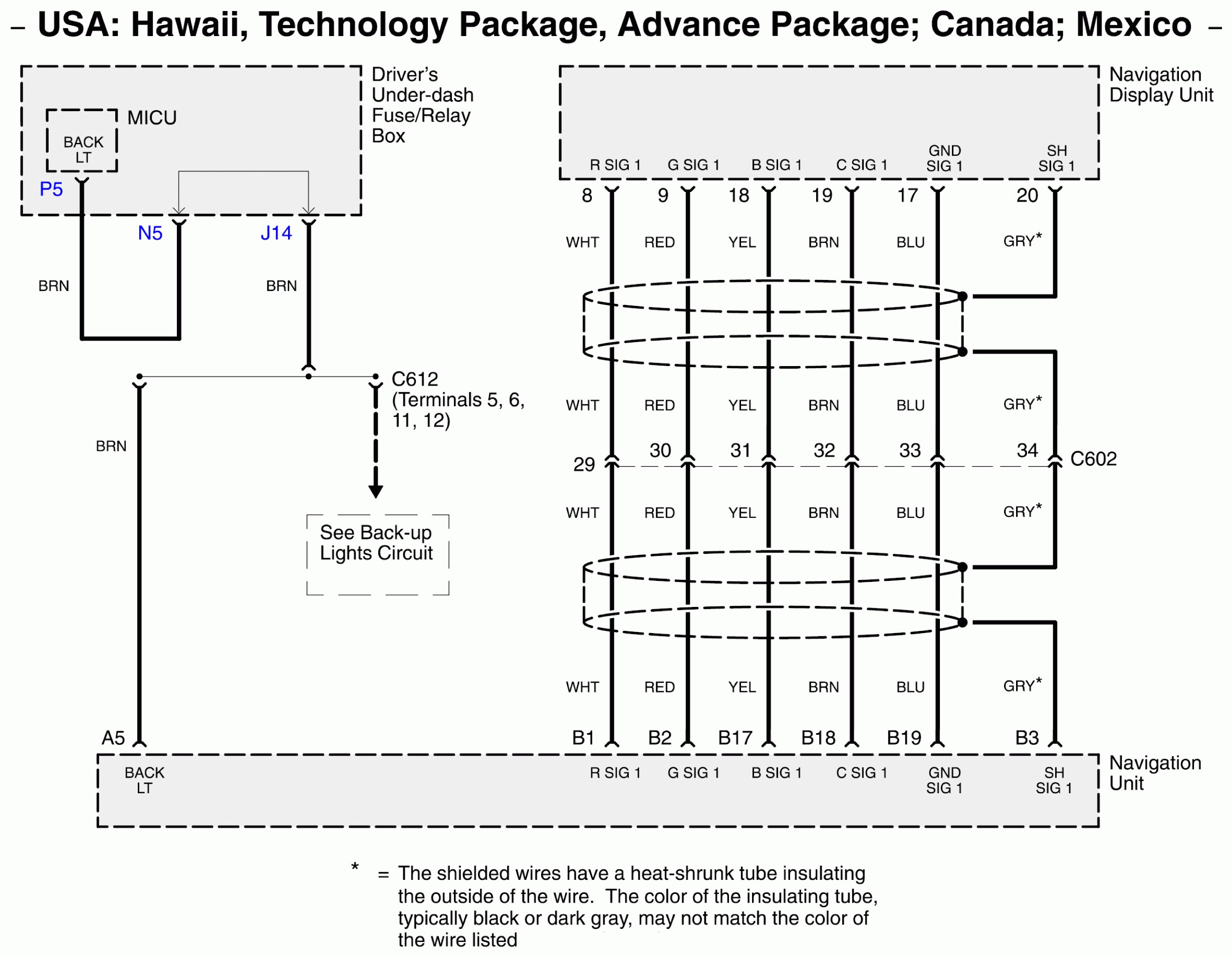

Acura RL - wiring diagram - rear view monitor (part 2)
Acura RL – wiring diagram – rear view monitor (part 2)

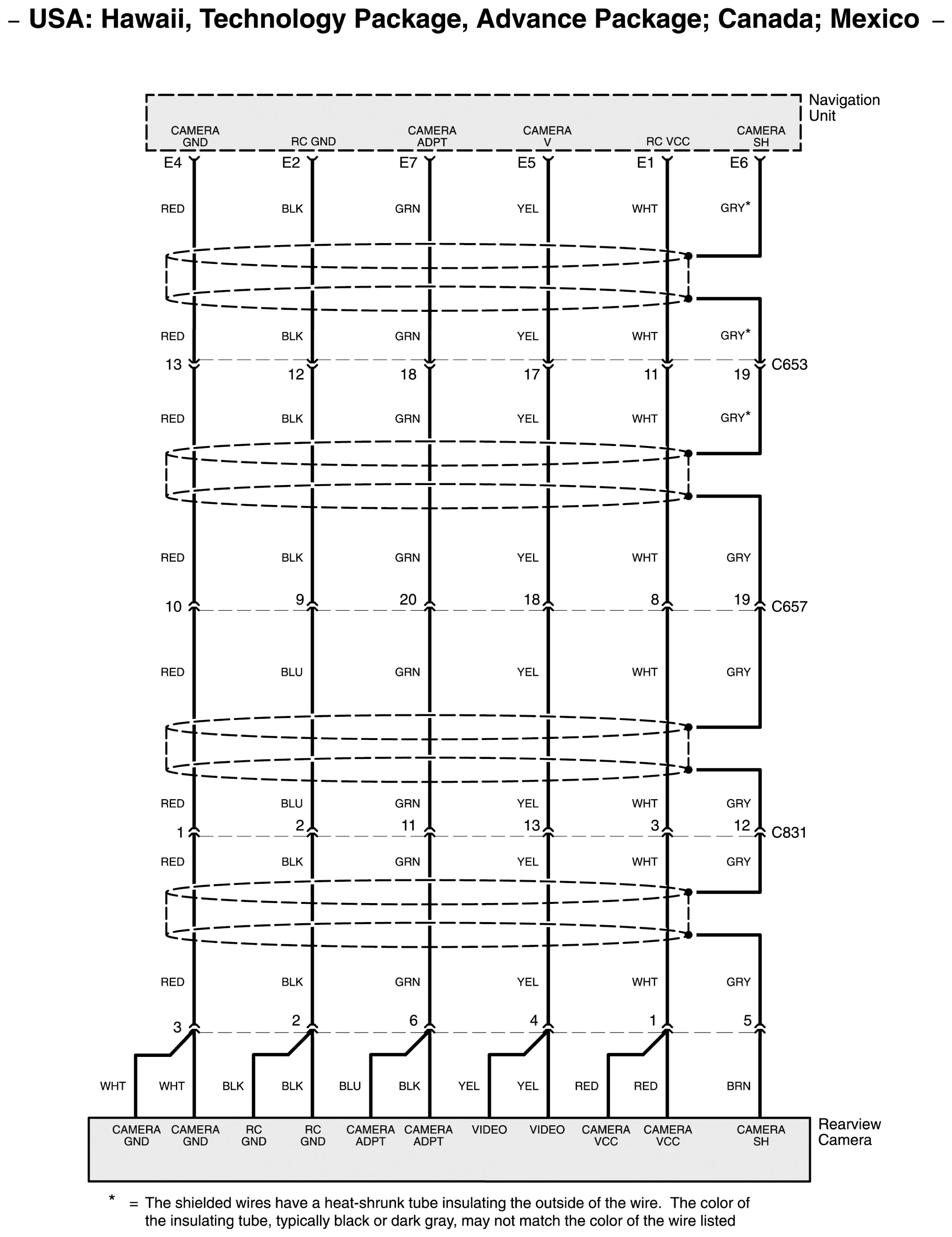

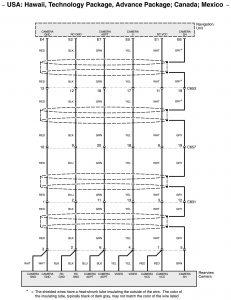

Acura RL - wiring diagram - rear view monitor (part 3)
Acura RL – wiring diagram – rear view monitor (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
