Year of productions:  1996

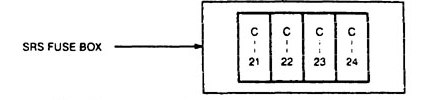

SRS fuse box

Acura SLX - wiring diagram - SRS fuse box
Acura SLX – wiring diagram – SRS fuse box

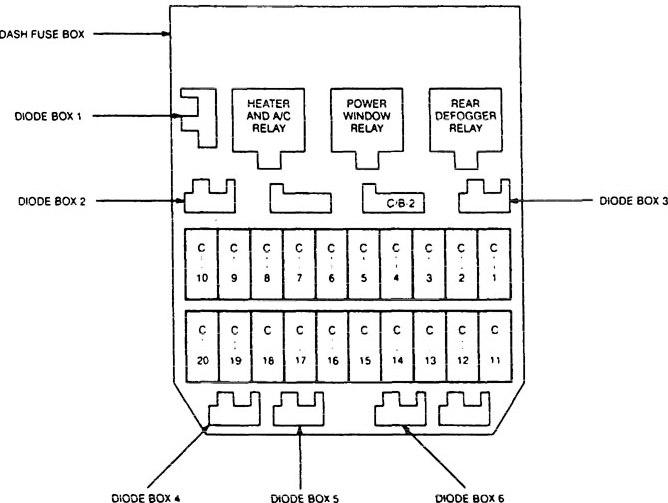

Dashboard fuse box

Acura SLX - wiring diagram - fuse box - dashboard
Acura SLX – wiring diagram – fuse box – dashboard

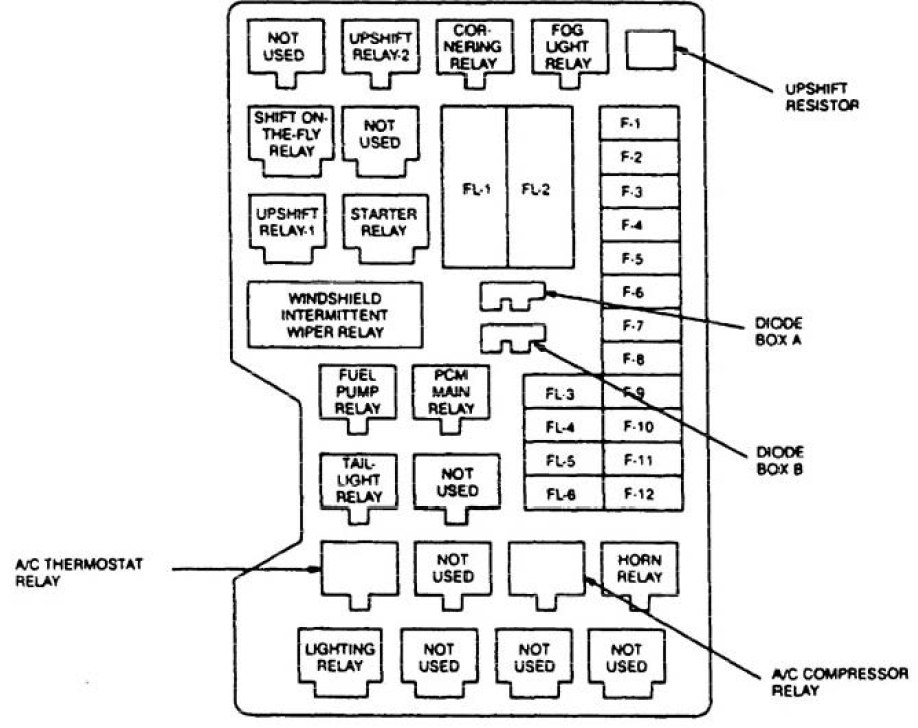

Fuse box

Acura SLX - wiring diagram - fuse box
Acura SLX – wiring diagram – fuse box
Fuse number Fuse name Ampere rating [A] Circuit protected
F-1 Not used
F-2 02 SENSOR HEATER 20 Engine control
F-3 HORN HAZARD 15 Homs; Hazard light
F-4 H/LAMP-LH 15 Headlights and fog lights
F-5 H/LAMP-RH 15 Headlights
F-6 Not used
F-7 Not used
F-8 (FRT. FOG) 15 Fog lights
F-9 ABS 20 Rear wheel anti-lock (RWAL) brake system 0r anti-lock brake system (ABS)
F-10 FUEL PUMP 15 Engine control
F-11 Not used
F-12 TAIL 15 Taillights



Fusible Link Number Fusible Link Name Ampere rating [A] Circuit protected
FL-1 MAIN 80 See Power Distribution
FL-2 KEY SW 50 See Power Distribution
FL-3 ECM 30 Engine control
FL-4 Not used
FL-5 Not used
FL-6 (ABS 4/WHEEL ONLY) 40 Anti-lock brake system (ABS)

Wiring diagram

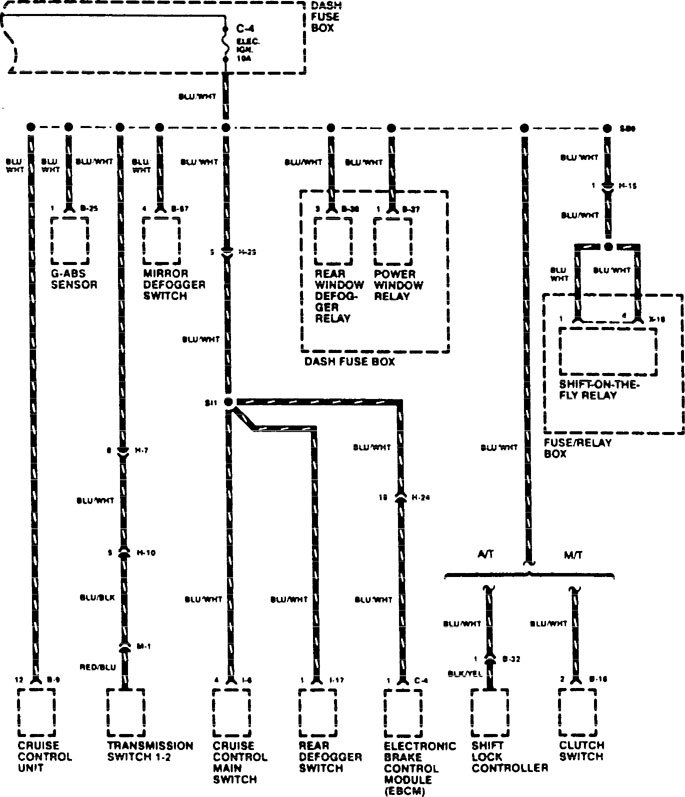

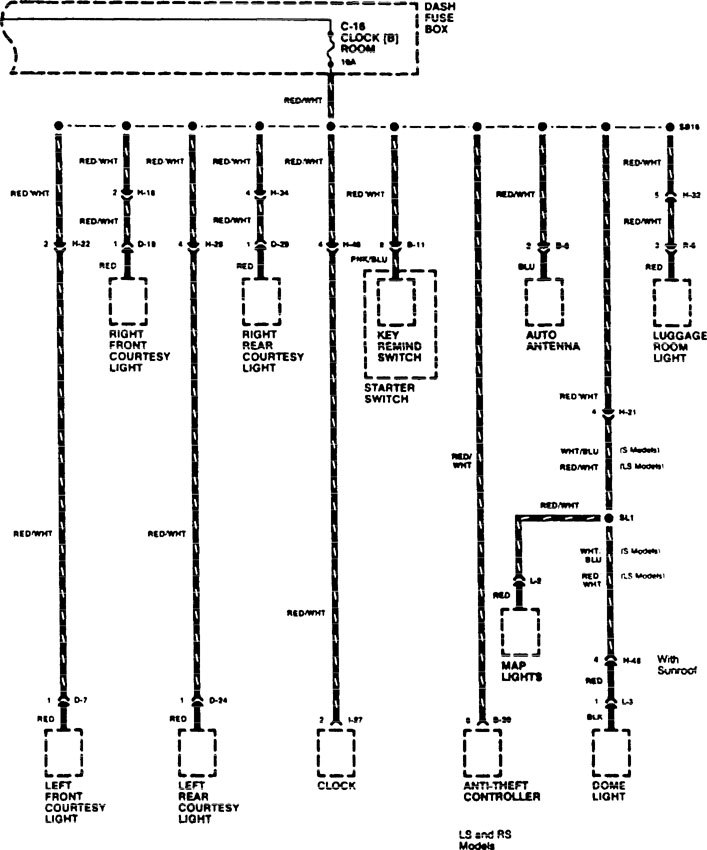

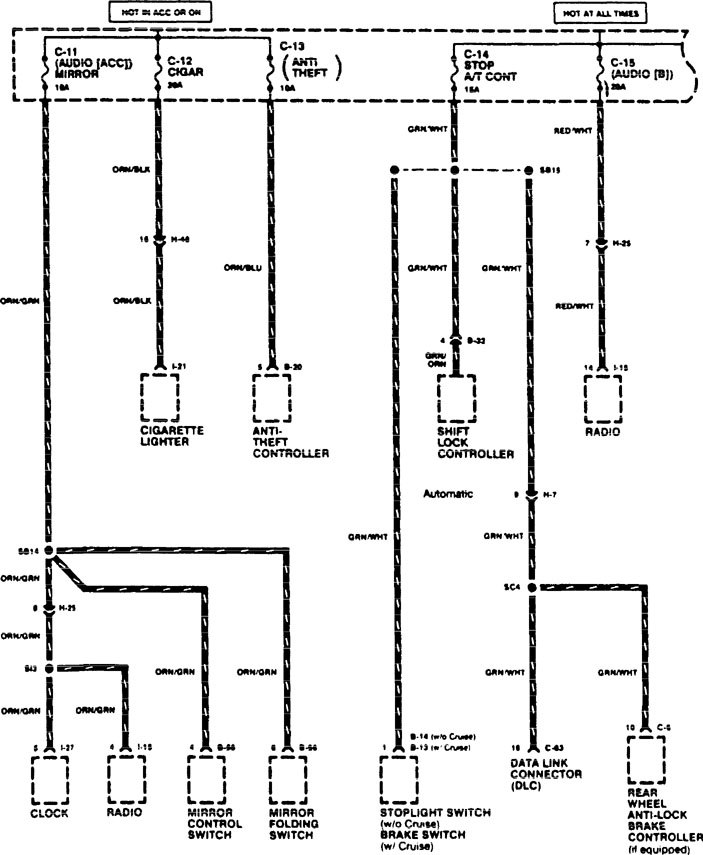

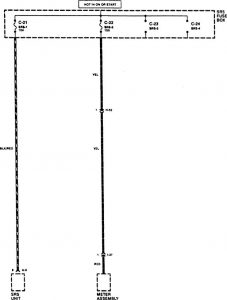

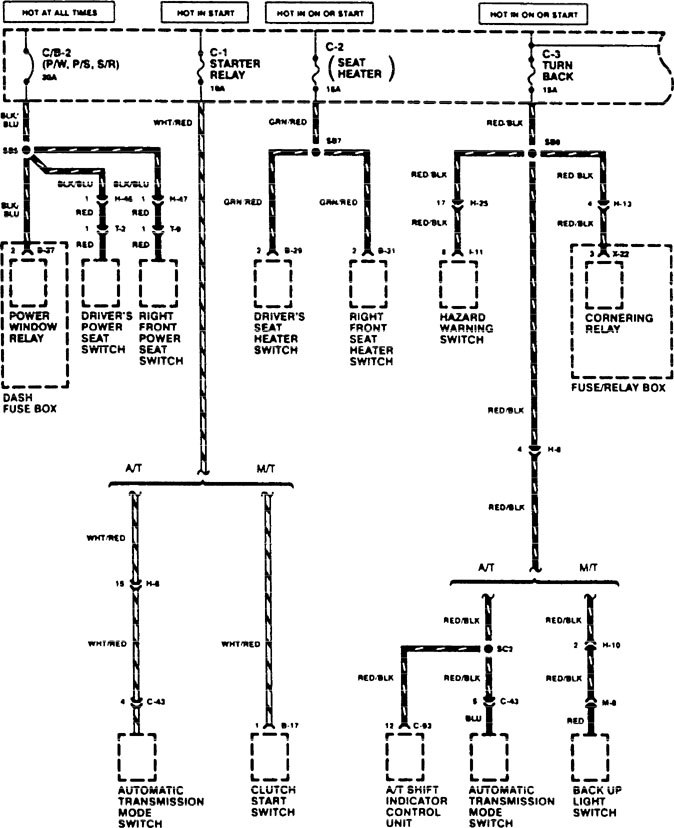

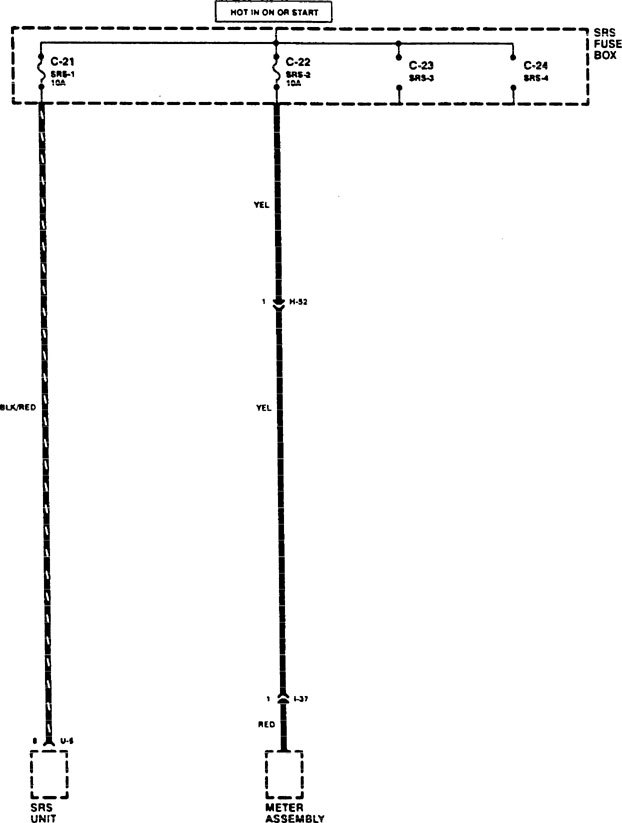

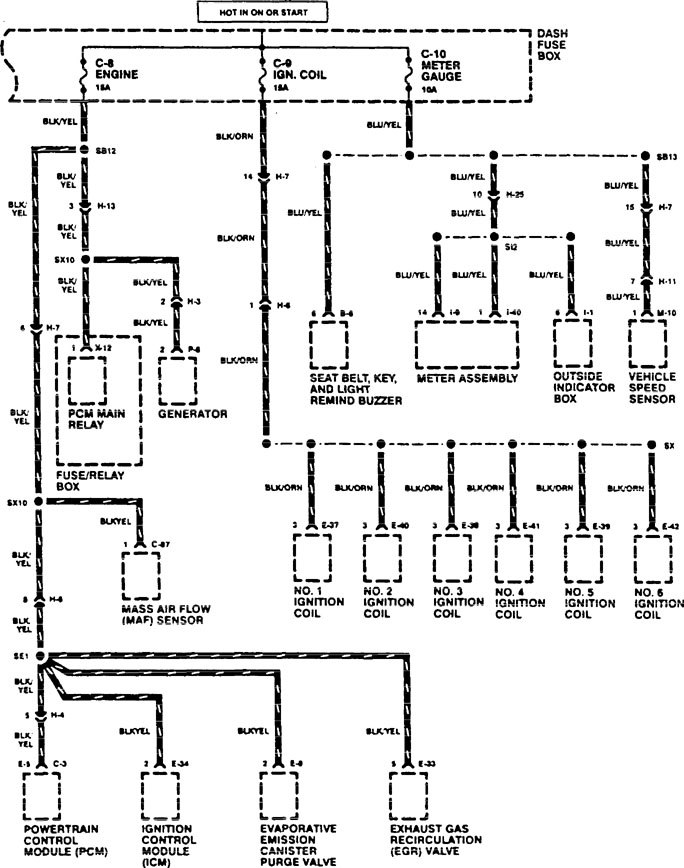

Acura SLX - wiring diagram - fuse box (part 1)
Acura SLX – wiring diagram – fuse box (part 1)
Acura SLX - wiring diagram - fuse box (part 2)
Acura SLX – wiring diagram – fuse box (part 2)

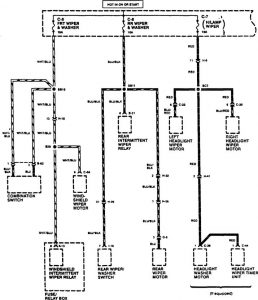

Acura SLX - wiring diagram - fuse box (part 3)
Acura SLX – wiring diagram – fuse box (part 3)
Acura SLX - wiring diagram - fuse box (part 4)
Acura SLX – wiring diagram – fuse box (part 4)
Acura SLX - wiring diagram - fuse box (part 5)
Acura SLX – wiring diagram – fuse box (part 5)
Acura SLX - wiring diagram - fuse box (part 6)
Acura SLX – wiring diagram – fuse box (part 6)

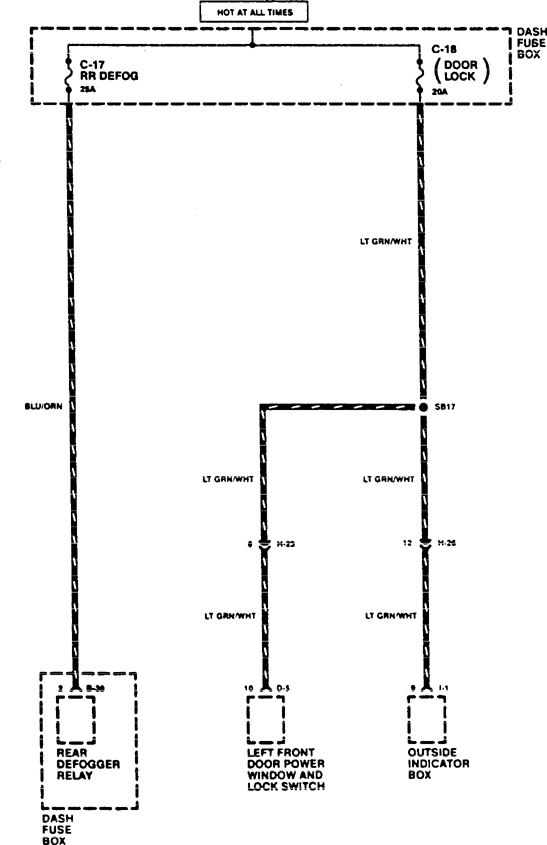

Acura SLX - wiring diagram - fuse box (part 7)
Acura SLX – wiring diagram – fuse box (part 7)
Acura SLX - wiring diagram - fuse box (part 8)
Acura SLX – wiring diagram – fuse box (part 8)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
