Acura SLX (1996) – wiring diagrams – security/anti-theft

Year of productions:  1996

Security/anti-theft

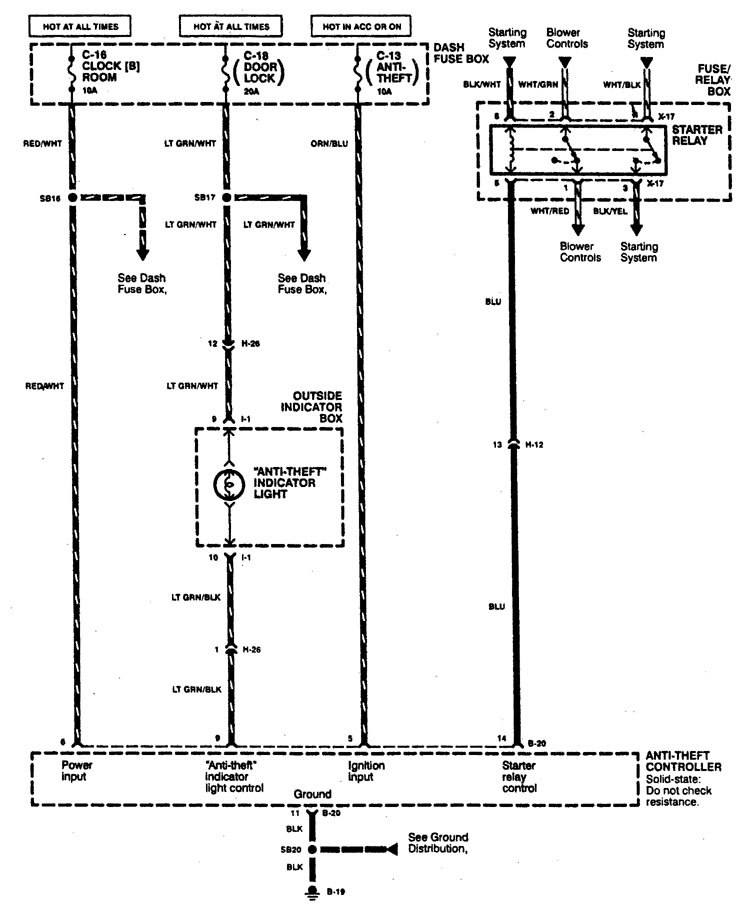

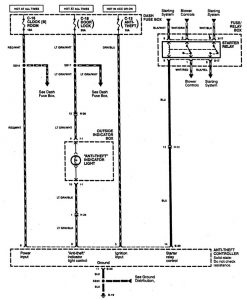

Acura SLX - wiring diagram - security/anti-theft (part 1)
Acura SLX – wiring diagram – security/anti-theft (part 1)

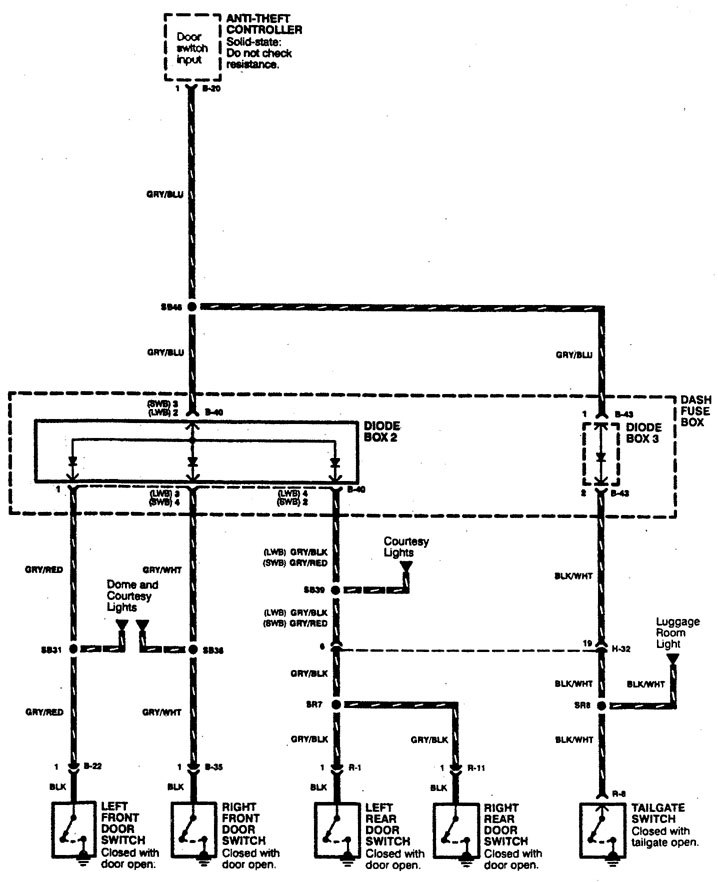

Acura SLX - wiring diagram - security/anti-theft (part 2)
Acura SLX – wiring diagram – security/anti-theft (part 2)

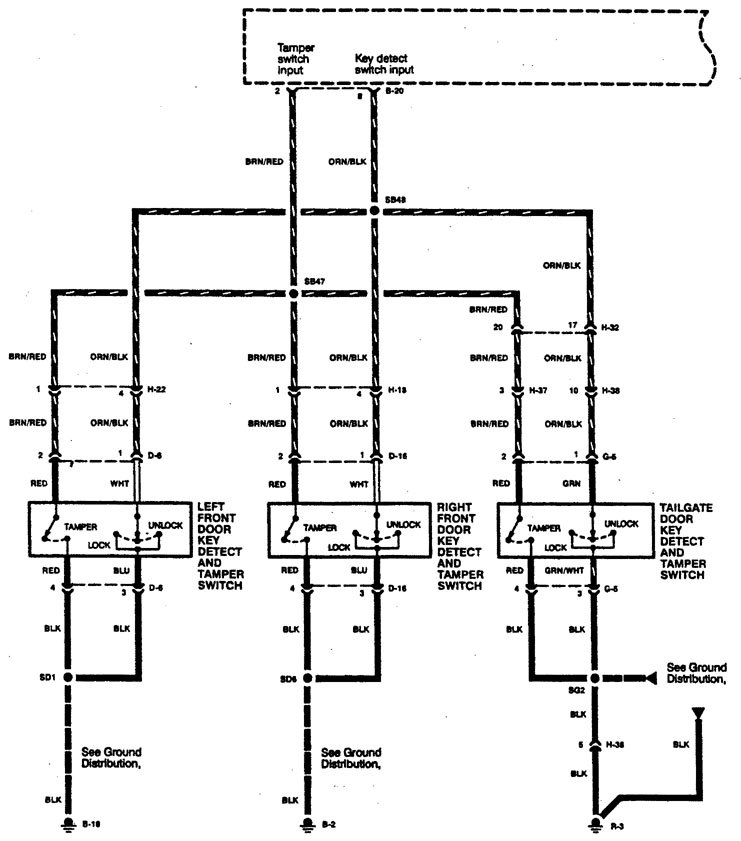

Acura SLX - wiring diagram - security/anti-theft (part 3)
Acura SLX – wiring diagram – security/anti-theft (part 3)

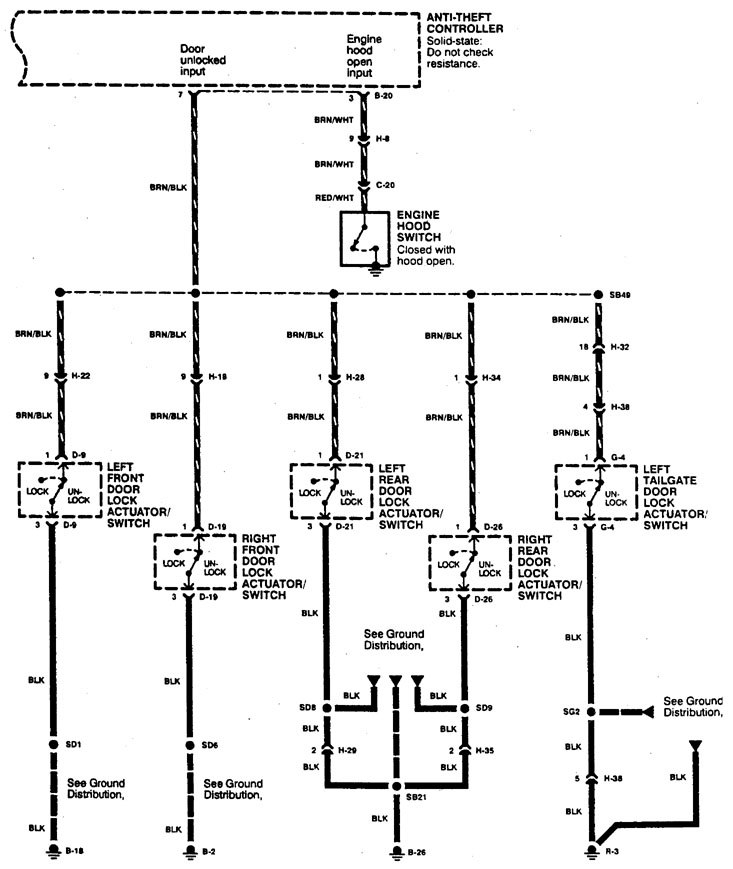

Acura SLX - wiring diagram - security/anti-theft (part 4)
Acura SLX – wiring diagram – security/anti-theft (part 4)

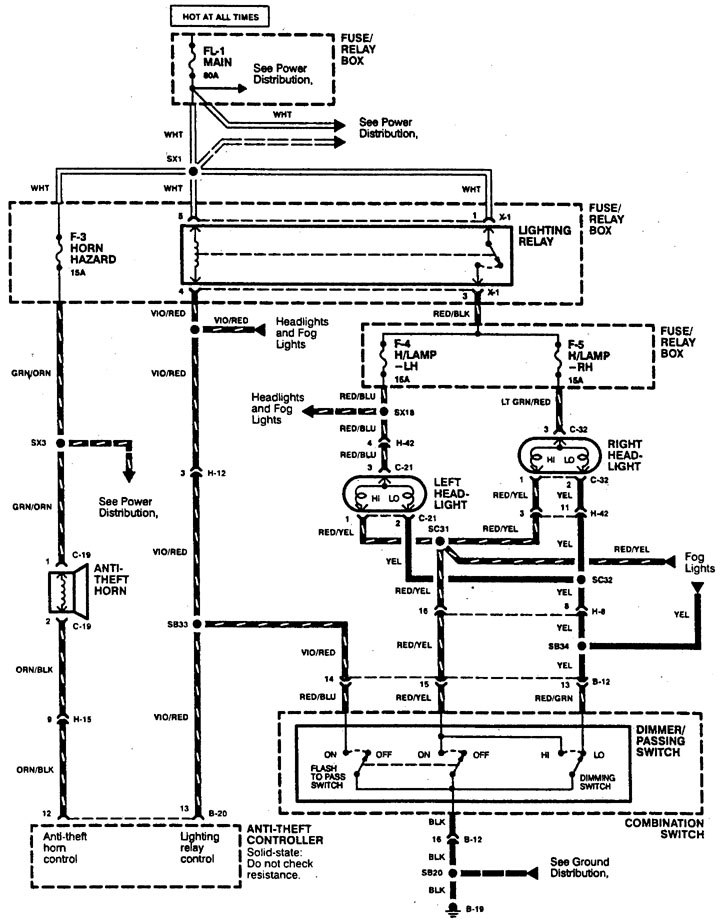

Acura SLX - wiring diagram - security/anti-theft (part 5)
Acura SLX – wiring diagram – security/anti-theft (part 5)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
