Acura SLX (1996) – wiring diagrams – starting

Acura SLX (1996) – wiring diagrams – starting

Year of productions:  1996

Starting

Version 1

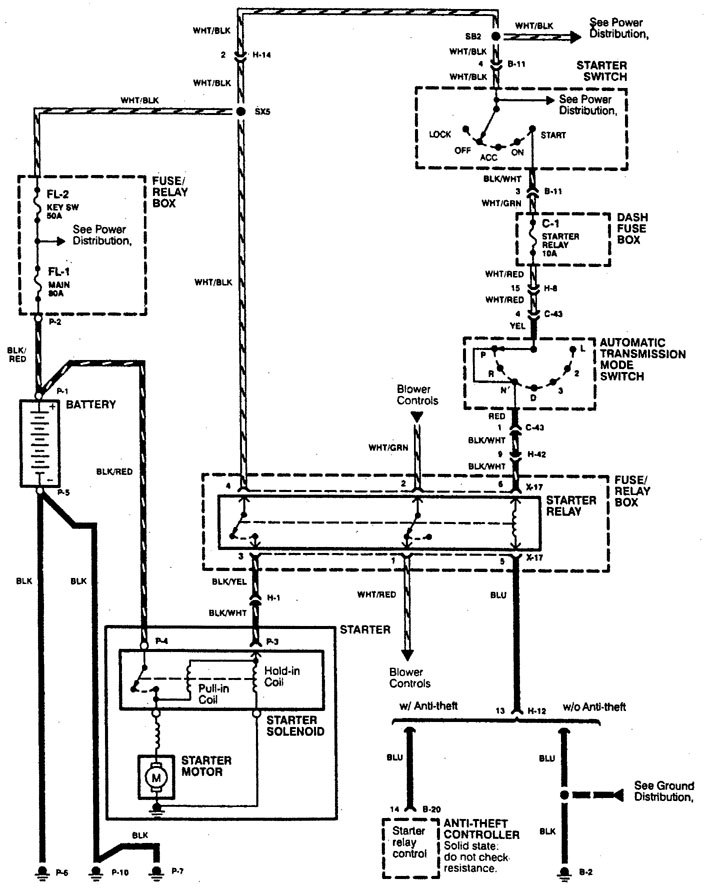

Acura SLX - wiring diagram - starting
Acura SLX – wiring diagram – starting

Version 2

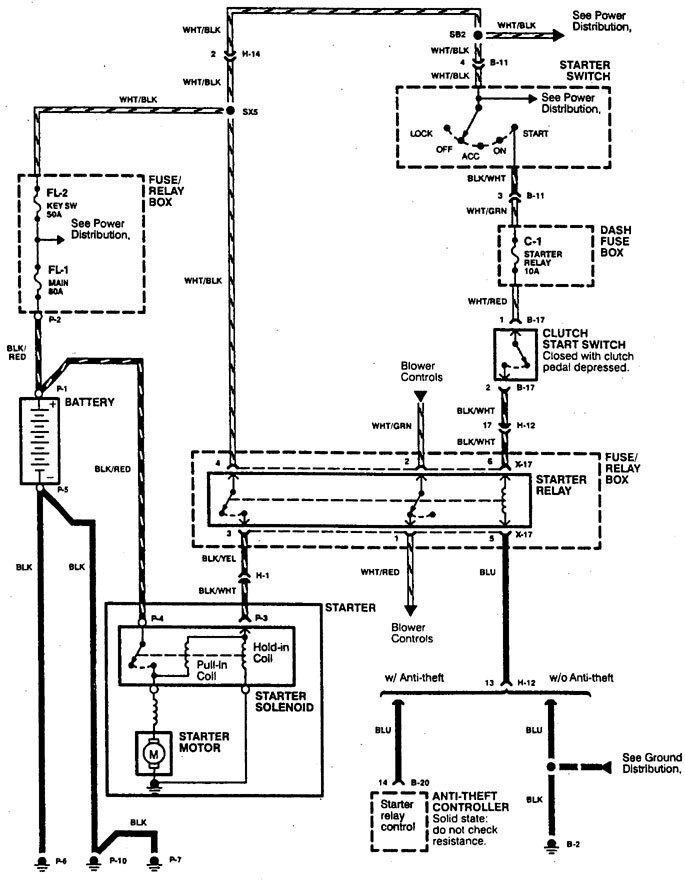

Acura SLX - wiring diagram - starting
Acura SLX – wiring diagram – starting

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
