Acura SLX (1996) – wiring diagrams – wiper/washer

Acura SLX (1996) – wiring diagrams – wiper/washer

Year of productions:  1996

Wiper/washer

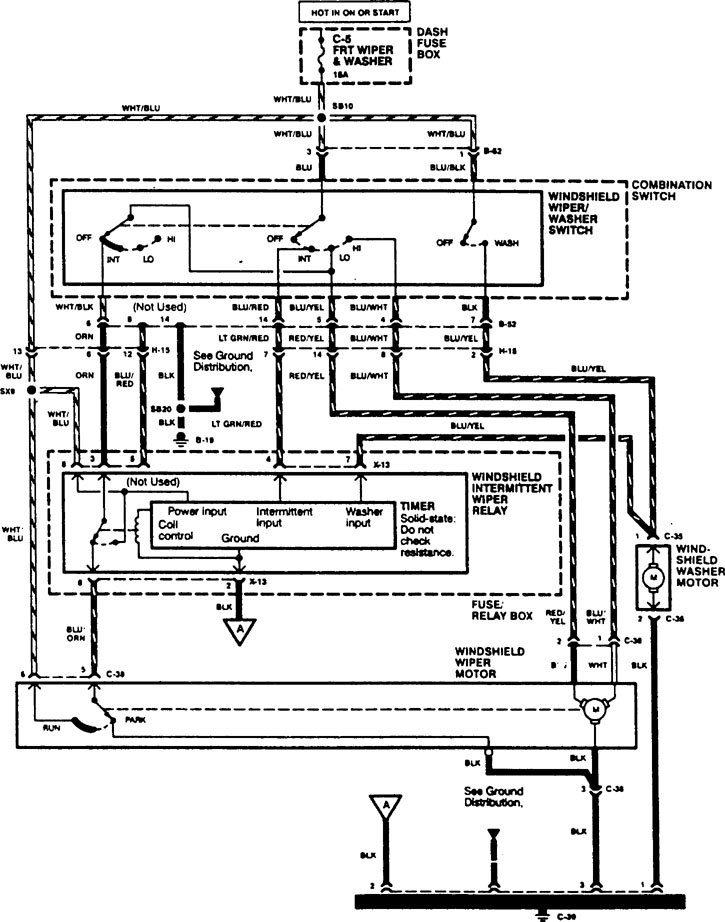

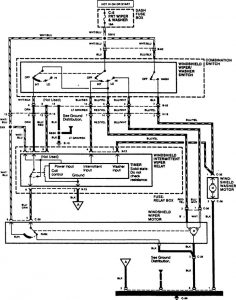

Version 1

Acura SLX - wiring diagram - wiper/washer
Acura SLX – wiring diagram – wiper/washer

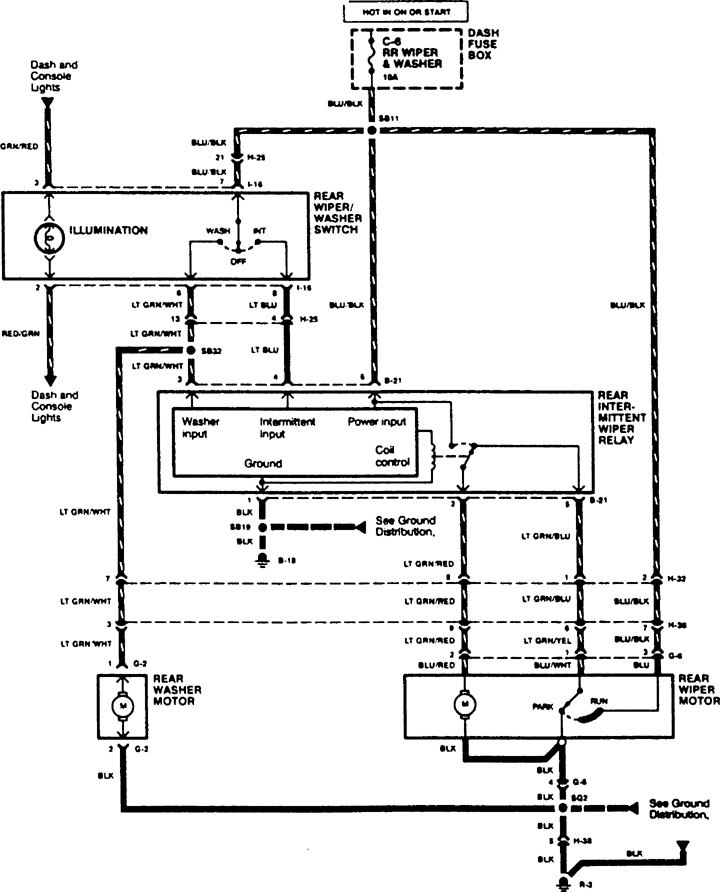

Version 2

Acura SLX - wiring diagram - wiper/washer
Acura SLX – wiring diagram – wiper/washer

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
