Acura SLX (1997) – wiring diagrams – headlamps

Acura SLX (1997) – wiring diagrams – headlamps

Year of productions:  1997

Headlamps

Version 1

Acura SLX - wiring diagram - headlamps
Acura SLX – wiring diagram – headlamps

Version 2

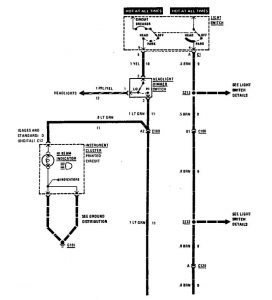

Acura SLX - wiring diagram - headlamps (part 1)
Acura SLX – wiring diagram – headlamps (part 1)
Acura SLX - wiring diagram - headlamps (part 2)
Acura SLX – wiring diagram – headlamps (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
