Acura TL (1995 – 1997) – wiring diagrams – instrumentation

Acura TL (1995 – 1997) – wiring diagrams – instrumentation

Year of productions:  1995, 1996, 1997

Instrumentation

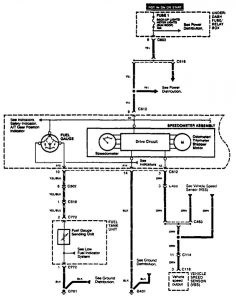

Acura TL – wiring diagram – instrumentation (part 1)

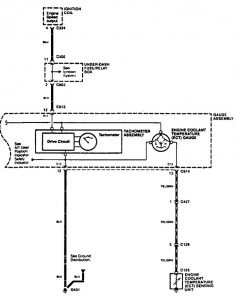

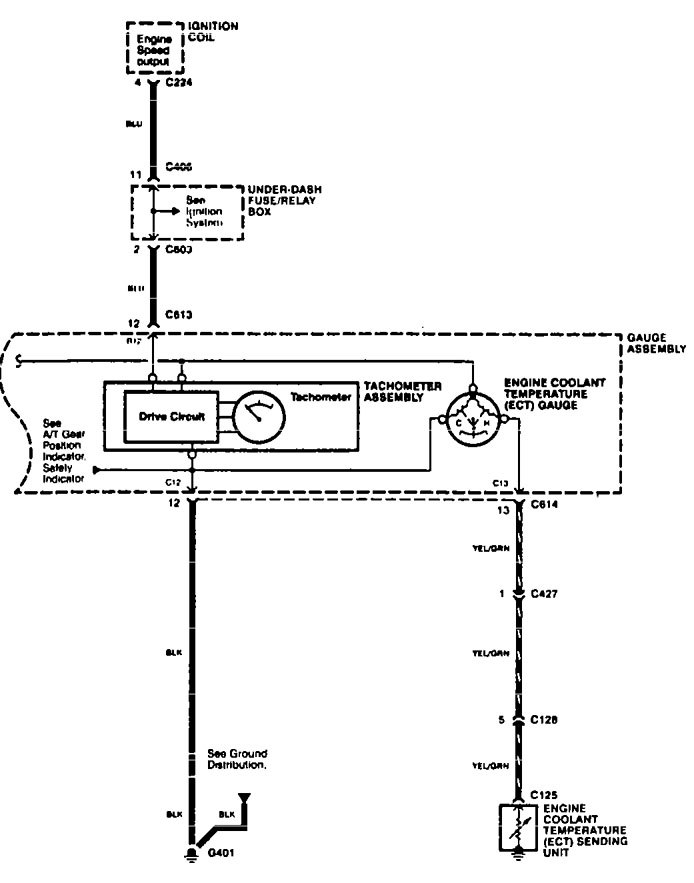

Acura TL – wiring diagram – instrumentation (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
