Acura TL (1995) – wiring diagrams – security/anti-theft

17 May 2017 admin Acura, TL 0

Acura TL (1995) – wiring diagrams – security/anti-theft

Year of productions:  1995

Security/anti-theft

Version 1

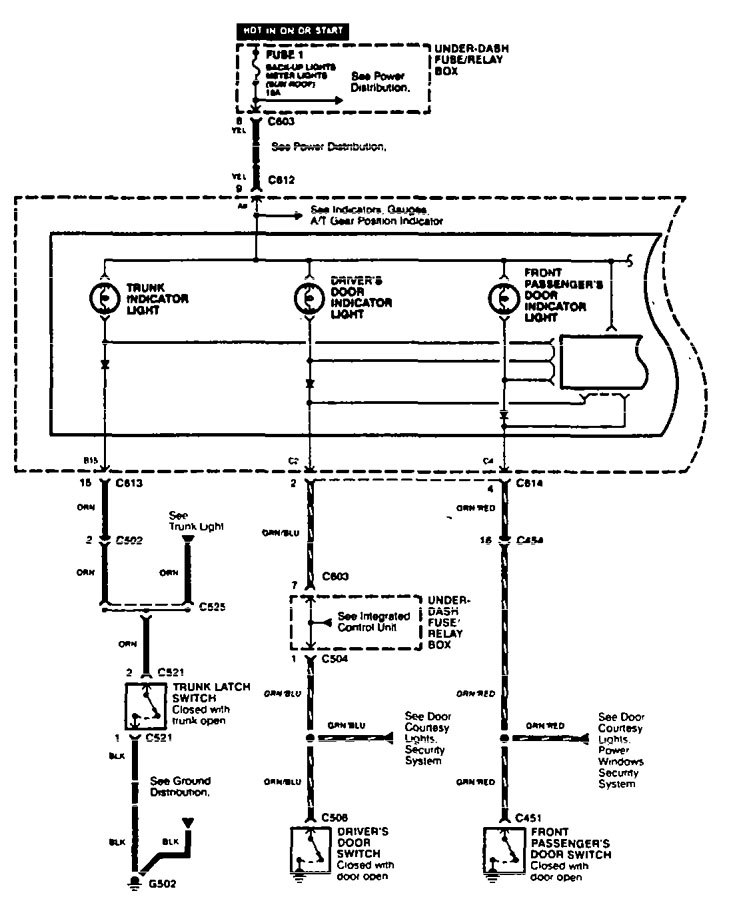

Acura TL – wiring diagram – security/anti-theft (part 1)

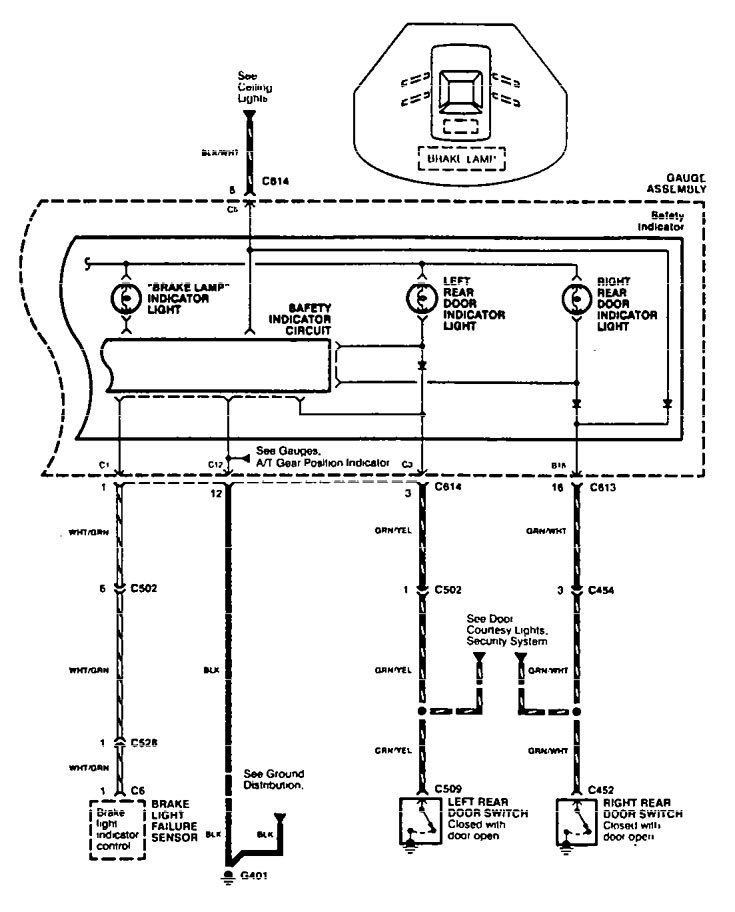

Acura TL – wiring diagram – security/anti-theft (part 2)

Version 2

Acura TL – wiring diagram – security/anti-theft (part 1)
Acura TL – wiring diagram – security/anti-theft (part 2)
Acura TL – wiring diagram – security/anti-theft (part 3)
Acura TL – wiring diagram – security/anti-theft (part 4)
Acura TL – wiring diagram – security/anti-theft (part 5)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
