Acura TL (1996 – 1997) – wiring diagrams – ignition

Acura TL (1996 – 1997) – wiring diagrams – ignition

Year of productions:  1996, 1997

Ignition

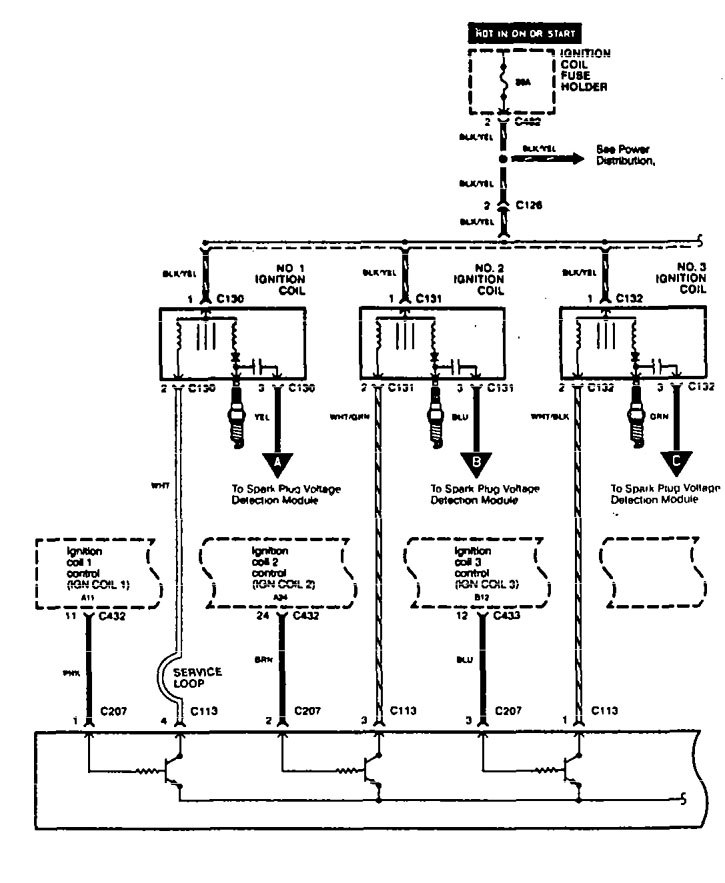

Acura TL – wiring diagram – ignition (part 1)

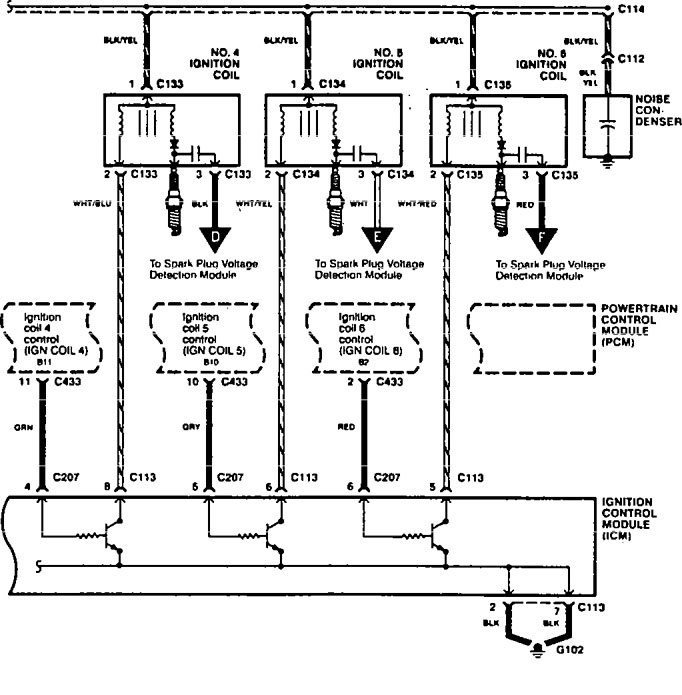

Acura TL – wiring diagram – ignition (part 2)

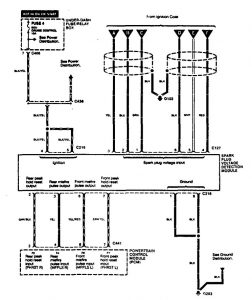

Acura TL – wiring diagram – ignition (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
