Acura TL (1996 – 1997) – wiring diagrams – luggage compartment lamps
Year of productions: 1996, 1997

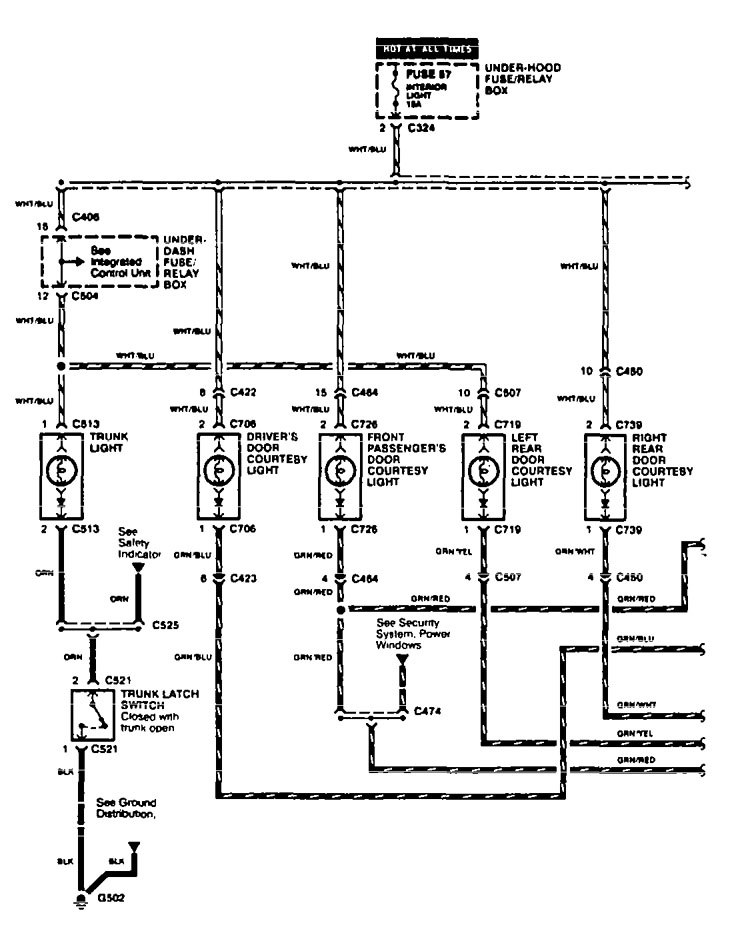

Luggage compartment lamps
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
