Acura TL (1997) – wiring diagrams – transaxle controls

23 May 2017 admin Acura, TL 0

Acura TL (1997) – wiring diagrams – transaxle controls

Year of productions:  1997

Transaxle controls

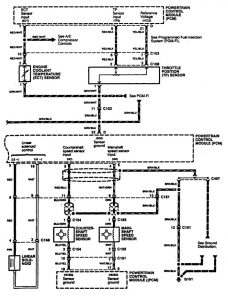

Acura TL – wiring diagram – transaxle controls (part 1)

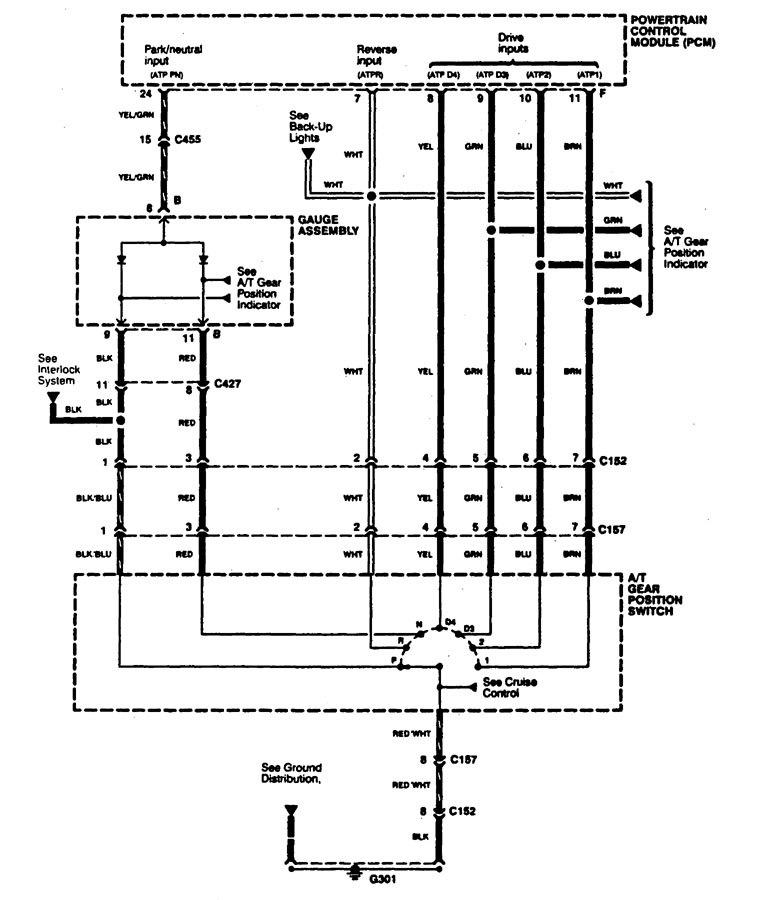

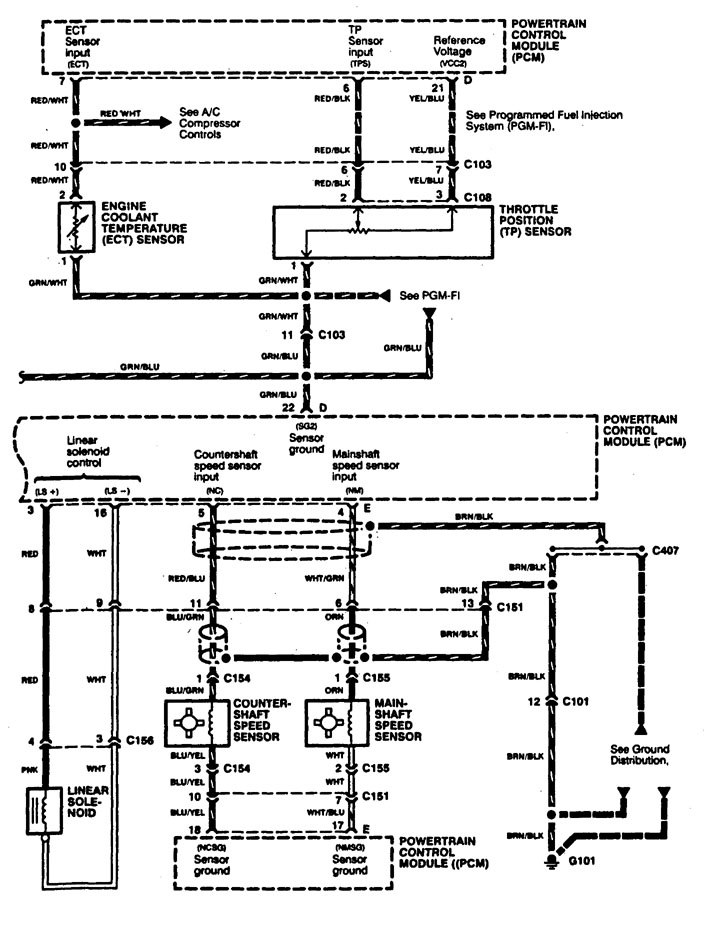

Acura TL – wiring diagram – transaxle controls (part 2)

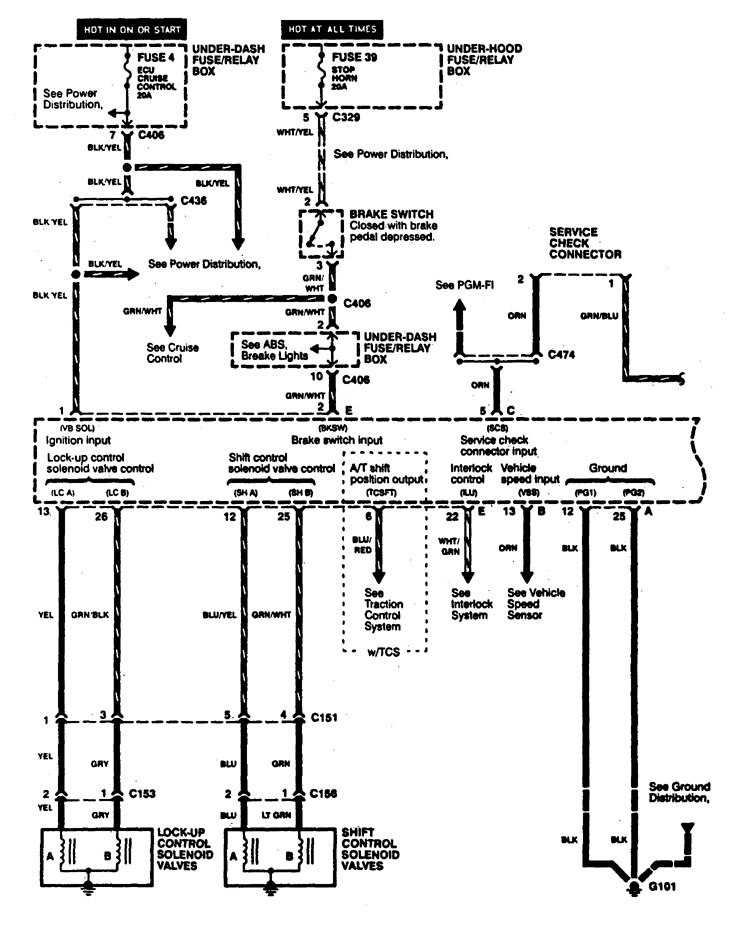

Acura TL – wiring diagram – transaxle controls (part 3)

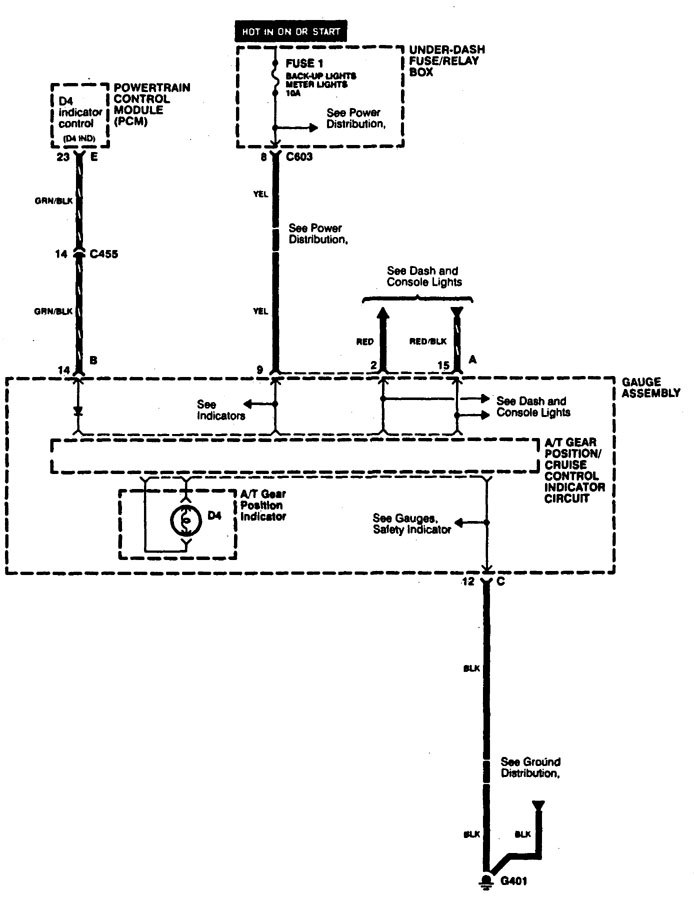

Acura TL – wiring diagram – transaxle controls (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
