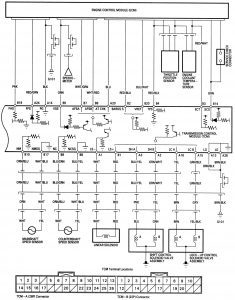

Acura TL (1998) – wiring diagrams – transaxle controls

Acura Vigor (1993) – wiring diagrams – shift interlock Year of productions:  1993 Shift interlock WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volvo C70 (1998 – 2000) – wiring diagrams – diagnostic module Year of productions:  1998, 1999, 2000 Diagnostic module   WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, […]

Buick Century (1986) – wiring diagrams – charging system Year of productions:  1986 Charging system WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
